Tests JB: Secondary Ignition

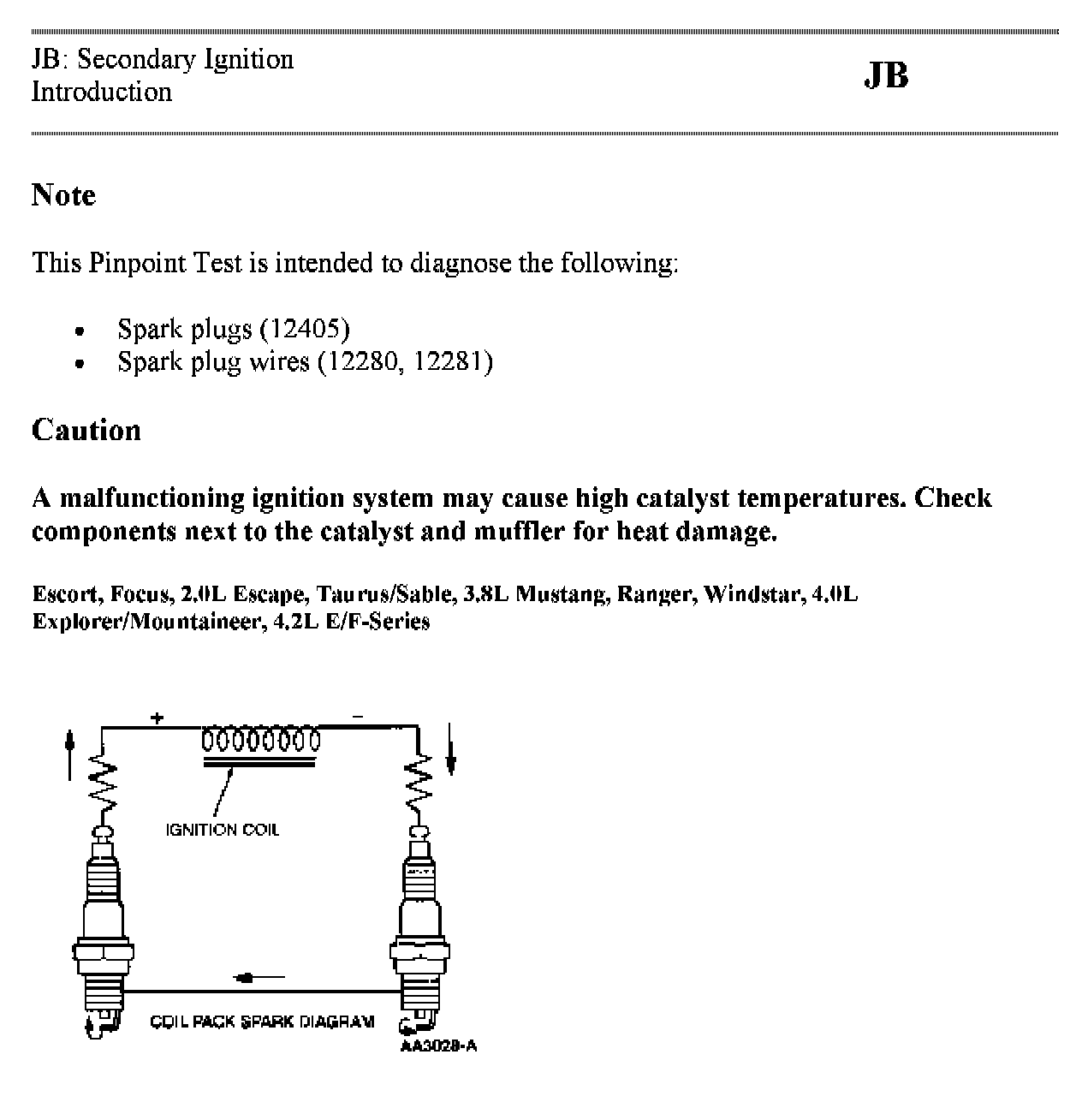

JB INTRODUCTION 1 OF 2:

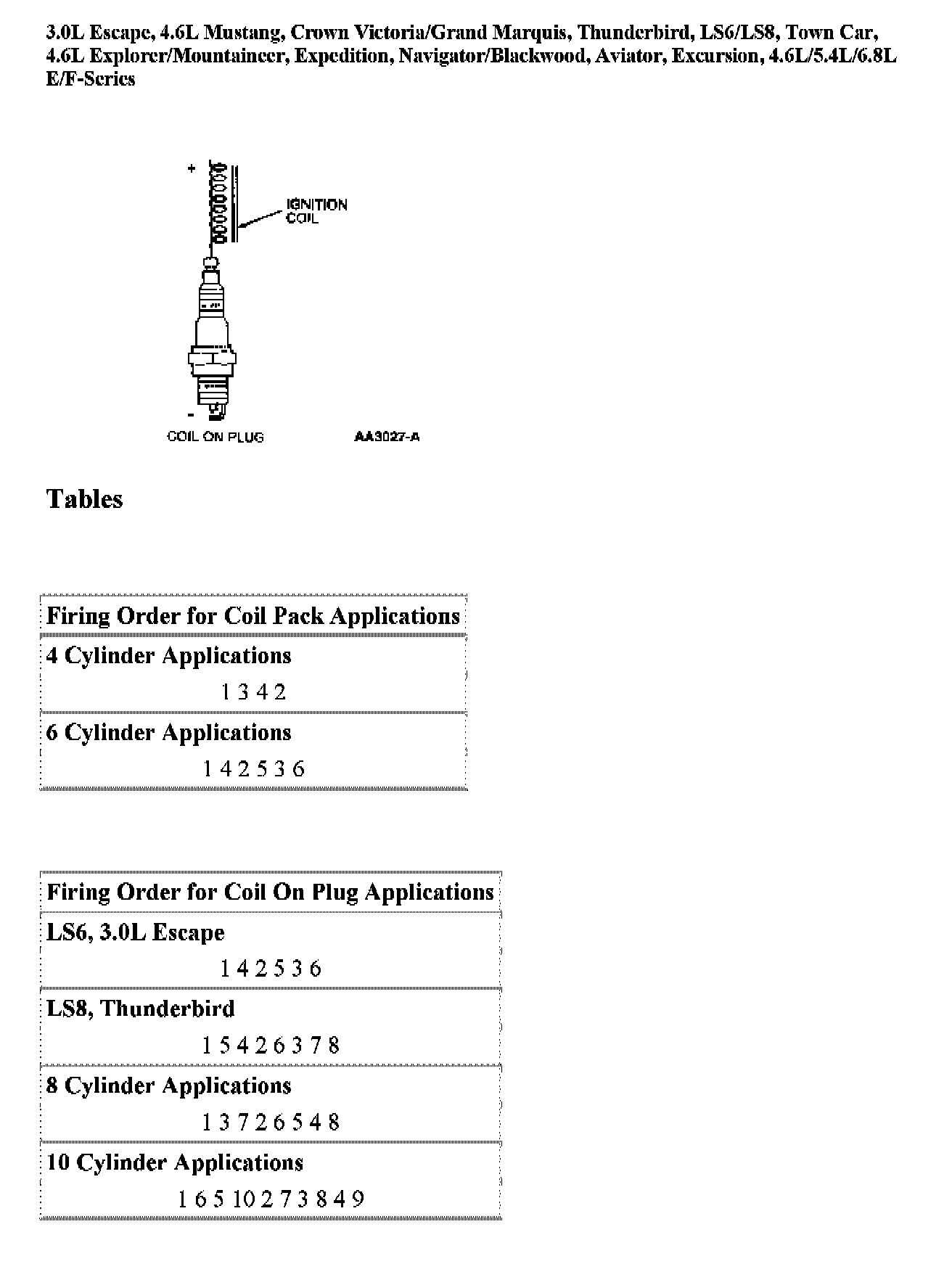

JB INTRODUCTION 2 OF 2:

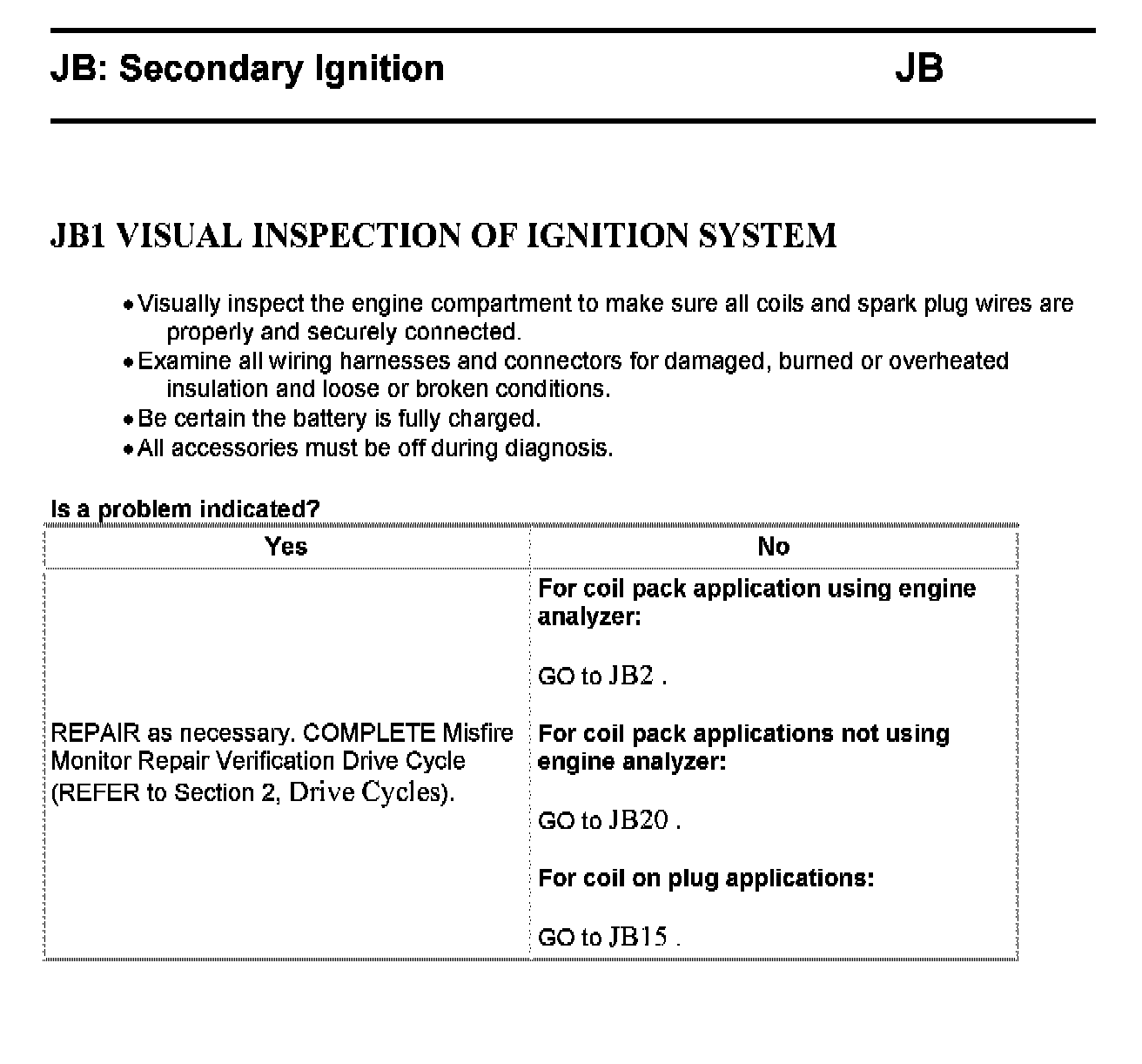

JB1:

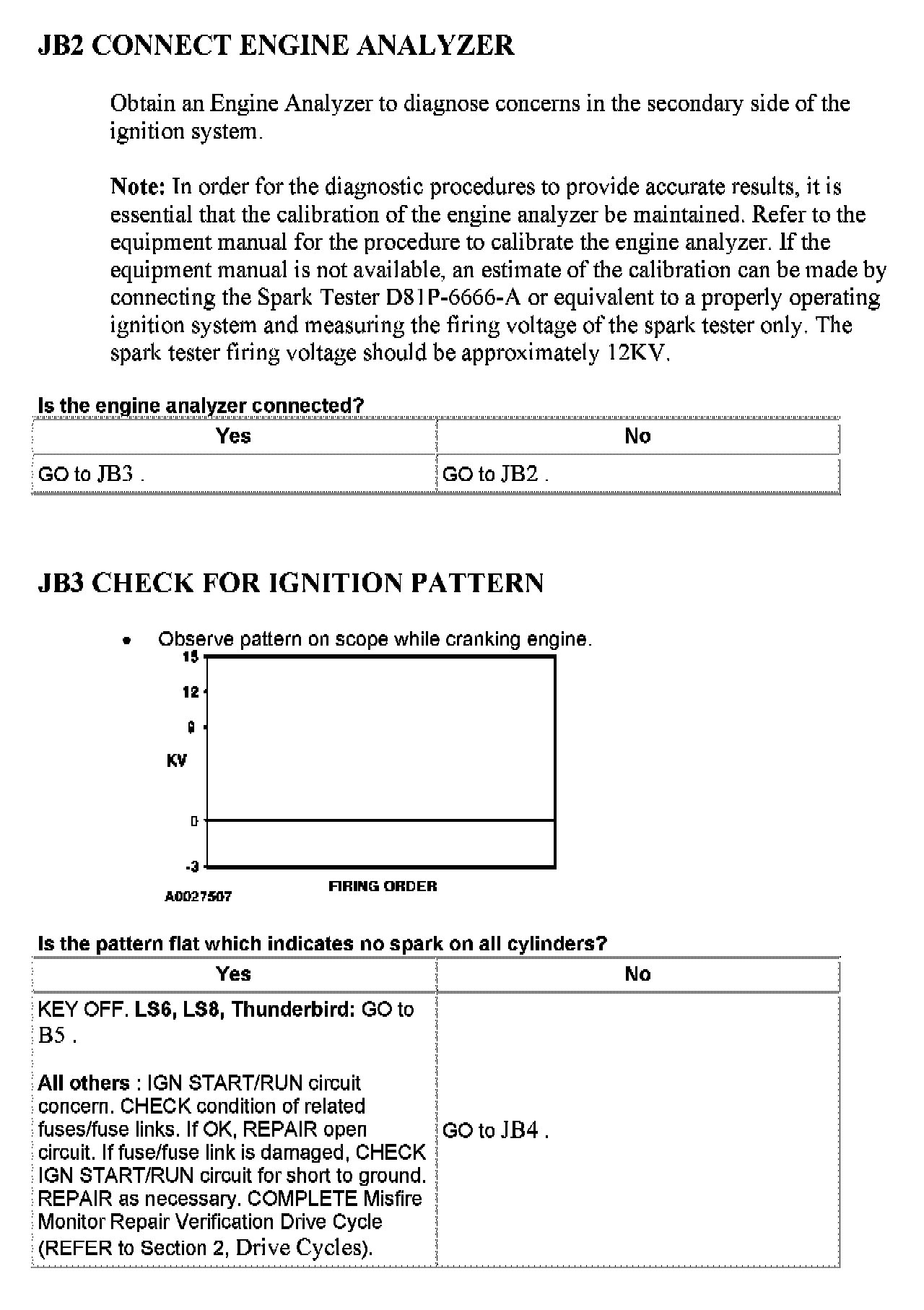

JB2 - JB3:

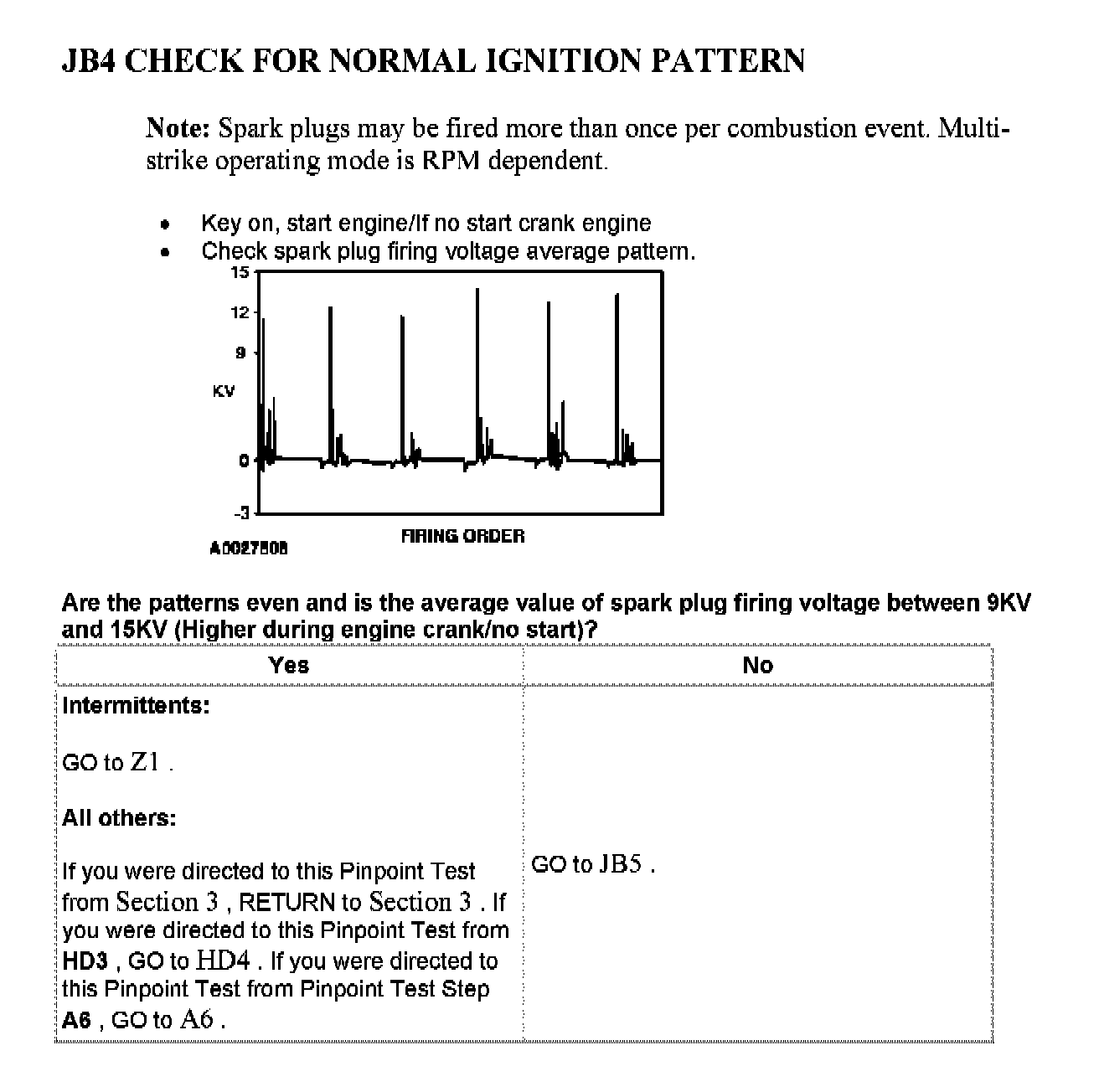

JB4:

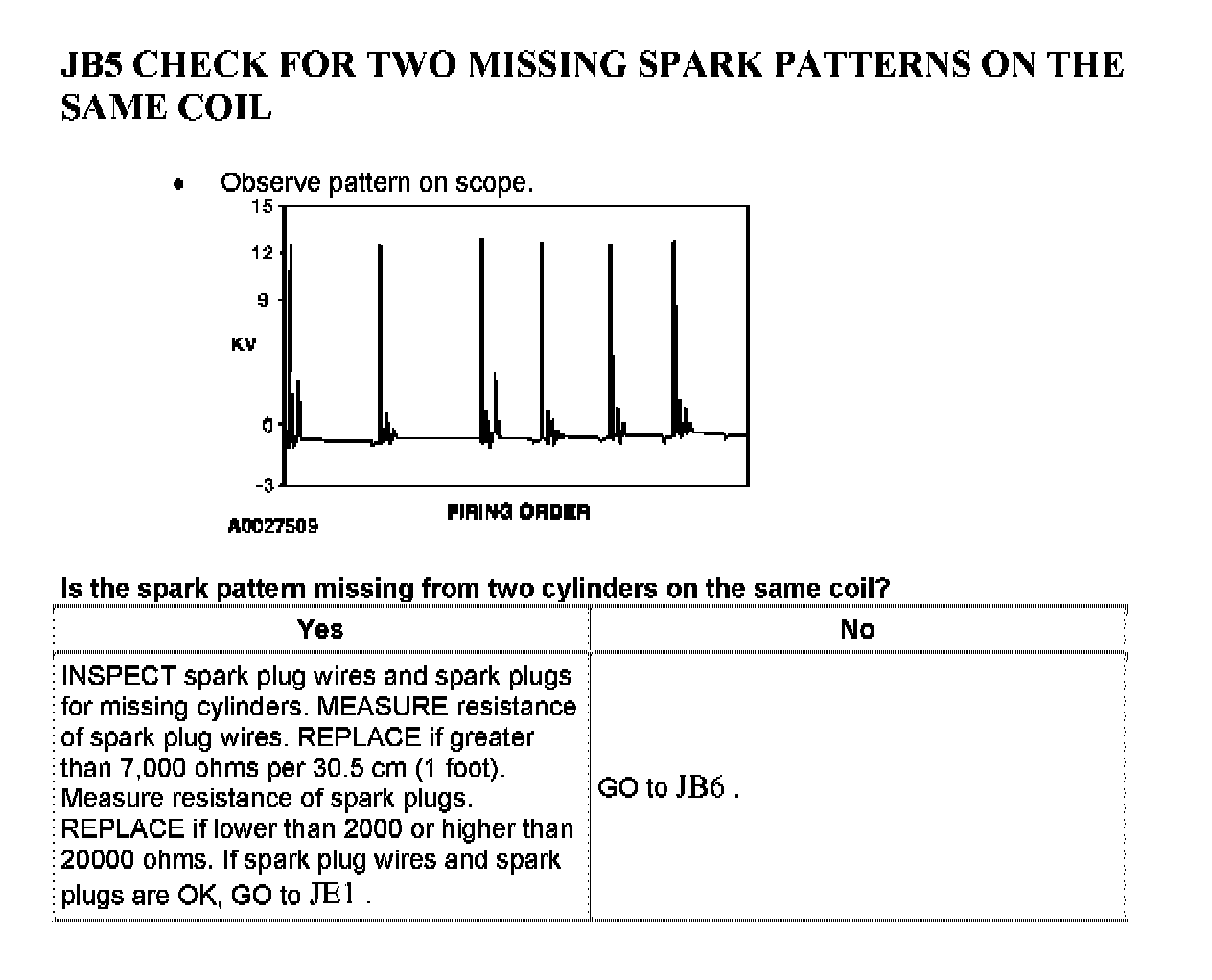

JB5:





JB6:

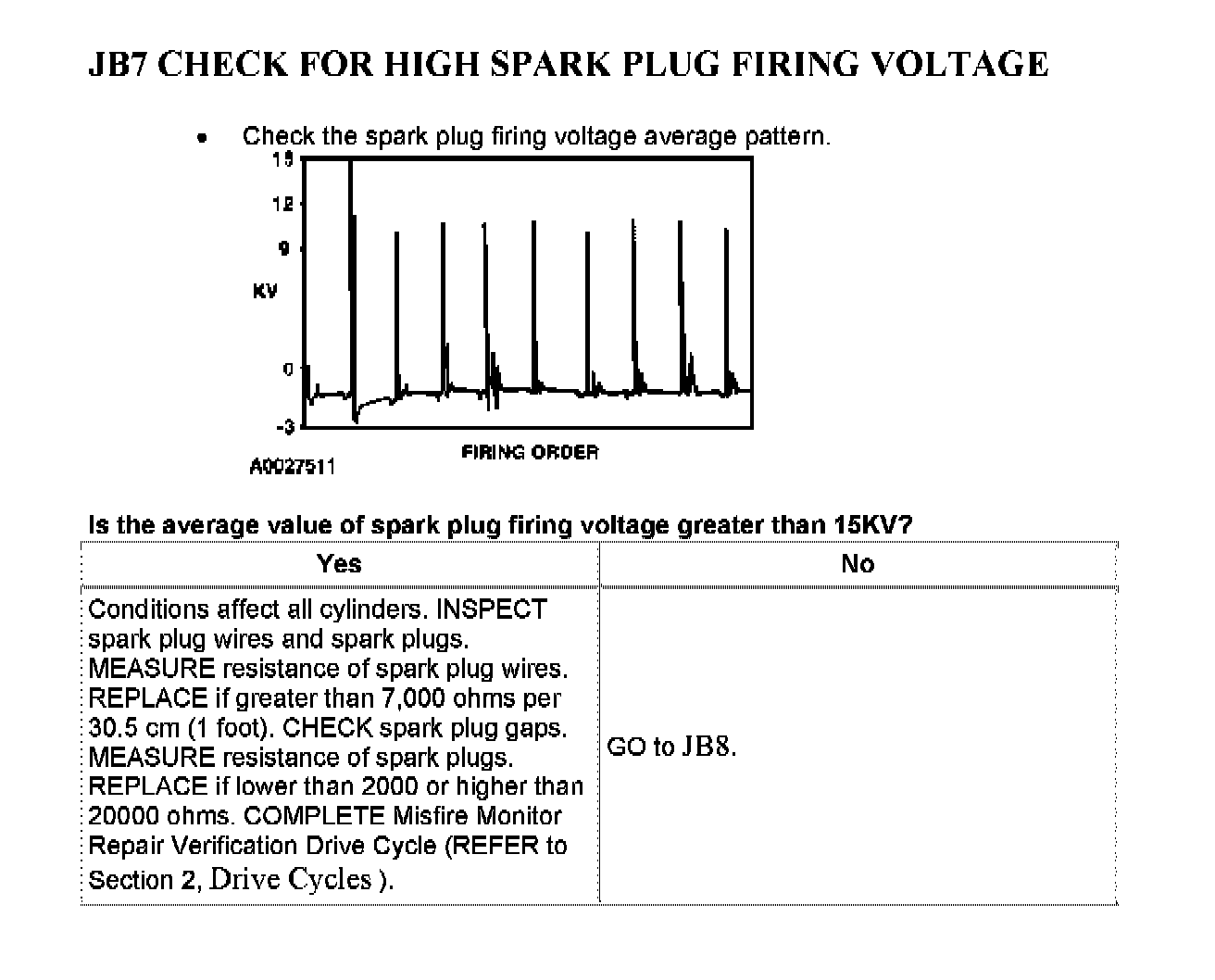

JB7:

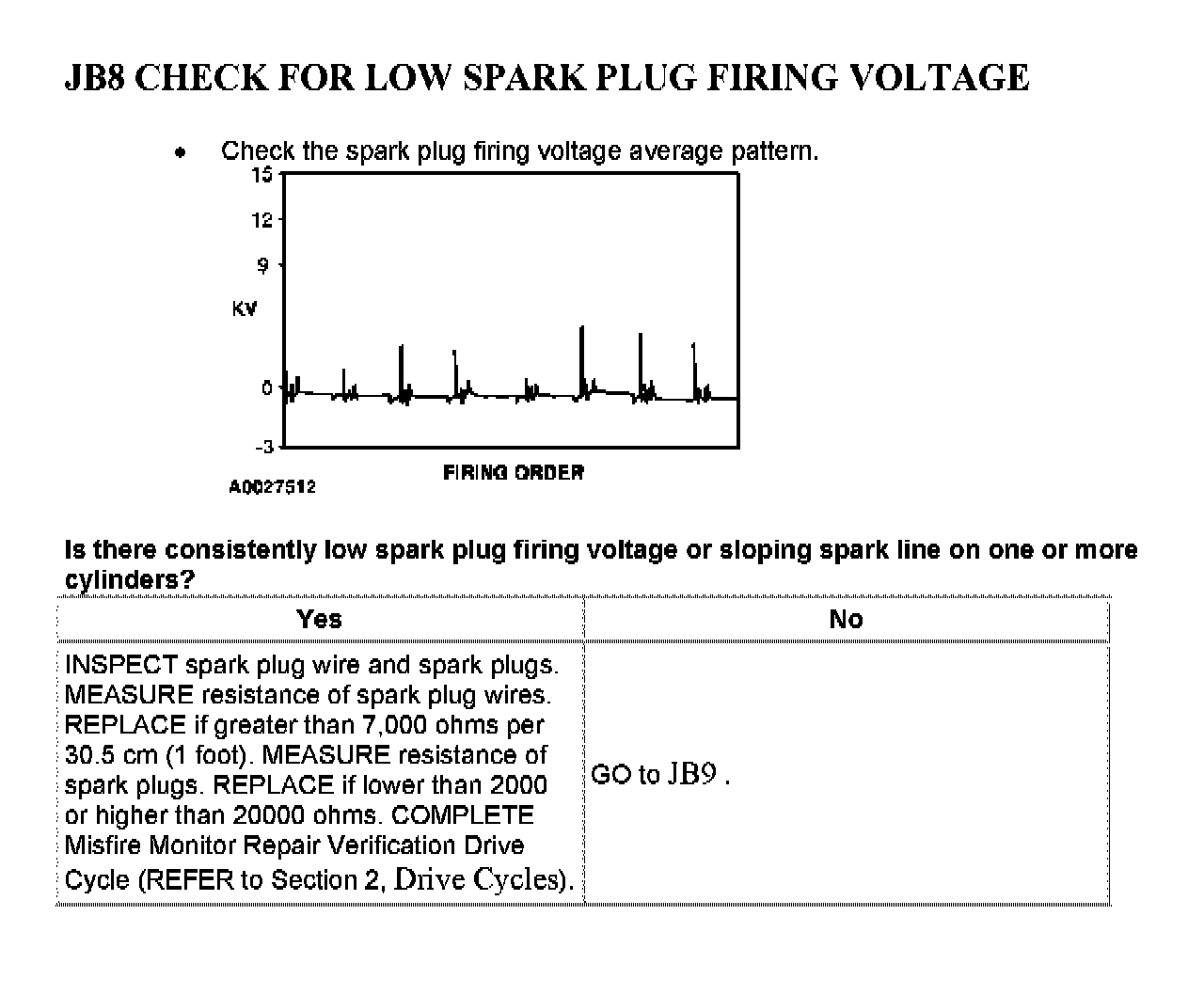

JB8:

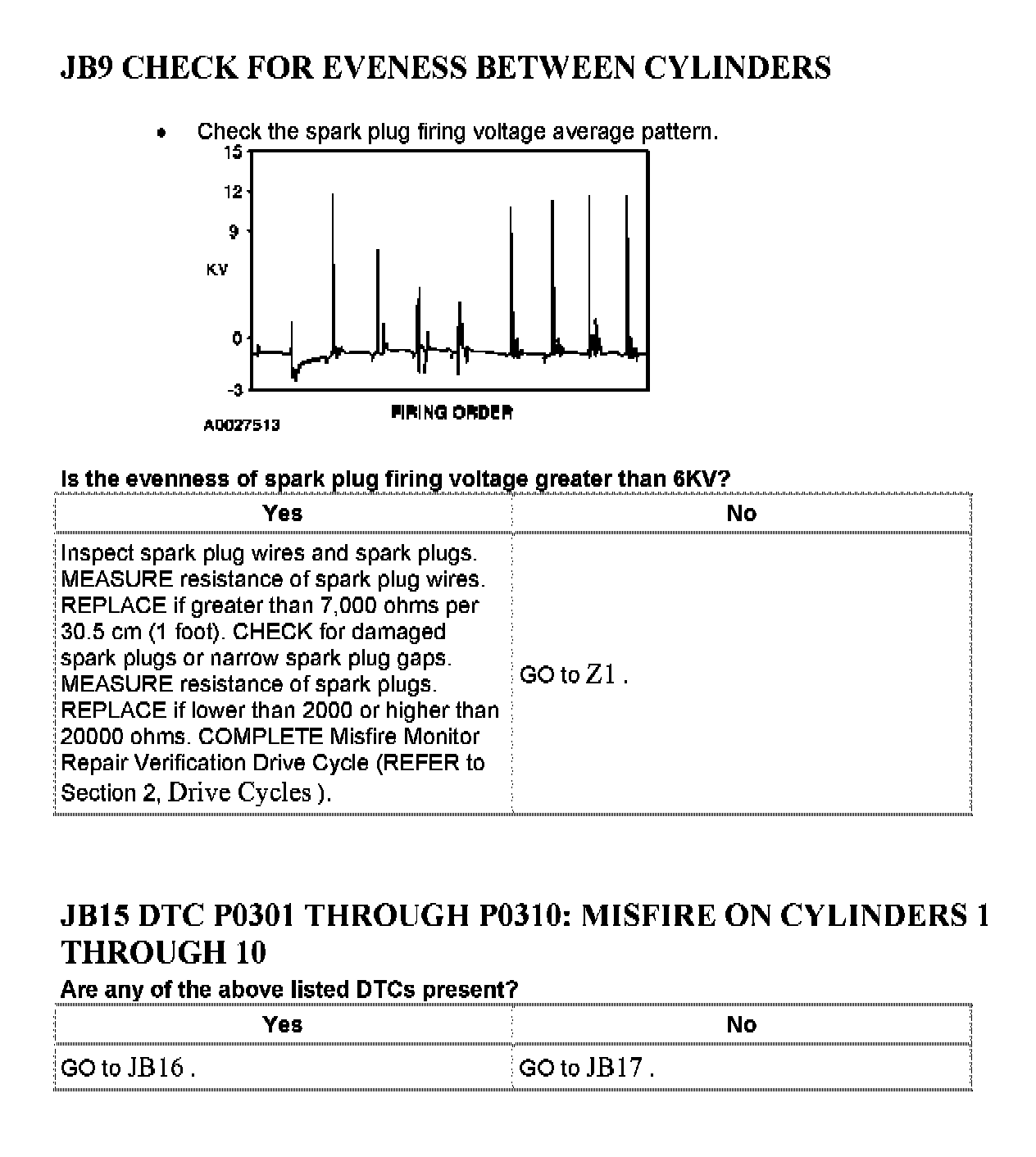

JB9 - JB15:

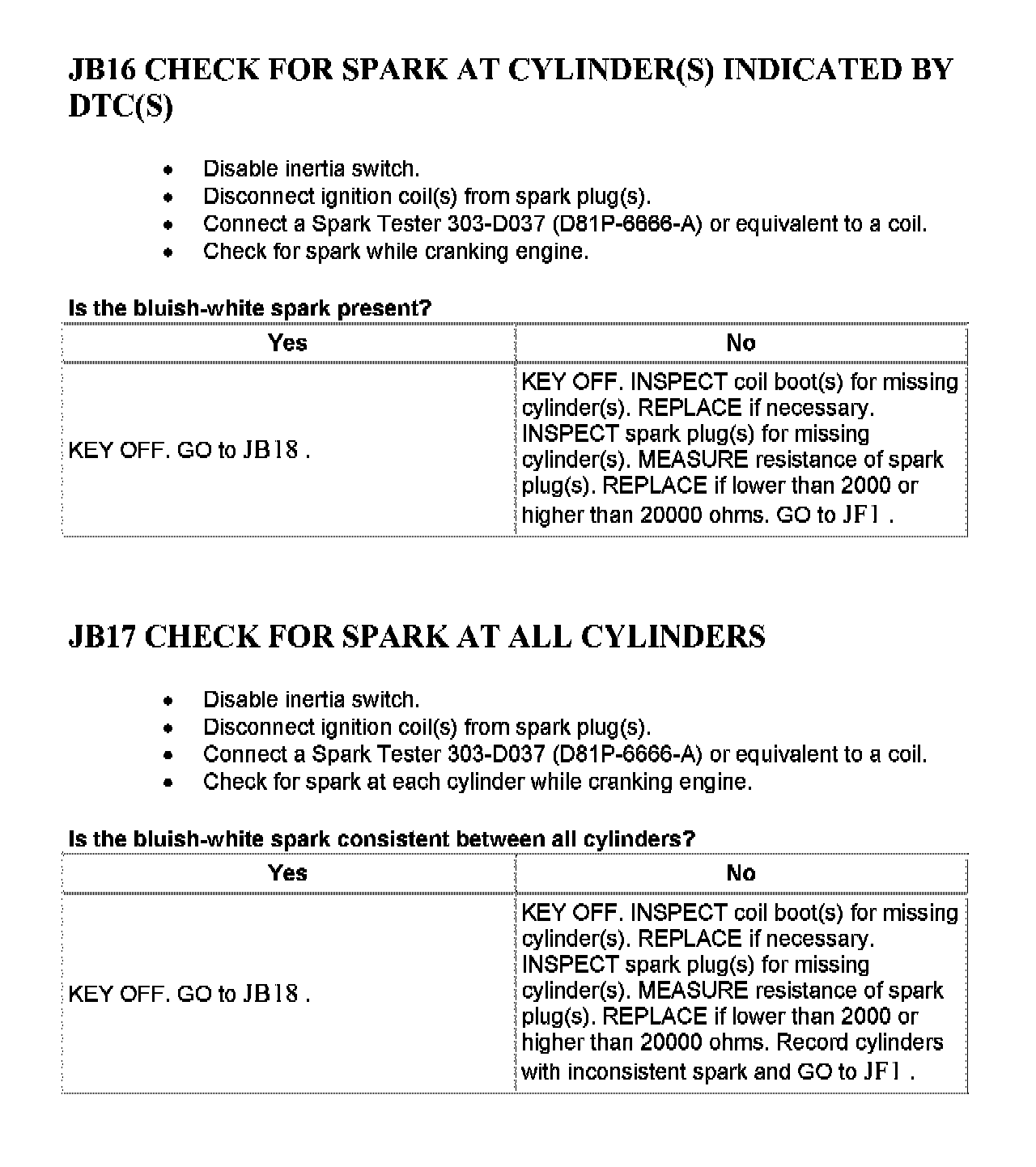

JB16 - JB17:

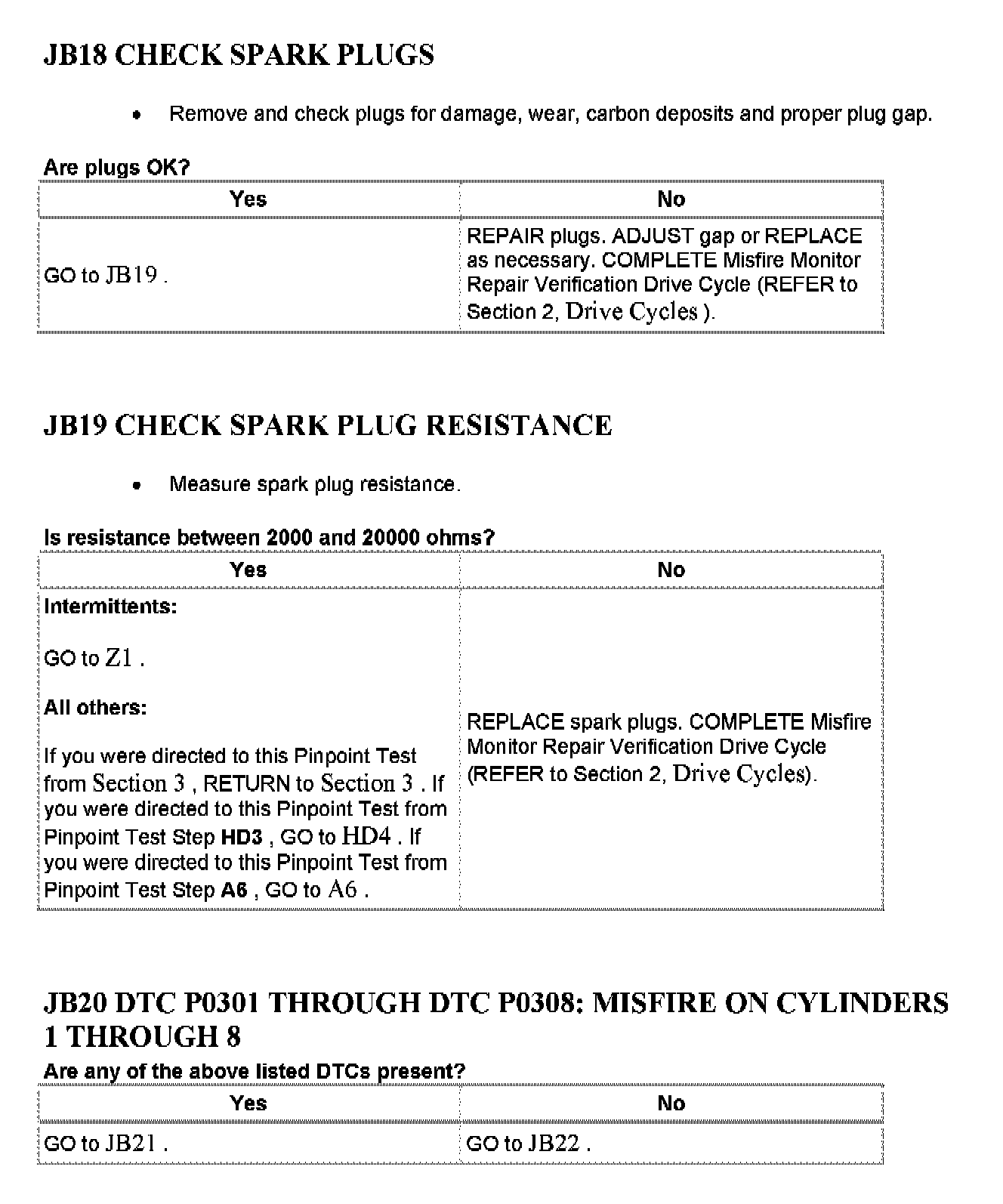

JB18 - JB20:

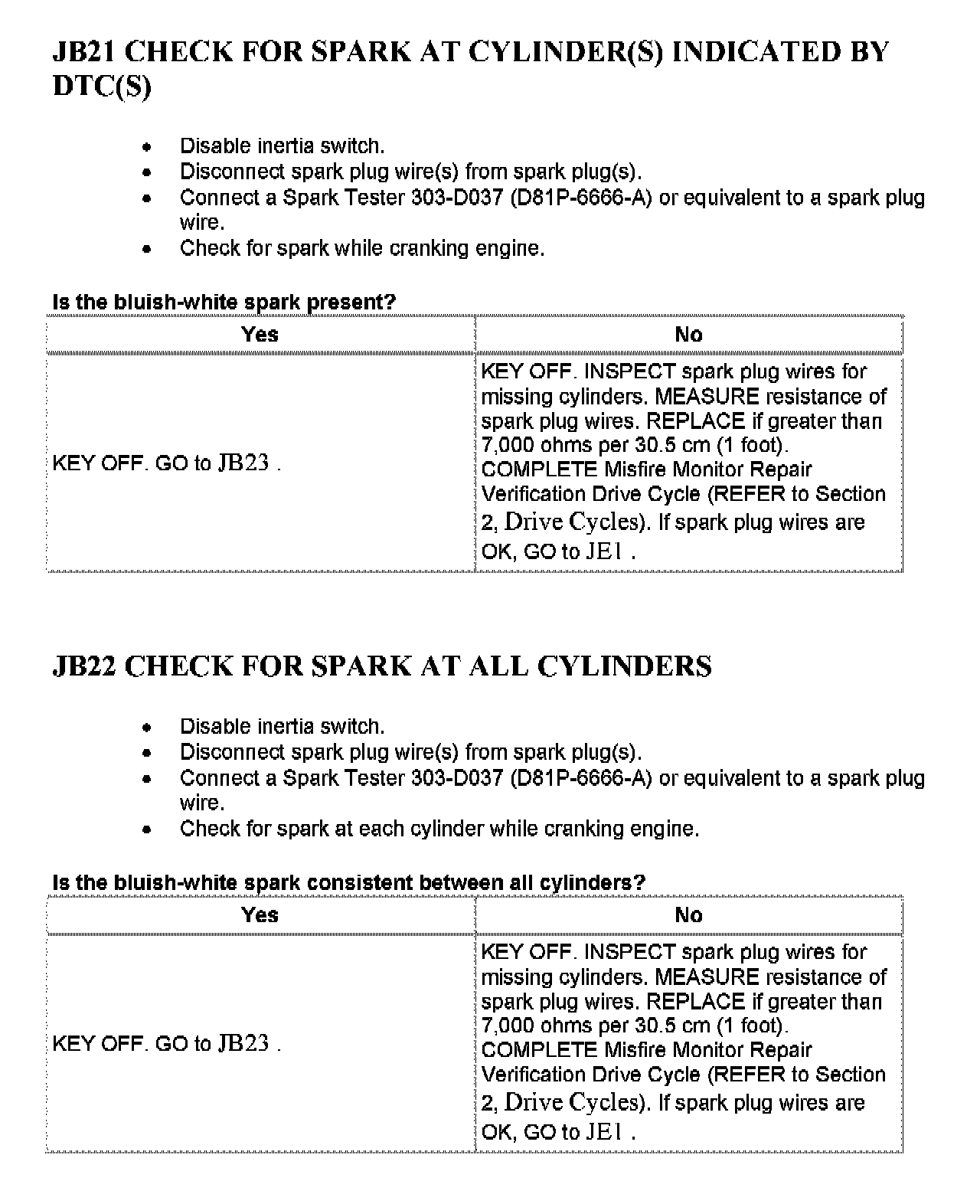

JB21 -JB22:

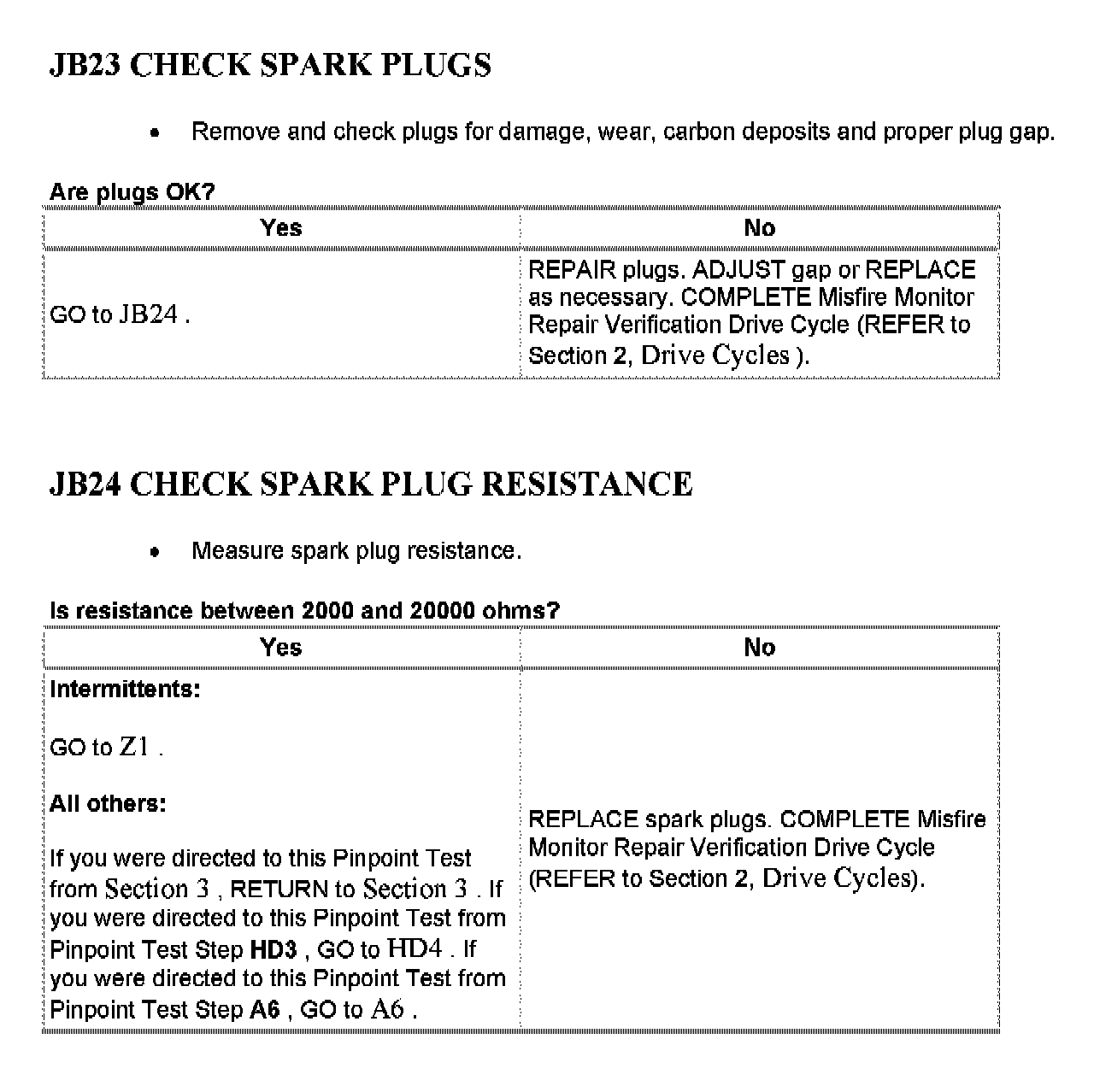

JB23:
