Home >> Ford >> 2003 >> Excursion 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Auxiliary Function Selector Switch Assembly >> Front
April 5, 2026: LEMON Manuals is launched! Read the announcement.

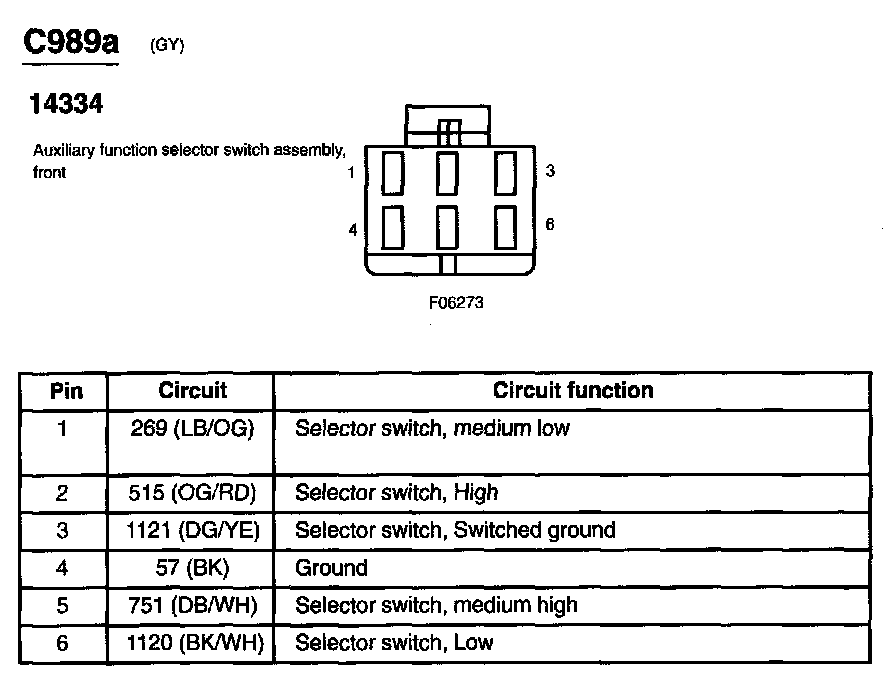

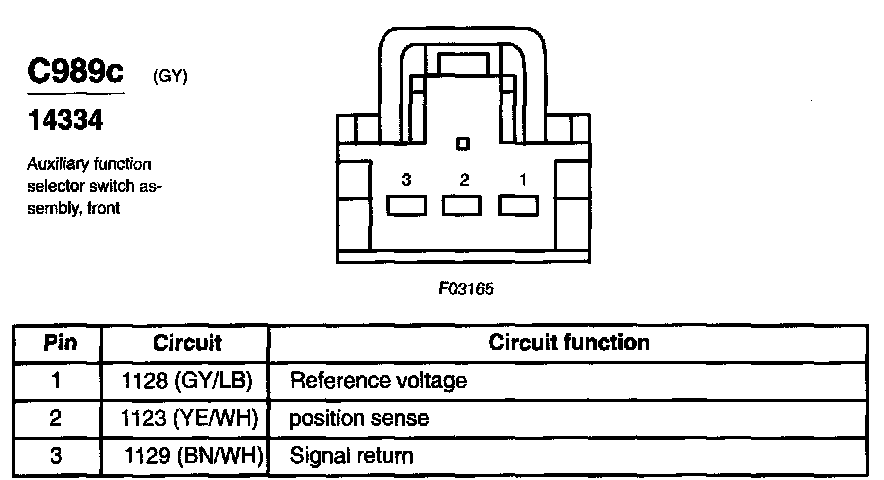

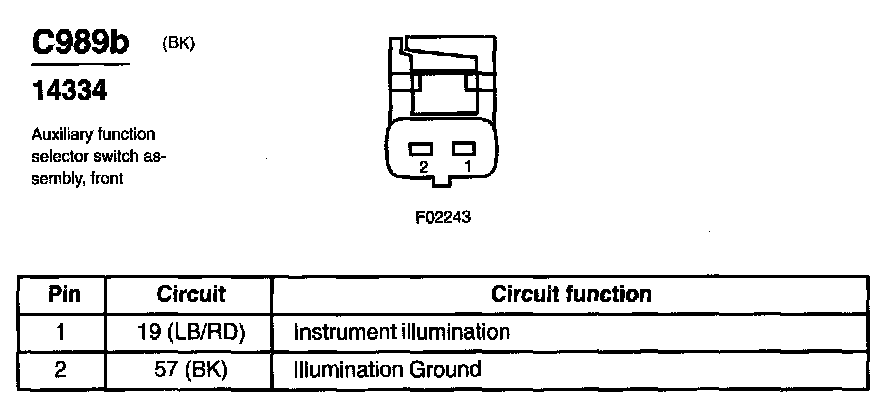

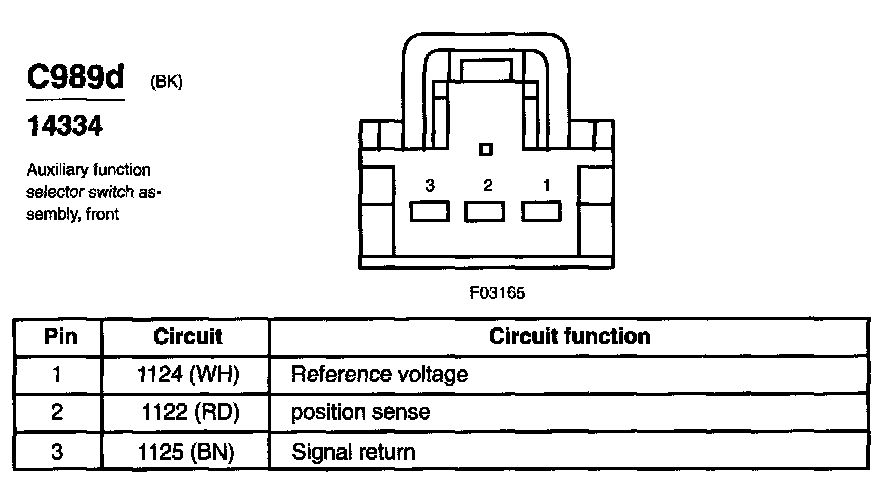

Front
