Tests TB: Trans Control Switch/Trans Control Indicator Lamp

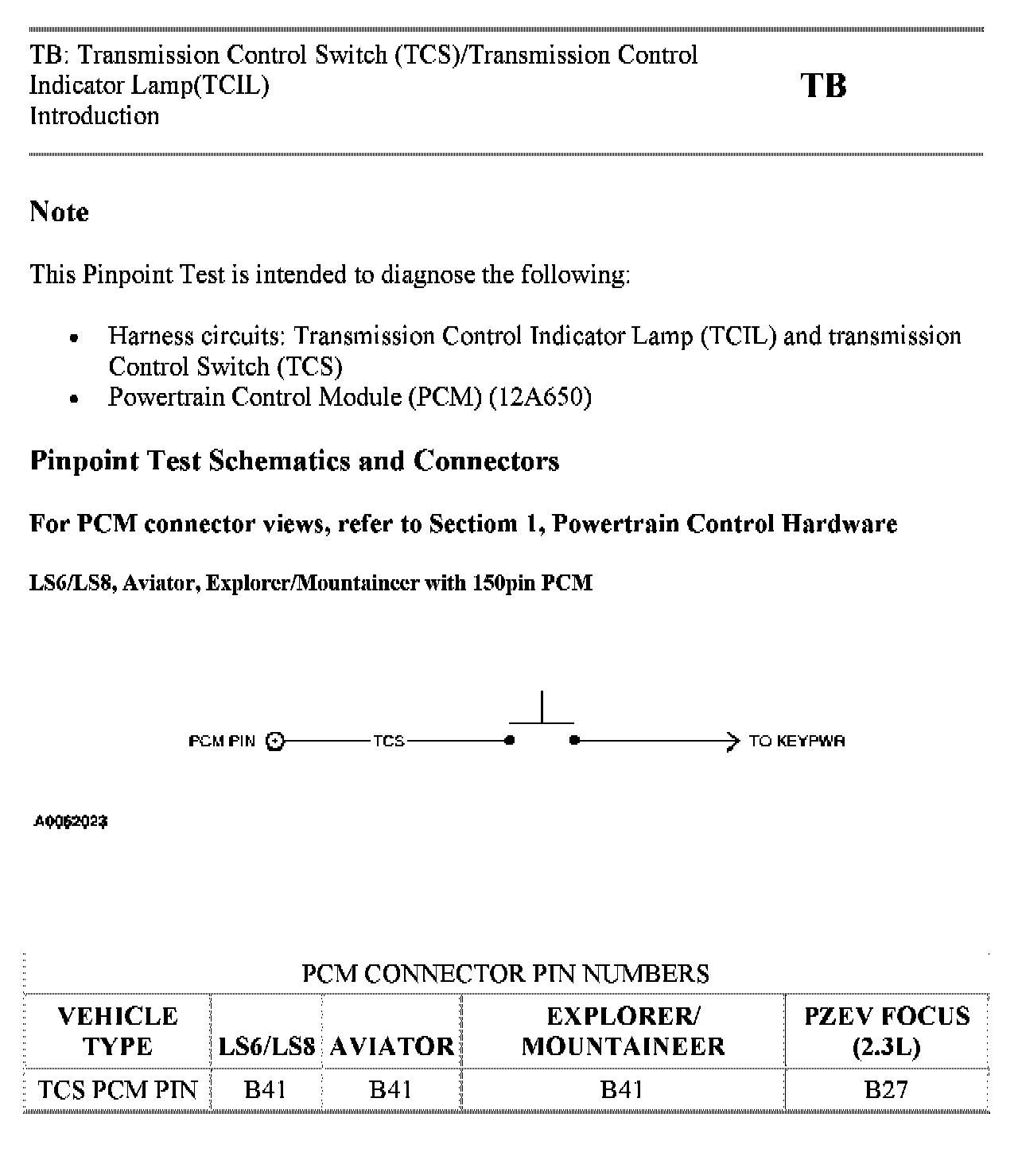

TB INTRODUCTION 1 OF 3:

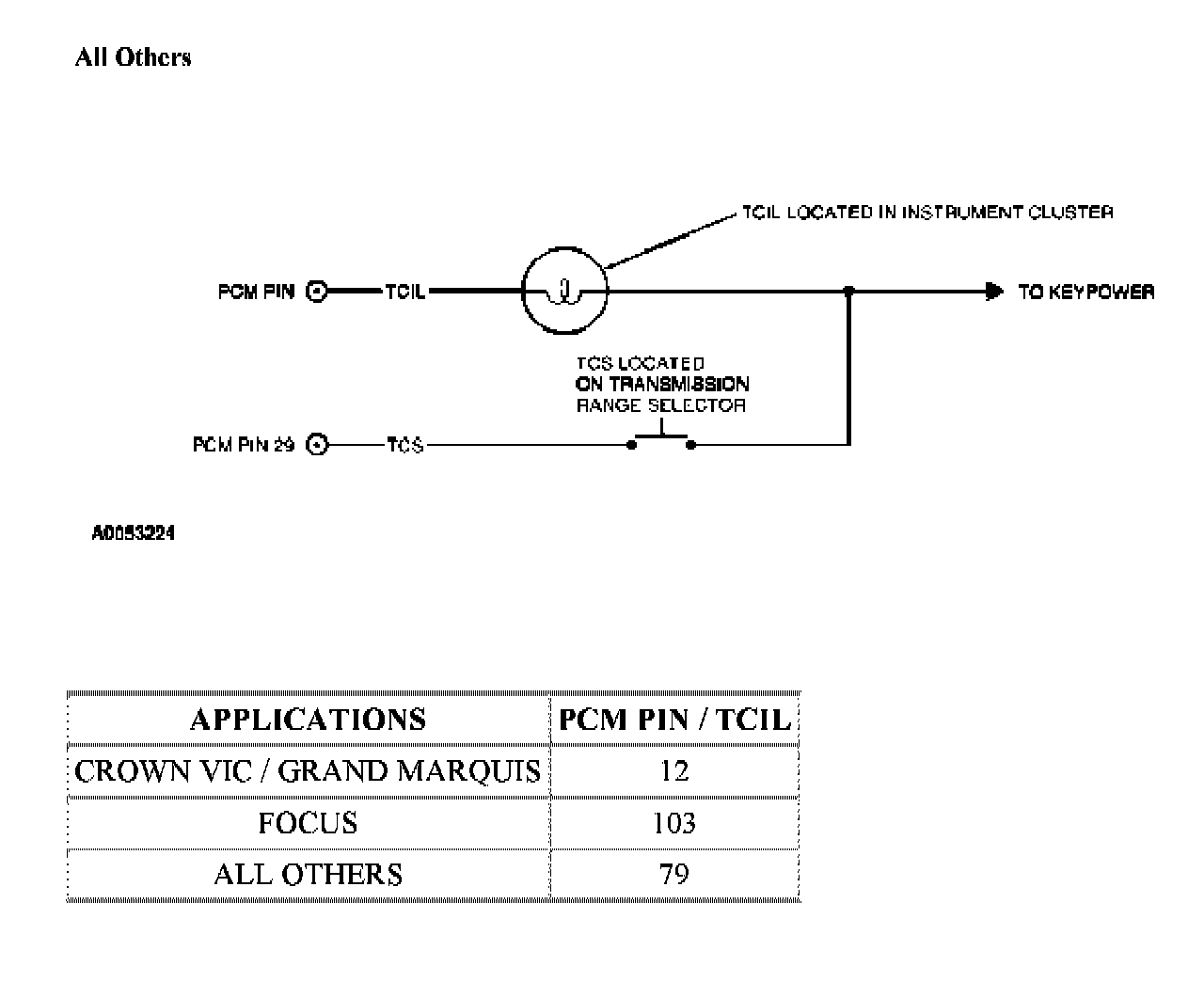

TB INTRODUCTION 2 OF 3:

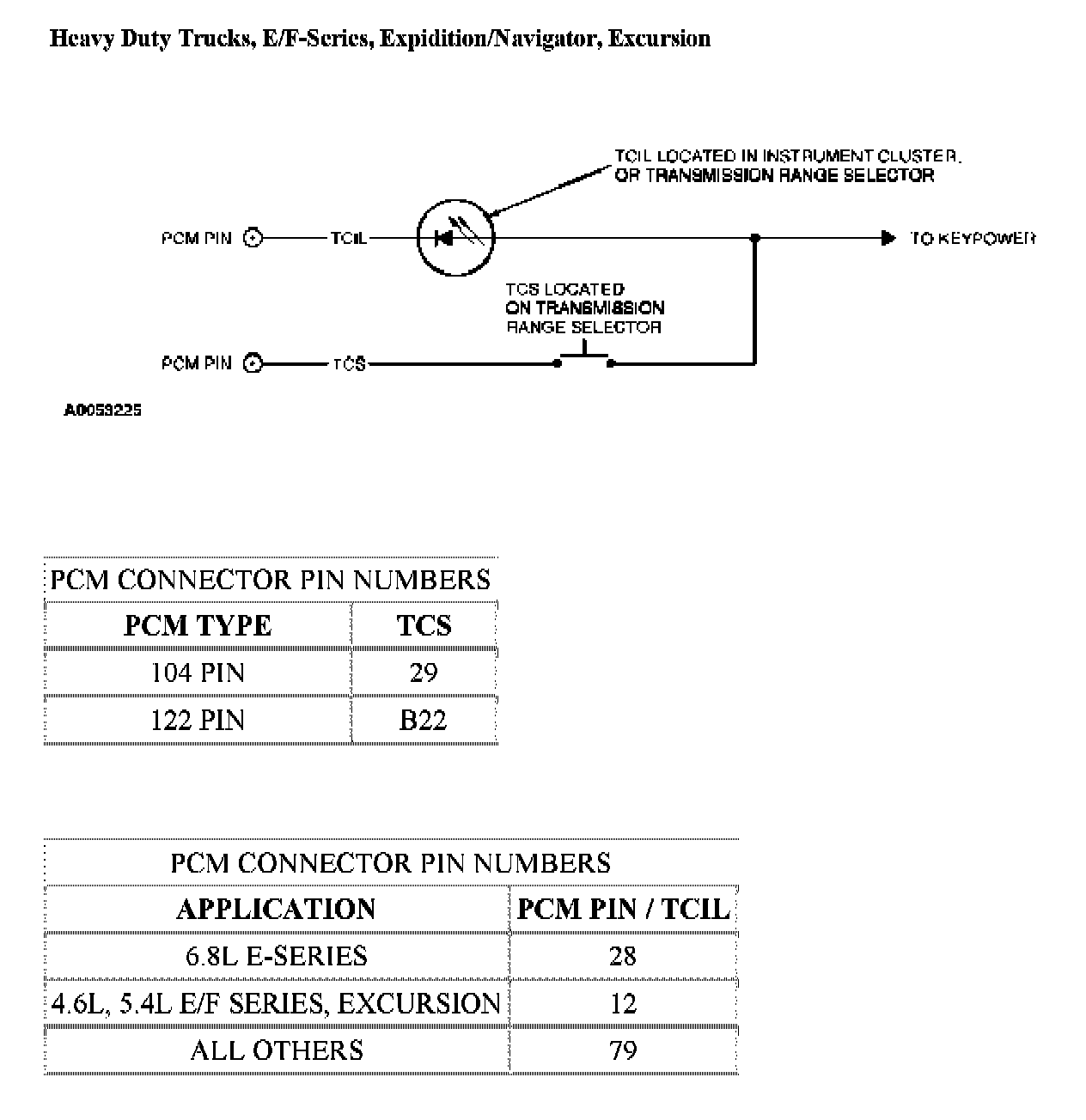

TB INTRODUCTION 3 OF 3:

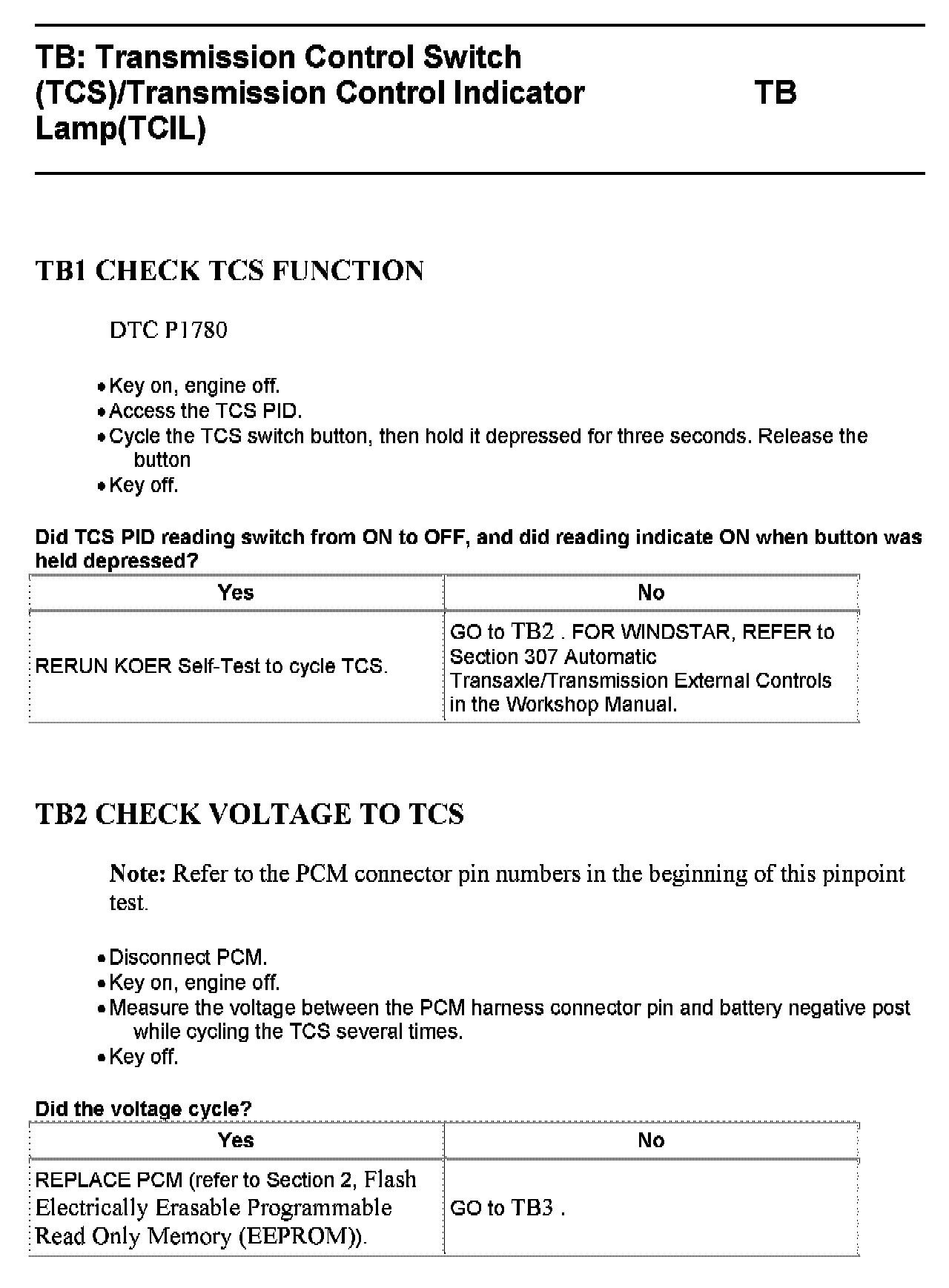

TB1 - TB2:

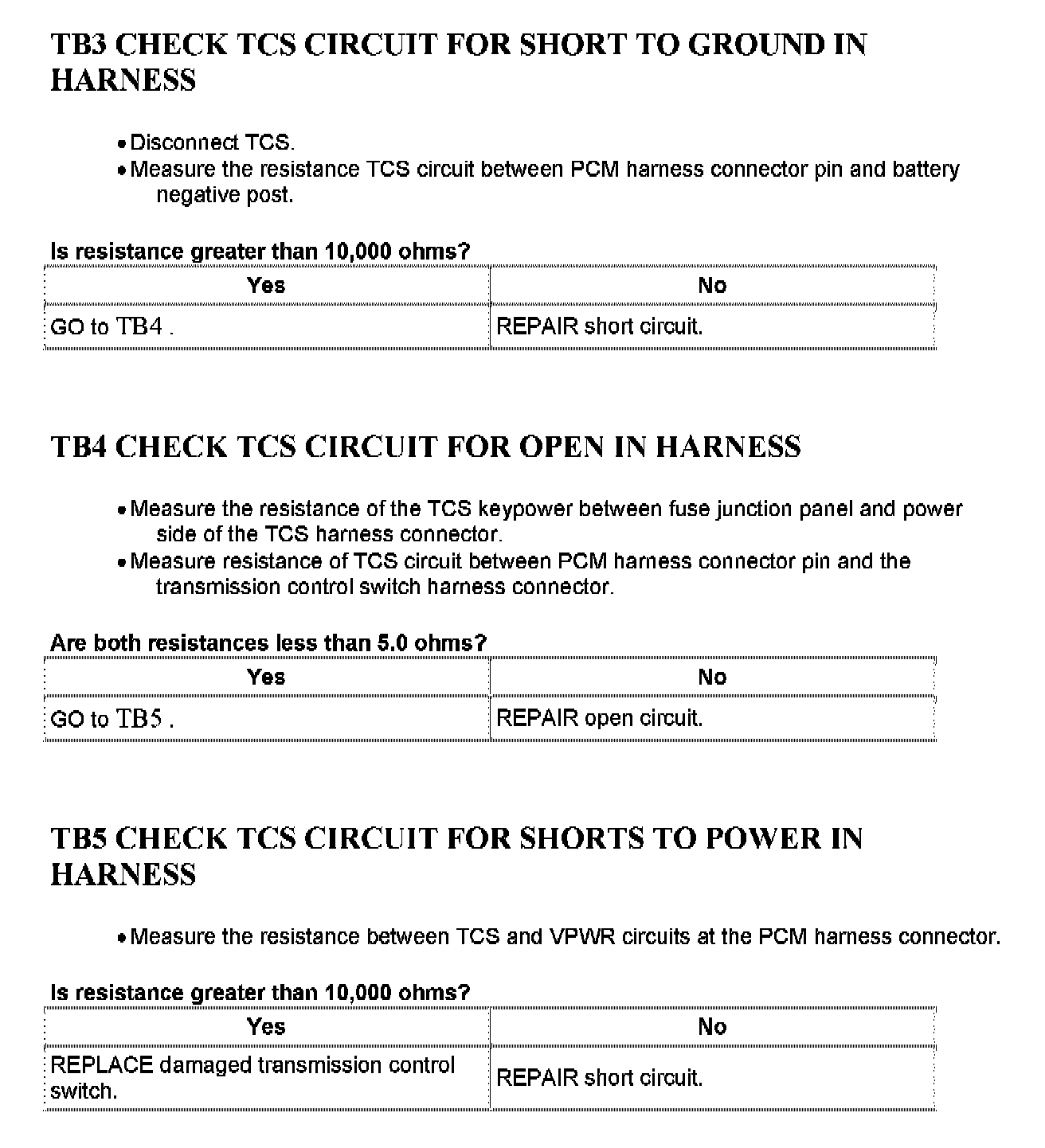

TB3 - TB5:

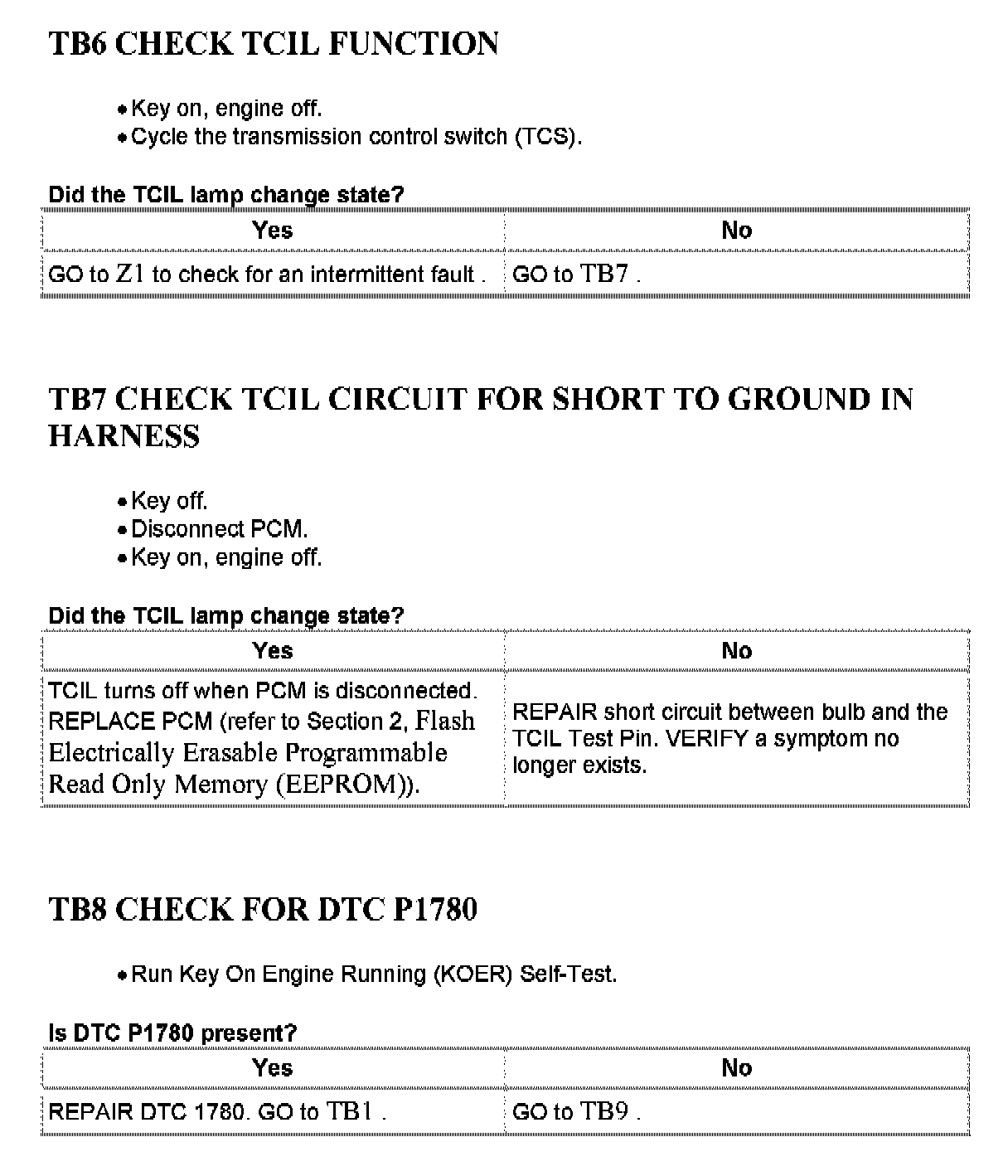

TB6 - TB8:

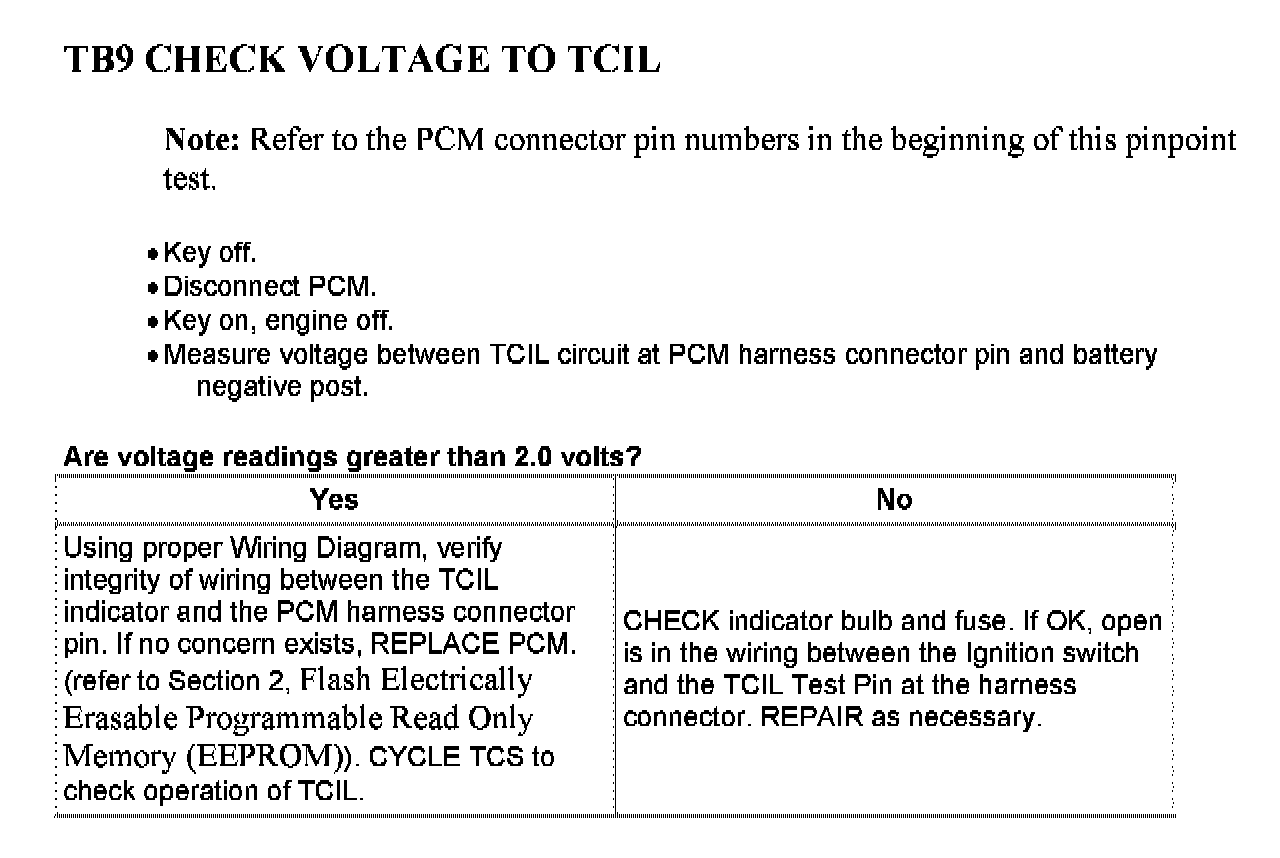

TB9:
