Disassembled Views

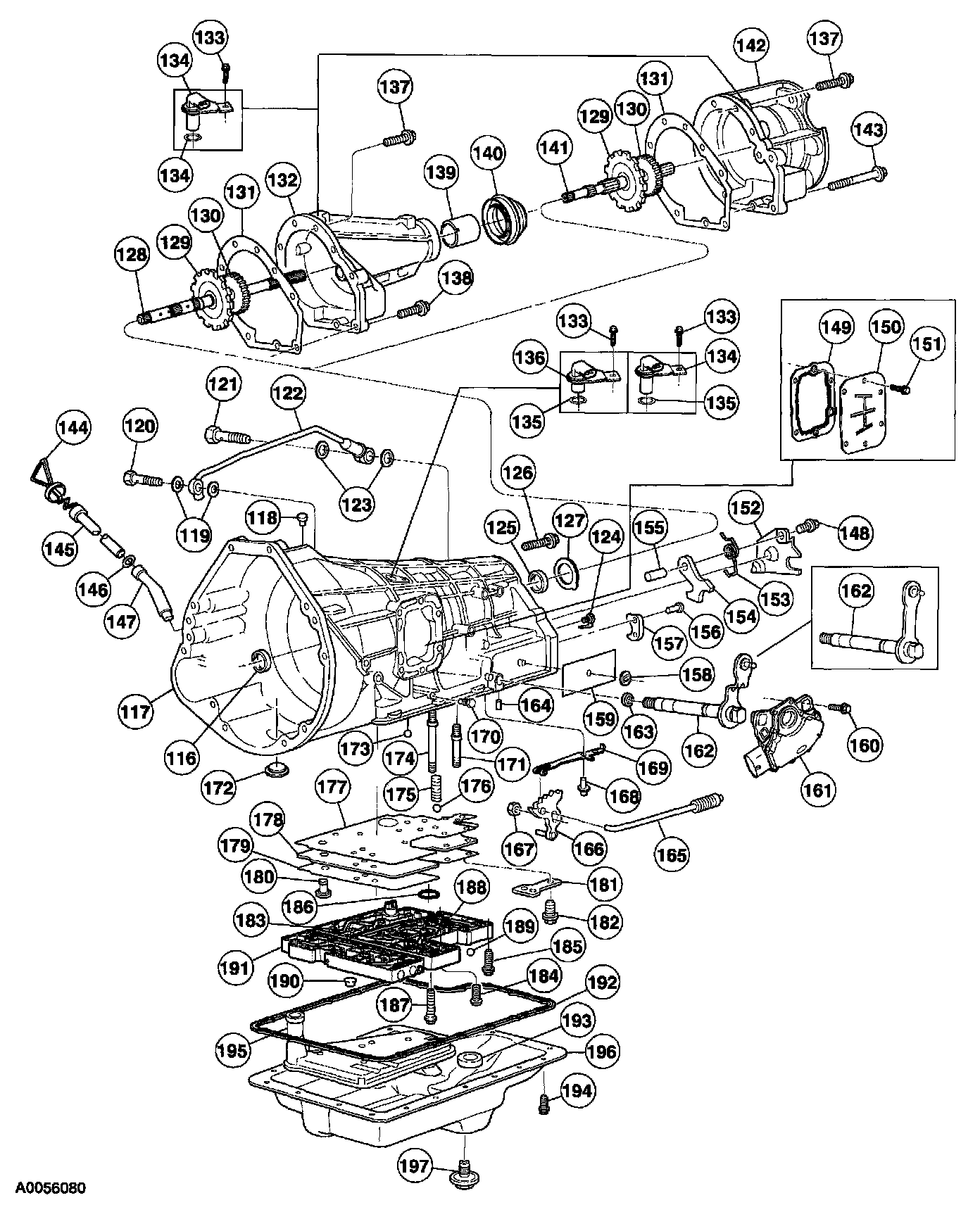

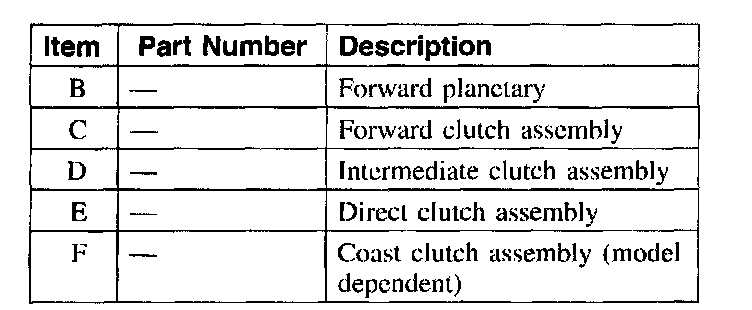

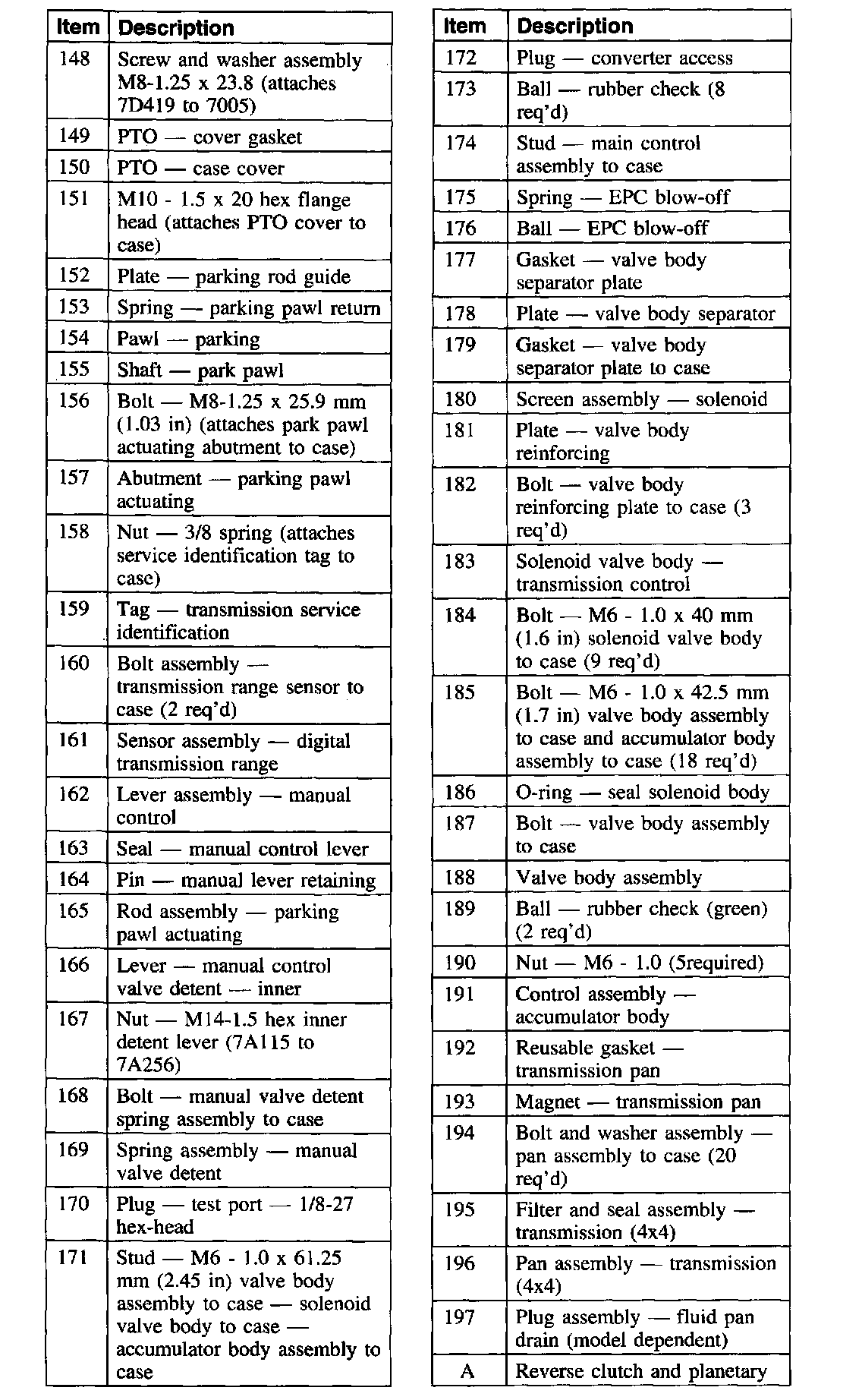

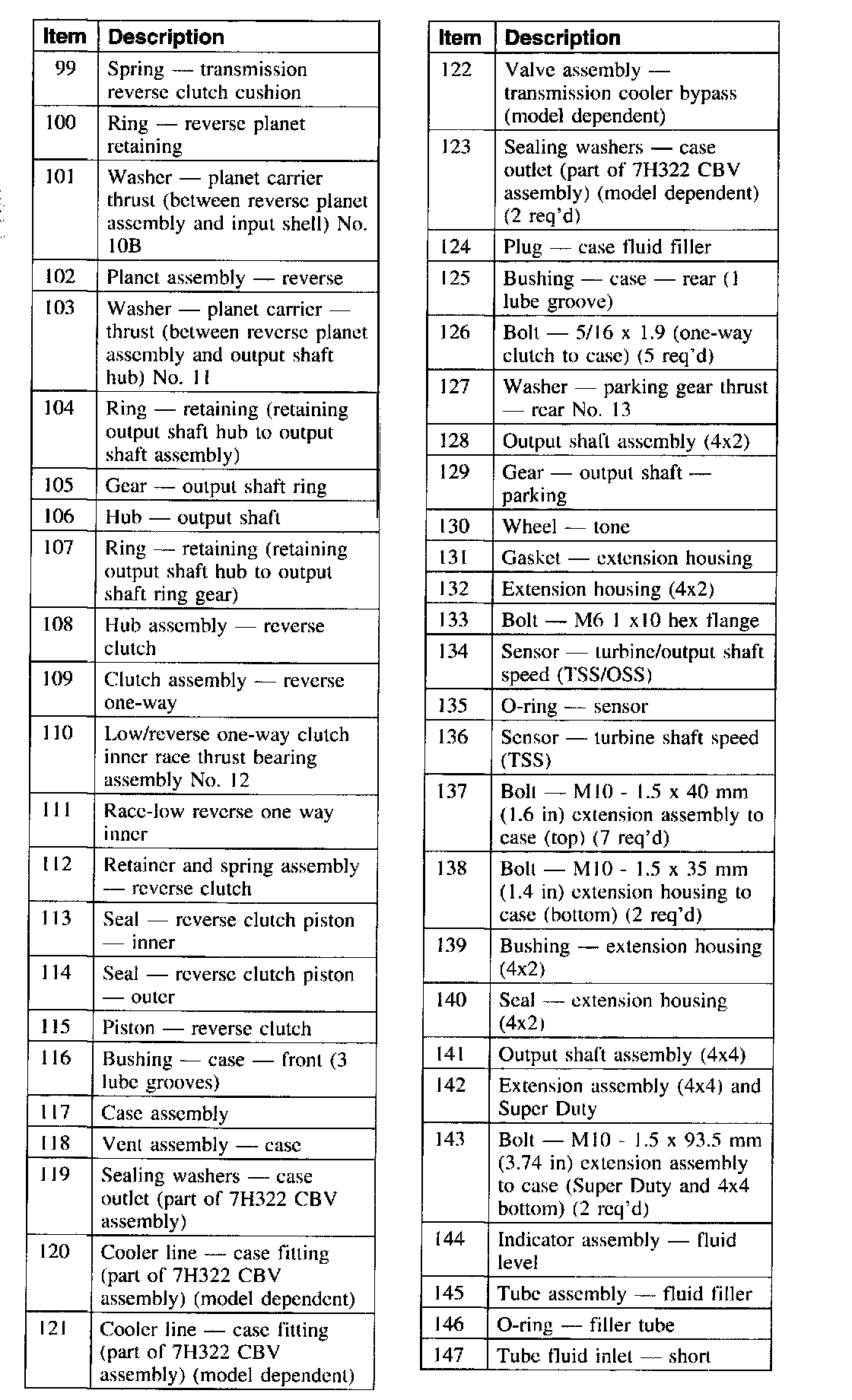

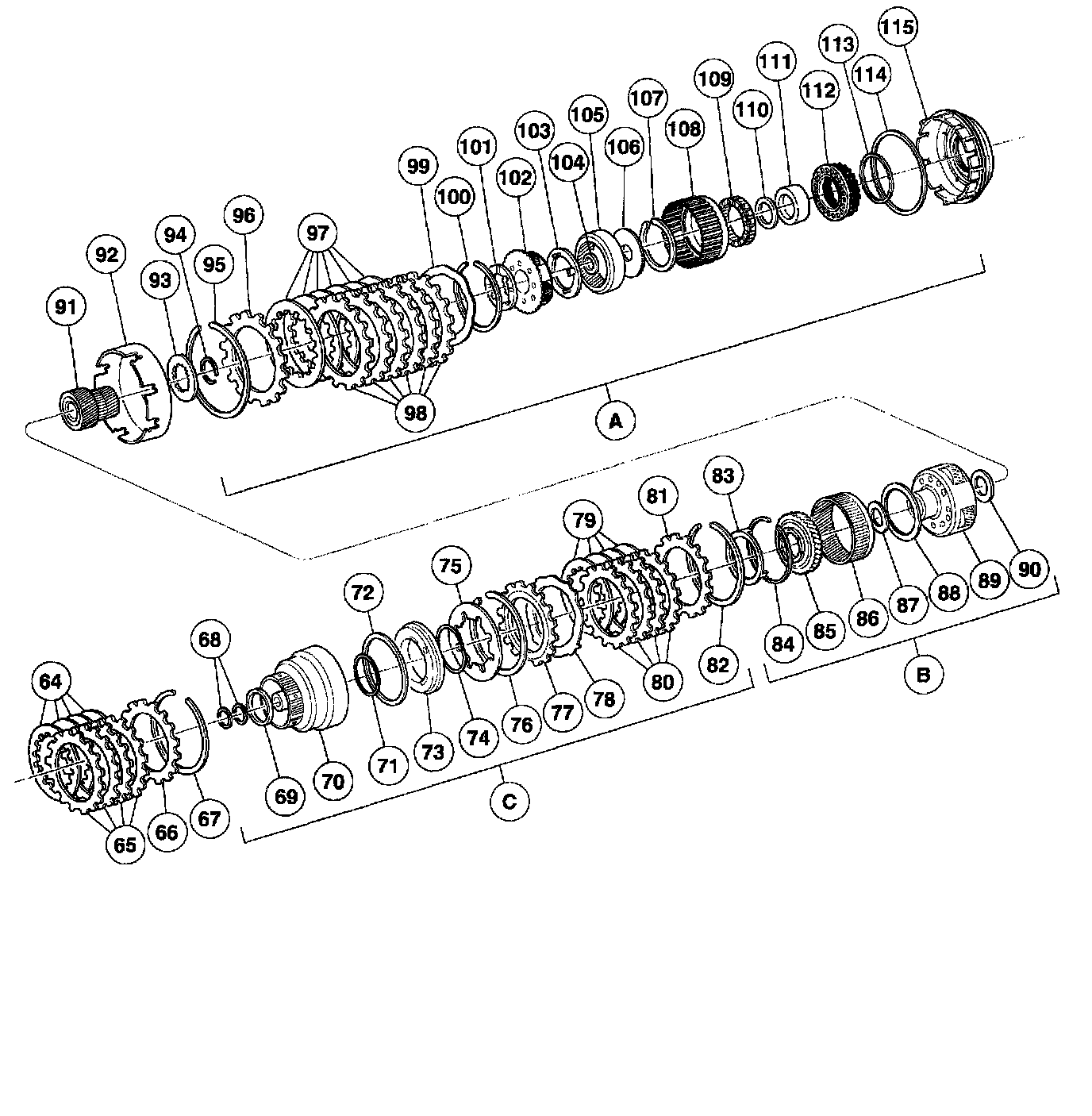

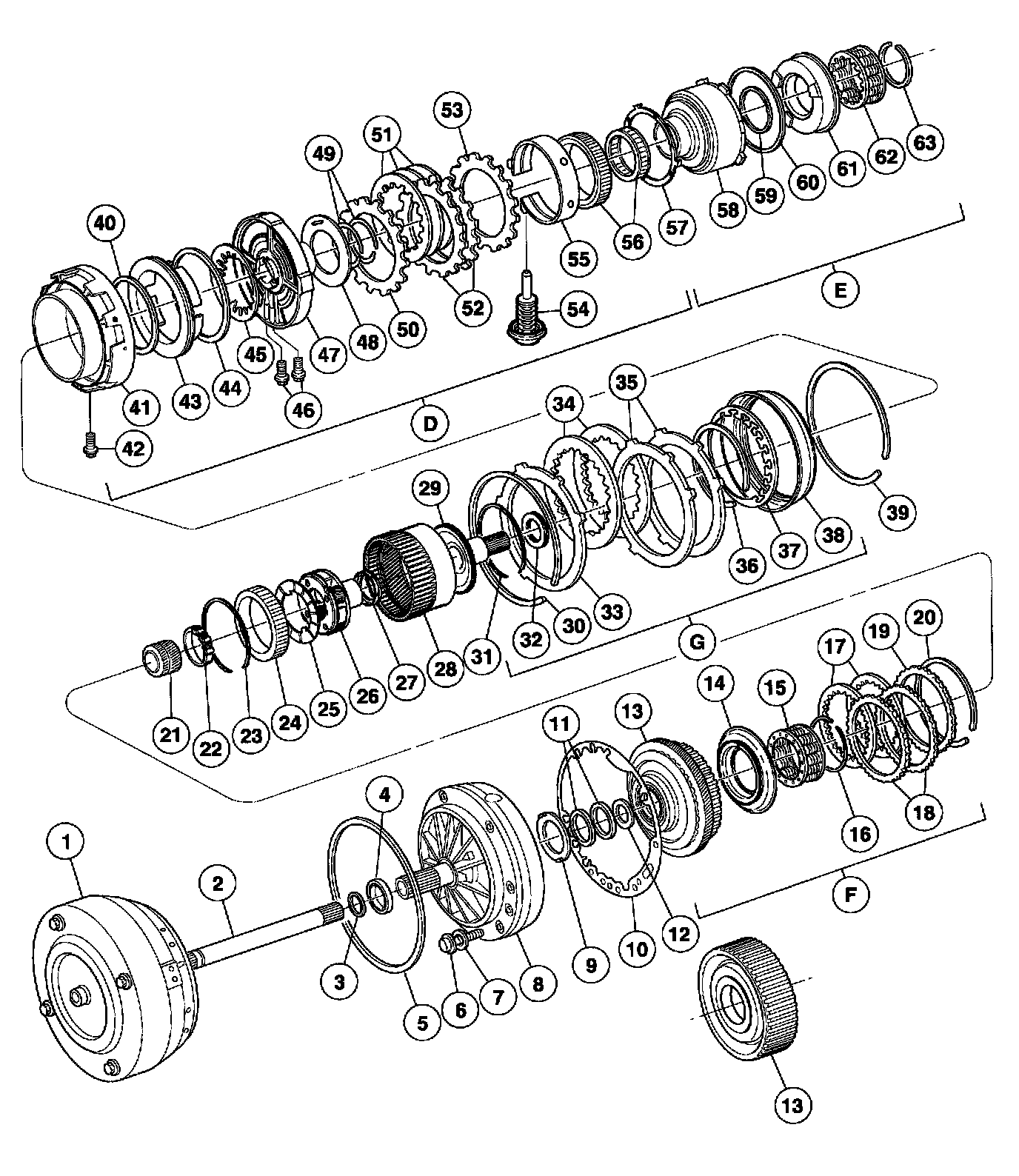

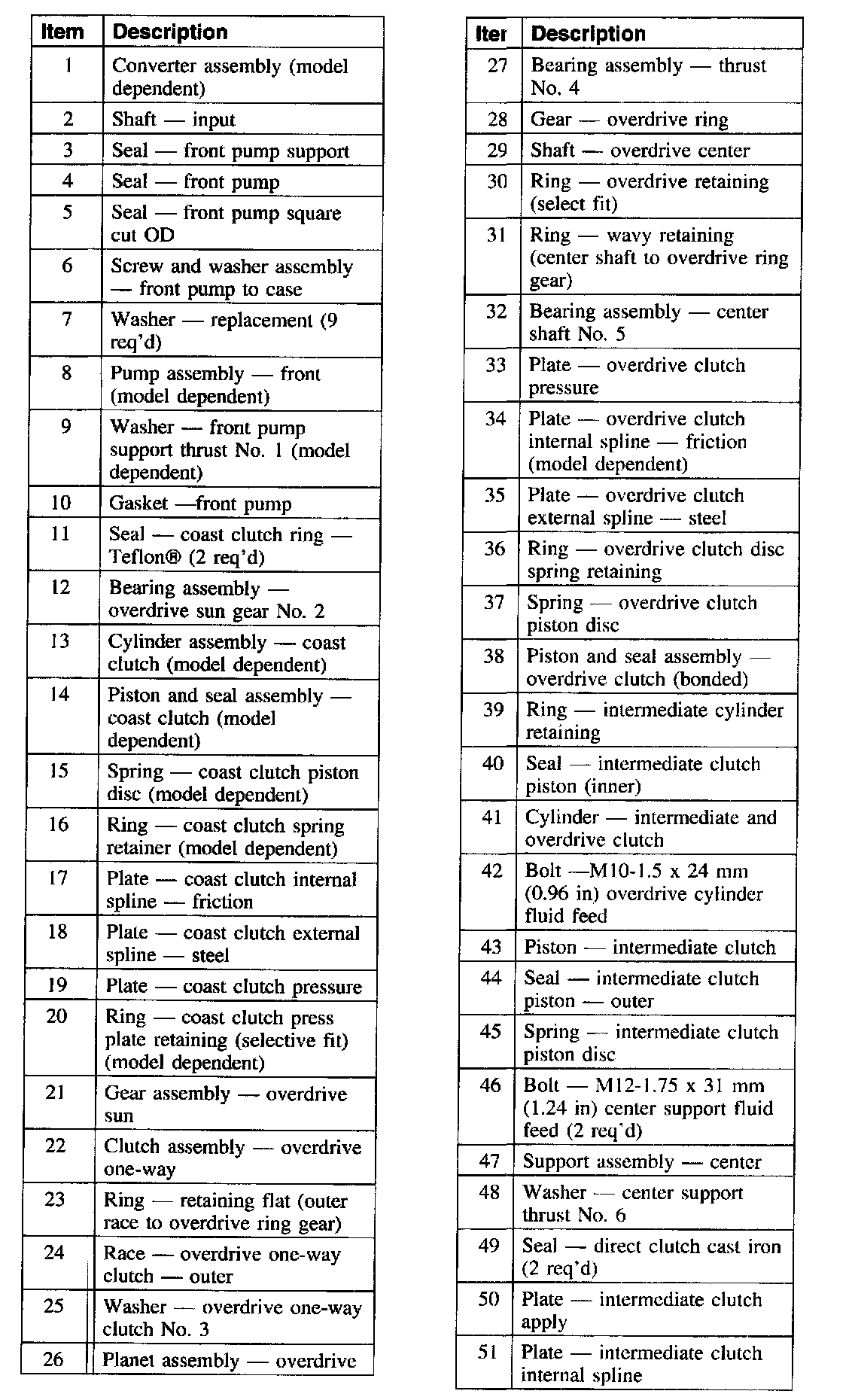

Transmission, Disassembled View

Part 1 Of 9:

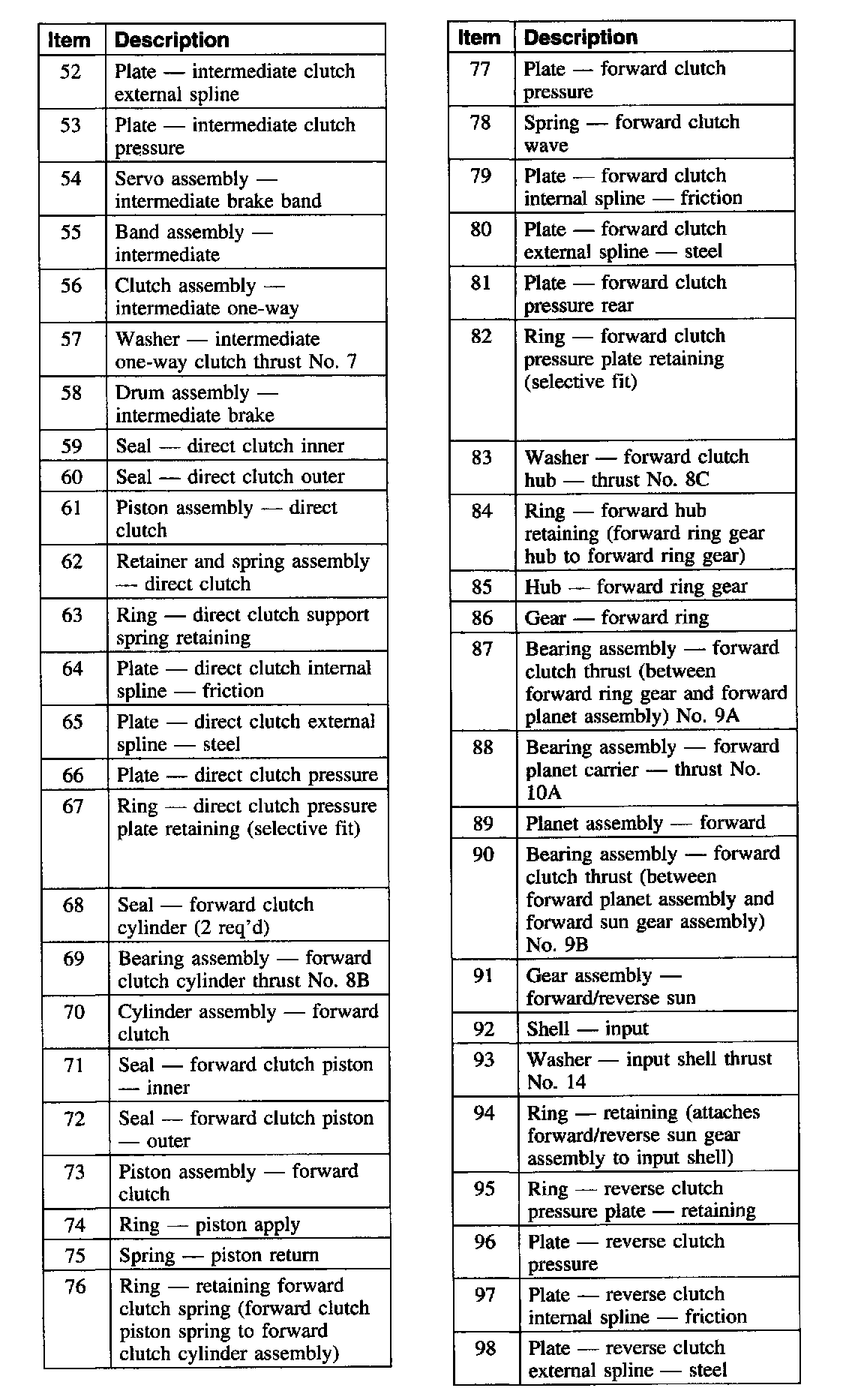

Part 2 Of 9:




Part 3 Of 9:




Part 4 Of 9:




Part 5 Of 9:




Part 6 Of 9:




Part 7 Of 9:




Part 8 Of 9:




Part 9 Of 9:
