Disassembled Views

Disassembled Views





Disassembled Views

Part 1 Of 7:




Part 2 Of 7:




Part 3 Of 7:




Part 4 Of 7:




Part 5 Of 7:




Part 6 Of 7:




Part 7 Of 7:

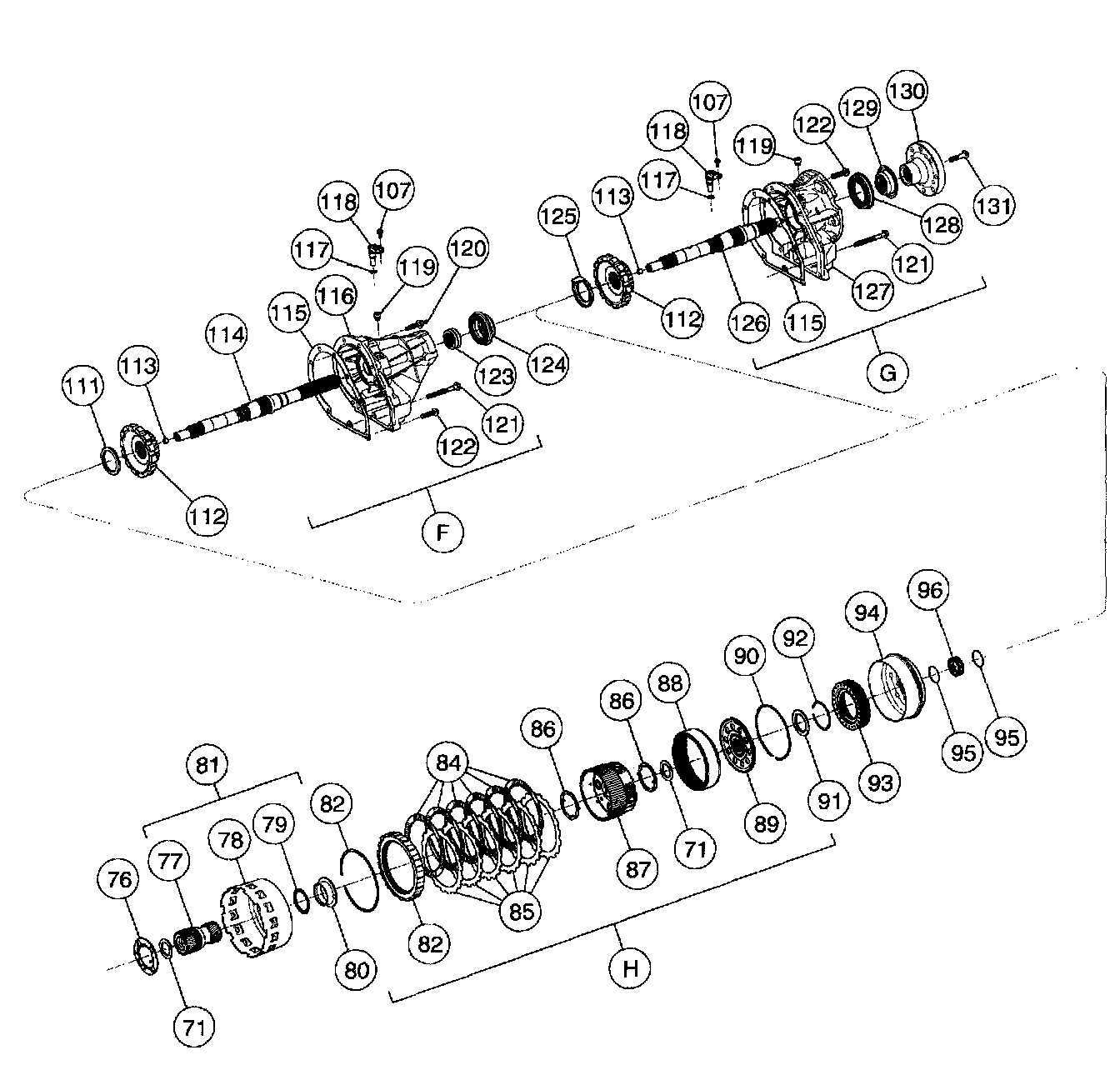

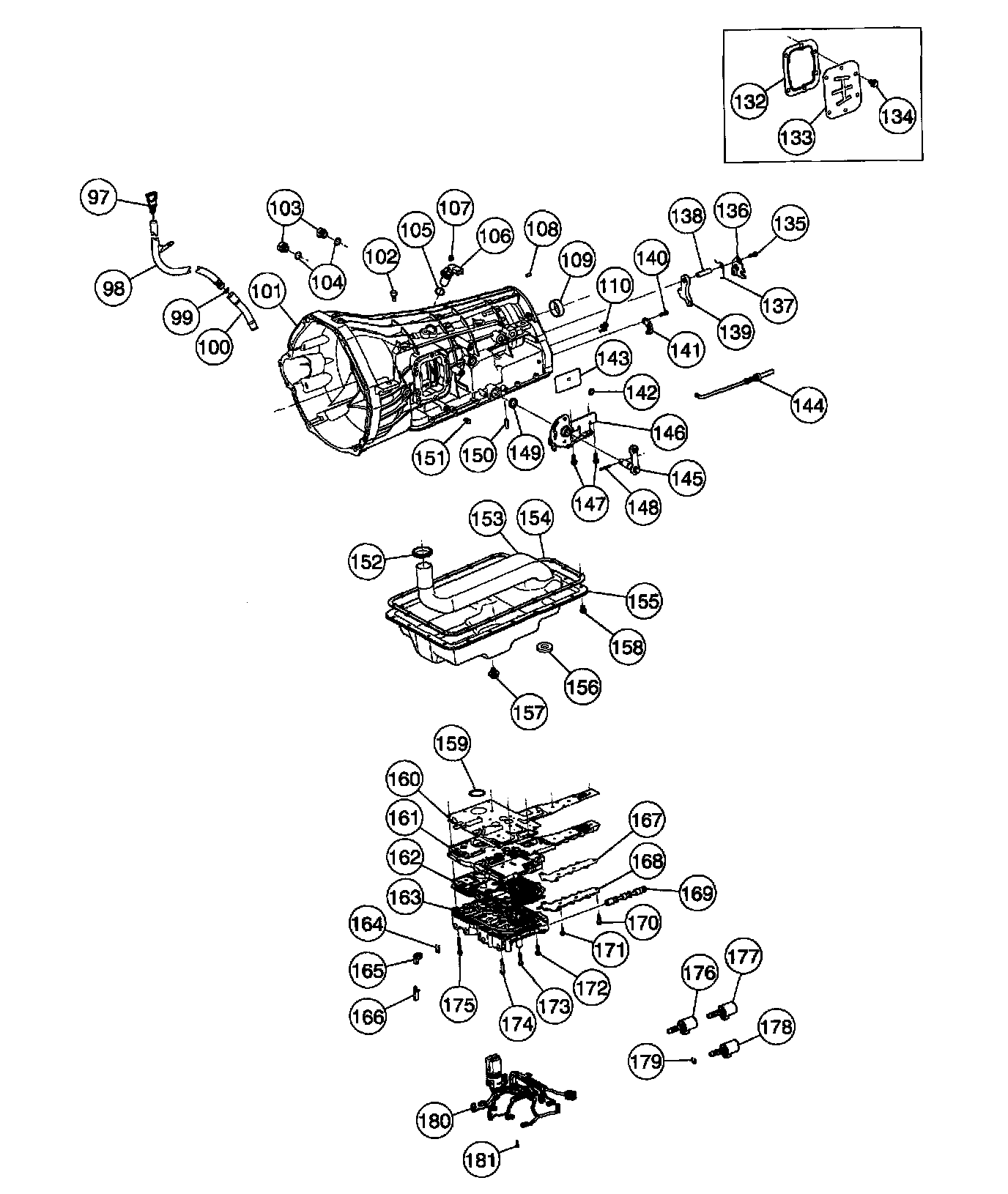

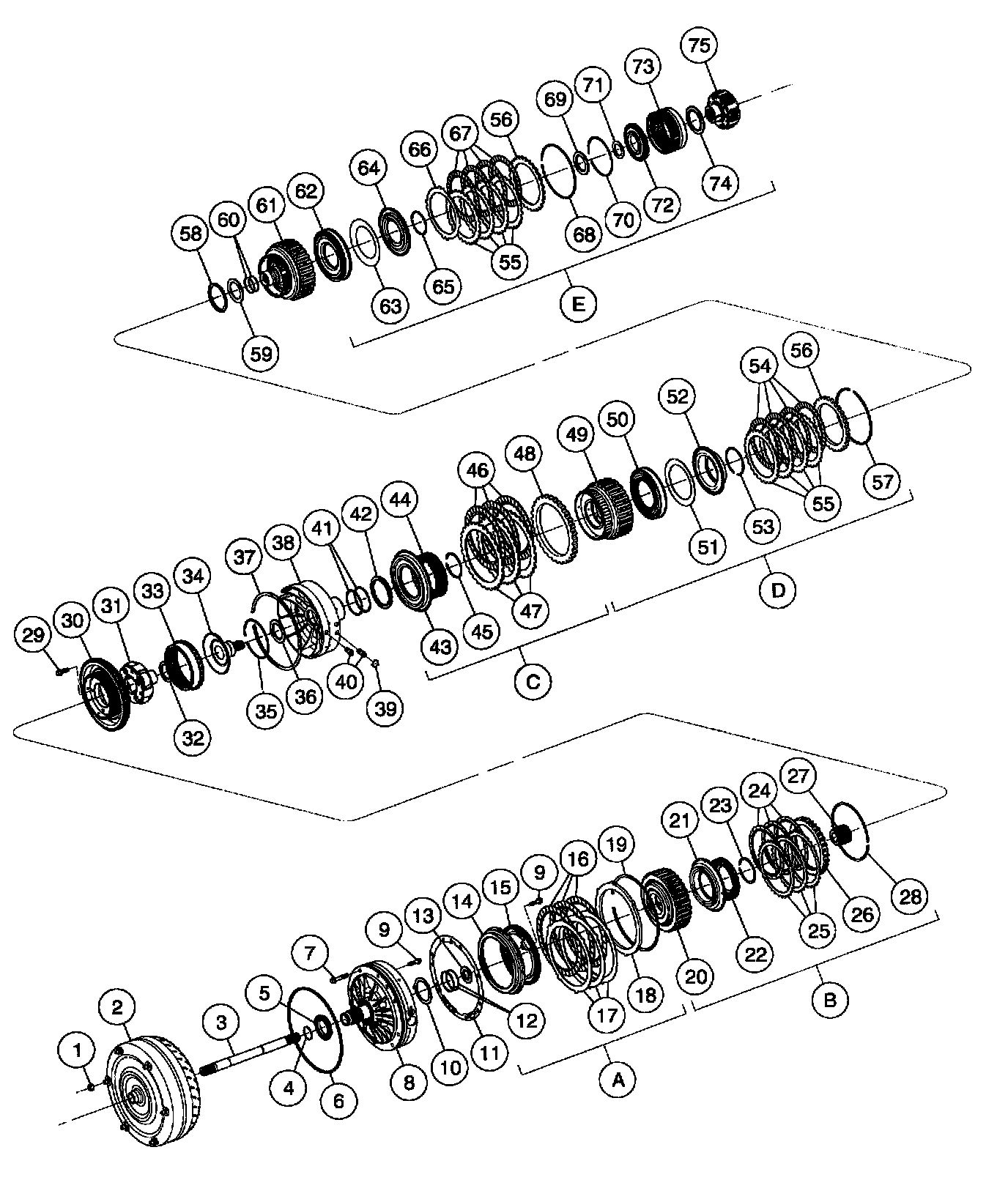

Transmission, Disassembled View
