Test G

PINPOINT TEST G: THE AUXILIARY POWERTRAIN CONTROL MODULE (APCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL (DIESEL ENGINE)

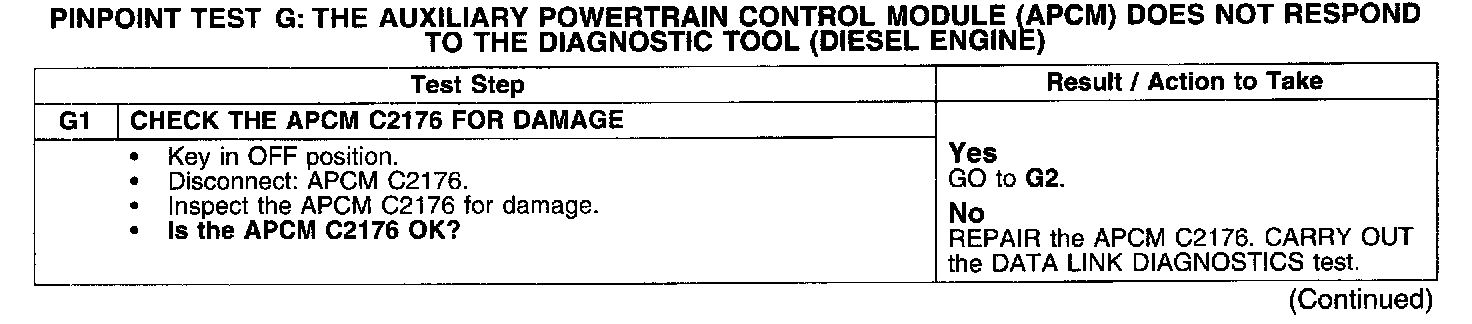

Test G1:

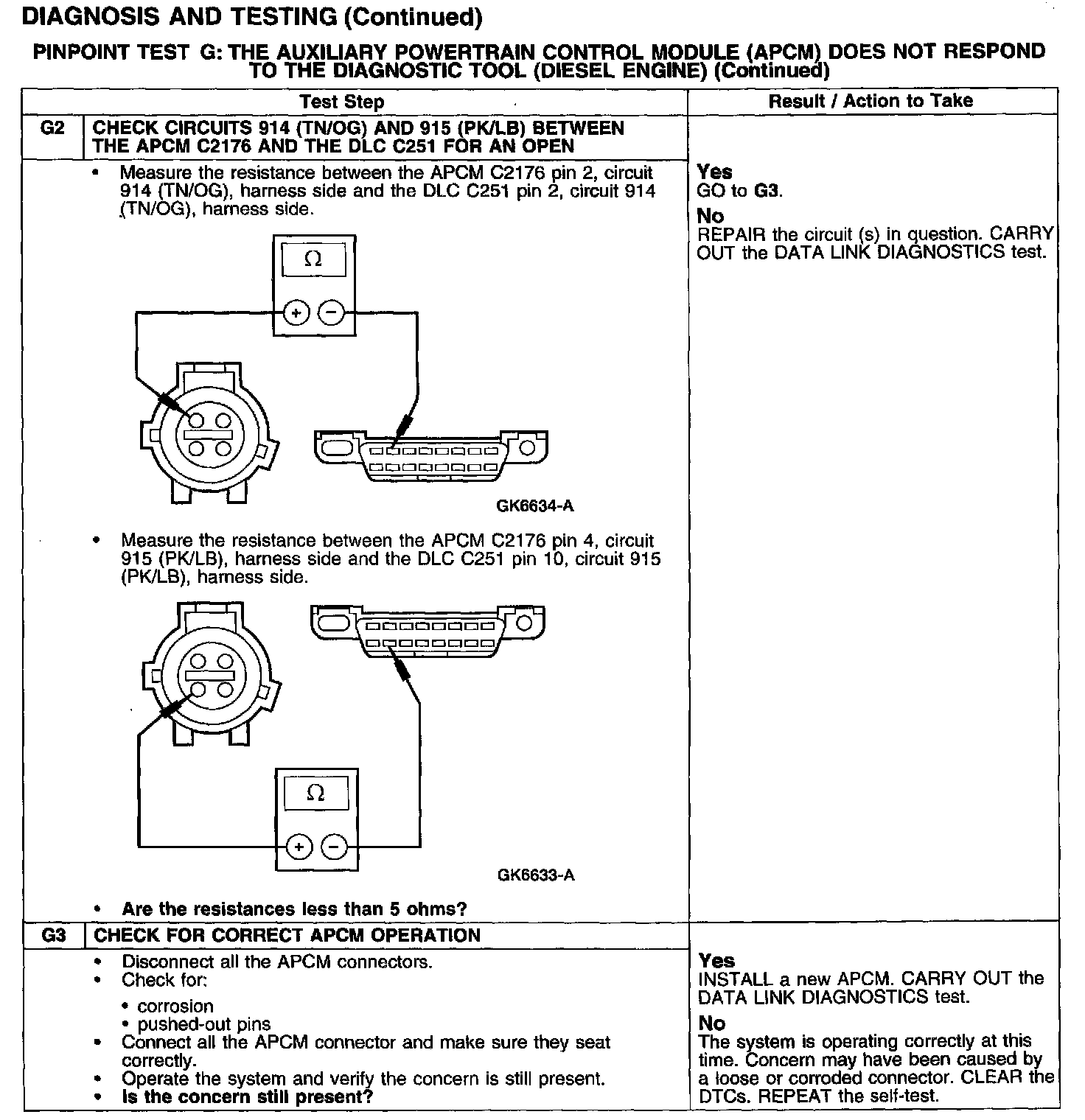

Test G2-G3:
