Test H

PINPOINT TEST H: THE PASSIVE ANTI-THEFT SYSTEM PATS MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL (IF EQUIPPED)

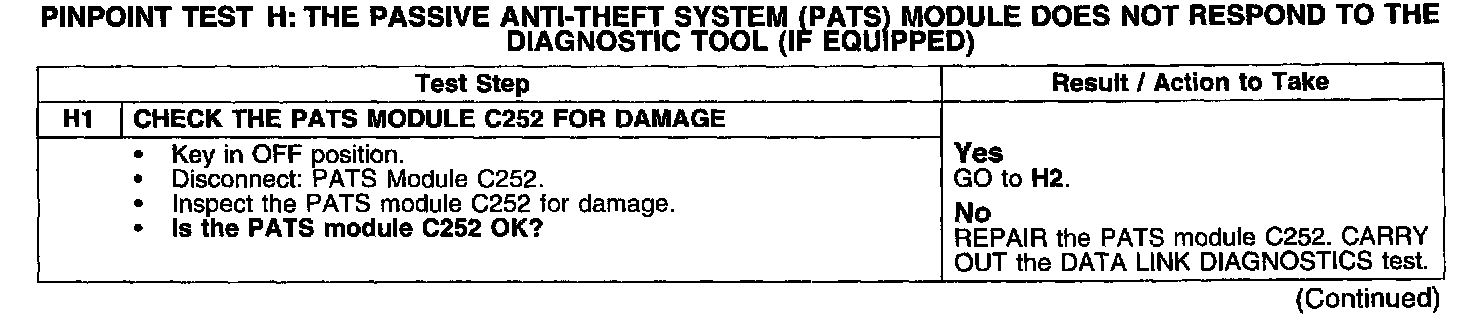

Test H1:

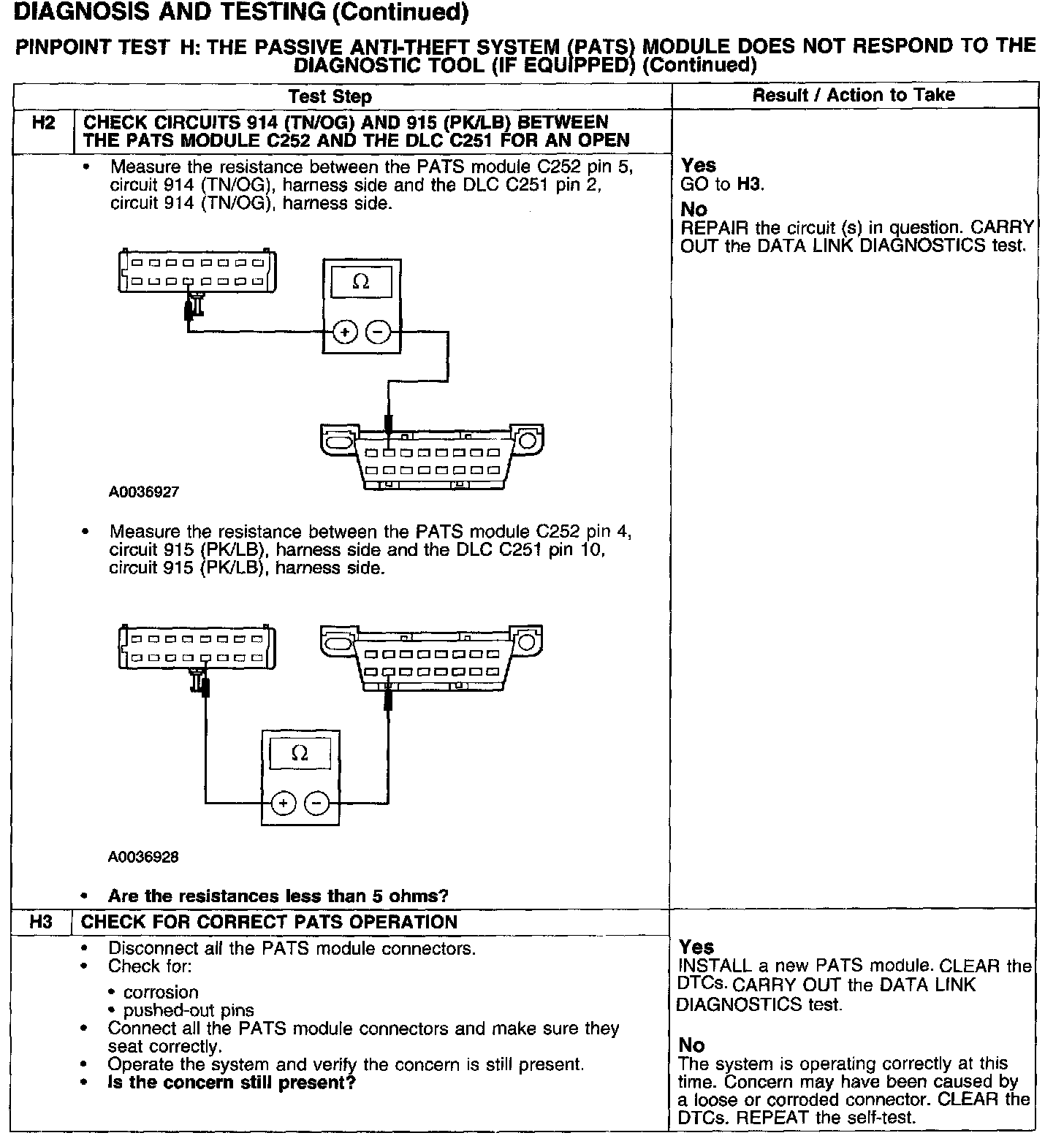

Test H2-H3:
