Tests AE

PINPOINT TEST AE: UNABLE TO ACTIVATE SELF TEST COMMUNICATION ERROR/DTC NOT LISTED

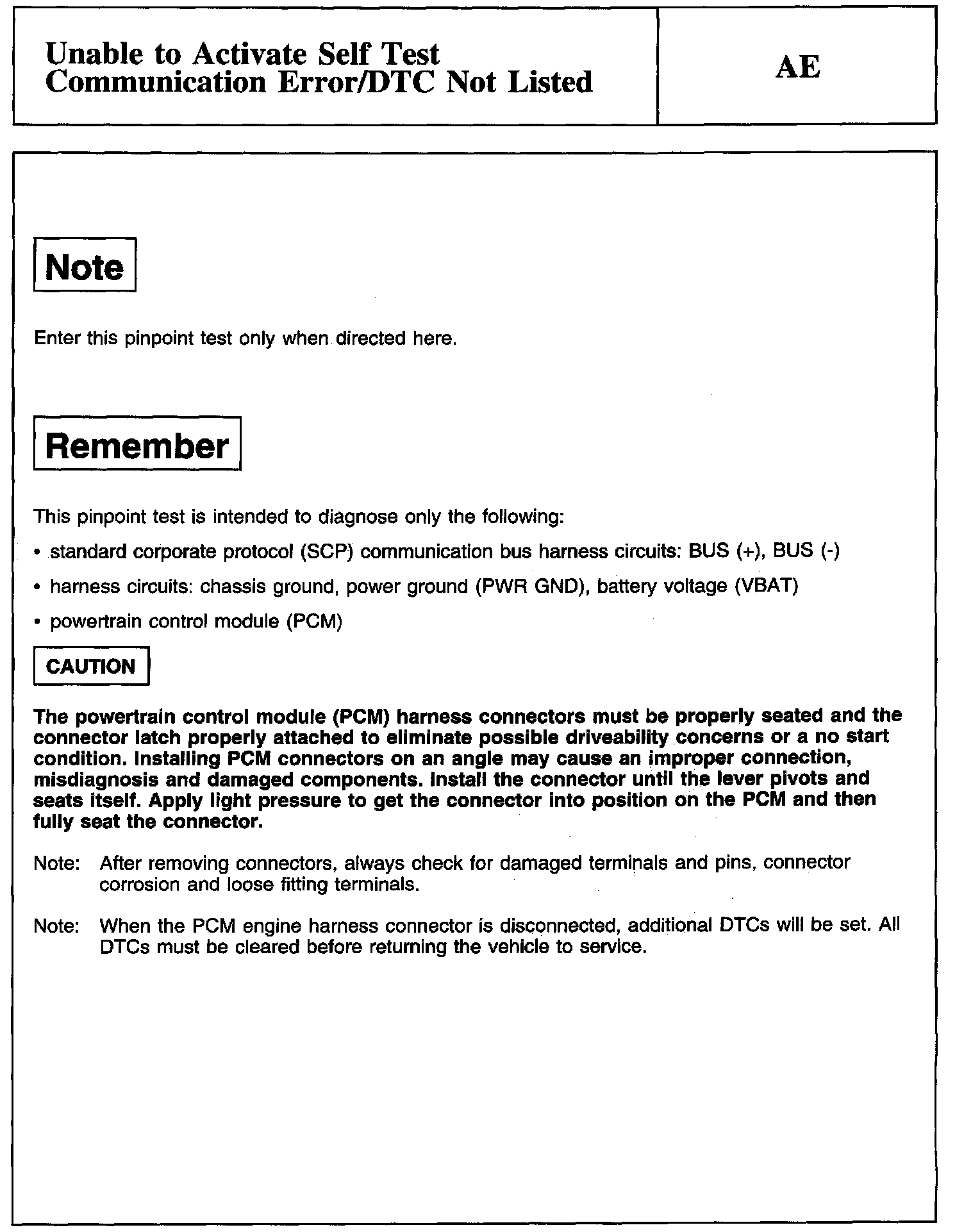

Note, Remember And Caution:

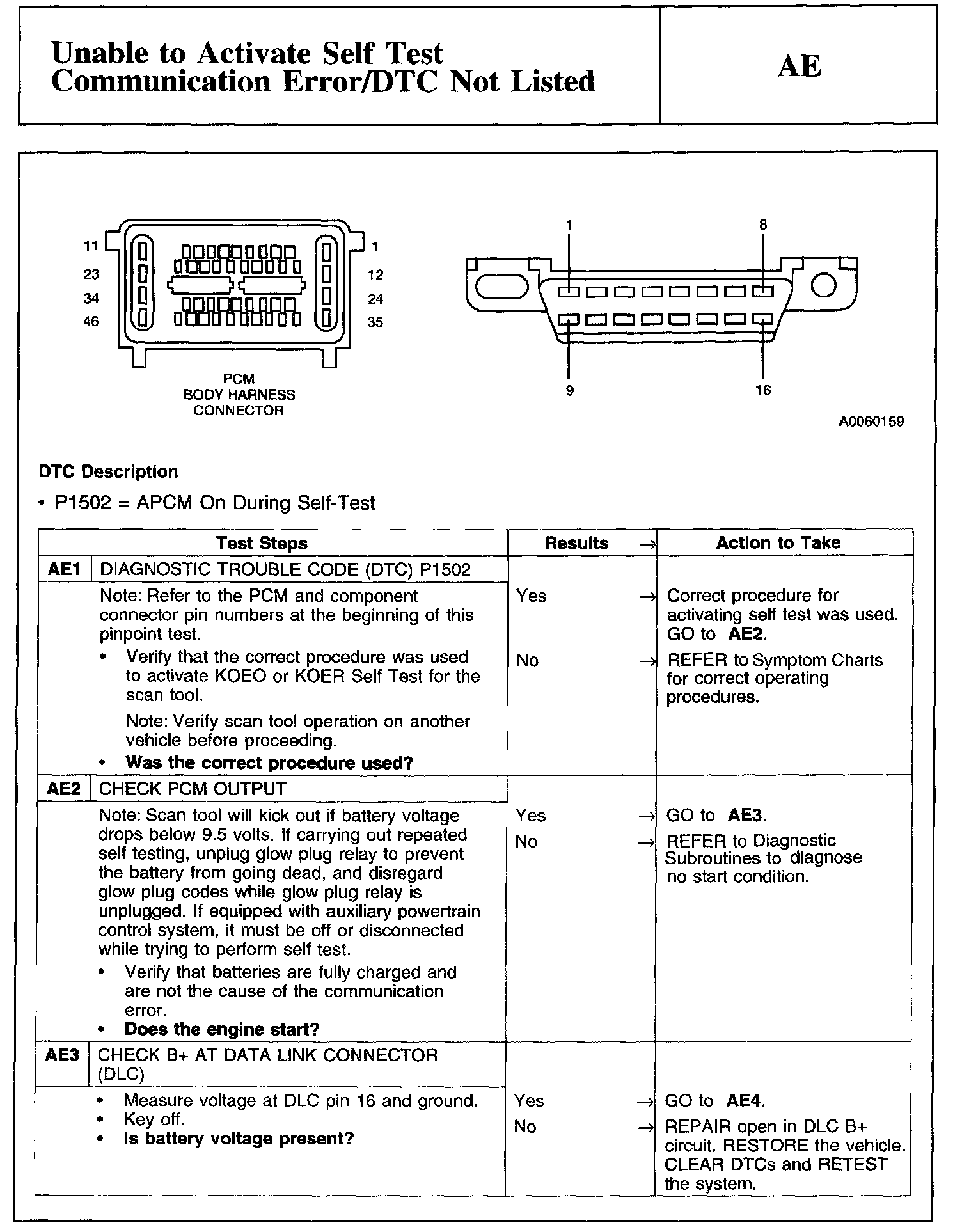

Schematic, Test AE1-AE3:

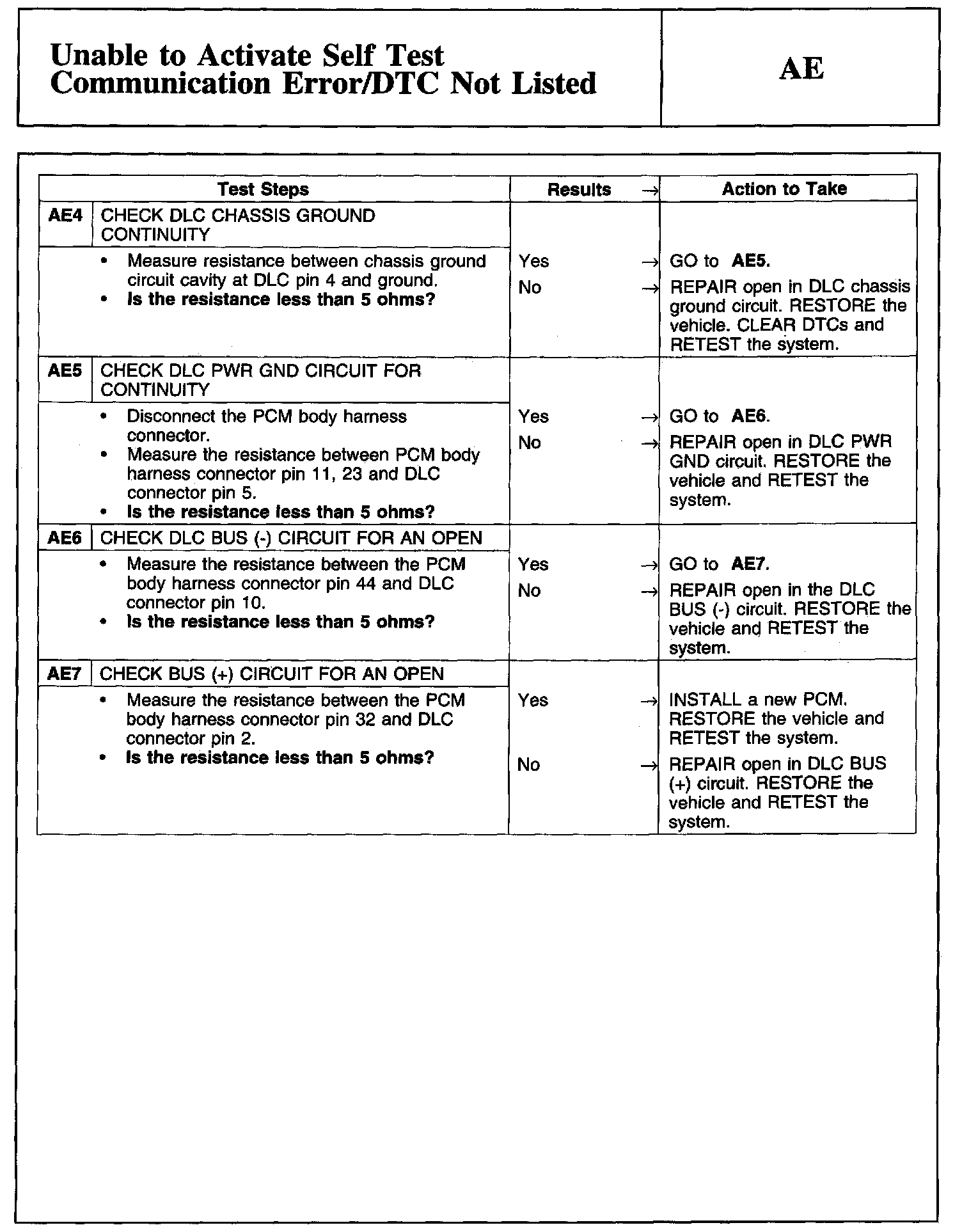

Test AE4-AE7:
