Tests AK
PINPOINT TEST AK: VARIABLE GEOMETRY
TURBO
(VGT) OUTPUT

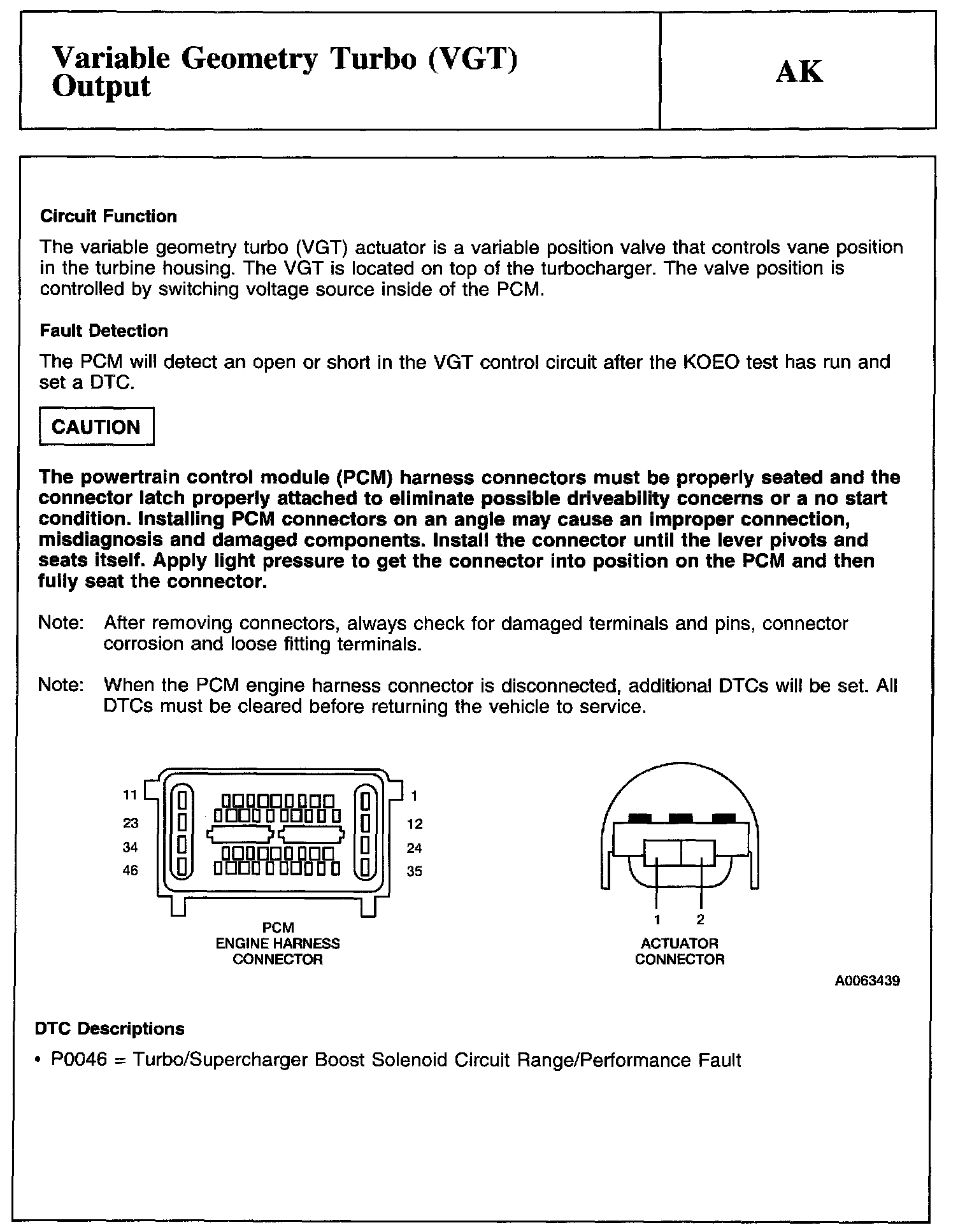

Description, Caution And Schematic:

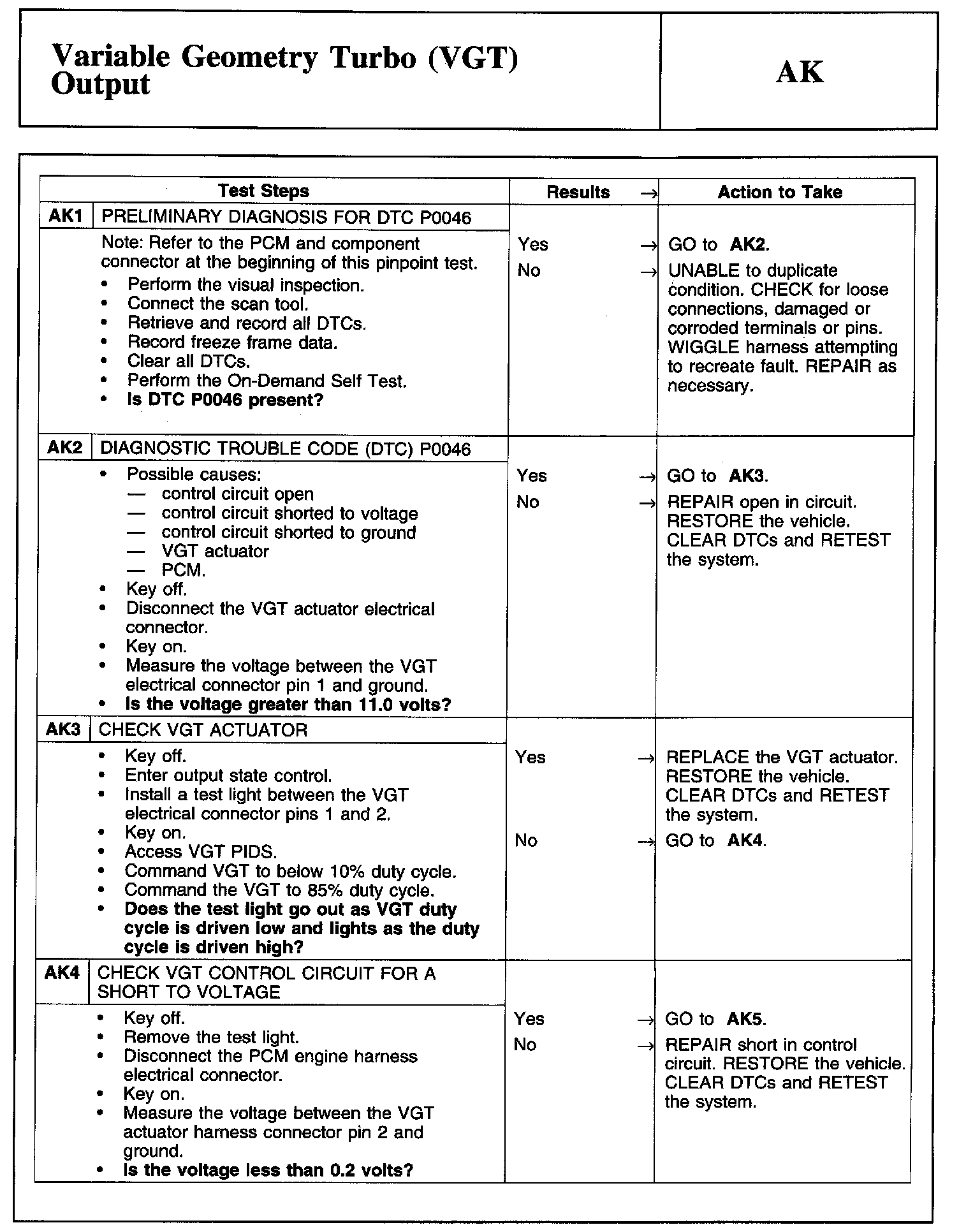

Test AK1-AK4:
Test AK5-AK6:
