Tests AO

PINPOINT TEST AO: INJECTOR CONTROL PRESSURE TOO HIGH

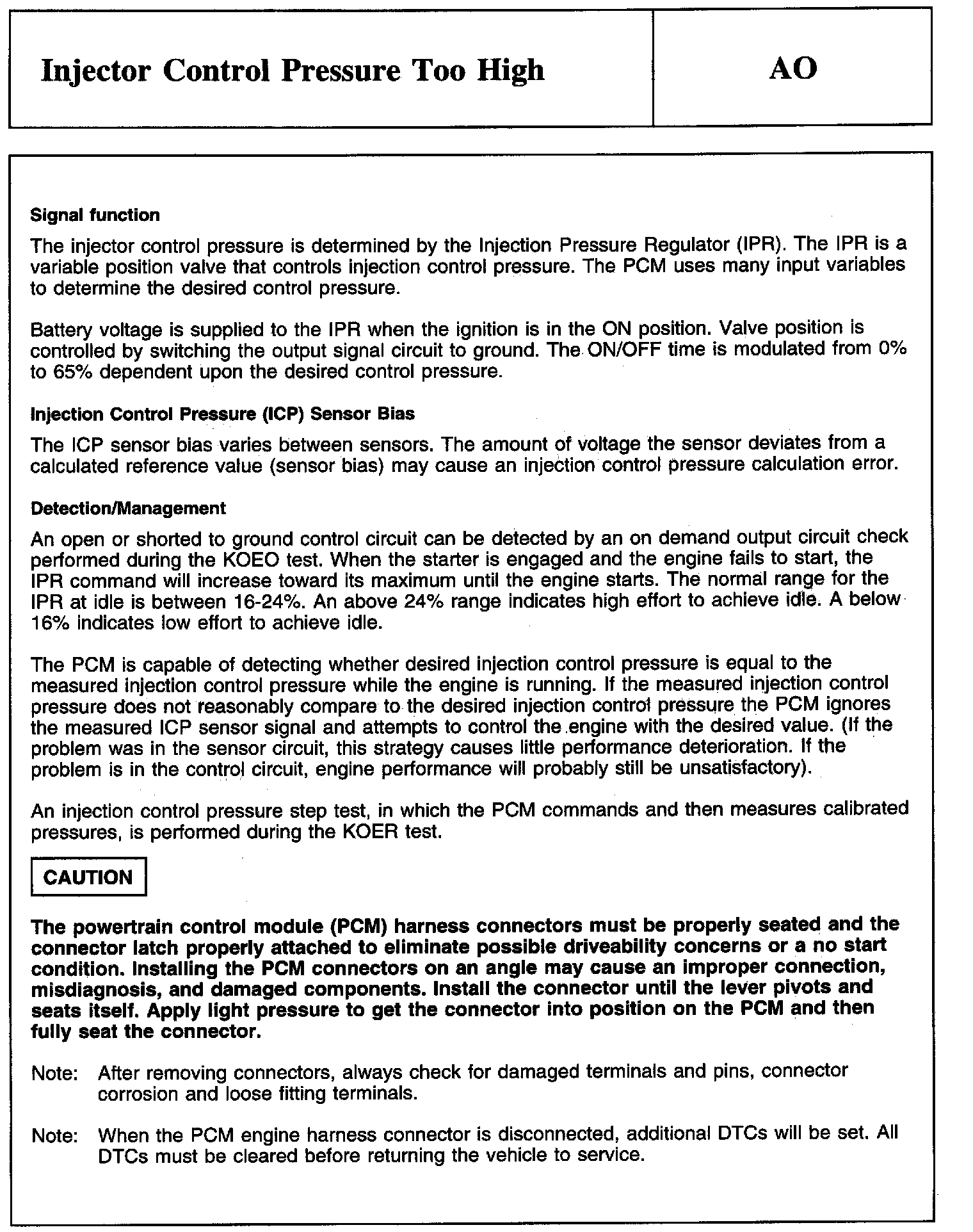

Description, Caution:

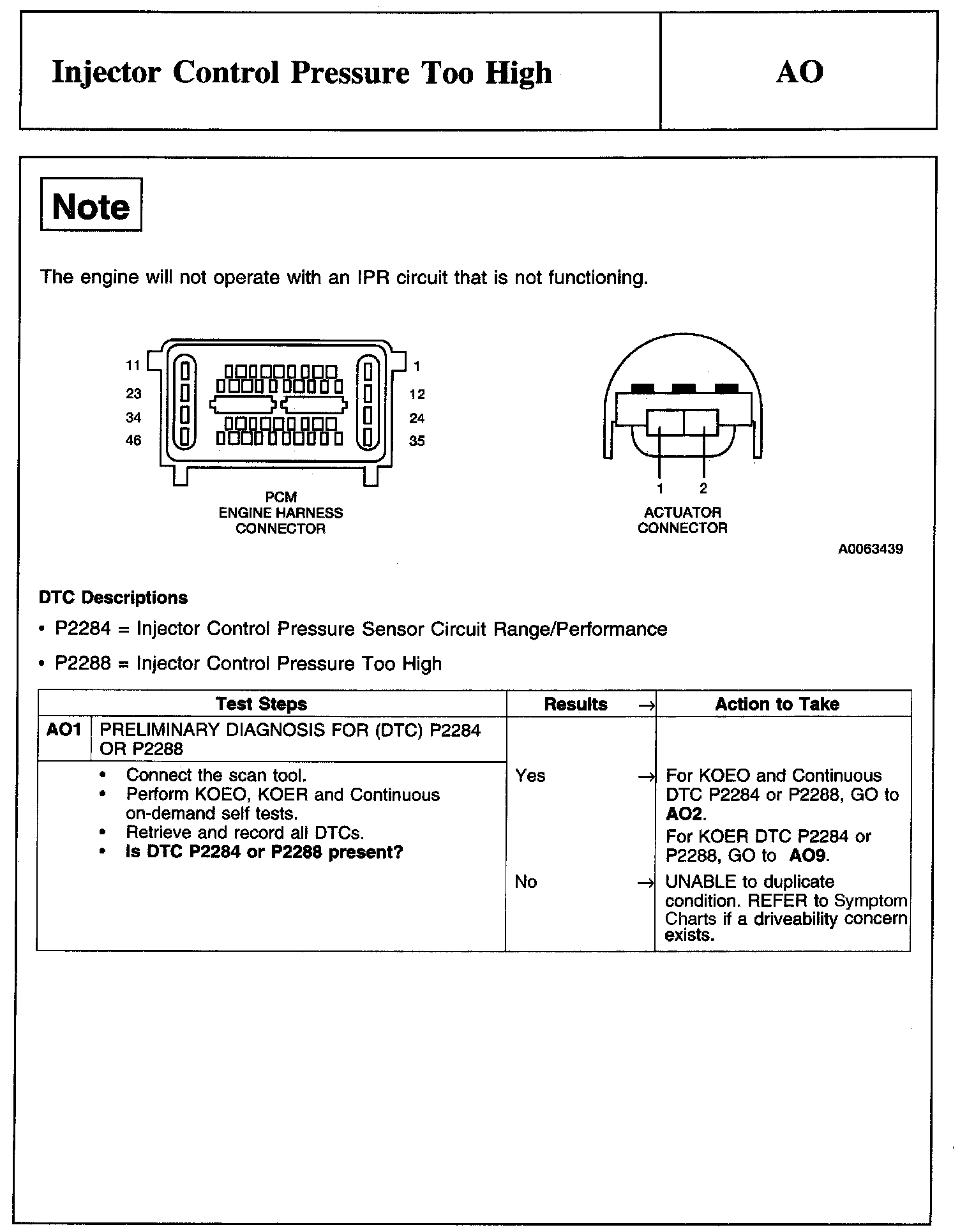

Note, Schematic And Test AO1:

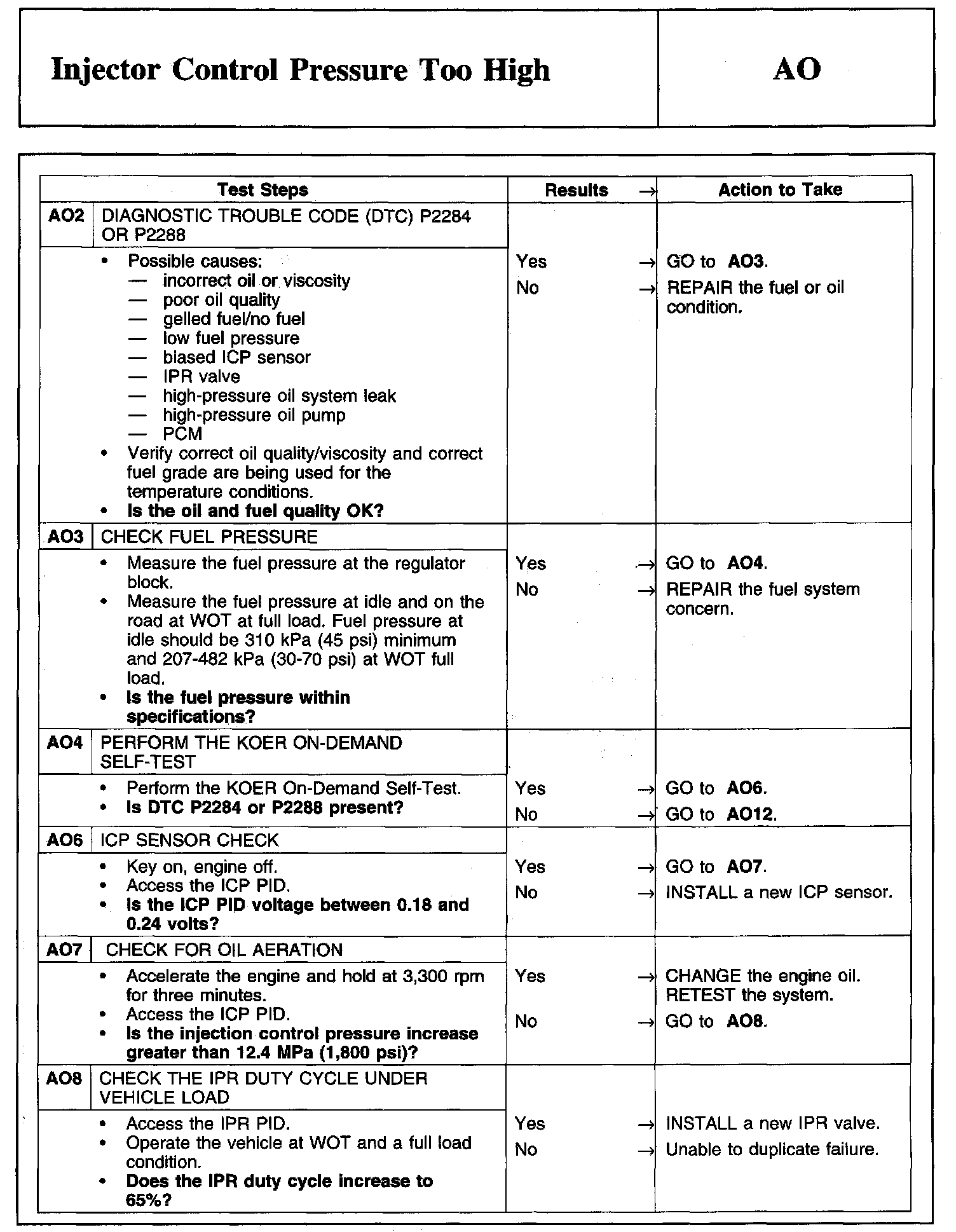

Test AO2-AO8:

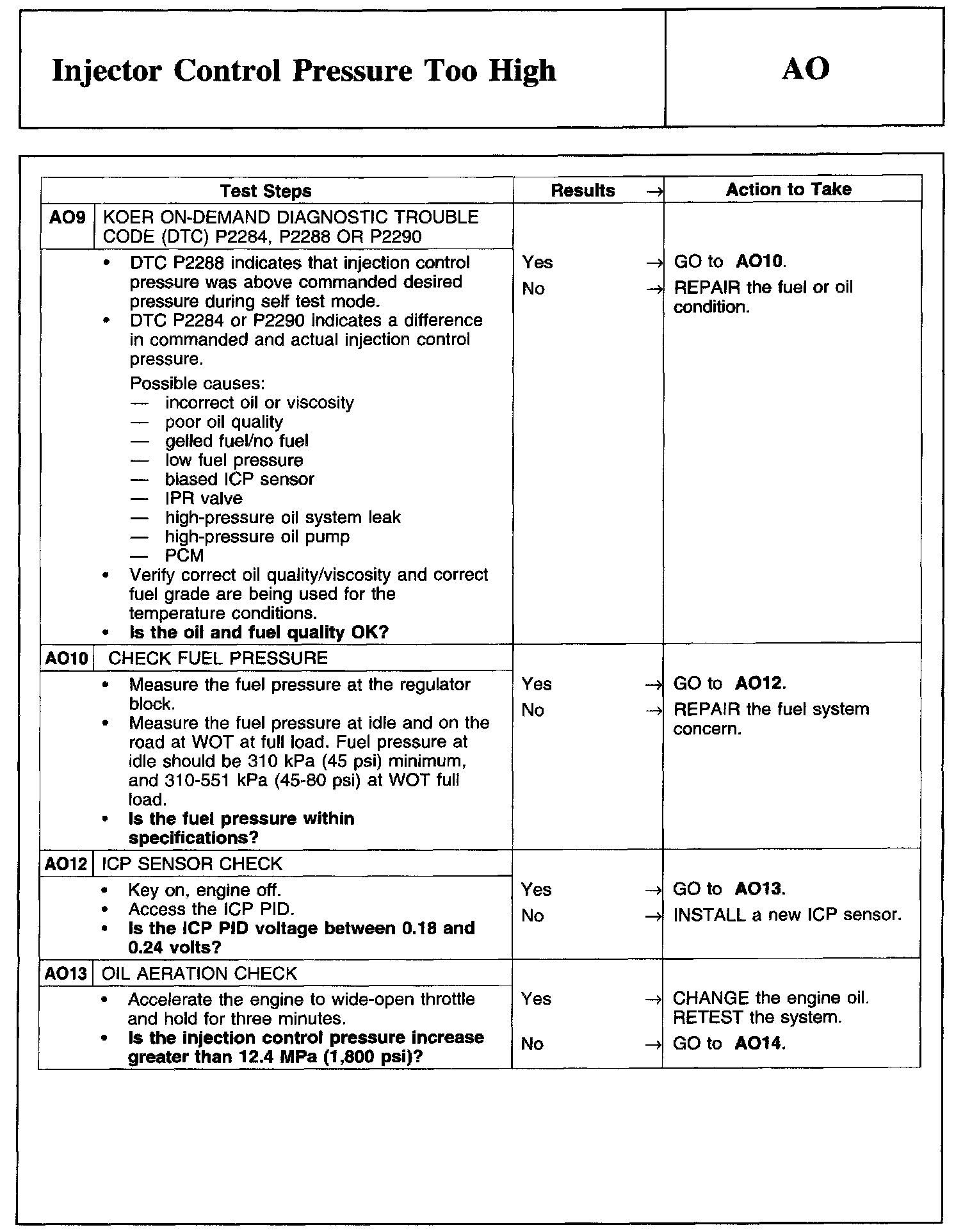

Test AO9-AO13:

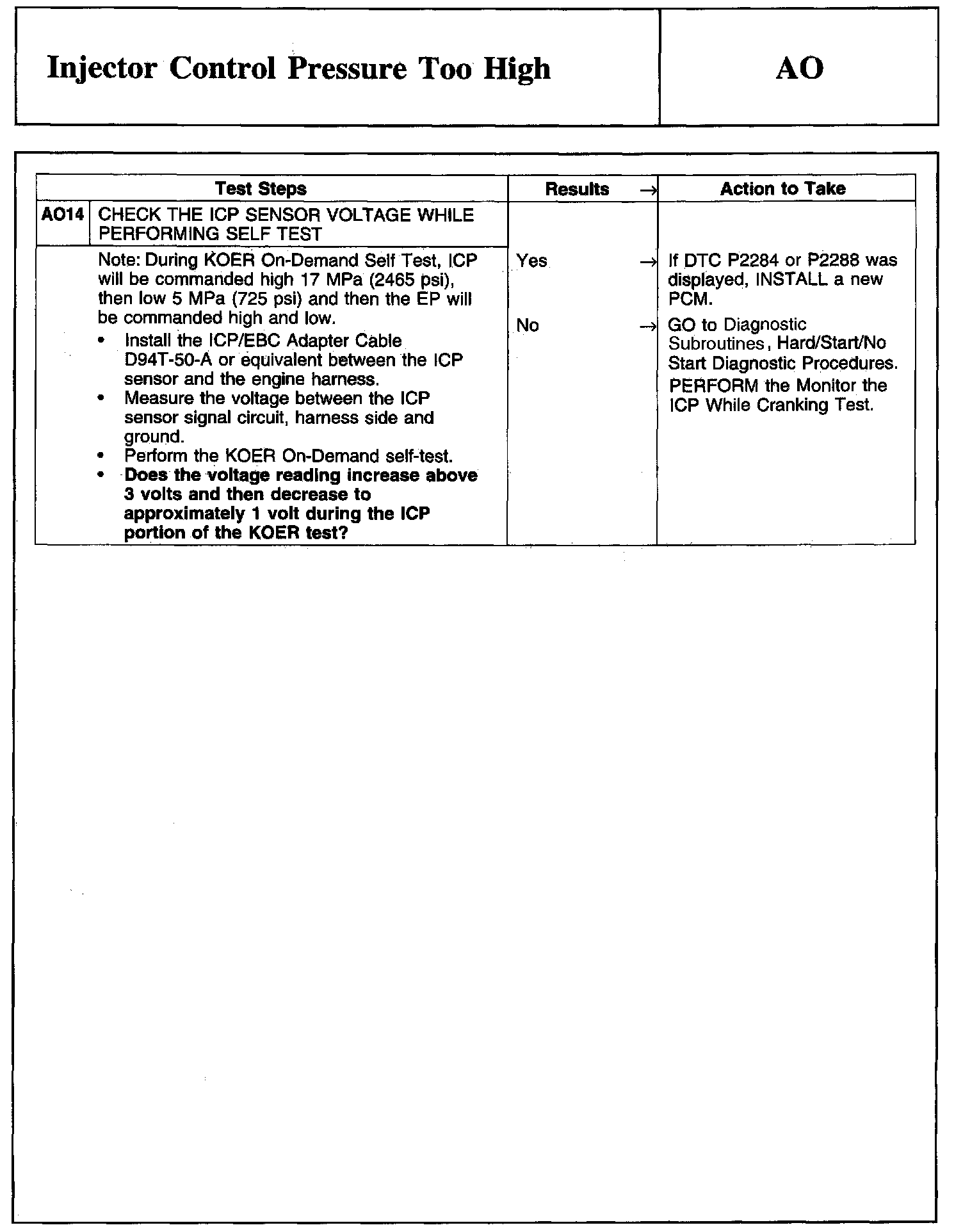

Test AO14:
