Tests AQ

PINPOINT TEST AQ: INJECTION CONTROL PRESSURE TOO LOW - ENGINE CRANKING

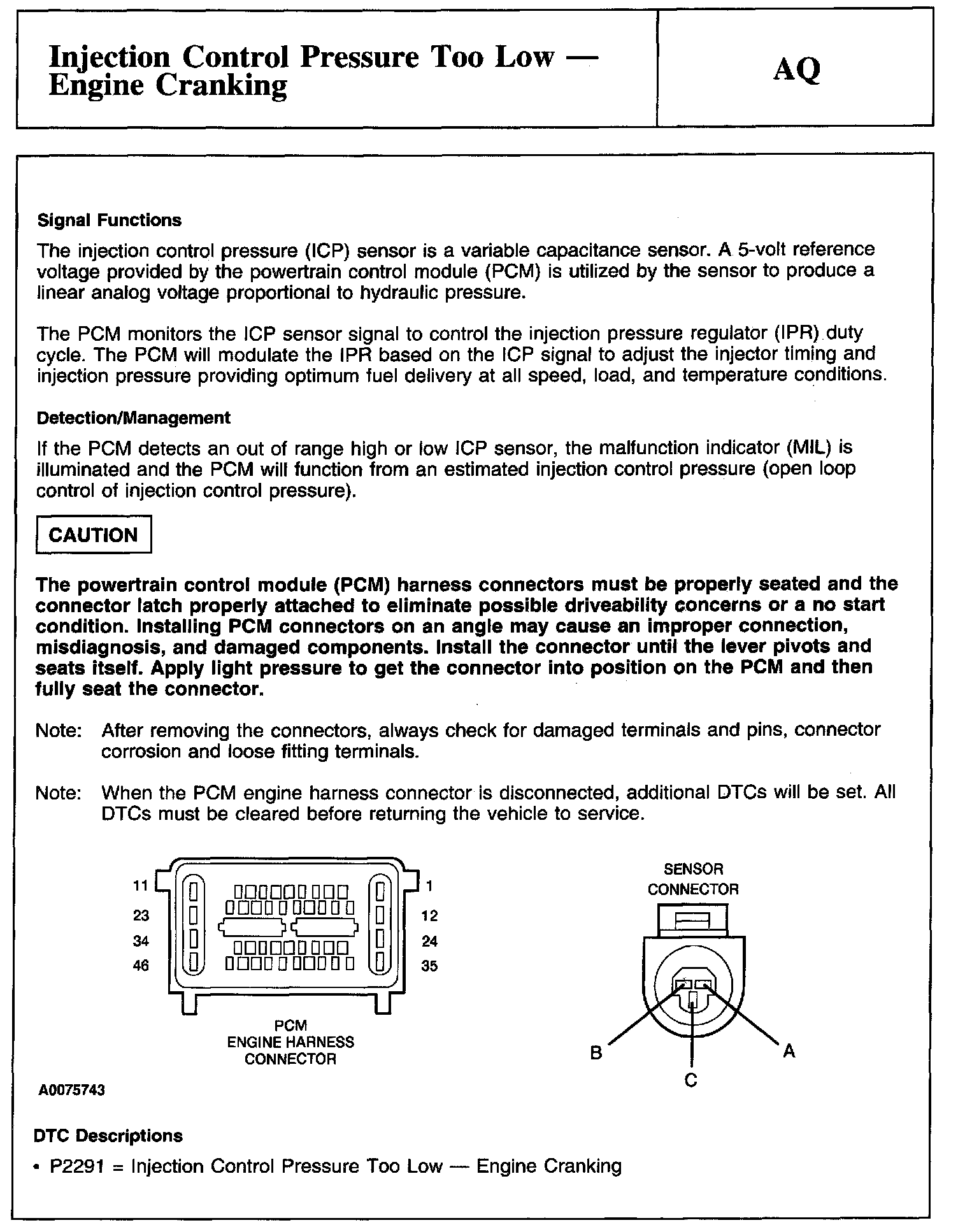

Description, Caution And Schematic:

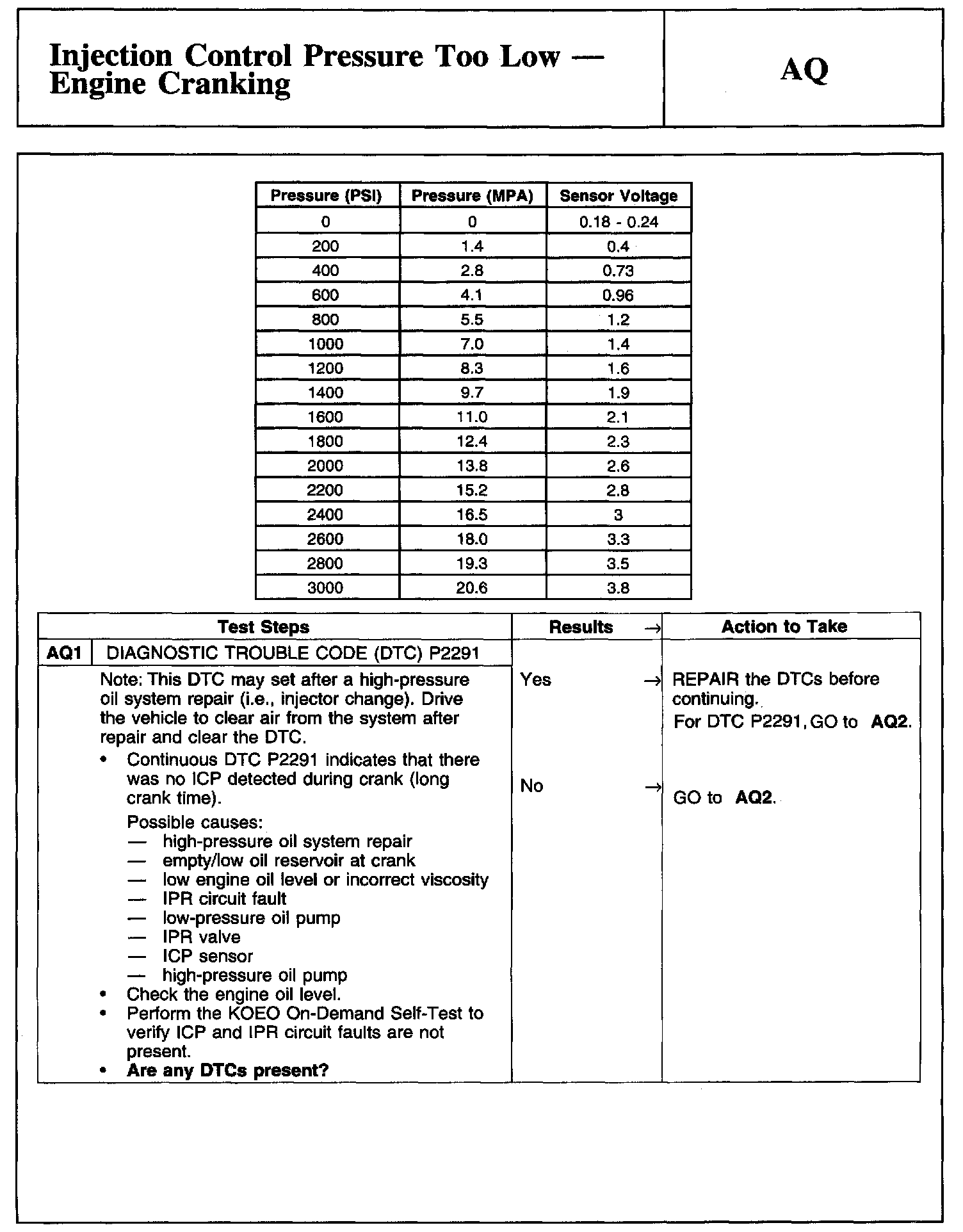

Table, Test AQ1:

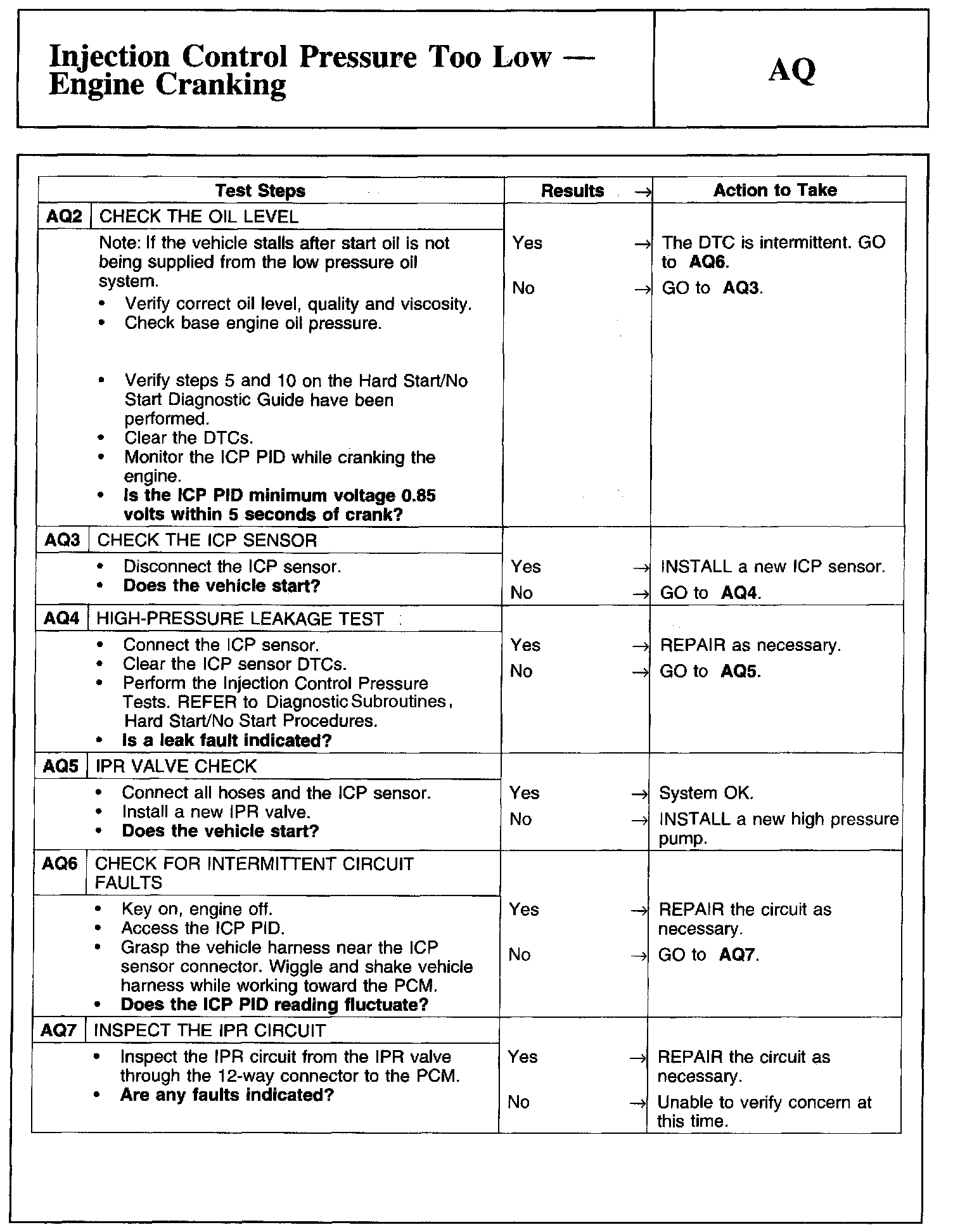

Test AQ2-AQ7:
