Transmission Pressure Switch

Transmission Pressure Switch

Removal and Installation

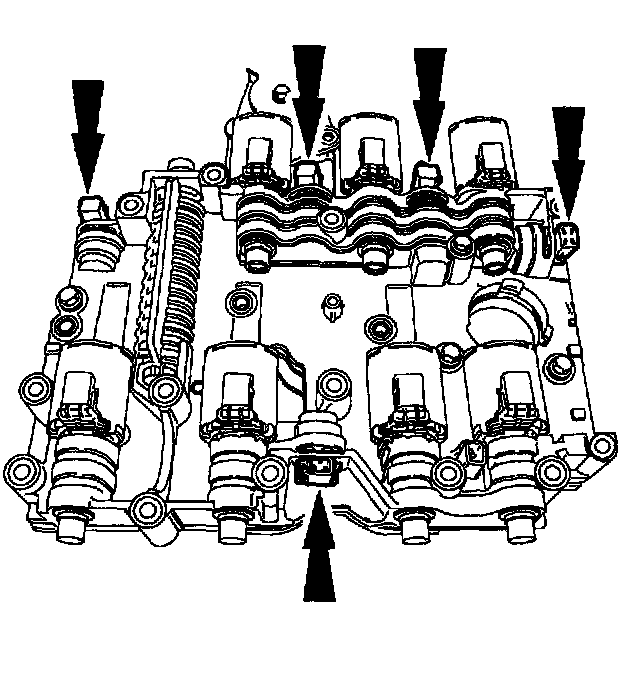

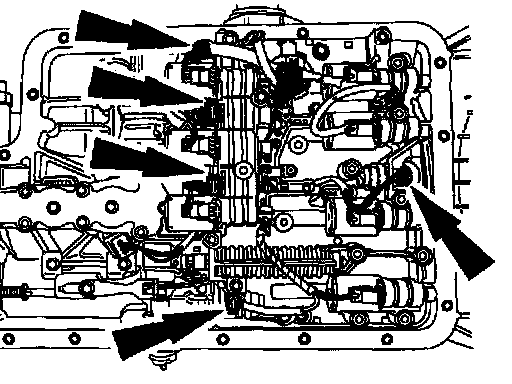

1. Disconnect the battery ground cable.
2. Remove the transmission fluid pan, gasket and filter





3. Disconnect the affected pressure switch electrical connector.





4. Remove the affected pressure switch.
^ Remove the retaining "W" clip.
^ Remove the affected pressure switch.

5. To install, reverse the removal procedure.
