Tests DC: Injection Control Pressure (ICP) Sensor

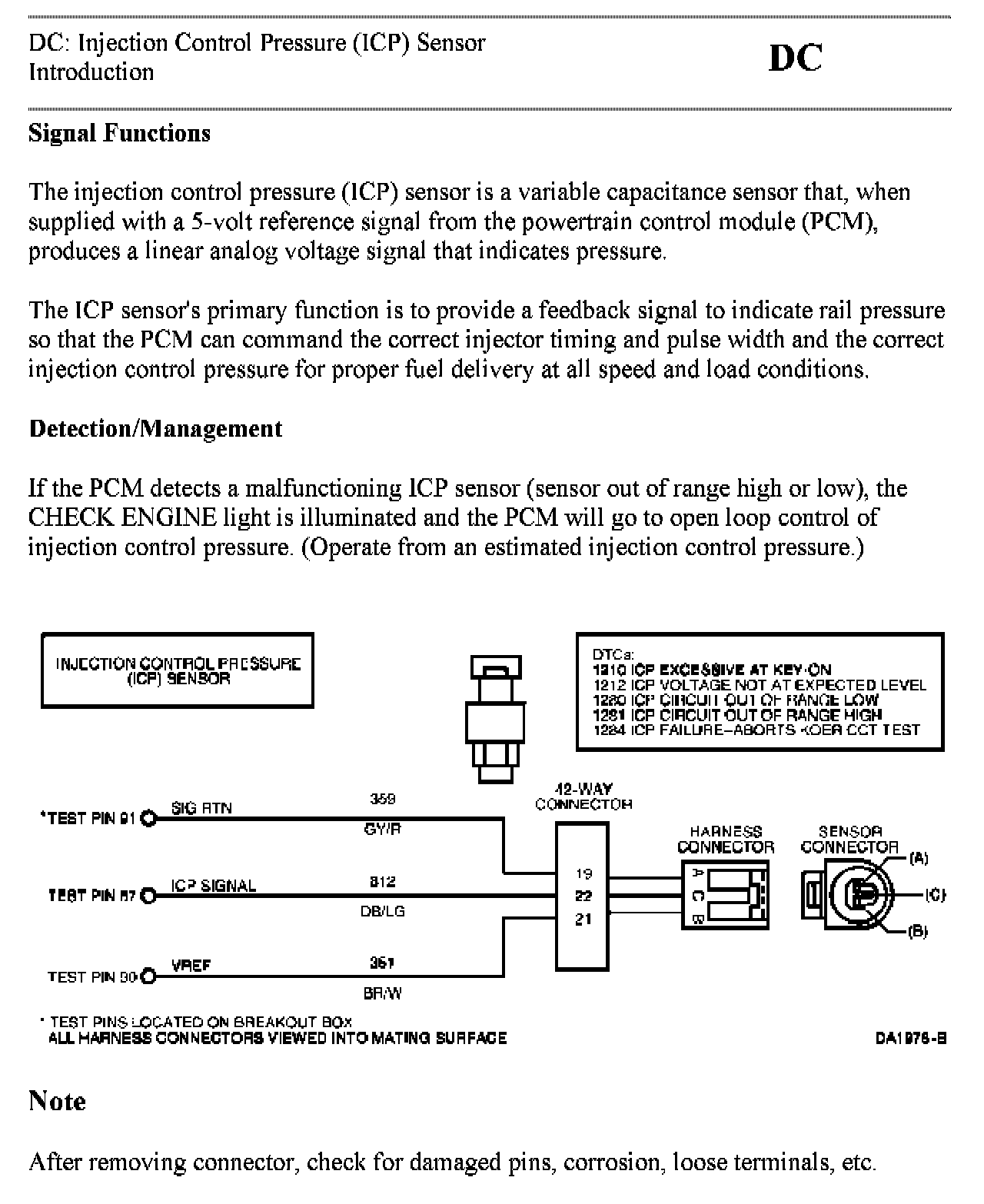

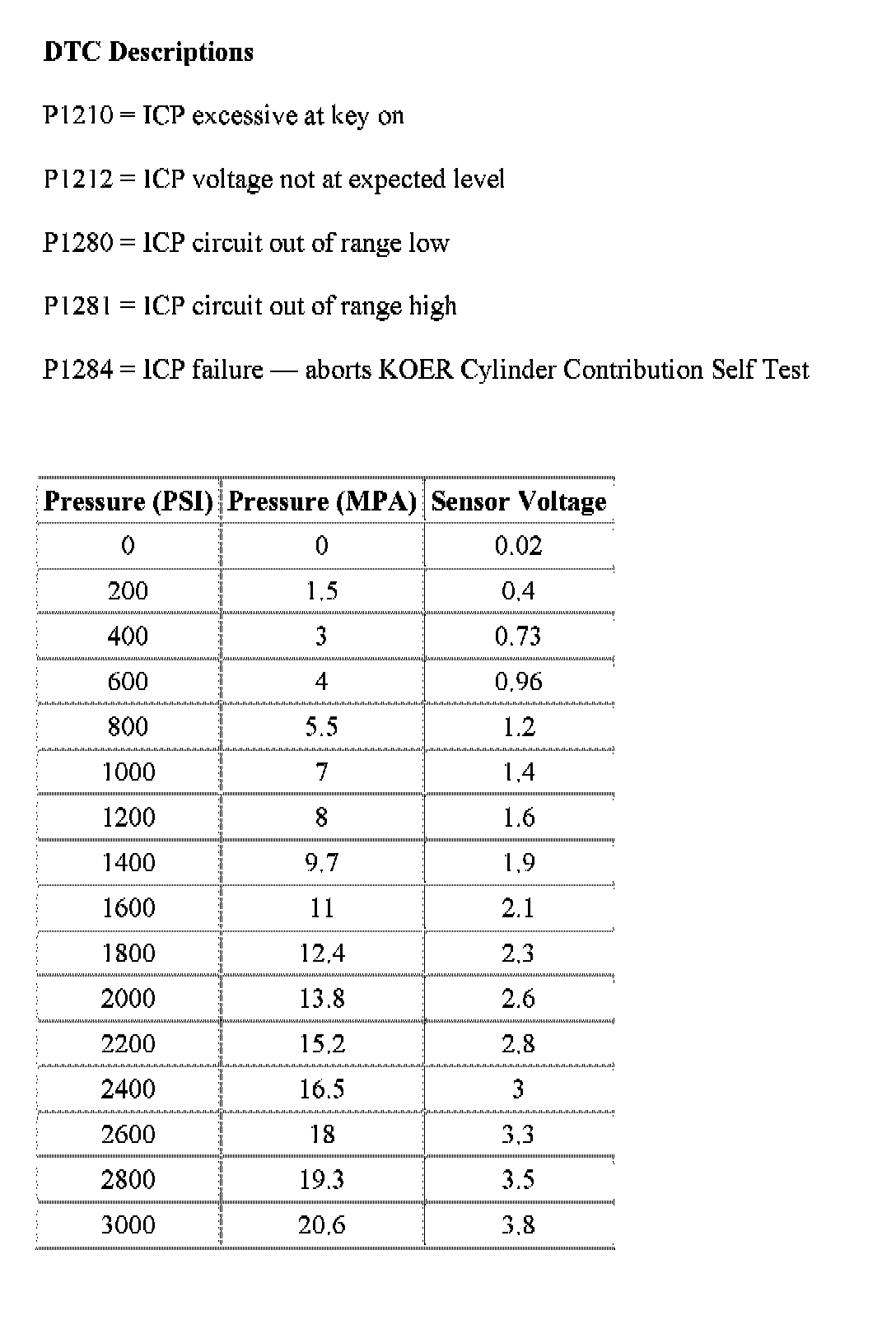

DC Introduction:

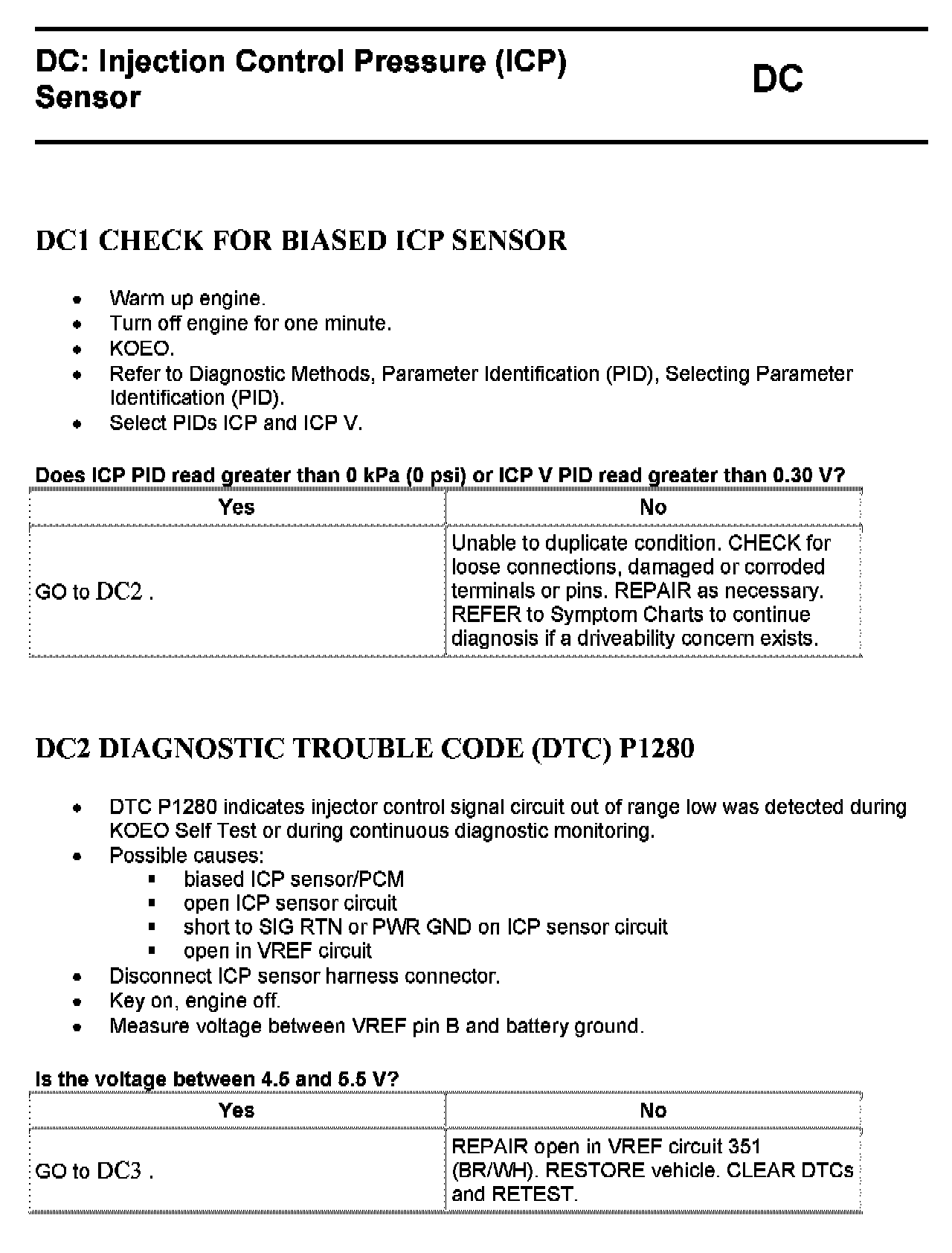

DC1 - DC2:

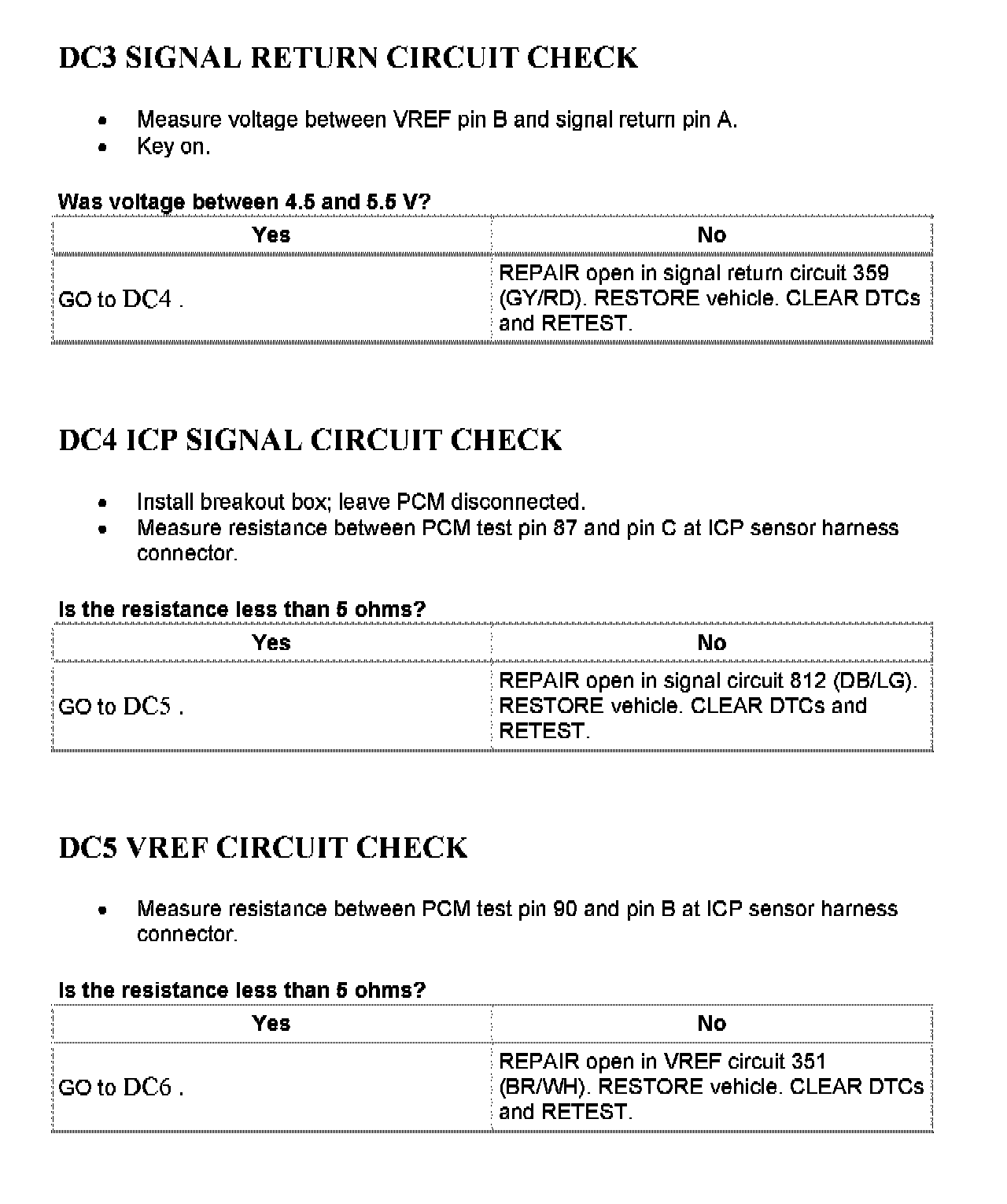

DC3 - DC5:

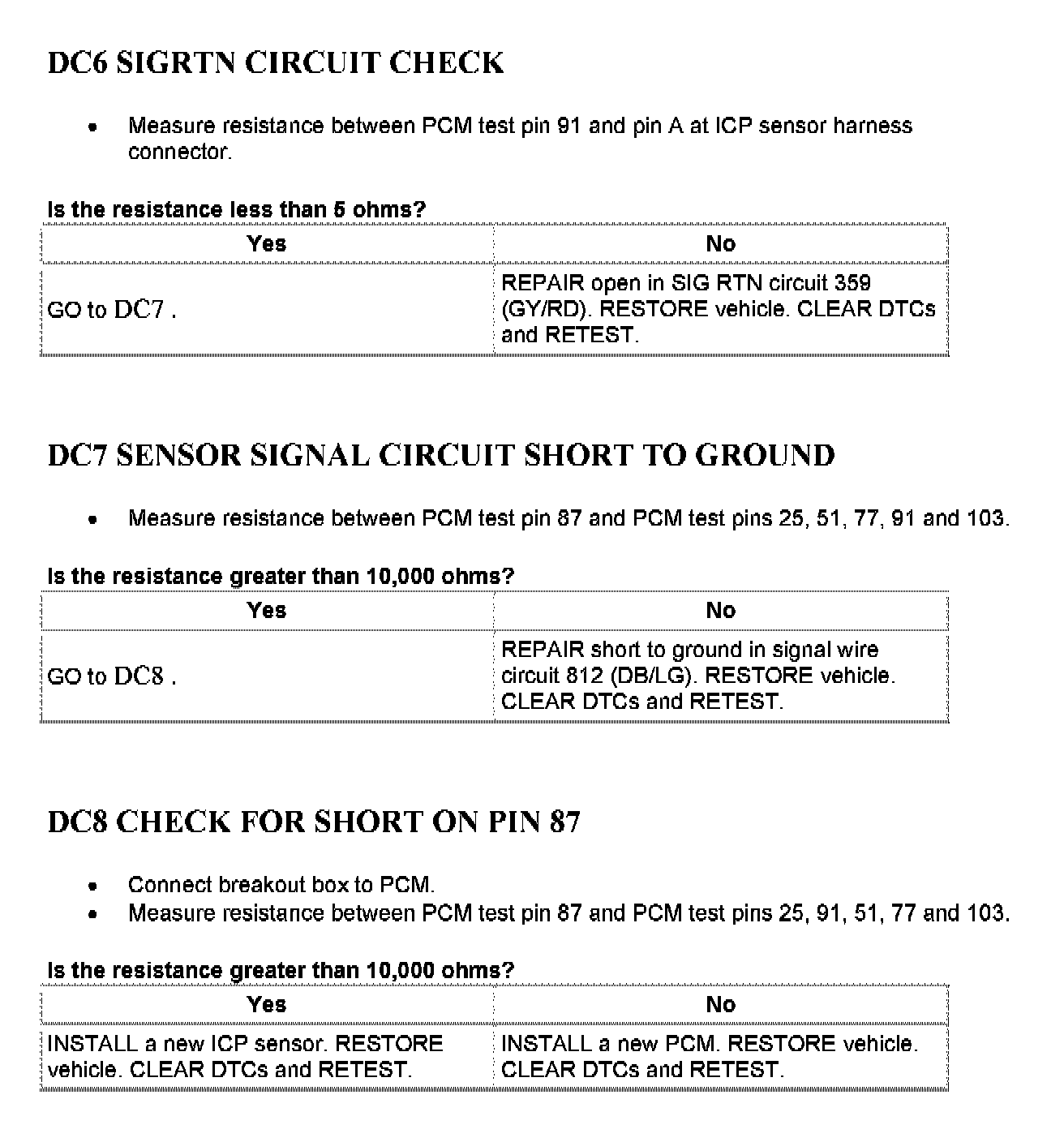

DC6 - DC8:

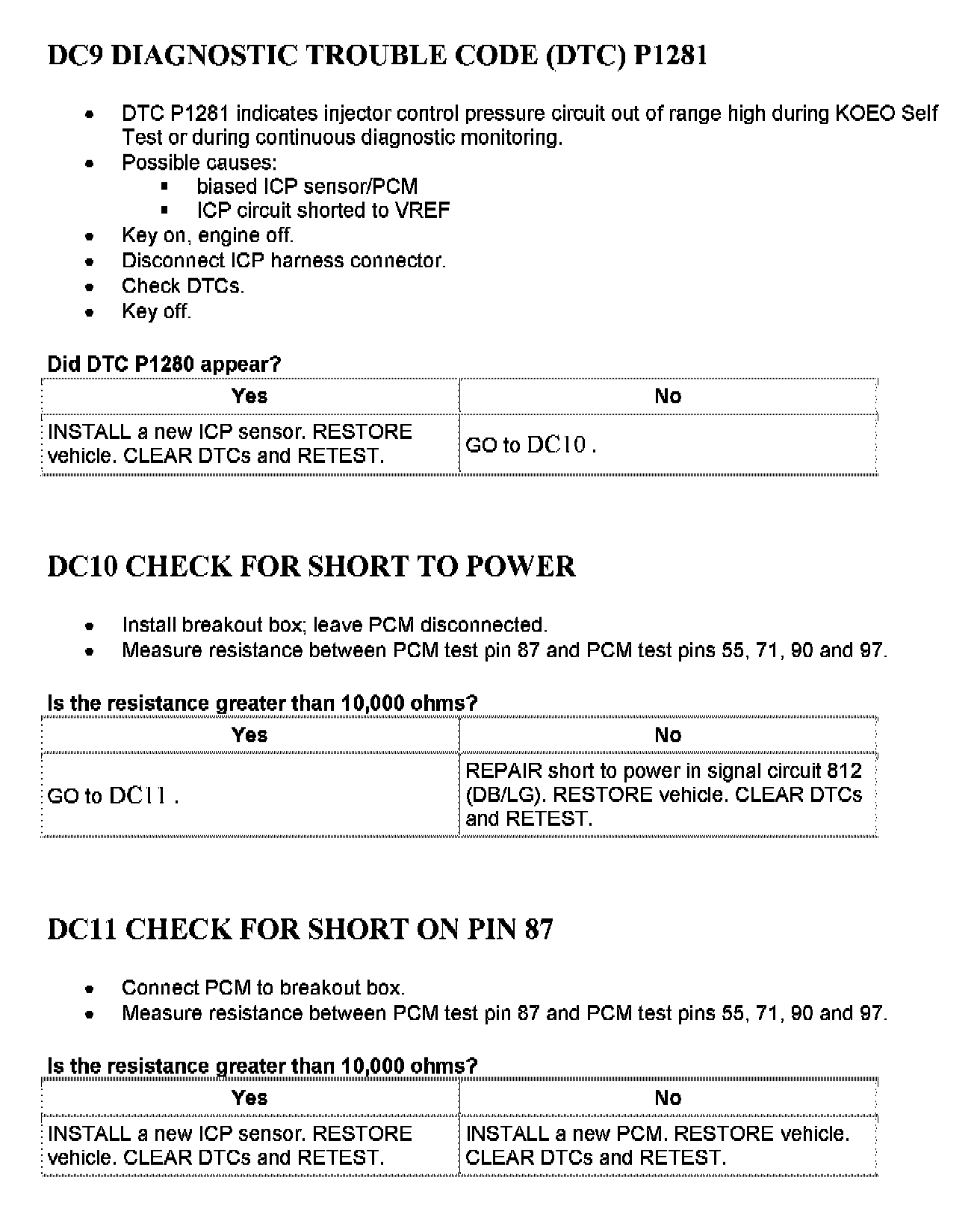

DC9 - DC11:

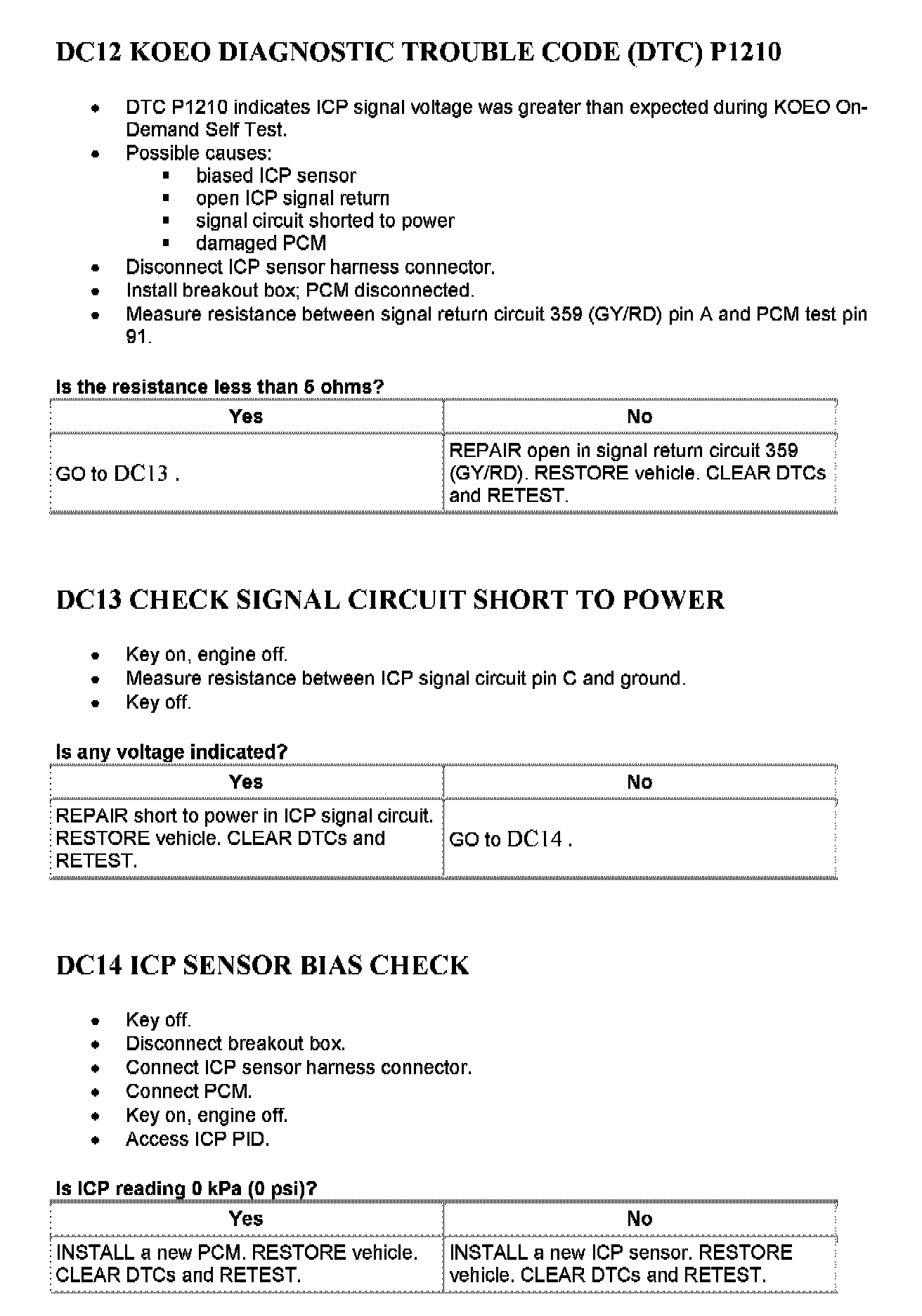

DC12 - DC14:

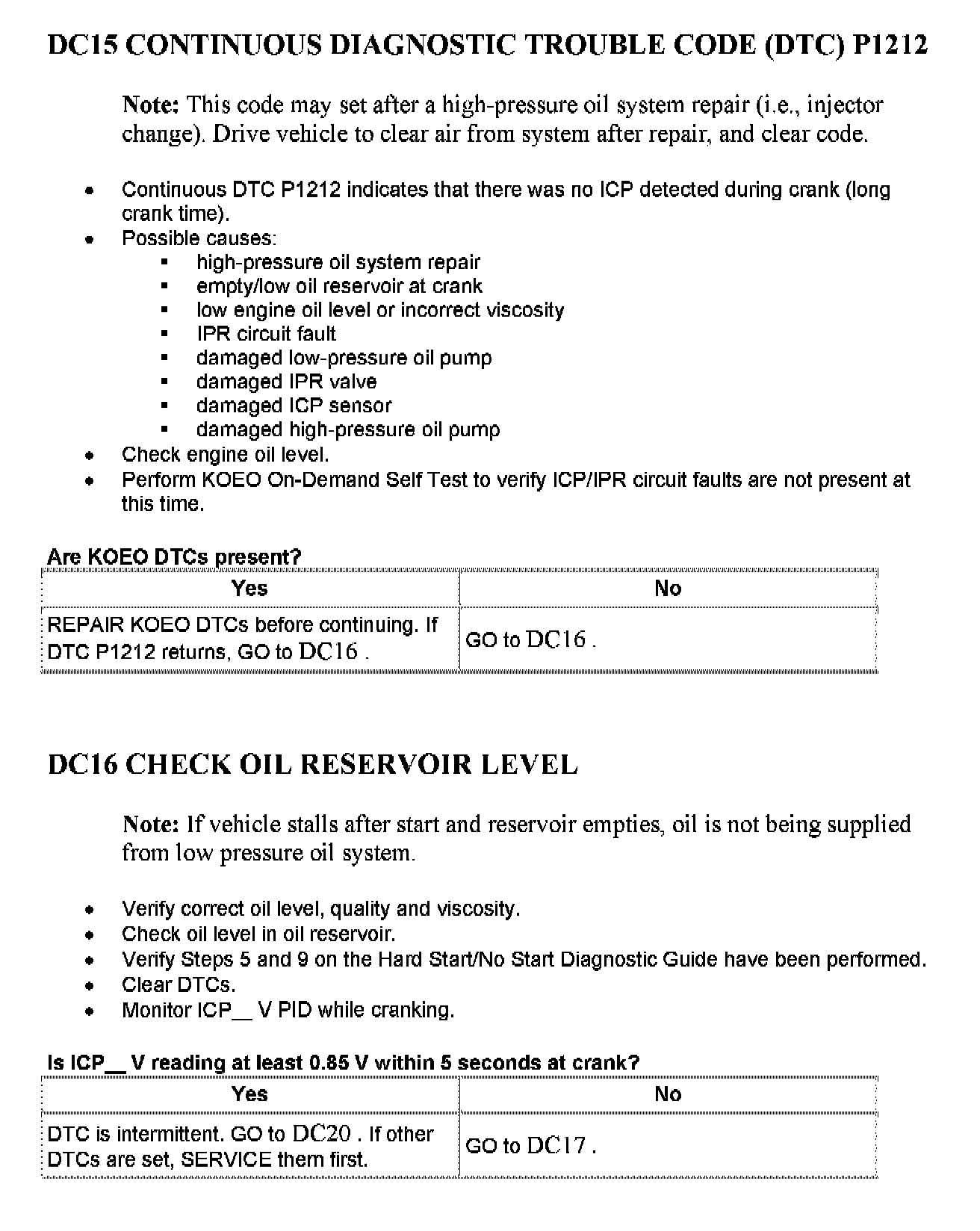

DC15 - DC16:

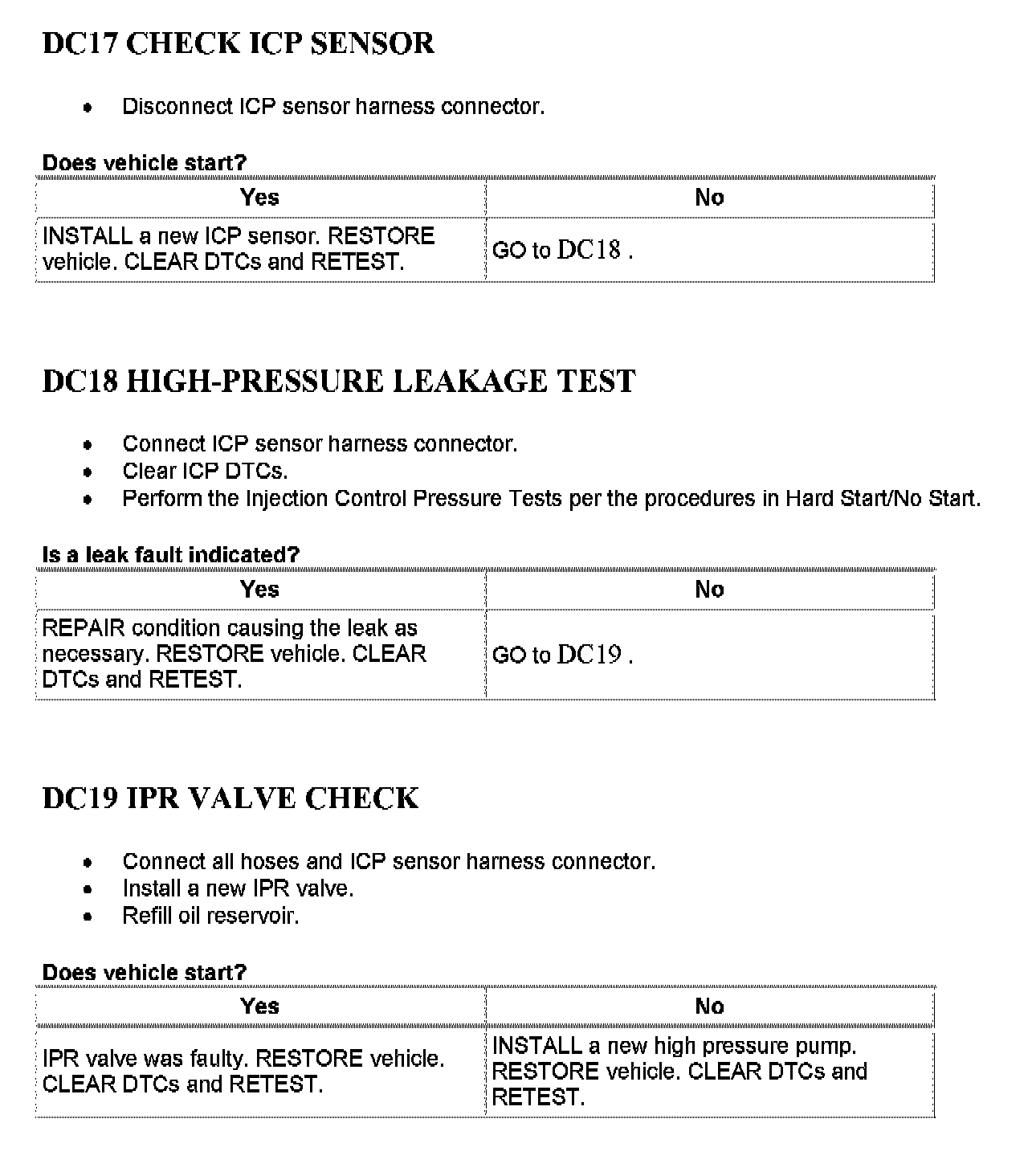

DC17 - DC19:

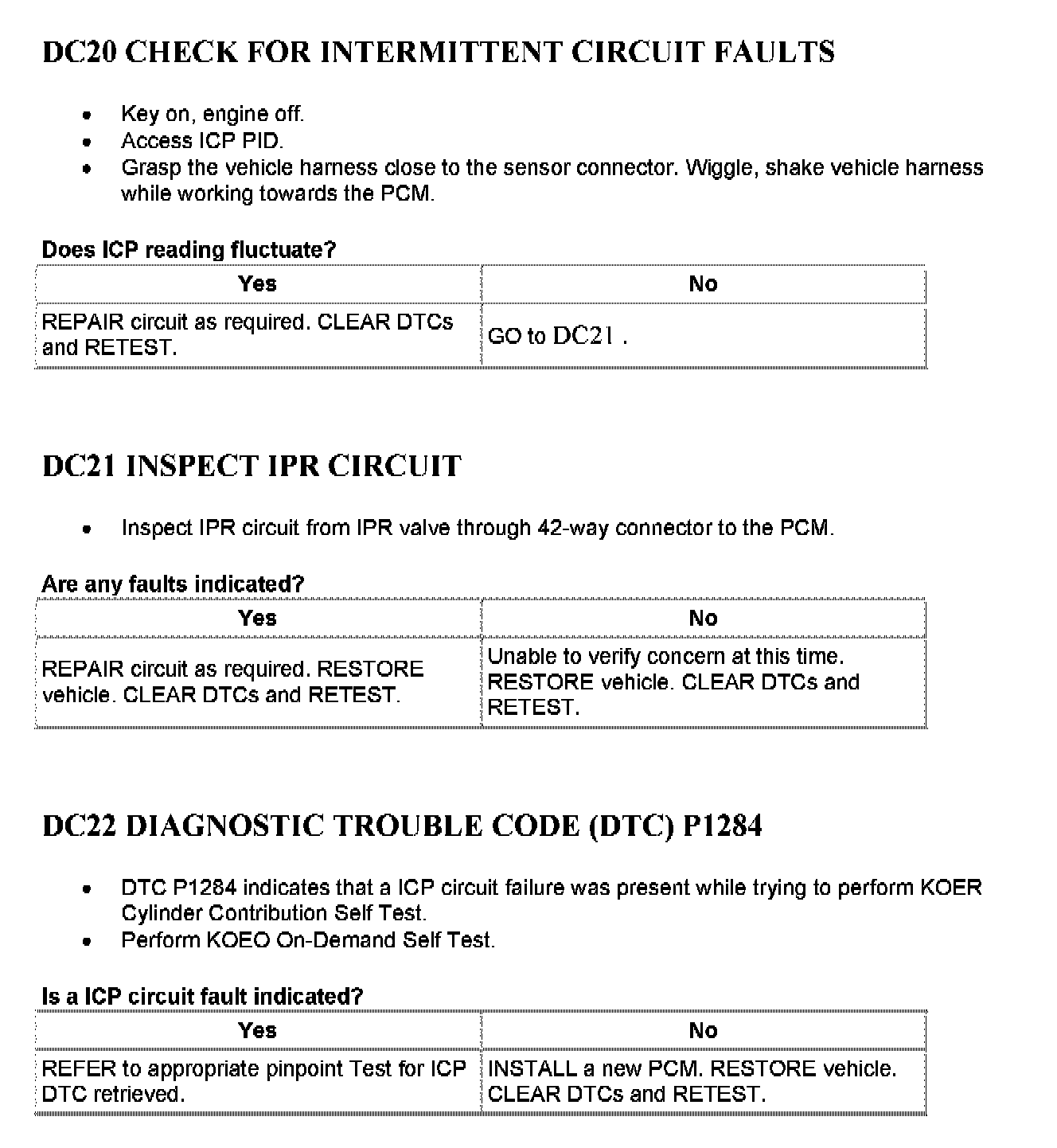

DC20 - DC22:

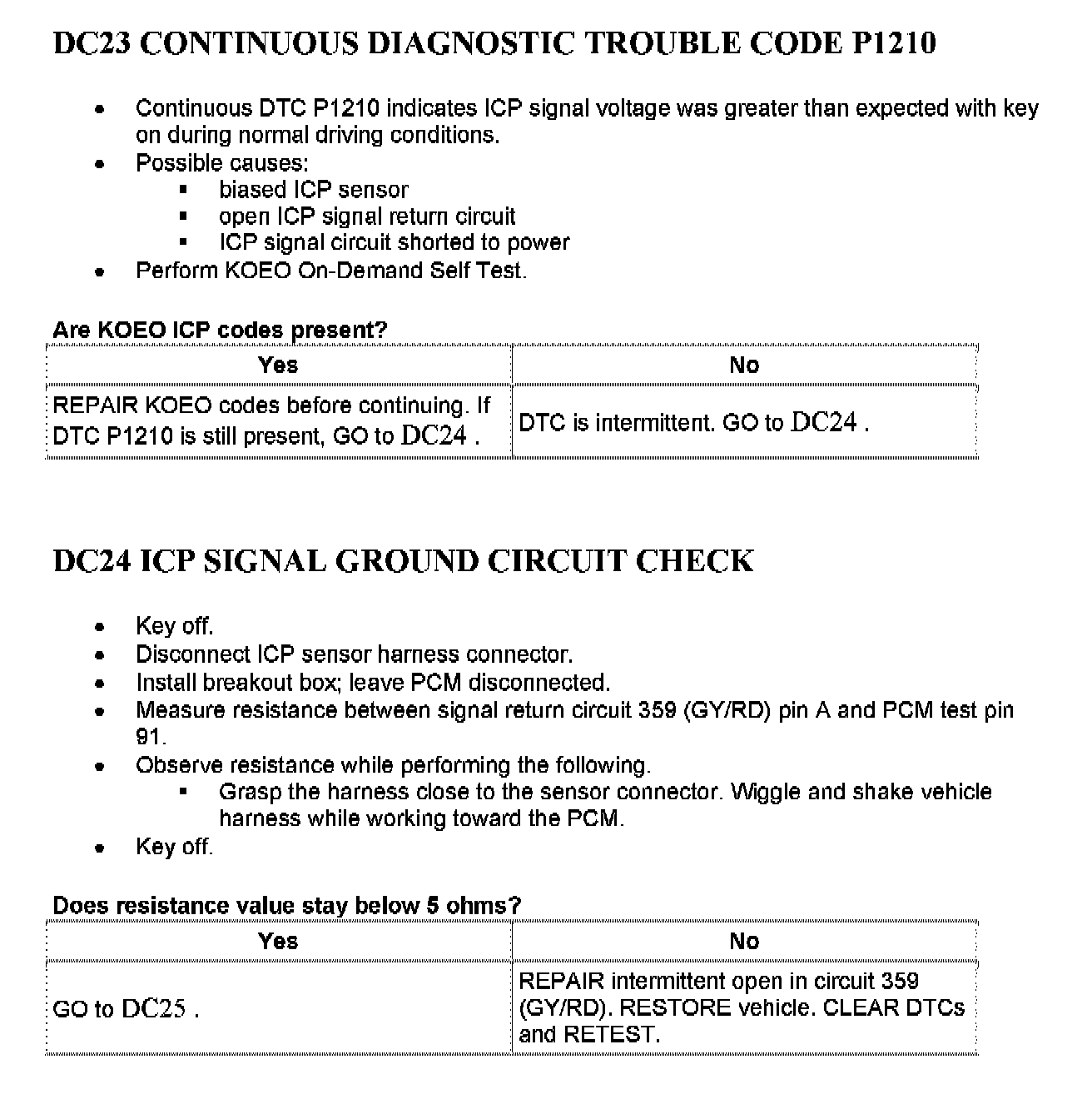

DC23 - DC24:

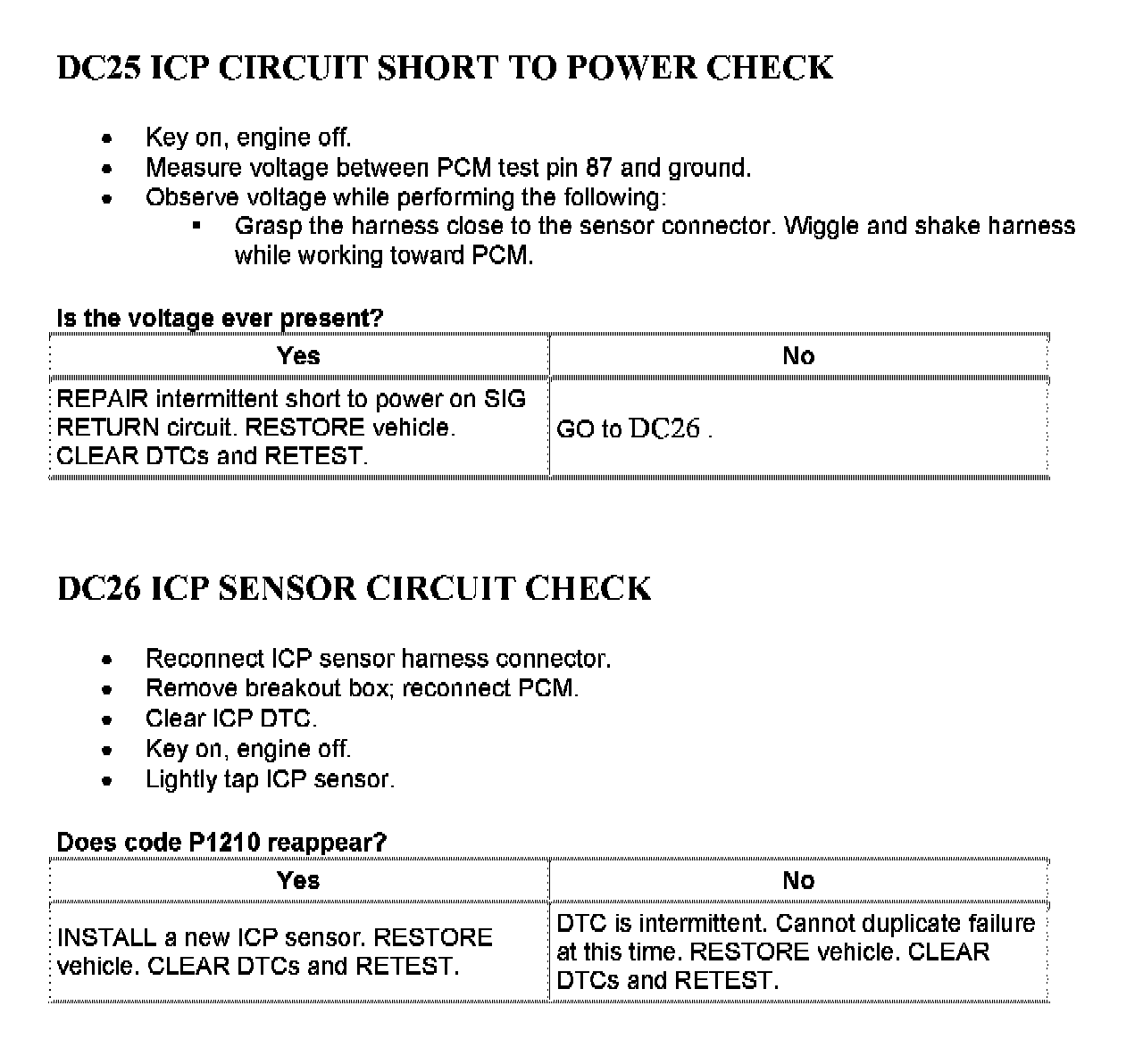

DC25 - DC26:
