Tests FG: Speed Control Command Switch (SCCS)

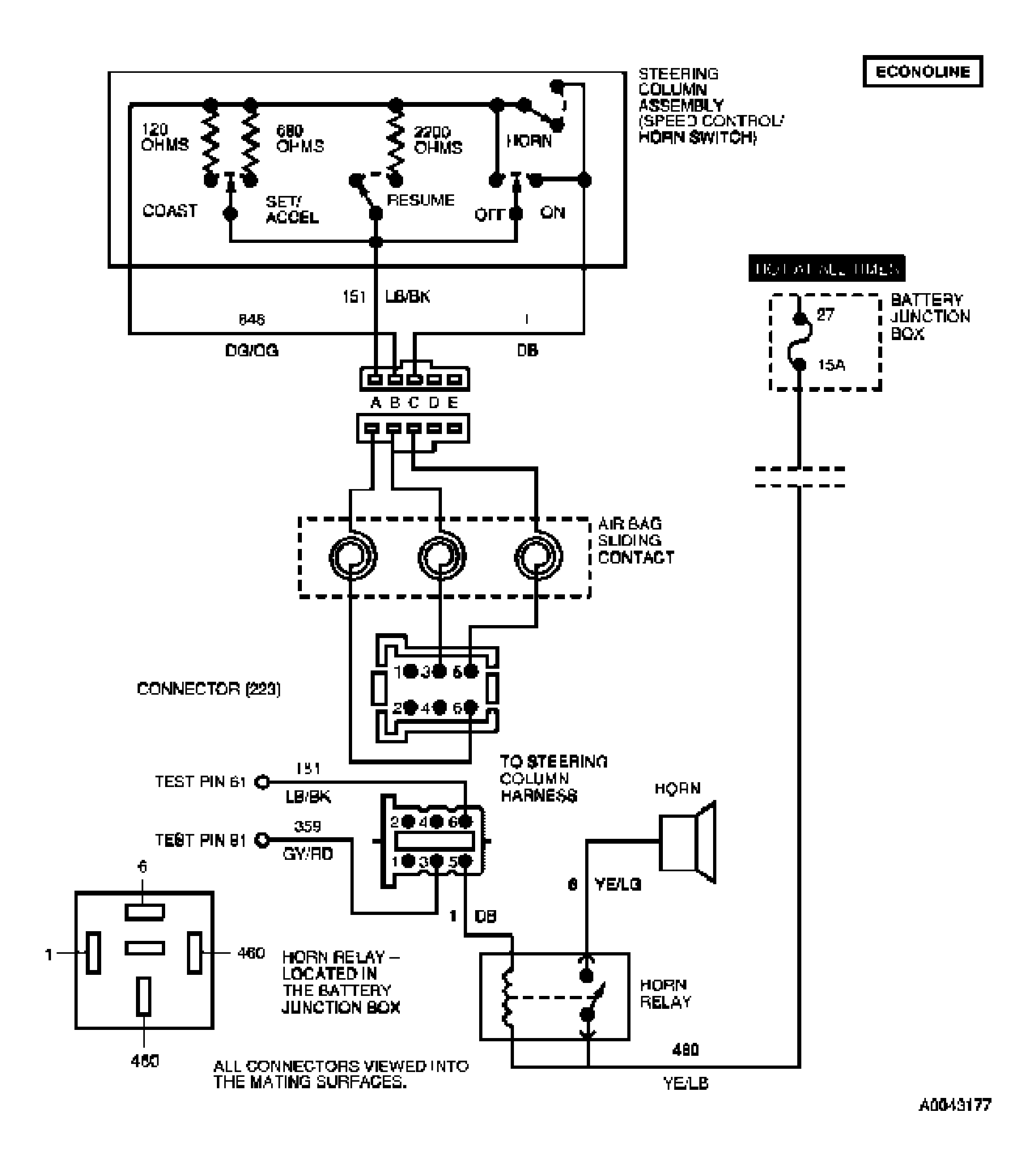

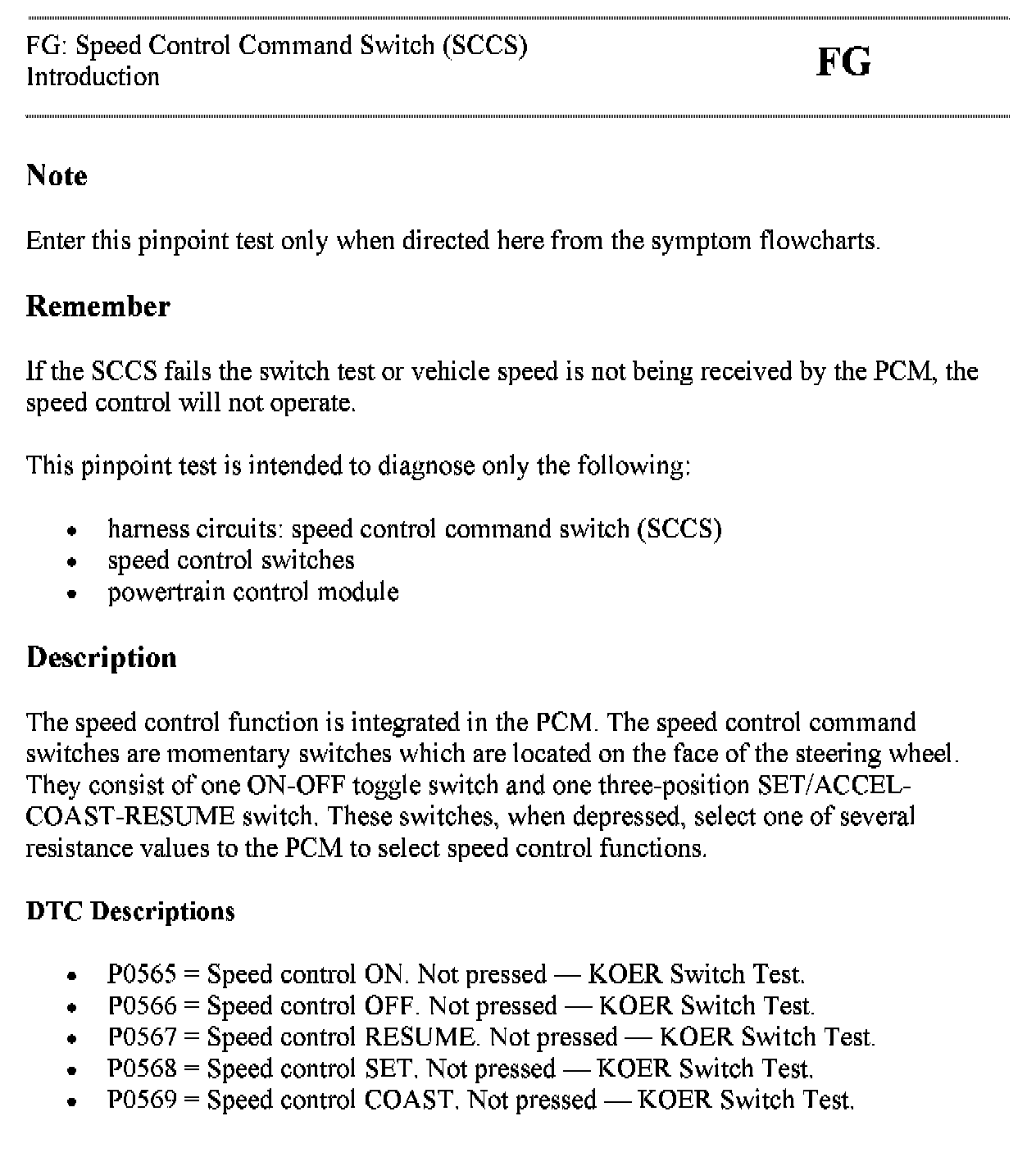

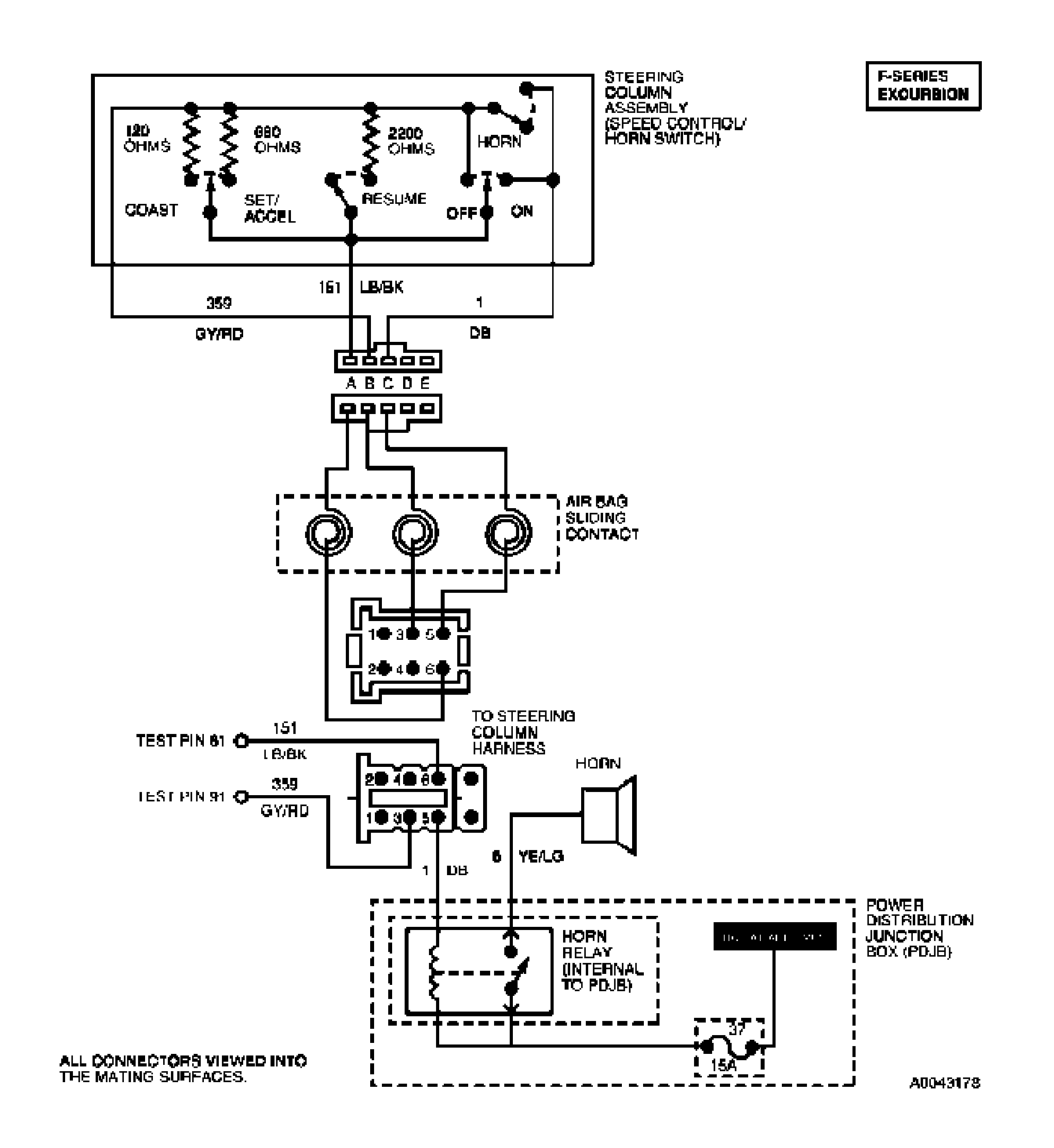

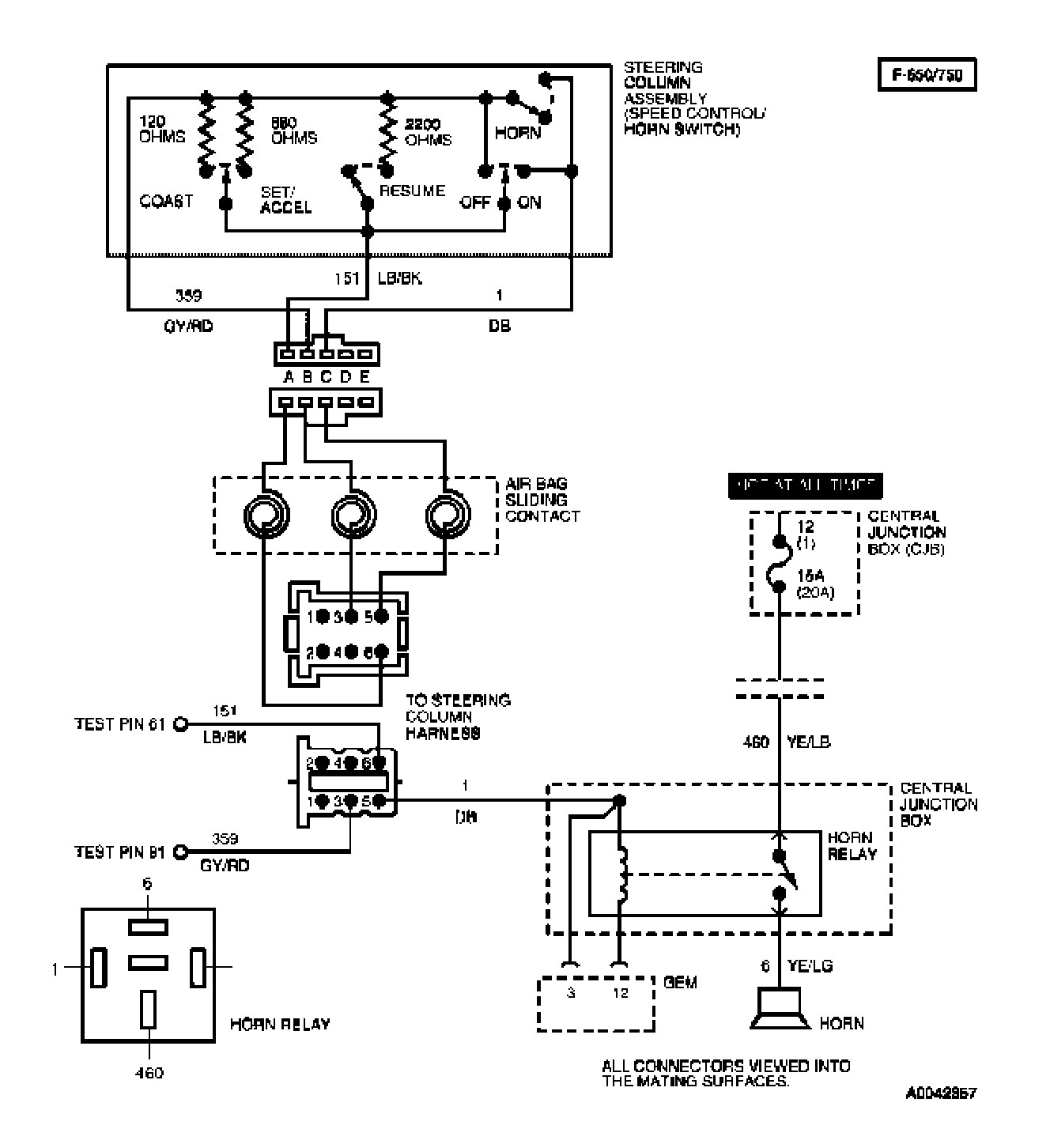

FG Introduction:

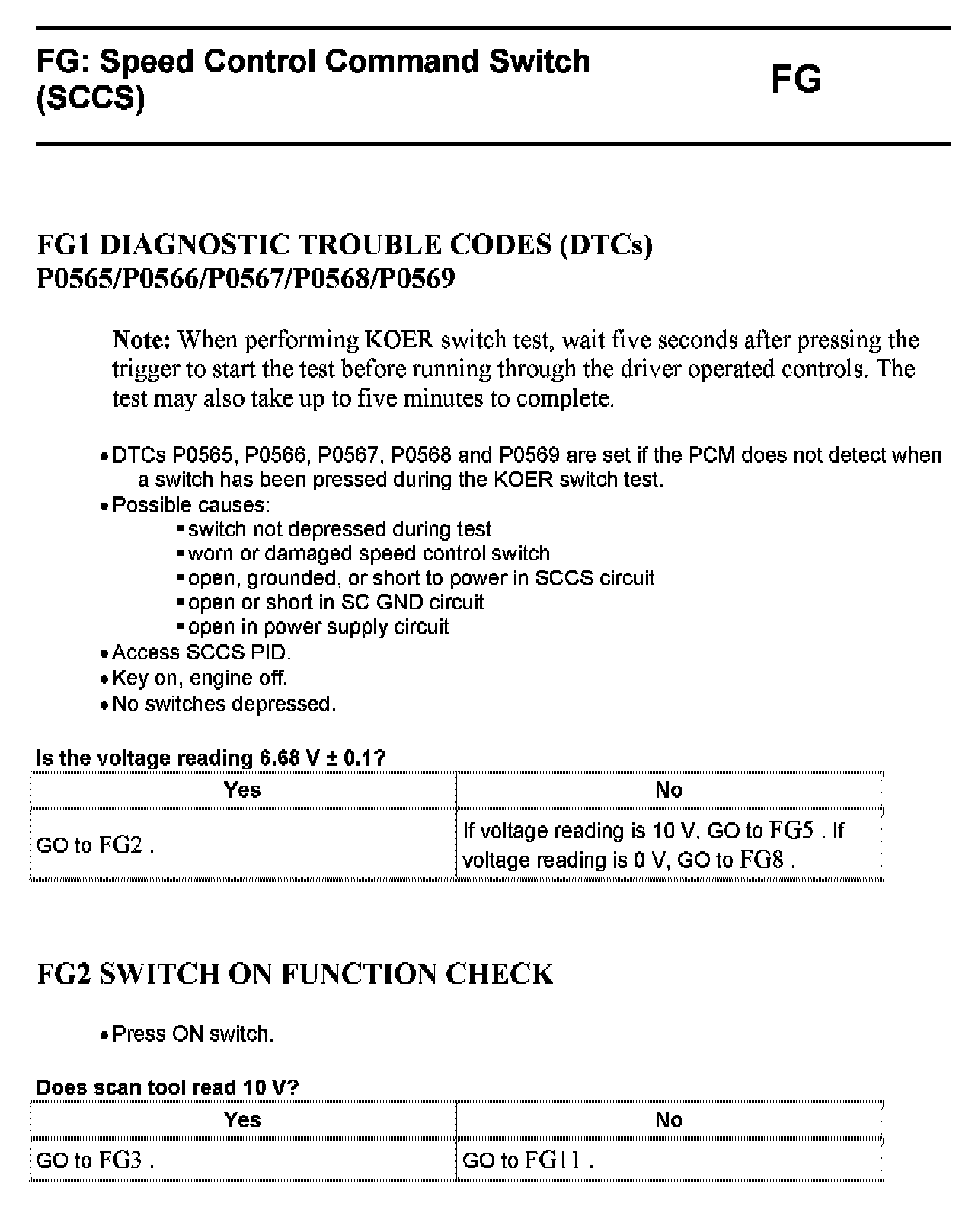

FG1 - FG2:

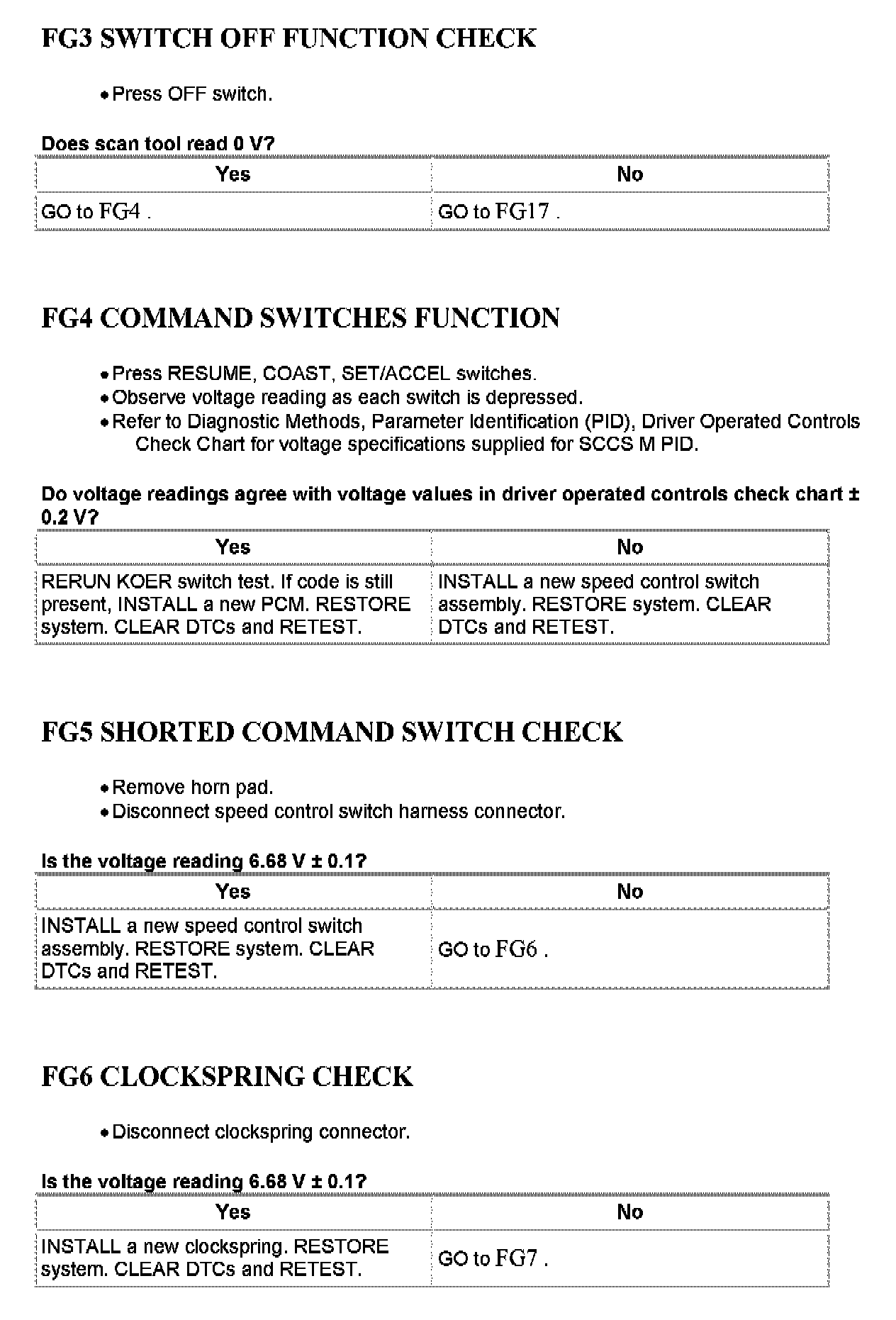

FG3 - FG6:

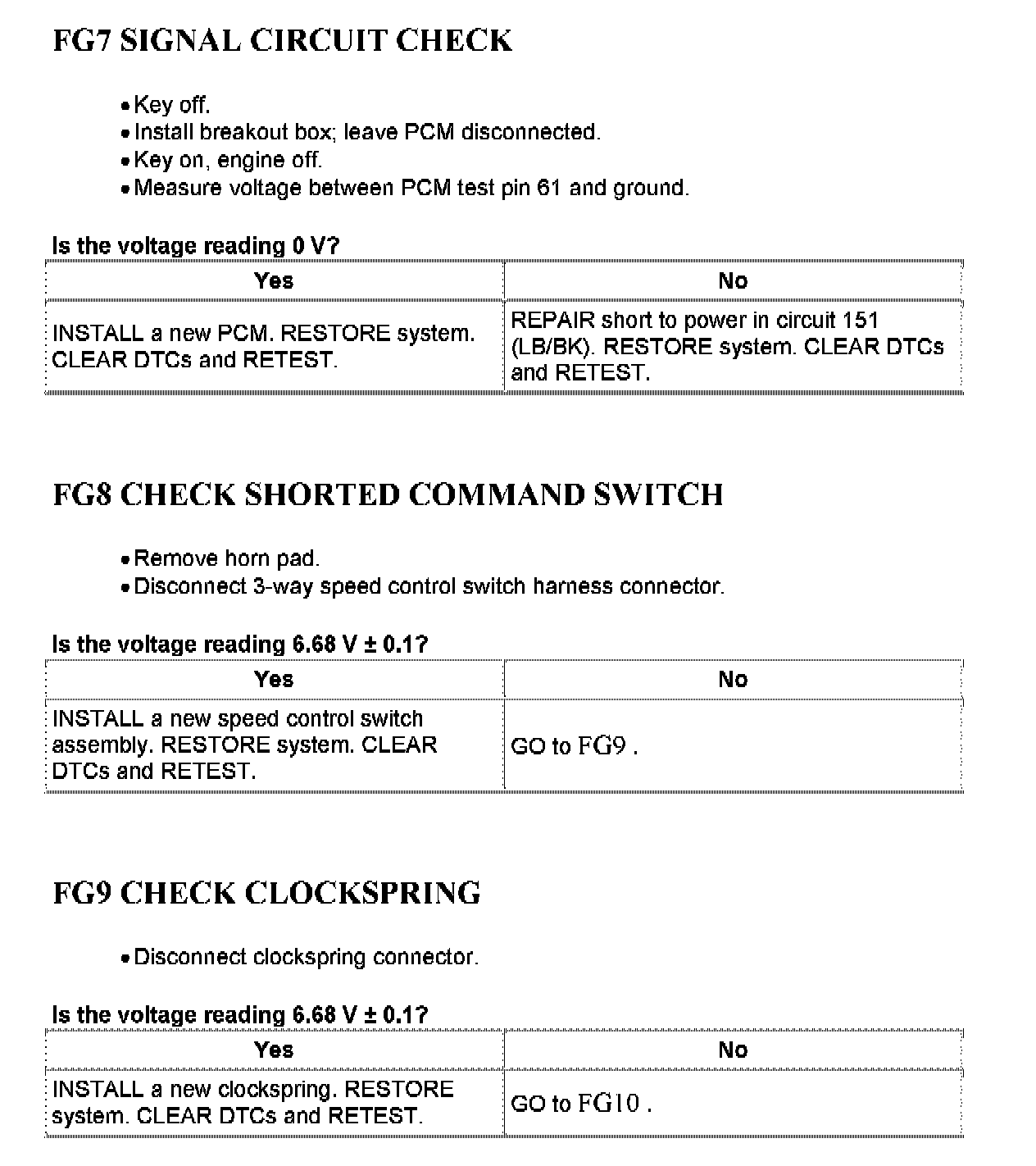

FG7 - FG9:

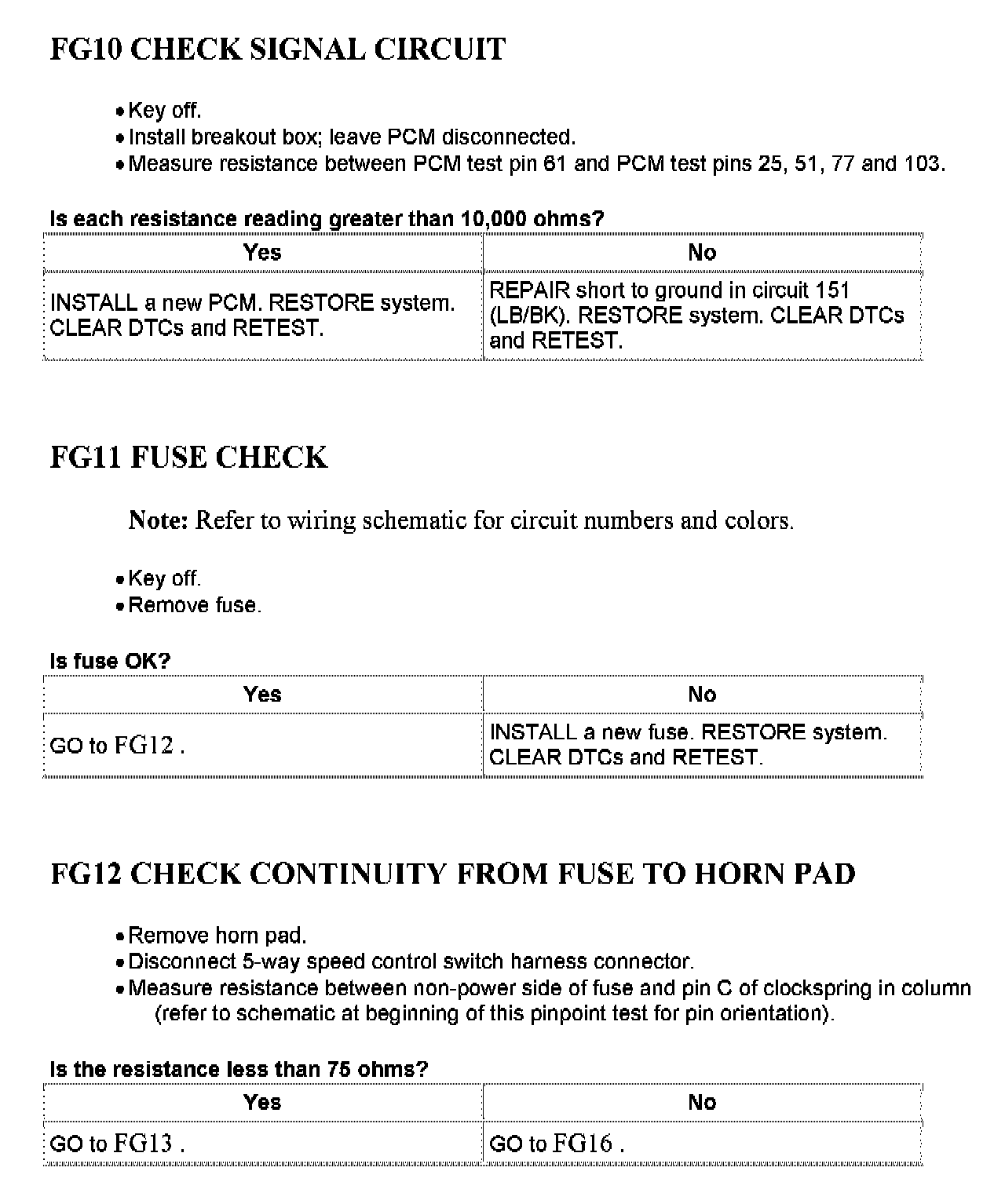

FG10 - FG12:

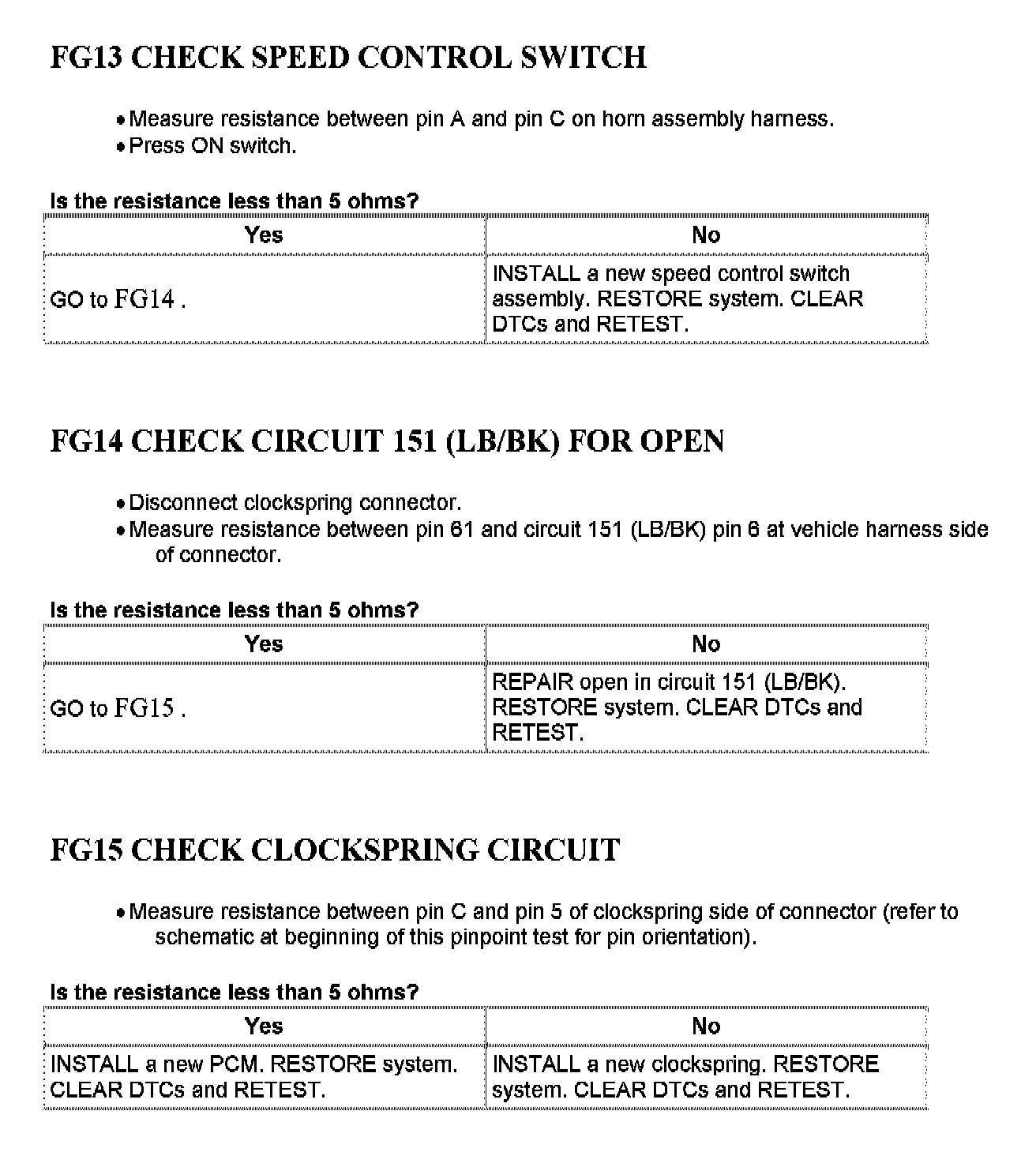

FG13 - FG15:

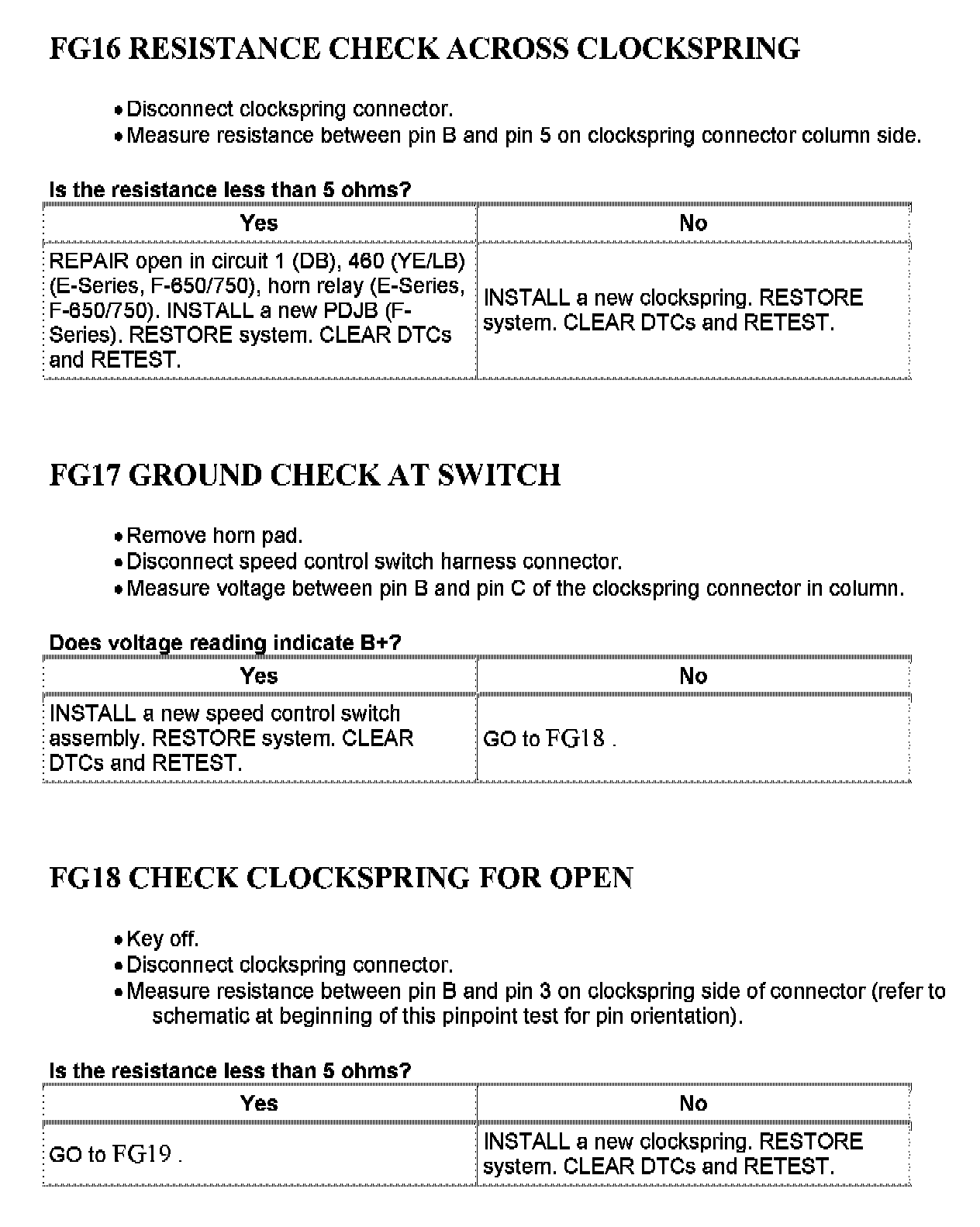

FG16 - FG18:





FG19:
