Front Drive Axle/Differential

Front Drive Axle and Differential

Part 1 Of 2:




Part 2 Of 2:

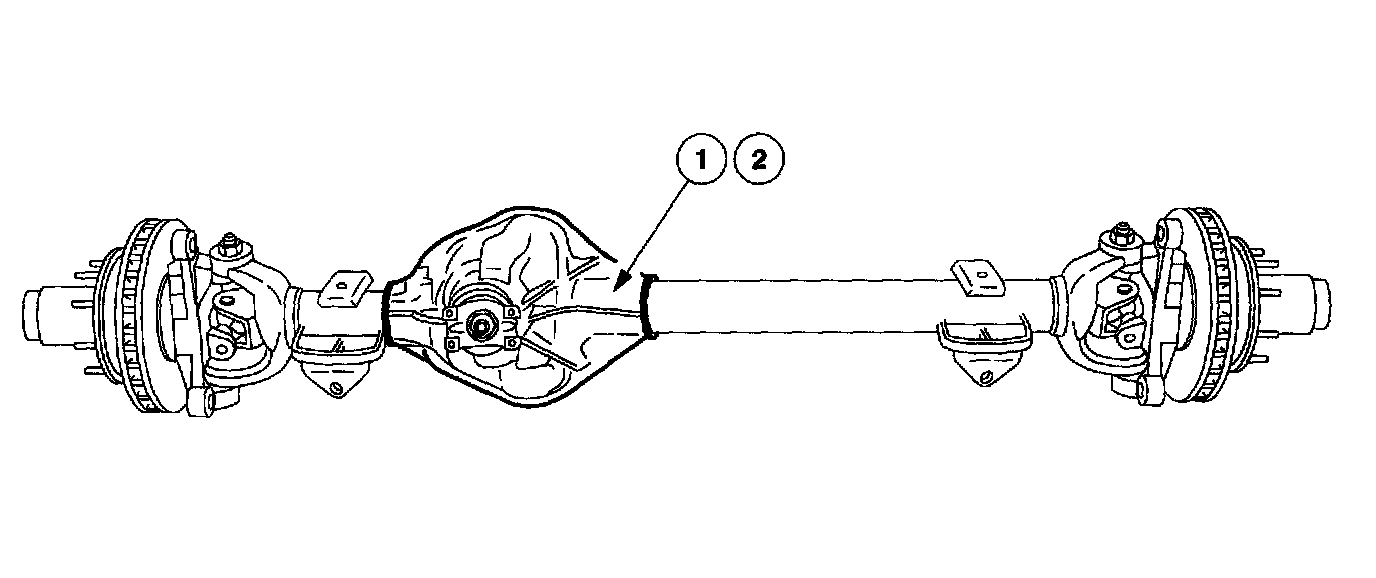

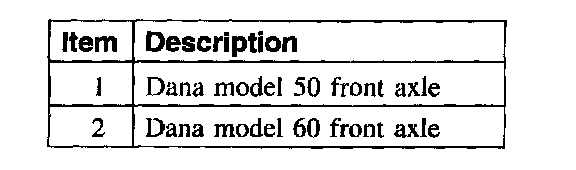

Front Drive Axle

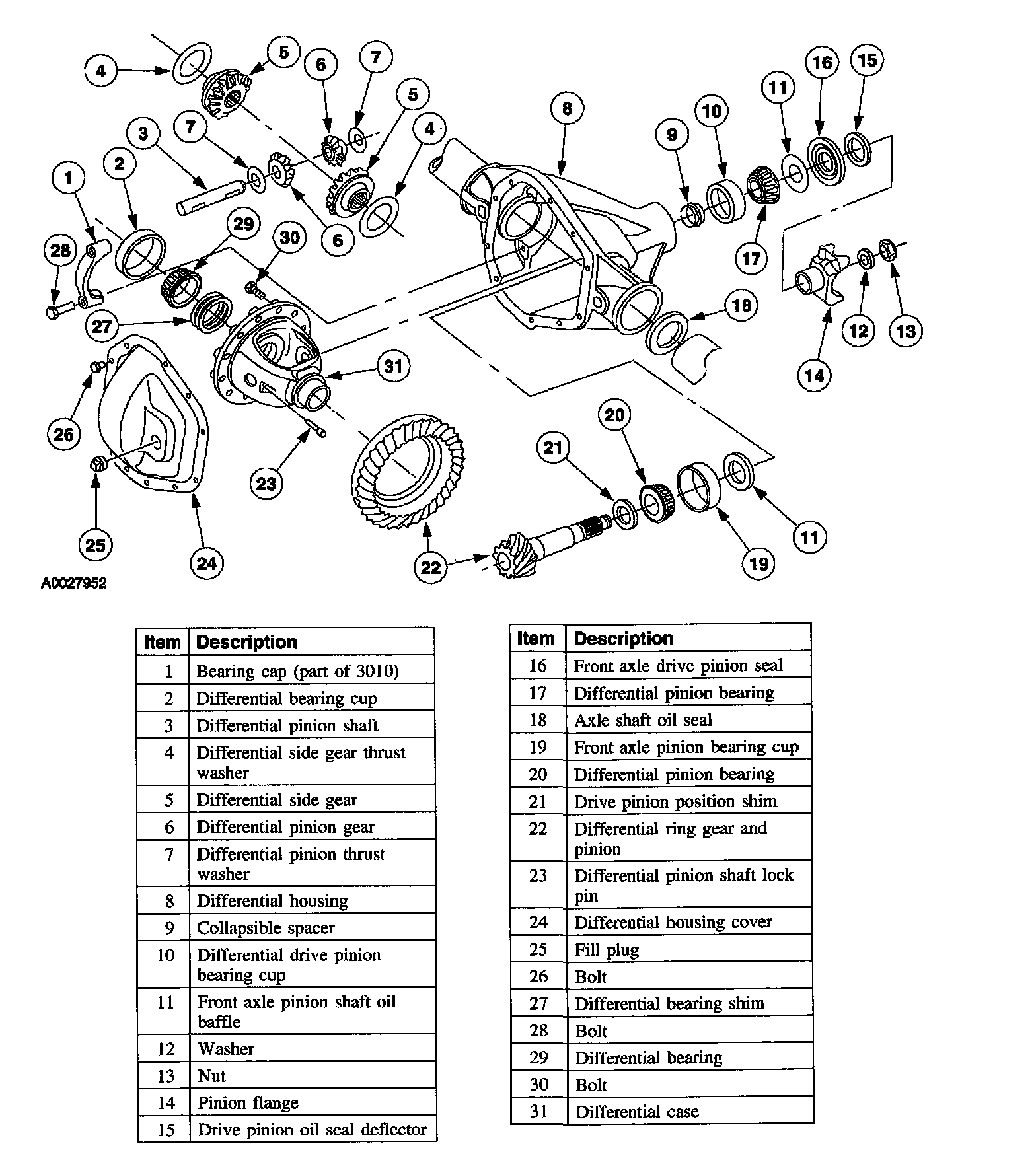

Front Drive Axle, Disassembled View
