Front

Part 1 Of 2:




Part 2 Of 2:

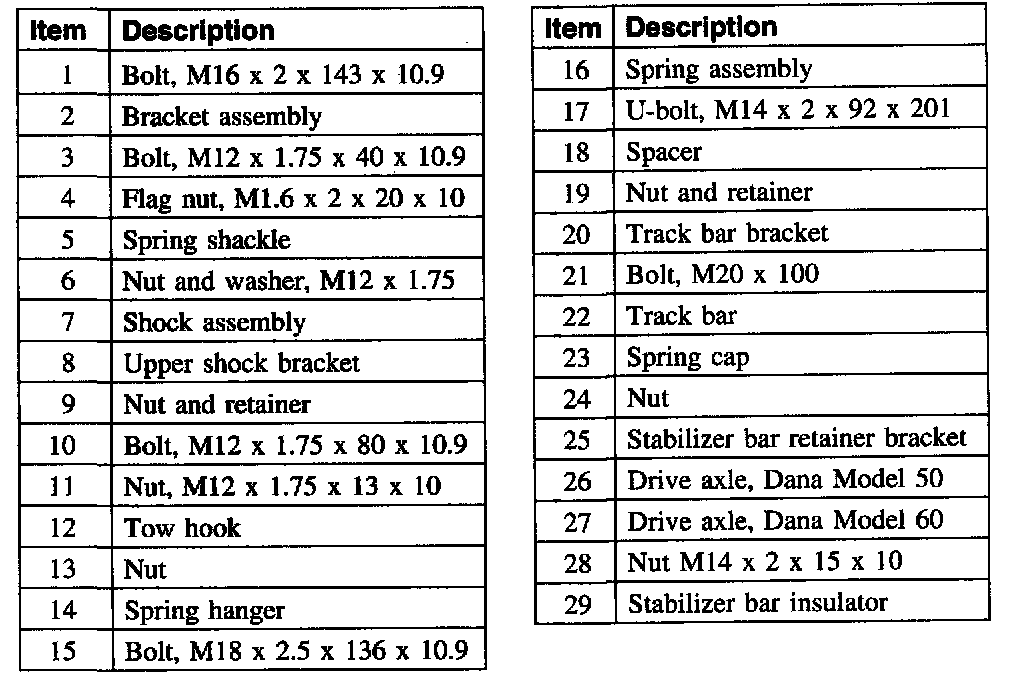

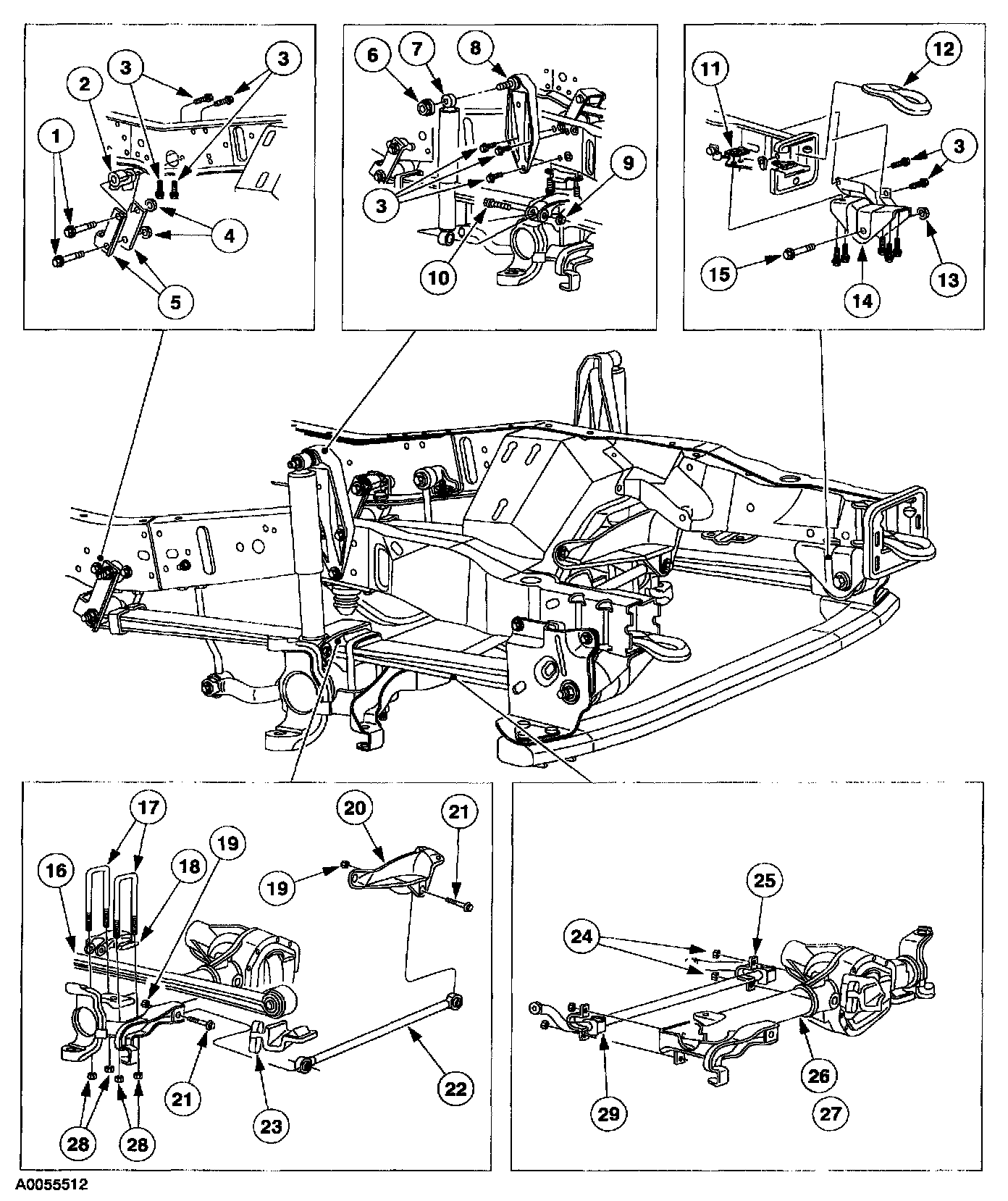

Front Suspension with Dana Model 50 and Dana Model 60 Front Drive Axles

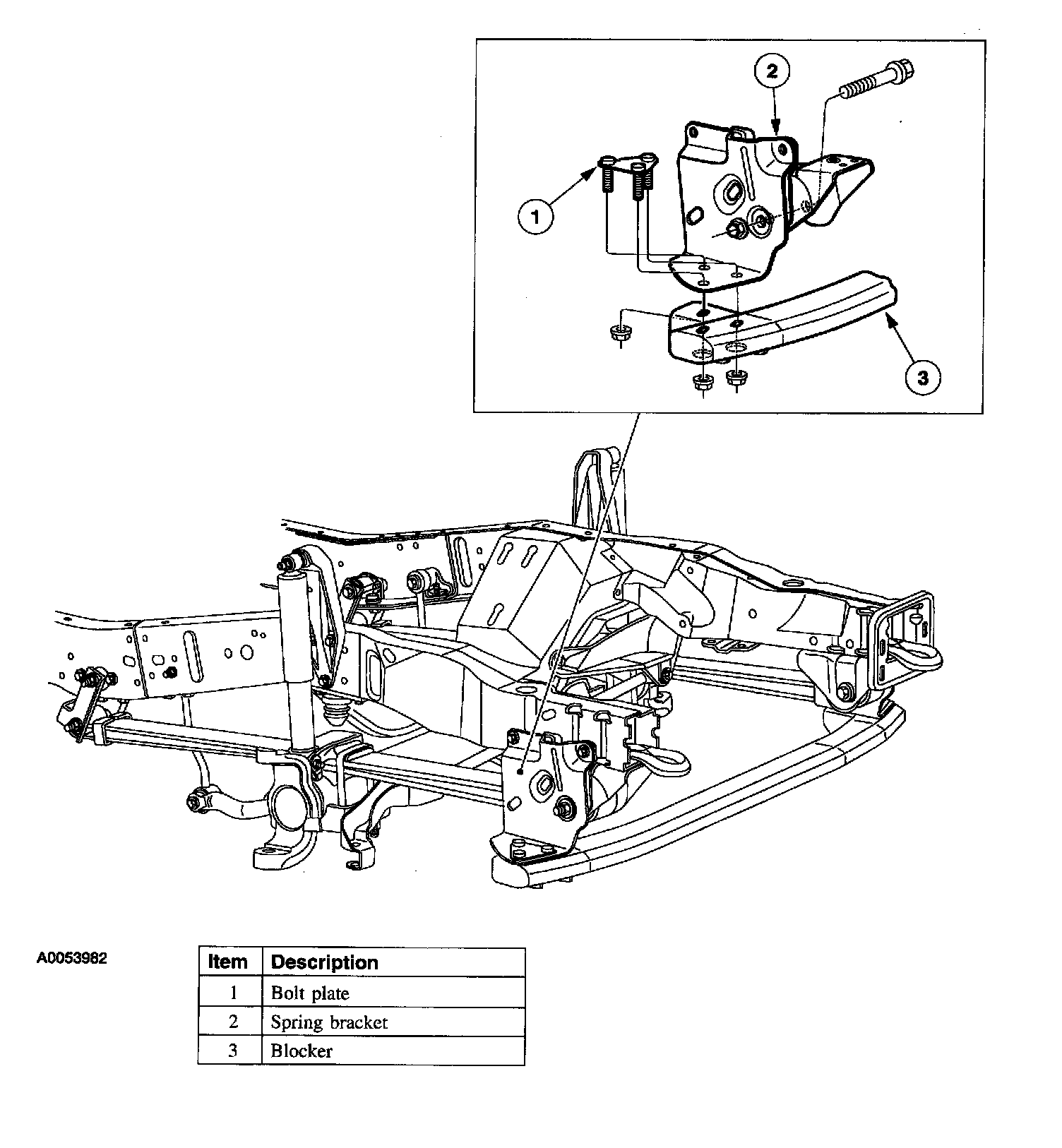

Front Spring Forward Mounting Bracket Excursion
