Test L: Temperature Control Is Inop/Does Not Operate Correctly
PINPOINT TEST L: TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

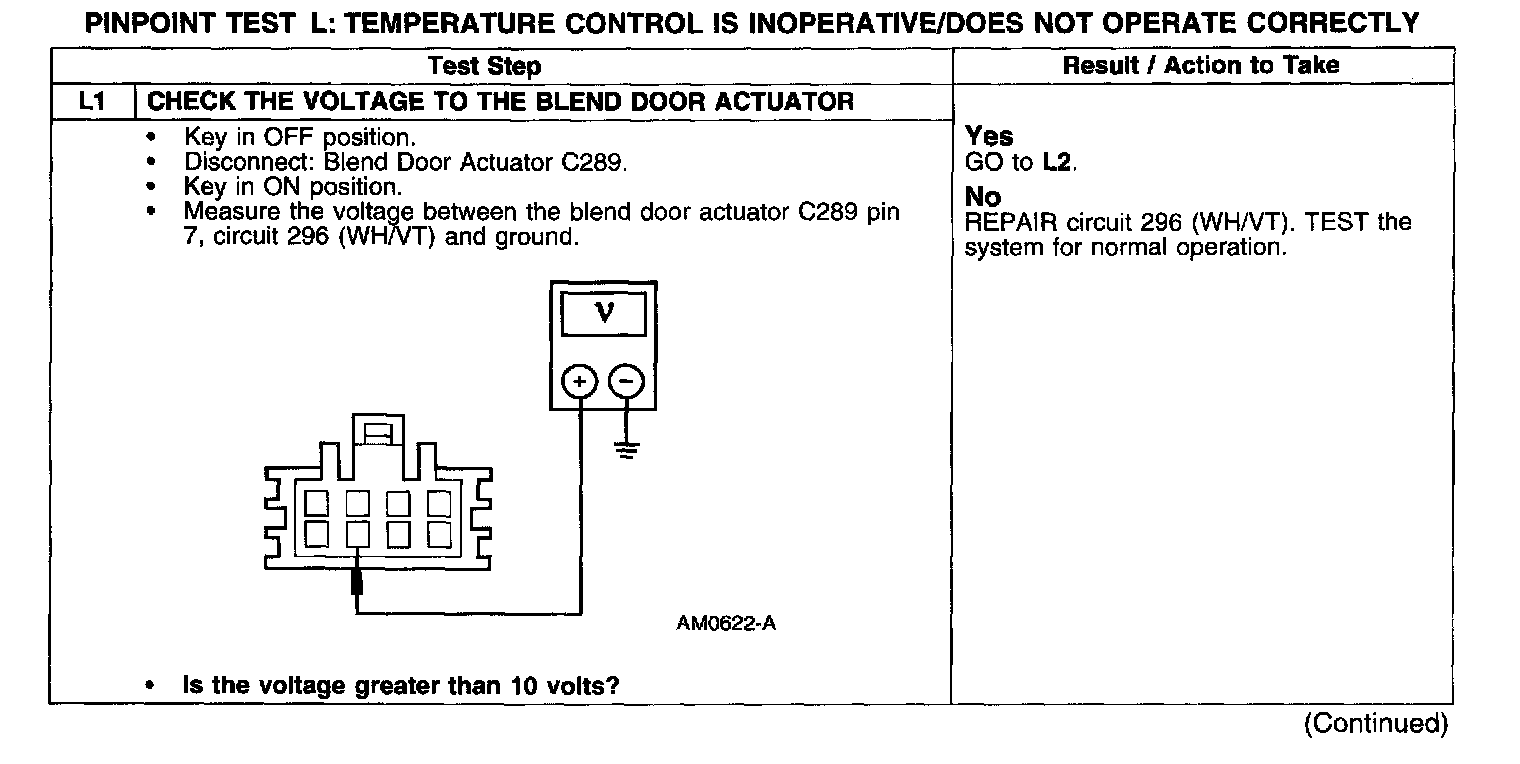

Test L1:

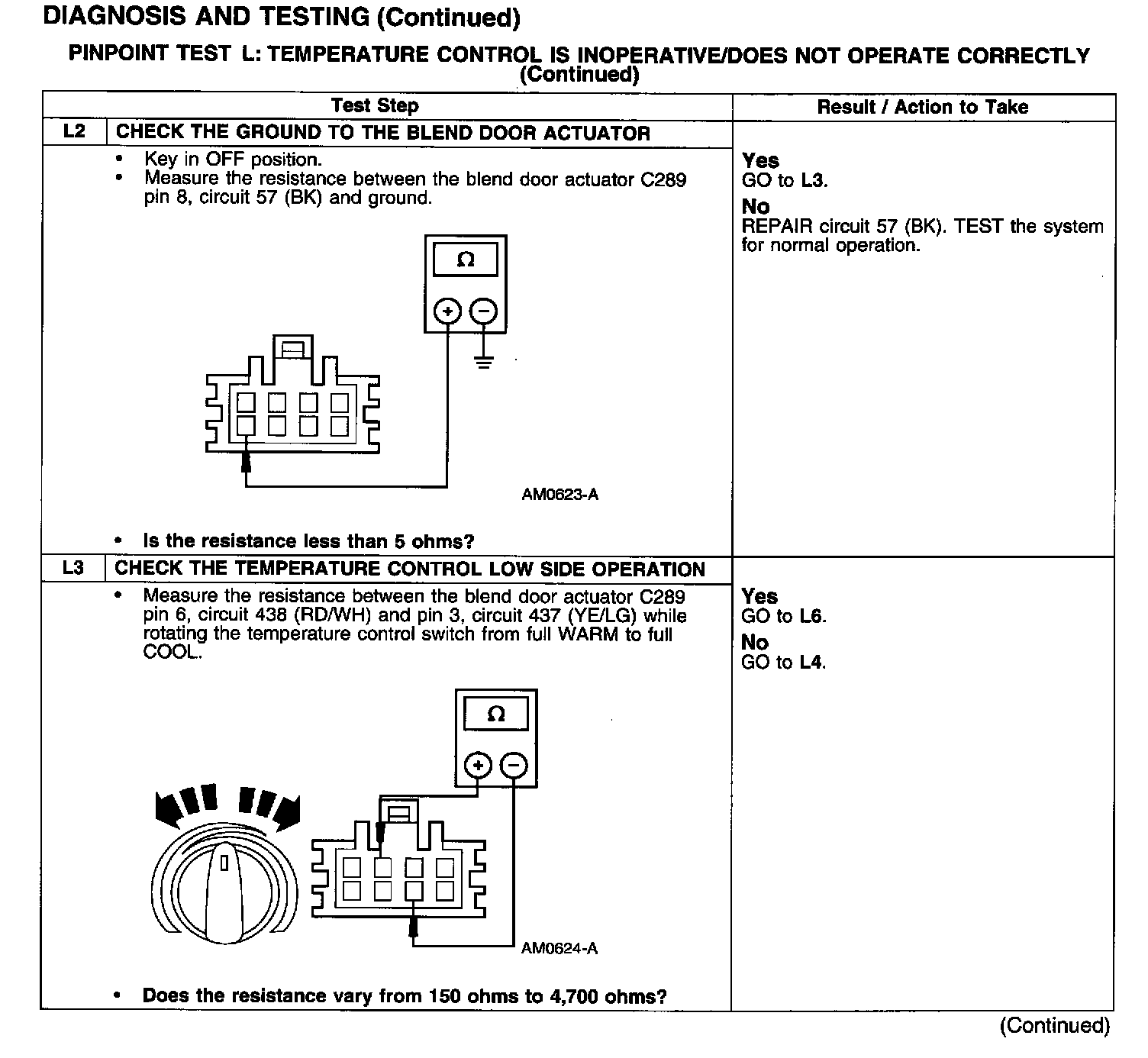

Test L2-L3:

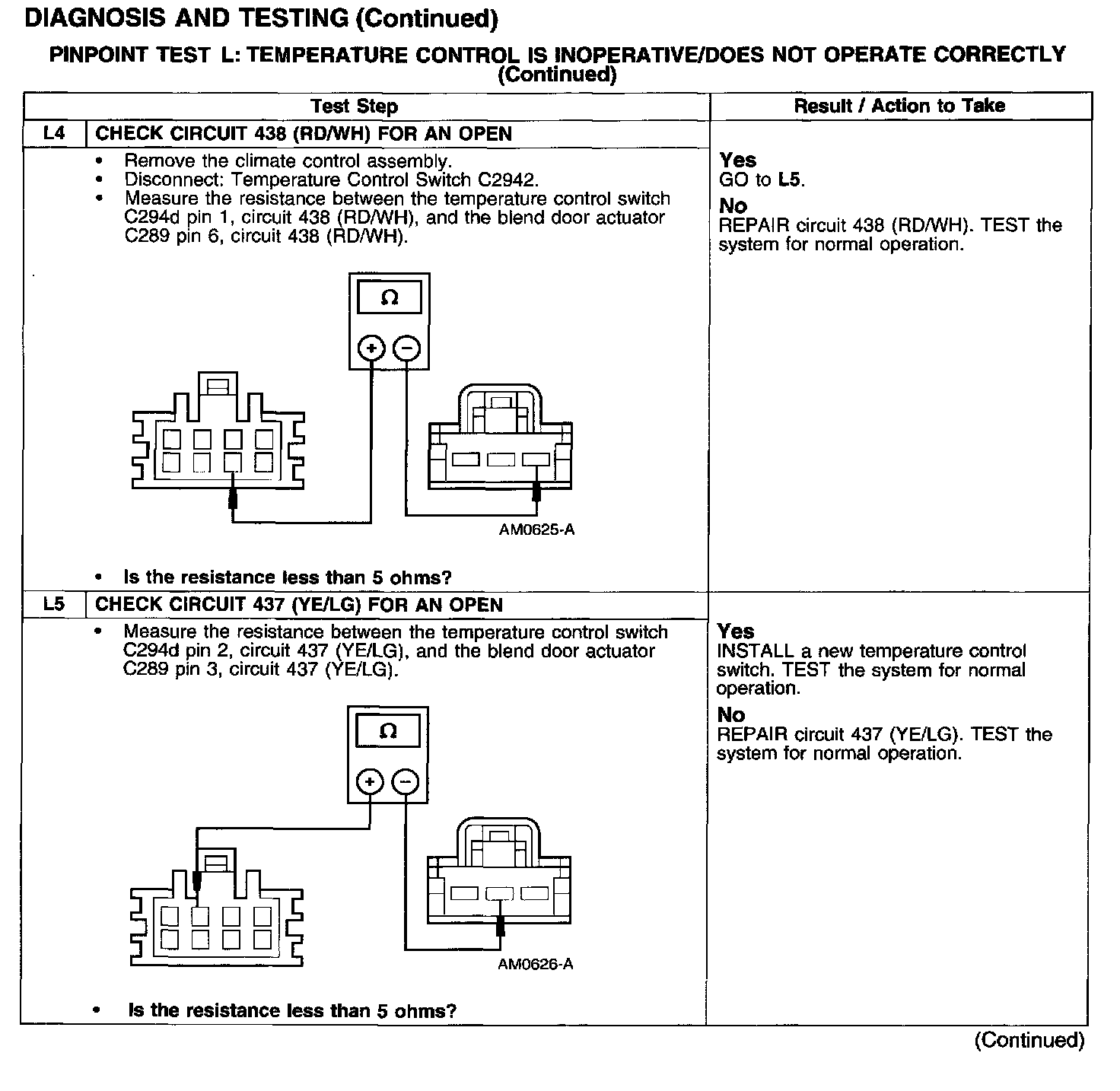

Test L4-L5:

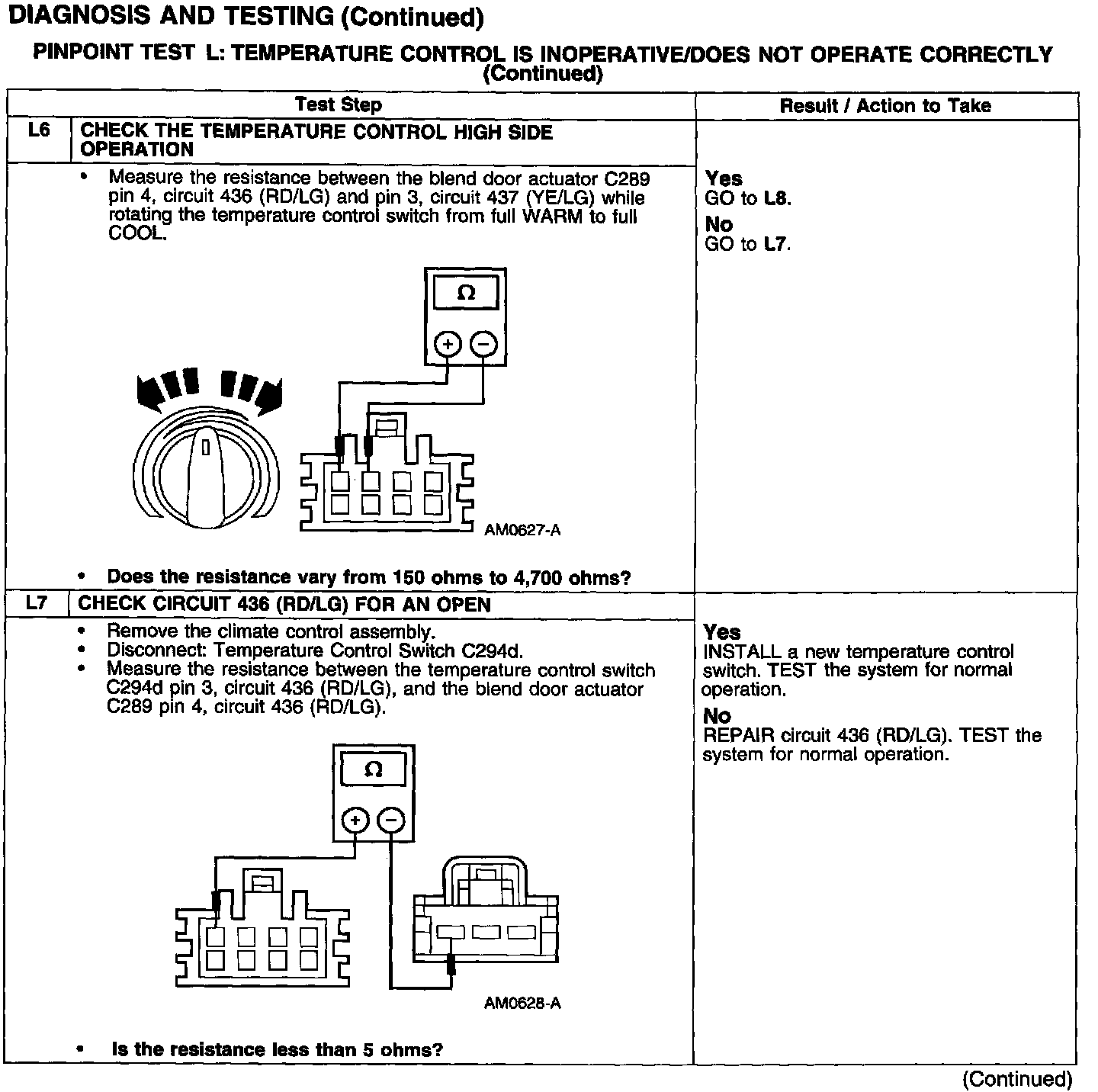

Test L6-L7:

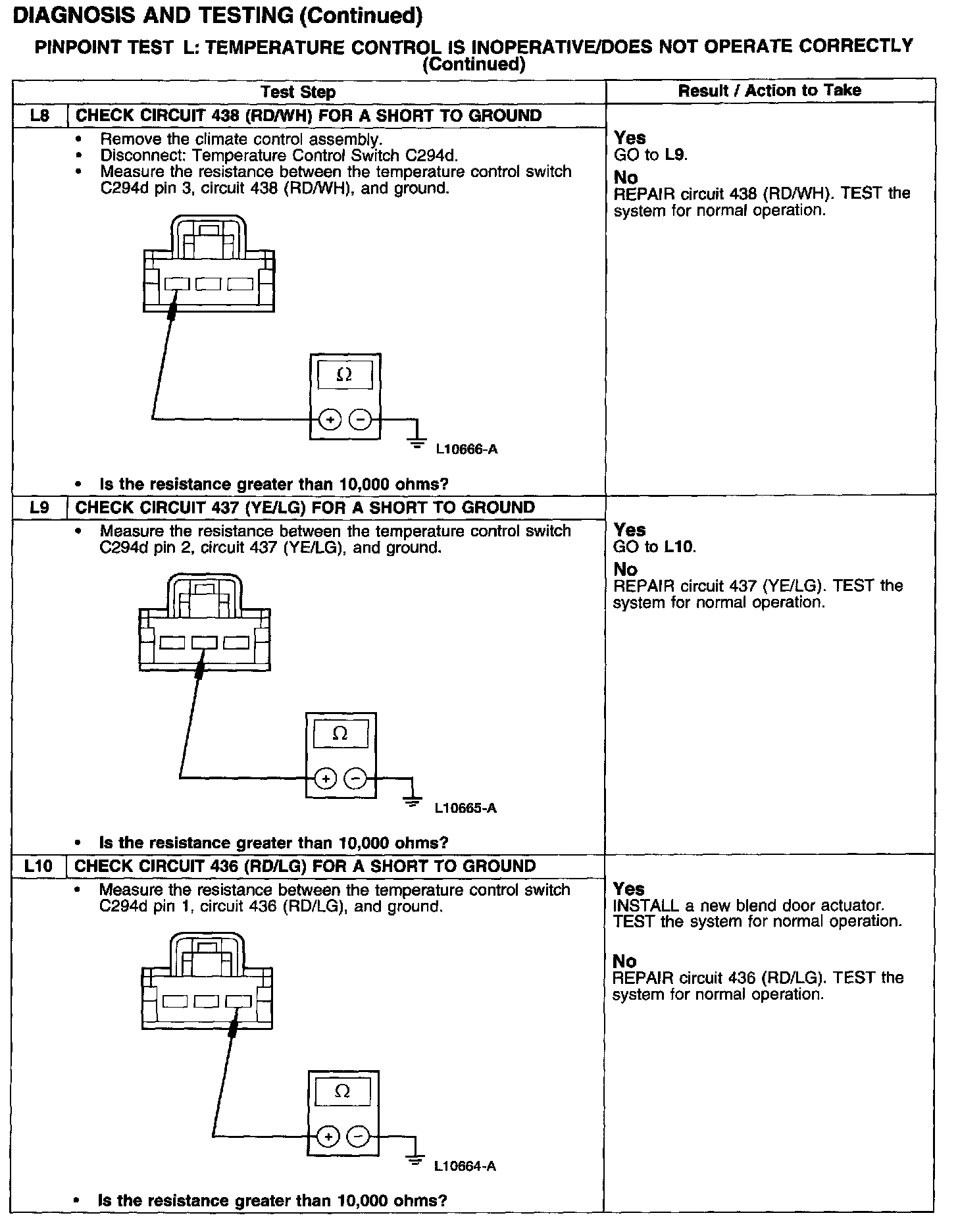

Test L8-L10:
