Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

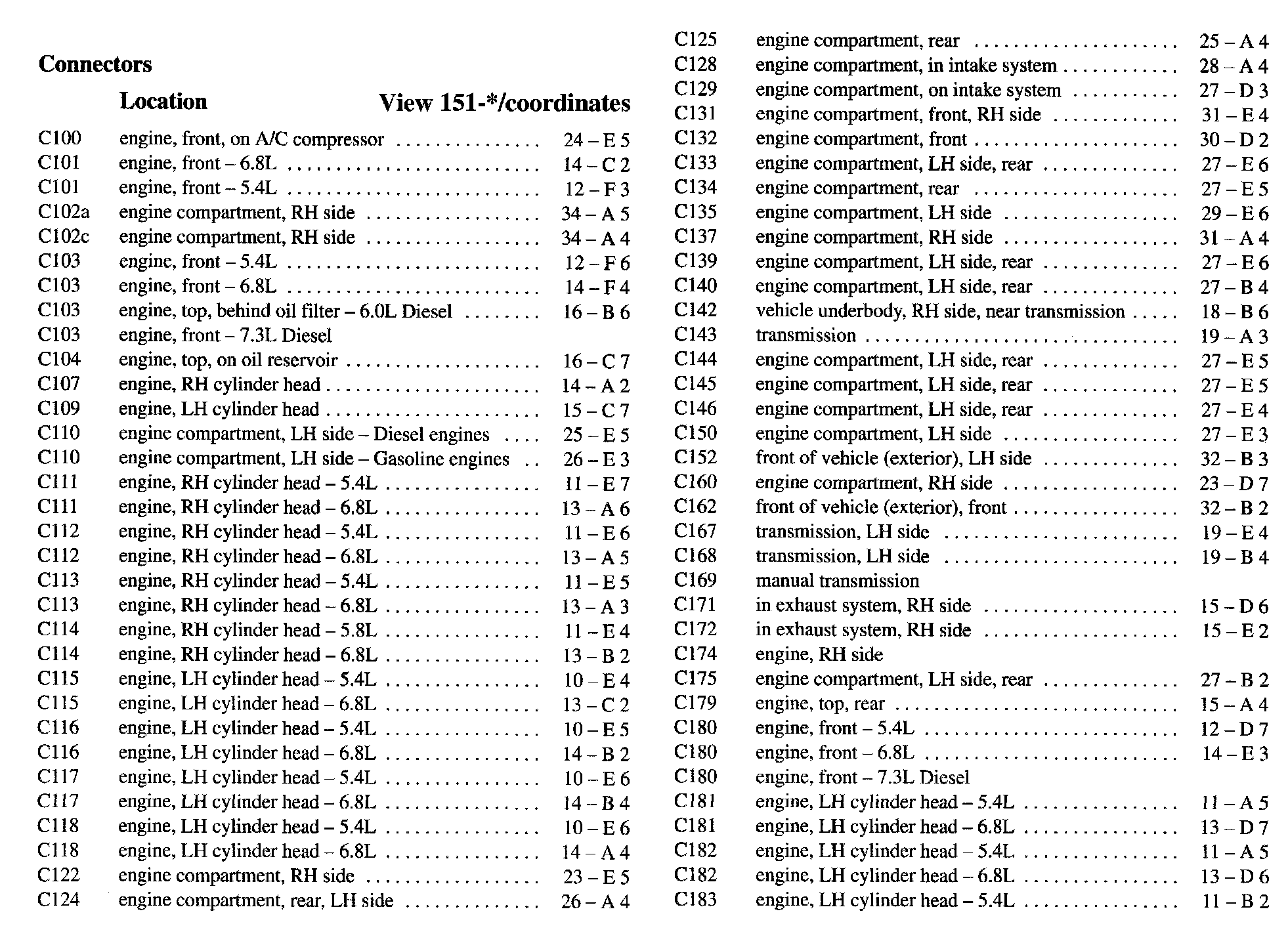

C100 - C183:

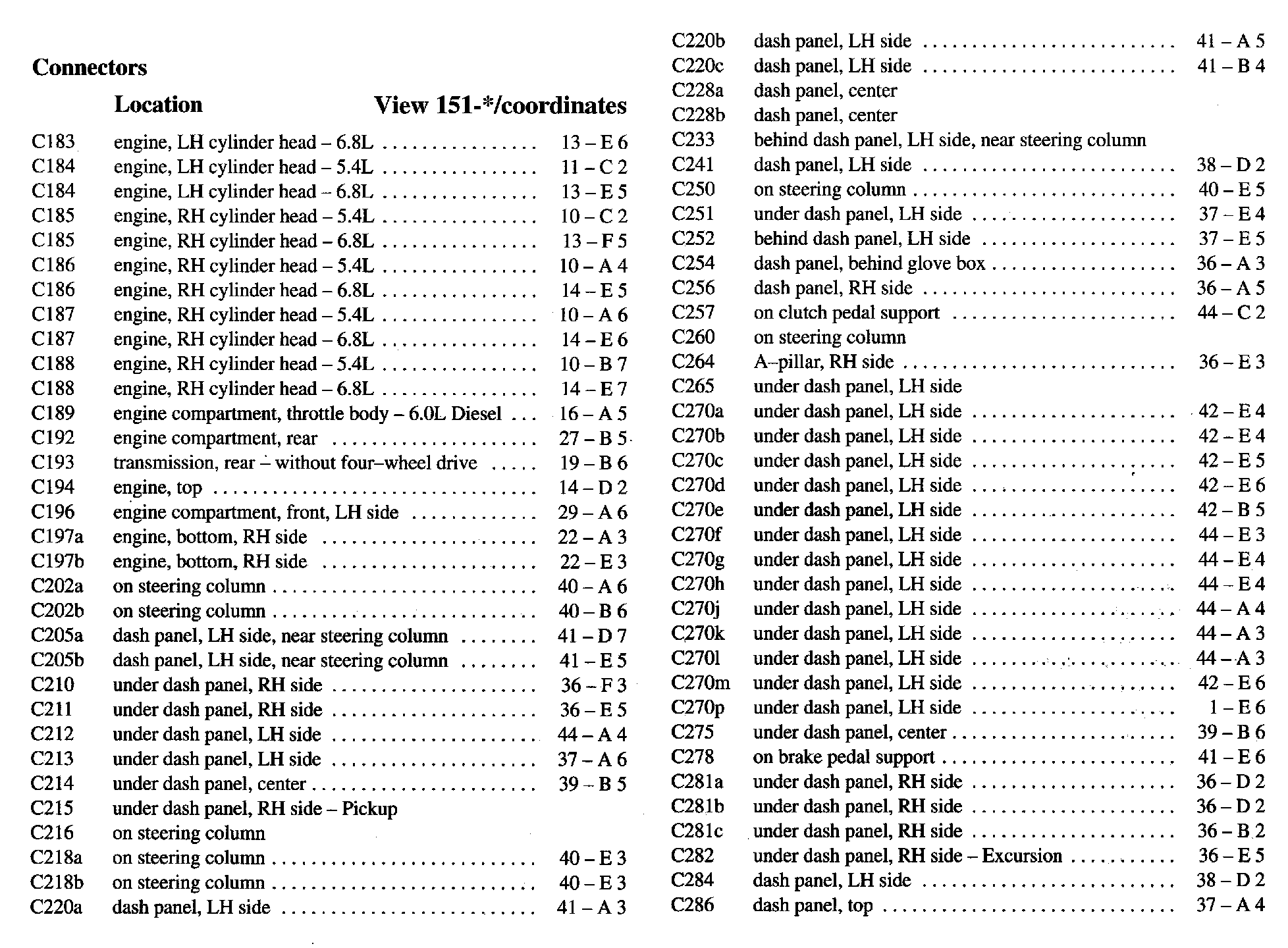

C183 - C286:

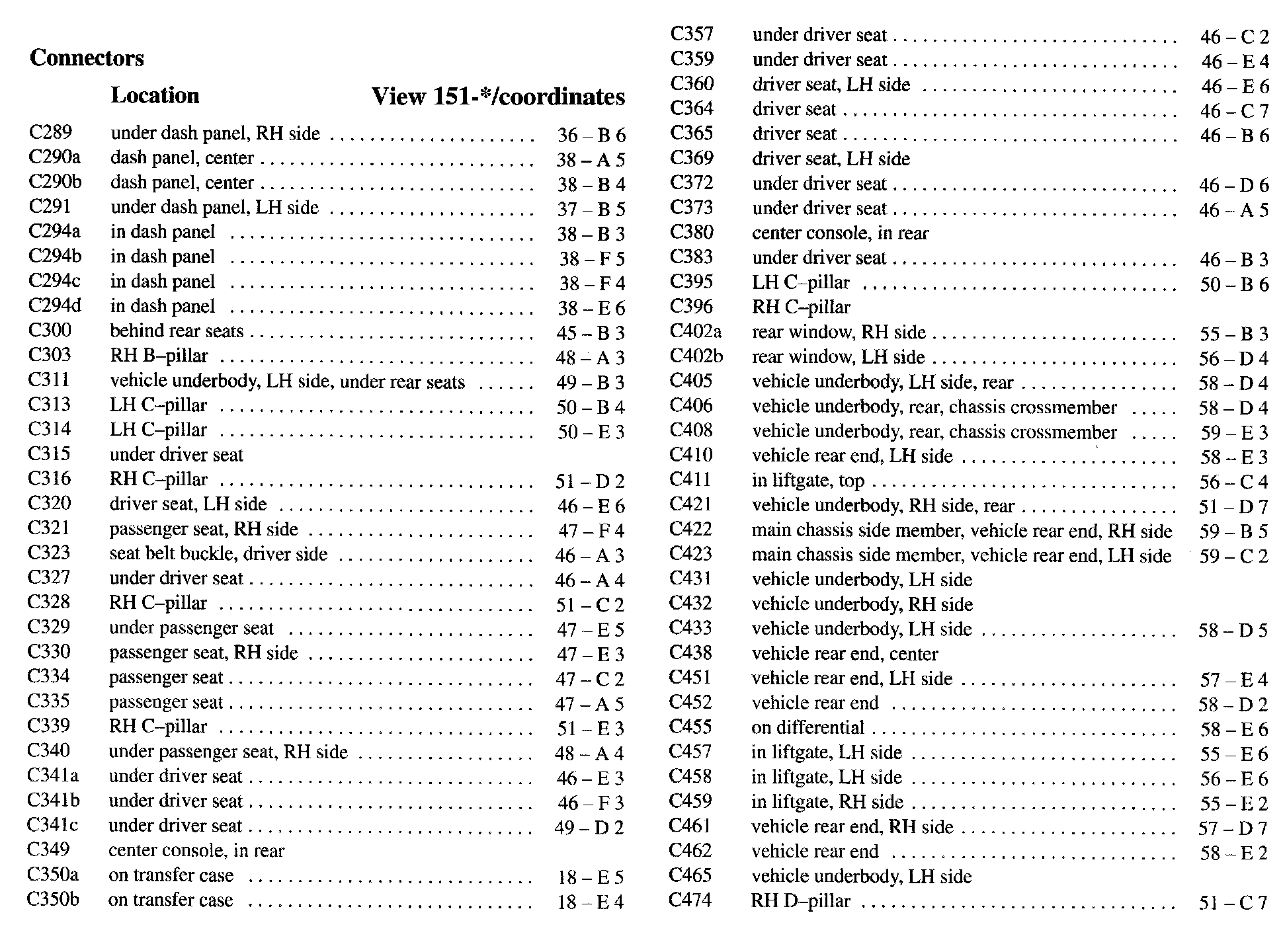

C289 - C474:

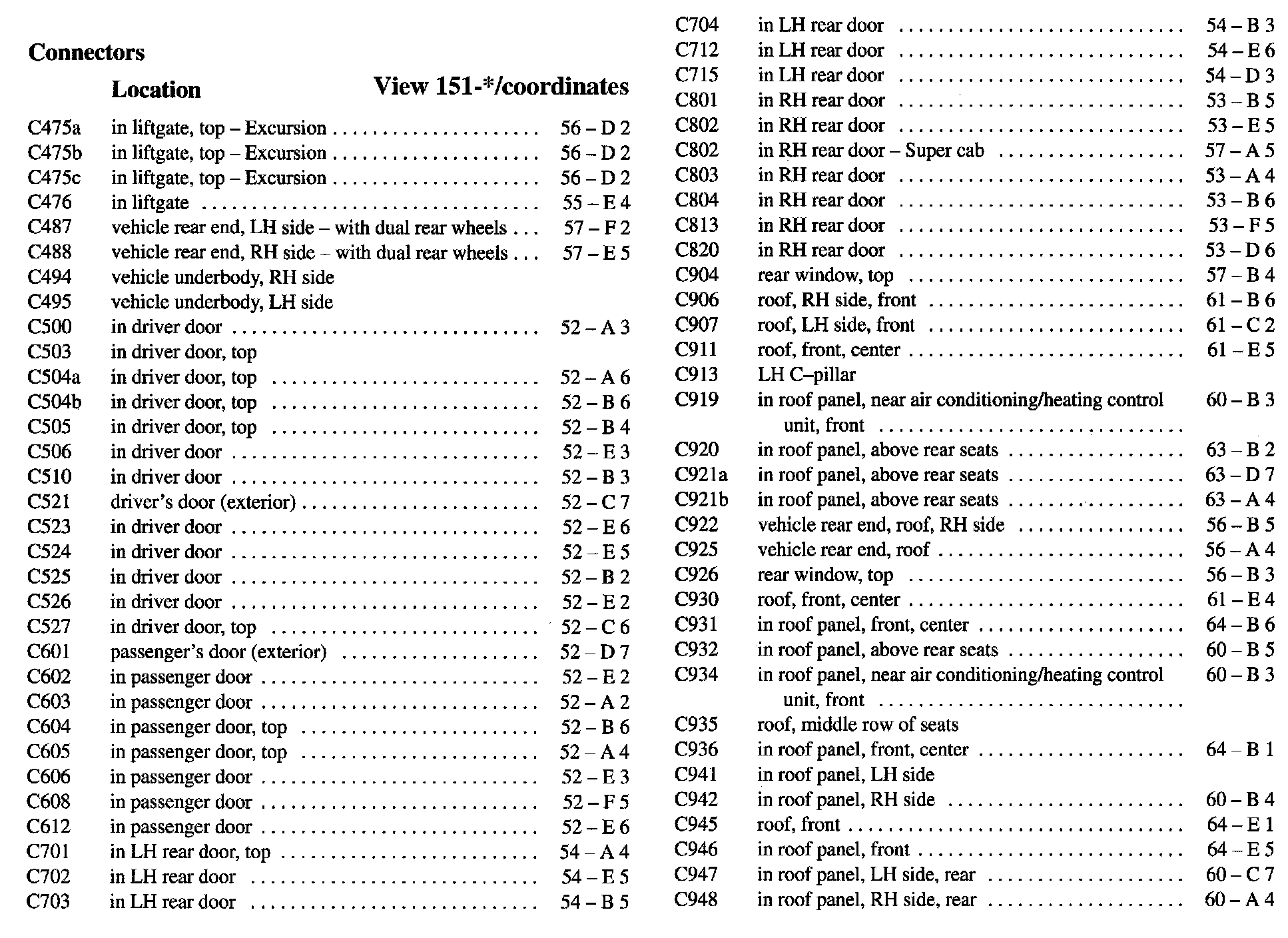

C475a - C948:

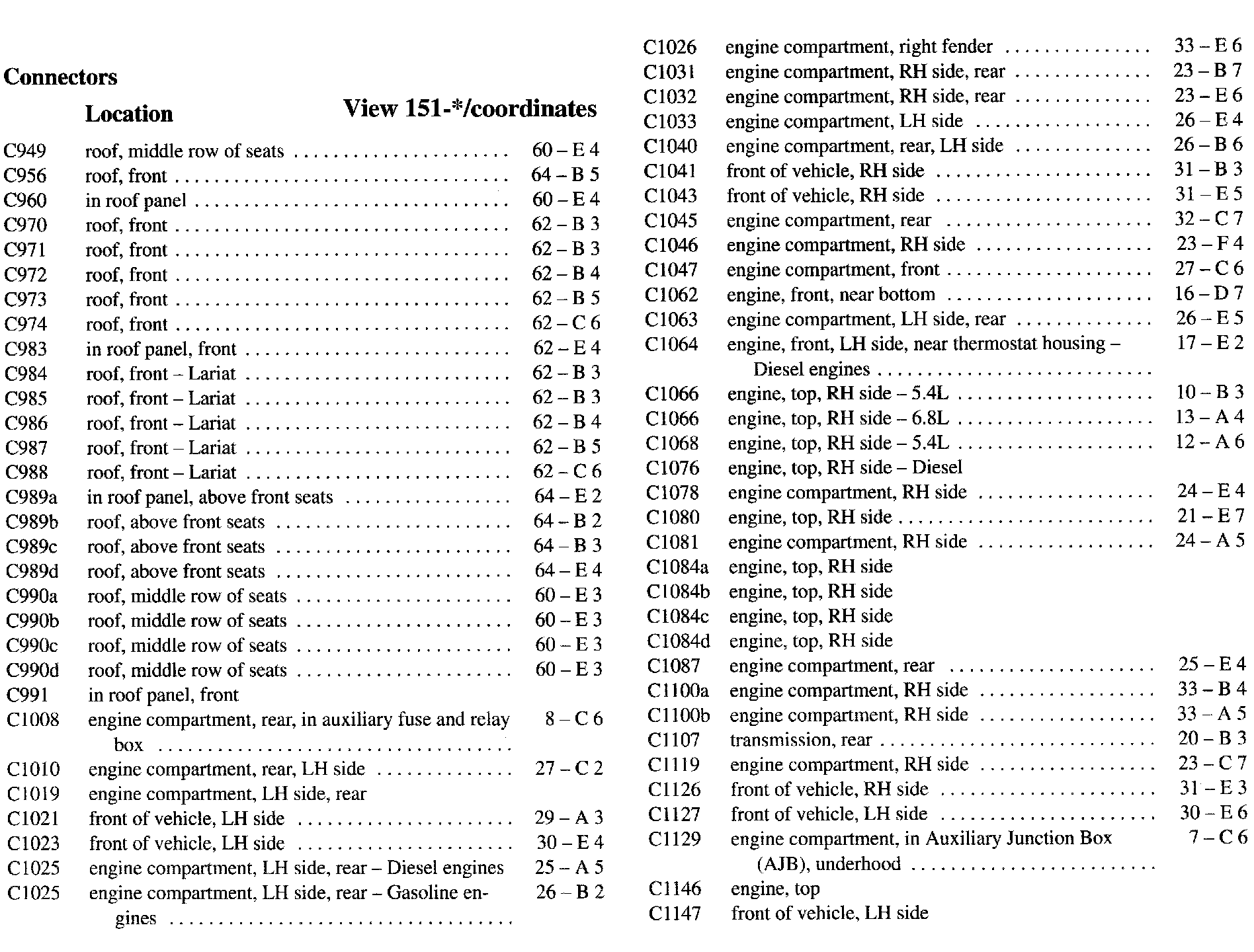

C949 - C1147:

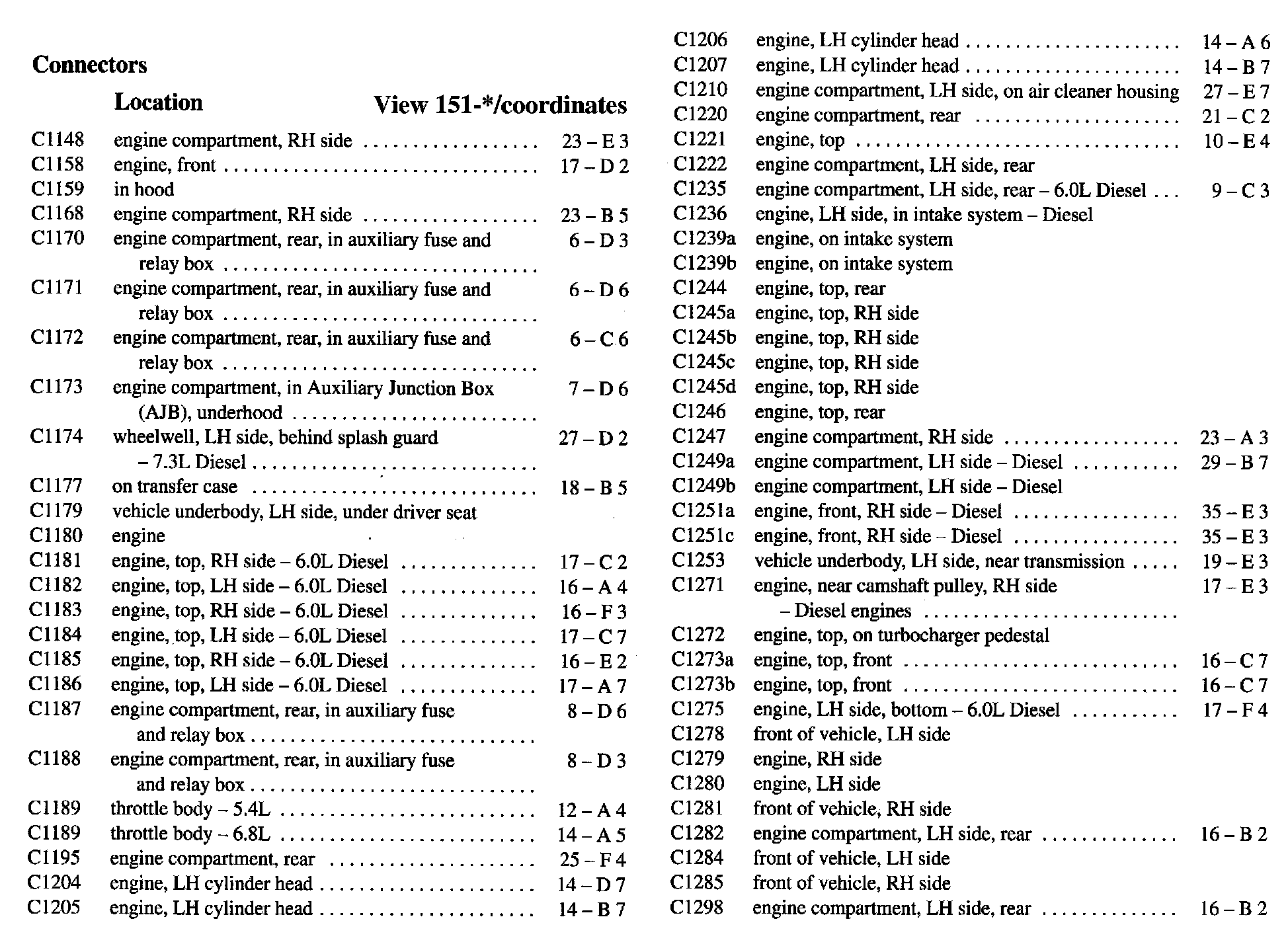

C1148 - C1298:

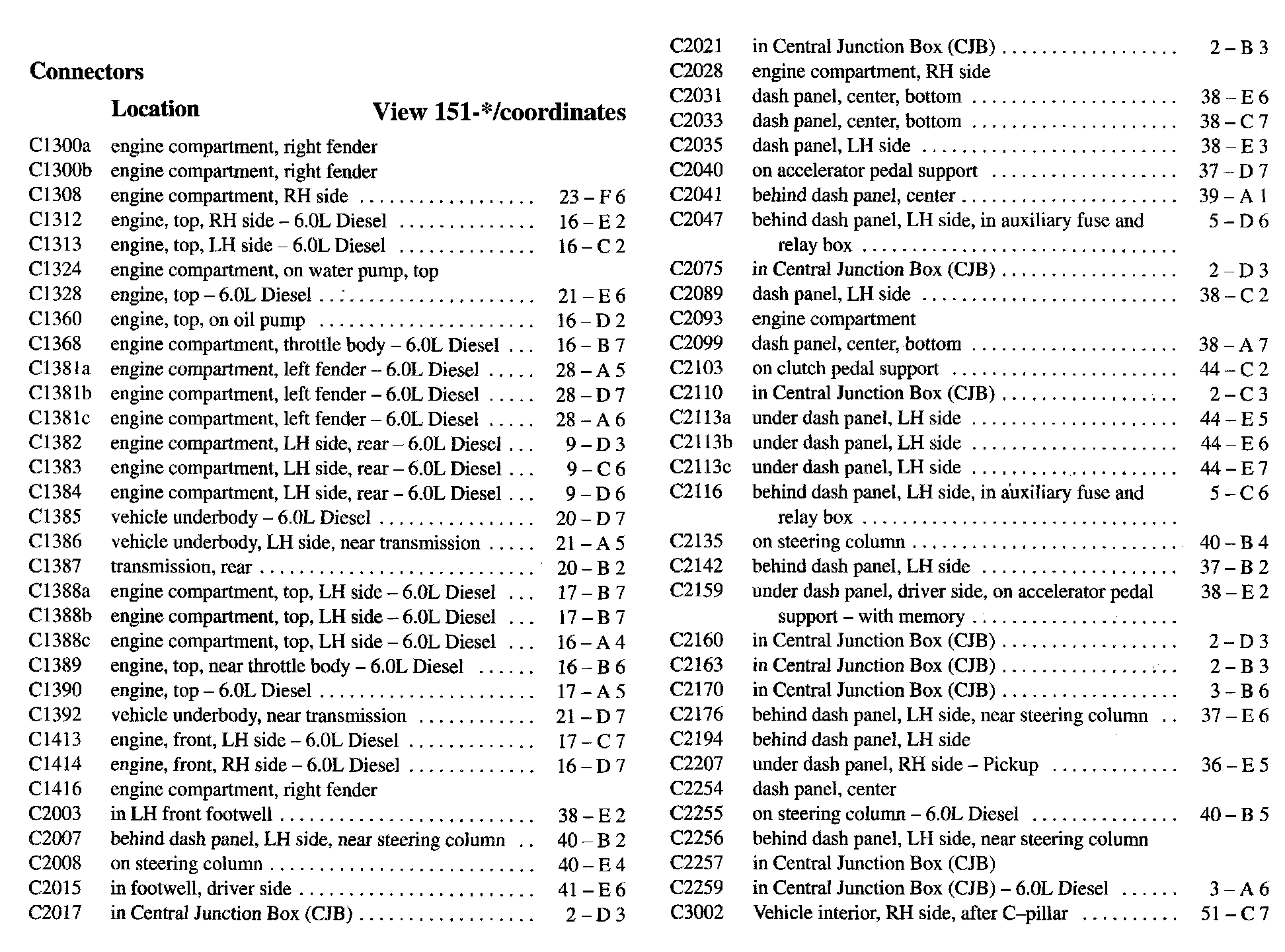

C1300a - C3002:

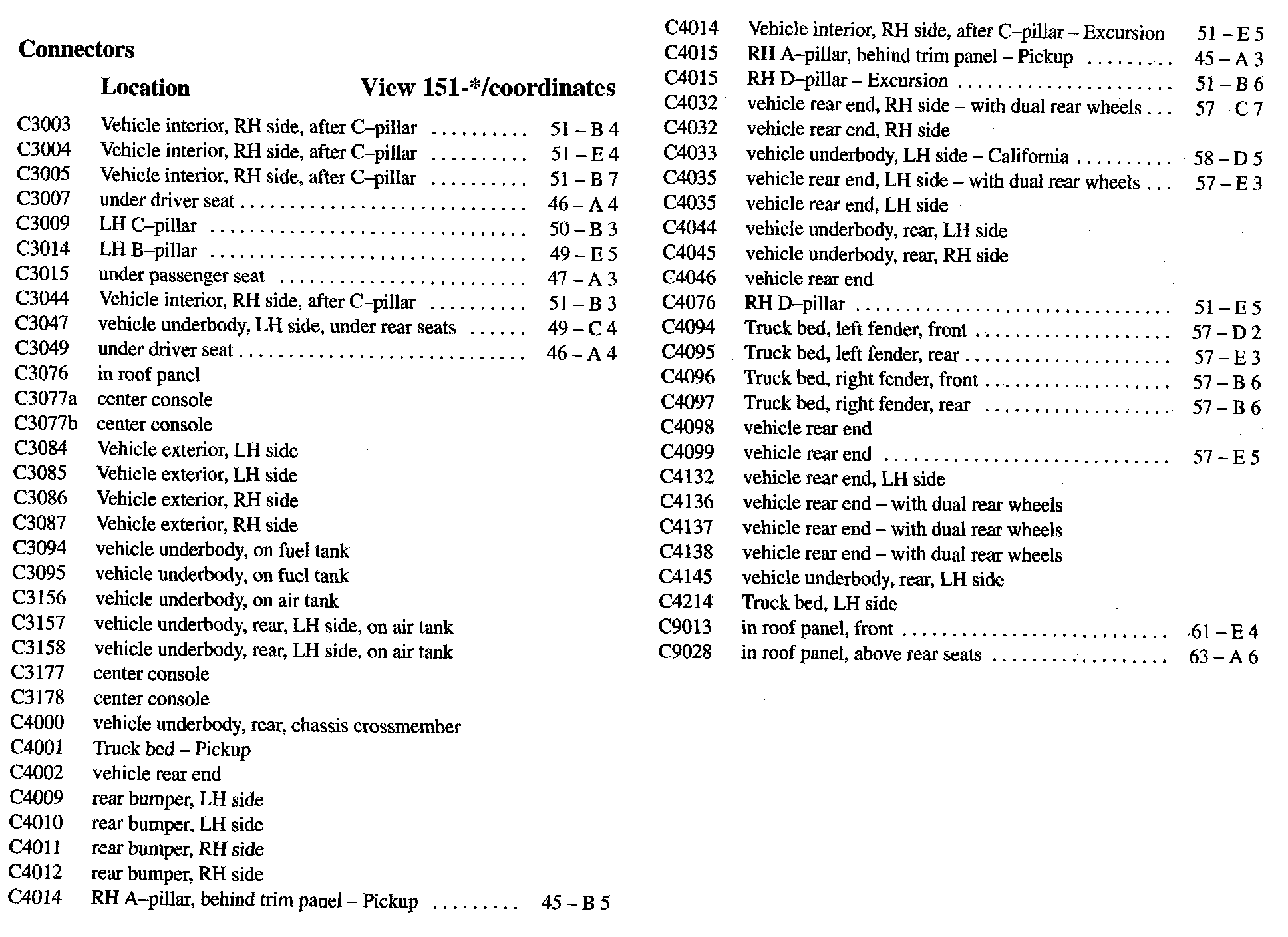

C3003 - C9028:
