Tests AH

PINPOINT TEST AH: VISCTRONIC DRIVE FAN (VDF)

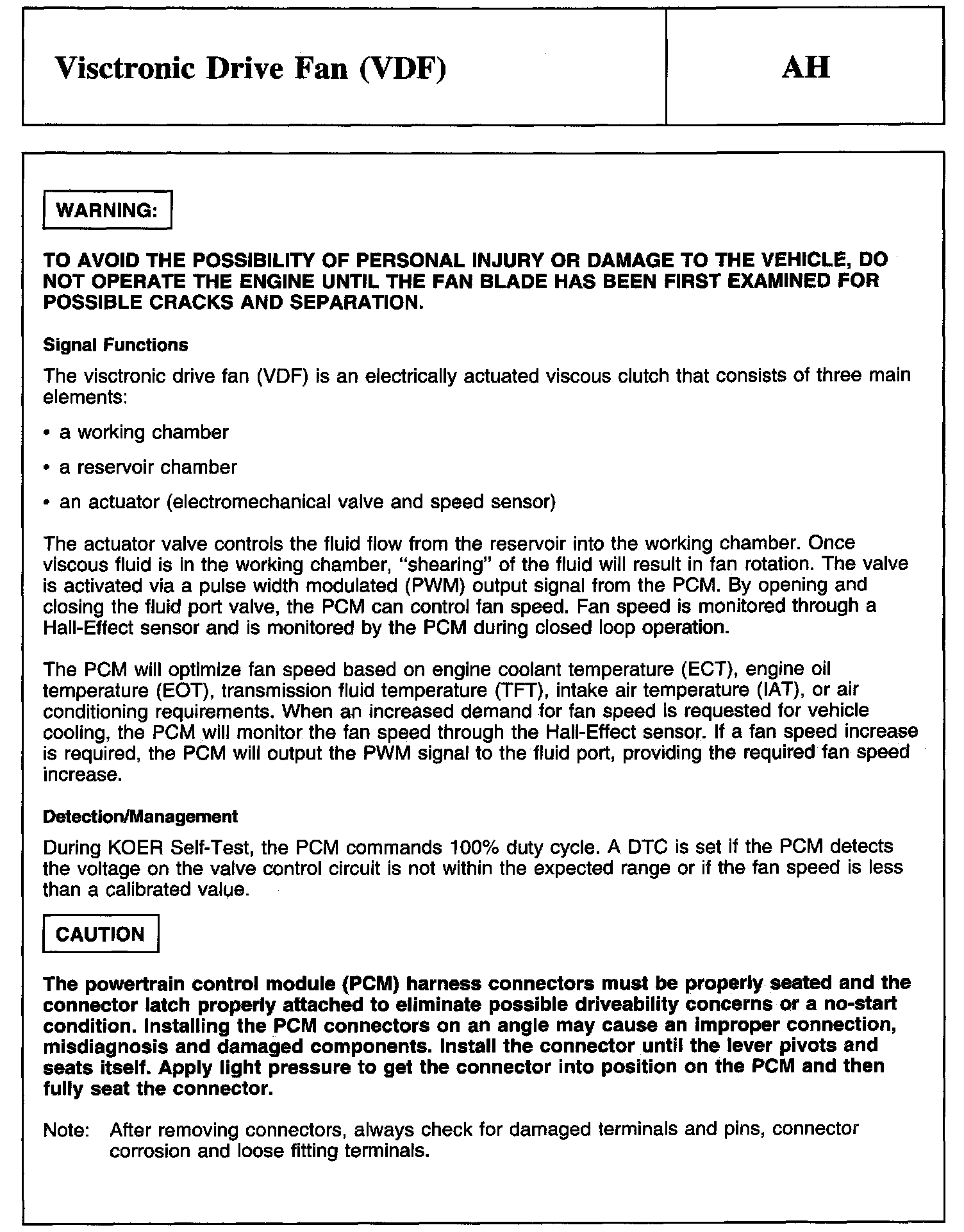

Warning, Caution:

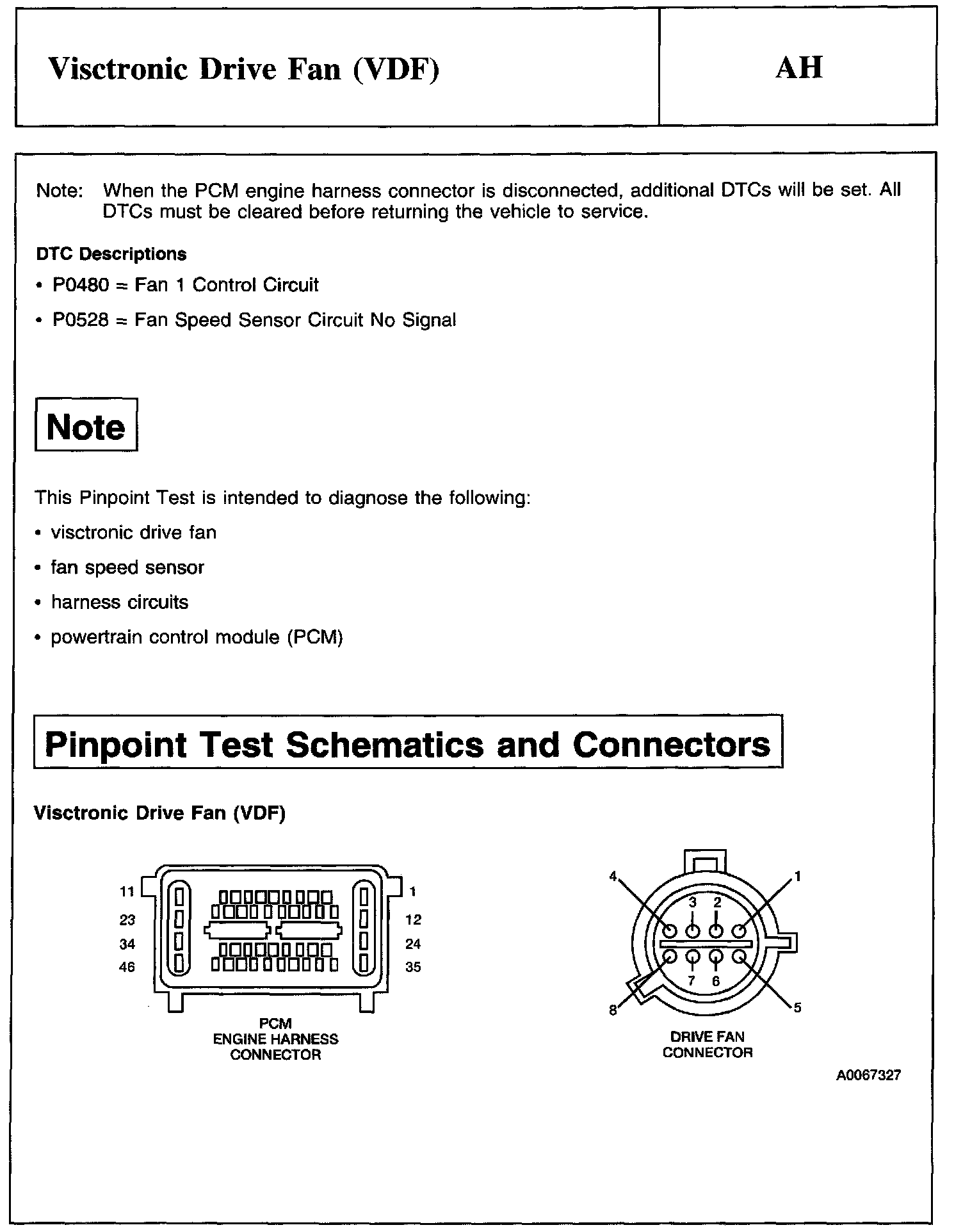

Note, Schematic:

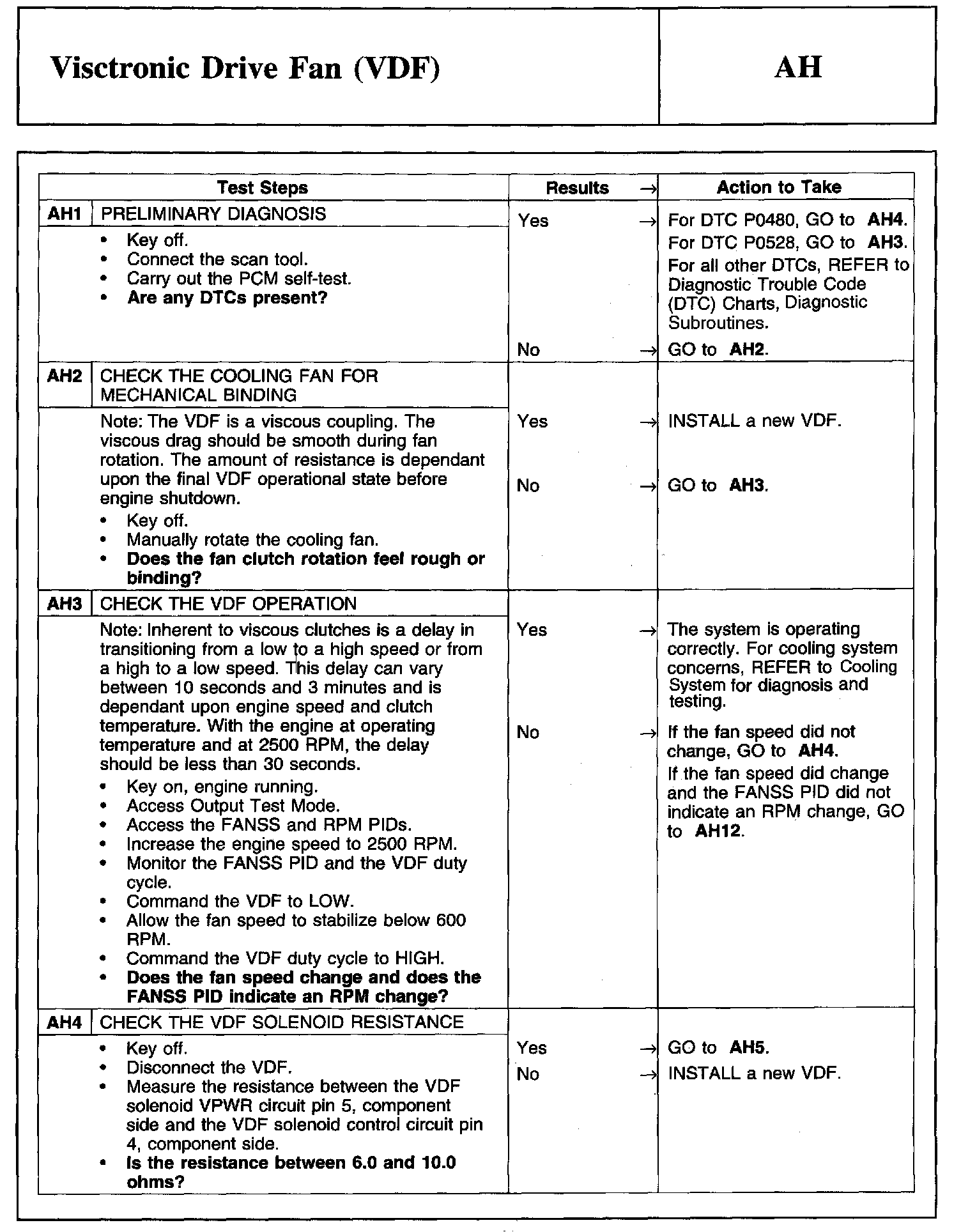

Test AH1-AH4:

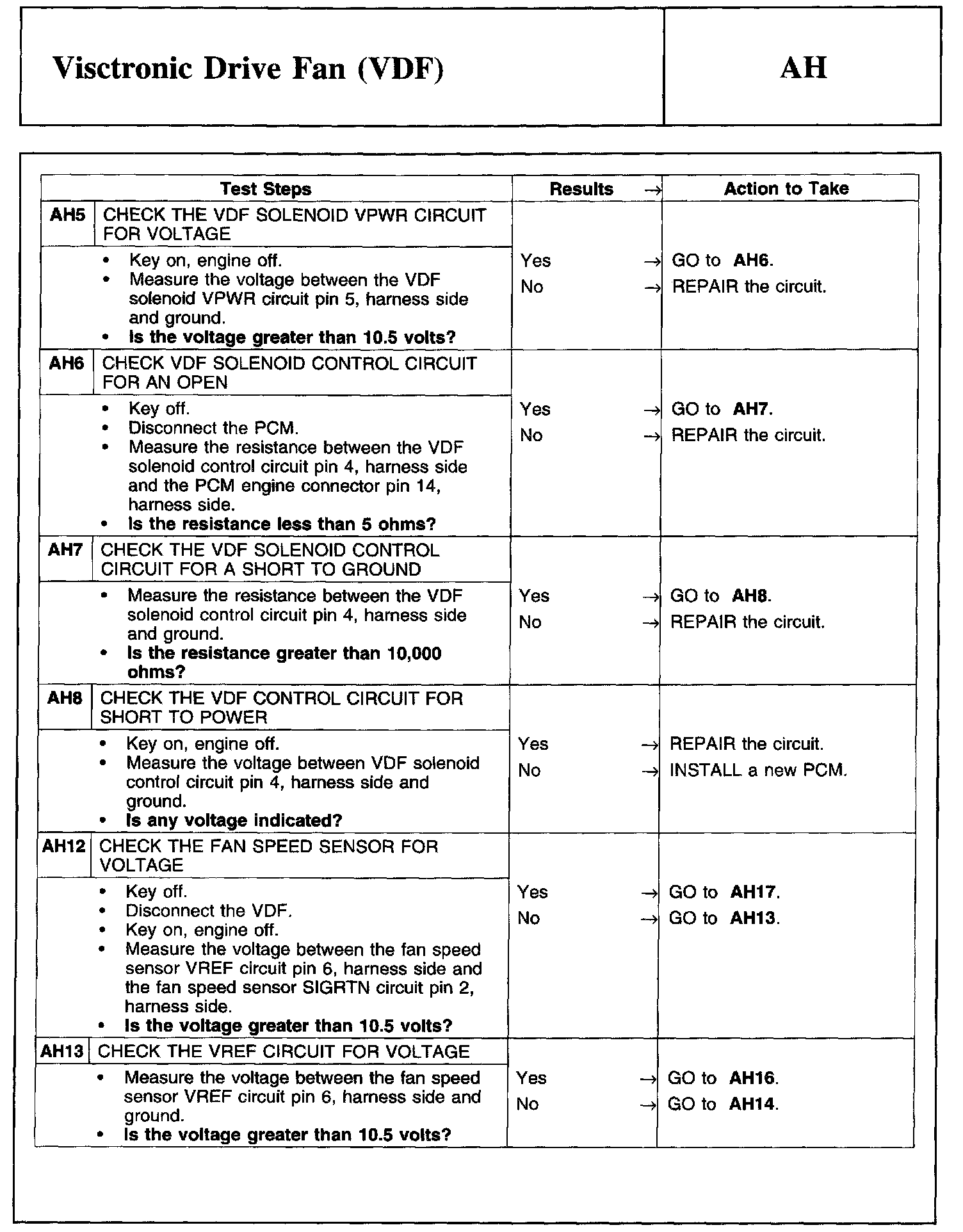

Test AH5-AH13:

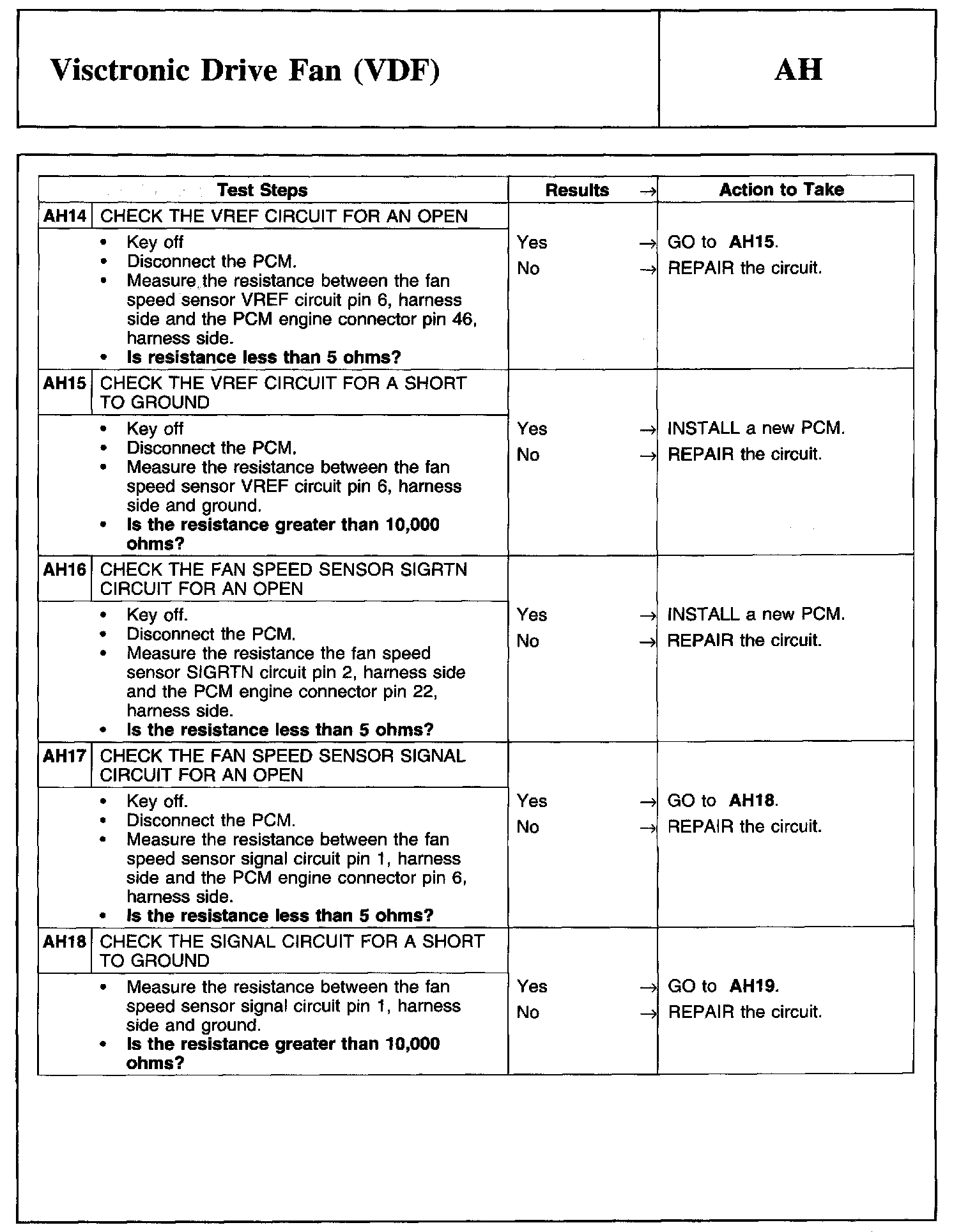

Test AH14-AH18:

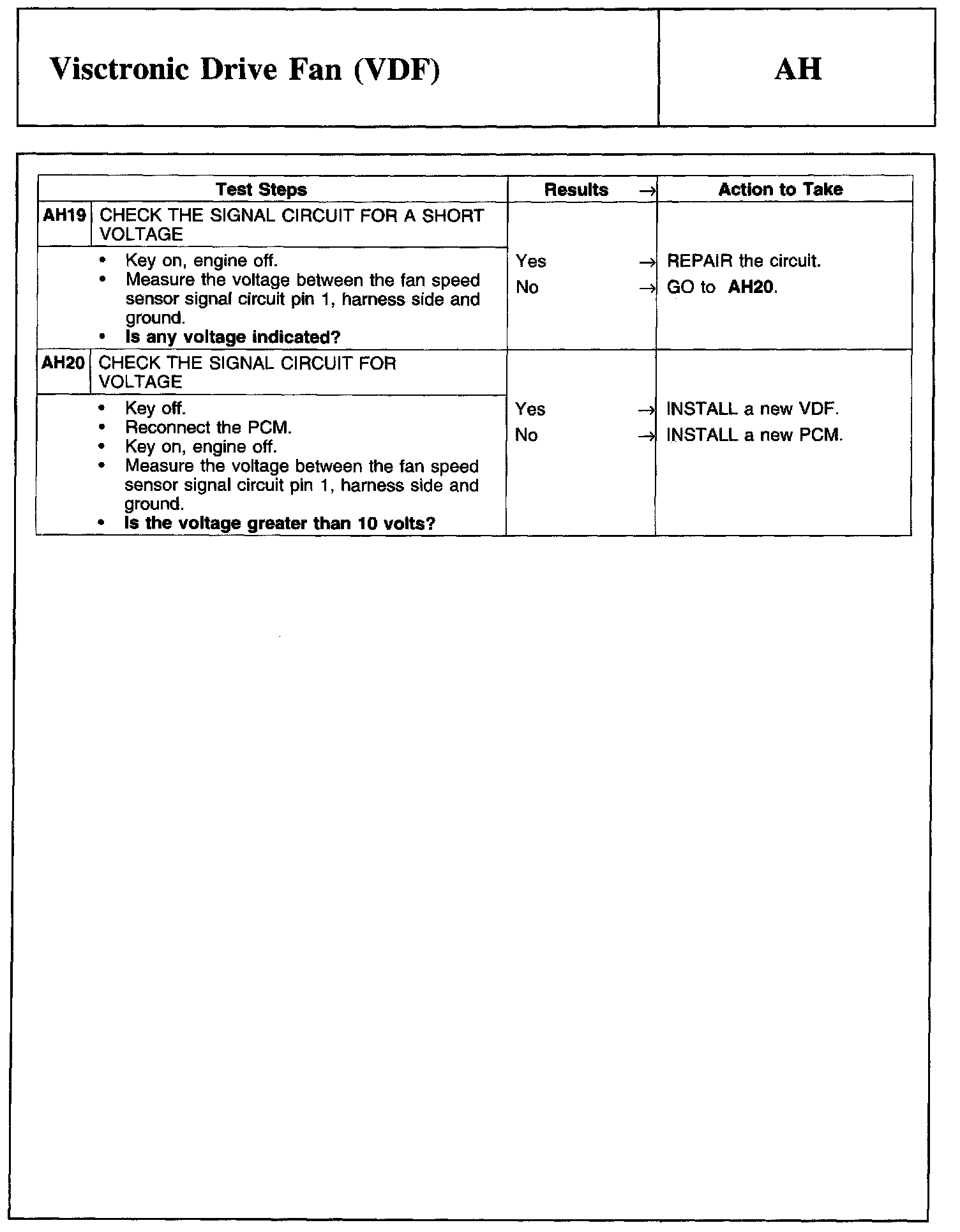

Test AH19-AH20:
