Tests AN

PINPOINT TEST AN: AUXILIARY POWERTRAIN CONTROL SYSTEM

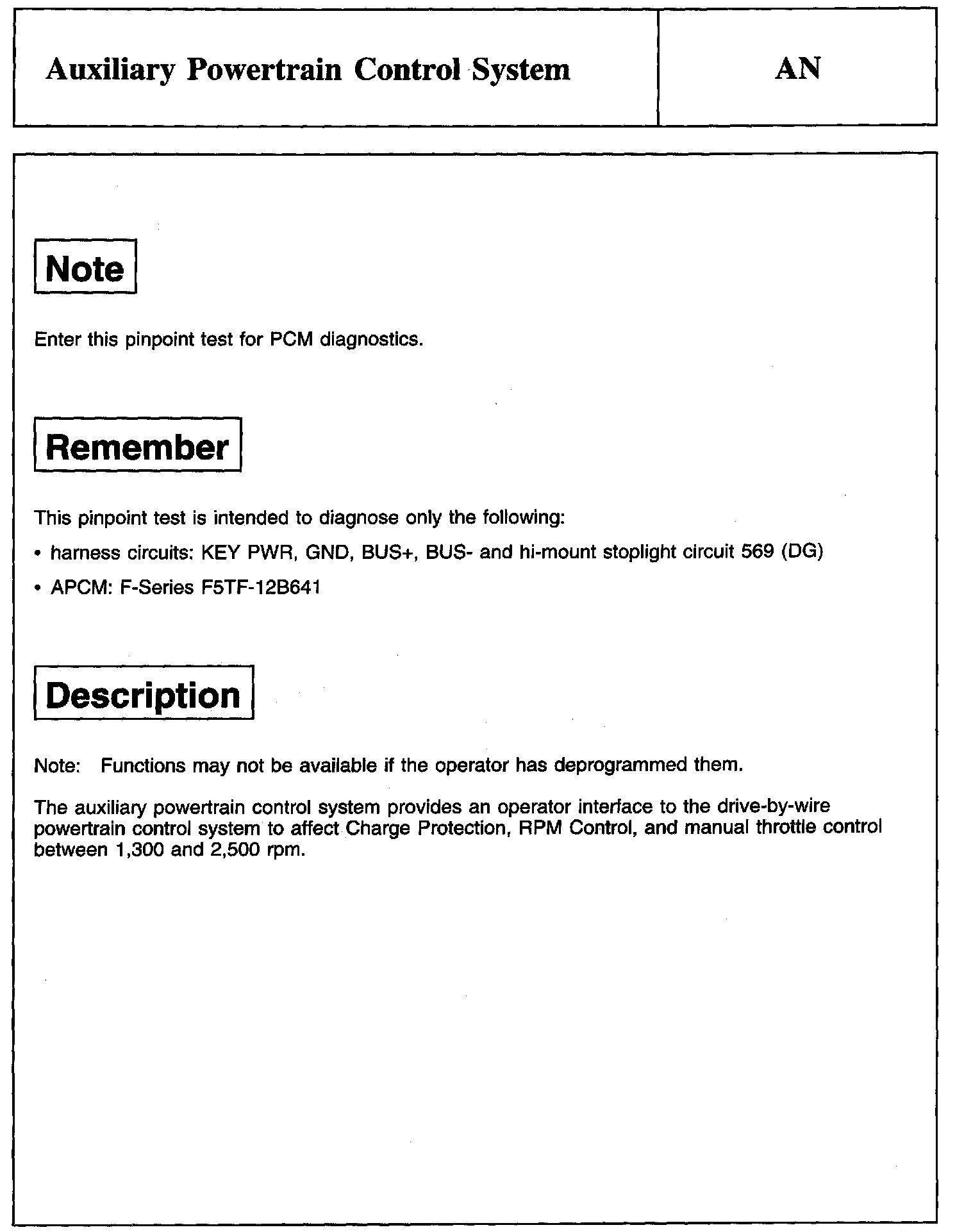

Note, Remember And Description:

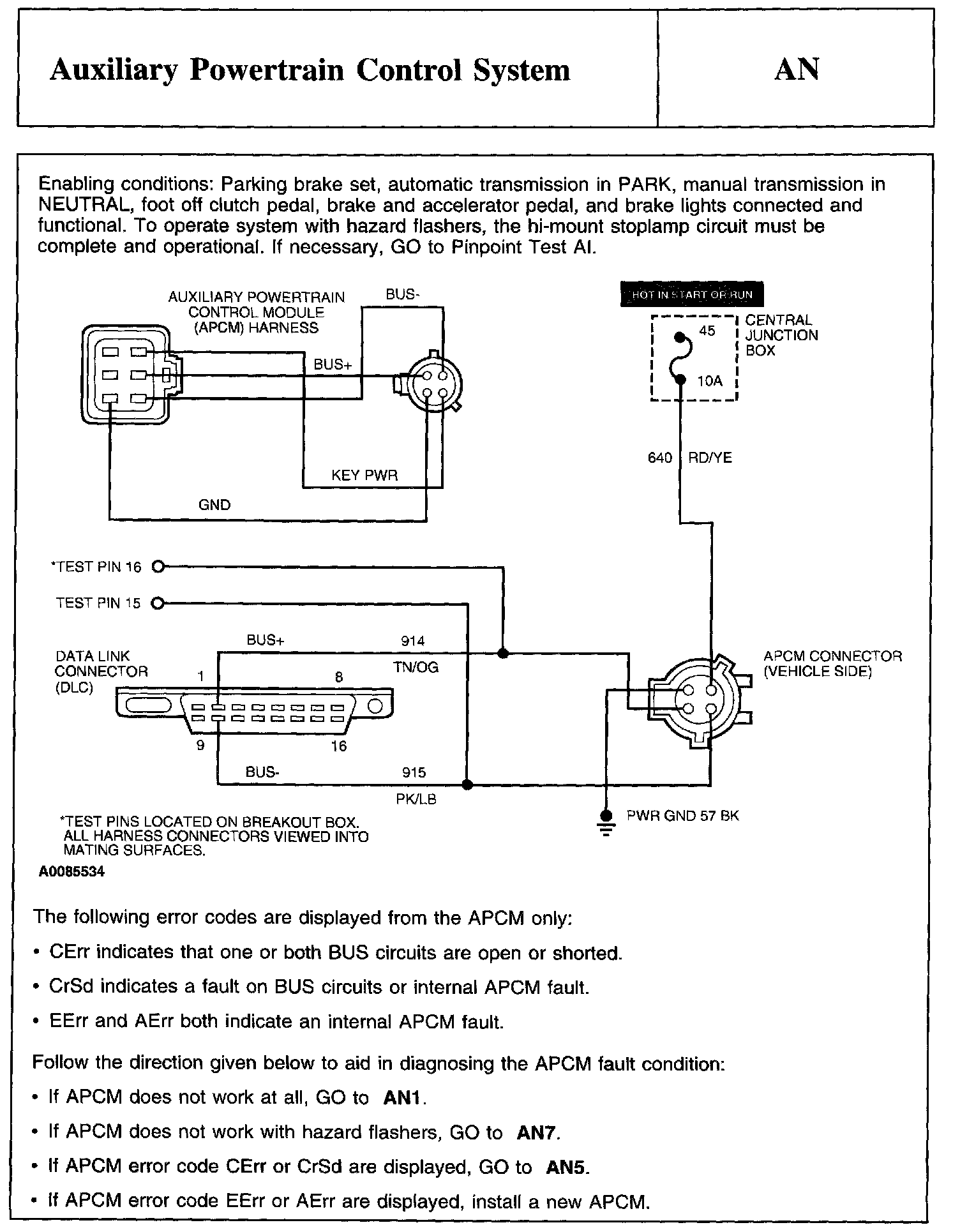

Description, Schematic:

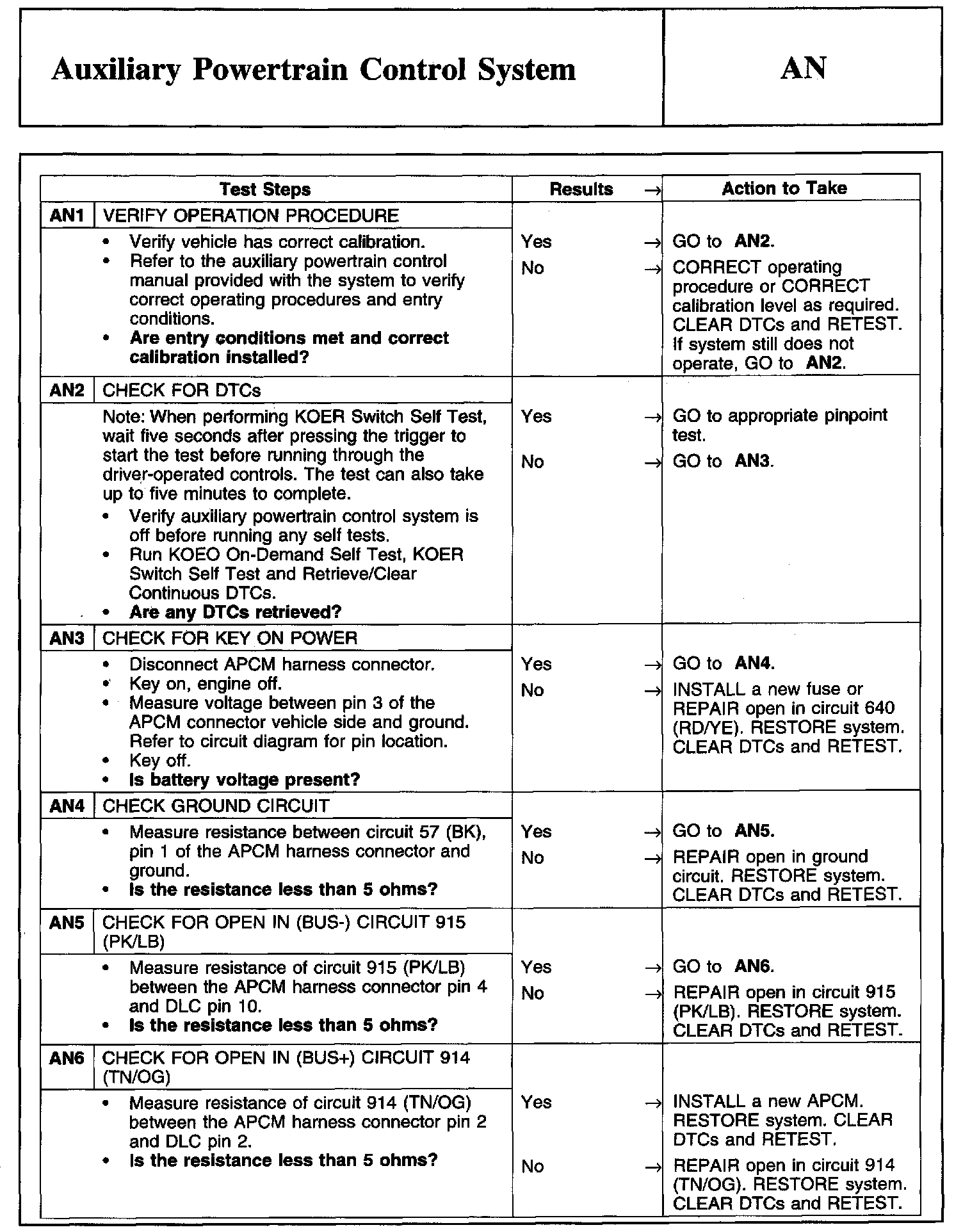

Test AN1-AN6:

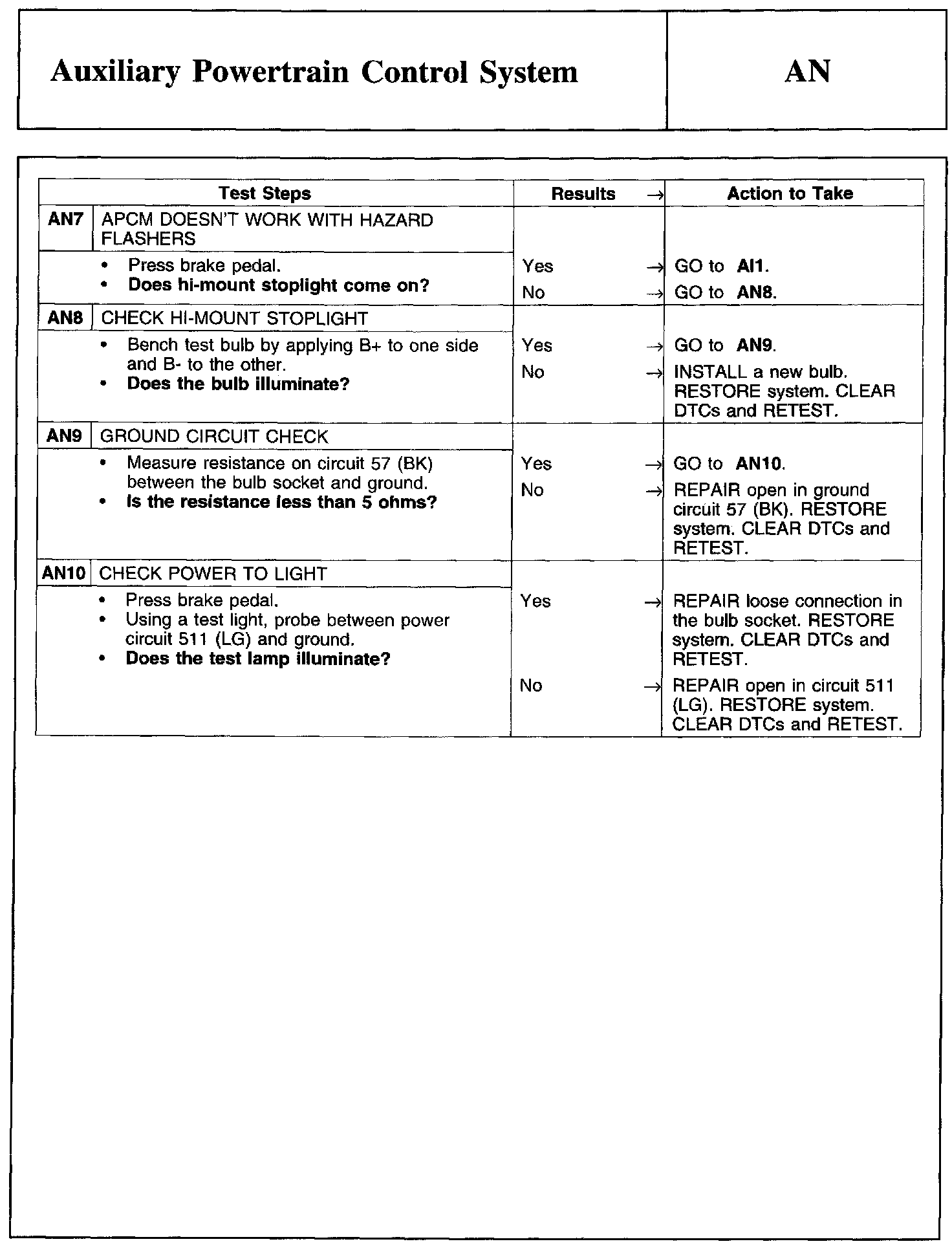

Test AN7-AN10:
