Tests AS

PINPOINT TEST AS: LOSS OF COMMUNICATION WITH THE FICM

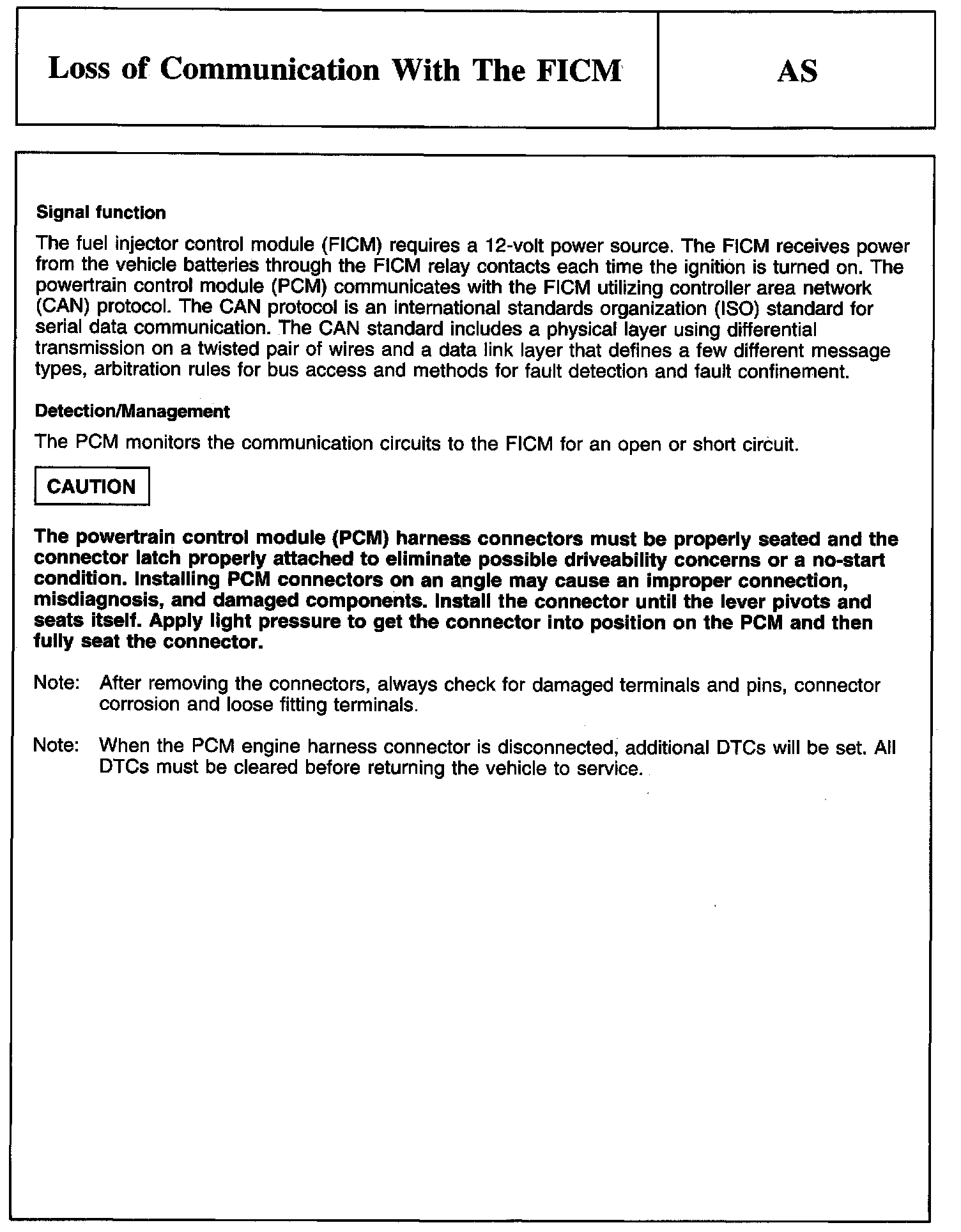

Description, Caution:

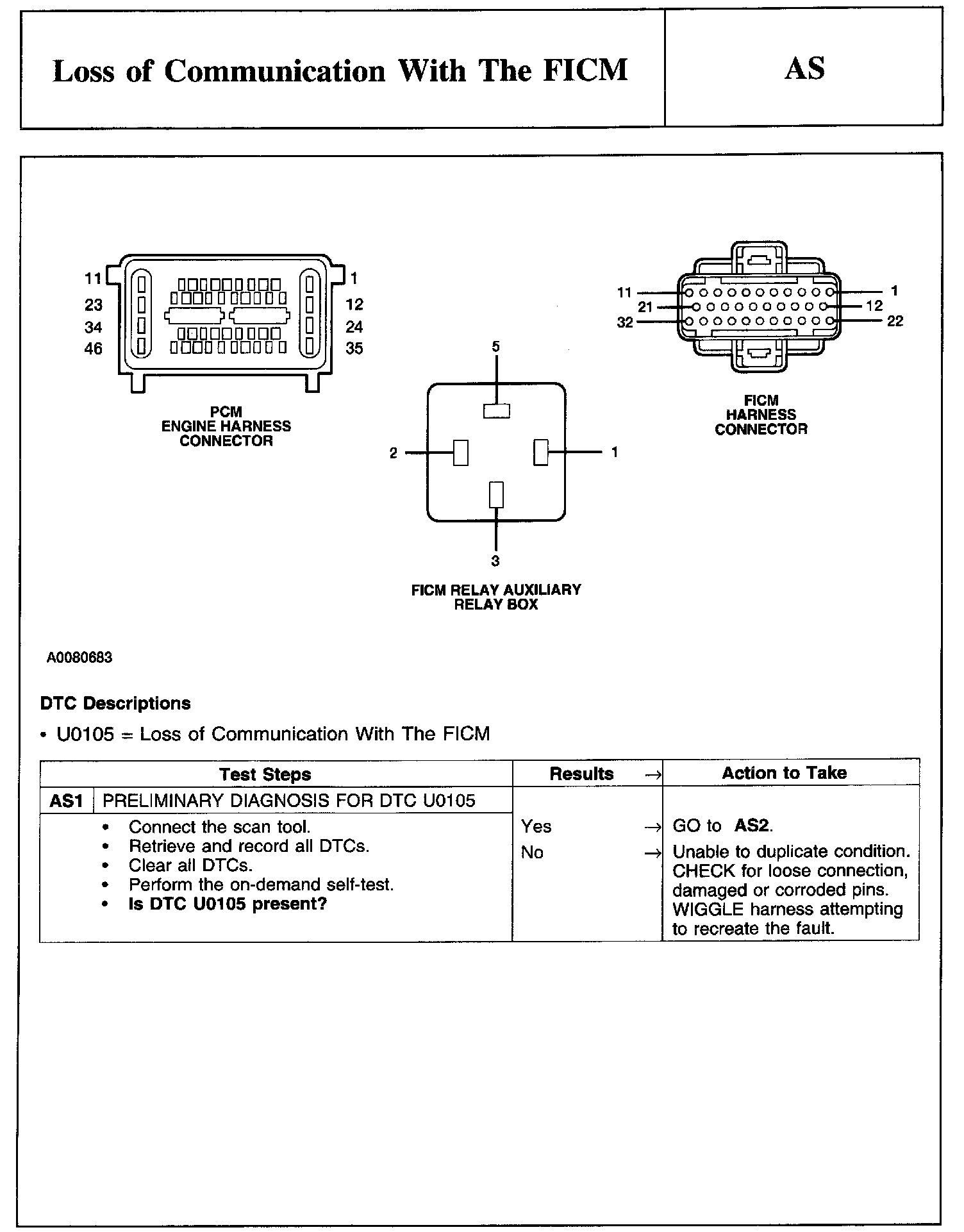

Schematic, Test AS1:

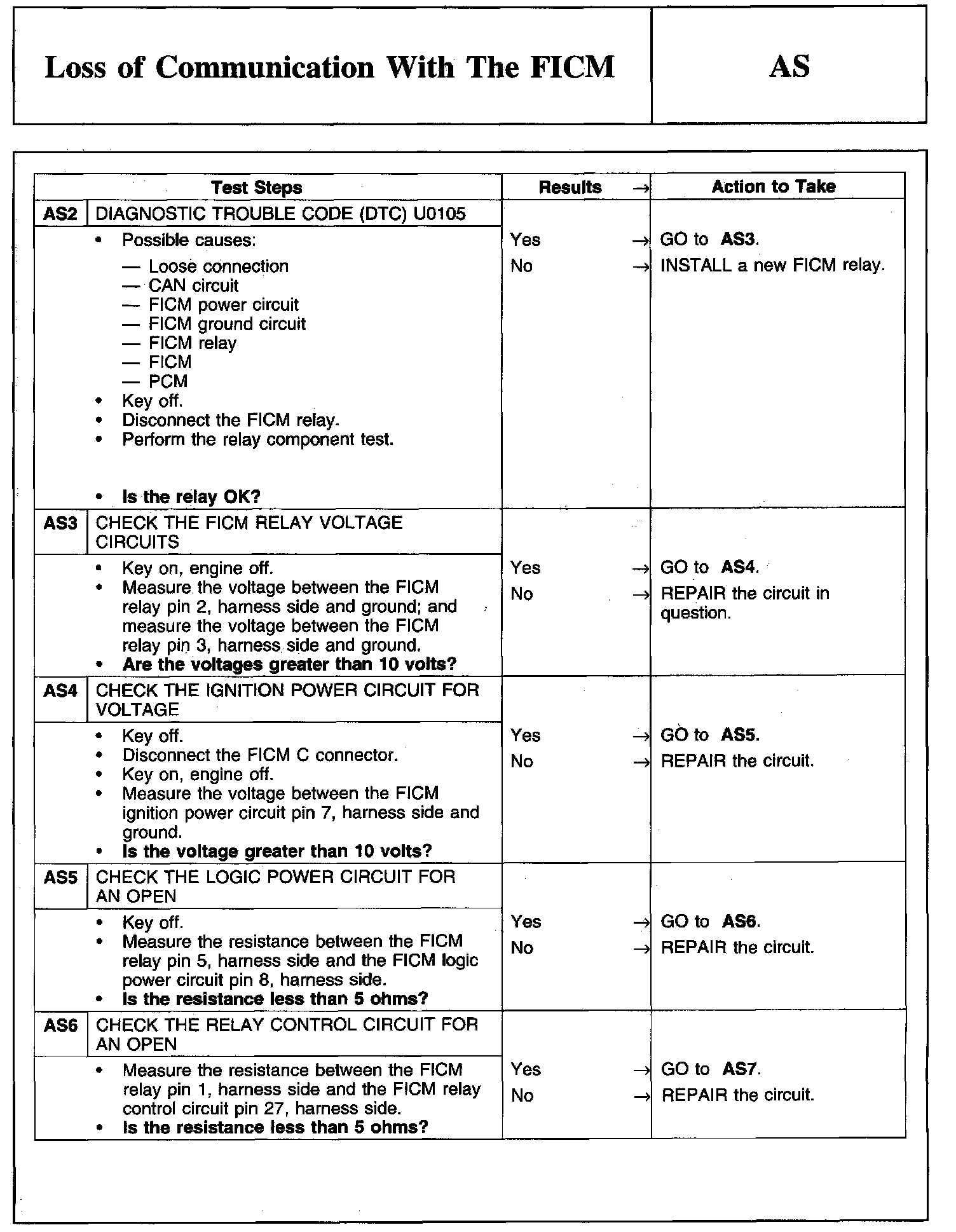

Test AS2-AS6:

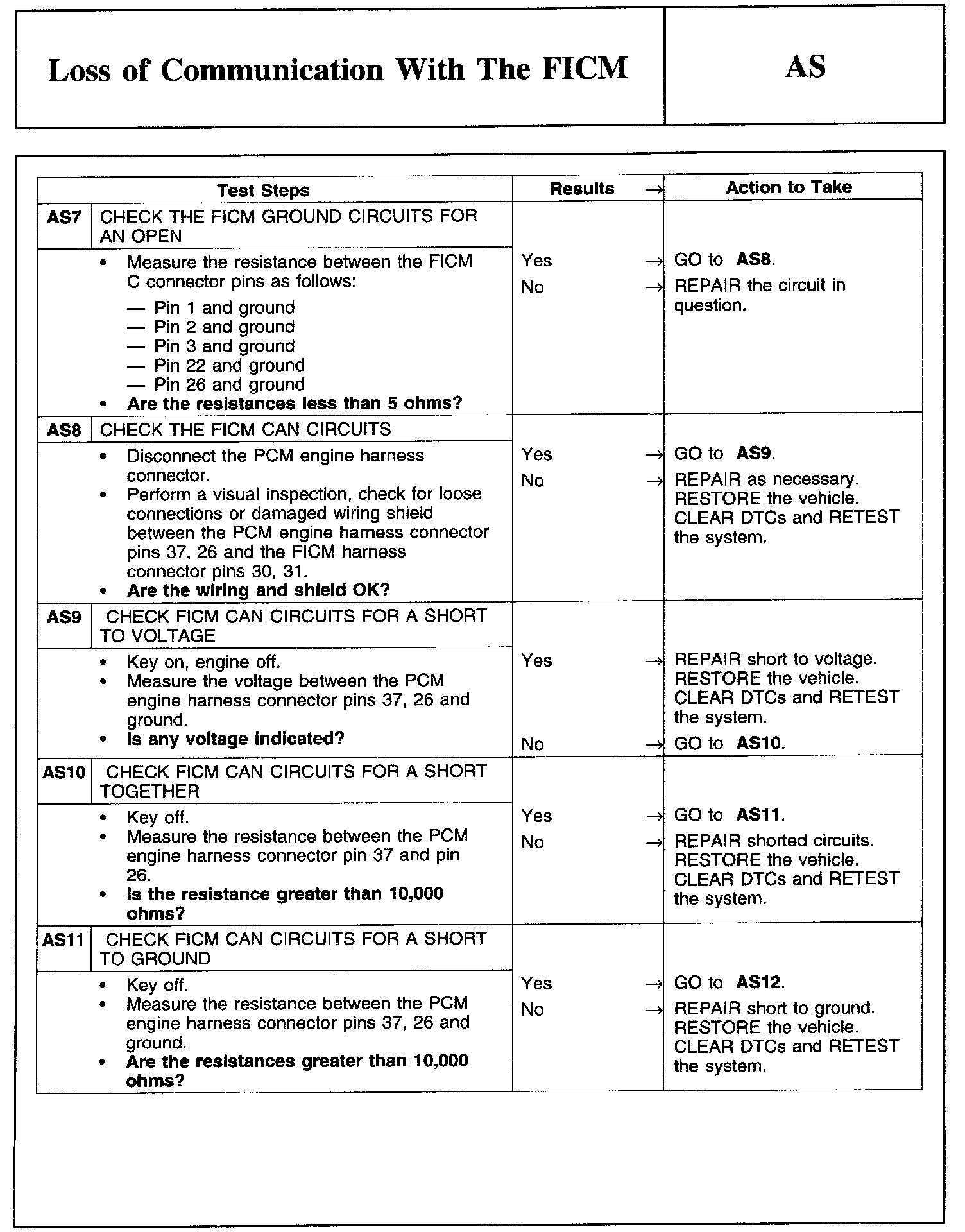

Test AS7-AS11:

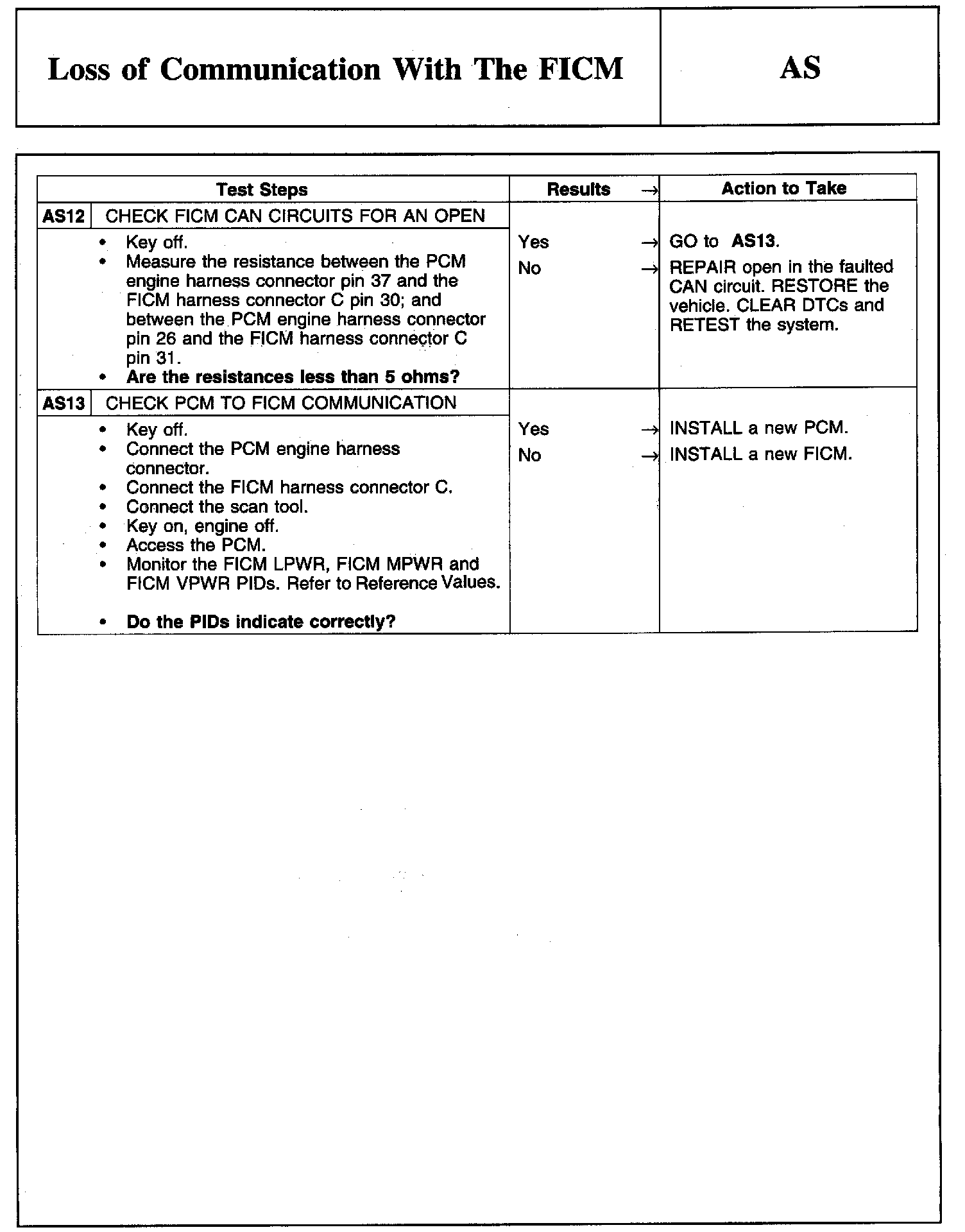

Test AS12-AS13:
