Tests AW
PINPOINT TEST AW: INTAKE AIR TEMPERATURE IAT/IAT2 SENSOR CORRELATION

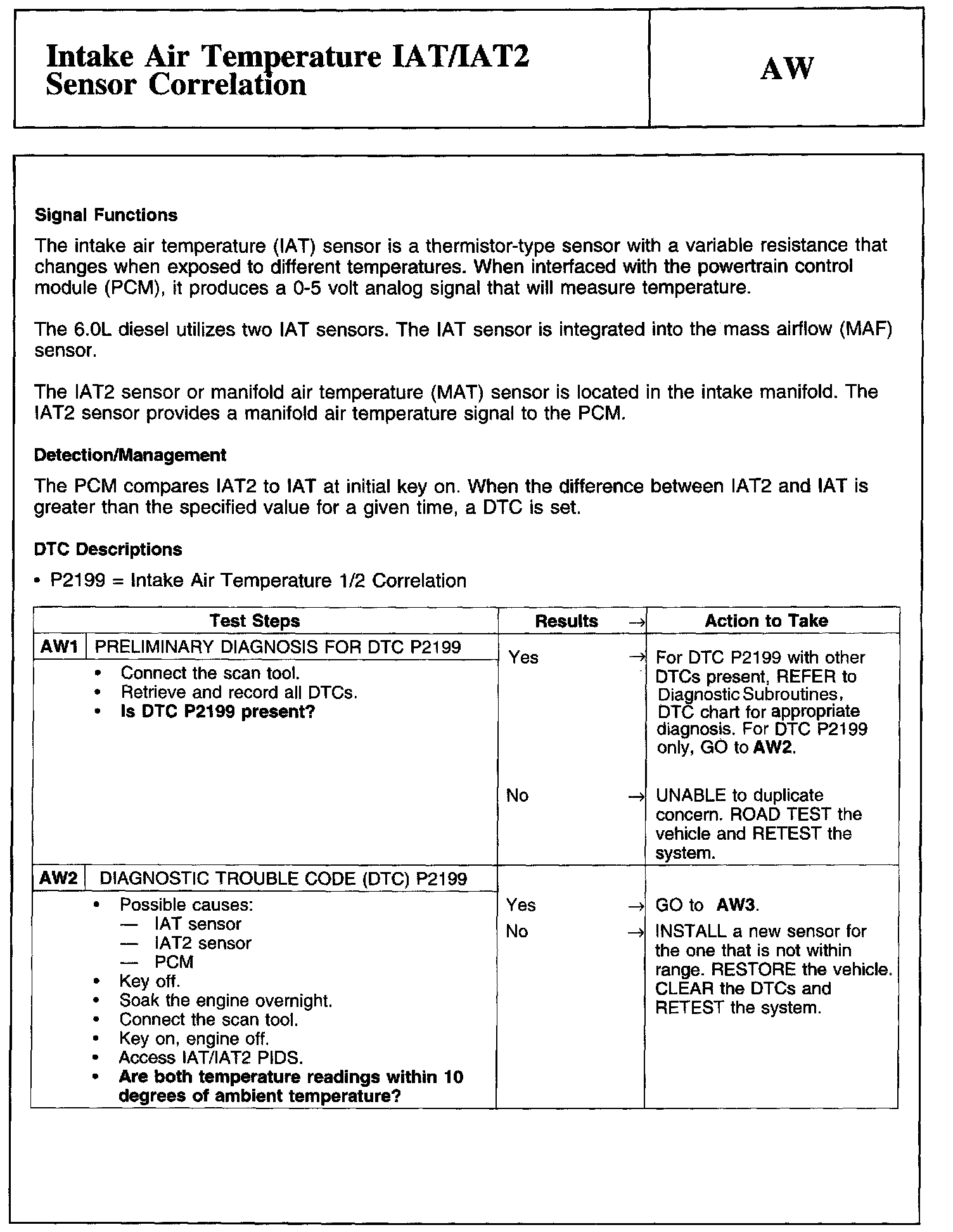

Description, Test AW1-AW2:

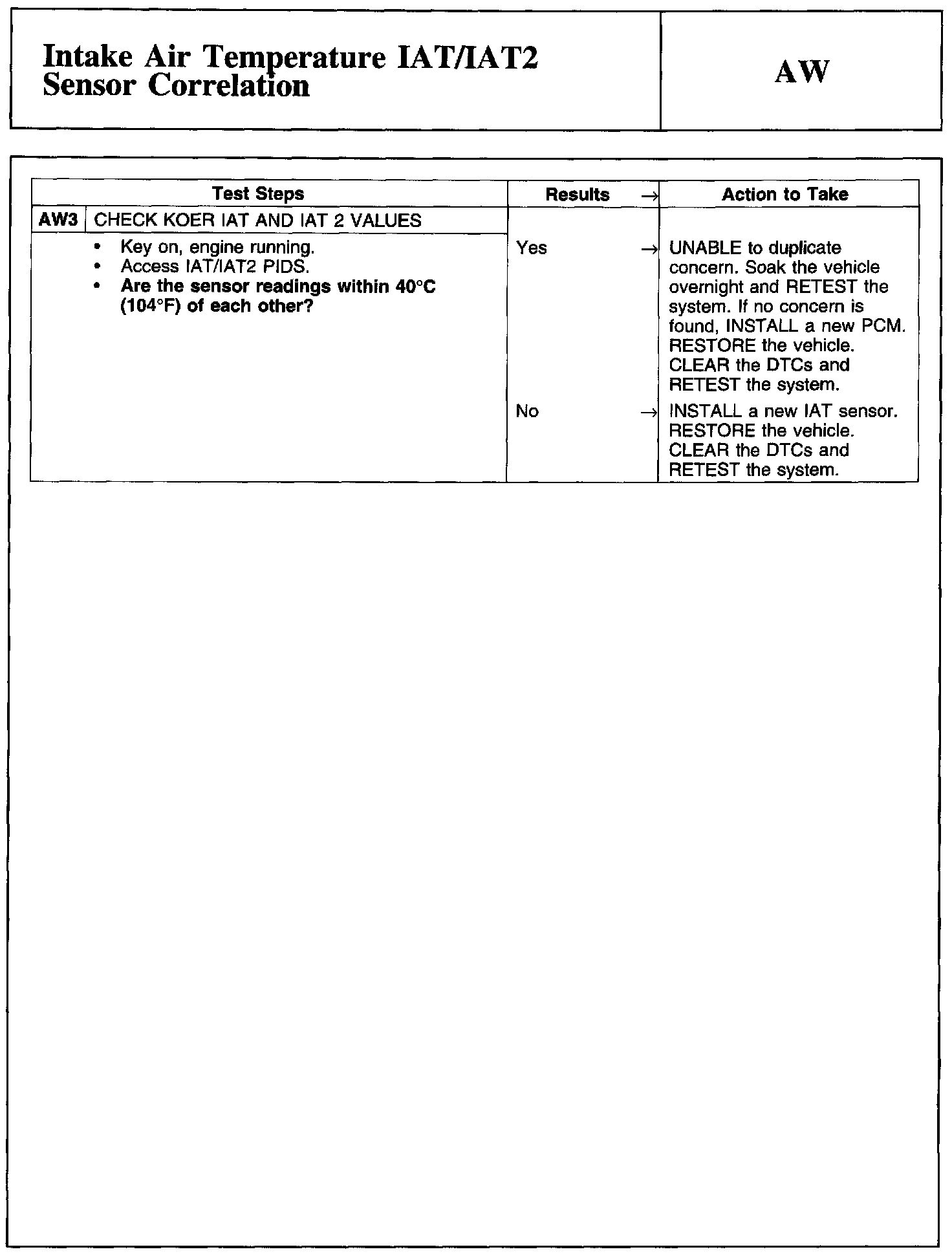

Test AW3:
