Tests AY
Pinpoint Test: AY Intake Air Temperature IAT/IAT2 Sensor Correlation

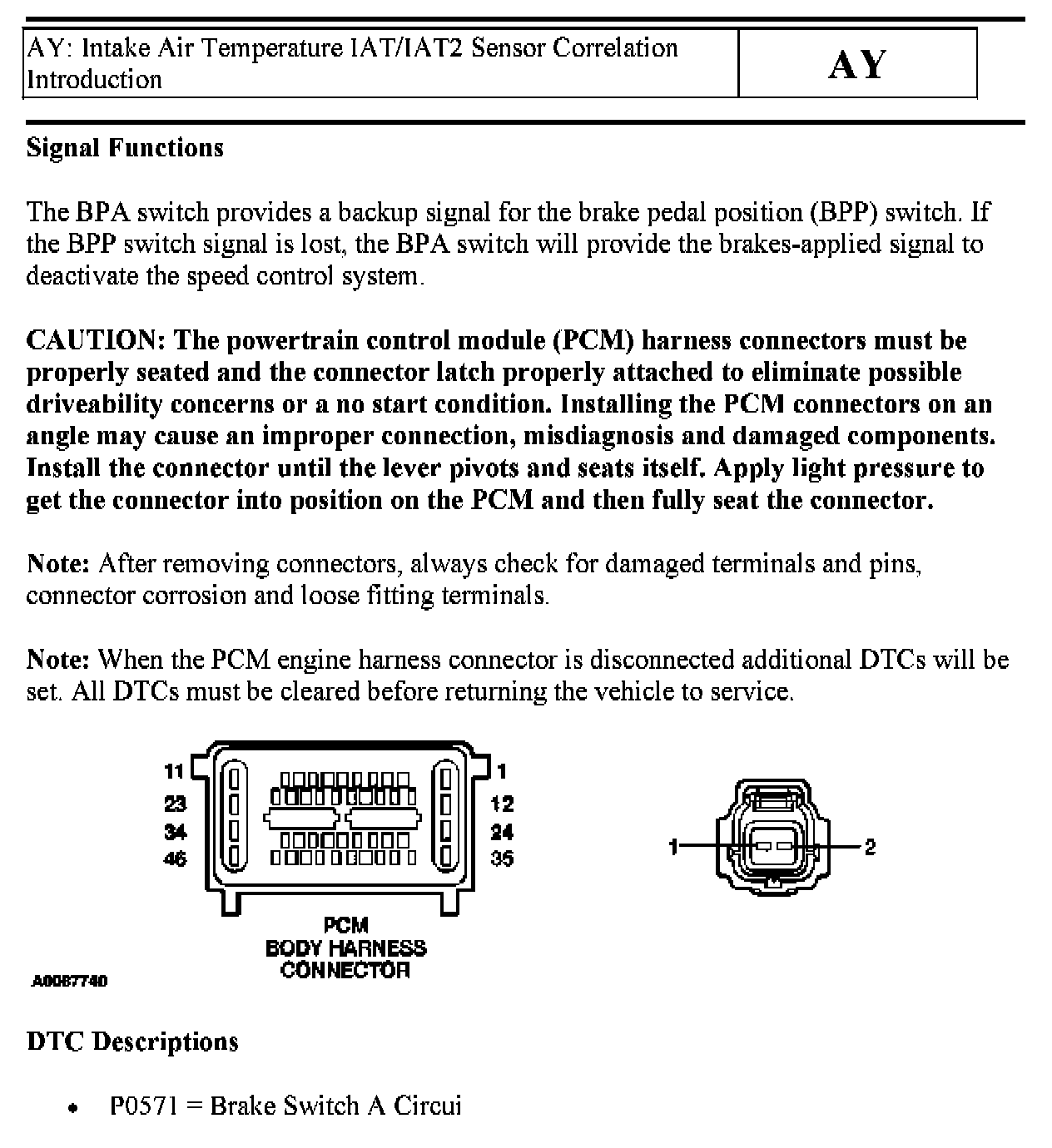

AY Introduction:

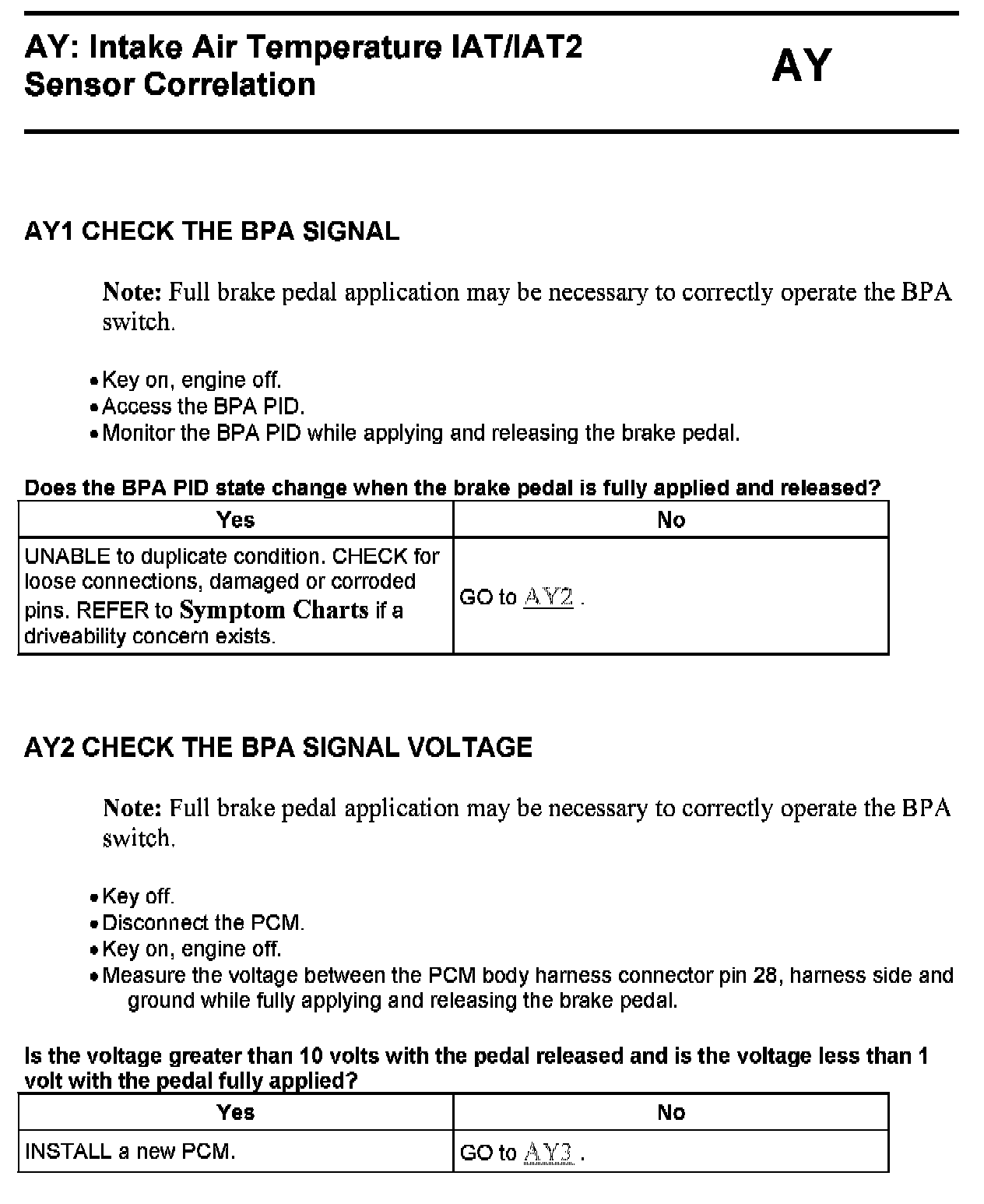

AY1 - AY2:

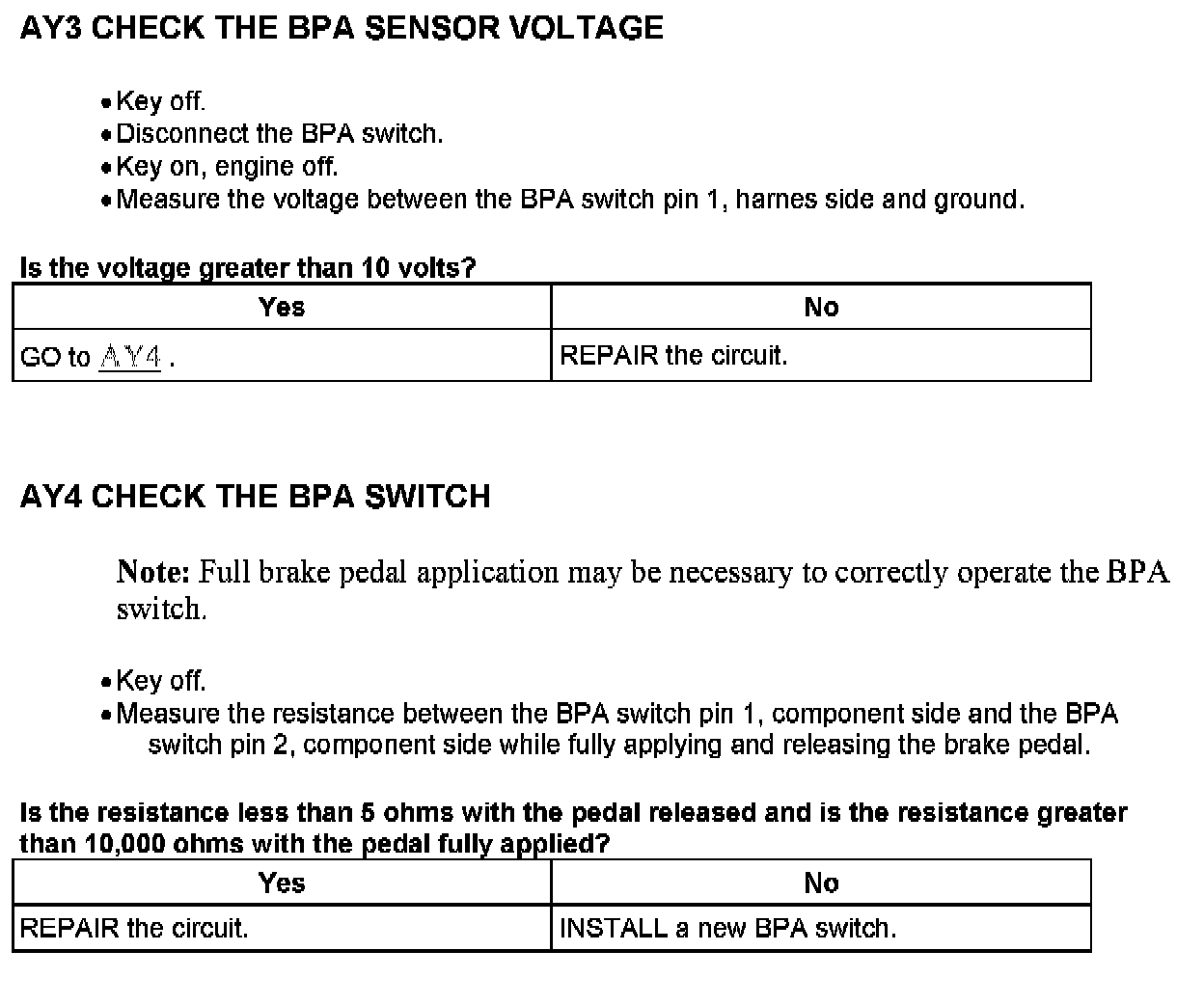

AY3 - AY4:
