Parameter Identification (PID)

Parameter Identification (PID)

The Parameter Identification (PID) mode allows access to certain data values, analog and digital inputs and outputs, calculated values, and system status information. Throughout the manual, there will be references to PID values. PID Data Monitor and Record can be accessed from the scan tool through the Diagnostic Data Link menu.

Selecting Parameter Identification (PID)

Connect the scan tool to the DLC under the dash. Turn off accessories. If the vehicle is equipped with an auxiliary powertrain control (rpm control), it must be turned off to perform self tests.

- Perform the necessary vehicle preparation and visual inspection. Refer to Quick Test Operation.
- Refer to the manufacturer manual for scan tool instructions.
- Follow operating instructions from the menu.
- Select the PIDs, press START to begin monitoring.

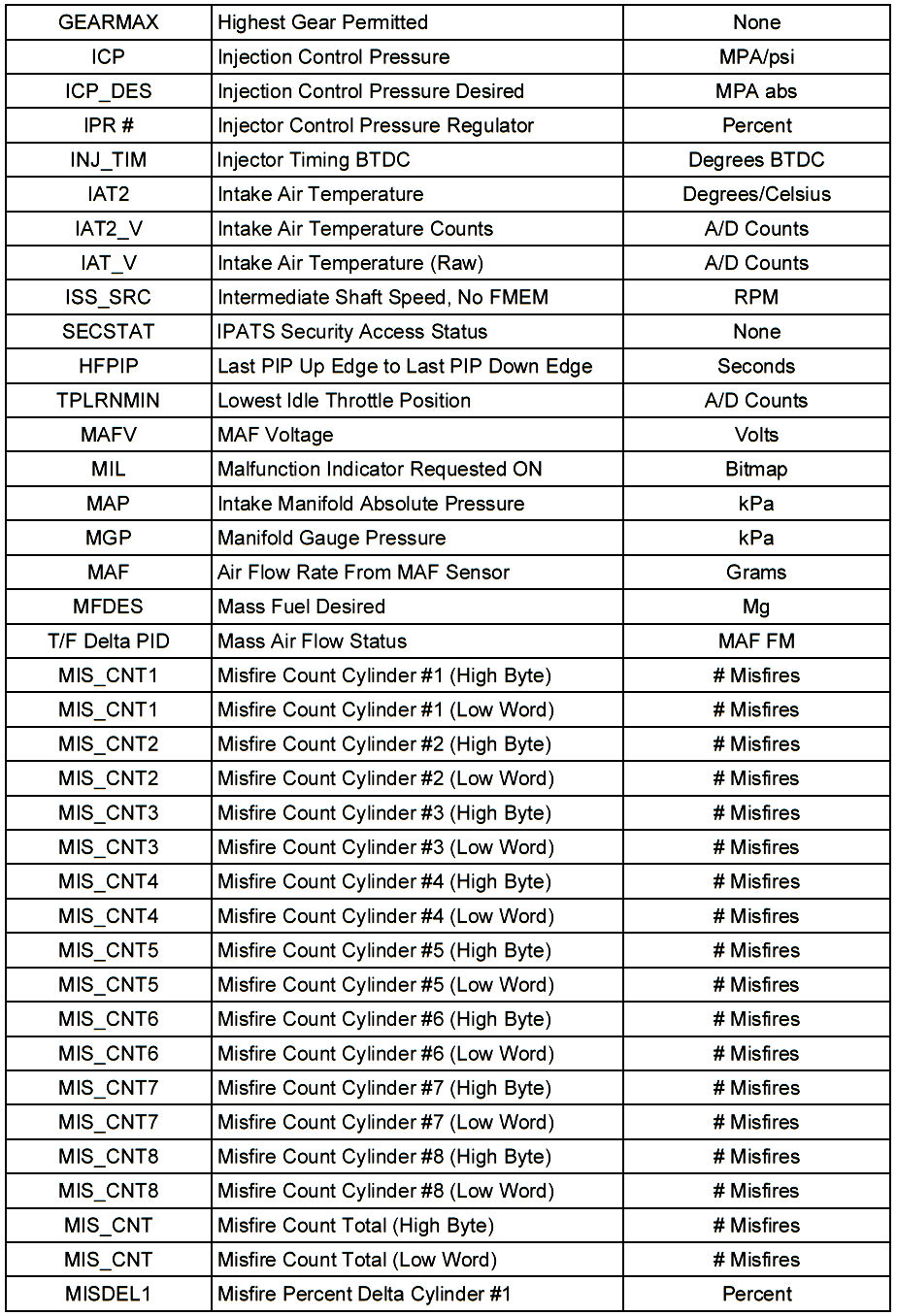

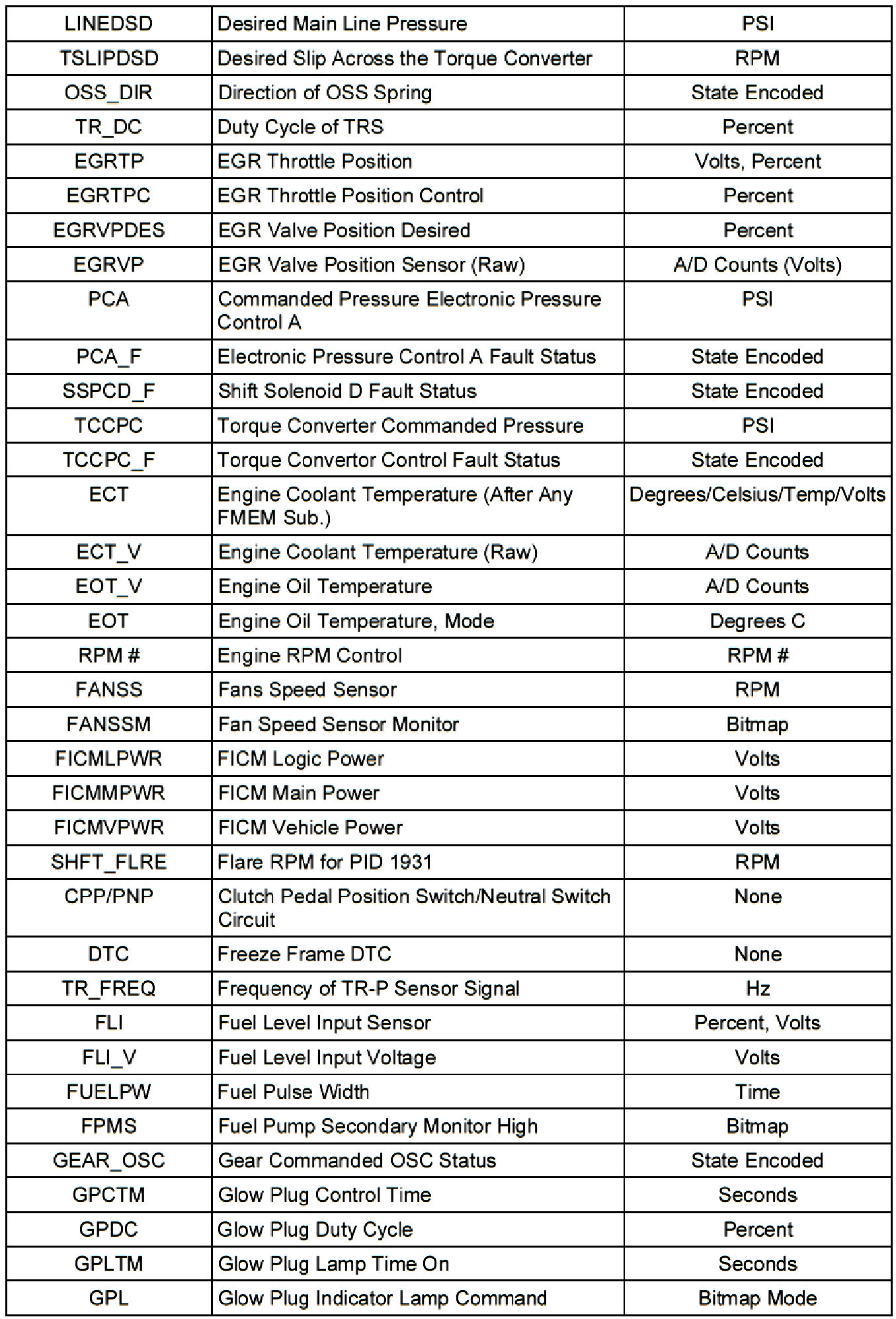

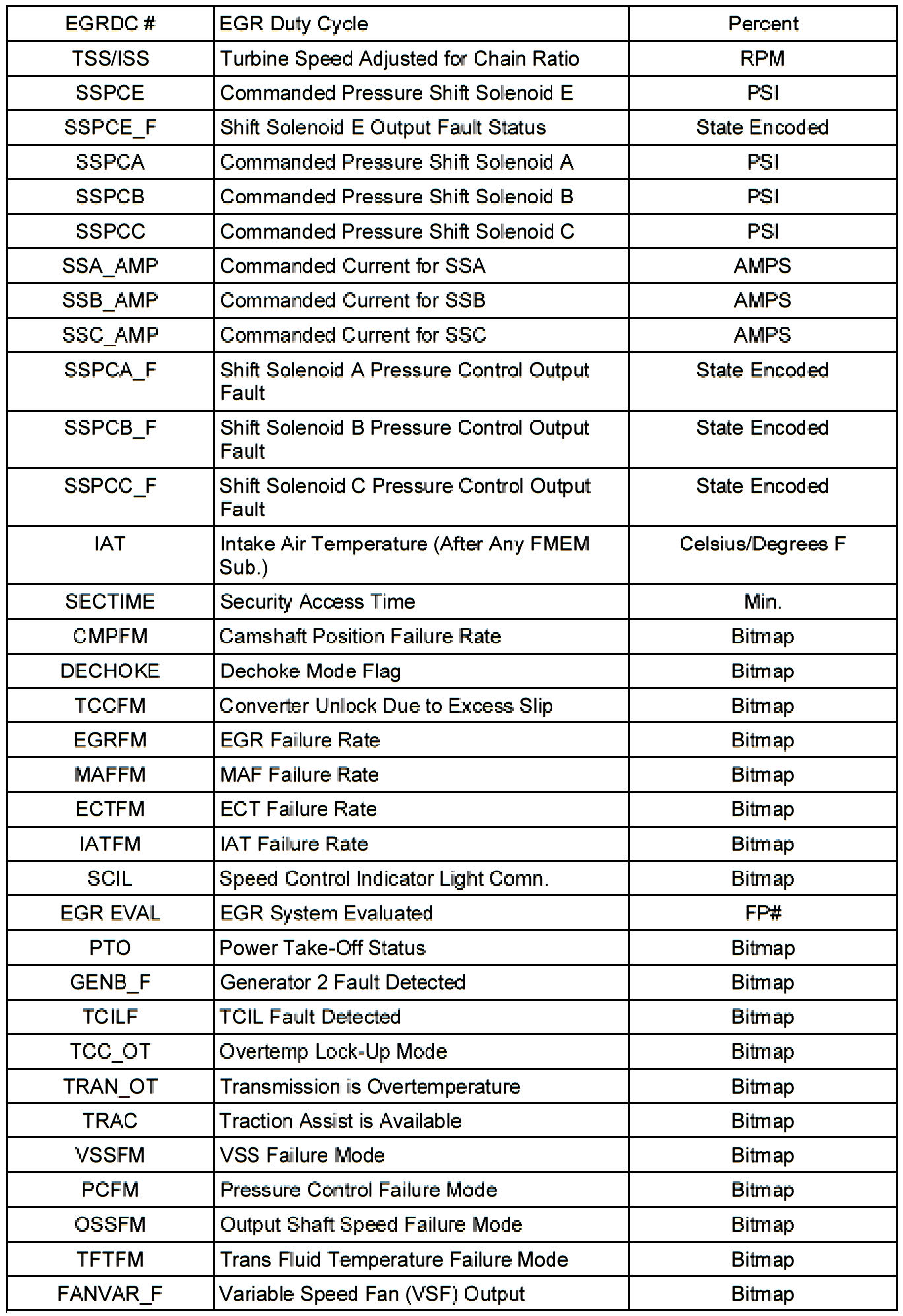

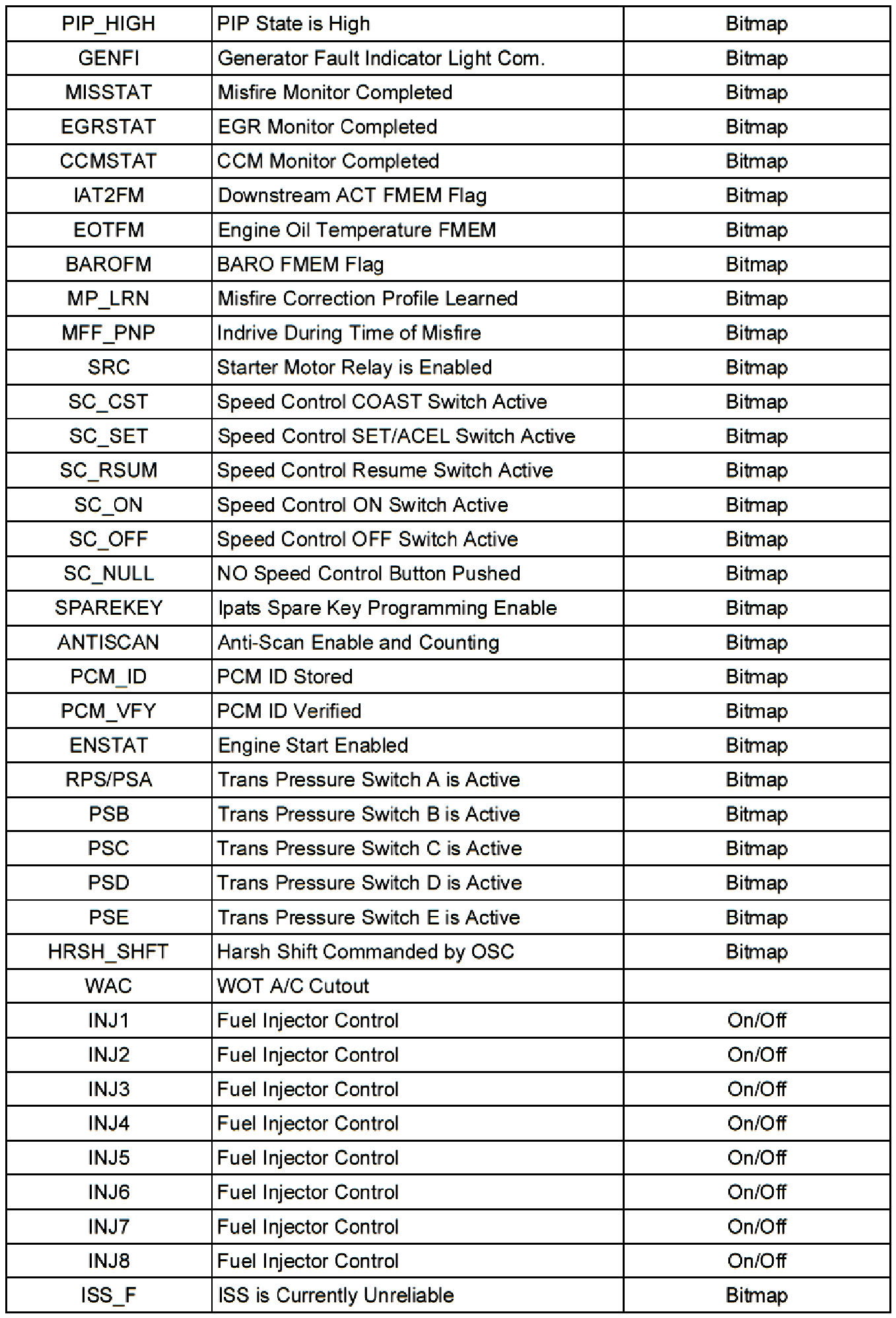

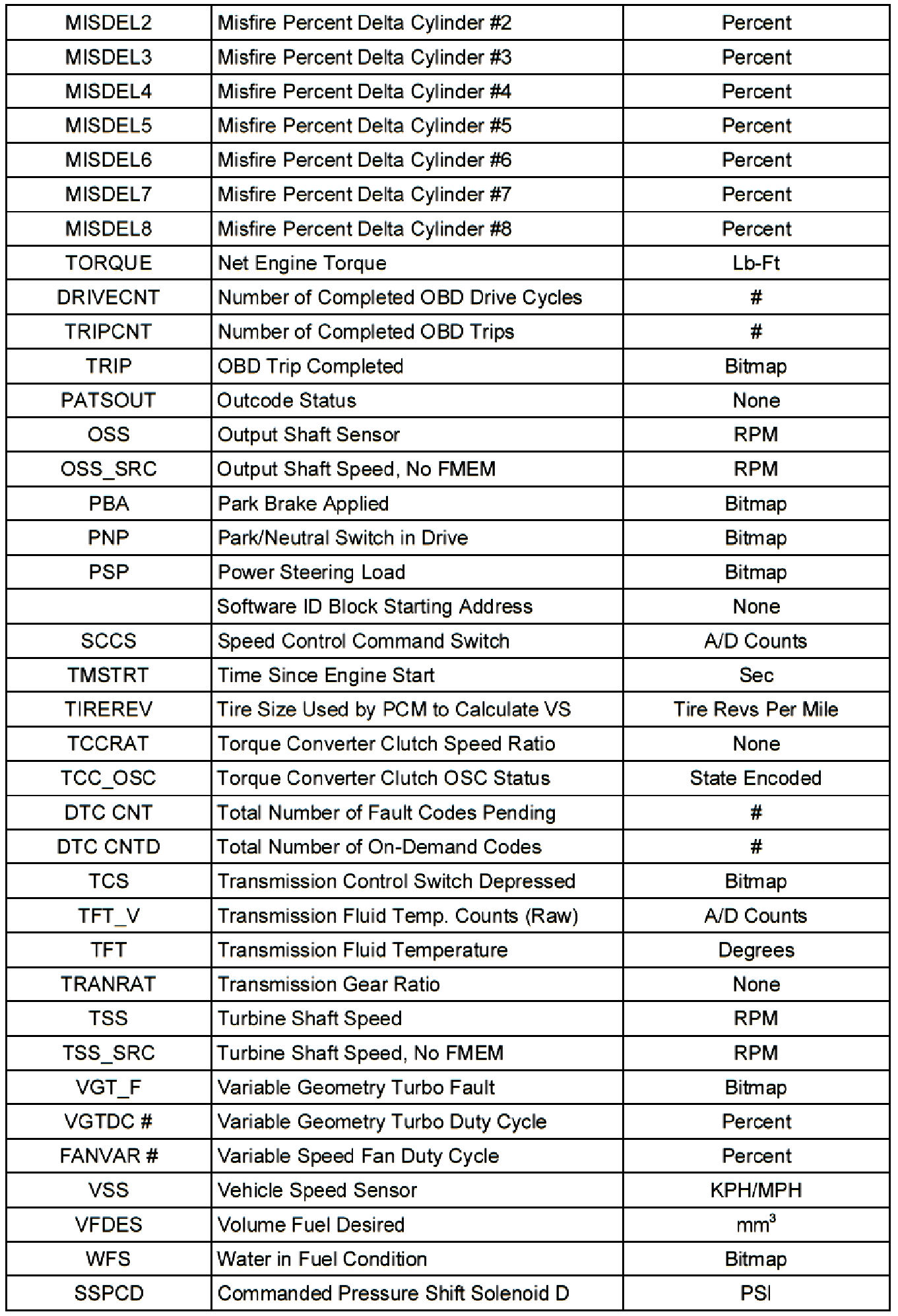

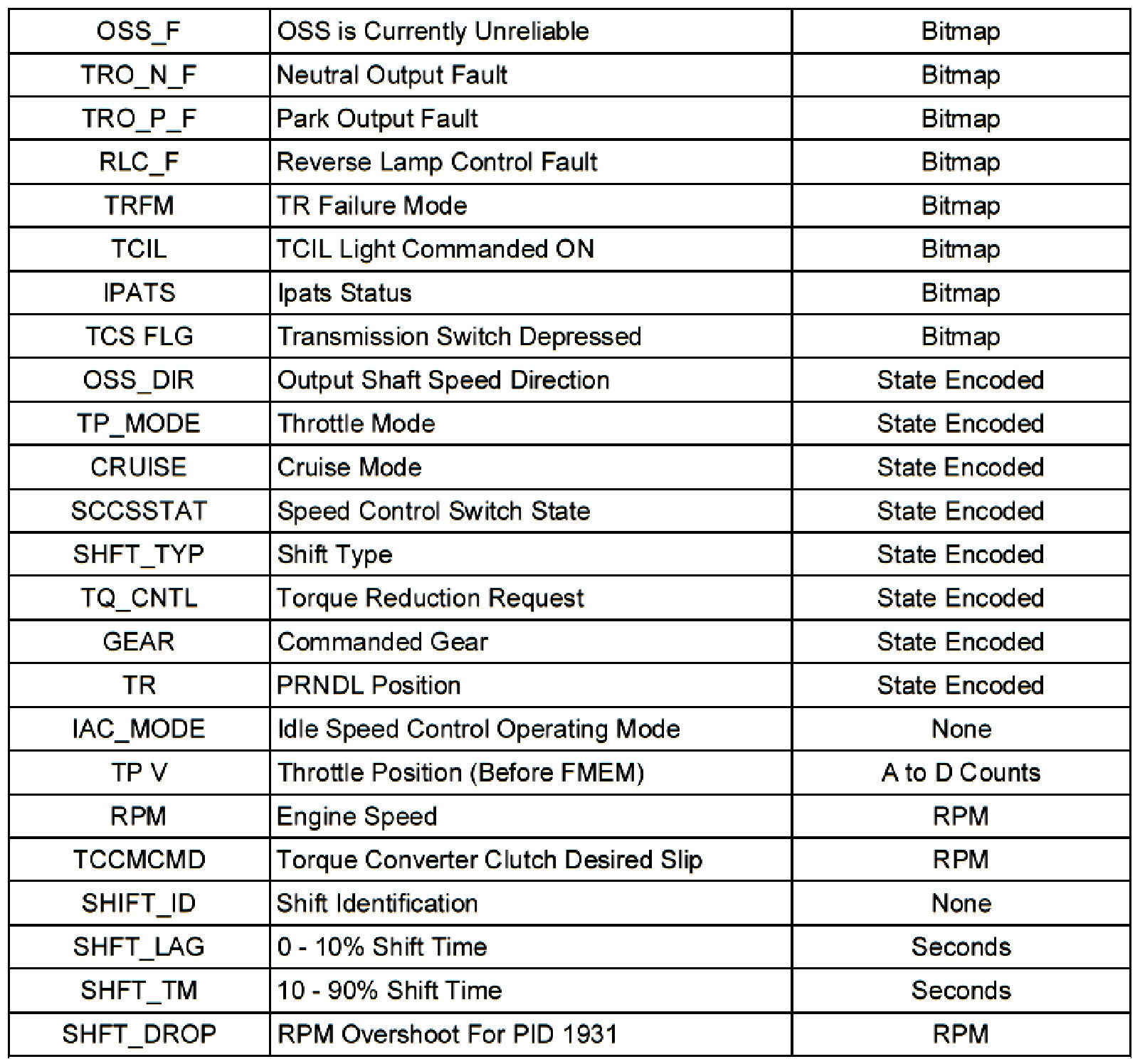

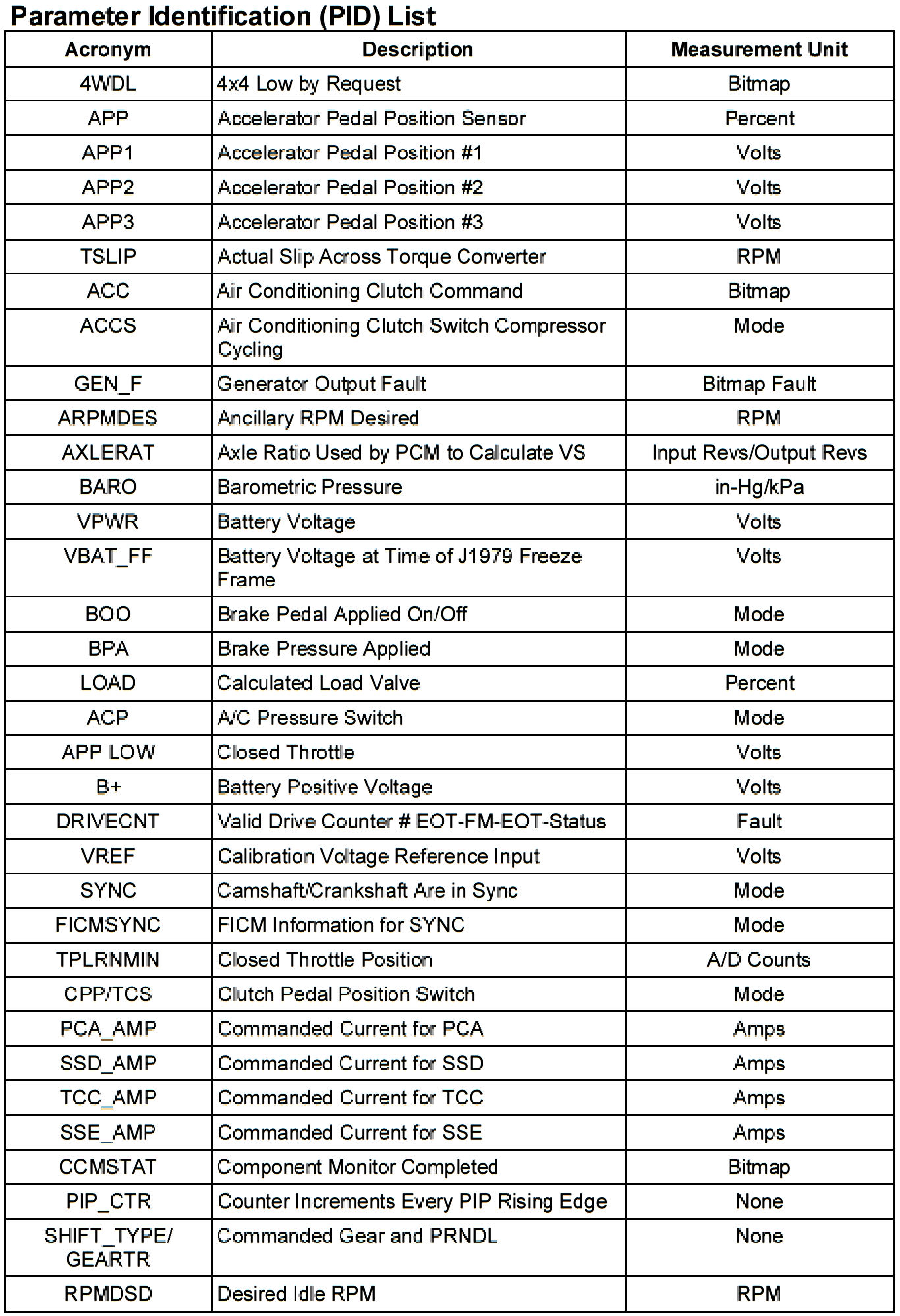

Parameter Identification (PID) List
