Dual Generator

REMOVAL
1. Disconnect the battery.
2. Remove the upper (primary) generator.
3. Rotate the accessory drive belt tensioner clockwise and position the drive belt aside.

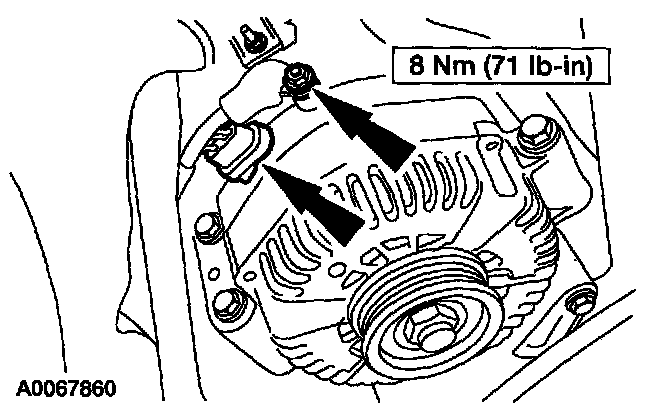

4. Disconnect the generator electrical connectors.

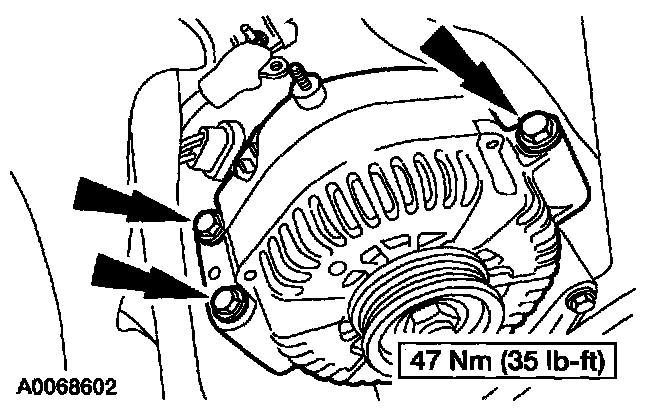

5. Remove the bolts and the generator.

INSTALLATION
1. To install, reverse the removal procedure.
