Acceleration Control System - Excursion & F250-F550 Super Duty Pickup
>>
Diagnosis And Testing
>>
Acceleration Control
>>
Symptom Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Chart

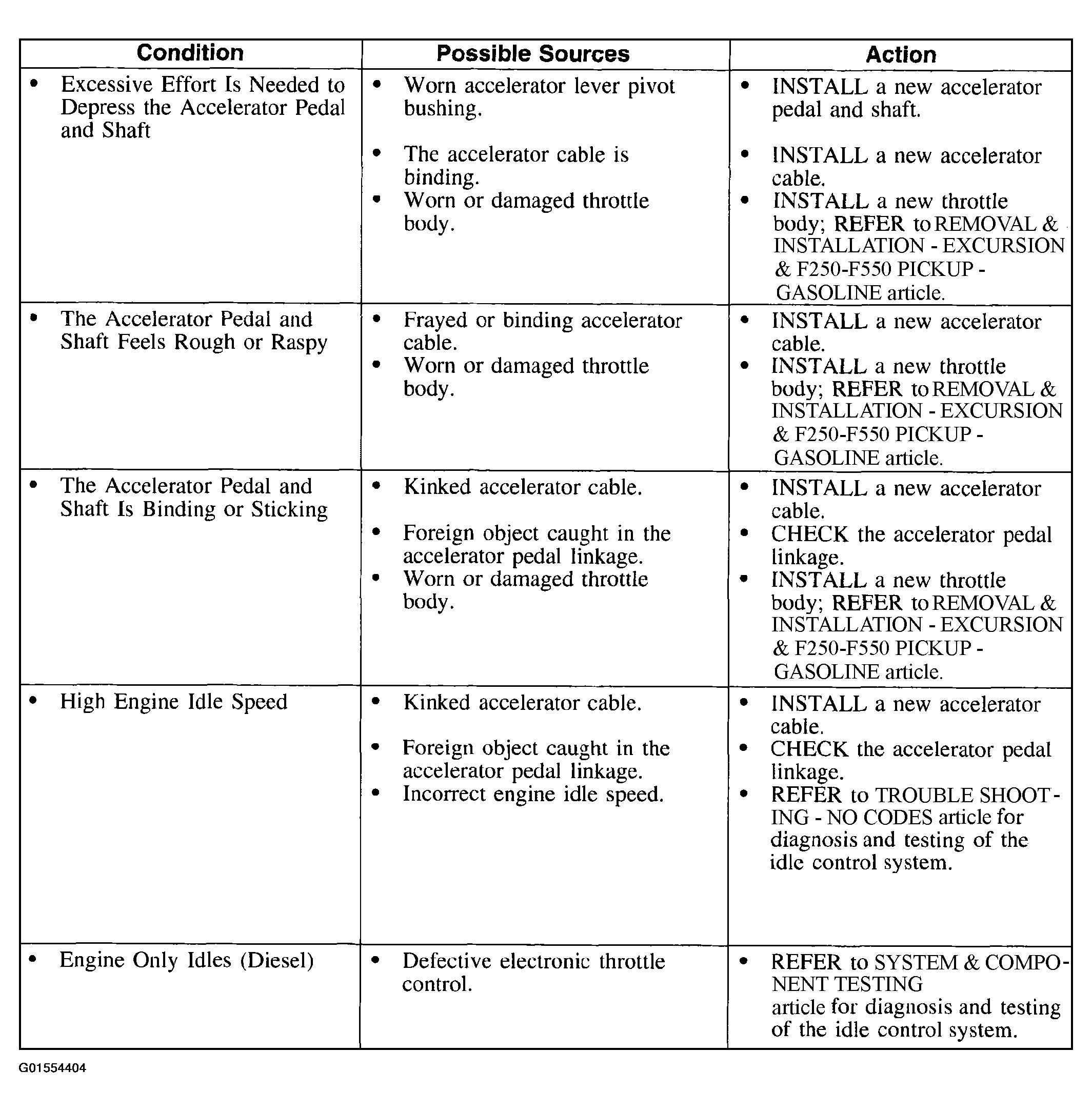

Fig 1: Symptom Diagnosis And Testing Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
