Special Tool(s)

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

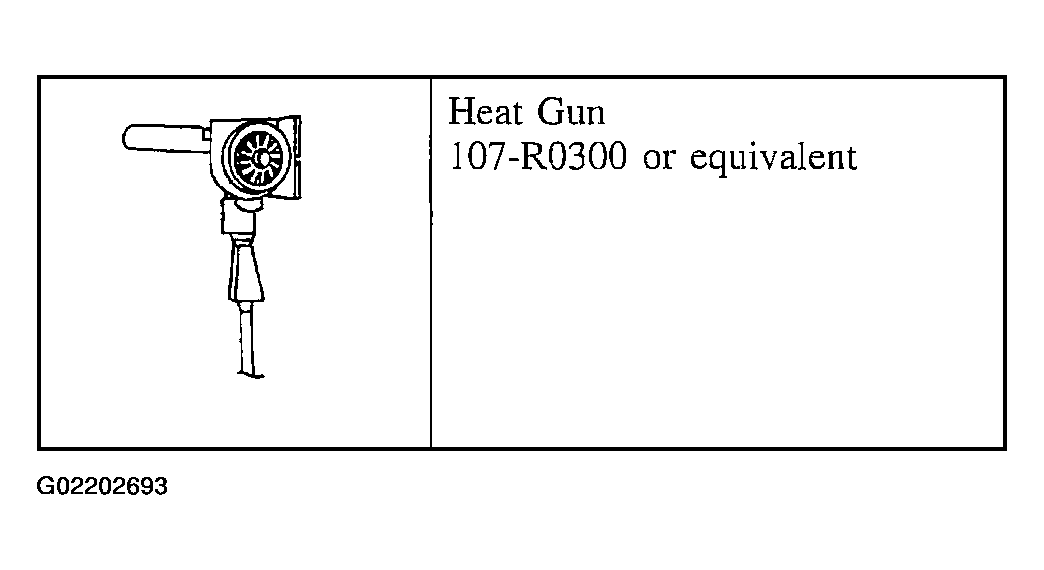

Fig 1: Special Tool (Communication Circuit Wiring Repair)

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

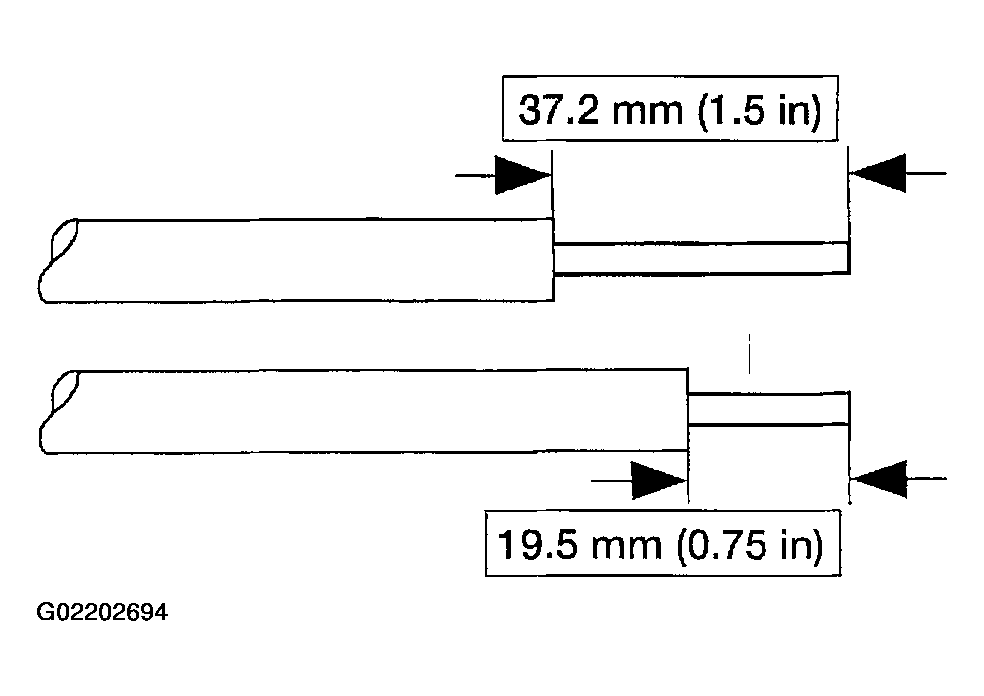

Strip the wires.

Fig 2: Striping wires
Courtesy of FORD MOTOR CO.

NOTE: Use rosin core mildly activated (RMA) solder, not acid core solder.

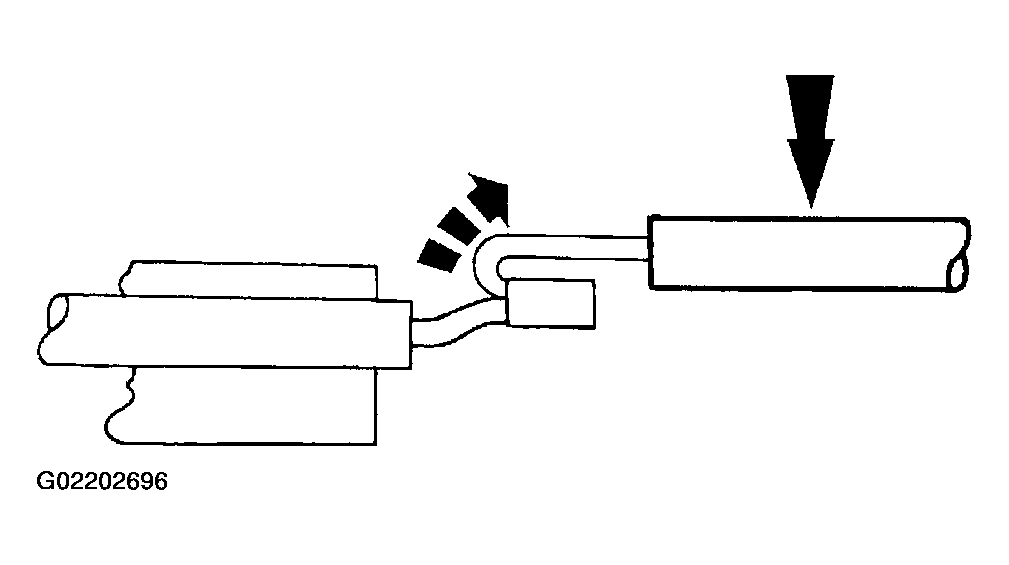

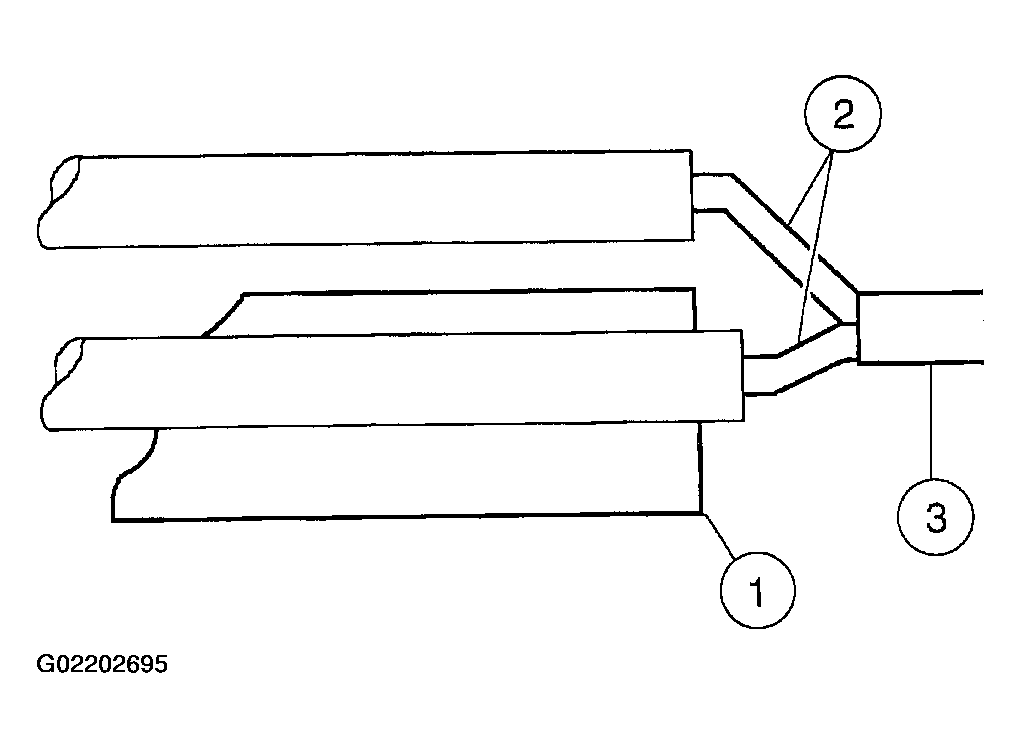

Fig 3: Soldering Wires

Courtesy of FORD MOTOR CO.

Solder the wires.
1. Install the heat shrink tube.
2. Twist the wires together.
3. Solder the wires together.

NOTE: Wait for the solder to cool before moving the wires.

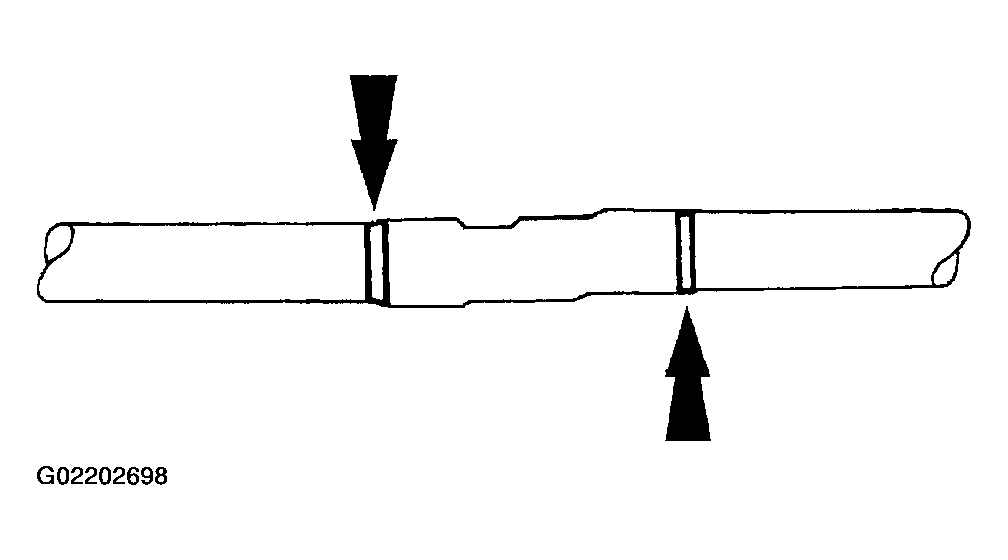

Fig 4: Bending Wires Back In Straight Line

Courtesy of FORD MOTOR CO.

Bend the wires back in a straight line.
Position the (A) heat shrink tube over the (B) wire repair.
- Overlap the heat shrink tube on both wires.

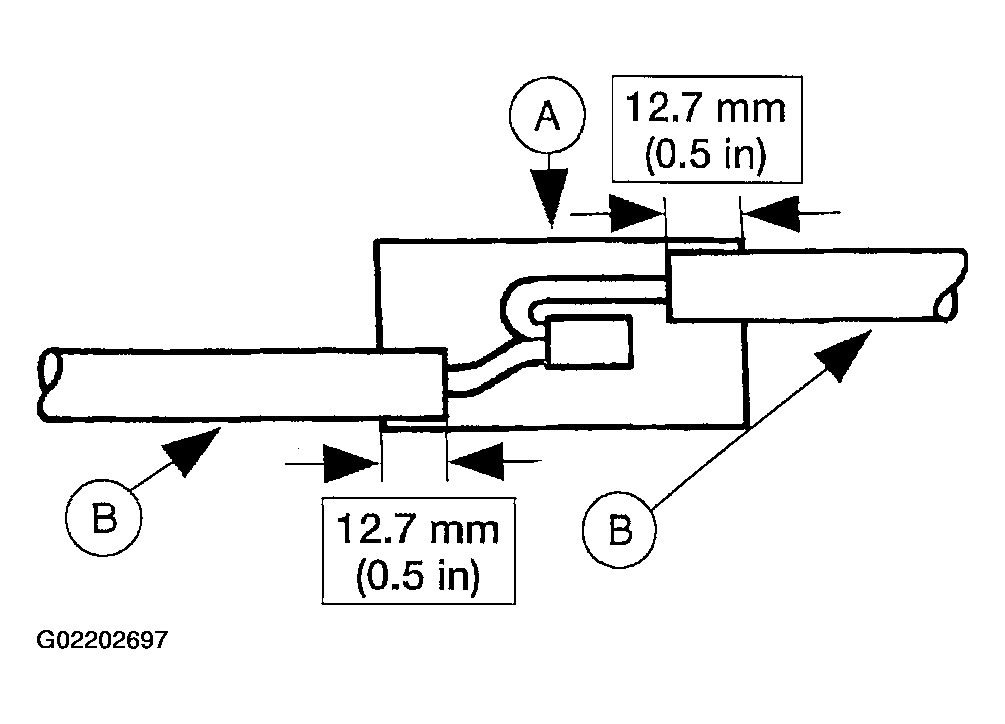

Fig 5: Positioning Heat Shrink Tube Over Wire Repair
Courtesy of FORD MOTOR CO.
Use the heat gun to heat the repaired area until adhesive flows out both ends of the heat shrink tube.

Fig 6: Heating Repaired Area Until Adhesive Flows Out Both Ends Of Heat Shrink Tube
Courtesy of FORD MOTOR CO.
Reconnect the battery ground cable.
