Multifunction Electronic Module: Notes

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information.

SPECIAL TOOL(S)

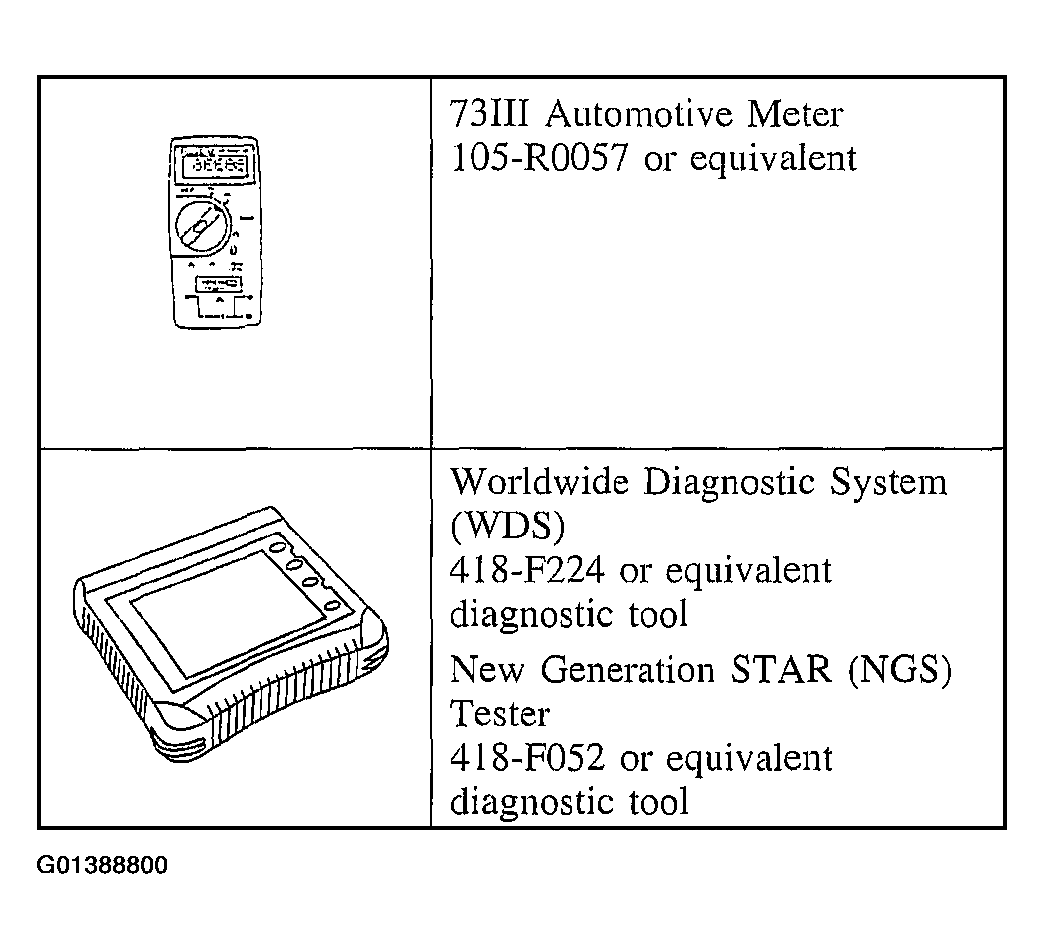

Fig 1: Special Tool

Courtesy of FORD MOTOR CO.

For rear wiper/washer control and interval timer concerns, refer to WIPERS AND WASHERS .

For interior lamps/illuminated entry and battery saver concerns, refer to INTERIOR LIGHTING .

For auto headlamp concerns, refer to EXTERIOR LIGHTING .

For keyless entry/power door lock concerns, refer to HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS .

For accessory delay concerns, refer to GLASS, FRAMES AND MECHANISMS .

For perimeter anti-theft concerns, refer to ANTI-THEFT - PERIMETER .
