Engine - 6.0L Diesel: Installation: Engine: Notes

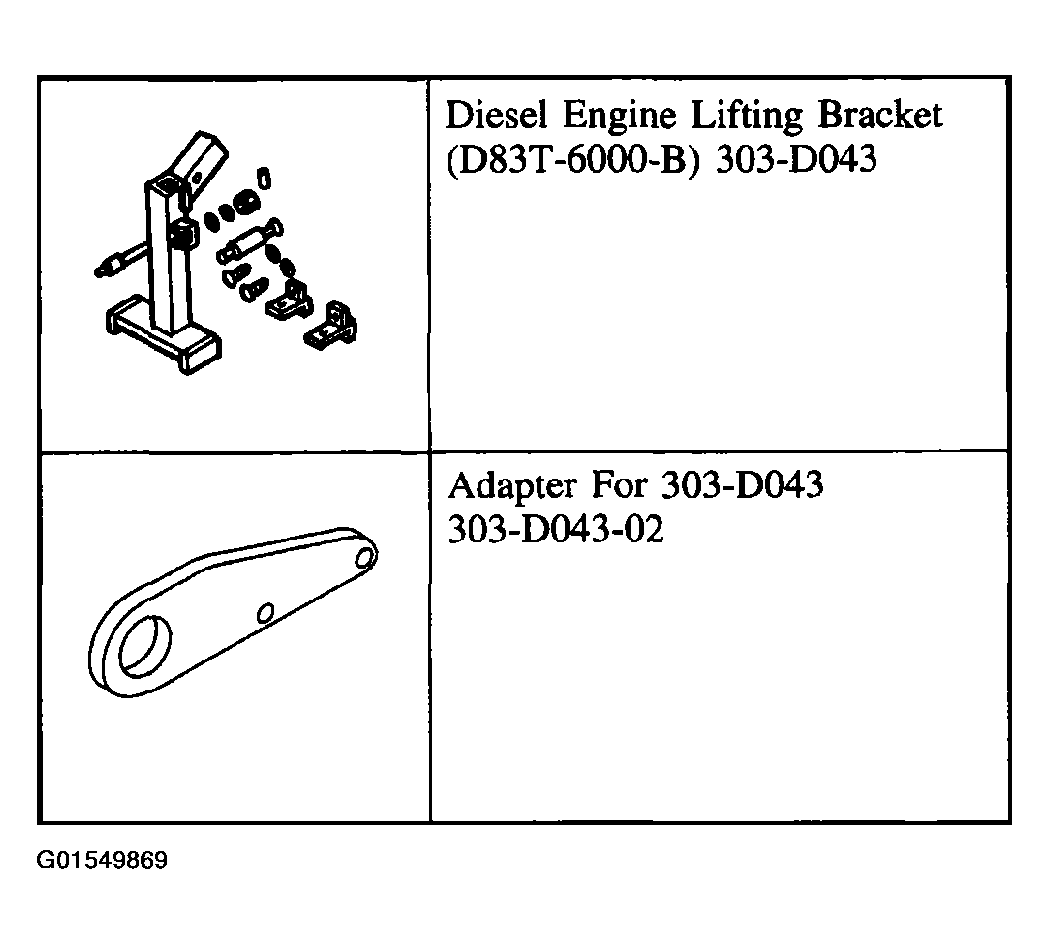

Fig 1: Identifying Special Tools (1 Of 2)
G01549869Courtesy of FORD MOTOR CO.

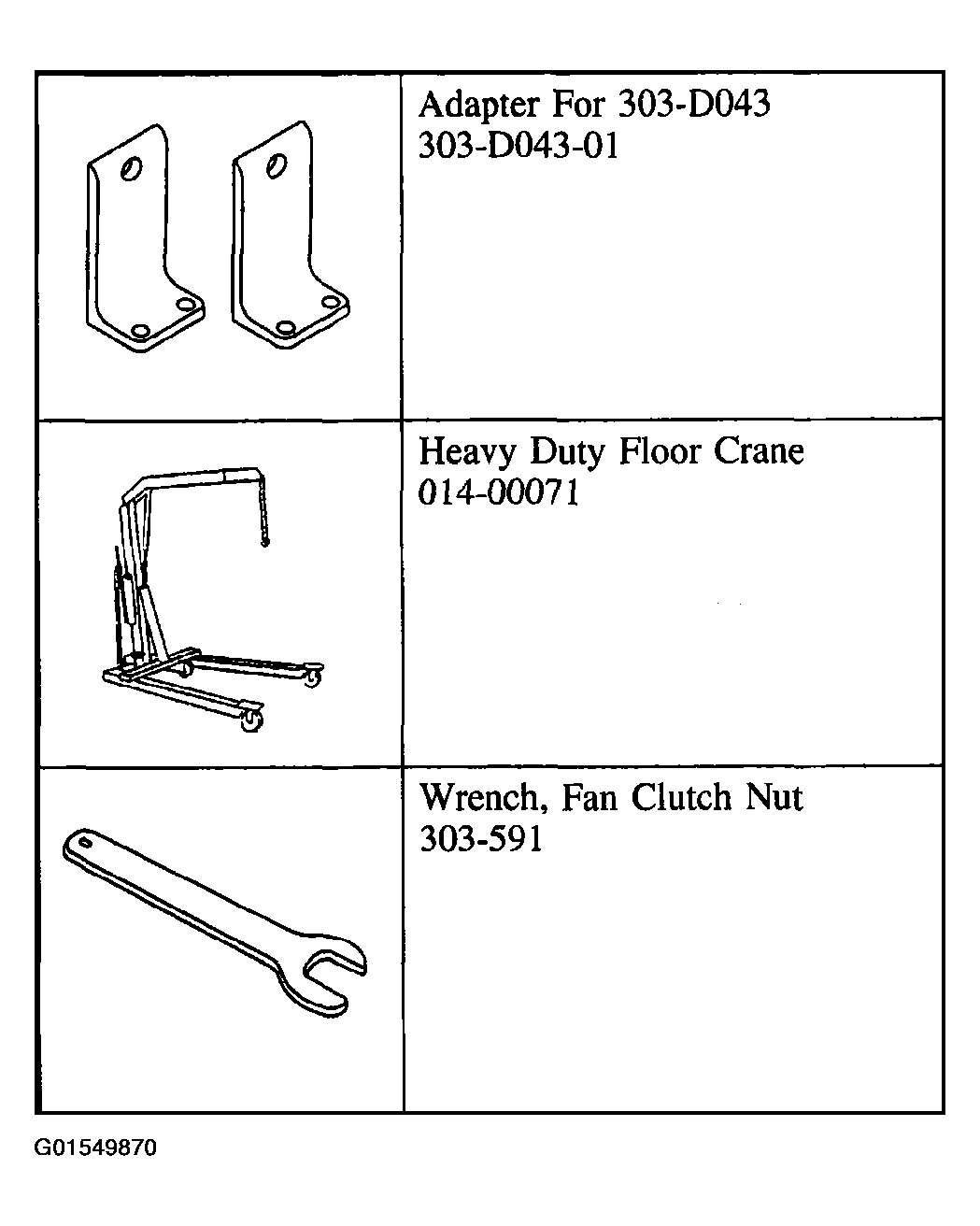

Fig 2: Identifying Special Tools (2 Of 2)
G01549870Courtesy of FORD MOTOR CO.

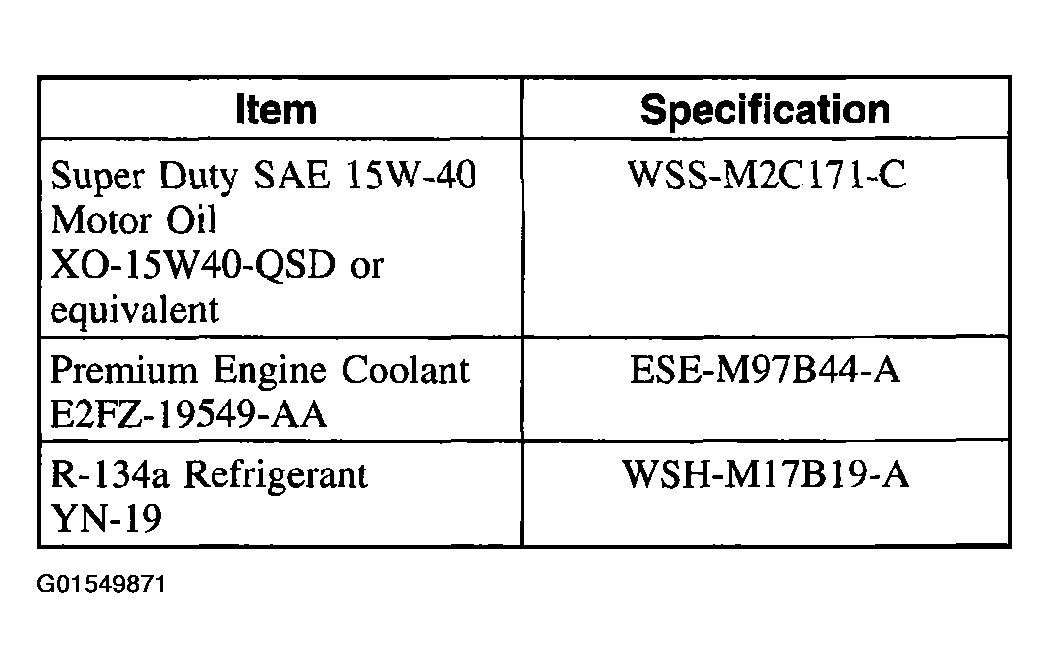

Fig 3: Identifying Materials
G01549871Courtesy of FORD MOTOR CO.
