Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the pin-type retainer and the lower shield.

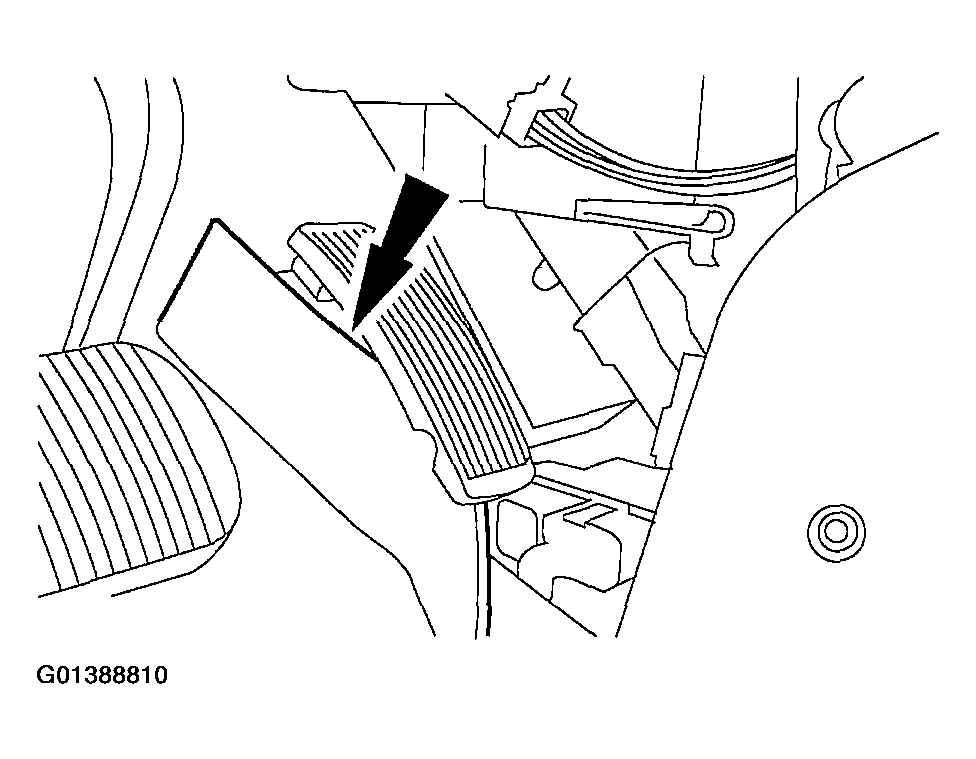

Fig 1: Removing Pin-Type Retainer And Lower Shield
Courtesy of FORD MOTOR CO.
Position the RH and LH carpet aside from the center tunnel.

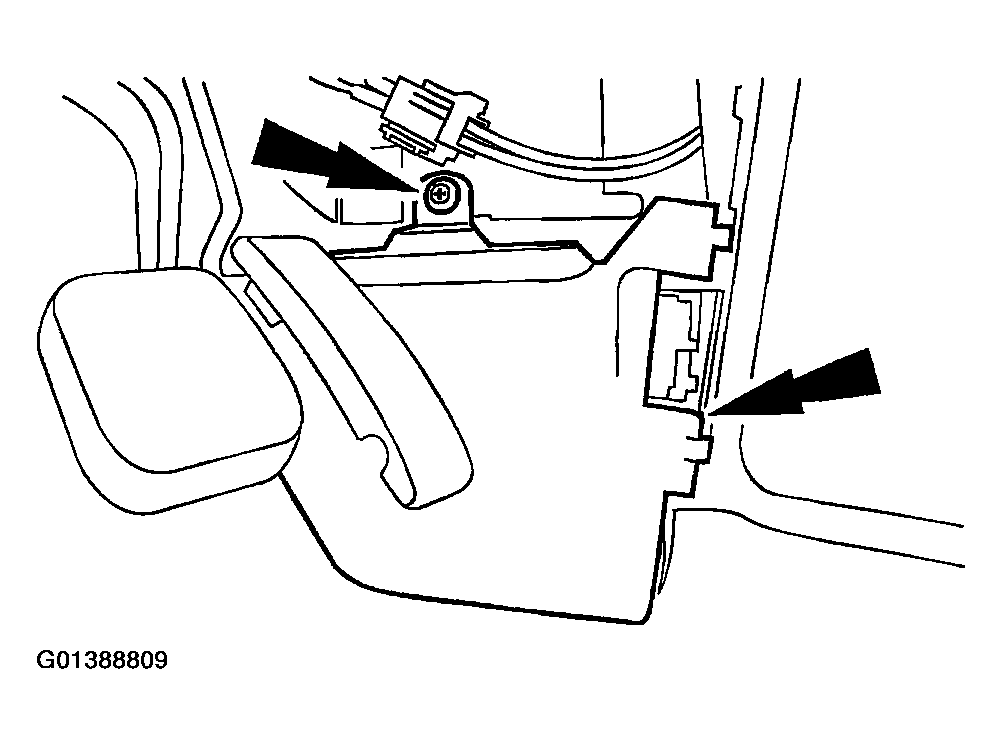

Fig 2: Positioning RH And LH Carpet Aside From Center Tunnel
Courtesy of FORD MOTOR CO.
Disconnect the GEM electrical connectors.

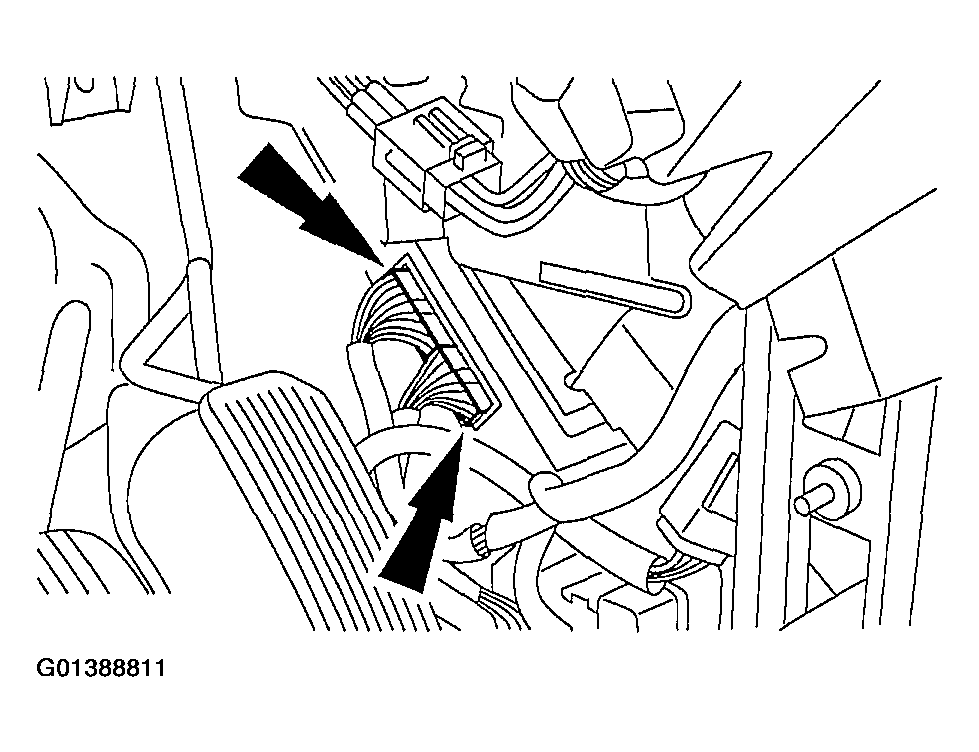

Fig 3: Disconnecting GEM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the GEM
1. Pull back the insulation and remove the nuts.
2. Remove the GEM.

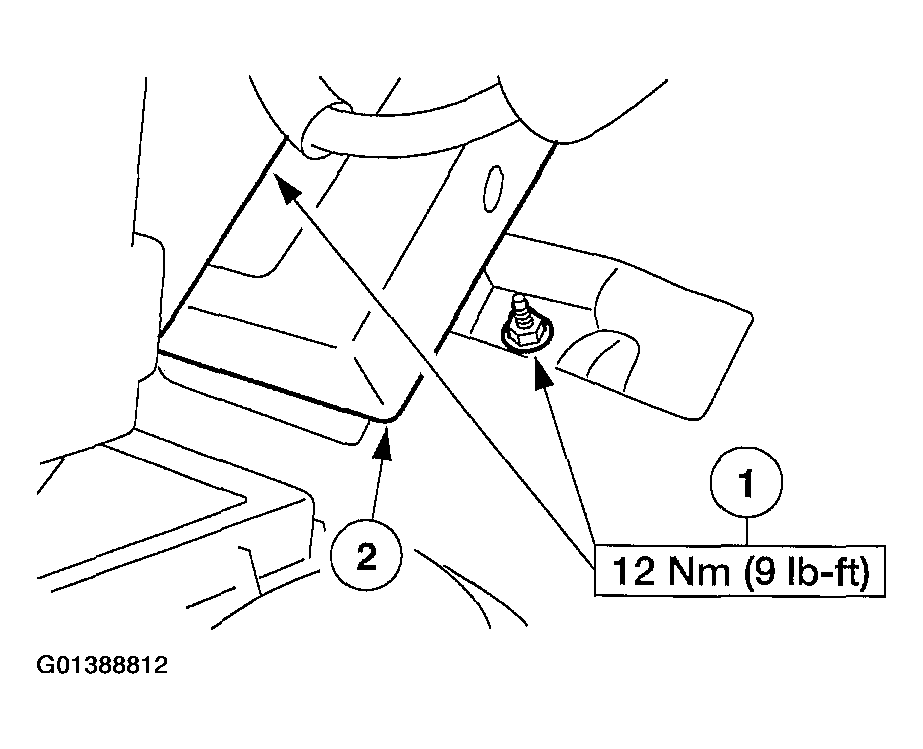

  Fig 4: Removing GEM
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Configure the GEM. Refer to MODULE CONFIGURATION .
