LR Wheel Speed Sensor C440
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

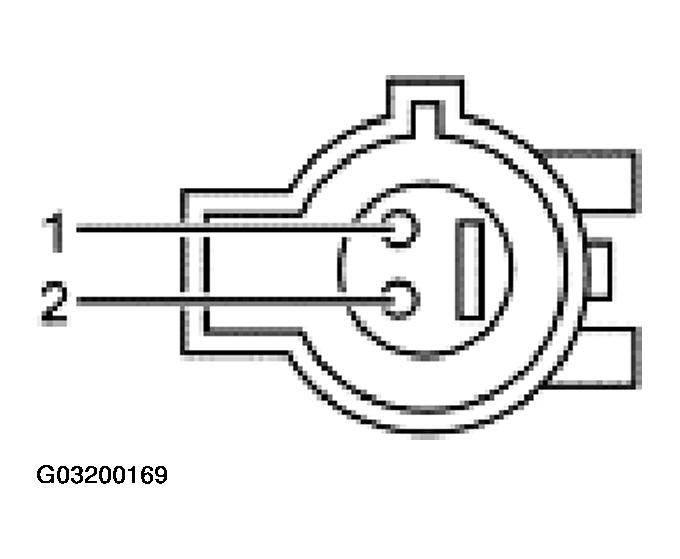

C440 CONNECTOR REFERENCE CHART
|
|
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
7-CF34 (YE/BU) LR wheel speed (-) |
PID value 0 to 255 km/h (0 to 158 mph). |
| 2 |
8-CF34 (WH/BU) LR wheel speed (+) |
PID value 0 to 255 km/h (0 to 158 mph). |
