Removal and Installation

Disconnect the front anti-lock brake sensor electrical connector.

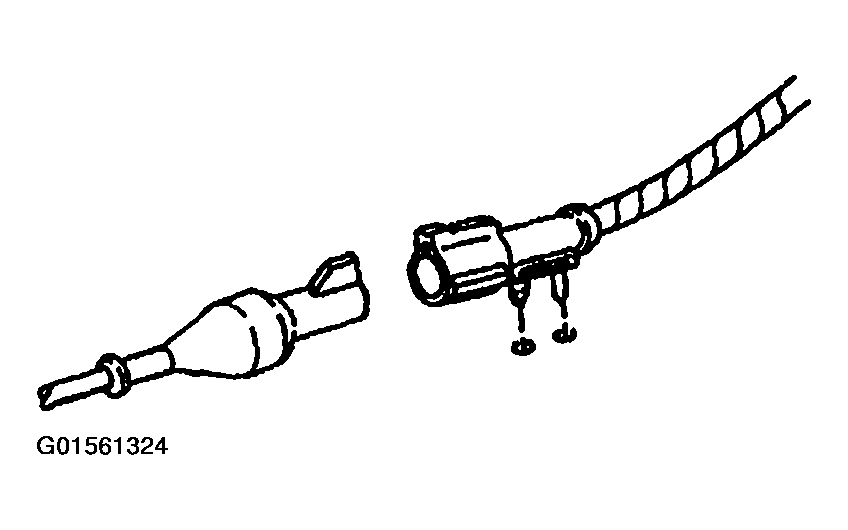

Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Separate the sensor cable from the clips.

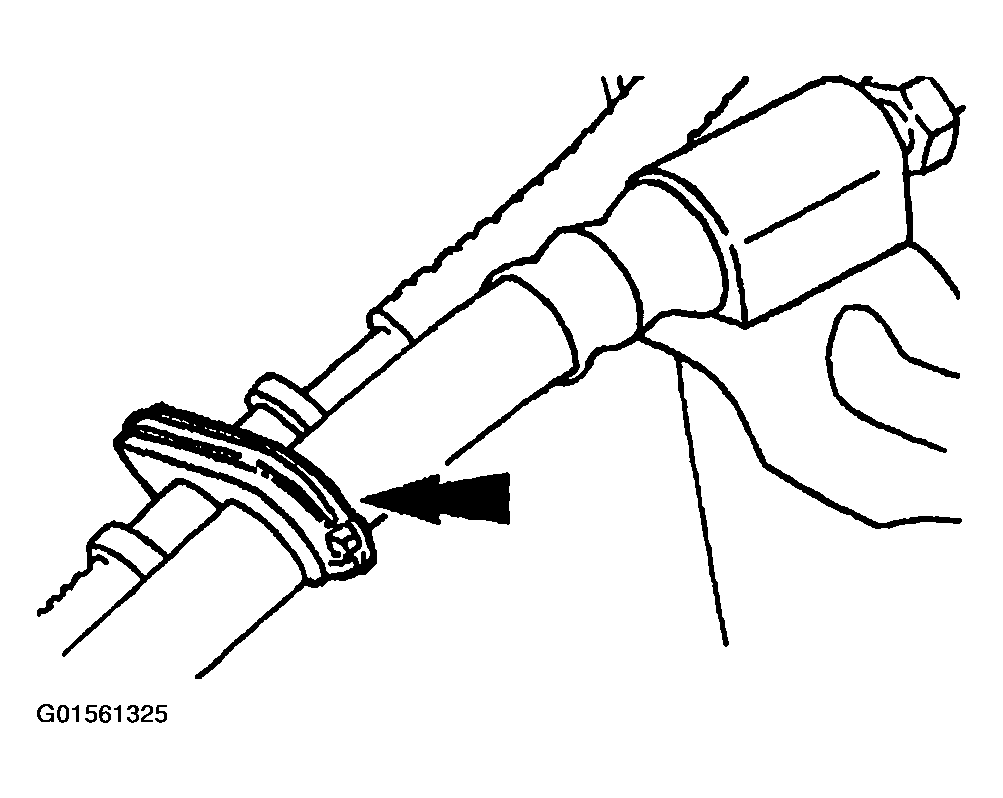

Fig 2: Separating Sensor Cable From Clips
Courtesy of FORD MOTOR CO.
Remove the bolt and the front wheel speed sensor.

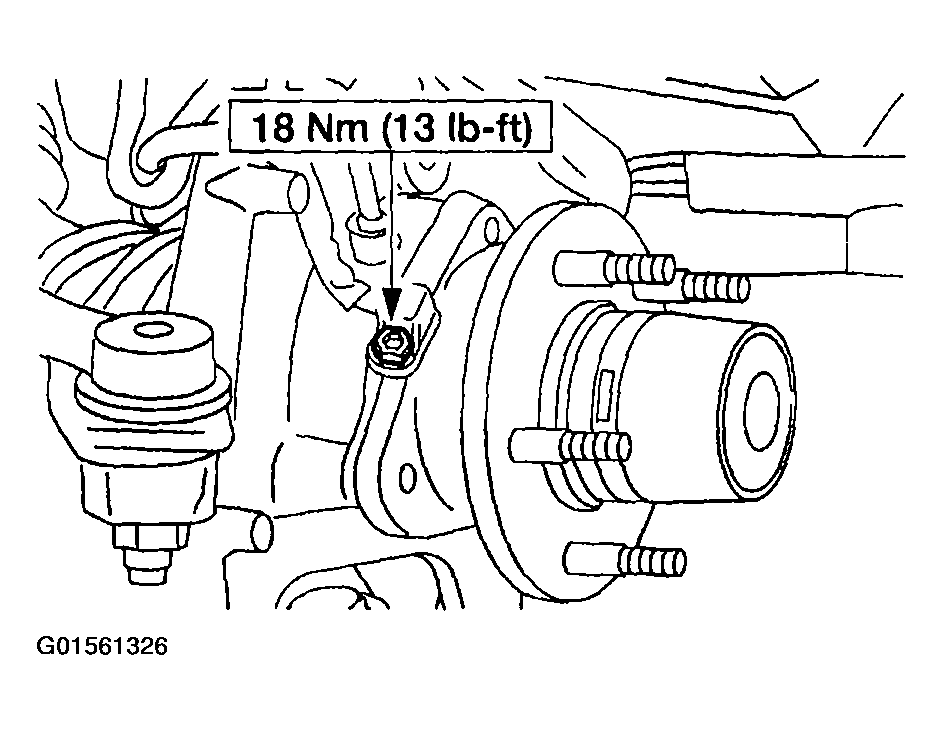

Fig 3: Removing Bolt And Front Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
