Vehicle Security Module
VEHICLE SECURITY MODULEWorldwide Diagnostic System (WDS):

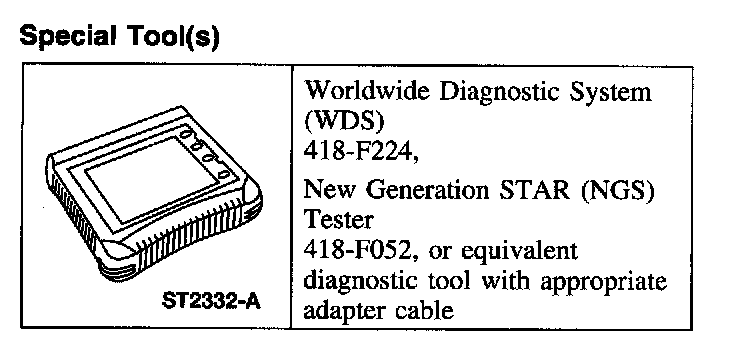

SPECIAL TOOL(S)
CAUTION: Prior to removal of the vehicle security module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to Module Configuration.
REMOVAL
1. Remove the right rear quarter trim panel.

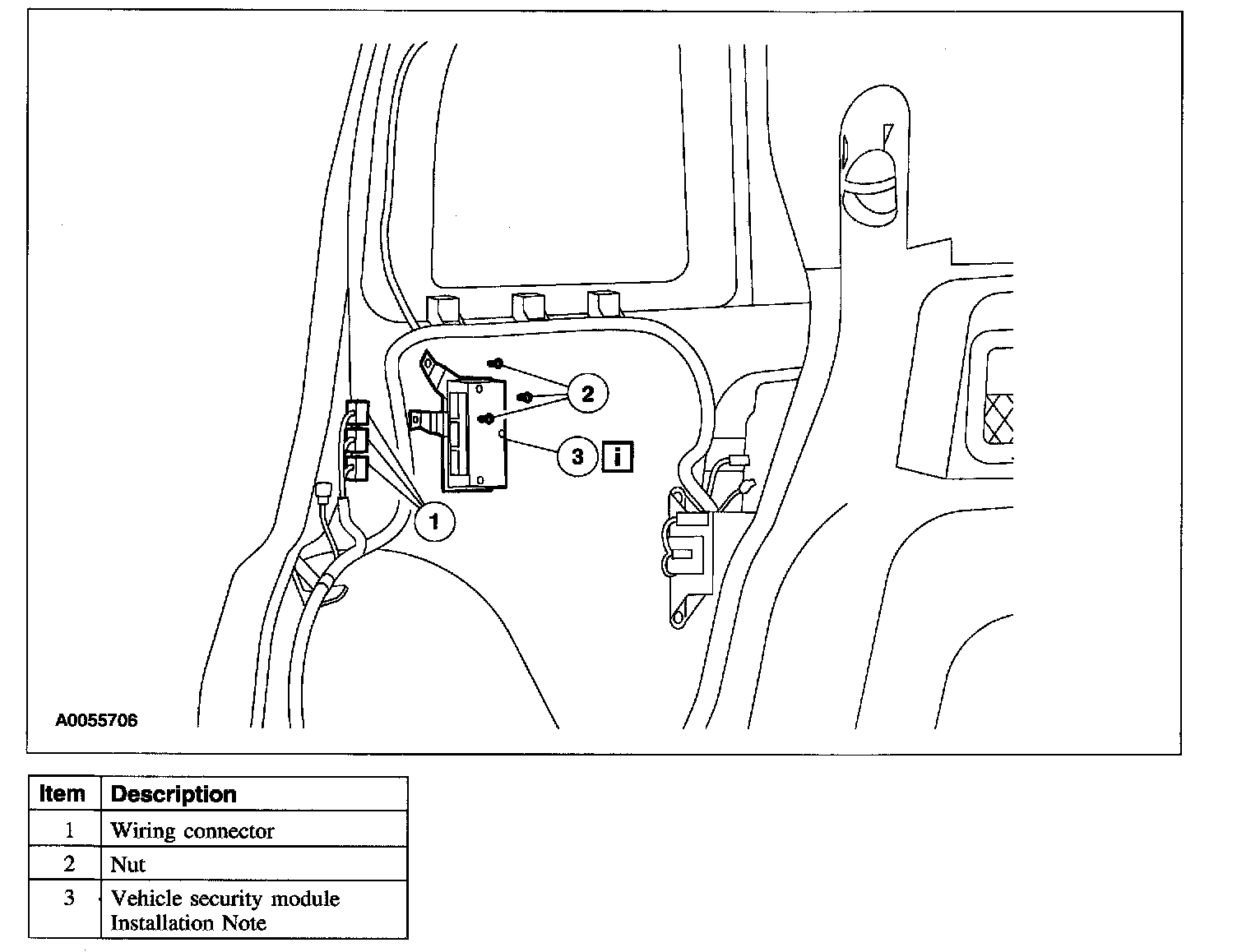

2. Remove the components in the order indicated in the illustration and the table.
INSTALLATION
1. To install, reverse the removal procedure.
Item 3: Vehicle Security Module Installation Note
1. Once the module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. Refer to Module Configuration.
