Checking Transmission Fluid Level

Using the scan tool (WDS), monitor the transmission fluid temperature (TFT) using PID: TFT.
Start the vehicle.

NOTE: Engine idle speed is approximately 650 rpm.

While proceeding with this procedure, run the engine until the transmission fluid temperature is between 27-49°C (80-120°F).
Move the range selector lever slowly through each gear, stopping in each position and allowing the transmission to engage.

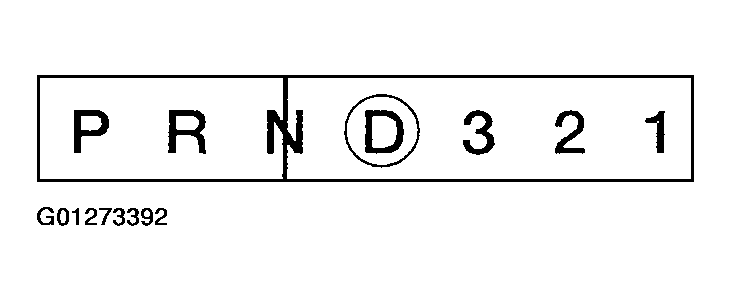

Fig 1: Identifying Transmission Range Positions
Courtesy of FORD MOTOR CO.
Place the range selector lever in the PARK position.
With the engine running and the vehicle set as close to level as possible, position it on a hoist.
Hold the larger drain plug with a wrench and remove the small (center) fluid level indicating plug using a 3/16-inch Allen key.

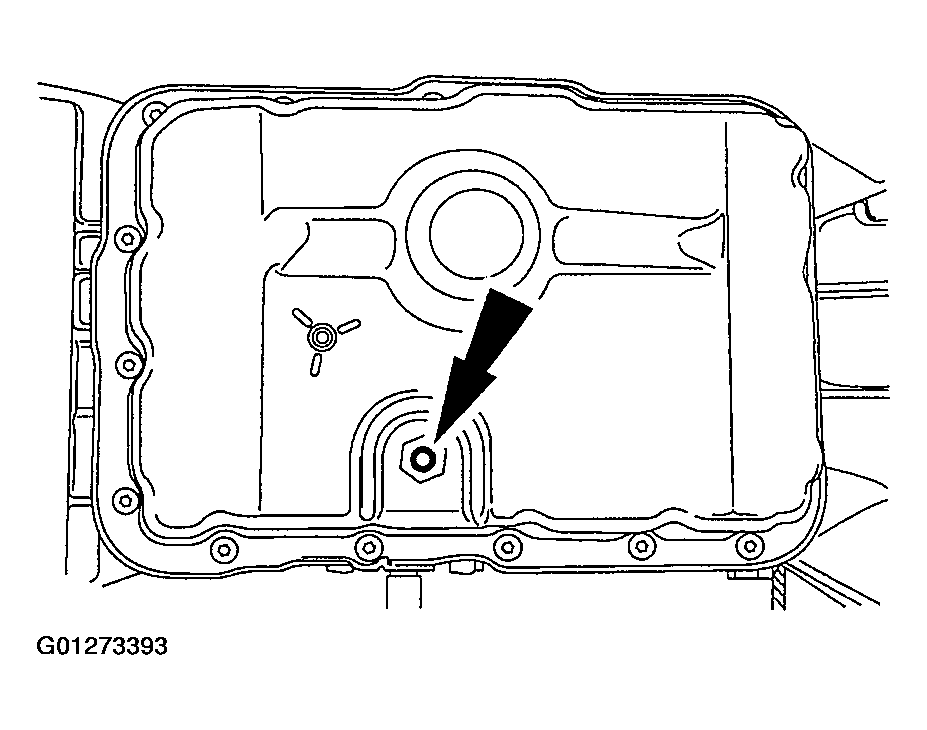

Fig 2: Locating Small (Center) Fluid Level Indicating Plug
Courtesy of FORD MOTOR CO.
Remove the converter housing plug.

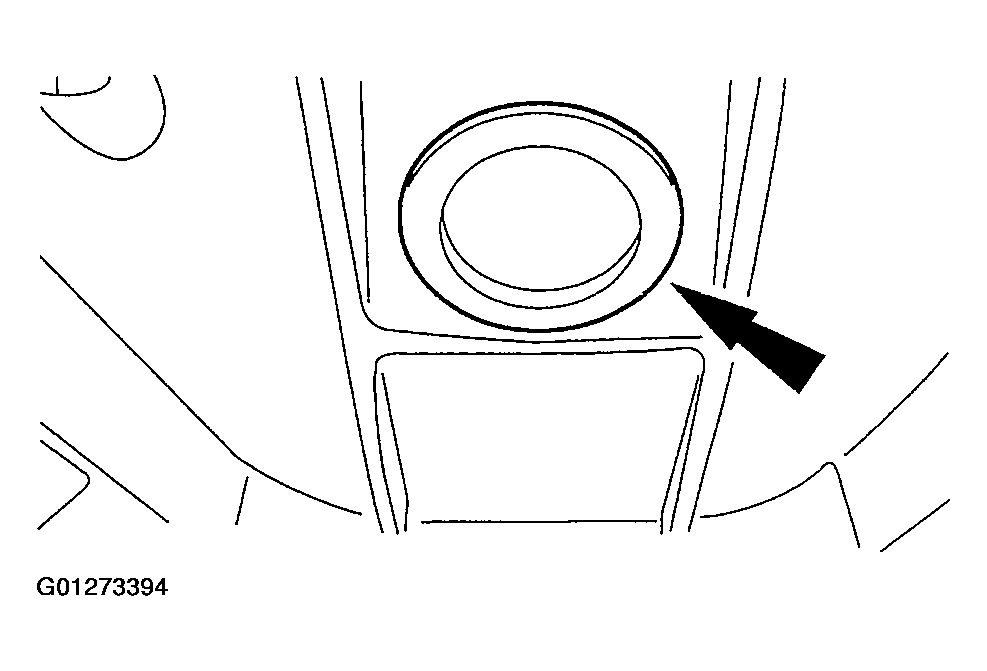

Fig 3: Removing Converter Housing Plug
Courtesy of FORD MOTOR CO.
Remove and discard the drain plug.

Fig 4: Removing And Discarding Drain Plug Installing Special Tool Into Pan
Courtesy of FORD MOTOR CO.
Install the special tool into the pan.

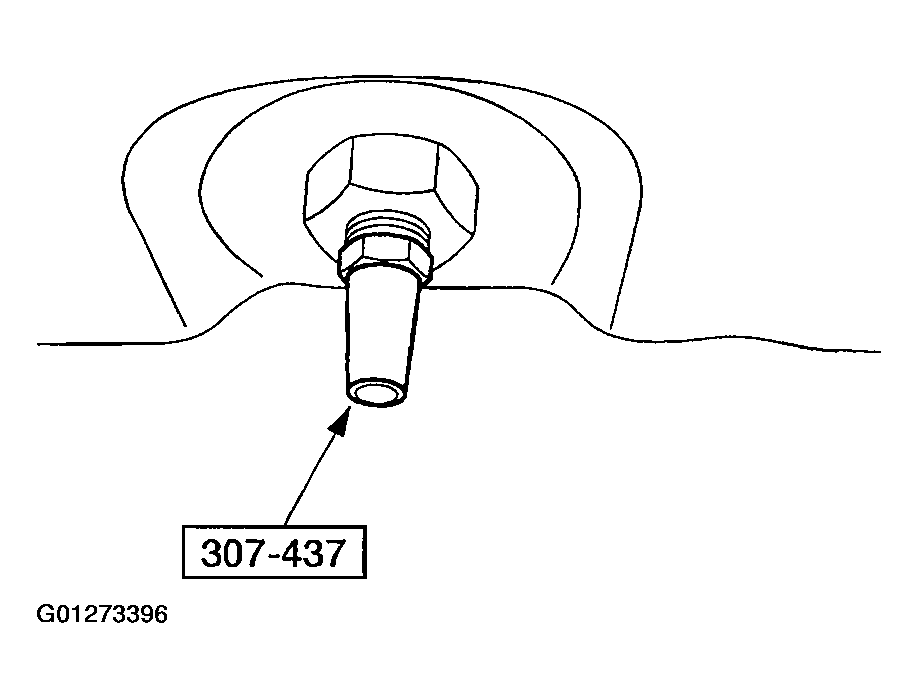

Fig 5: Removing And Discarding Drain Plug
Courtesy of FORD MOTOR CO.

NOTE: Prior to filling the special tool with clean transmission fluid, make sure that the canister is clean.

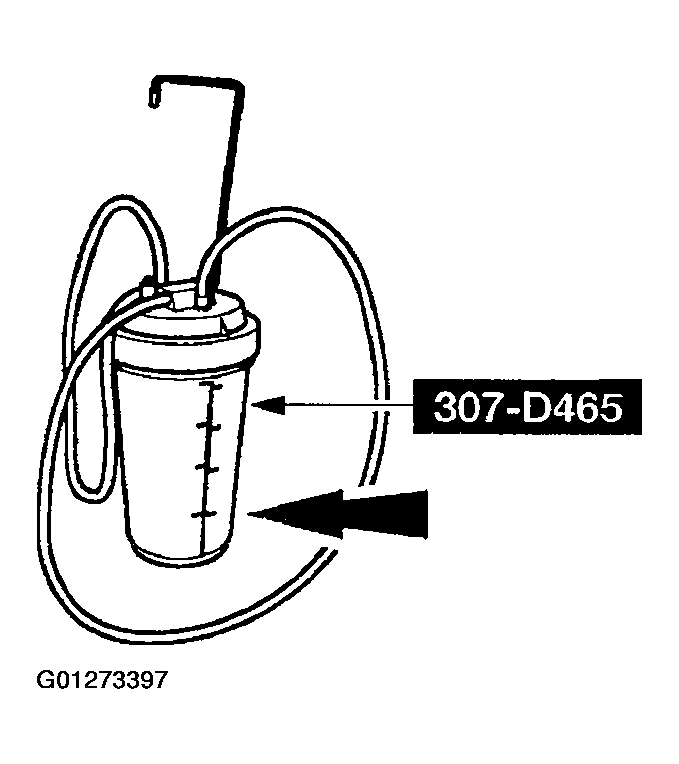

Fig 6: Filling Special Tool With Clean Automatic Transmission Fluid

Courtesy of FORD MOTOR CO.

Fill the special tool with clean automatic transmission fluid.
Hang the special tool under the vehicle.
Position it upright and close to the transmission.

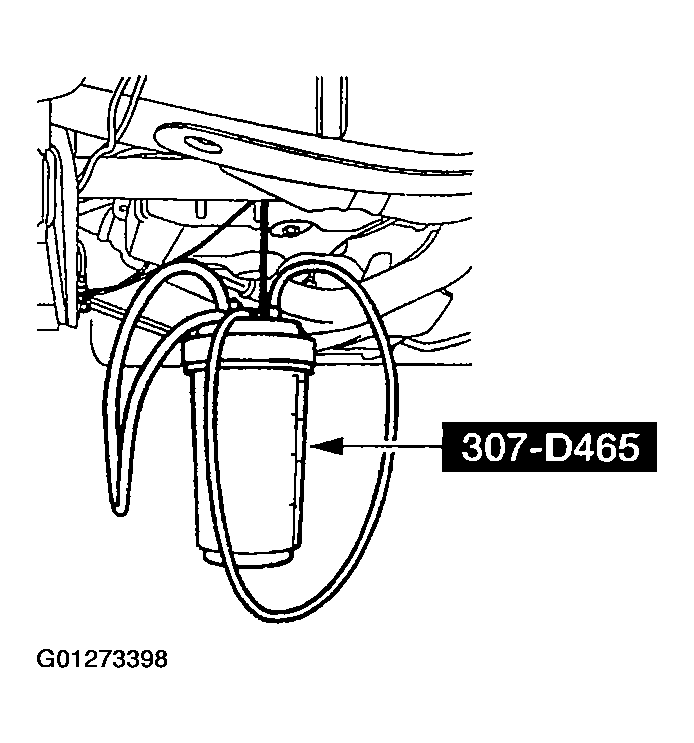

Fig 7: Hanging Special Tool Under Vehicle
Courtesy of FORD MOTOR CO.
Connect the special tools.
- Connect the open end of the fluid hose from the Fluid Transporter/Evacuator/Injector to the Fluid Level and Fill Plug Adapter at the bottom of the transmission fluid pan.

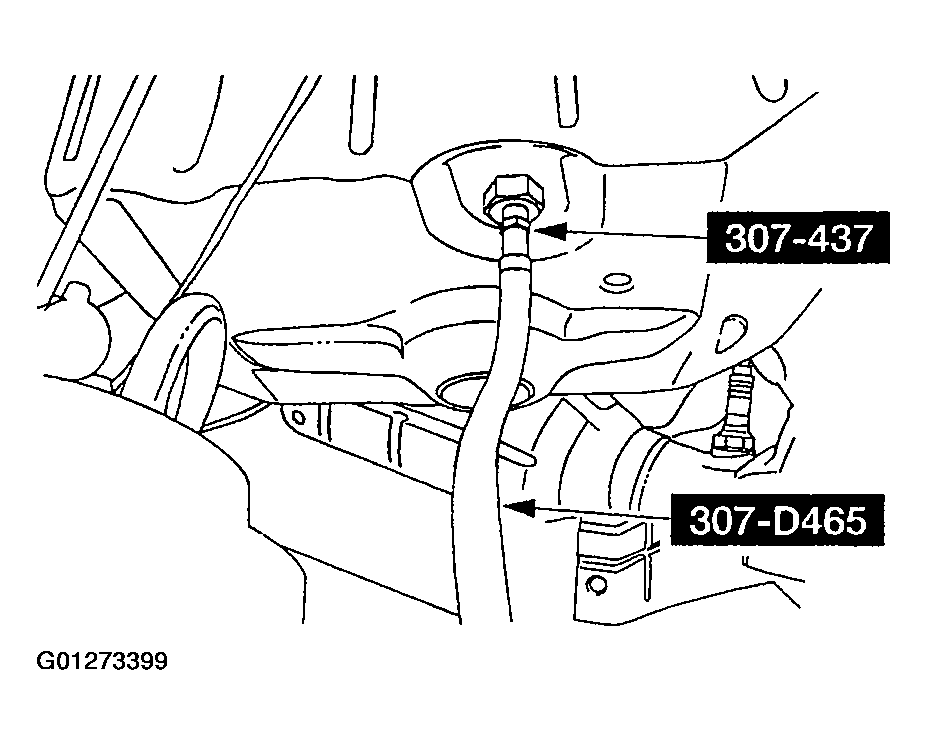

Fig 8: Connecting Special Tools
Courtesy of FORD MOTOR CO.
Apply a maximum of 206.85 kPa (30 psi) to the open end of the vacuum/pressure hose from the special tool. Fluid will immediately start flowing out of the special tool into the transmission fluid pan.

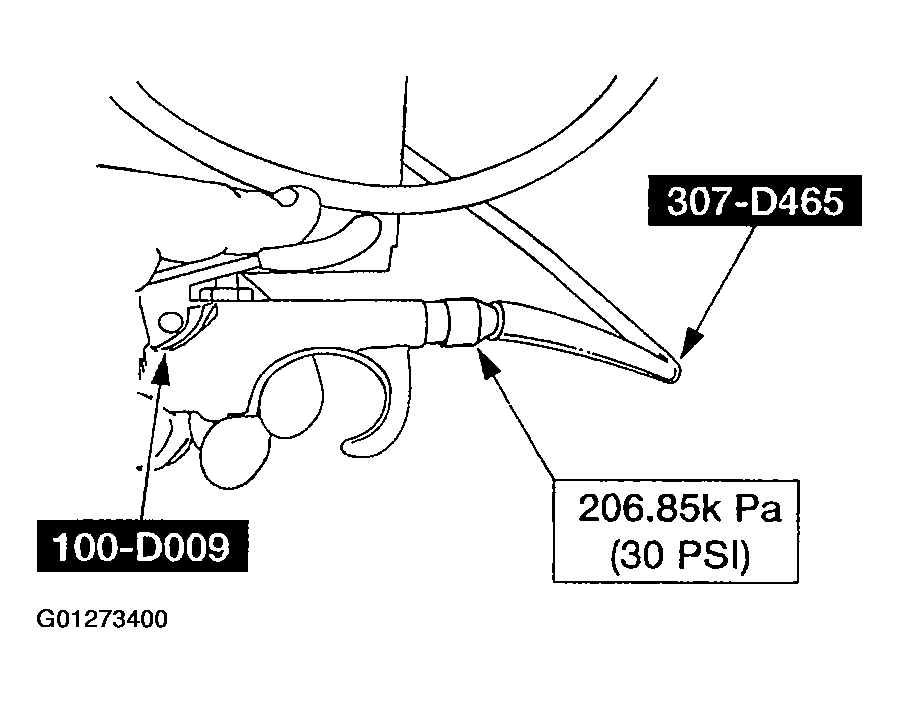

Fig 9: Applying Maximum Of 206.85 kPa (30 psi) To Open End Of Vacuum/Pressure Hose From Special Tool
Courtesy of FORD MOTOR CO.
Add one pint of transmission fluid into the fluid pan. Stop the process by releasing the air pressure and removing the air nozzle from the end of the hose.
Inspect the fluid level in the special tool. If the fluid drains back into the canister, the transmission is full. If no fluid drains back, more fluid will need to be added. Repeat steps 14 and 15.
Once the transmission is full, place a hand vacuum pump on the open end of the hose of the special tool and apply vacuum to the system. This will pull out any extra fluid trapped in the system and direct it into the container.

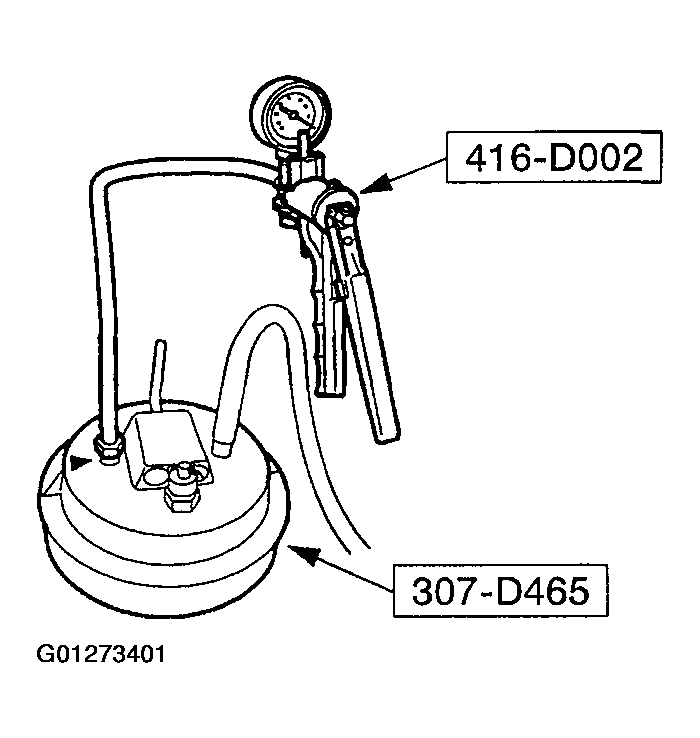

Fig 10: Placing Hand Vacuum Pump On Open End Of Hose
Courtesy of FORD MOTOR CO.
Allow the fluid to drain. Make sure that the fluid temperature is between 27-49°C (80-120°F). When the fluid comes out as a thin stream or drip, the fluid is at the correct level.

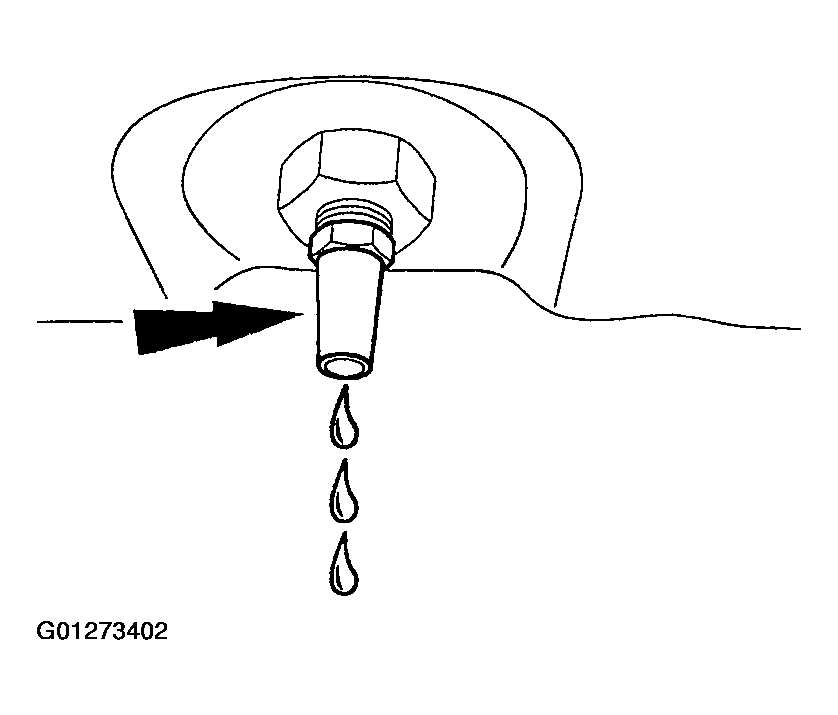

Fig 11: Allowing Fluid To Drain
Courtesy of FORD MOTOR CO.
Reinstall the small (center) fluid level indicating plug using a 3/16-inch Allen key.

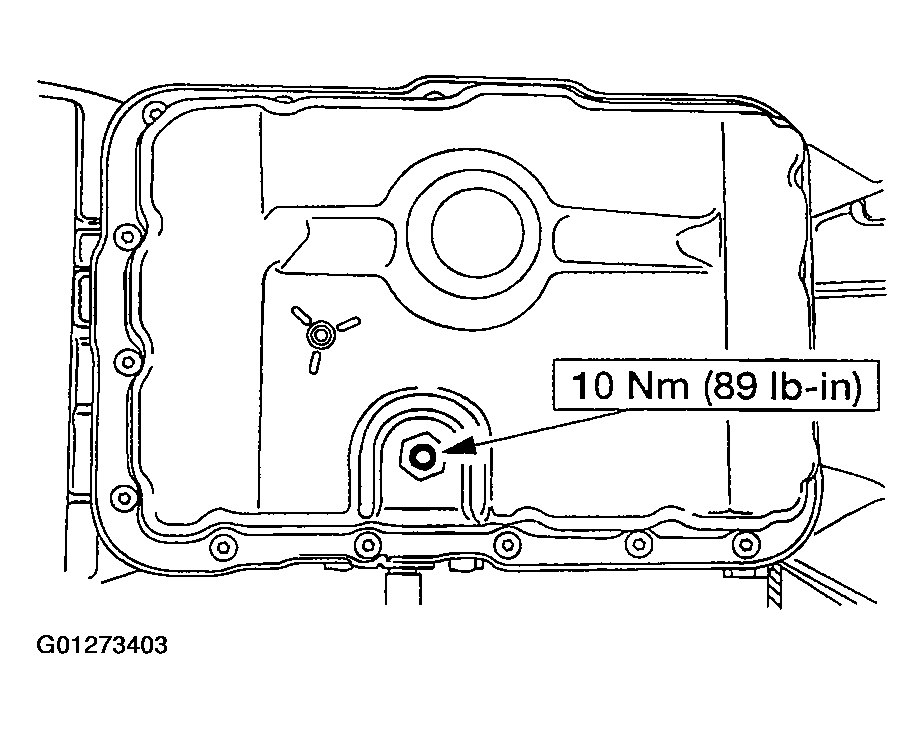

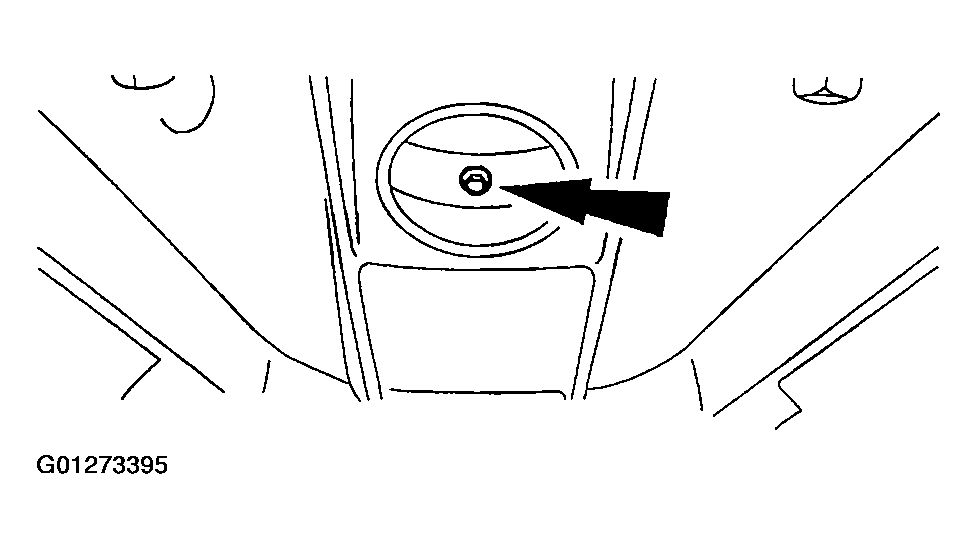

Fig 12: Reinstalling Small (Center) Fluid Level Indicating Plug Using 3/16-Inch Allen Key
Courtesy of FORD MOTOR CO.
Install a new torque converter drain plug to prevent any leakage.

Fig 13: Installing Torque Converter Drain Plug
Courtesy of FORD MOTOR CO.
Install the converter housing access plug.

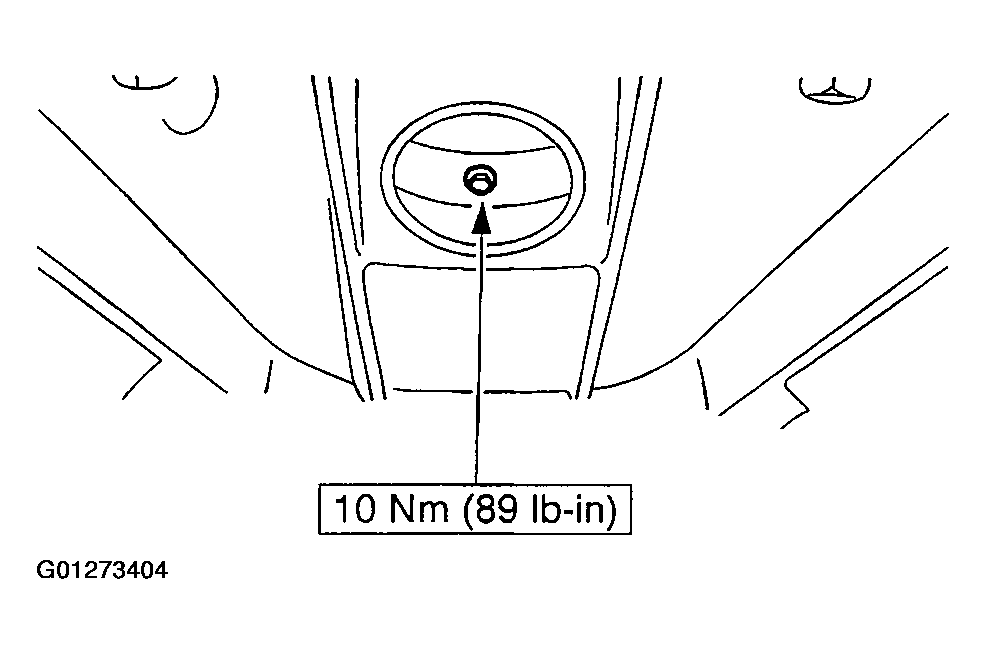

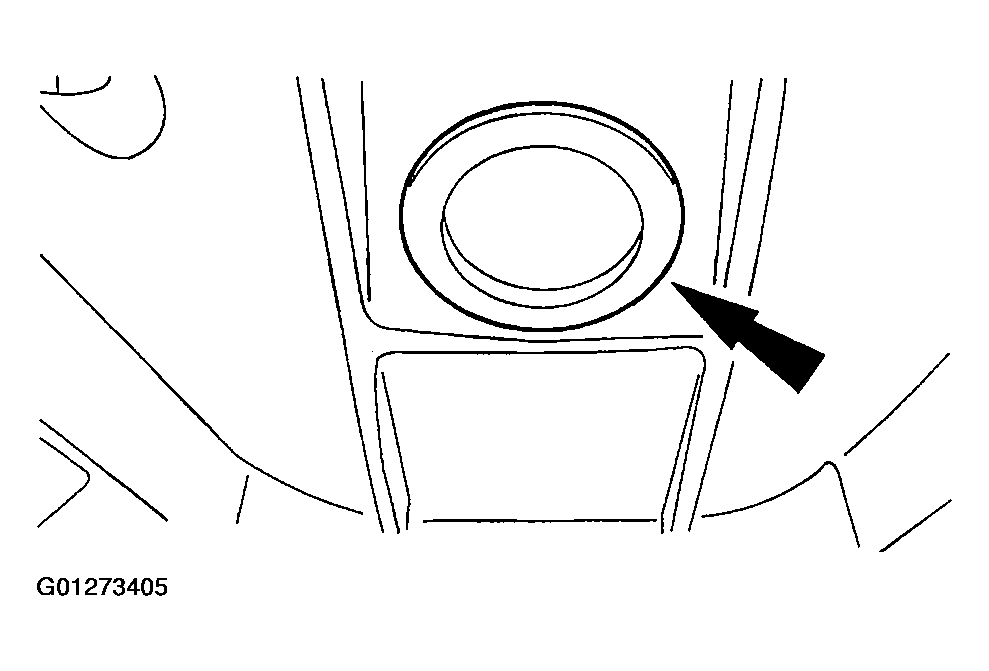

Fig 14: Installing Converter Housing Access Plug
Courtesy of FORD MOTOR CO.
Check the operation of the transmission by moving the range selector lever slowly through each gear, stopping in each position and allowing the transmission to engage.
