Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Indicator Diode | In battery junction box. |
| Auxiliary Junction Block | On rear "D" pillar. |

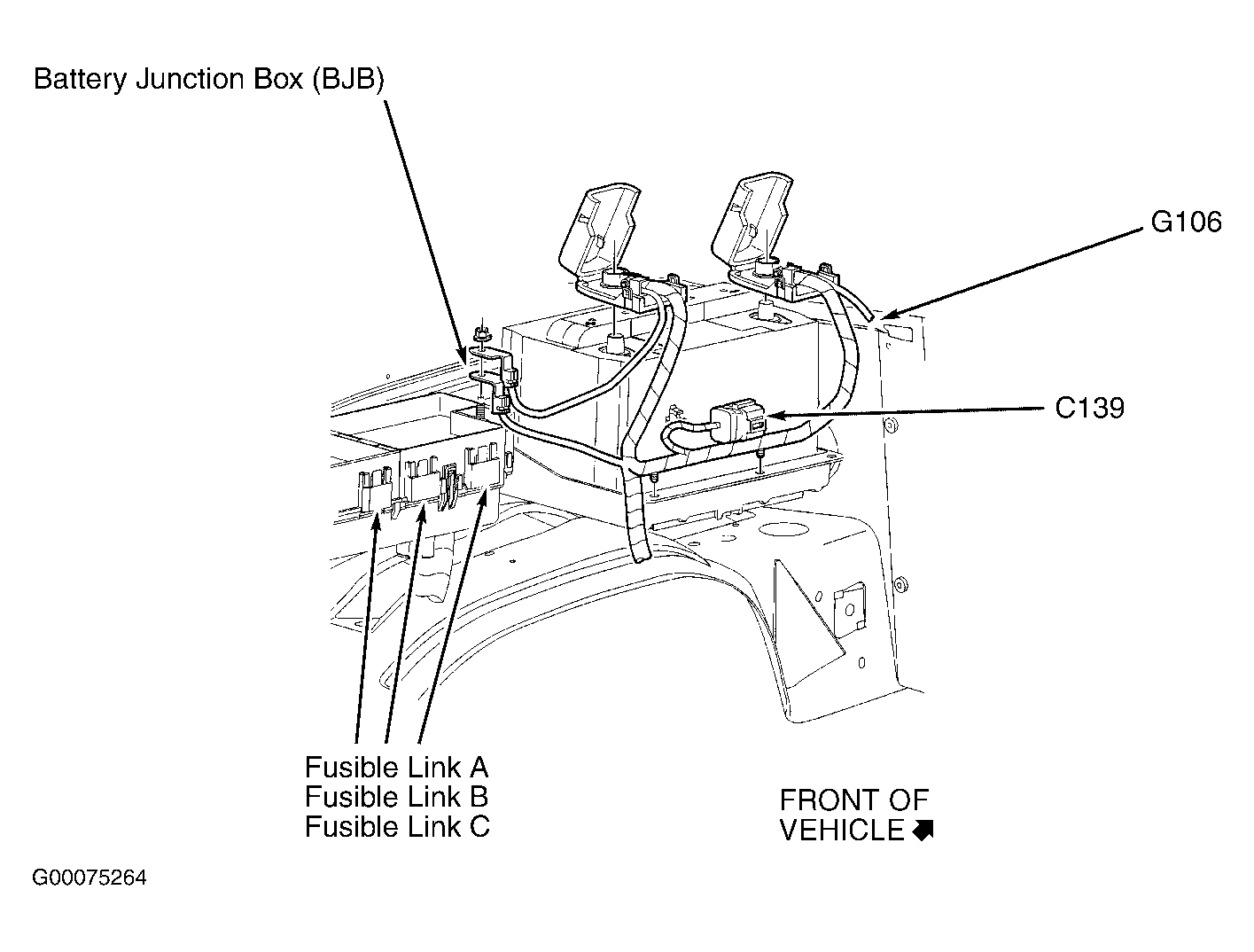

| Battery Junction Box (BJB) | Left side of engine compartment, at fender apron. See Figure. |
| Central Junction Box (CJB) | Behind left side of dash. |
| Fusible Link A | On left side of engine compartment, on inner fenderwell. See Figure. |
| Fusible Link B | On left side of engine compartment, on inner fenderwell. See Figure. |
| Fusible Link C | On left side of engine compartment, on inner fenderwell. See Figure. |
| PCM Power Diode | In battery junction box. |
