Fuel Tank Evacuation

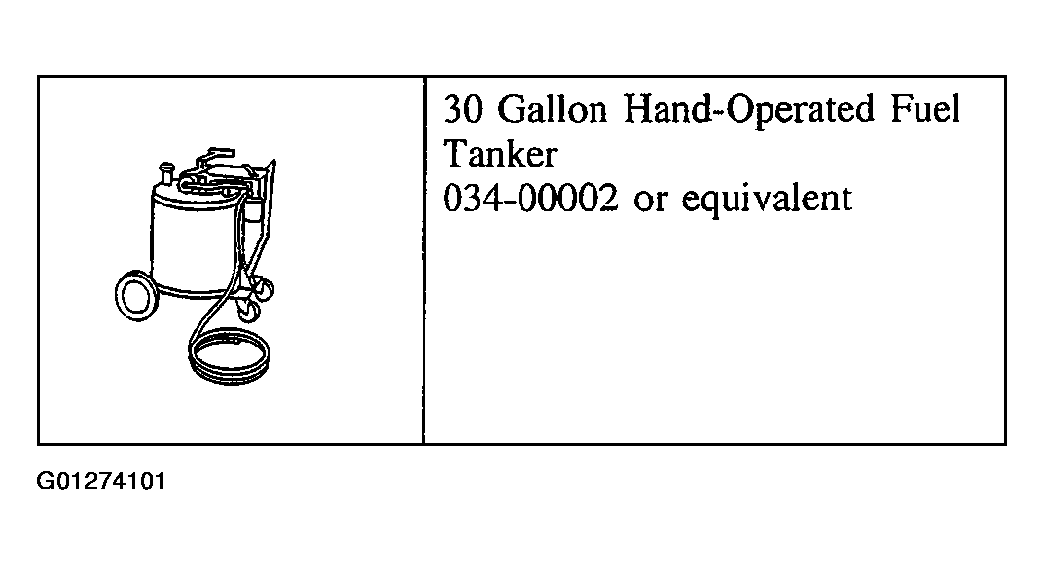

Fig 1: Identifying Fuel Tank Evacuation Special Tool

Courtesy of FORD MOTOR CO.

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

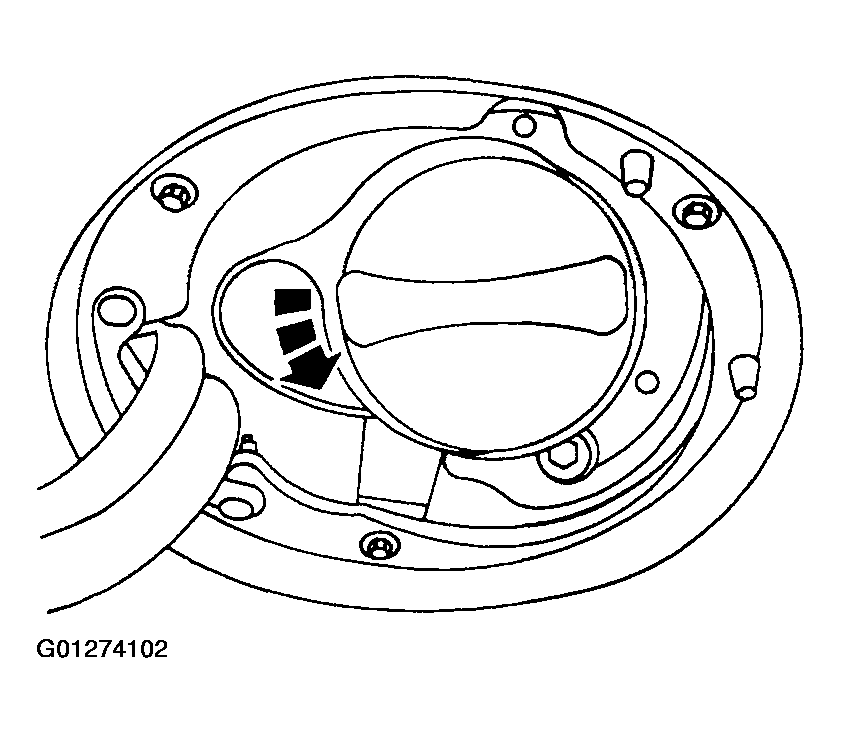

Fig 2: Removing Gas Cap

Courtesy of FORD MOTOR CO.

Remove the gas cap.
Raise and support the vehicle.
Disconnect the fuel filler hose from the fuel filler intermediate tube.

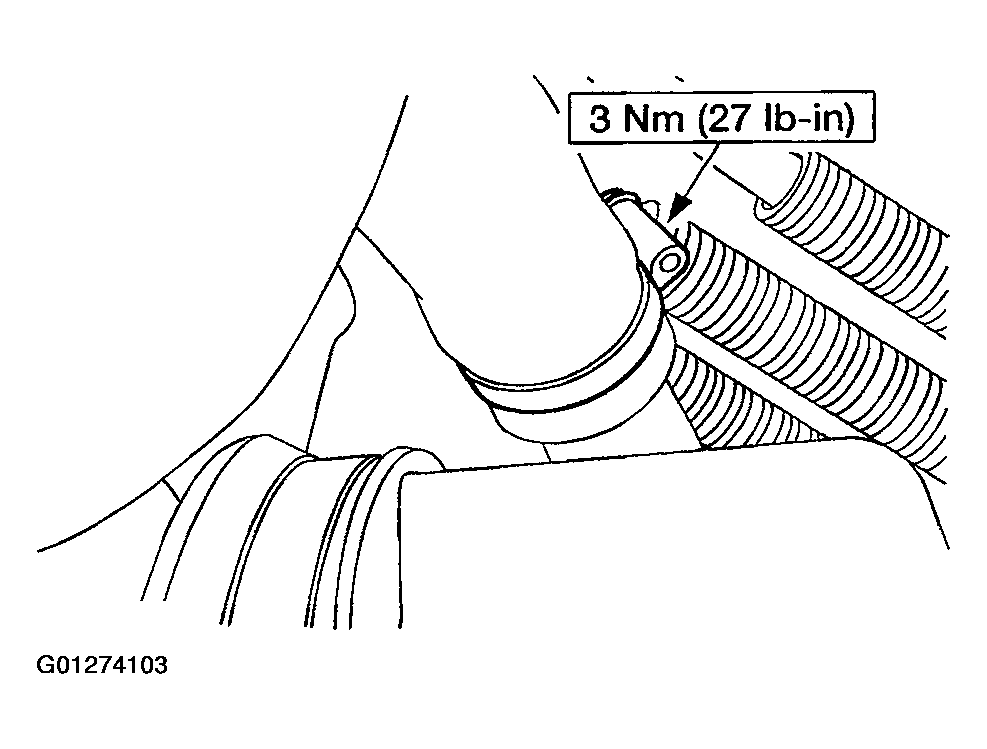

Fig 3: Disconnecting Fuel Filler Hose From Fuel Filler Intermediate Tube
Courtesy of FORD MOTOR CO.
Use the Fuel Storage Tanker to siphon the fuel through the fuel tank filler lower hose.
