Disassembly and Assembly: Notes

Remove the steering column. For additional information, refer to STEERING COLUMN .
To remove individual column components, only carry out the listed steps.

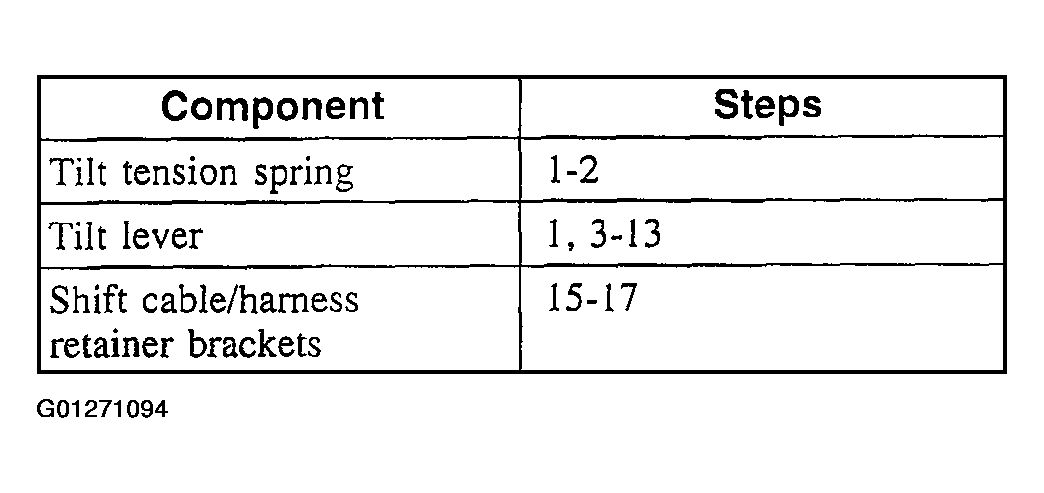

Fig 1: Removing Individual Column Components
Courtesy of FORD MOTOR CO.
Disassemble the components in the order indicated in the following illustration and table.

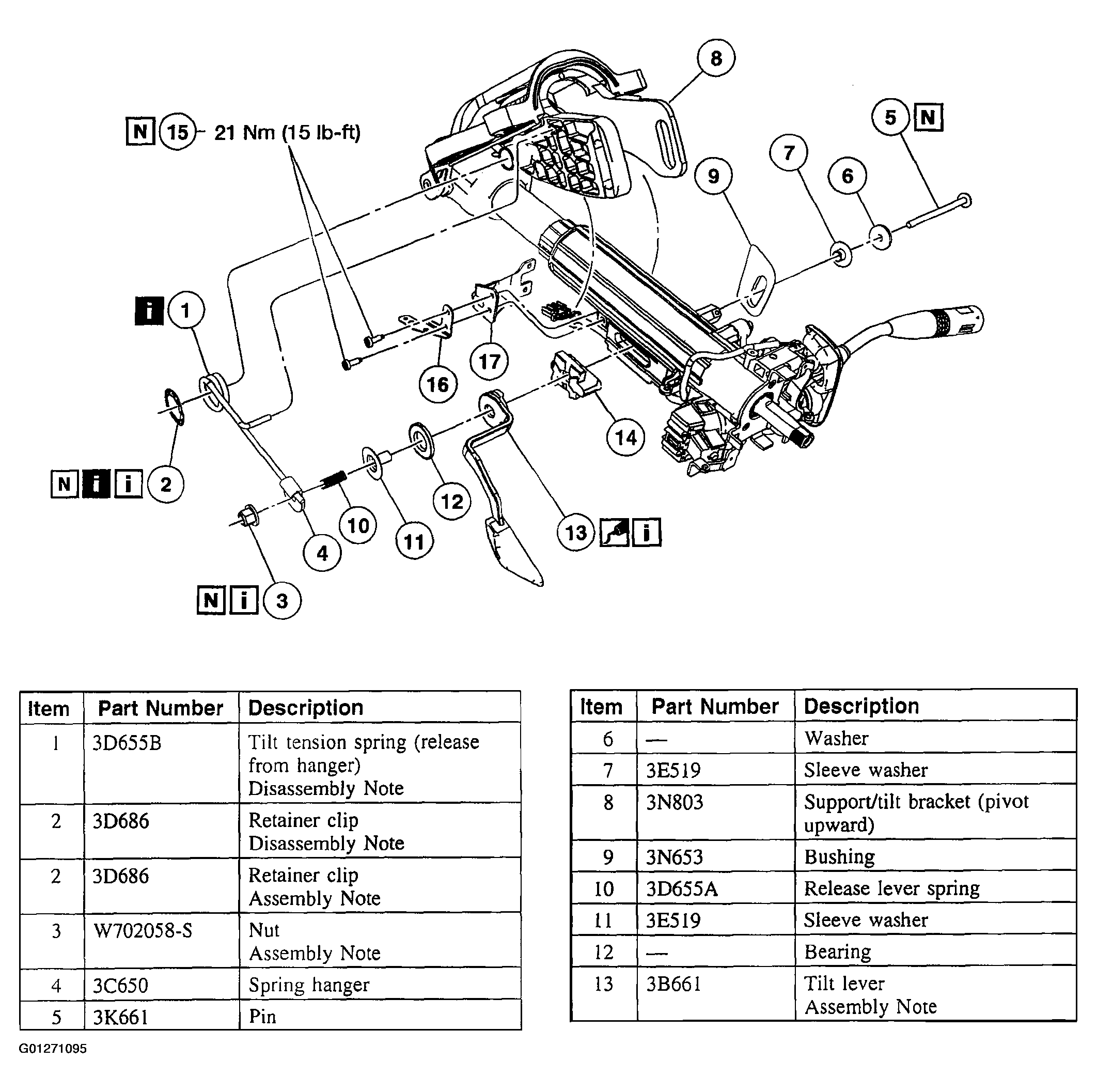

Fig 2: Identifying Different Component Locations Of Steering Column In Order Of Removal (1 - 13)
Courtesy of FORD MOTOR CO.

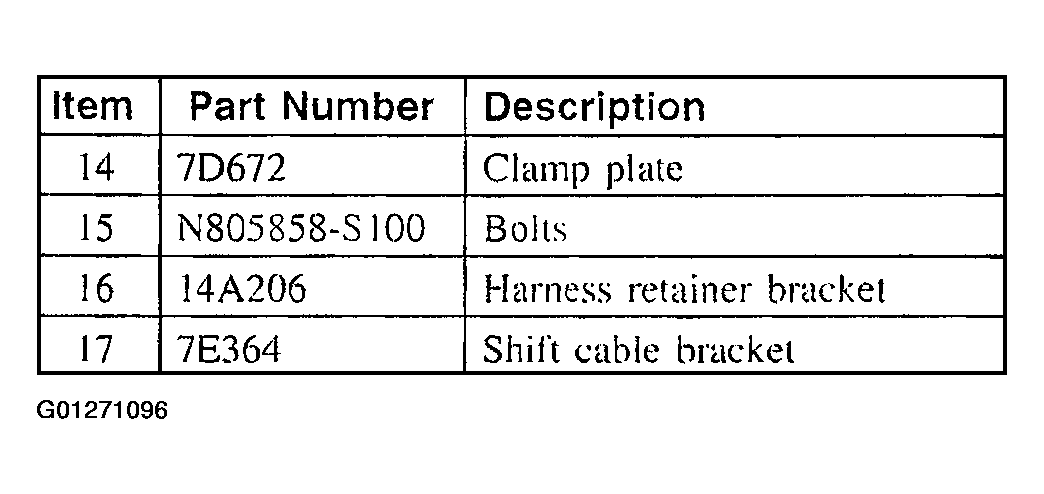

Fig 3: Identifying Different Component Locations Of Steering Column In Order Of Removal (14 - 17)
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
