Multifunction Switch, Turn Portion

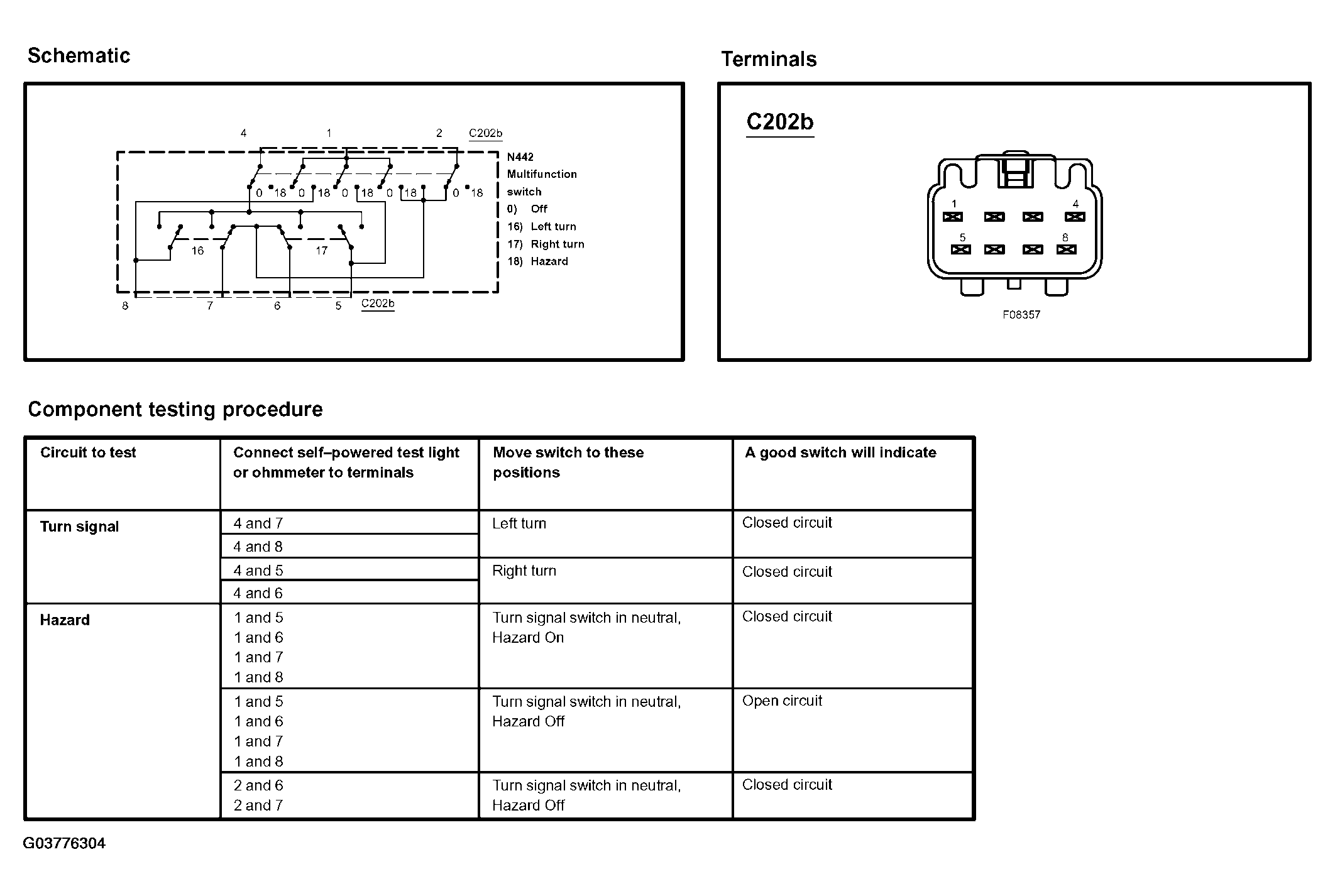

Fig 1: Testing Multifunction Switch - Turn Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
