Connector Views

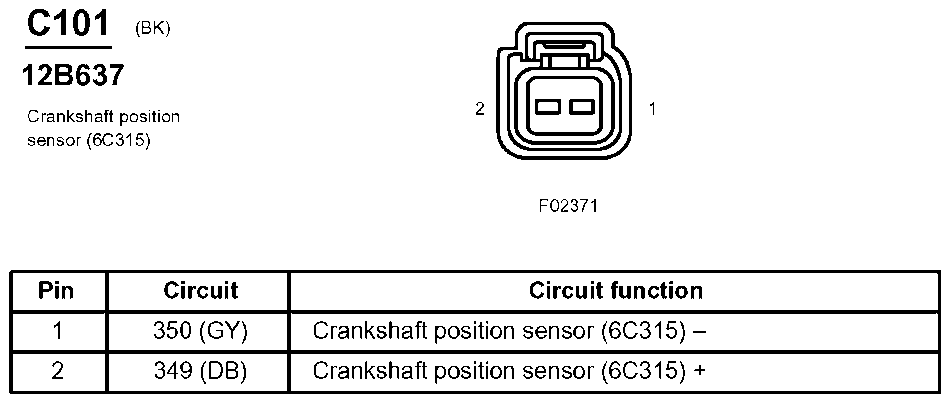

Fig 1: Crankshaft Position Sensor Connector End View (C101)

G07832834

Courtesy of FORD MOTOR CO.

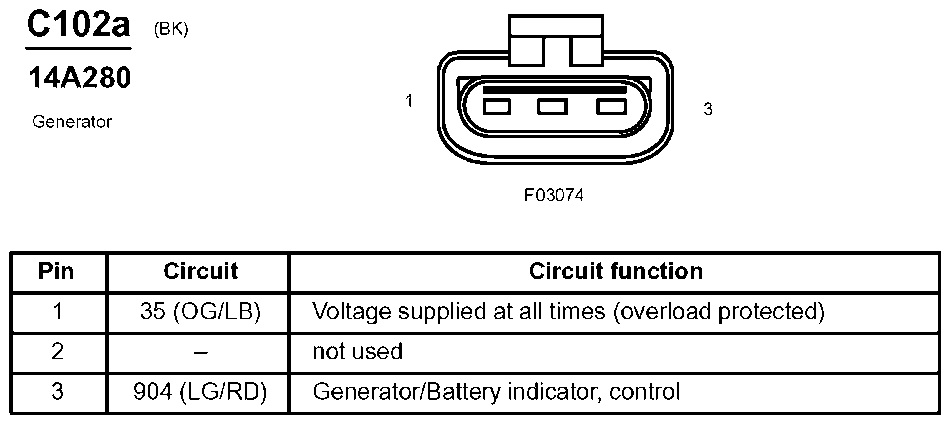

Fig 2: Generator Connector End View (C102a)

G07832835

Courtesy of FORD MOTOR CO.

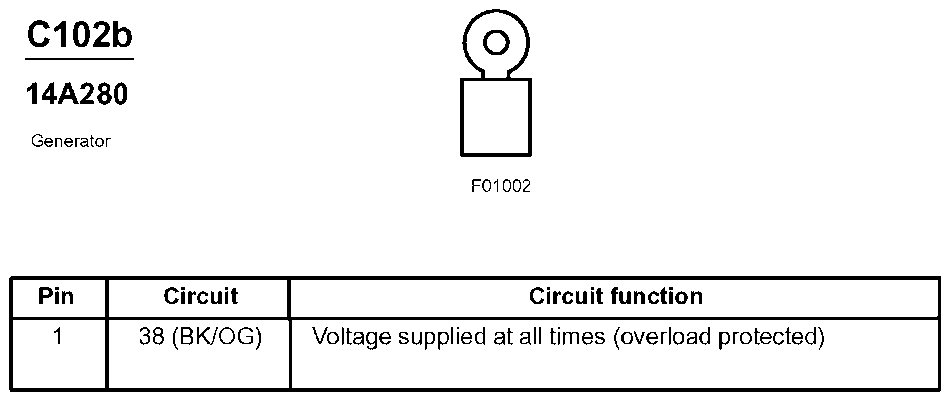

Fig 3: Generator Connector End View (C102b)

G07832836

Courtesy of FORD MOTOR CO.

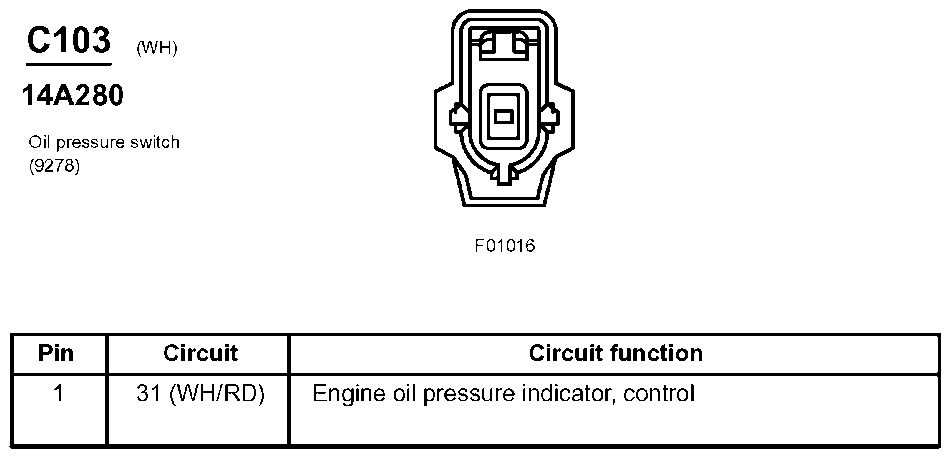

Fig 4: Oil Pressure Switch Connector End View (C103)

G07832837

Courtesy of FORD MOTOR CO.

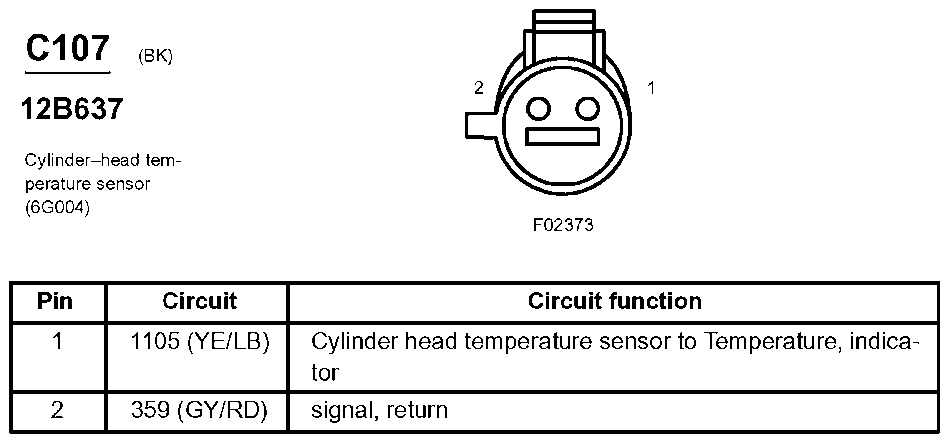

Fig 5: Cylinder-Head Temperature Sensor Connector End View (C107)

G07832838

Courtesy of FORD MOTOR CO.

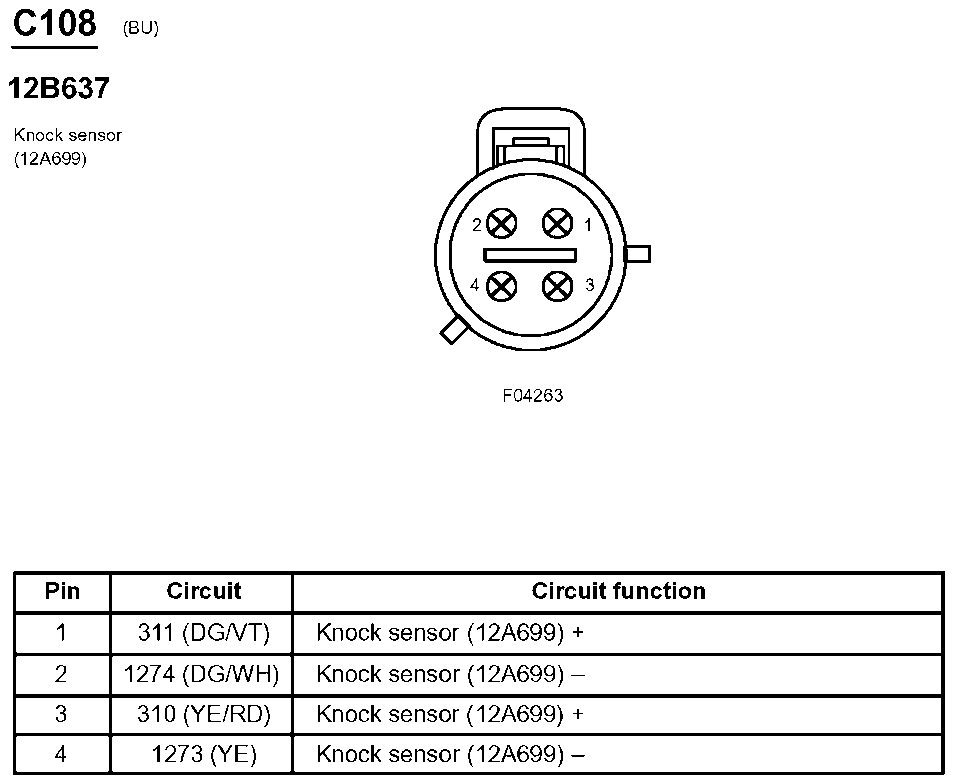

Fig 6: Knock Sensor Connector End View (C108)

G07832839

Courtesy of FORD MOTOR CO.

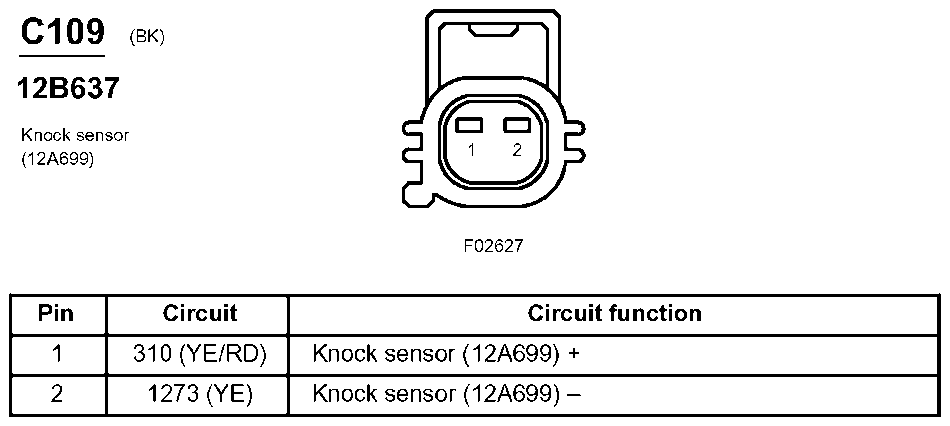

Fig 7: Knock Sensor Connector End View (C109)

G07832840

Courtesy of FORD MOTOR CO.

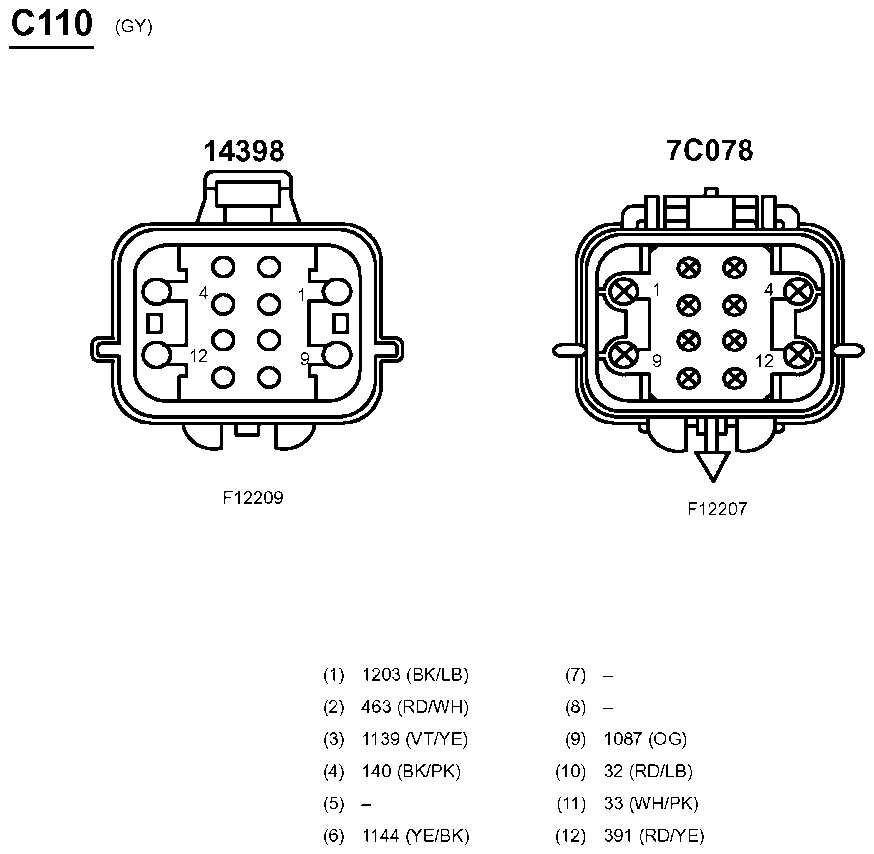

Fig 8: Inline Connector End View (C110)

G07832841

Courtesy of FORD MOTOR CO.

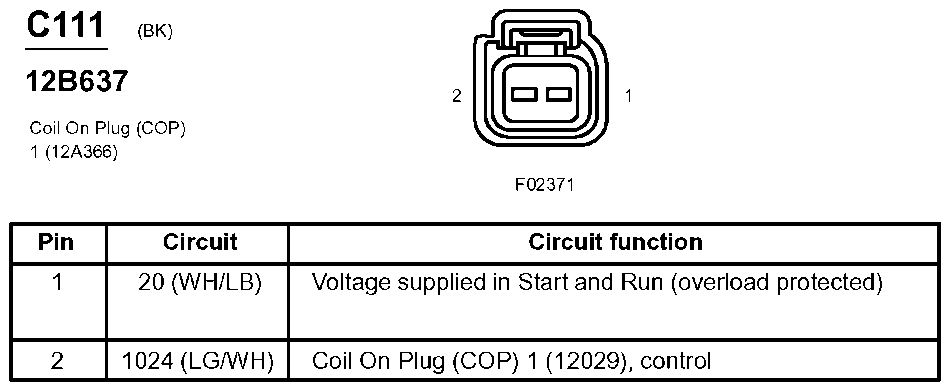

Fig 9: Coil On Plug (COP) 1 Connector End View (C111)

G07832842

Courtesy of FORD MOTOR CO.

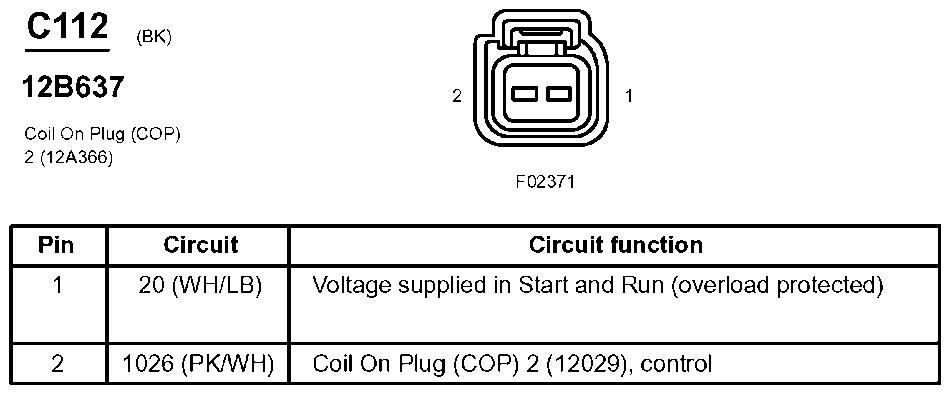

Fig 10: Coil On Plug (COP) 2 Connector End View (C112)

G07832843

Courtesy of FORD MOTOR CO.

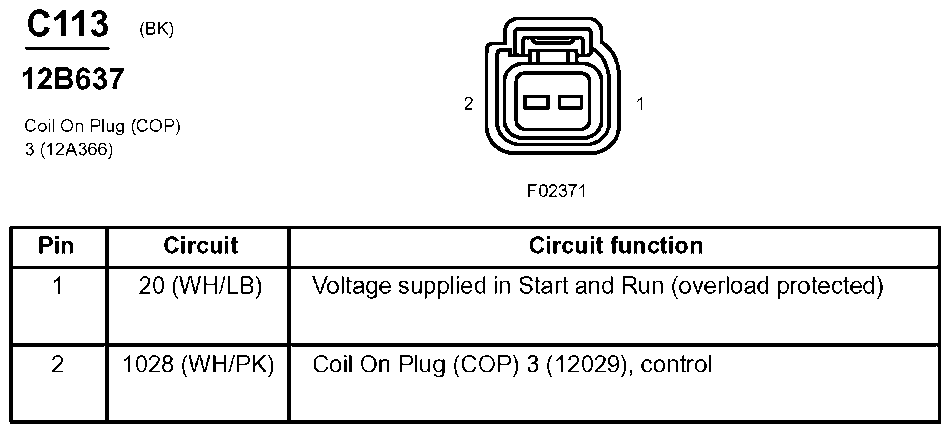

Fig 11: Coil On Plug (COP) 3 Connector End View (C113)

G07832844

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 4 Connector End View (C114)

G07832845

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 5 Connector End View (C115)

G07832846

Courtesy of FORD MOTOR CO.

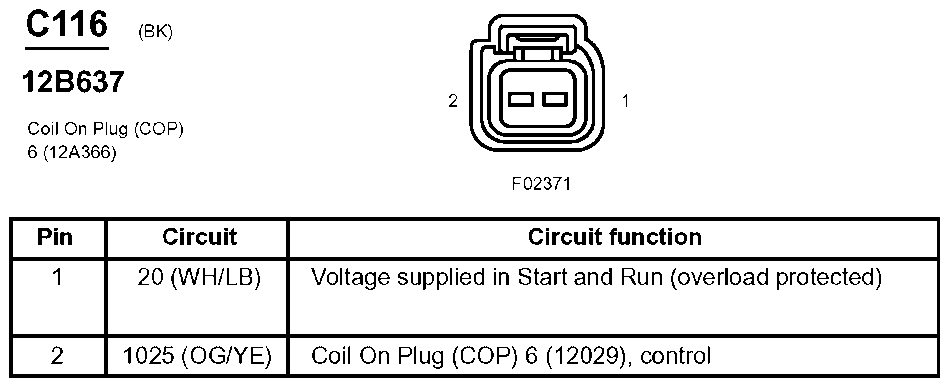

Fig 14: Coil On Plug (COP) 6 Connector End View (C116)

G07832847

Courtesy of FORD MOTOR CO.

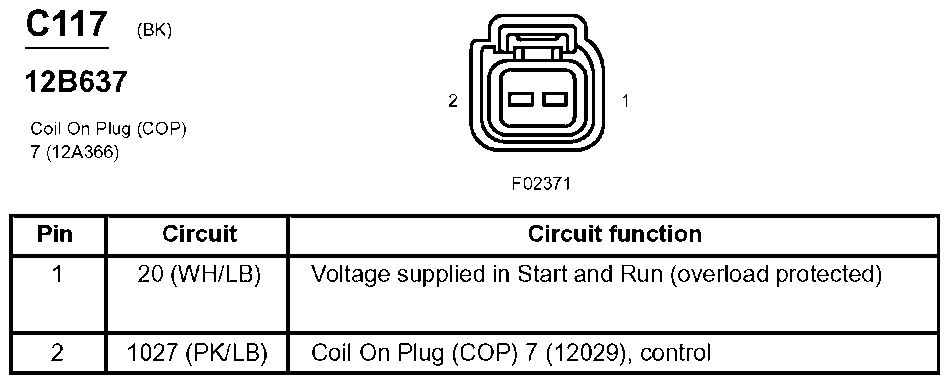

Fig 15: Coil On Plug (COP) 7 Connector End View (C117)

G07832848

Courtesy of FORD MOTOR CO.

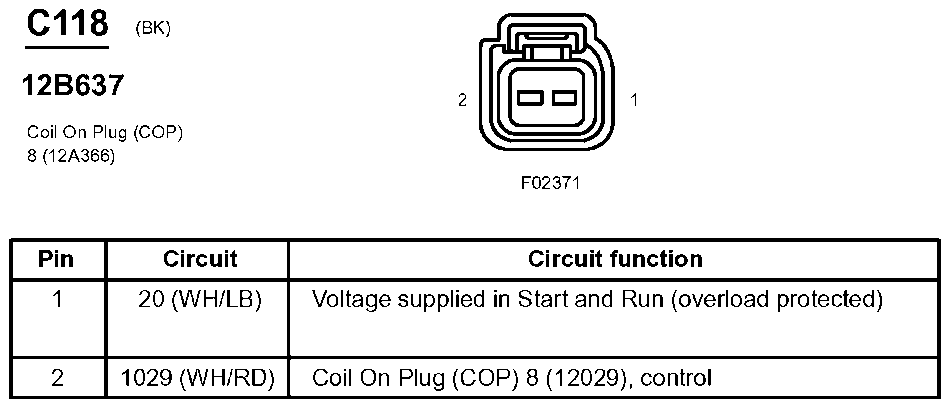

Fig 16: Coil On Plug (COP) 8 Connector End View (C118)

G07832849

Courtesy of FORD MOTOR CO.

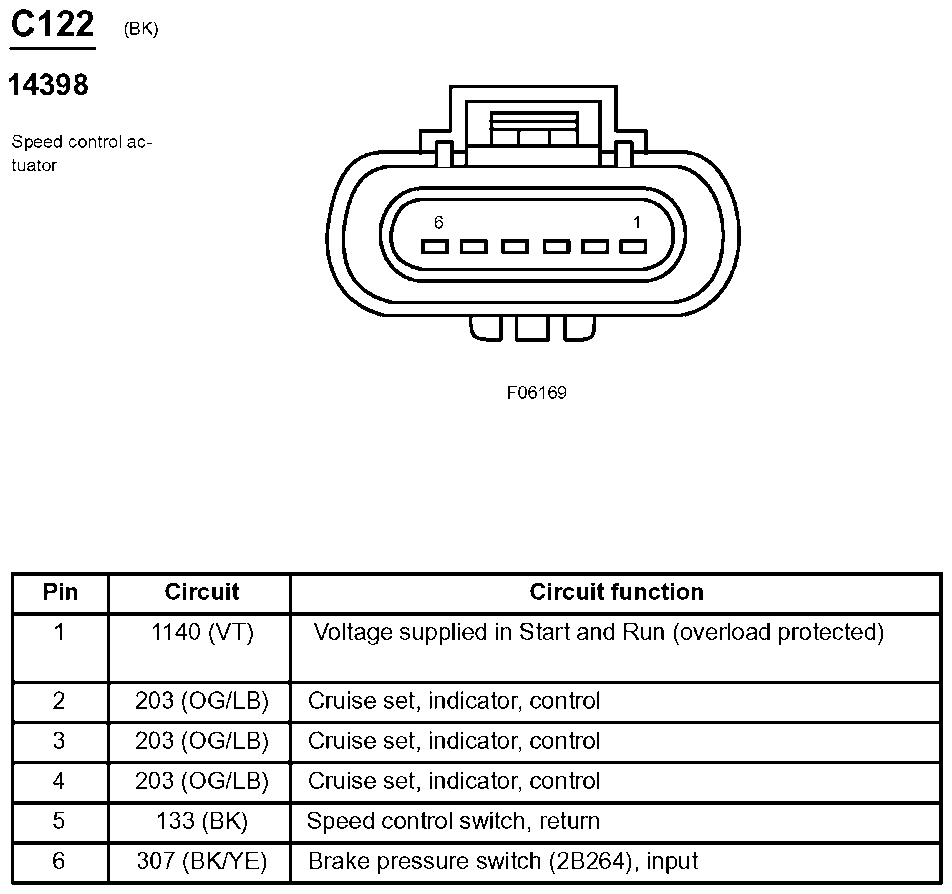

Fig 17: Speed Control Actuator Connector End View (C122)

G07832850

Courtesy of FORD MOTOR CO.

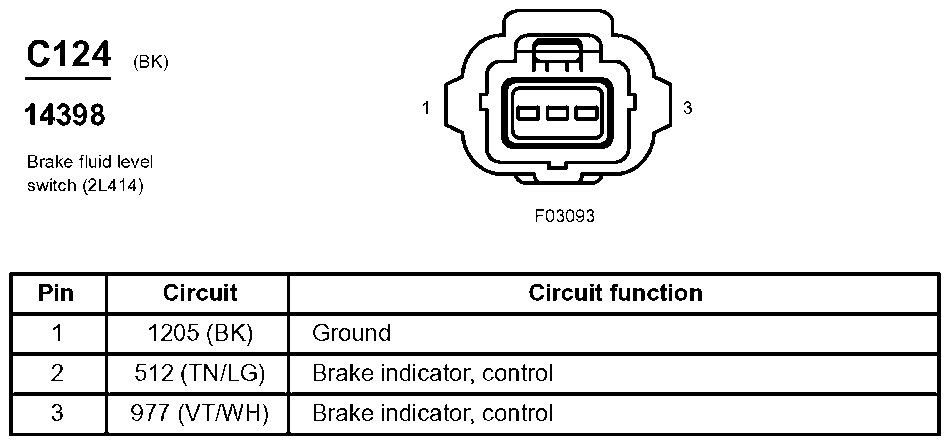

Fig 18: Brake Fluid Level Switch Connector End View (C124)

G07832851

Courtesy of FORD MOTOR CO.

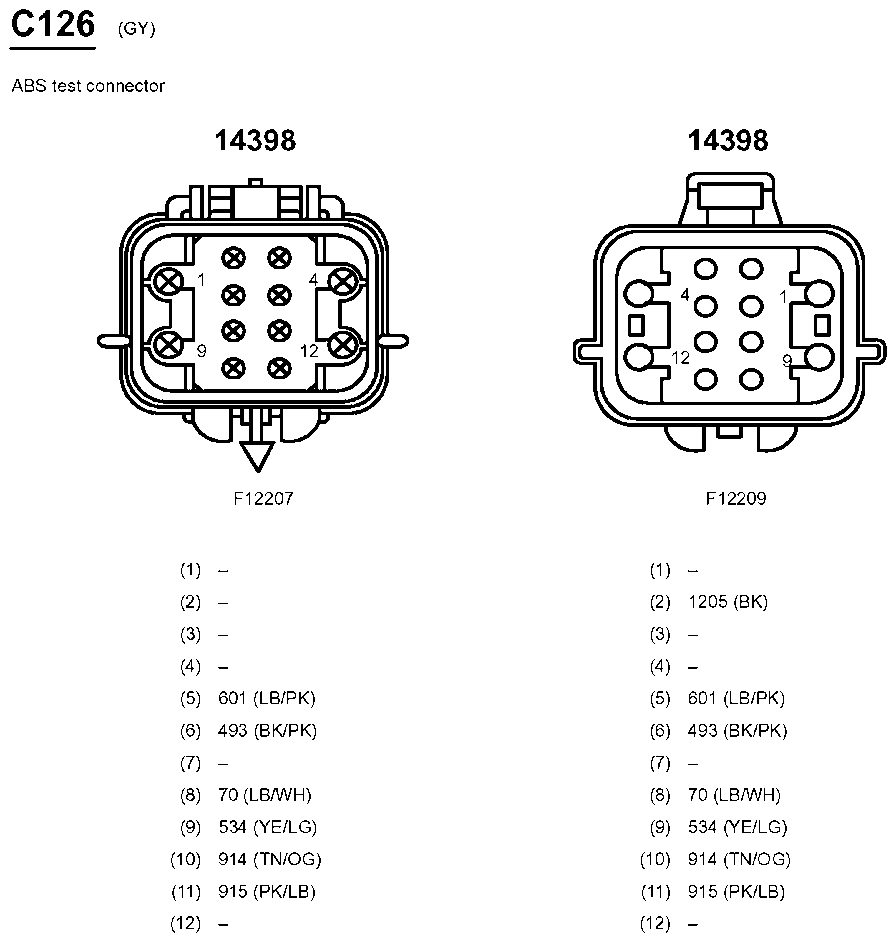

Fig 19: ABS Test Connector End View (C126)

G07832852

Courtesy of FORD MOTOR CO.

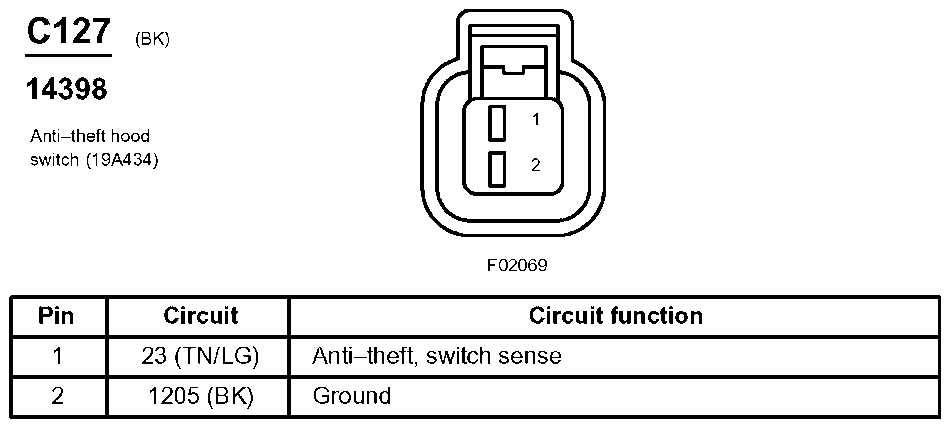

Fig 20: Anti-Theft Hood Switch Connector End View (C127)

G07832853

Courtesy of FORD MOTOR CO.

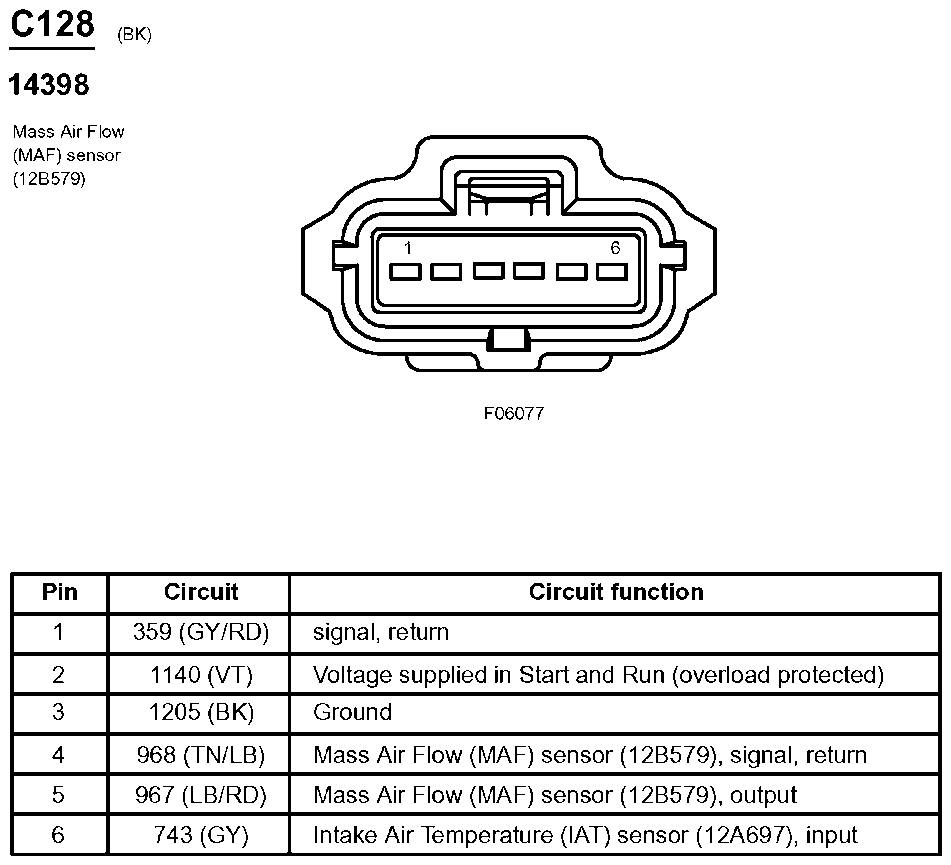

Fig 21: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07832854

Courtesy of FORD MOTOR CO.

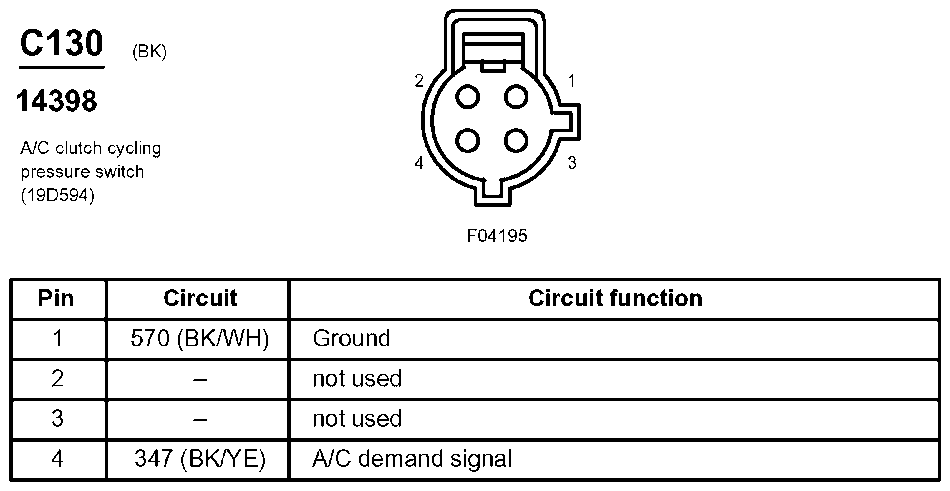

Fig 22: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07832855

Courtesy of FORD MOTOR CO.

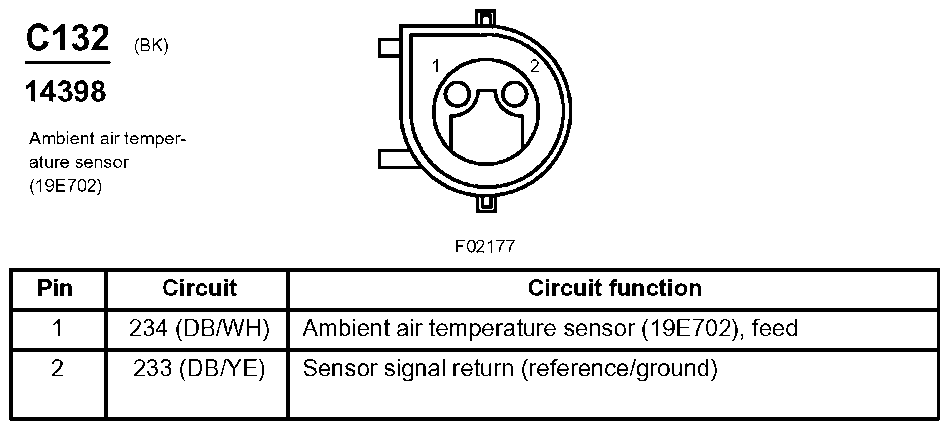

Fig 23: Ambient Air Temperature Sensor Connector End View (C132)

G07832856

Courtesy of FORD MOTOR CO.

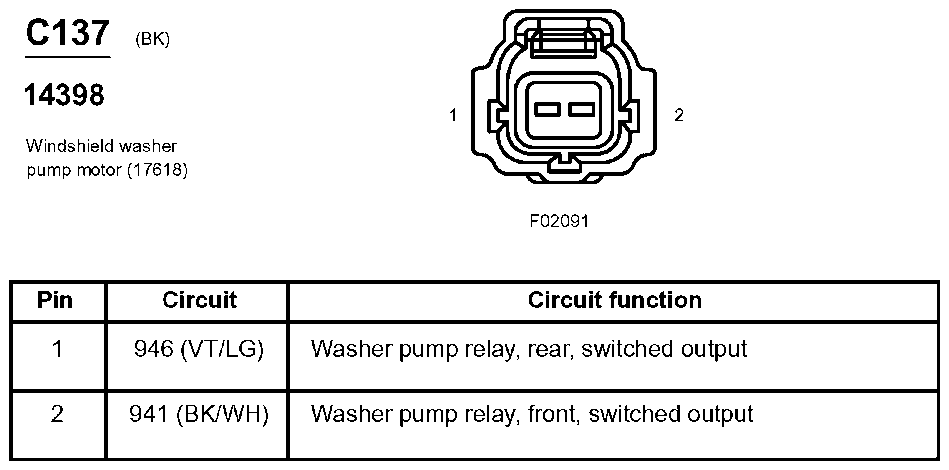

Fig 24: Windshield Washer Pump Motor Connector End View (C137)

G07832857

Courtesy of FORD MOTOR CO.

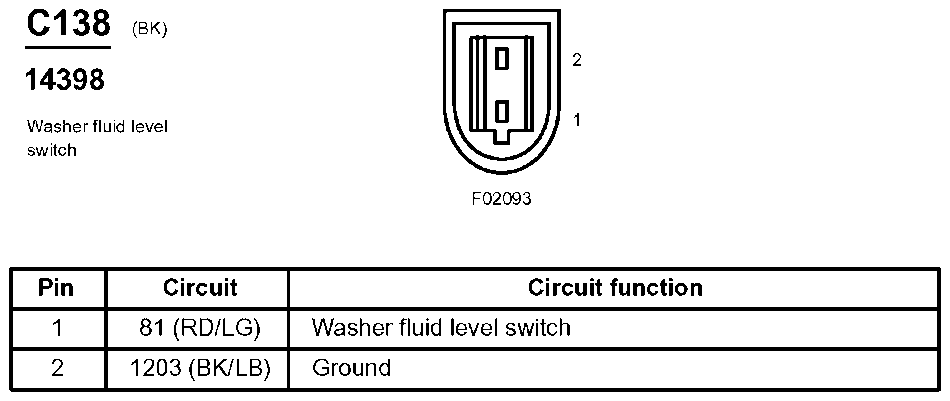

Fig 25: Washer Fluid Level Switch Connector End View (C138)

G07832858

Courtesy of FORD MOTOR CO.

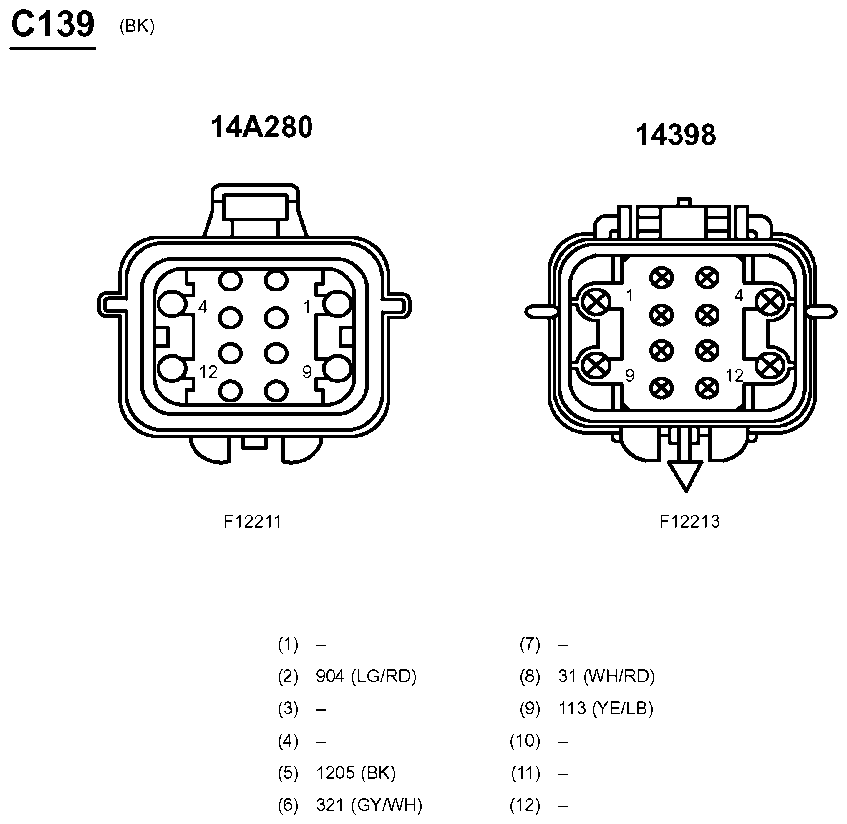

Fig 26: Inline Connector End View (C139)

G07832859

Courtesy of FORD MOTOR CO.

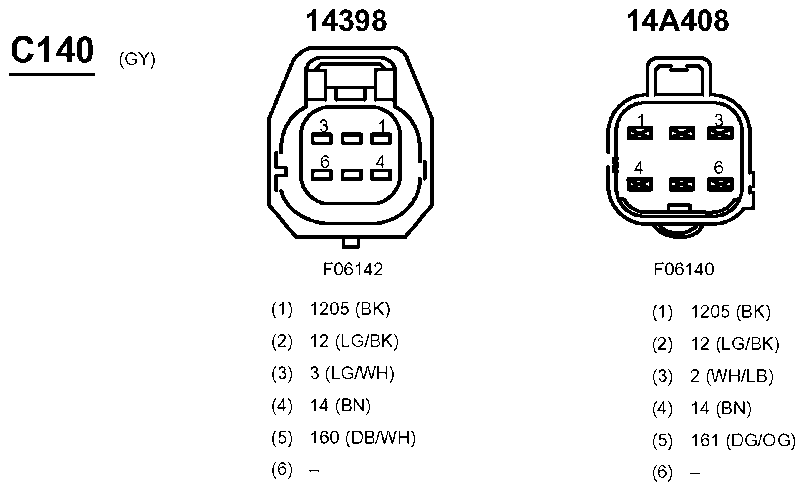

Fig 27: Inline Connector End View (C140)

G07832860

Courtesy of FORD MOTOR CO.

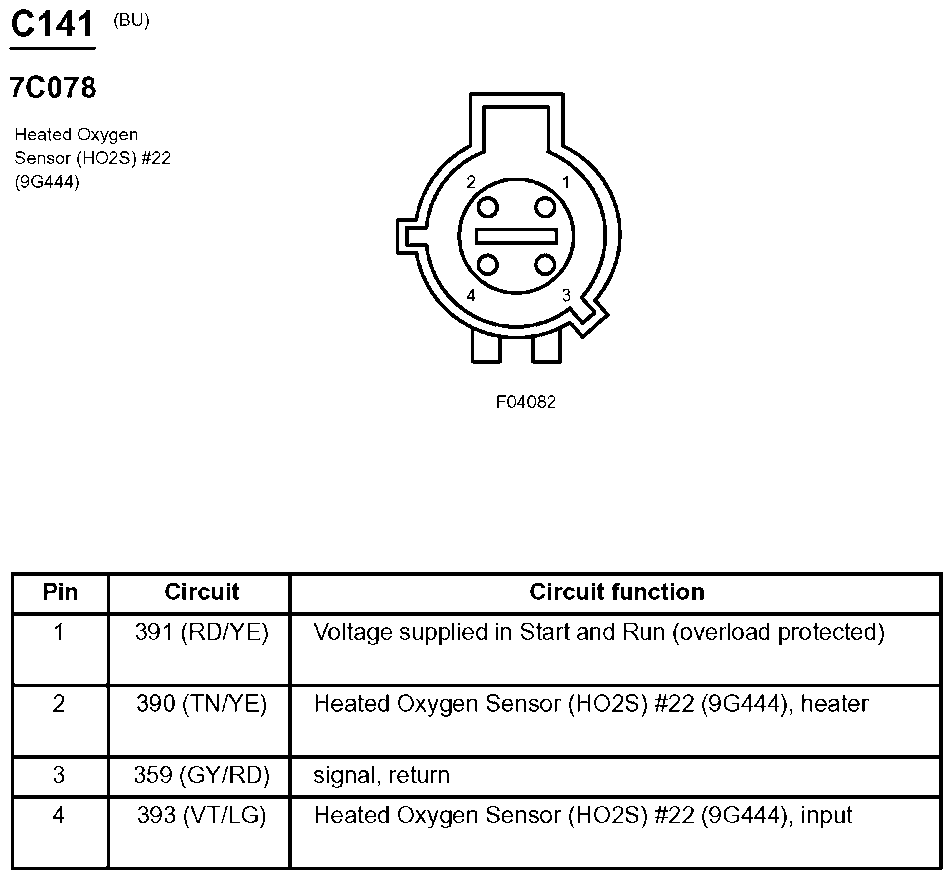

Fig 28: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07832861

Courtesy of FORD MOTOR CO.

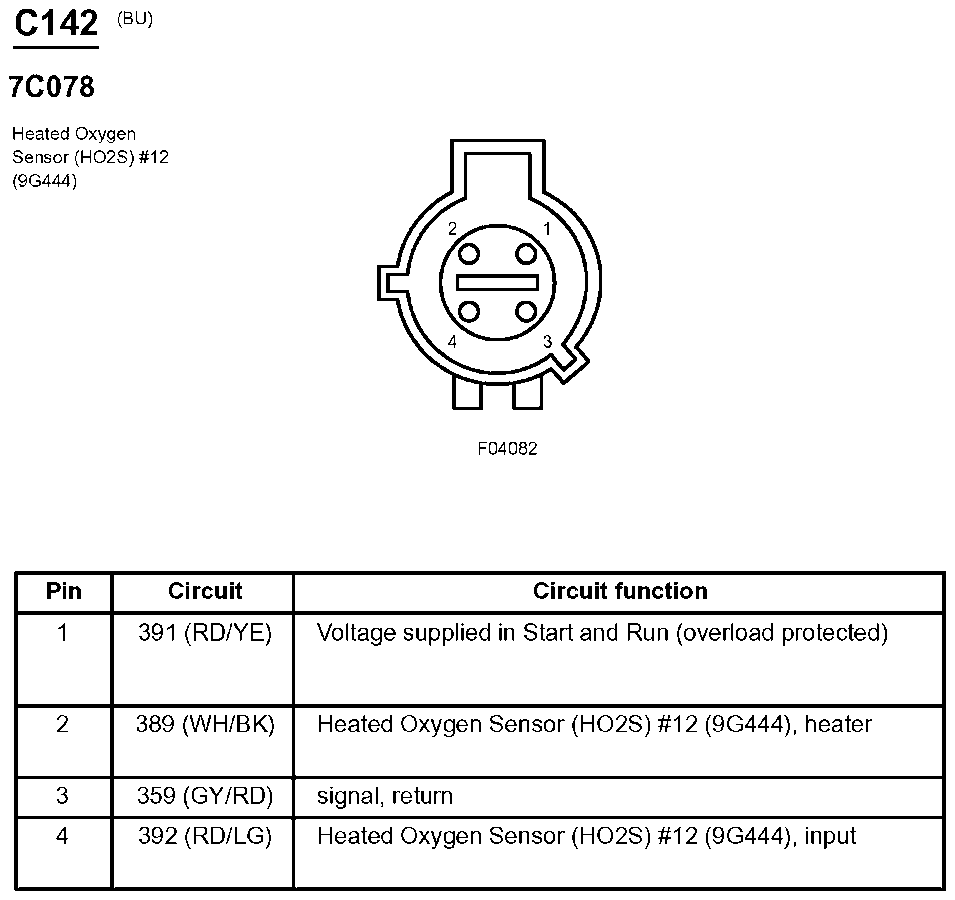

Fig 29: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07832862

Courtesy of FORD MOTOR CO.

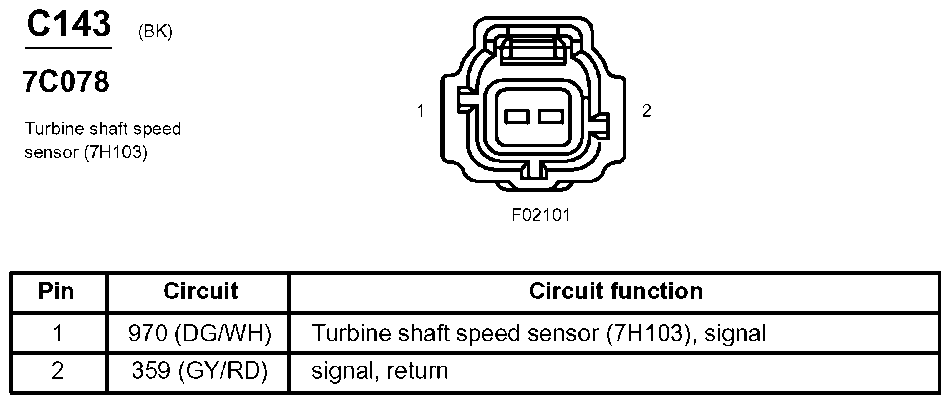

Fig 30: Turbine Shaft Speed Sensor Connector End View (C143)

G07832863

Courtesy of FORD MOTOR CO.

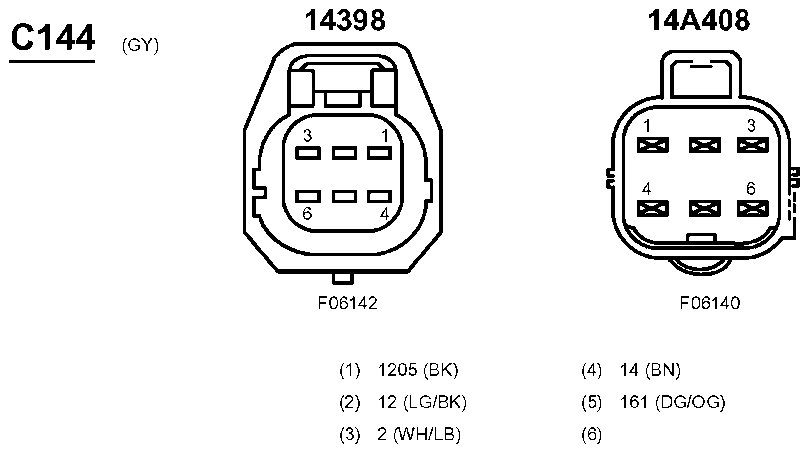

Fig 31: Inline Connector End View (C144)

G07832864

Courtesy of FORD MOTOR CO.

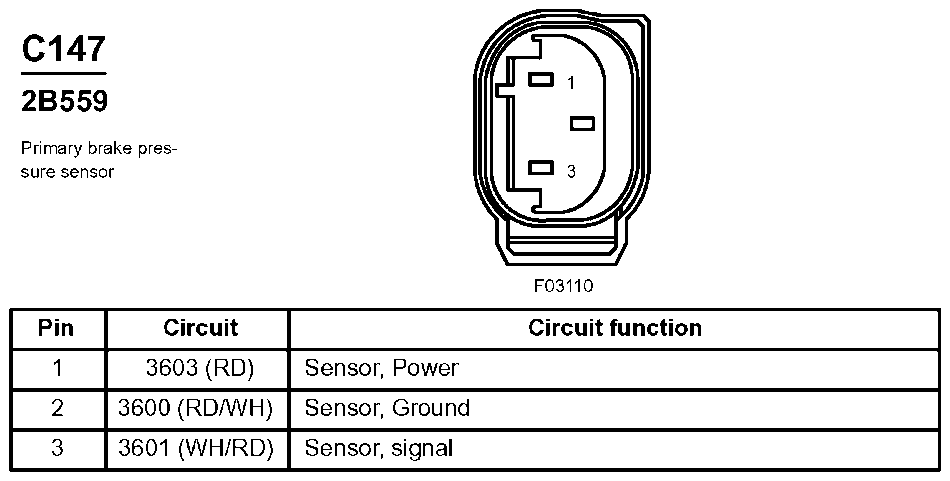

Fig 32: Primary Brake Pressure Sensor Connector End View (C147)

G07832865

Courtesy of FORD MOTOR CO.

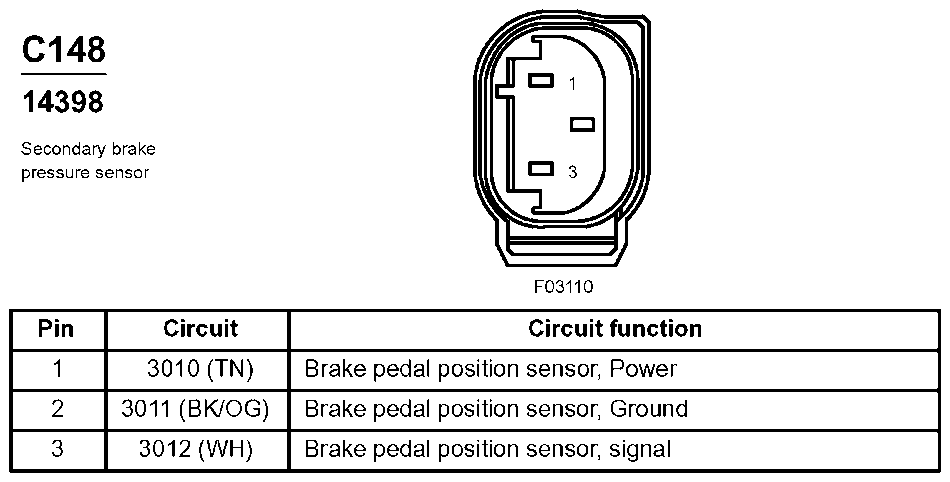

Fig 33: Secondary Brake Pressure Sensor Connector End View (C148)

G07832866

Courtesy of FORD MOTOR CO.

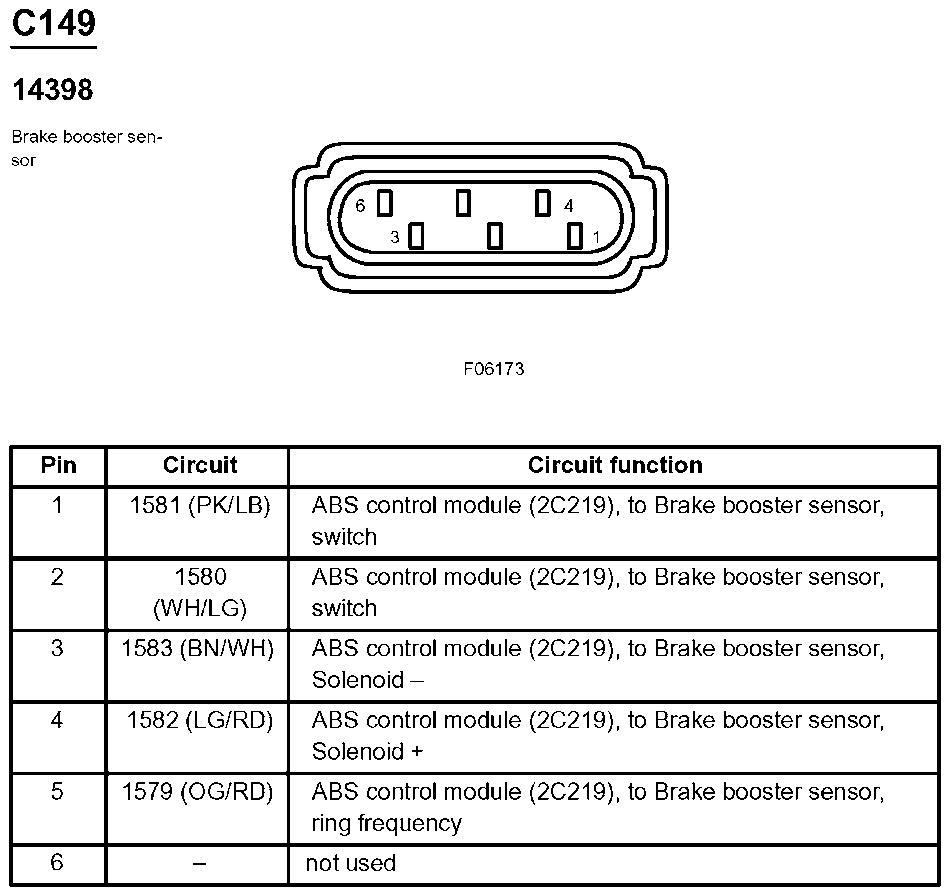

Fig 34: Brake Booster Sensor Connector End View (C149)

G07832867

Courtesy of FORD MOTOR CO.

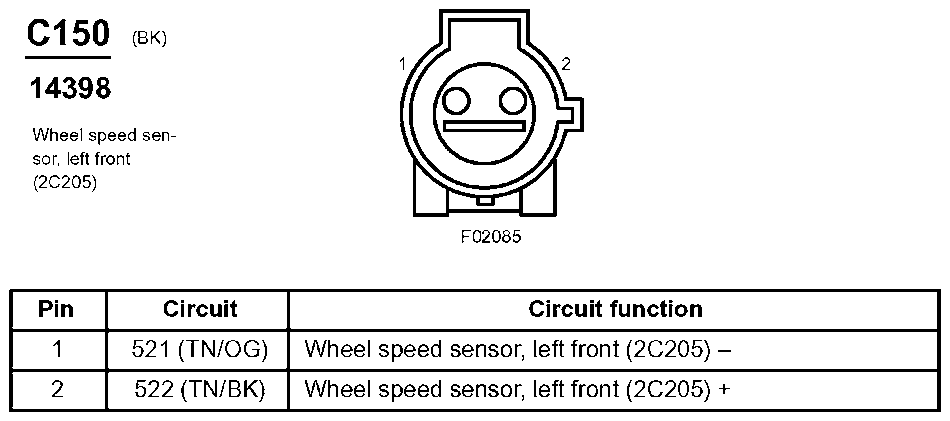

Fig 35: Wheel Speed Sensor, Left Front Connector End View (C150)

G07832868

Courtesy of FORD MOTOR CO.

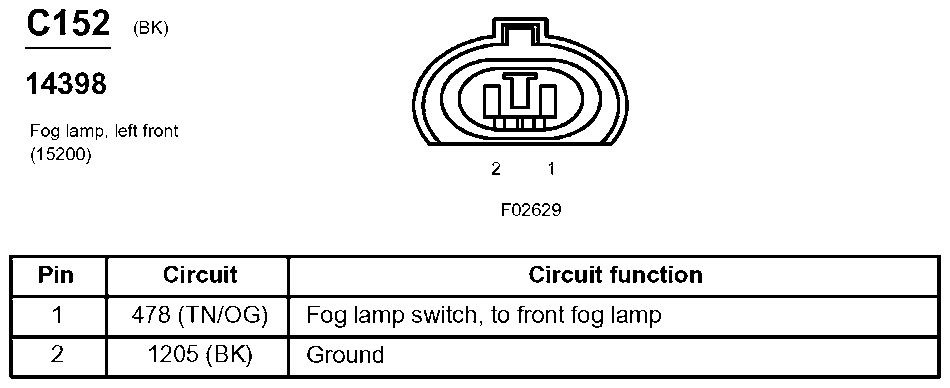

Fig 36: Fog Lamp, Left Front Connector End View (C152)

G07832869

Courtesy of FORD MOTOR CO.

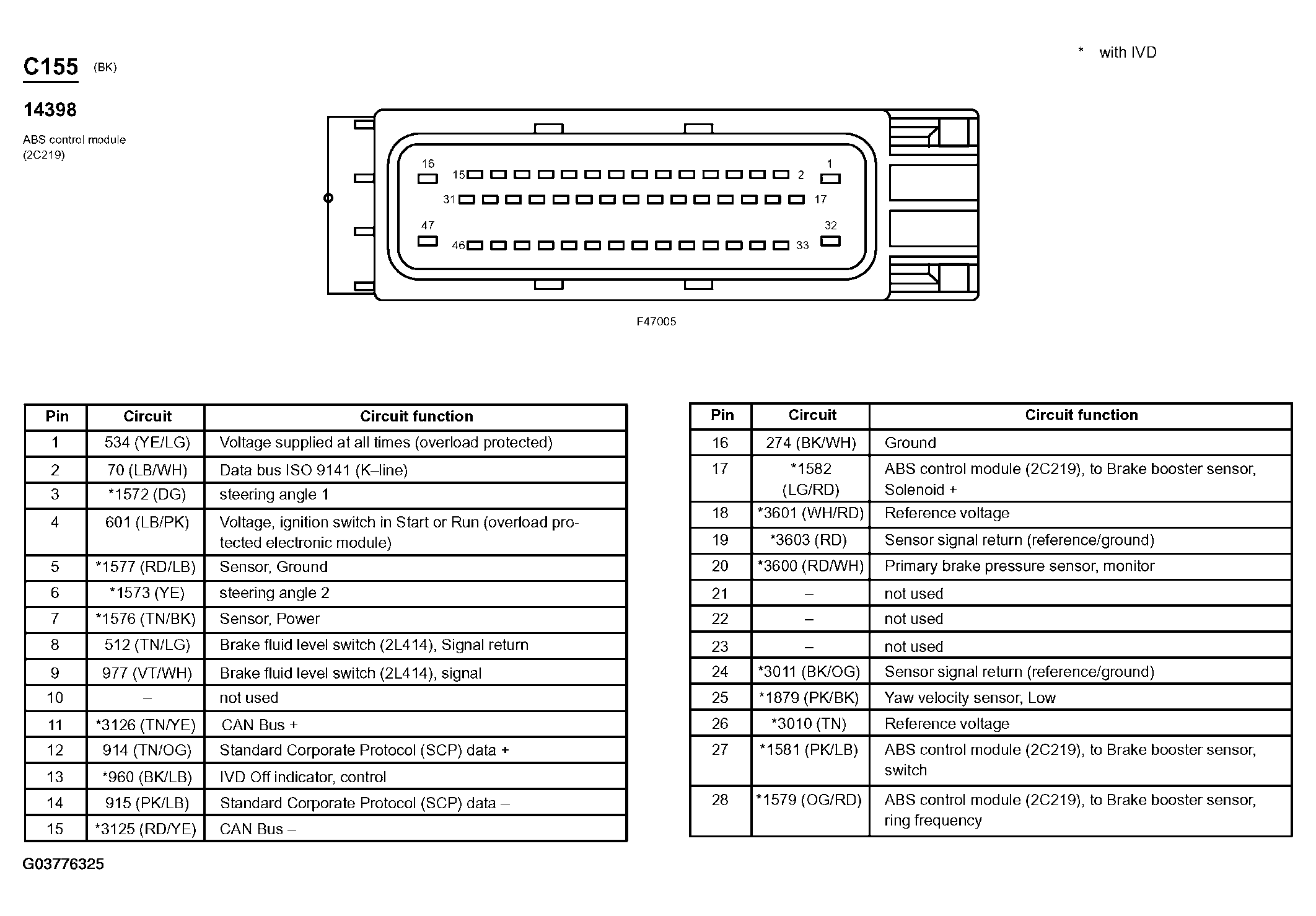

Fig 37: ABS Control Module Connector End View (C155) (1 Of 2)

G03776325

Courtesy of FORD MOTOR CO.

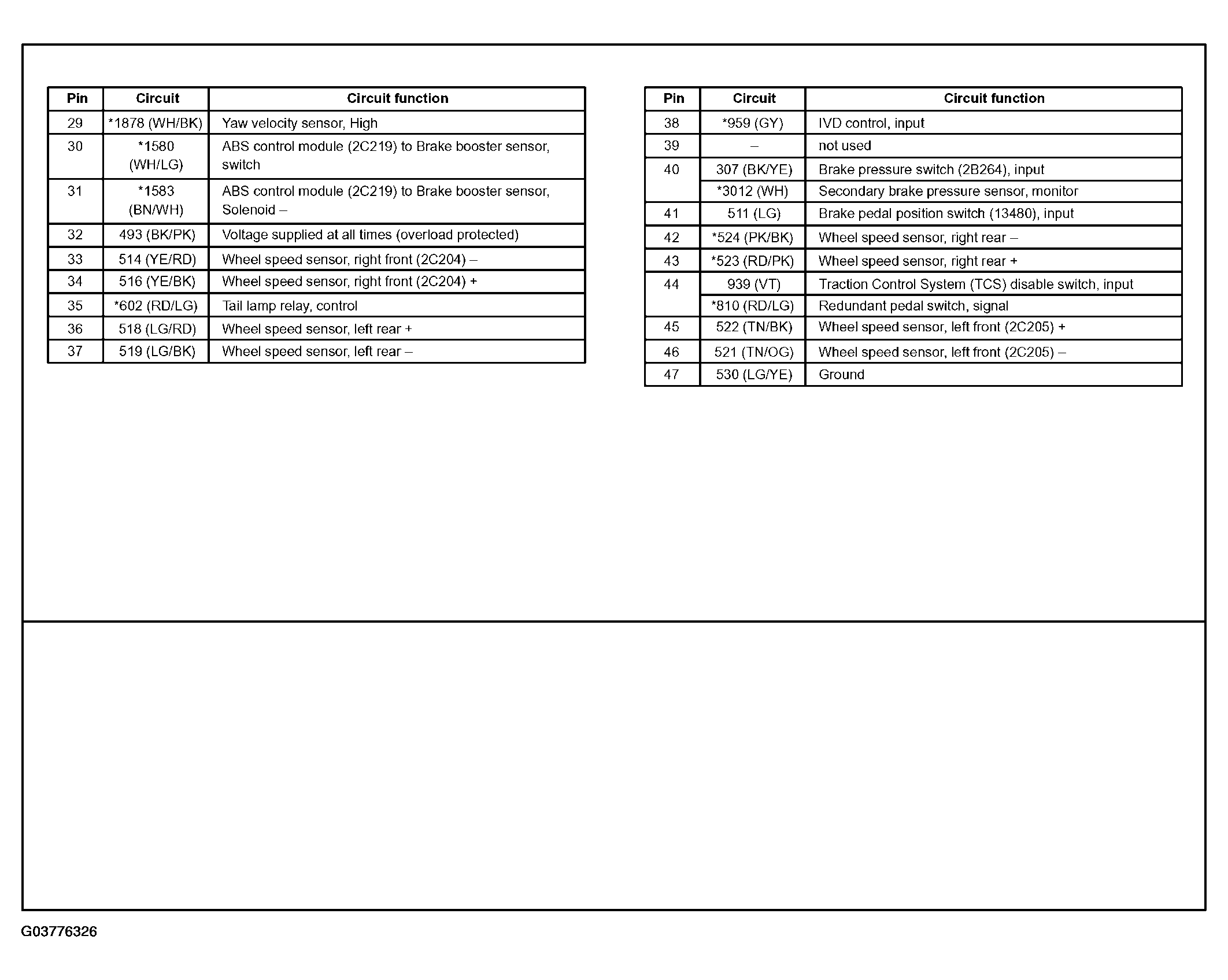

Fig 38: ABS Control Module Connector End View (C155) (2 Of 2)

G03776326

Courtesy of FORD MOTOR CO.

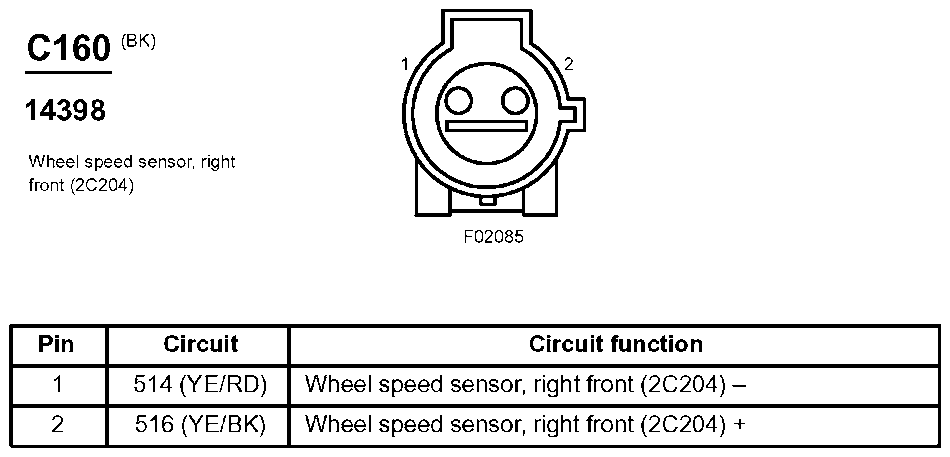

Fig 39: Wheel Speed Sensor, Right Front Connector End View (C160)

G07832870

Courtesy of FORD MOTOR CO.

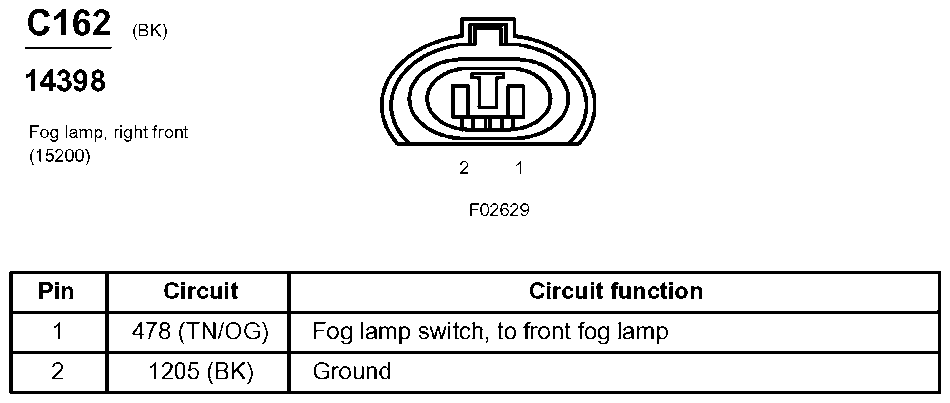

Fig 40: Fog Lamp, Right Front Connector End View (C162)

G07832871

Courtesy of FORD MOTOR CO.

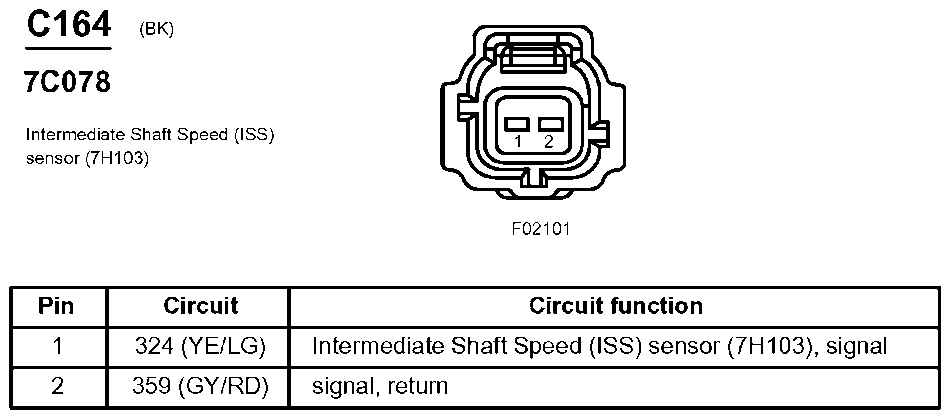

Fig 41: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G07832872

Courtesy of FORD MOTOR CO.

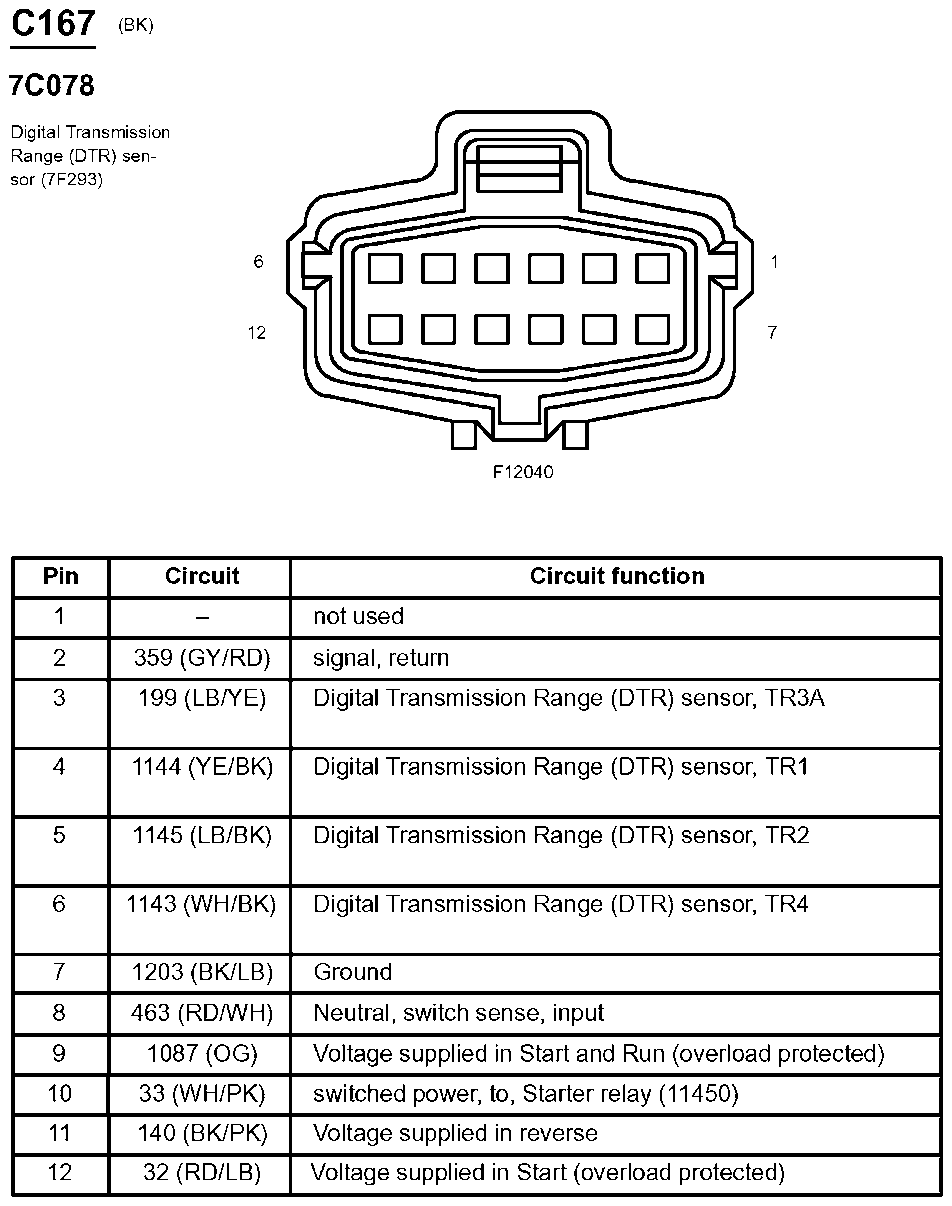

Fig 42: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07832873

Courtesy of FORD MOTOR CO.

Fig 43: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07832874

Courtesy of FORD MOTOR CO.

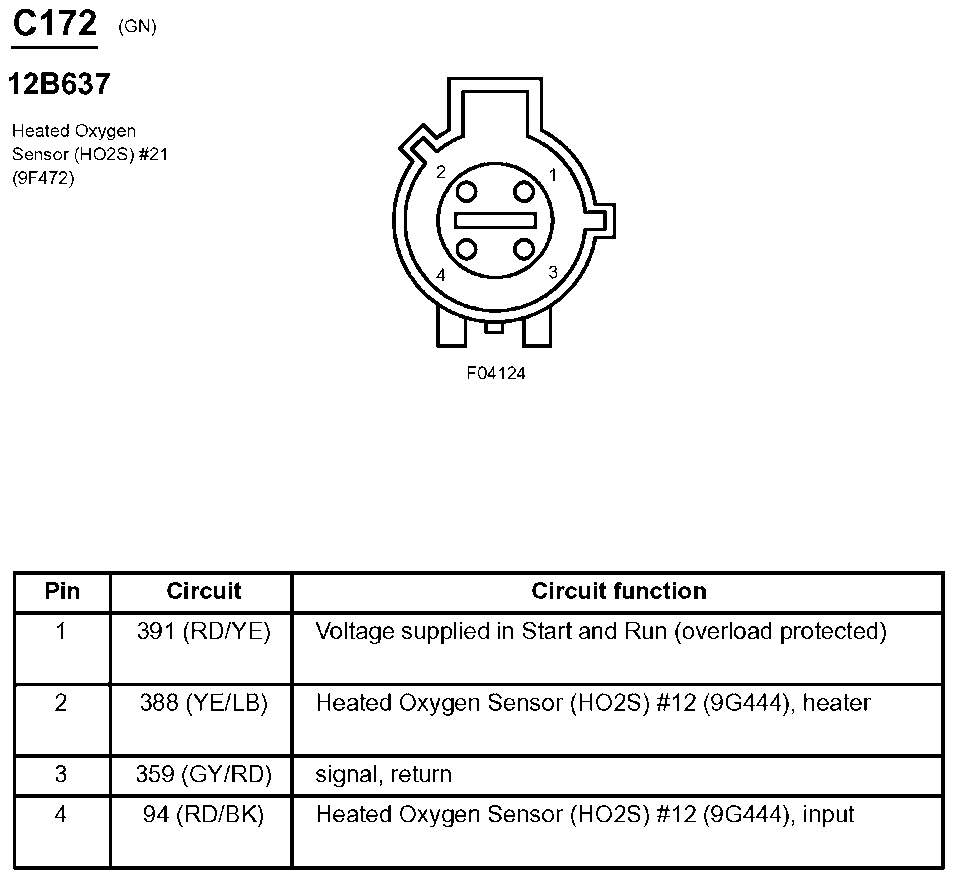

Fig 44: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07832875

Courtesy of FORD MOTOR CO.

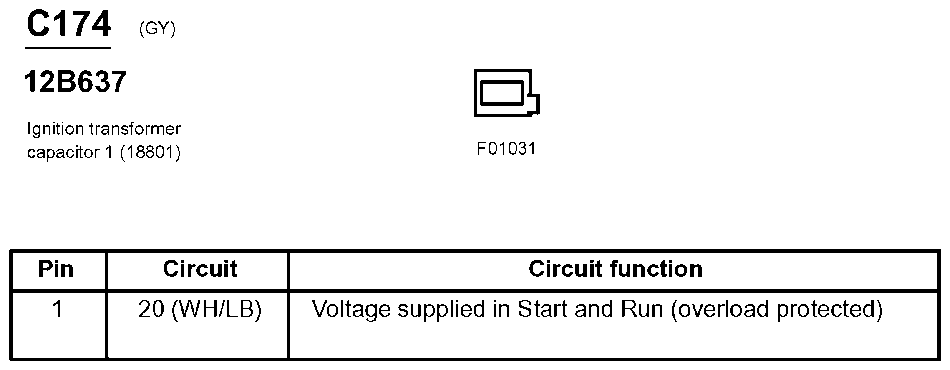

Fig 45: Ignition Transformer Capacitor 1 Connector End View (C174)

G07832876

Courtesy of FORD MOTOR CO.

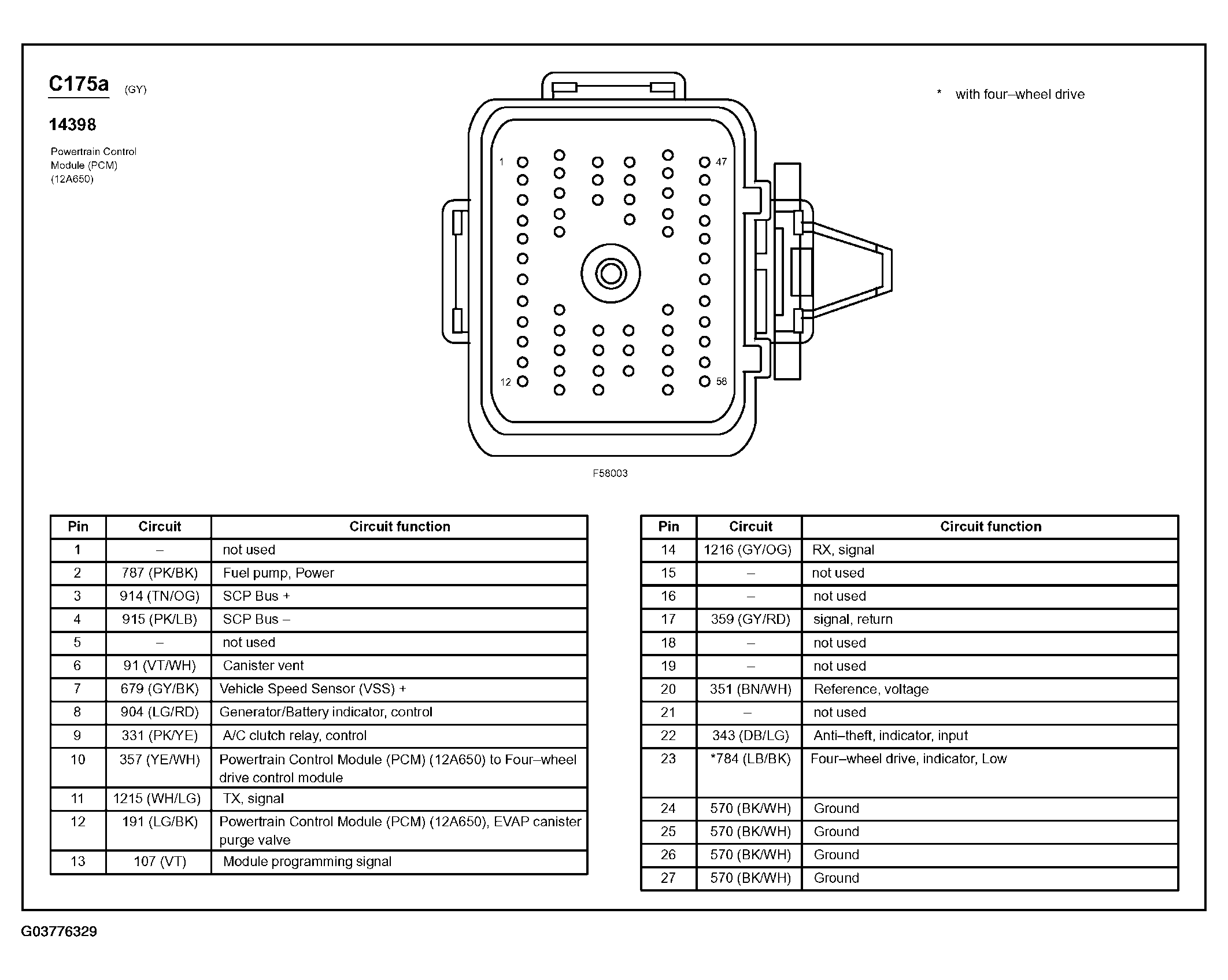

Fig 46: Powertrain Control Module (PCM) Connector End View C175a (1 Of 2)

G03776329

Courtesy of FORD MOTOR CO.

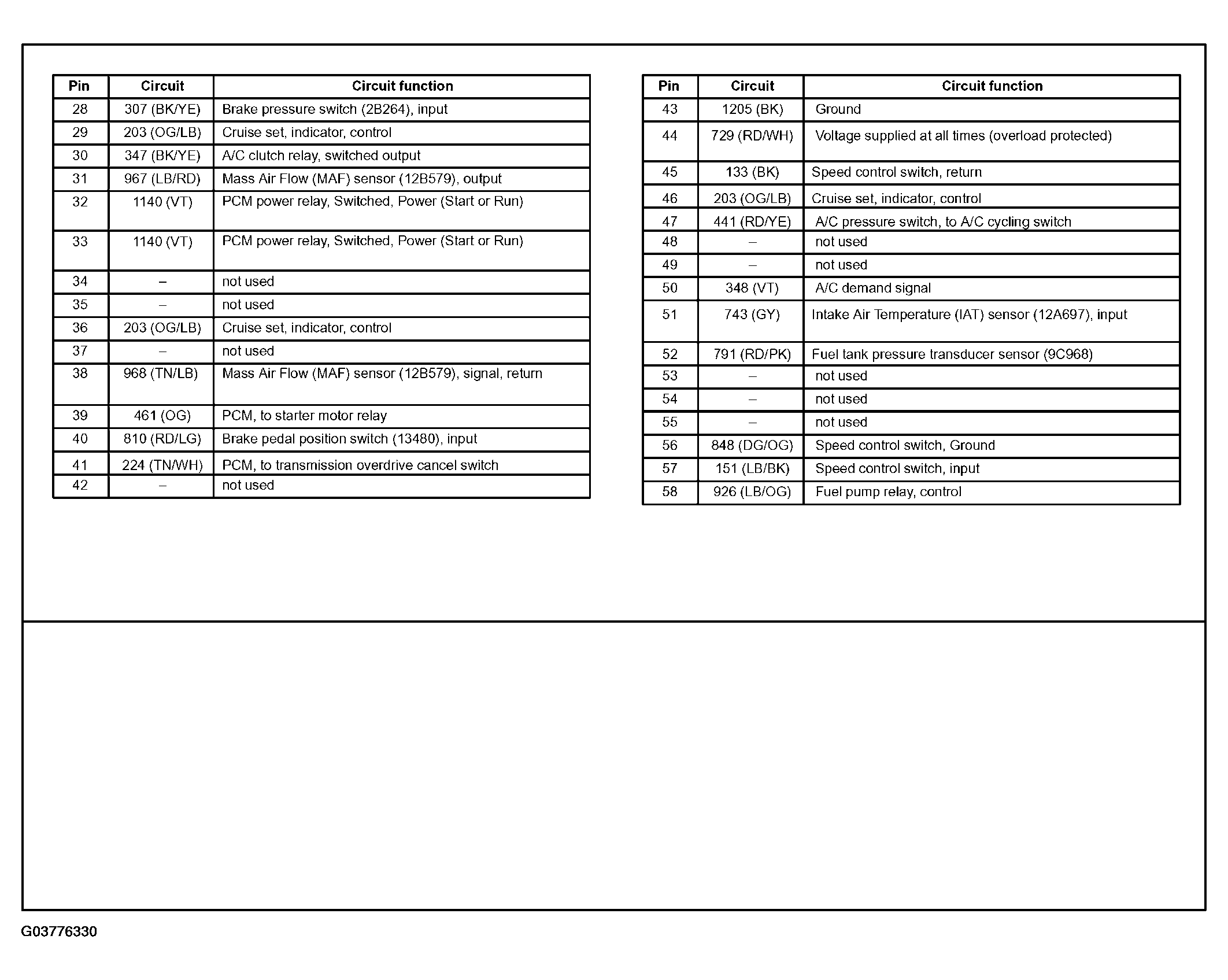

Fig 47: Powertrain Control Module (PCM) Connector End View C175a (2 Of 2)

G03776330

Courtesy of FORD MOTOR CO.

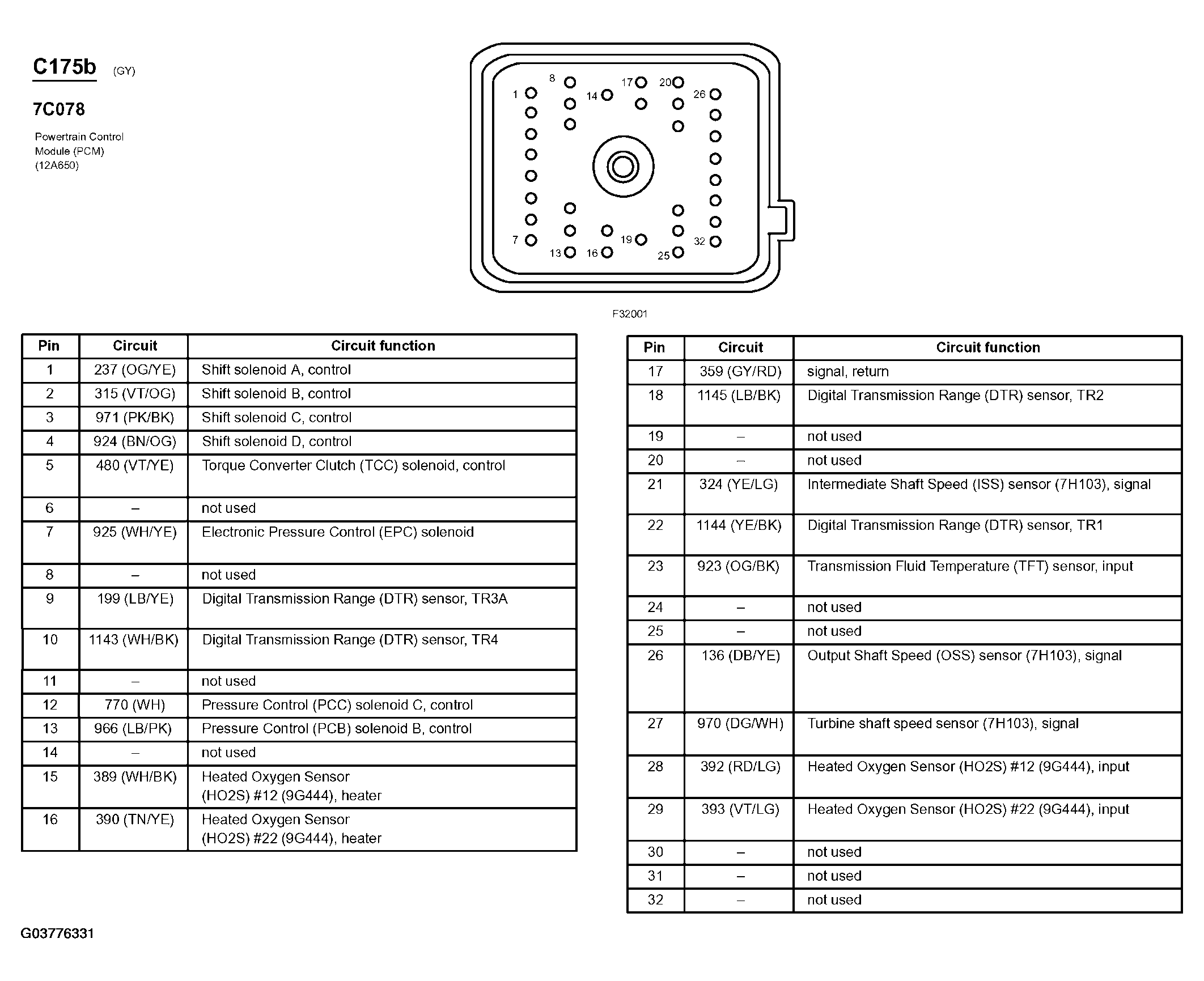

Fig 48: Powertrain Control Module (PCM) Connector End View (C175b)

G03776331

Courtesy of FORD MOTOR CO.

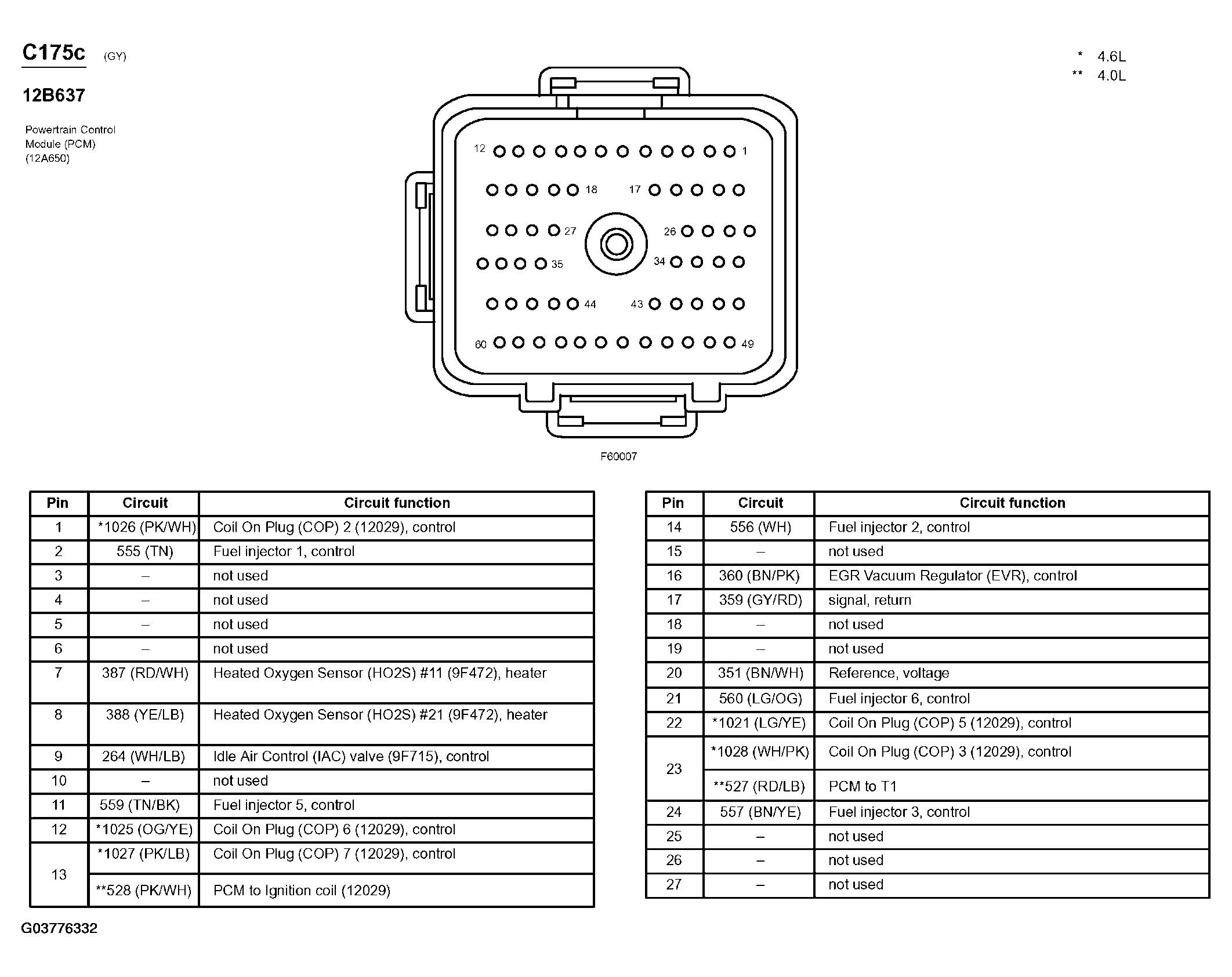

Fig 49: Powertrain Control Module (PCM) Connector End View (C175c) (1 Of 2)

G03776332

Courtesy of FORD MOTOR CO.

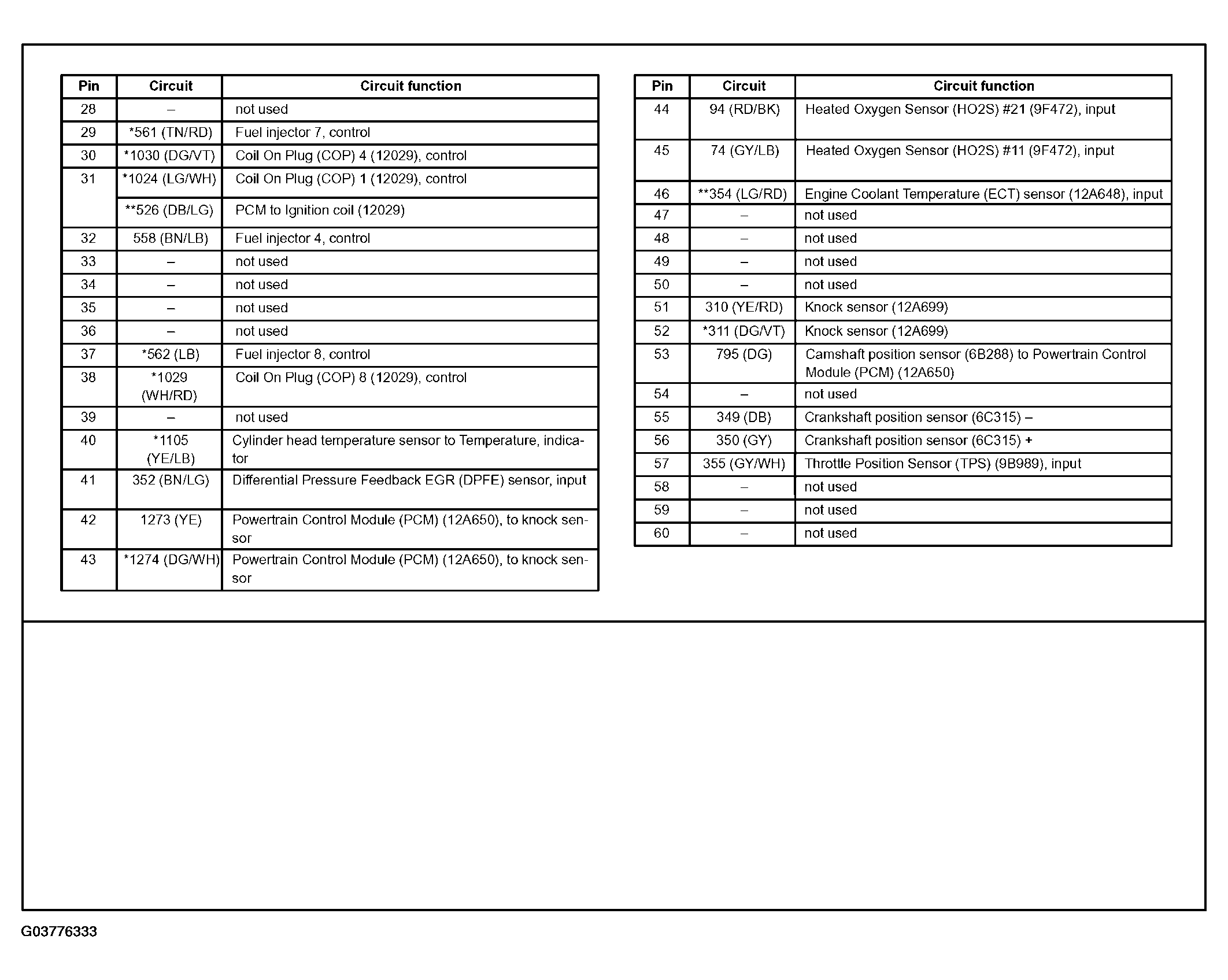

Fig 50: Powertrain Control Module (PCM) Connector End View (C175c) (2 Of 2)

G03776333

Courtesy of FORD MOTOR CO.

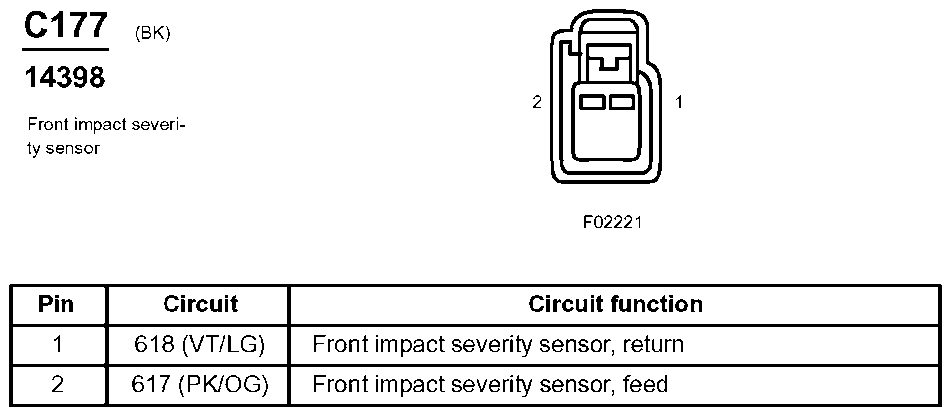

Fig 51: Front Impact Severity Sensor Connector End View (C177)

G07832877

Courtesy of FORD MOTOR CO.

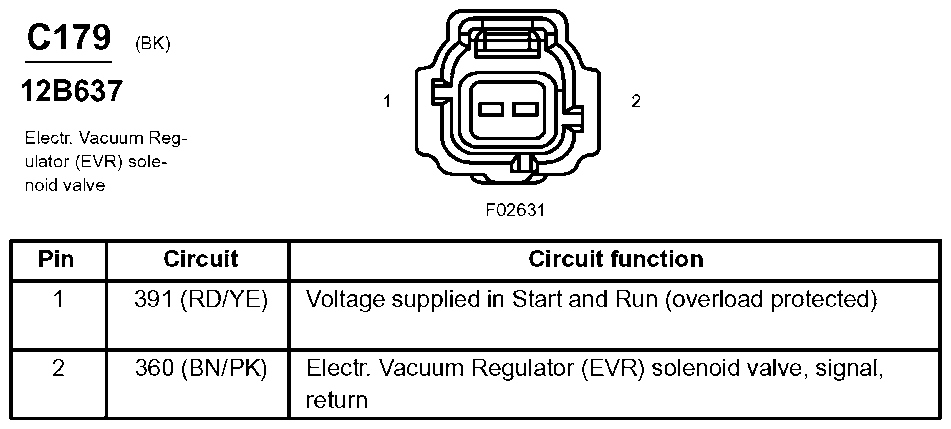

Fig 52: Electr. Vacuum Regulator (EVR) Solenoid Valve Connector End View (C179)

G07832878

Courtesy of FORD MOTOR CO.

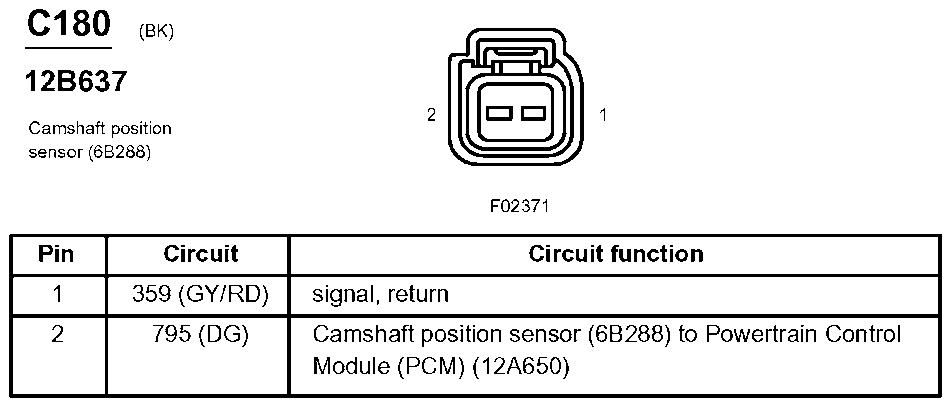

Fig 53: Camshaft Position Sensor Connector End View (C180)

G07832879

Courtesy of FORD MOTOR CO.

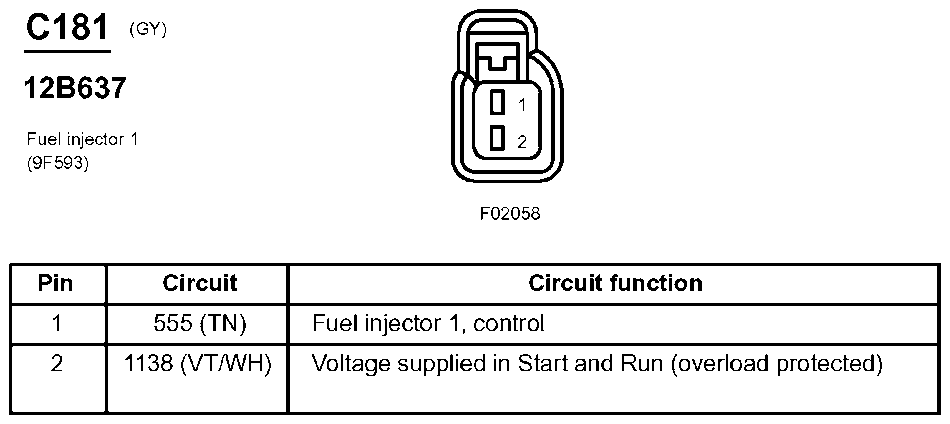

Fig 54: Fuel Injector 1 Connector End View (C181)

G07832880

Courtesy of FORD MOTOR CO.

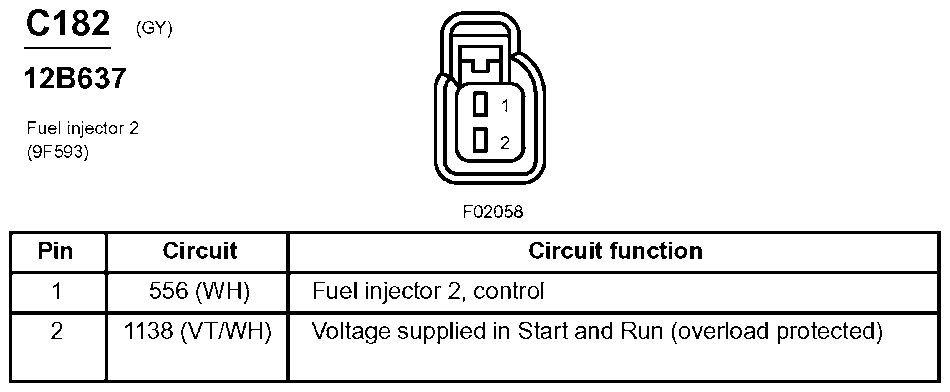

Fig 55: Fuel Injector 2 Connector End View (C182)

G07832881

Courtesy of FORD MOTOR CO.

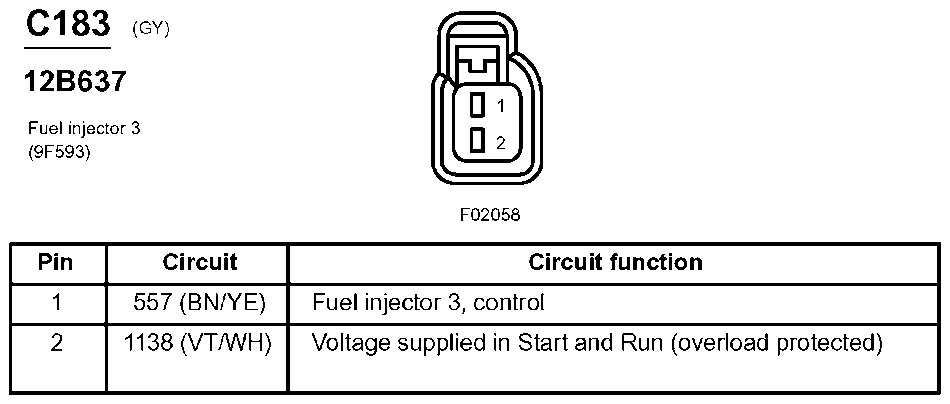

Fig 56: Fuel Injector 3 Connector End View (C183)

G07832882

Courtesy of FORD MOTOR CO.

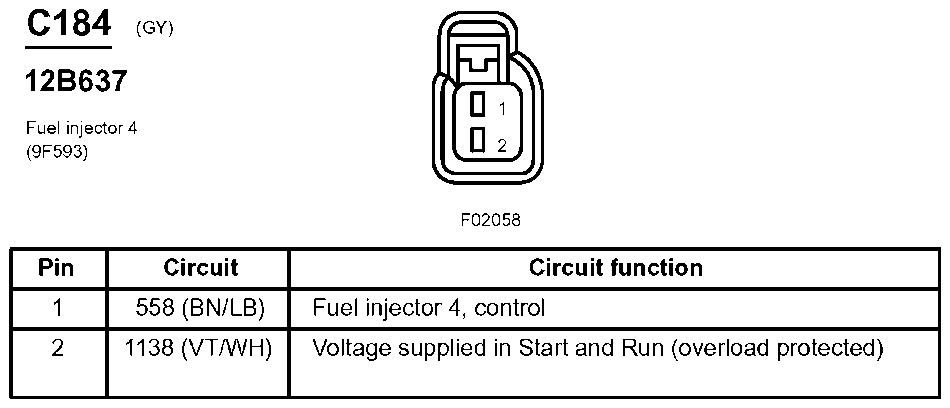

Fig 57: Fuel Injector 4 Connector End View (C184)

G07832883

Courtesy of FORD MOTOR CO.

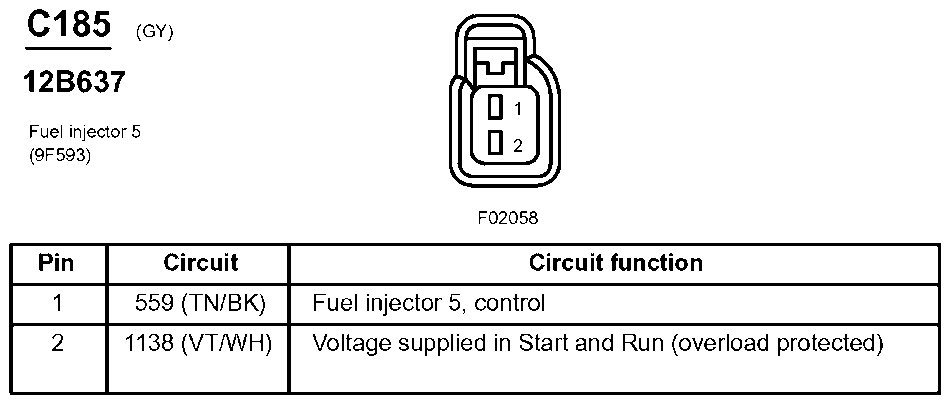

Fig 58: Fuel Injector 5 Connector End View (C185)

G07832884

Courtesy of FORD MOTOR CO.

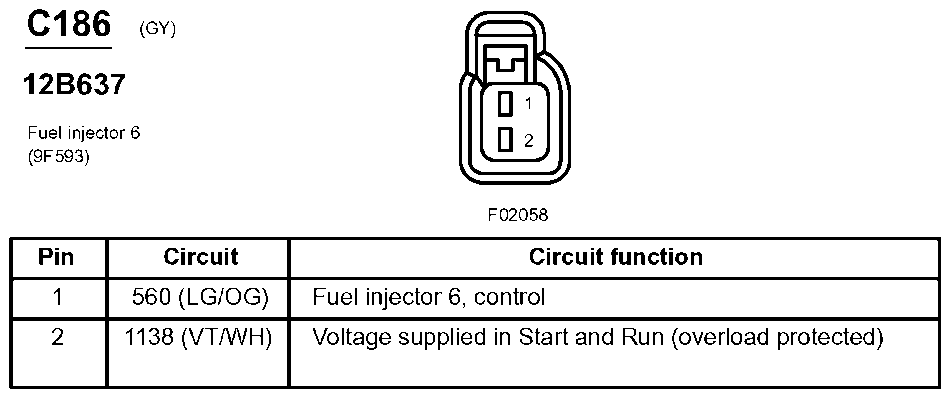

Fig 59: Fuel Injector 6 Connector End View (C186)

G07832885

Courtesy of FORD MOTOR CO.

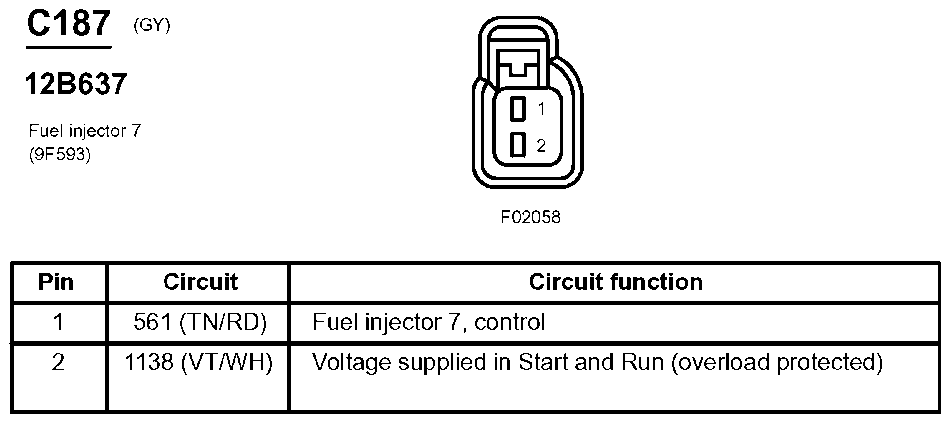

Fig 60: Fuel Injector 7 Connector End View (C187)

G07832886

Courtesy of FORD MOTOR CO.

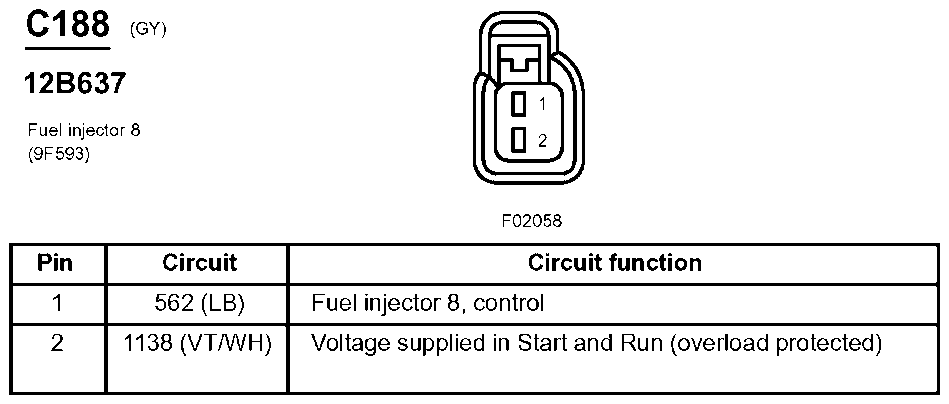

Fig 61: Fuel Injector 8 Connector End View (C188)

G07832887

Courtesy of FORD MOTOR CO.

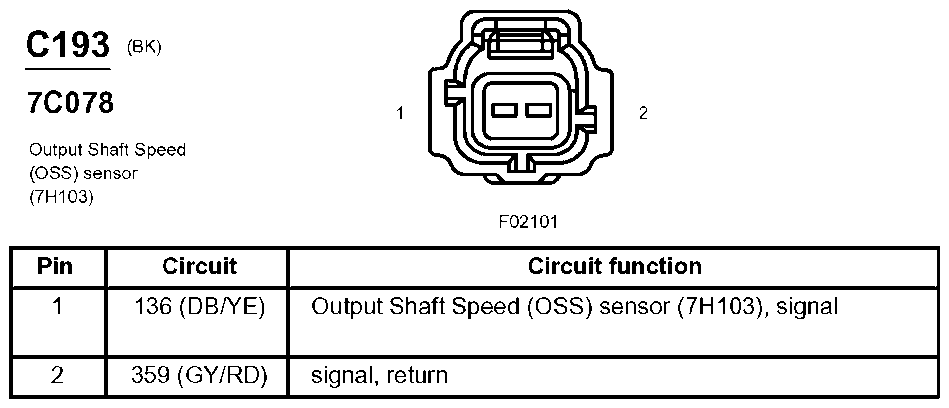

Fig 62: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07832888

Courtesy of FORD MOTOR CO.

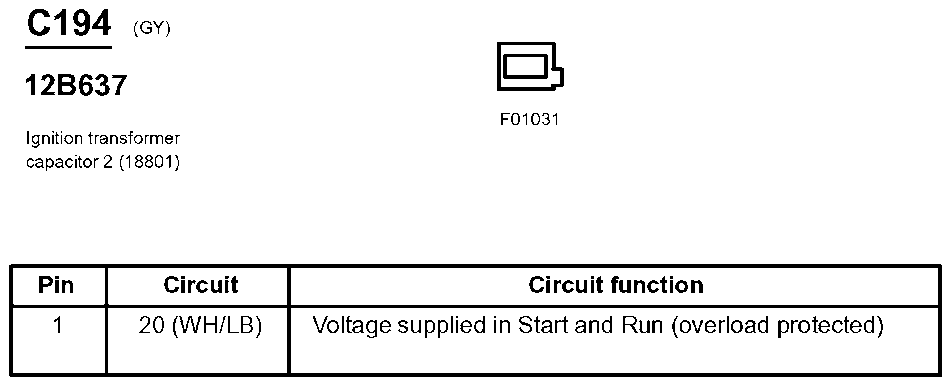

Fig 63: Ignition Transformer Capacitor 2 Connector End View (C194)

G07832889

Courtesy of FORD MOTOR CO.

Fig 64: Starter Motor Connector End View (C197a)

G07832890

Courtesy of FORD MOTOR CO.

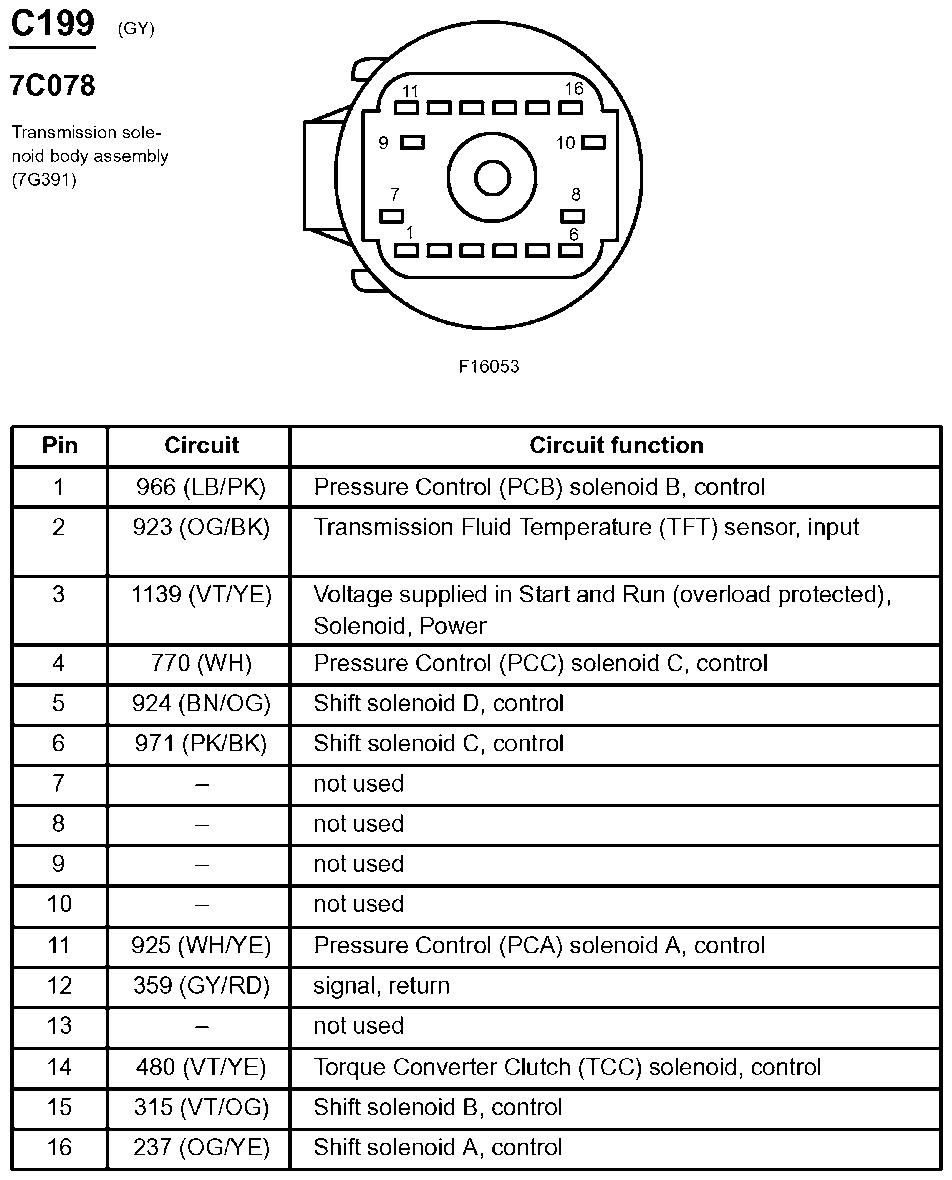

Fig 65: Transmission Solenoid Body Assembly Connector End View (C199)

G07832891

Courtesy of FORD MOTOR CO.

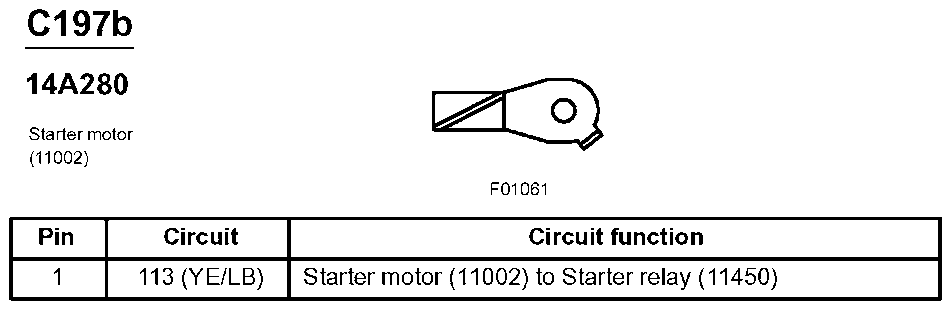

Fig 66: Starter Motor Connector End View (C197b)

G07832892

Courtesy of FORD MOTOR CO.

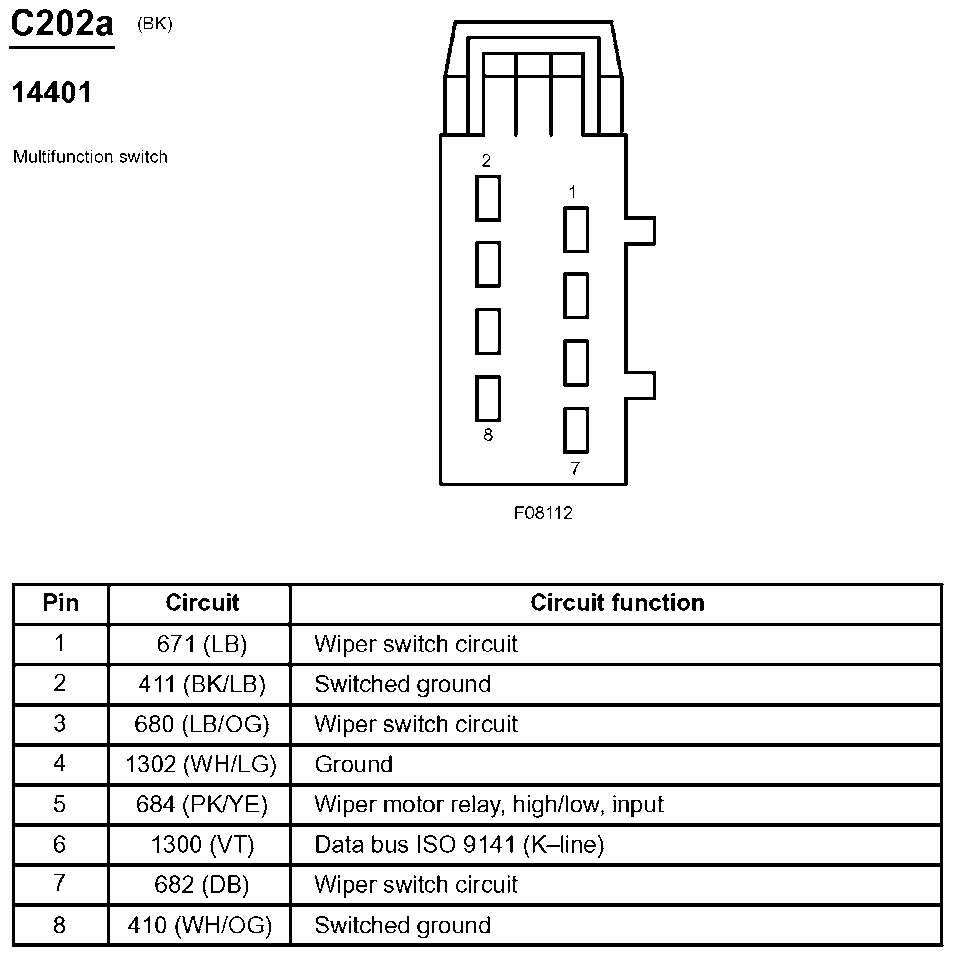

Fig 67: Multifunction Switch Connector End View (C202a)

G07832893

Courtesy of FORD MOTOR CO.

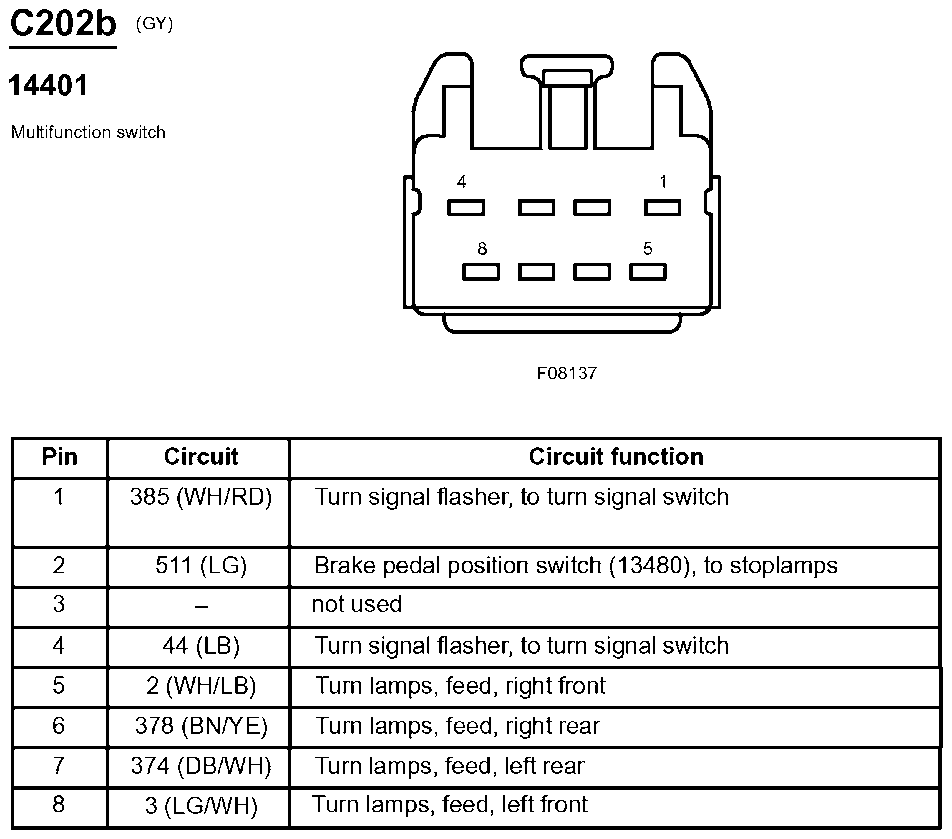

Fig 68: Multifunction Switch Connector End View (C202b)

G07832894

Courtesy of FORD MOTOR CO.

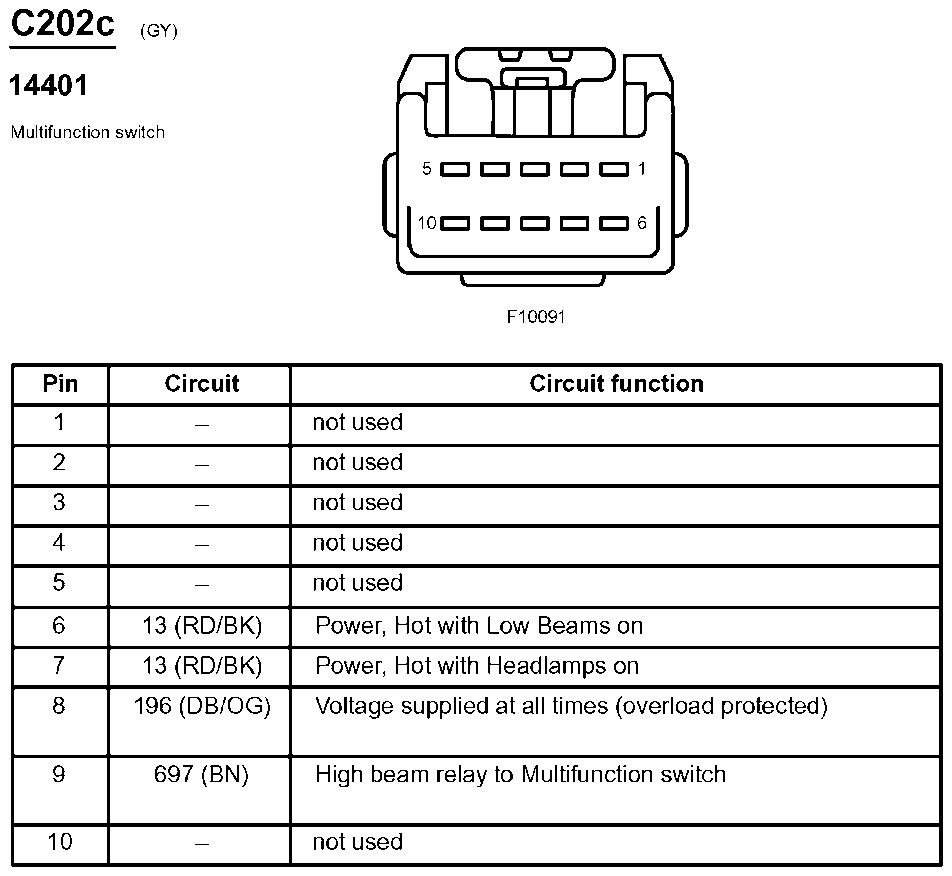

Fig 69: Multifunction Switch Connector End View (C202c)

G07832895

Courtesy of FORD MOTOR CO.

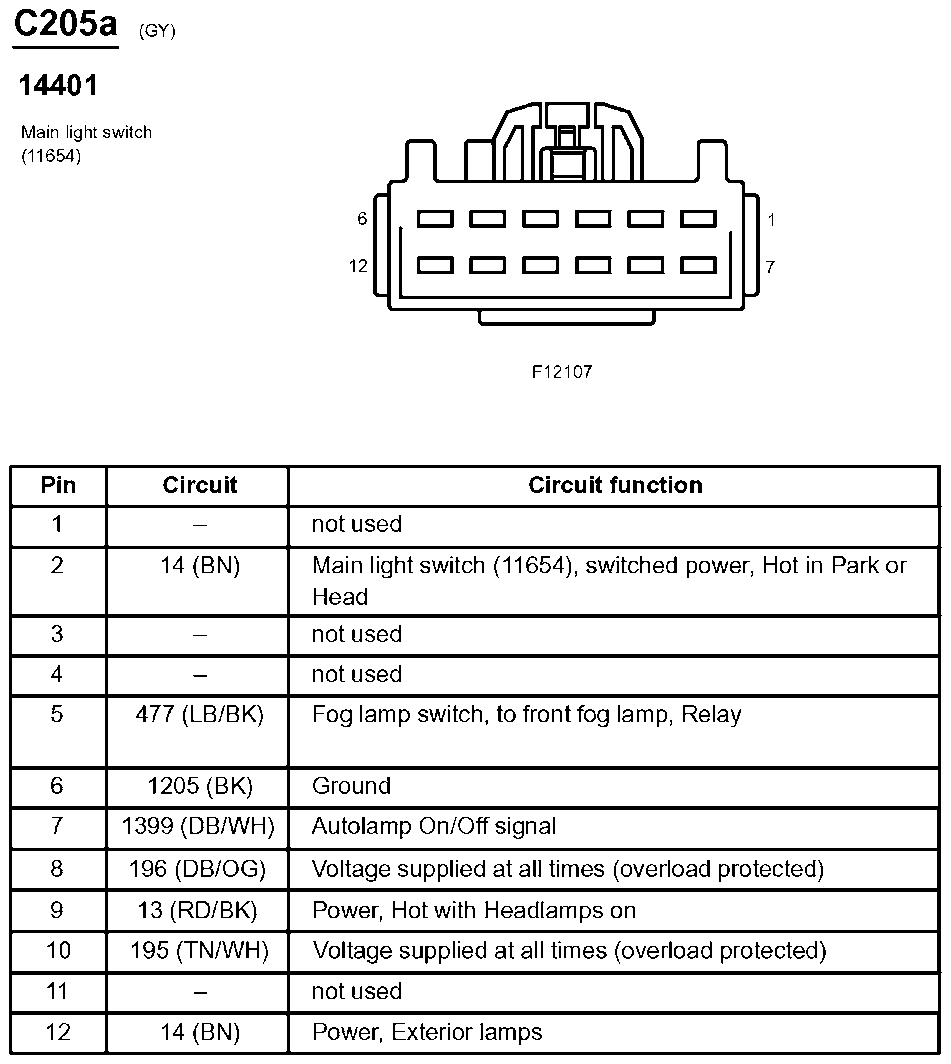

Fig 70: Main Light Switch Connector End View (C205a)

G07832896

Courtesy of FORD MOTOR CO.

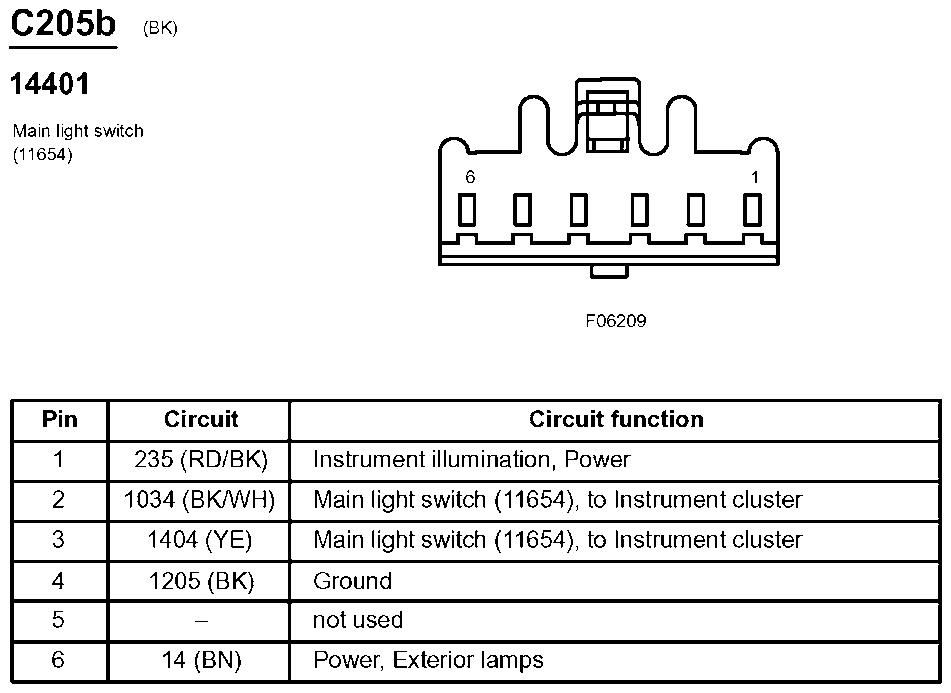

Fig 71: Main Light Switch Connector End View (C205b)

G07832897

Courtesy of FORD MOTOR CO.

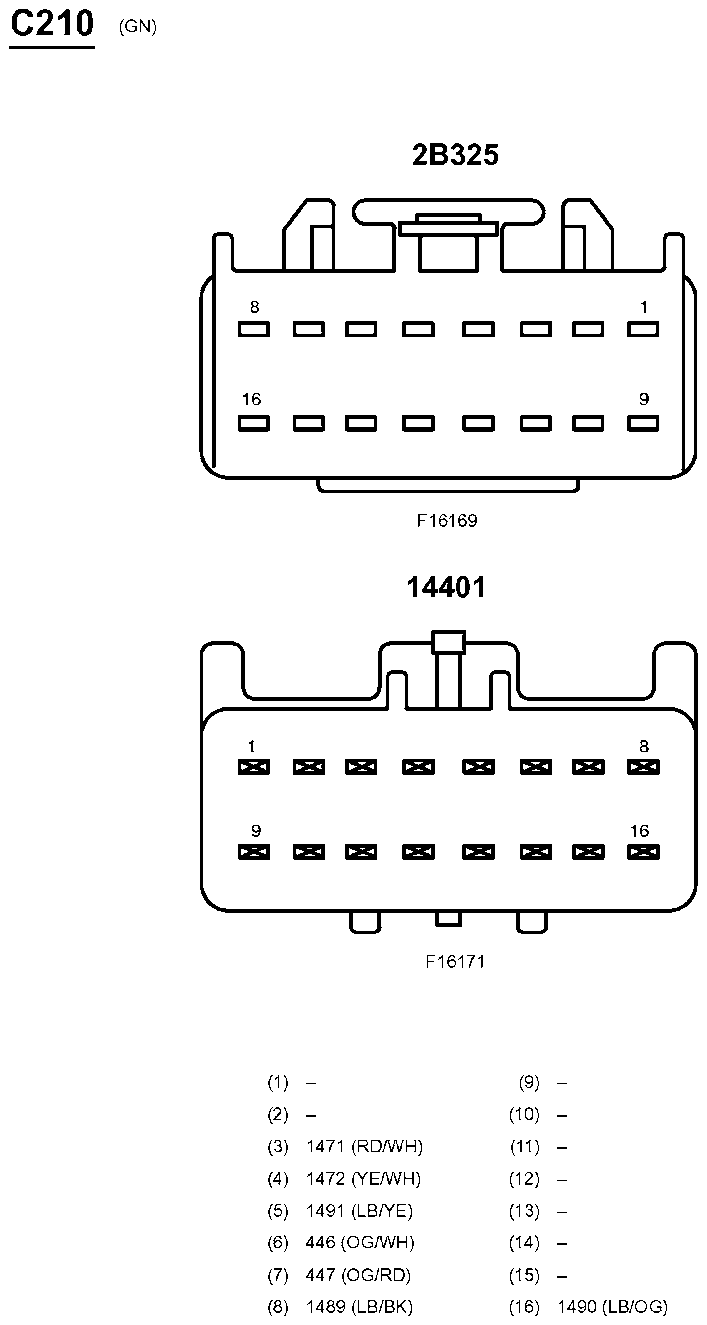

Fig 72: Inline Connector End View (C210)

G07832898

Courtesy of FORD MOTOR CO.

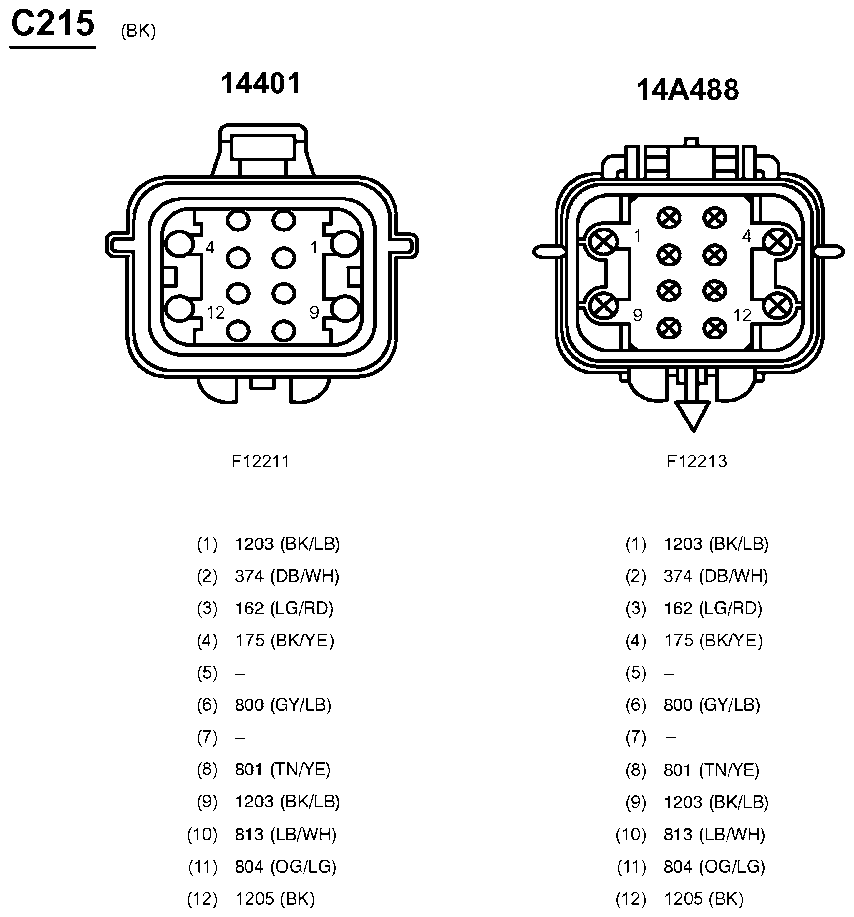

Fig 73: Inline Connector End View (C215)

G07832899

Courtesy of FORD MOTOR CO.

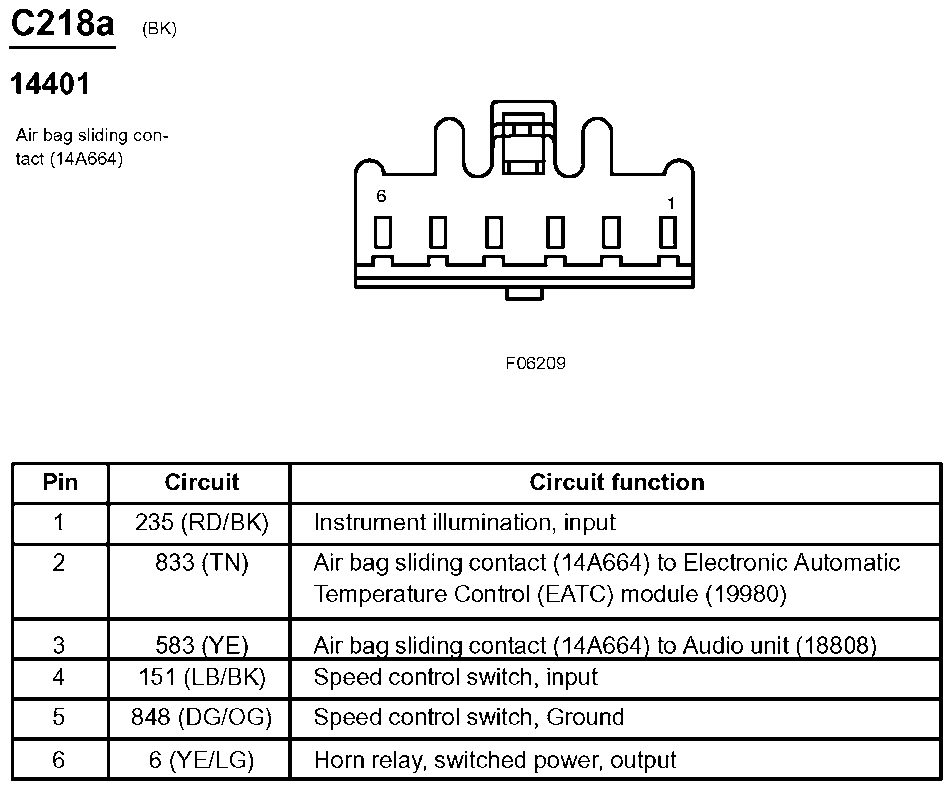

Fig 74: Air Bag Sliding Contact Connector End View (C218a)

G07832900

Courtesy of FORD MOTOR CO.

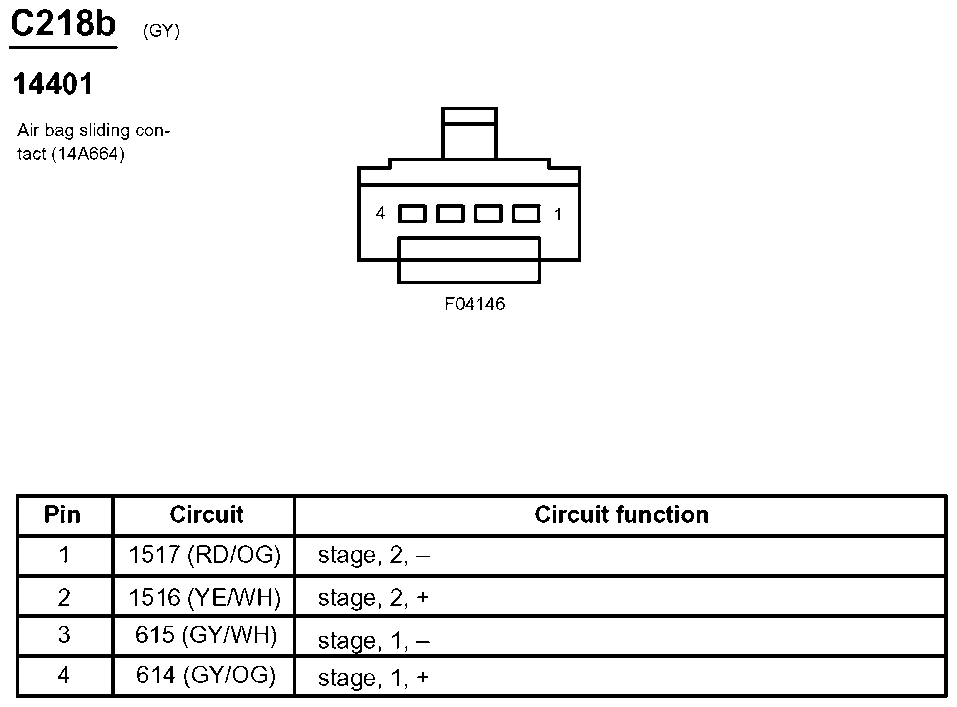

Fig 75: Air Bag Sliding Contact Connector End View (C218b)

G07832901

Courtesy of FORD MOTOR CO.

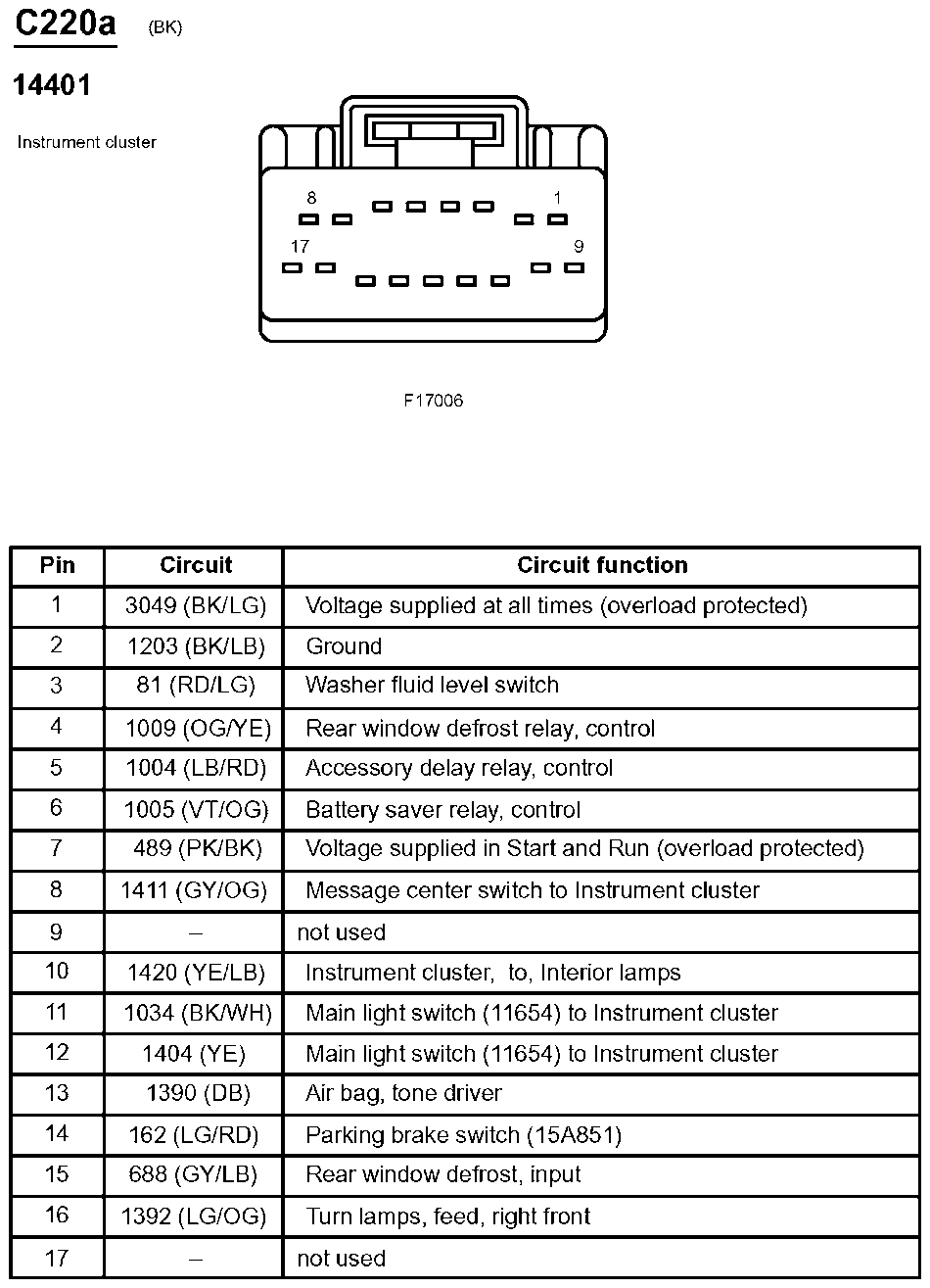

Fig 76: Instrument Cluster Connector End View (C220a)

G07832902

Courtesy of FORD MOTOR CO.

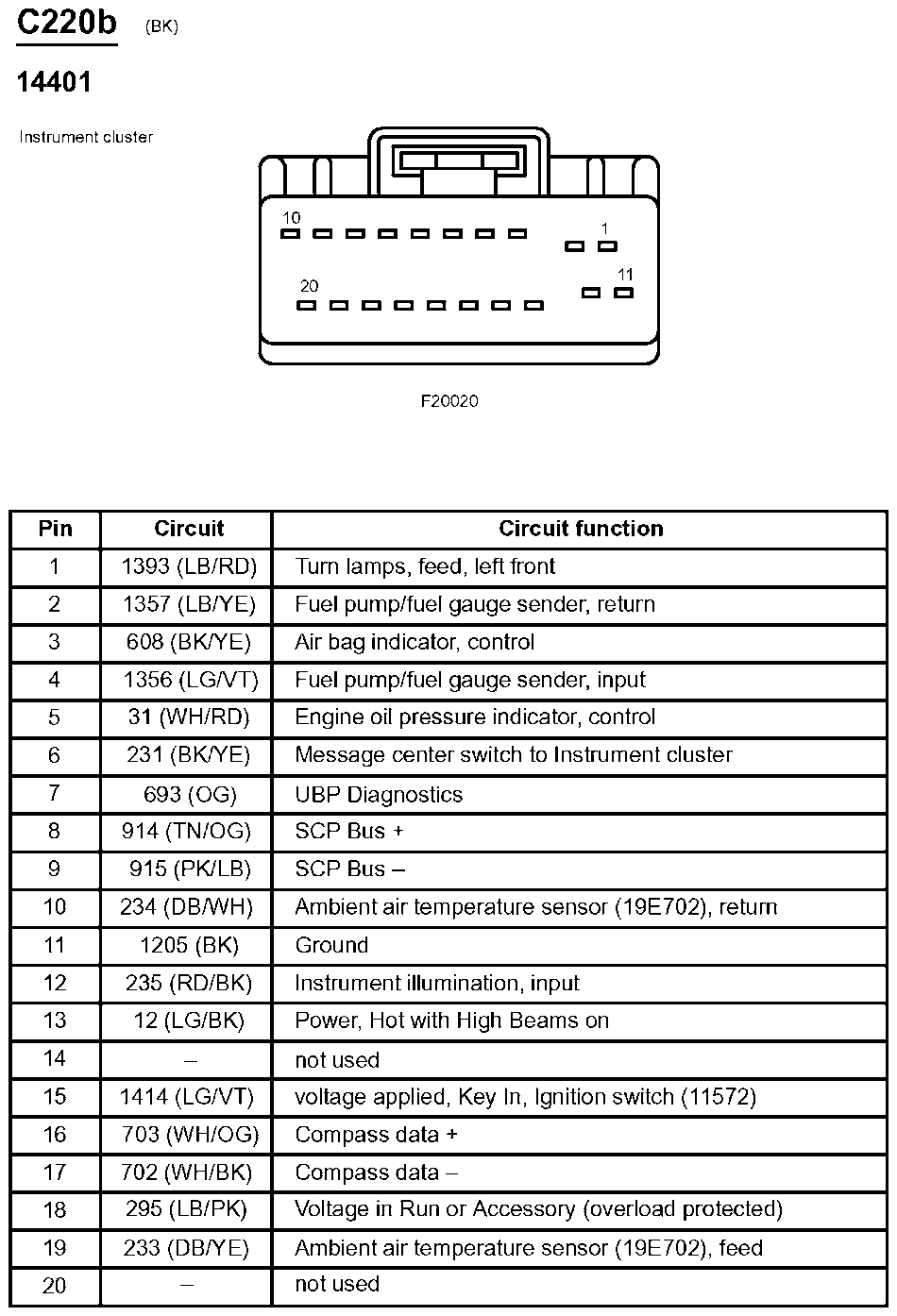

Fig 77: Instrument Cluster Connector End View (C220b)

G07832903

Courtesy of FORD MOTOR CO.

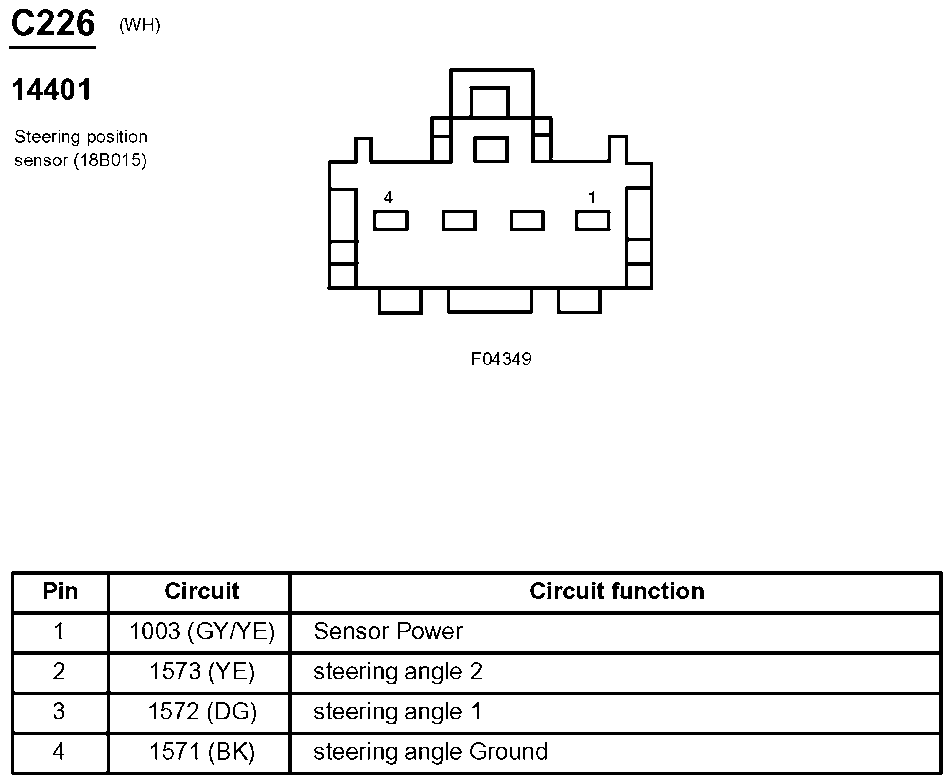

Fig 78: Steering Position Sensor Connector End View (C226)

G07832904

Courtesy of FORD MOTOR CO.

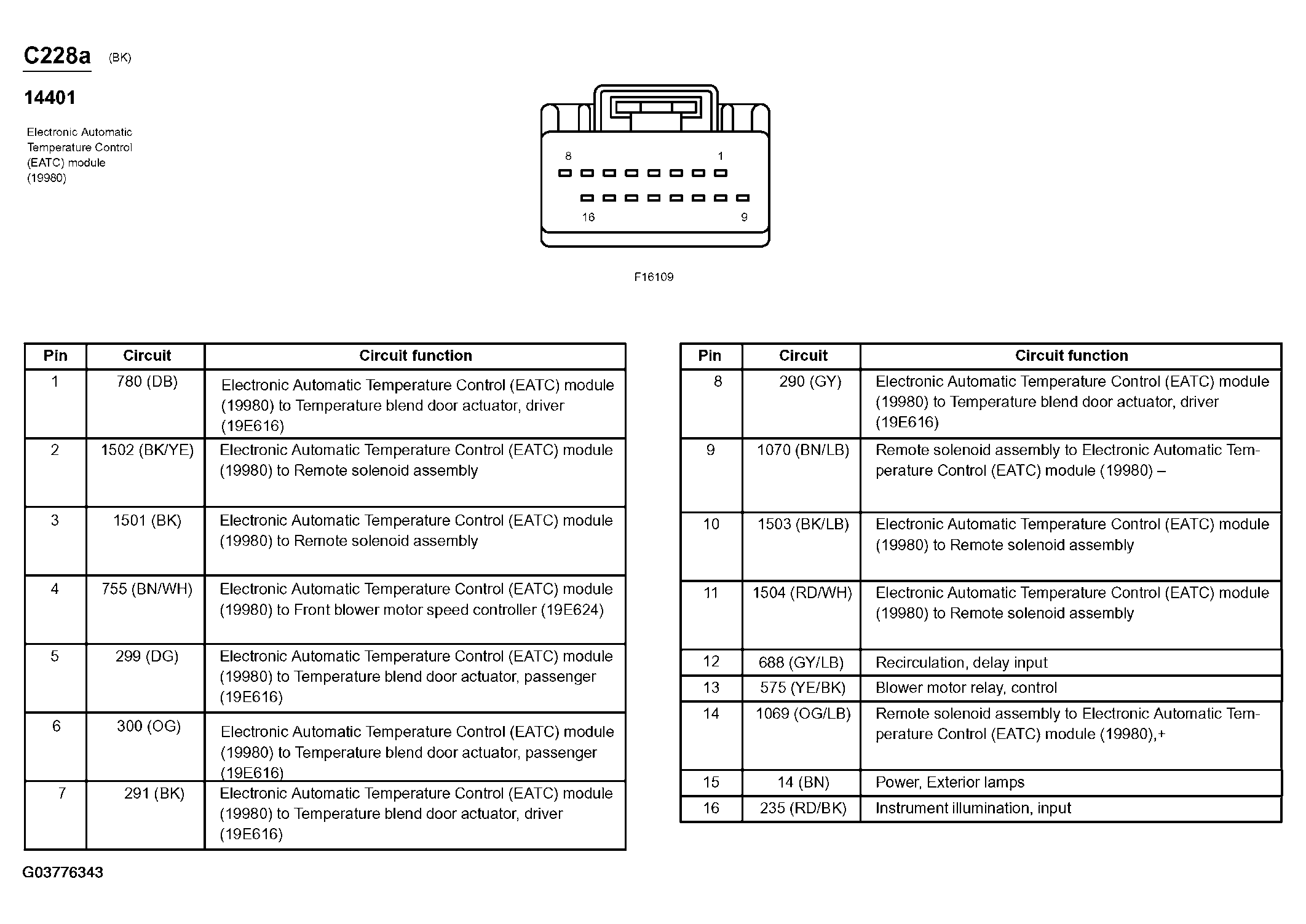

Fig 79: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G03776343

Courtesy of FORD MOTOR CO.

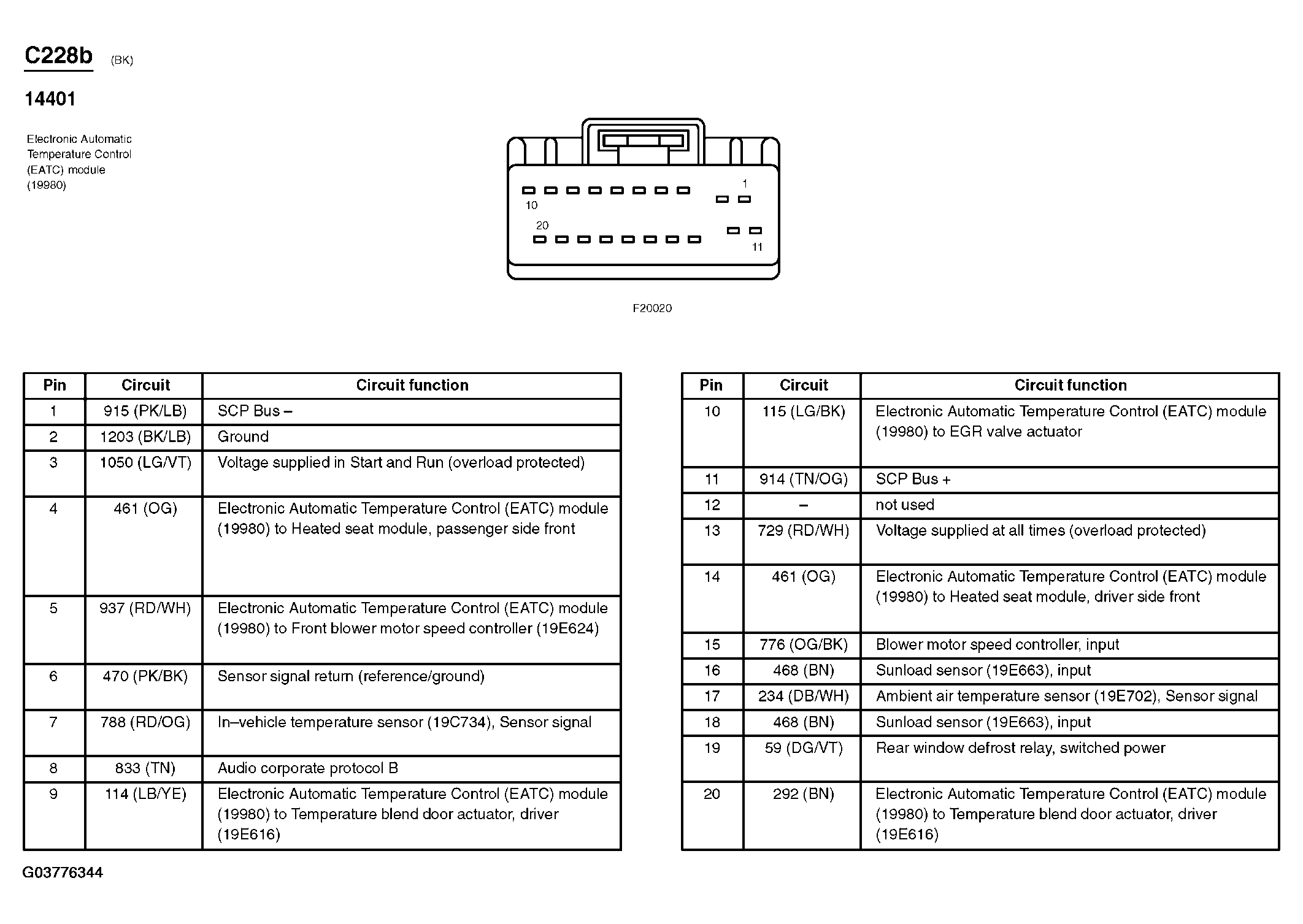

Fig 80: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G03776344

Courtesy of FORD MOTOR CO.

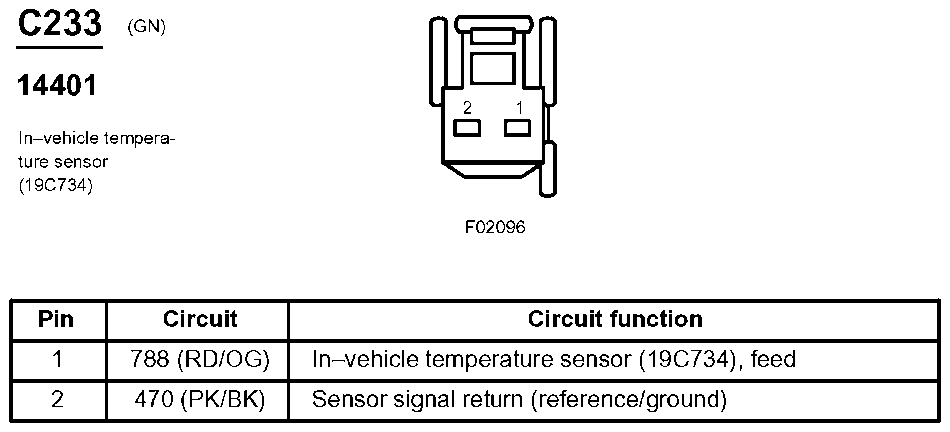

Fig 81: In-Vehicle Temperature Sensor Connector End View (C233)

G07832905

Courtesy of FORD MOTOR CO.

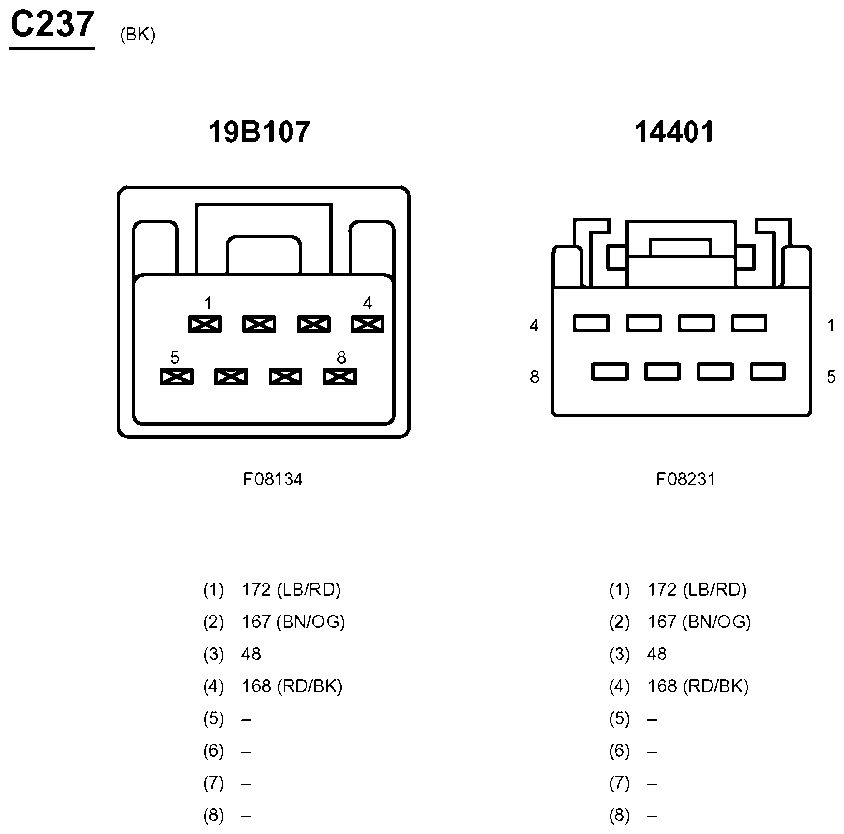

Fig 82: Inline Connector End View (C237)

G07832906

Courtesy of FORD MOTOR CO.

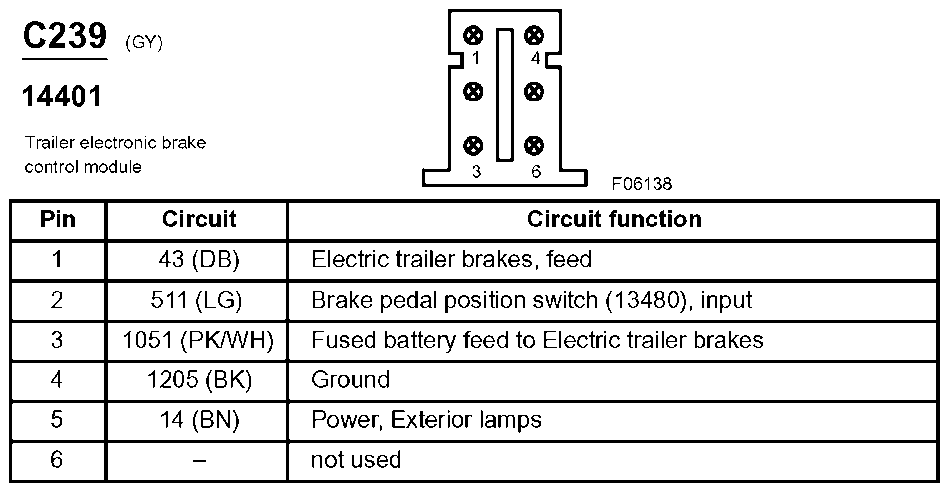

Fig 83: Trailer Electronic Brake Control Module Connector End View (C239)

G07832907

Courtesy of FORD MOTOR CO.

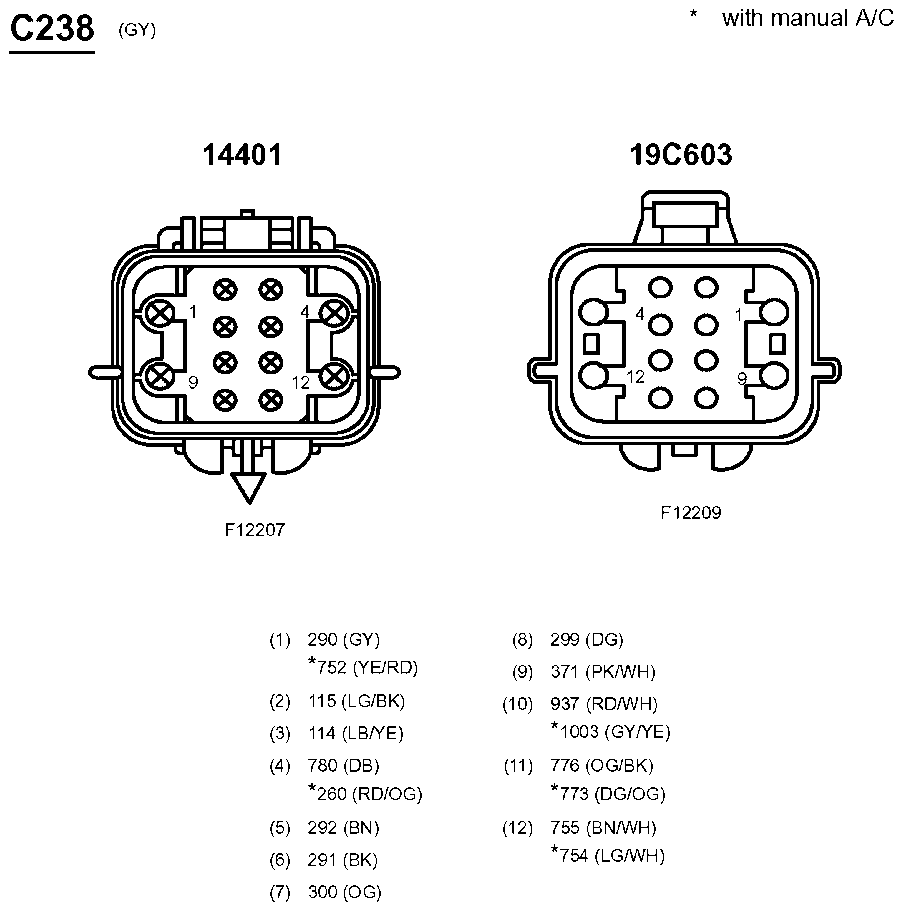

Fig 84: Inline Connector End View (C238)

G07832908

Courtesy of FORD MOTOR CO.

Fig 85: Audio Unit Connector End View (C240a)

G03776346

Courtesy of FORD MOTOR CO.

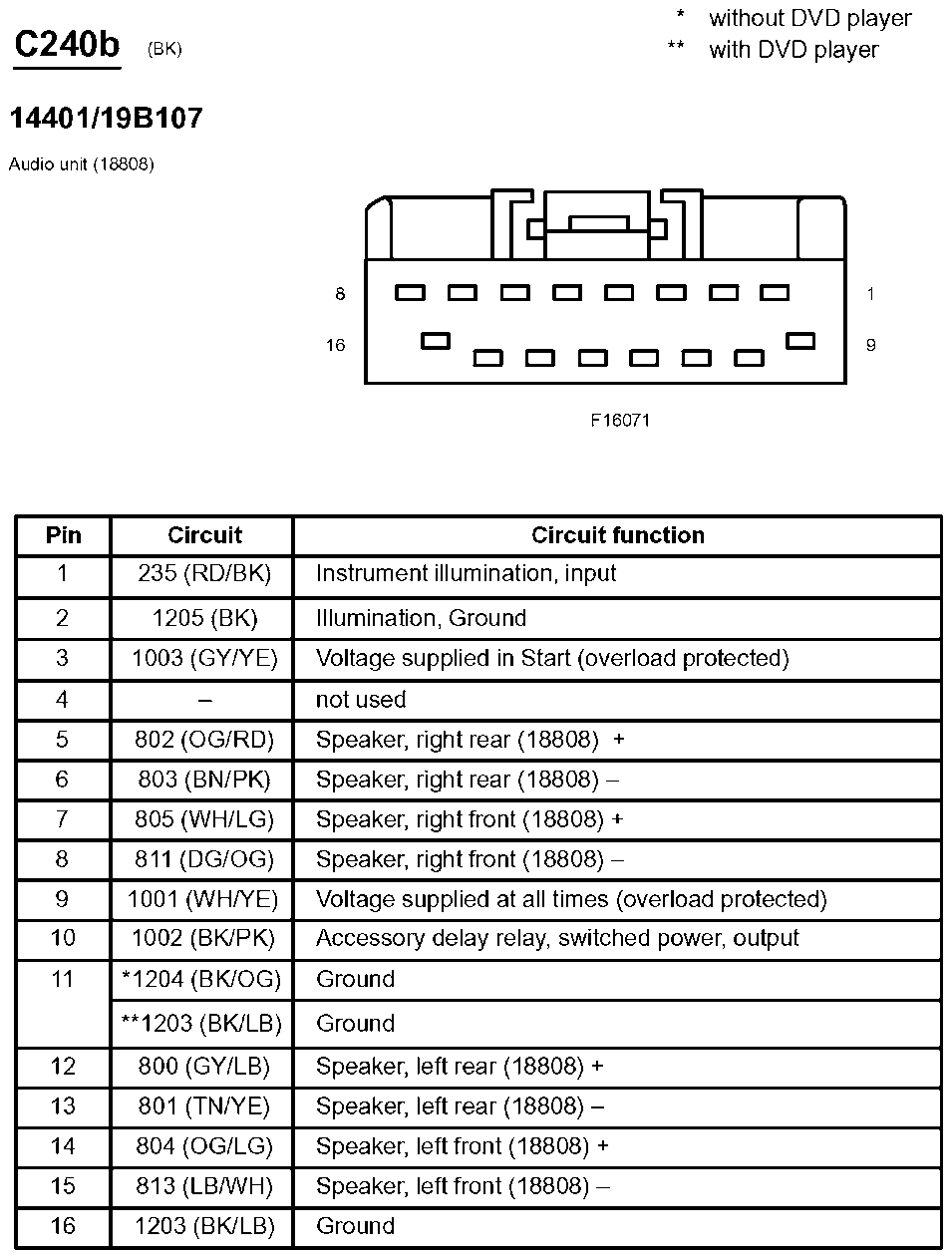

Fig 86: Audio Unit Connector End View (C240b)

G07832909

Courtesy of FORD MOTOR CO.

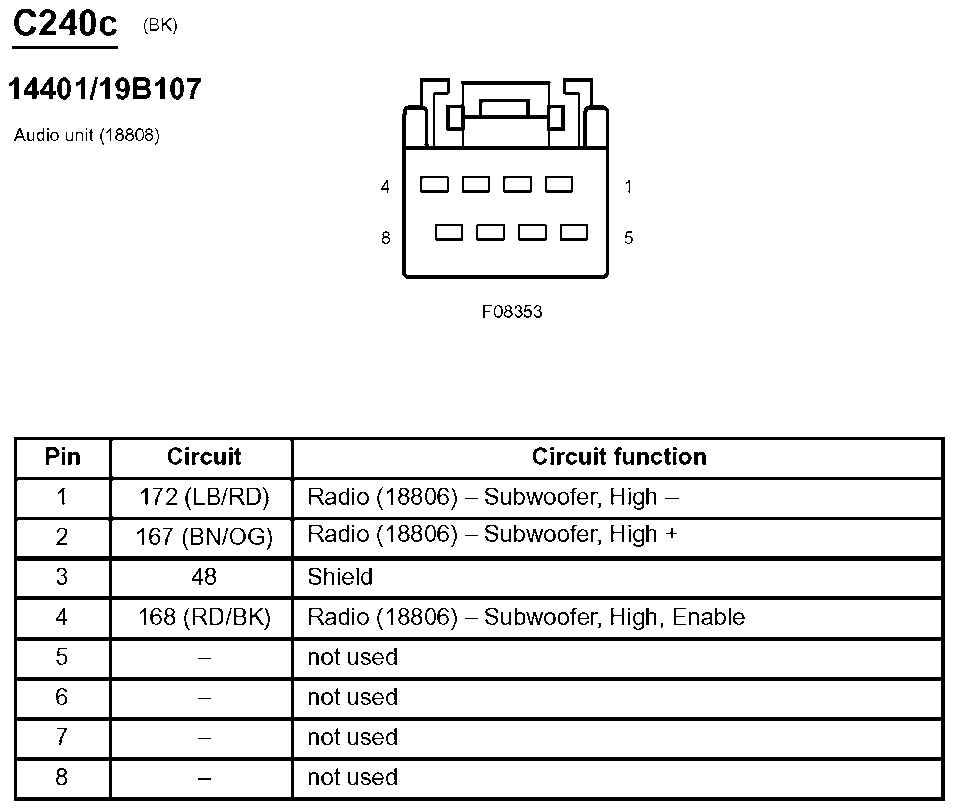

Fig 87: Audio Unit Connector End View (C240c)

G07832910

Courtesy of FORD MOTOR CO.

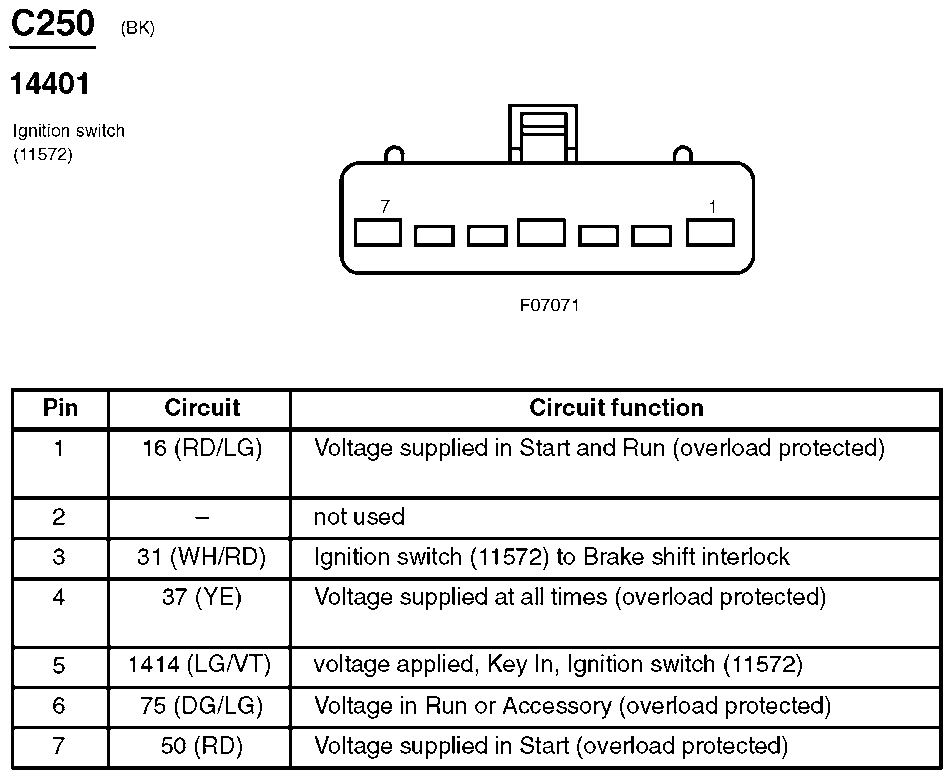

Fig 88: Ignition Switch Connector End View (C250)

G07832911

Courtesy of FORD MOTOR CO.

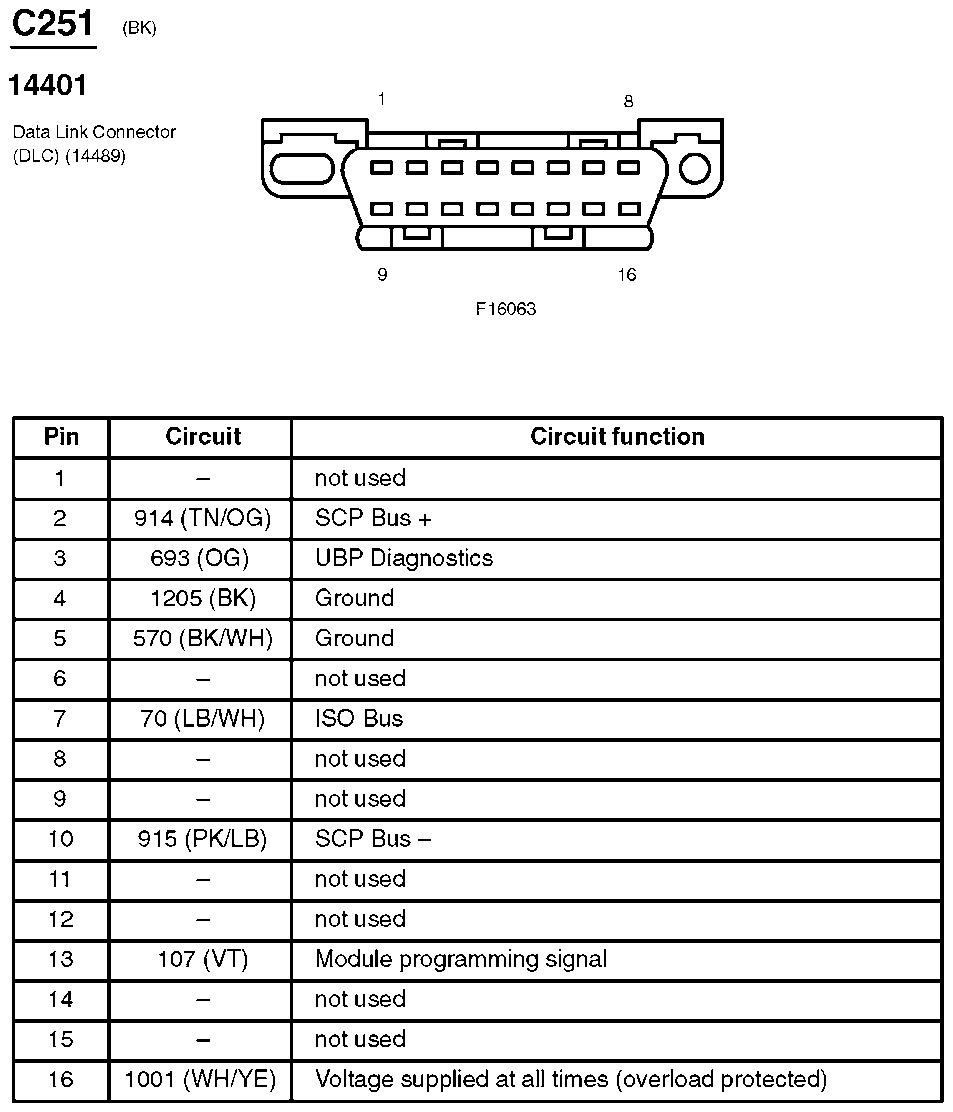

Fig 89: Data Link Connector (DLC) Connector End View (C251)

G07832912

Courtesy of FORD MOTOR CO.

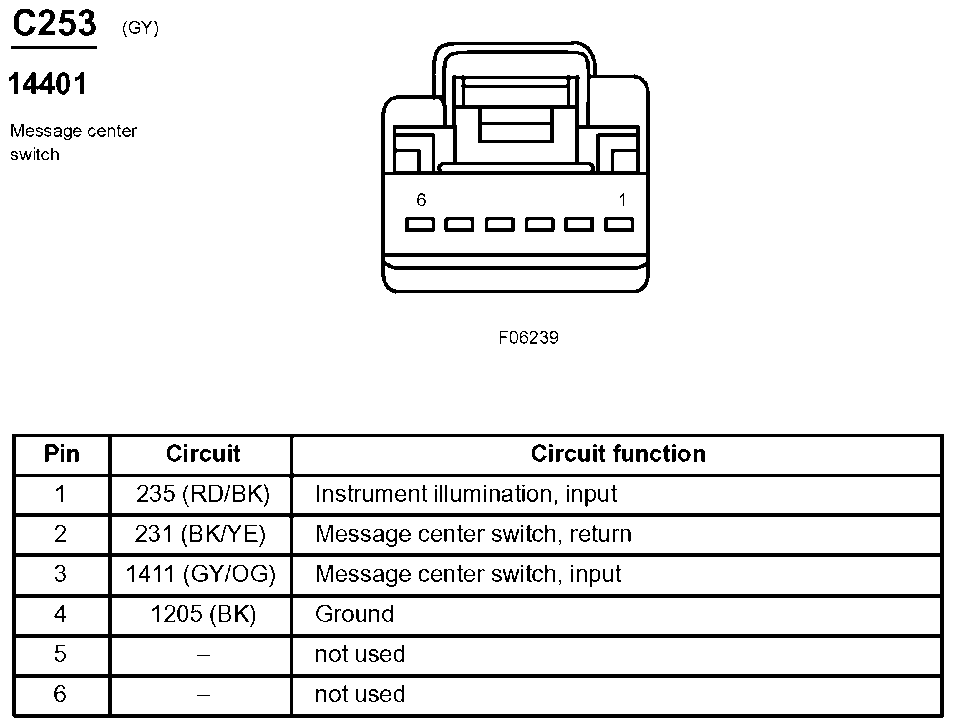

Fig 90: Message Center Switch Connector End View (C253)

G07832913

Courtesy of FORD MOTOR CO.

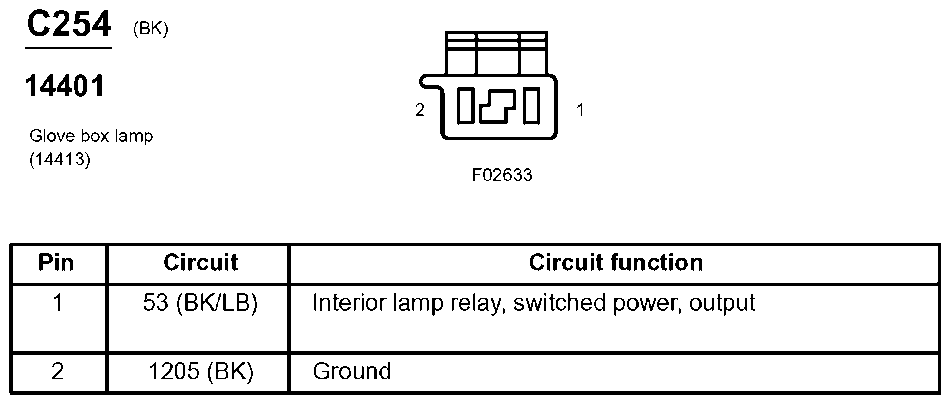

Fig 91: Glove Box Lamp Connector End View (C254)

G07832914

Courtesy of FORD MOTOR CO.

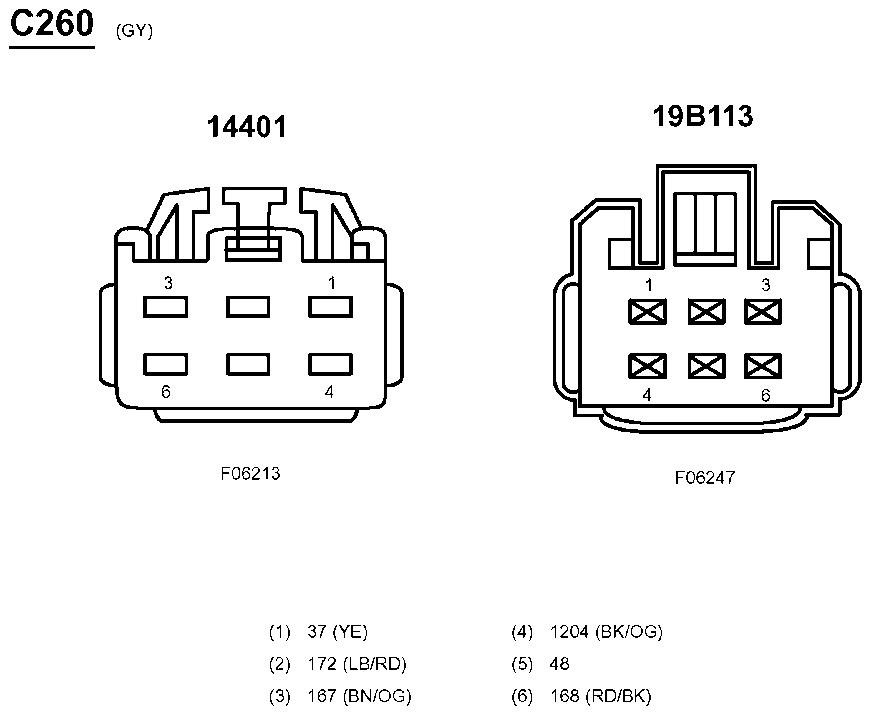

Fig 92: Inline Connector End View (C260)

G07832915

Courtesy of FORD MOTOR CO.

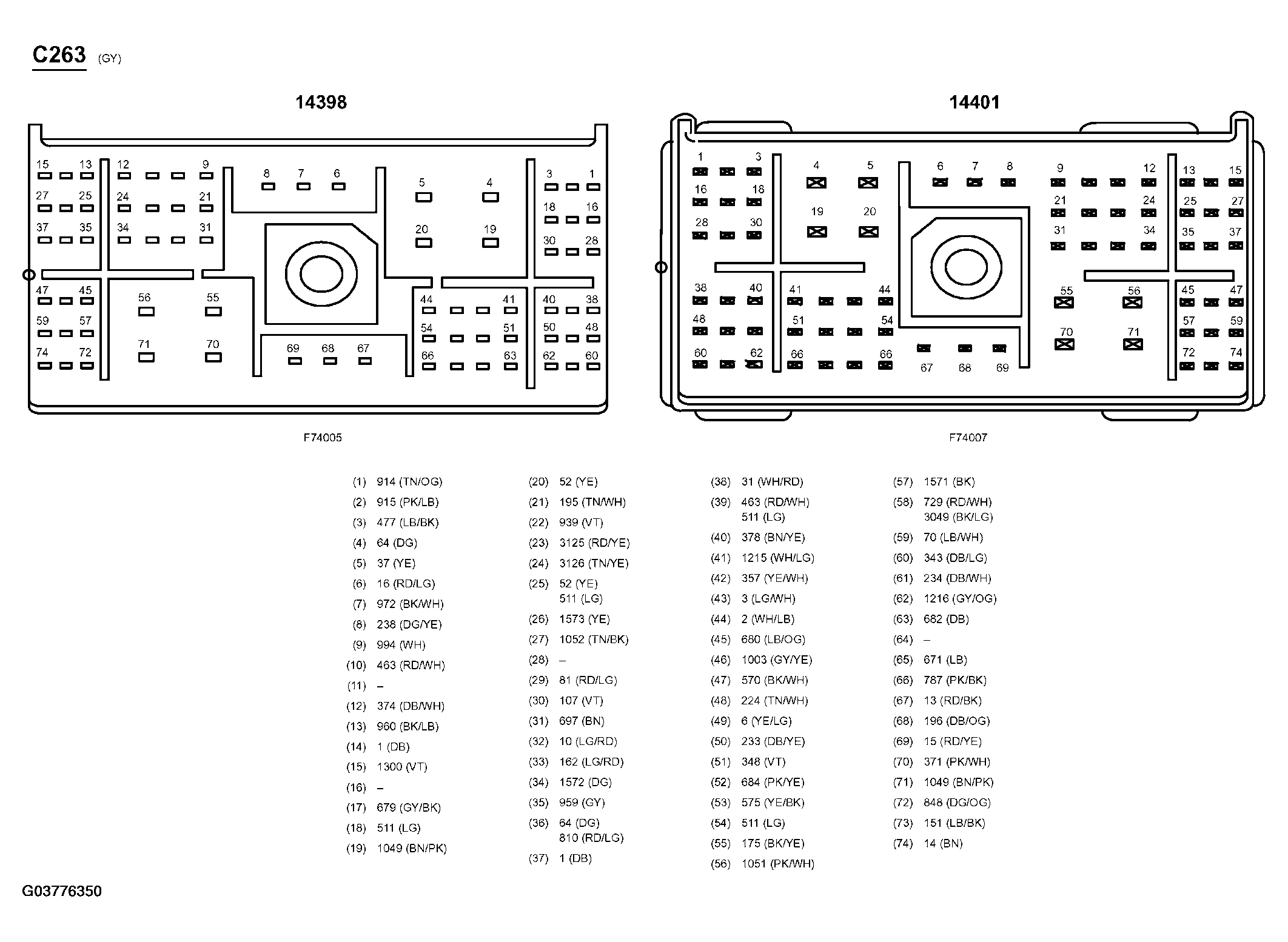

Fig 93: Inline Connector End View (C263)

G03776350

Courtesy of FORD MOTOR CO.

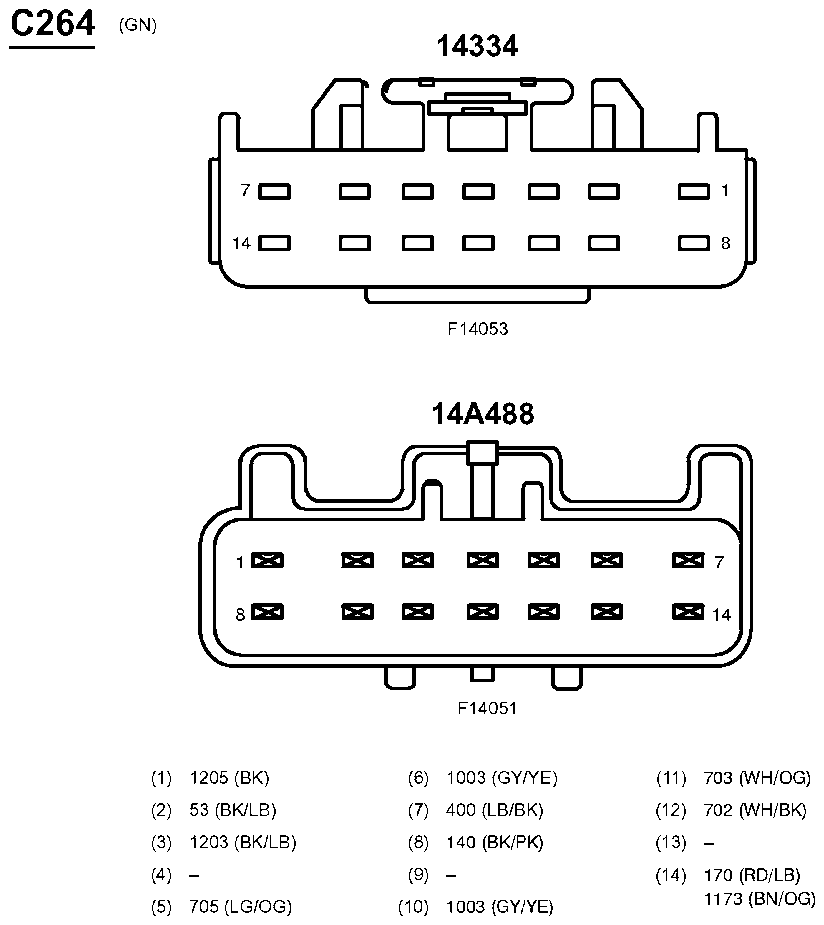

Fig 94: Inline Connector End View (C264)

G07832916

Courtesy of FORD MOTOR CO.

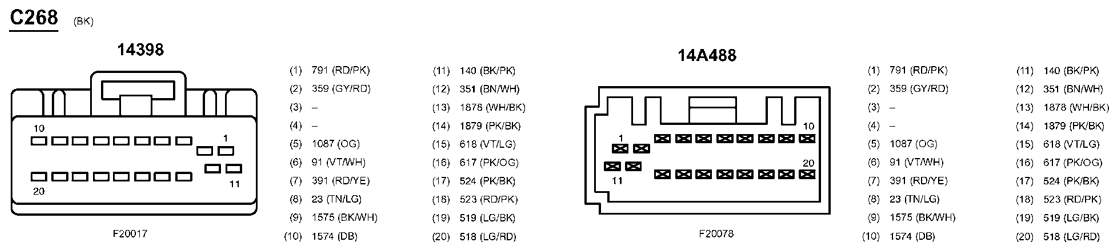

Fig 95: Inline Connector End View (C268)

G07832917

Courtesy of FORD MOTOR CO.

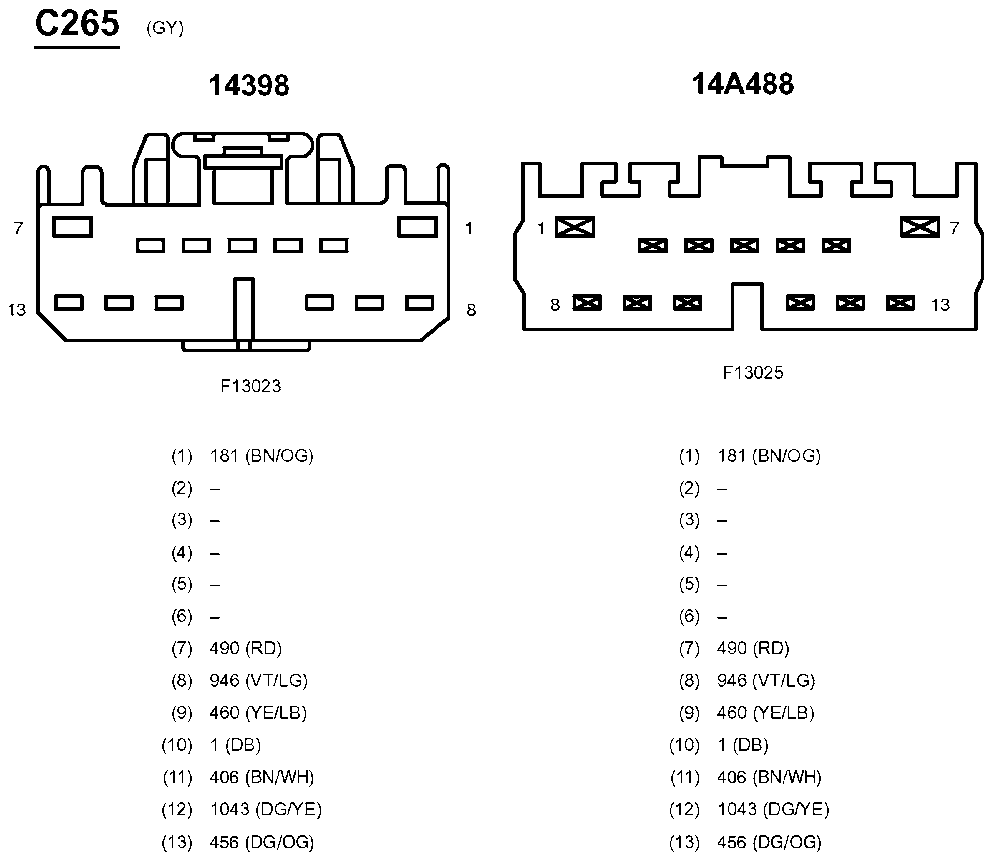

Fig 96: Inline Connector End View (C265)

G07832918

Courtesy of FORD MOTOR CO.

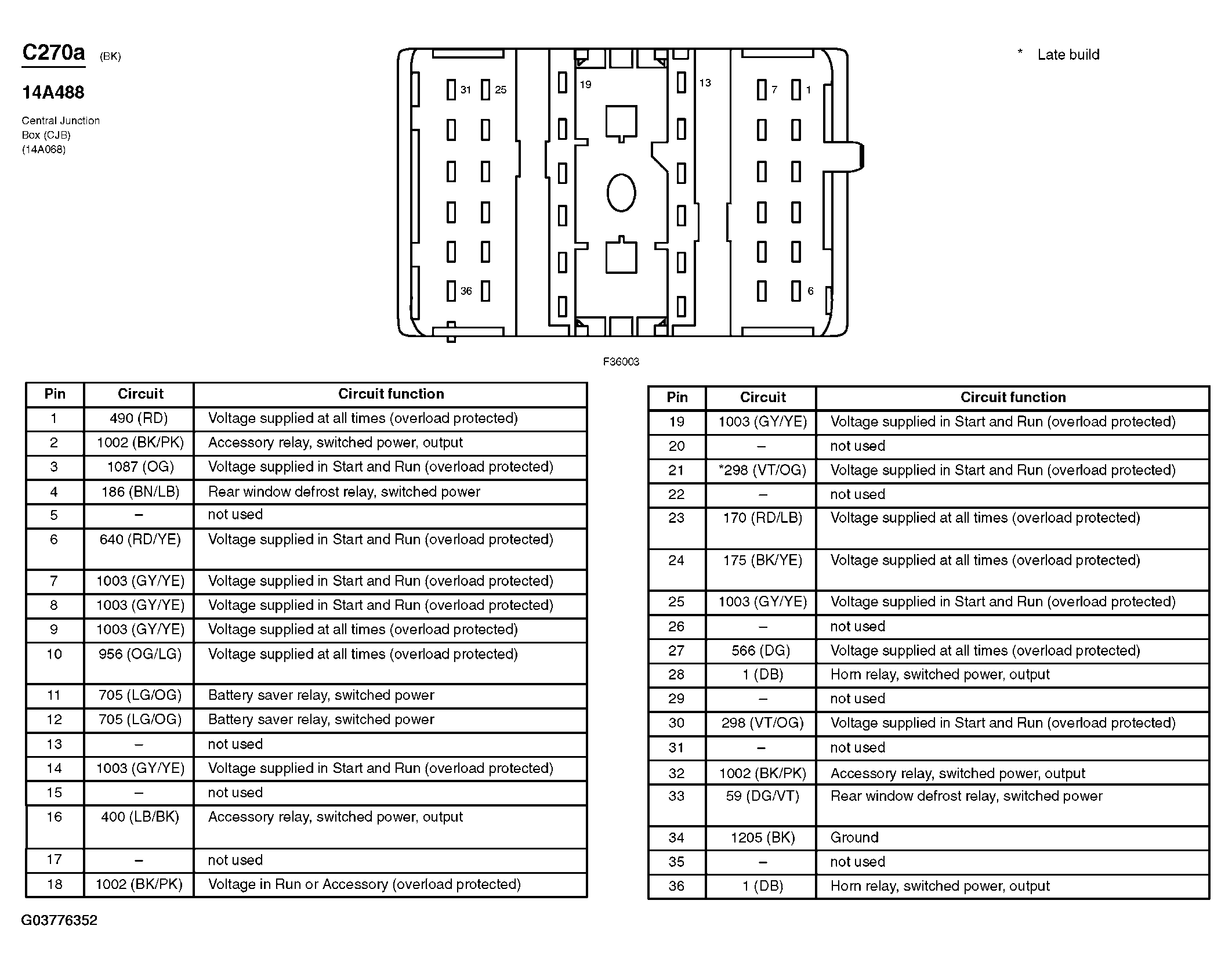

Fig 97: Central Junction Box (CJB) Connector End View (C270a)

G03776352

Courtesy of FORD MOTOR CO.

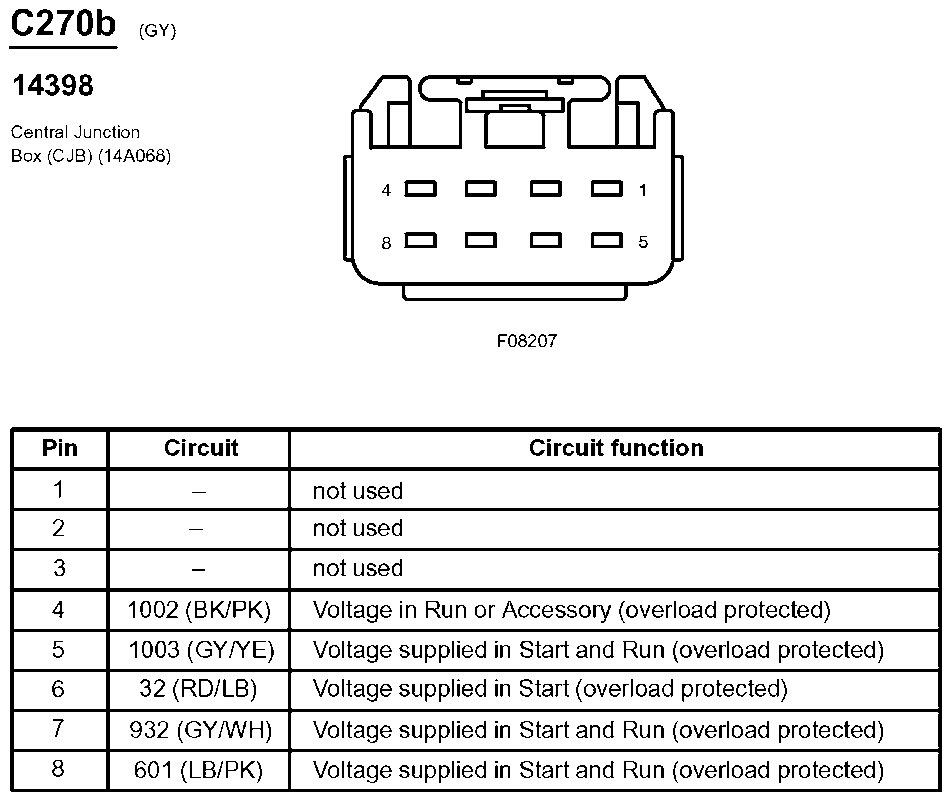

Fig 98: Central Junction Box (CJB) Connector End View (C270b)

G07832919

Courtesy of FORD MOTOR CO.

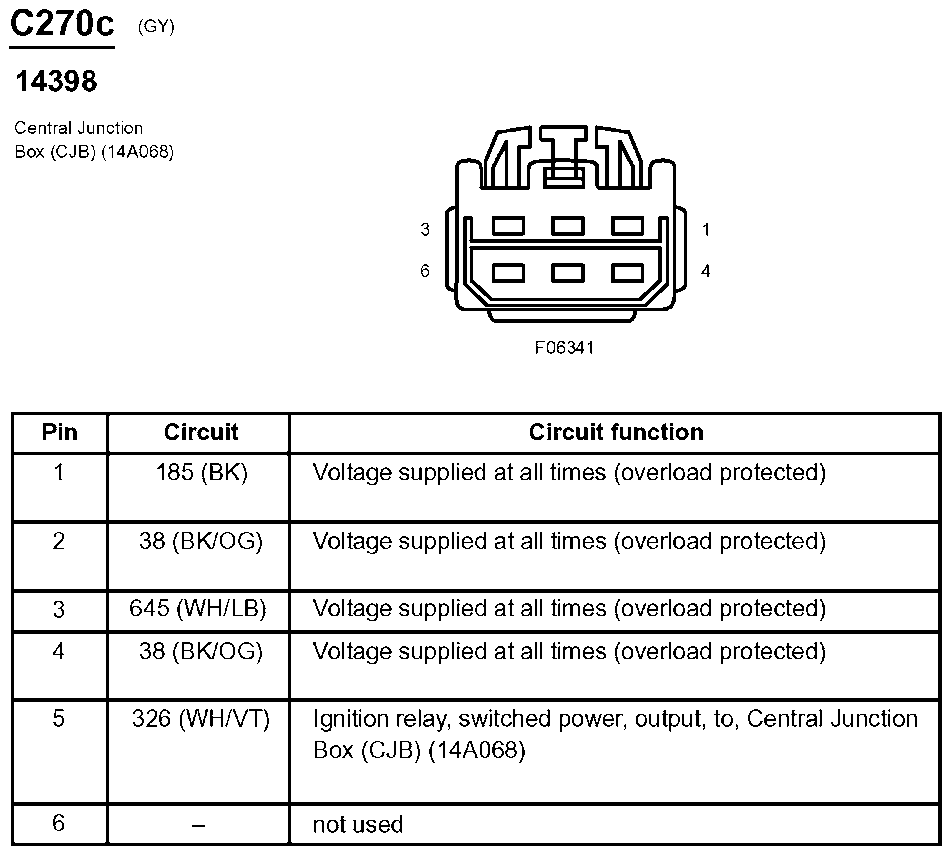

Fig 99: Central Junction Box (CJB) Connector End View (C270c)

G07832920

Courtesy of FORD MOTOR CO.

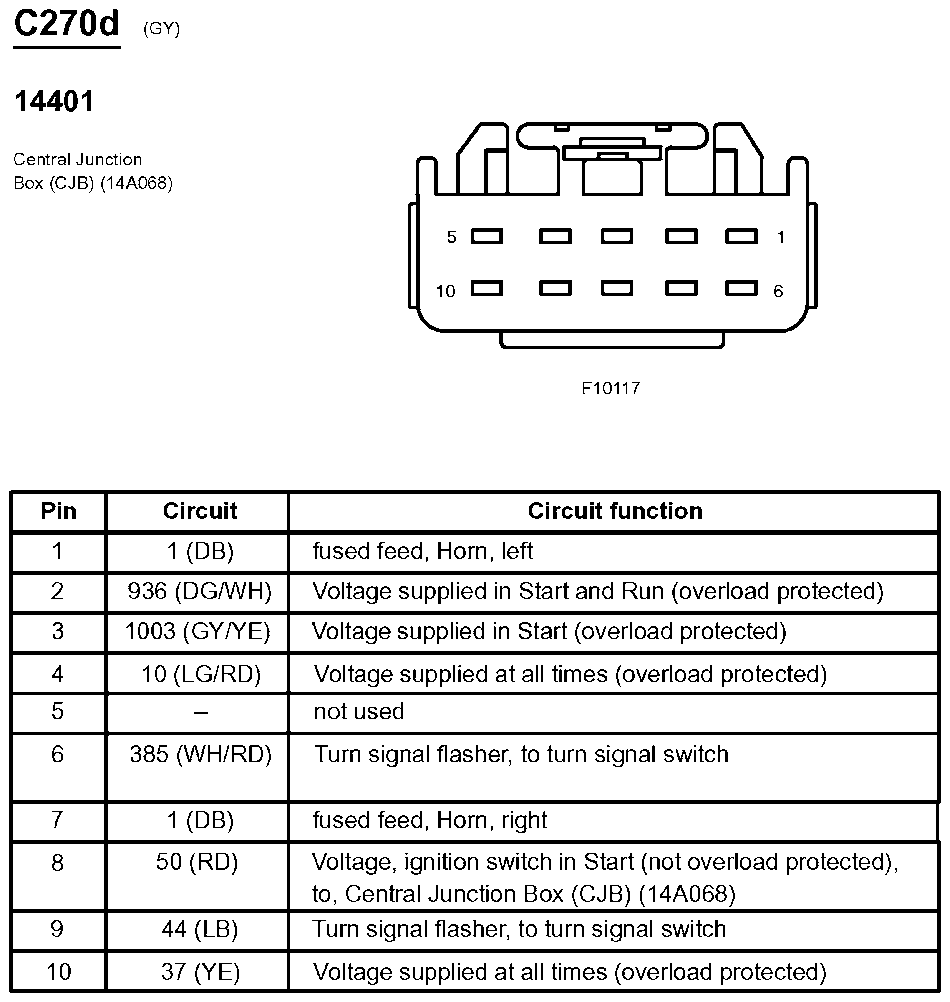

Fig 100: Central Junction Box (CJB) Connector End View (C270d)

G07832921

Courtesy of FORD MOTOR CO.

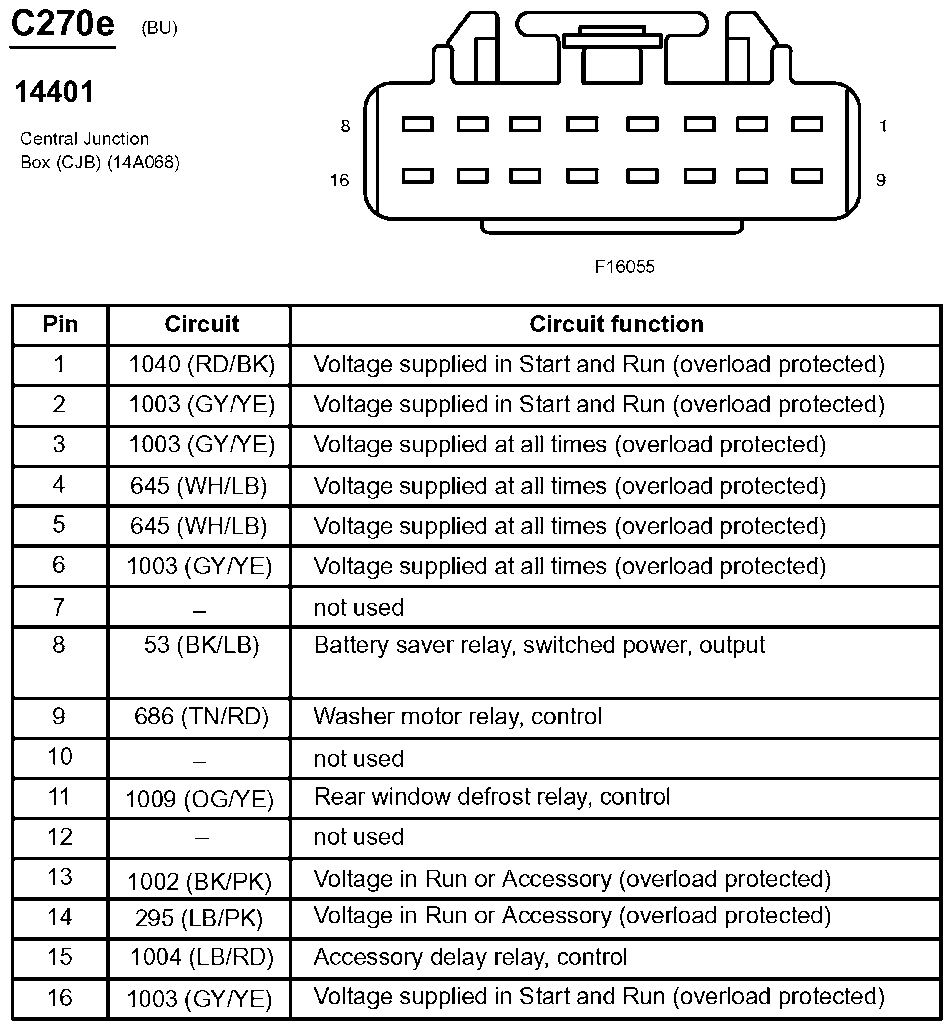

Fig 101: Central Junction Box (CJB) Connector End View (C270e)

G07832922

Courtesy of FORD MOTOR CO.

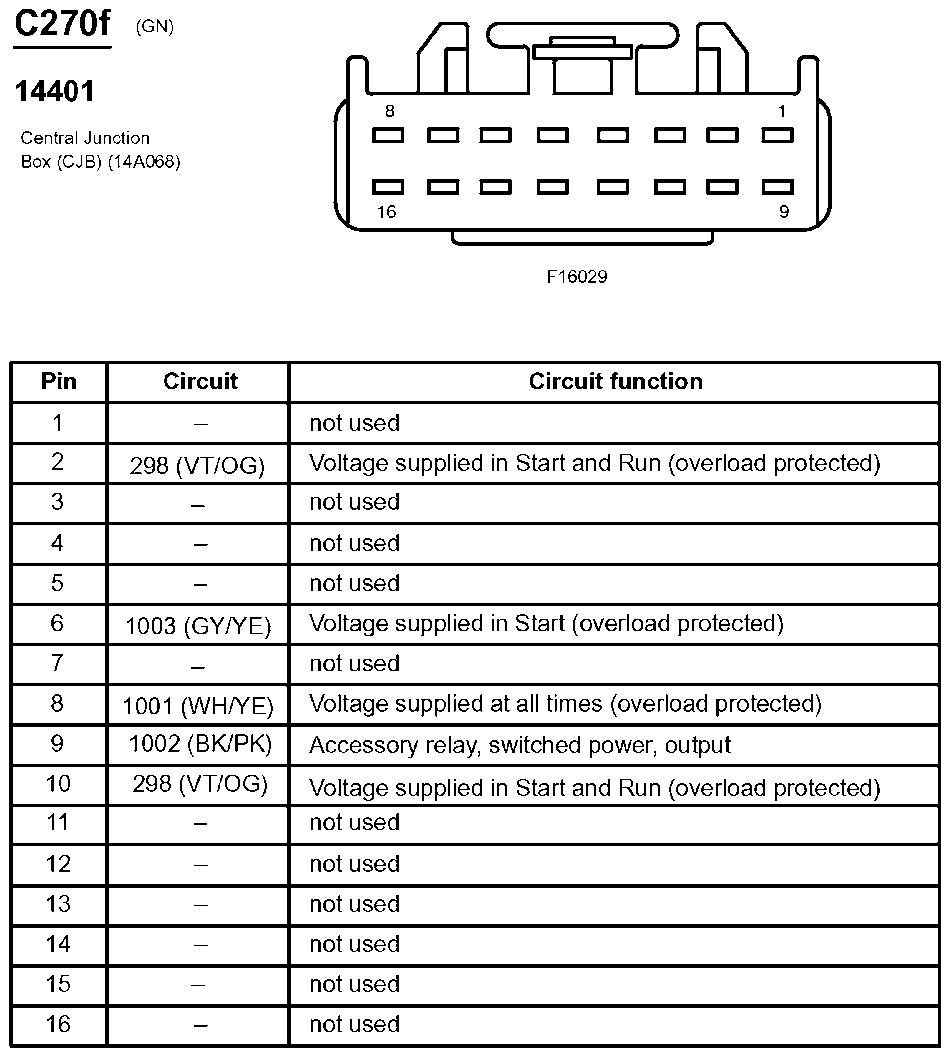

Fig 102: Central Junction Box (CJB) Connector End View (C270f)

G07832923

Courtesy of FORD MOTOR CO.

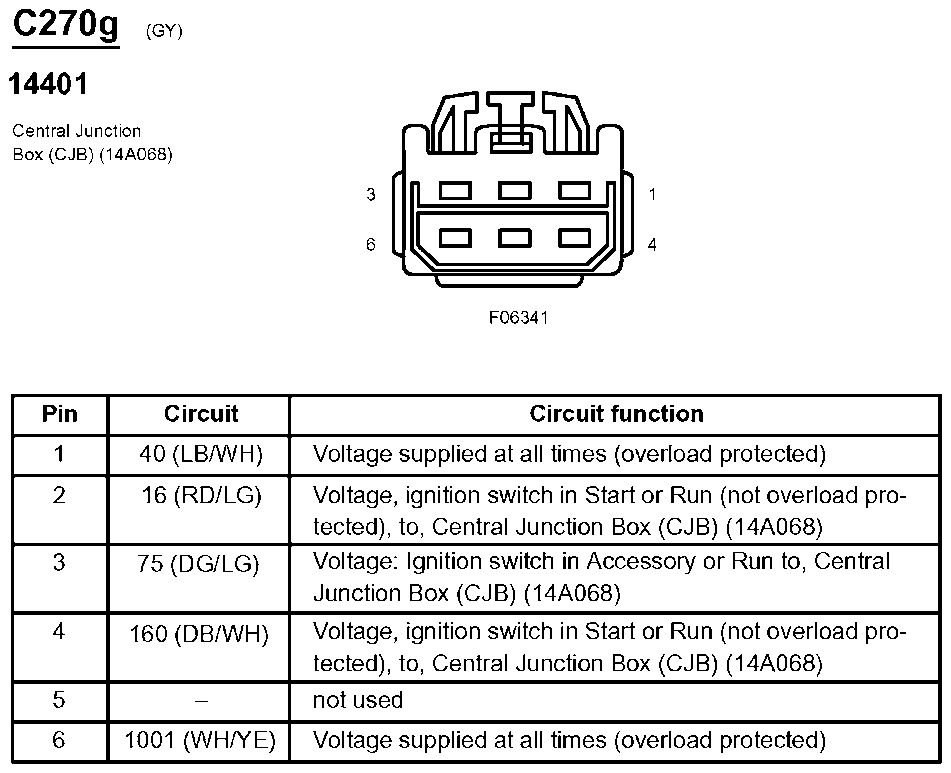

Fig 103: Central Junction Box (CJB) Connector End View (C270g)

G07832924

Courtesy of FORD MOTOR CO.

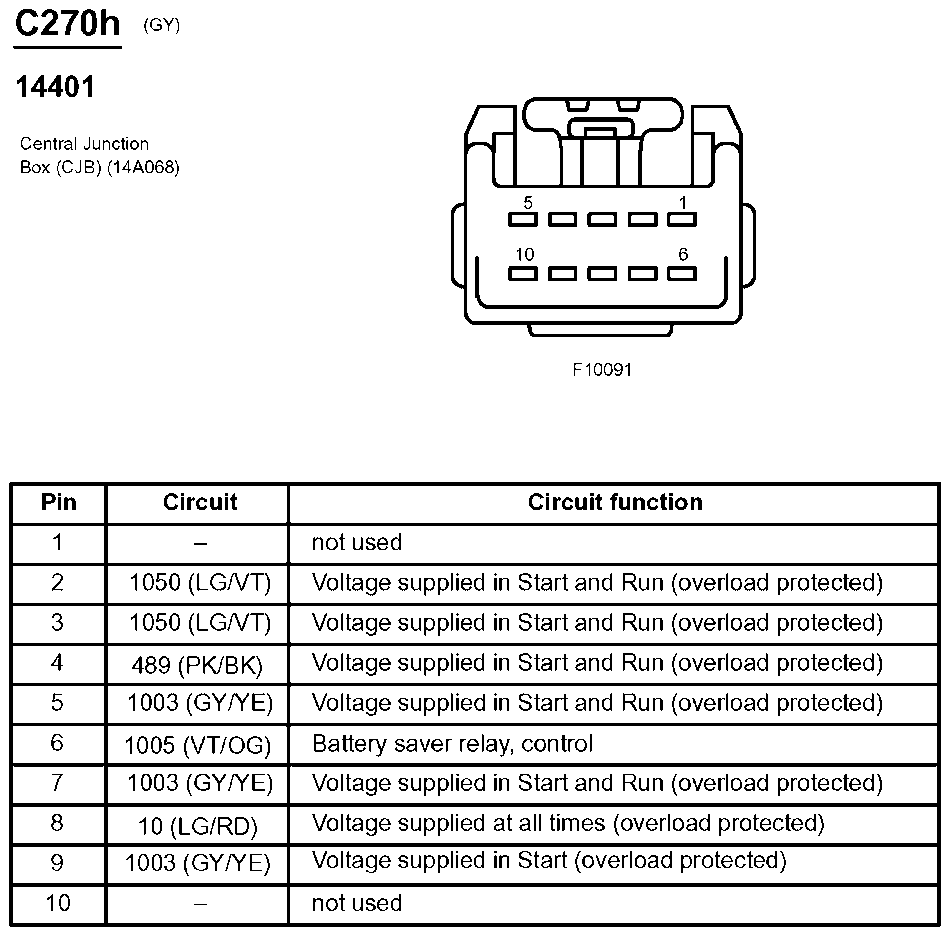

Fig 104: Central Junction Box (CJB) Connector End View (C270h)

G07832925

Courtesy of FORD MOTOR CO.

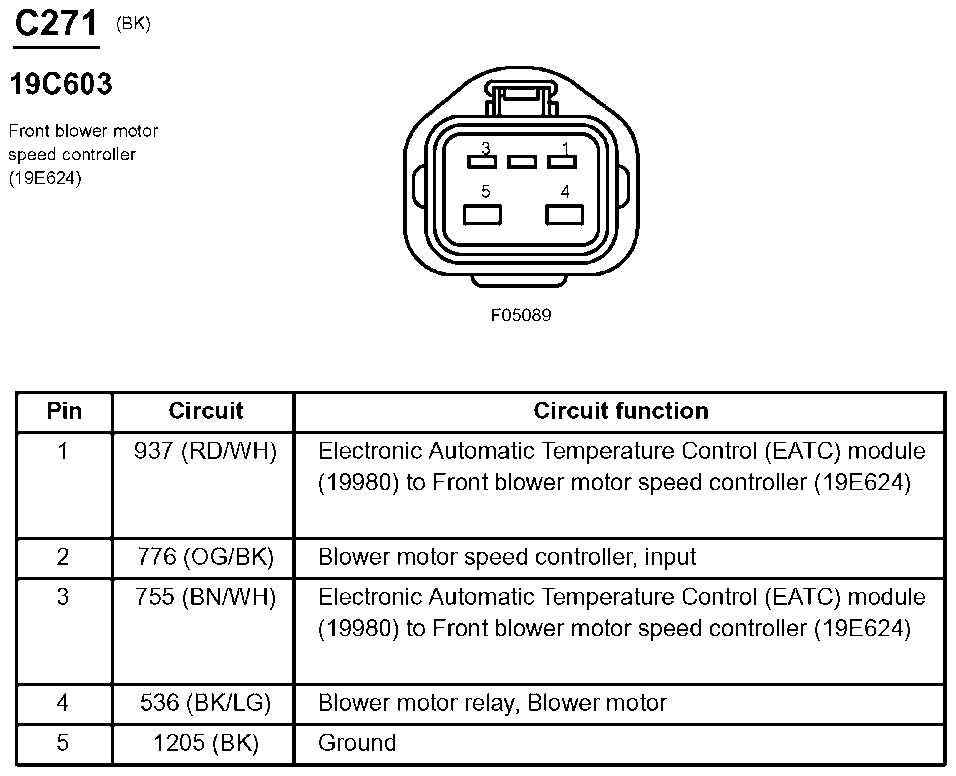

Fig 105: Front Blower Motor Speed Controller Connector End View (C271)

G07832926

Courtesy of FORD MOTOR CO.

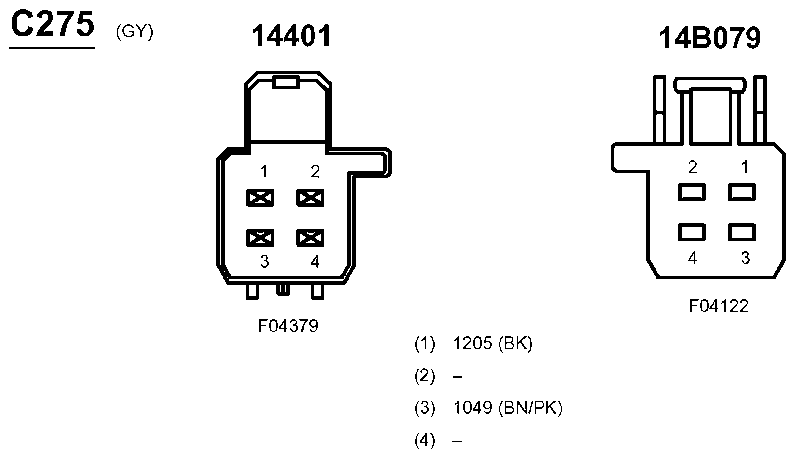

Fig 106: Inline Connector End View (C275)

G07832927

Courtesy of FORD MOTOR CO.

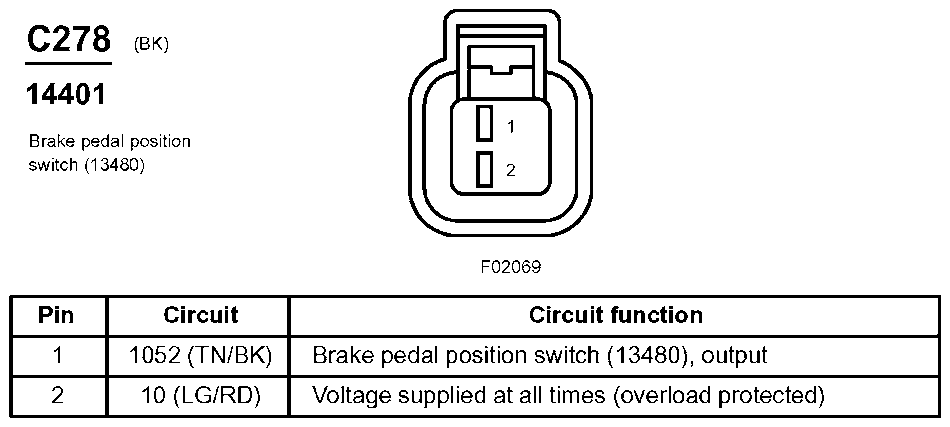

Fig 107: Brake Pedal Position Switch Connector End View (C278)

G07832928

Courtesy of FORD MOTOR CO.

Fig 108: Transmission Control Switch Connector End View (C279)

G07832929

Courtesy of FORD MOTOR CO.

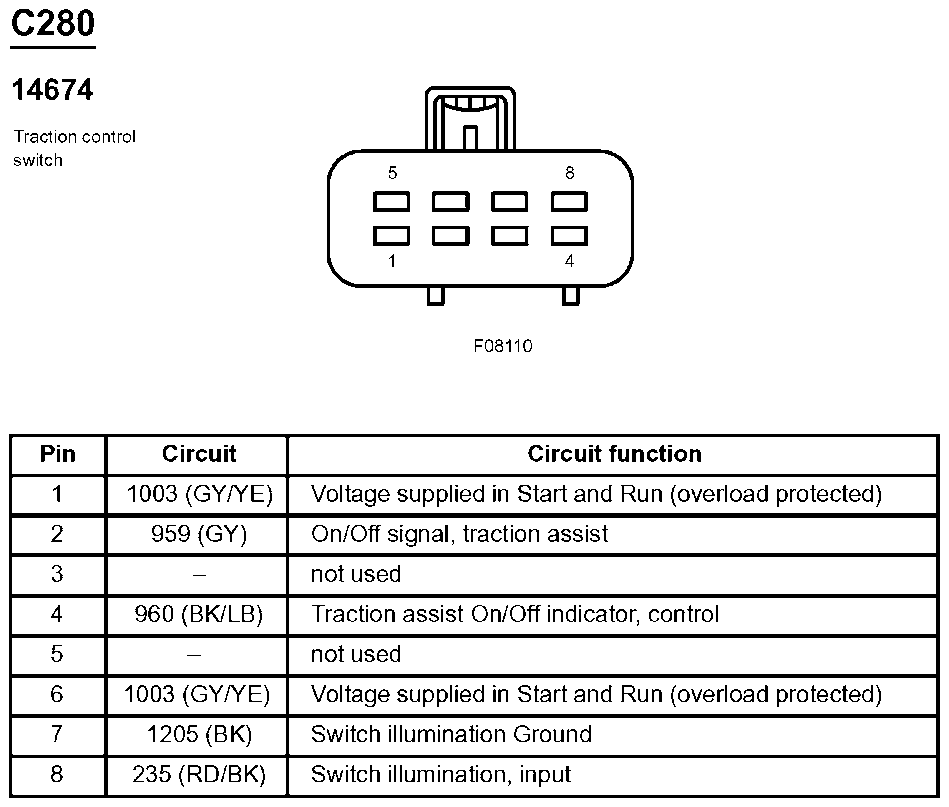

Fig 109: Traction Control Switch Connector End View (C280)

G07832930

Courtesy of FORD MOTOR CO.

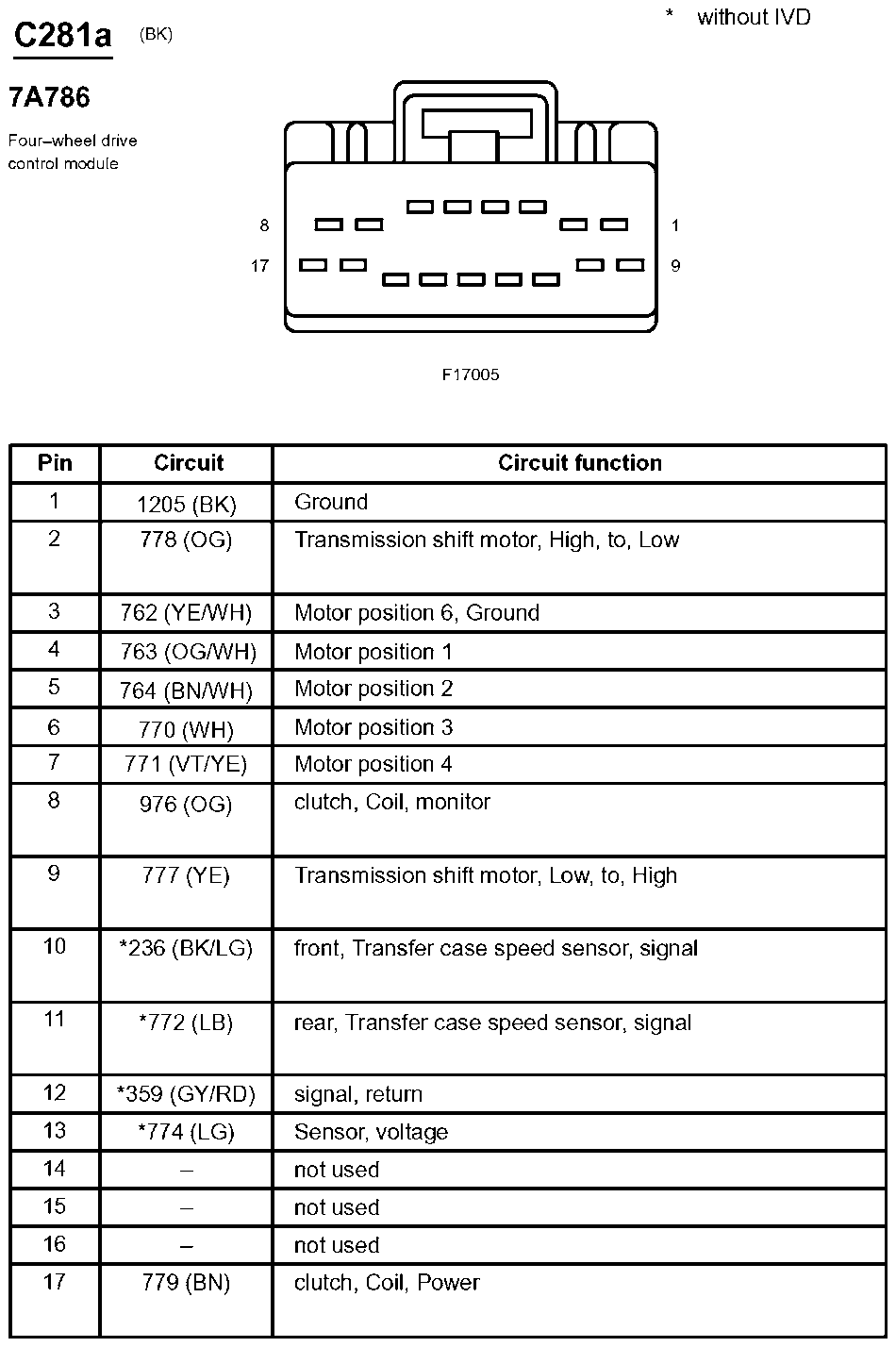

Fig 110: Four-Wheel Drive Control Module Connector End View (C281a)

G07832931

Courtesy of FORD MOTOR CO.

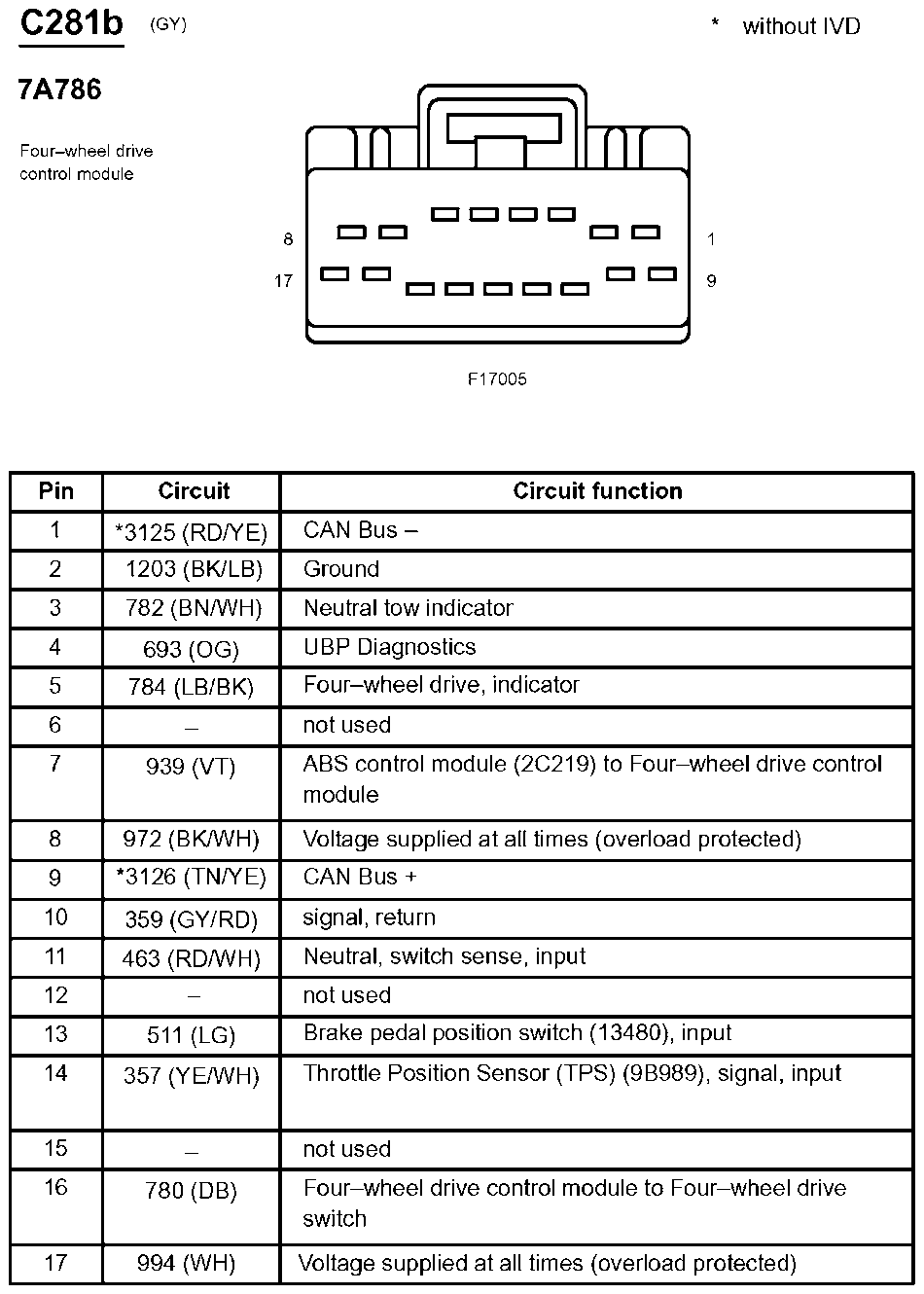

Fig 111: Four-Wheel Drive Control Module Connector End View (C281b)

G07832932

Courtesy of FORD MOTOR CO.

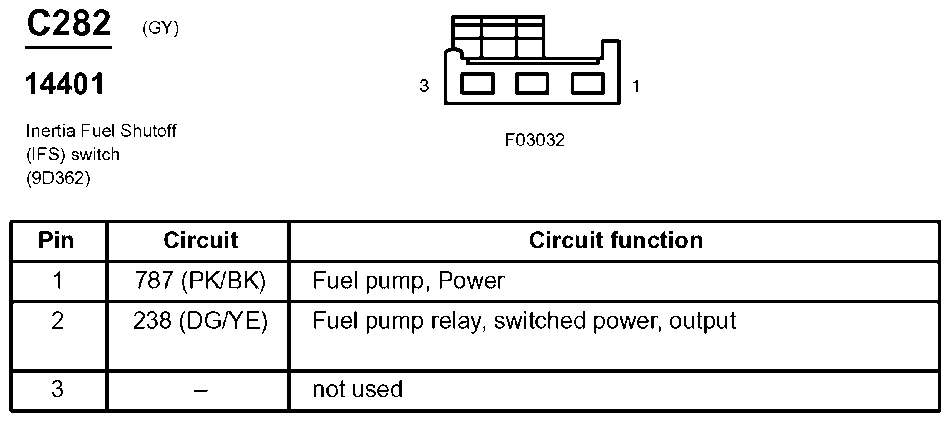

Fig 112: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07832933

Courtesy of FORD MOTOR CO.

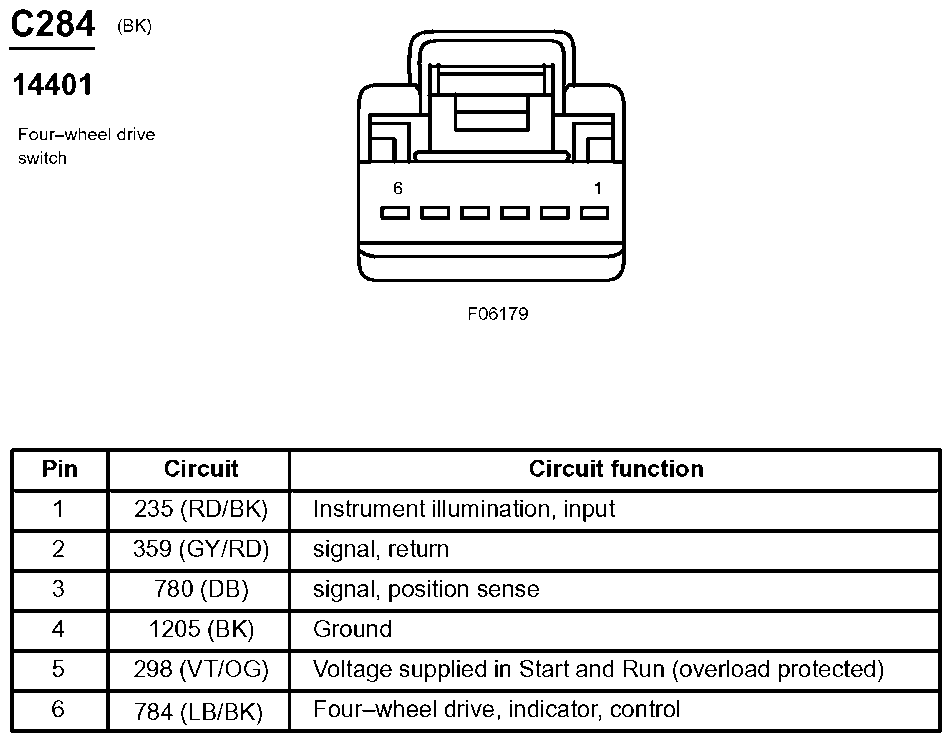

Fig 113: Four-Wheel Drive Switch Connector End View (C284)

G07832934

Courtesy of FORD MOTOR CO.

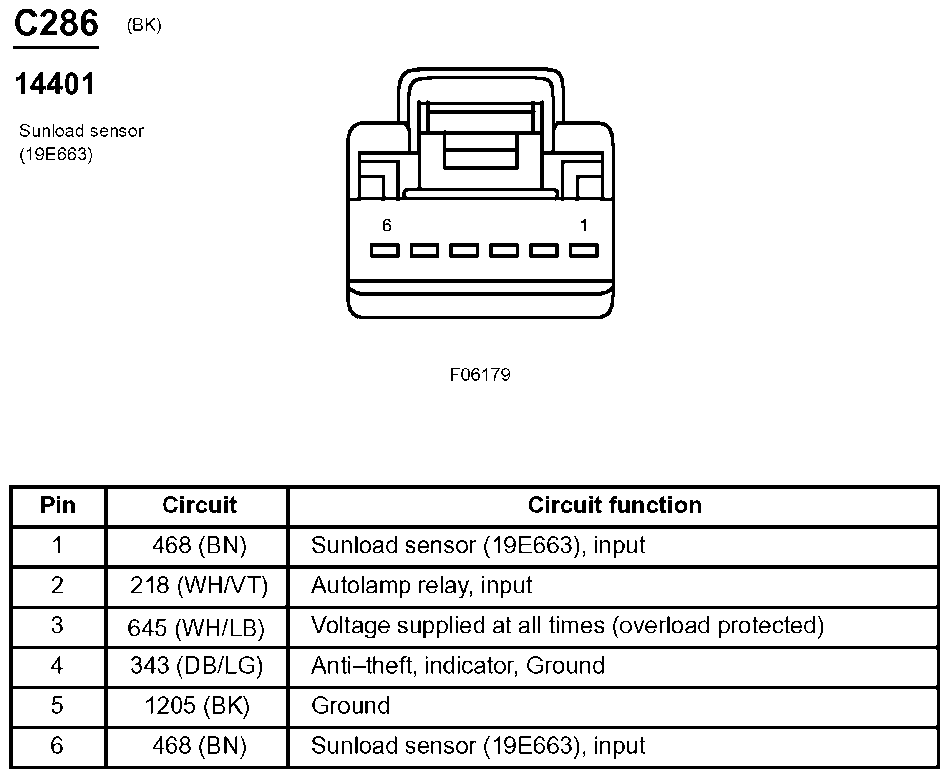

Fig 114: Sunload Sensor Connector End View (C286)

G07832935

Courtesy of FORD MOTOR CO.

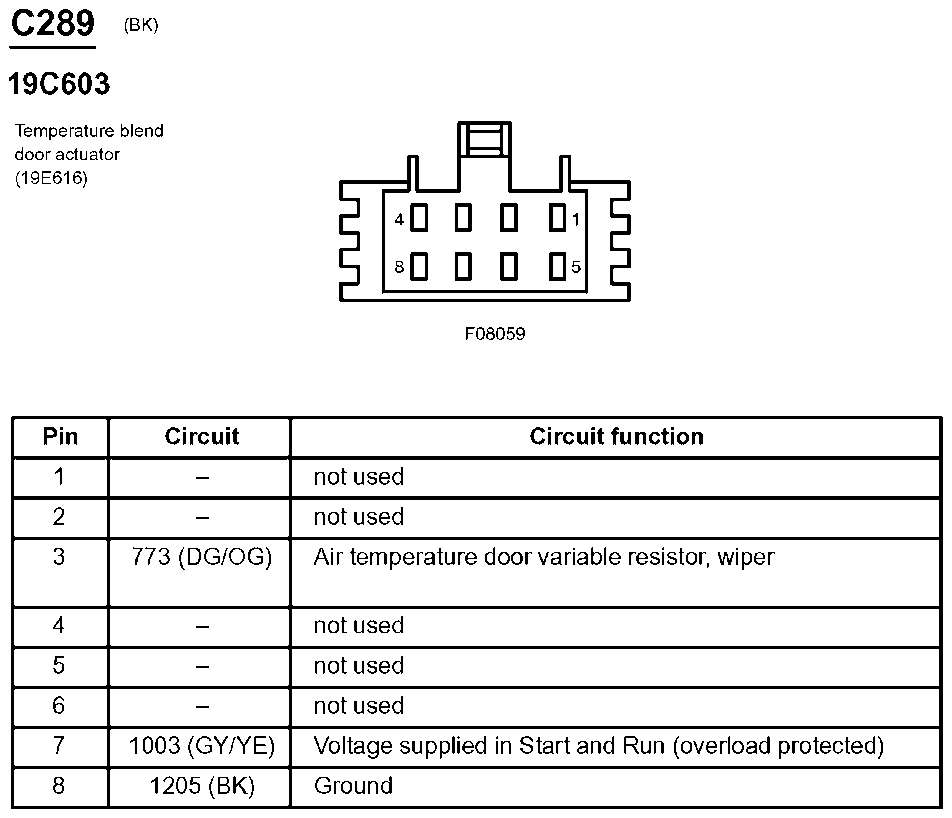

Fig 115: Temperature Blend Door Actuator Connector End View (C289)

G07832936

Courtesy of FORD MOTOR CO.

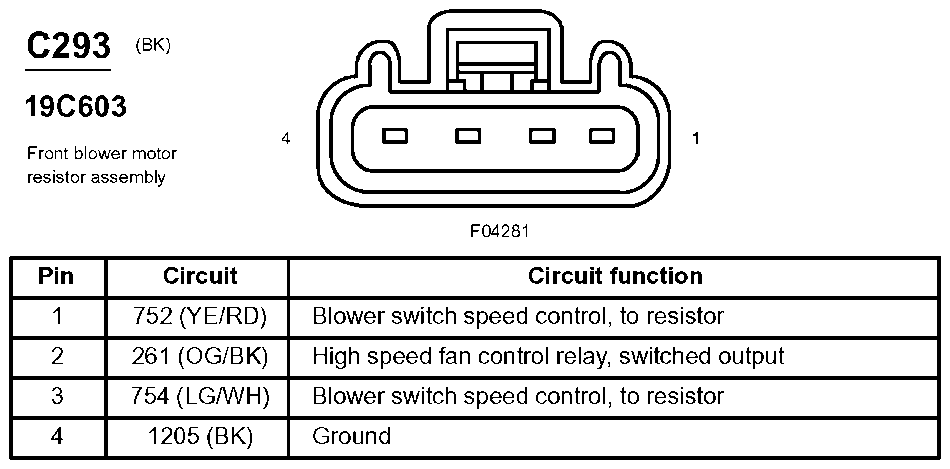

Fig 116: Front Blower Motor Resistor Assembly Connector End View (C293)

G07832937

Courtesy of FORD MOTOR CO.

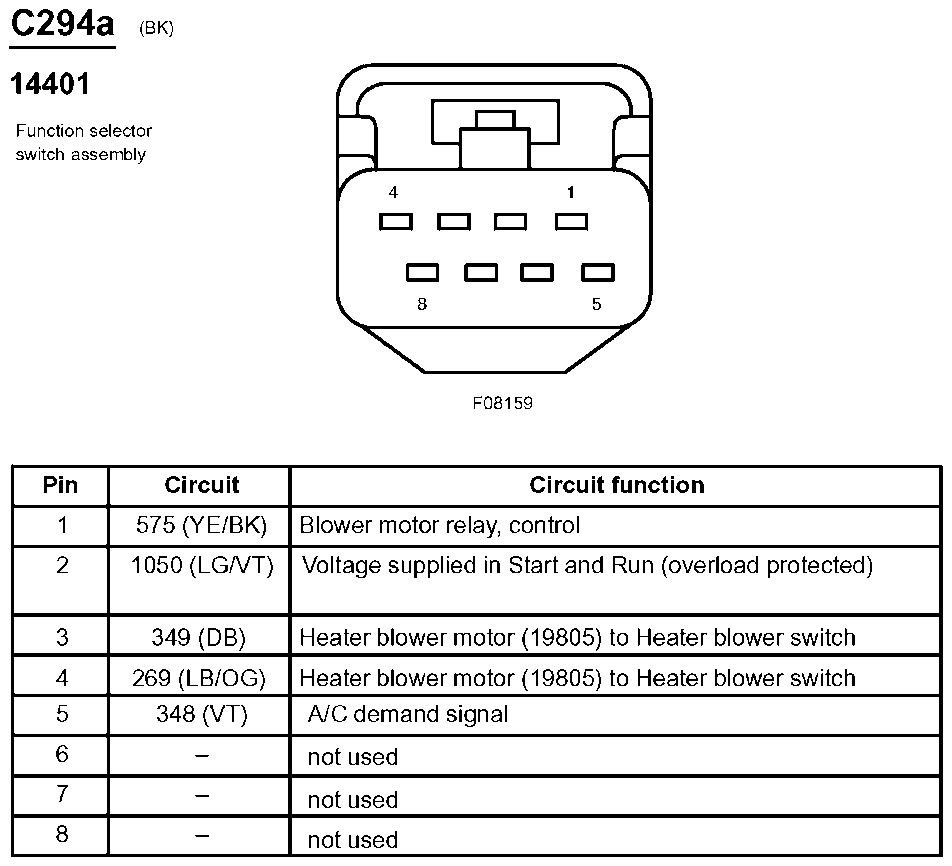

Fig 117: Function Selector Switch Assembly Connector End View (C294a)

G07832938

Courtesy of FORD MOTOR CO.

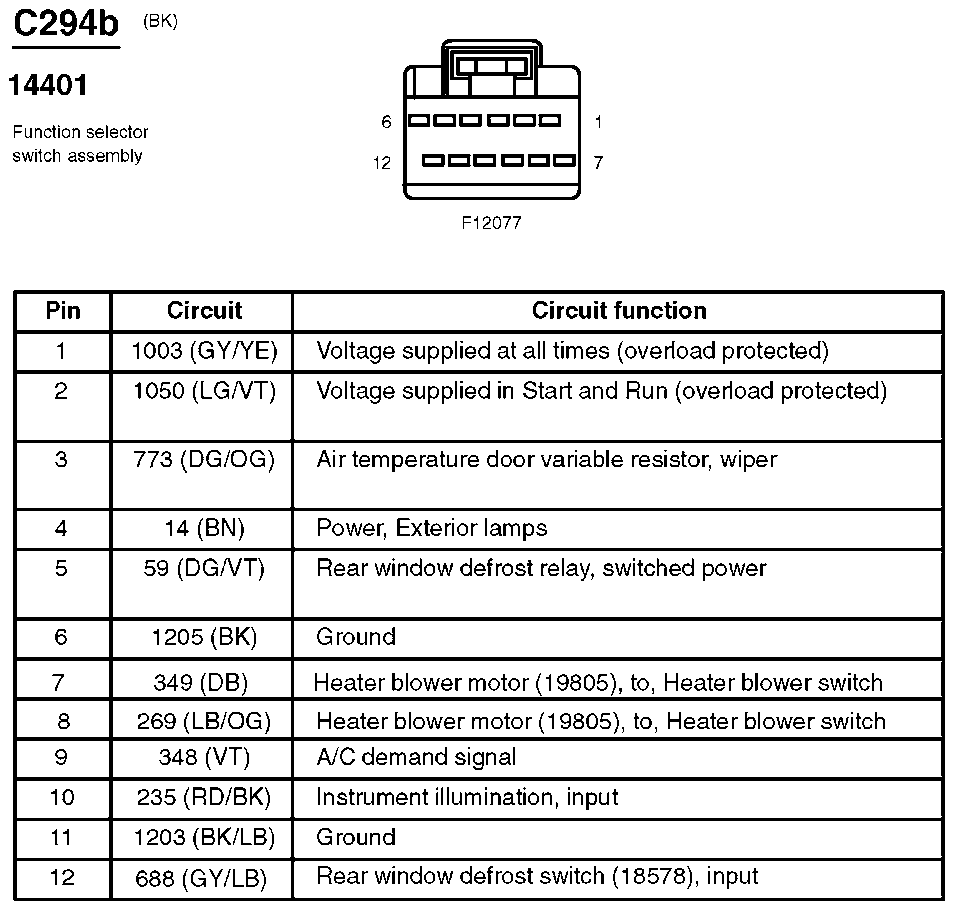

Fig 118: Function Selector Switch Assembly Connector End View (C294b)

G07832939

Courtesy of FORD MOTOR CO.

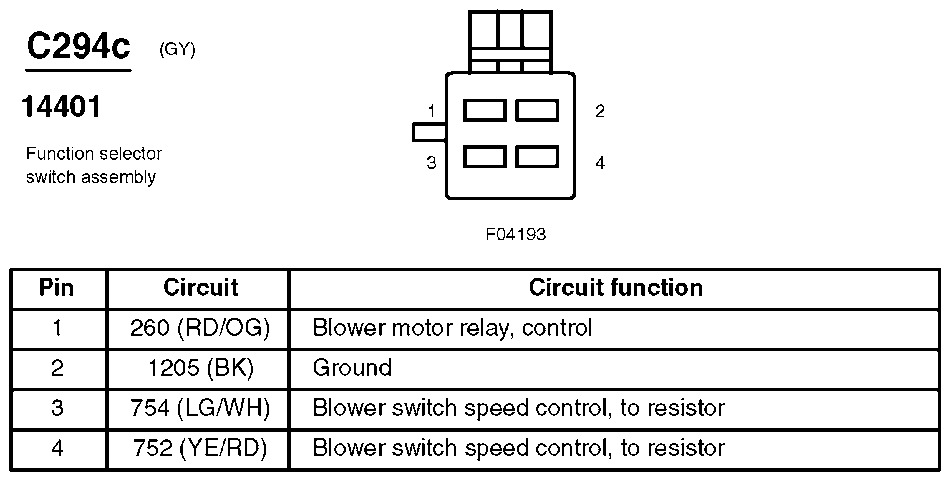

Fig 119: Function Selector Switch Assembly Connector End View (C294c)

G07832940

Courtesy of FORD MOTOR CO.

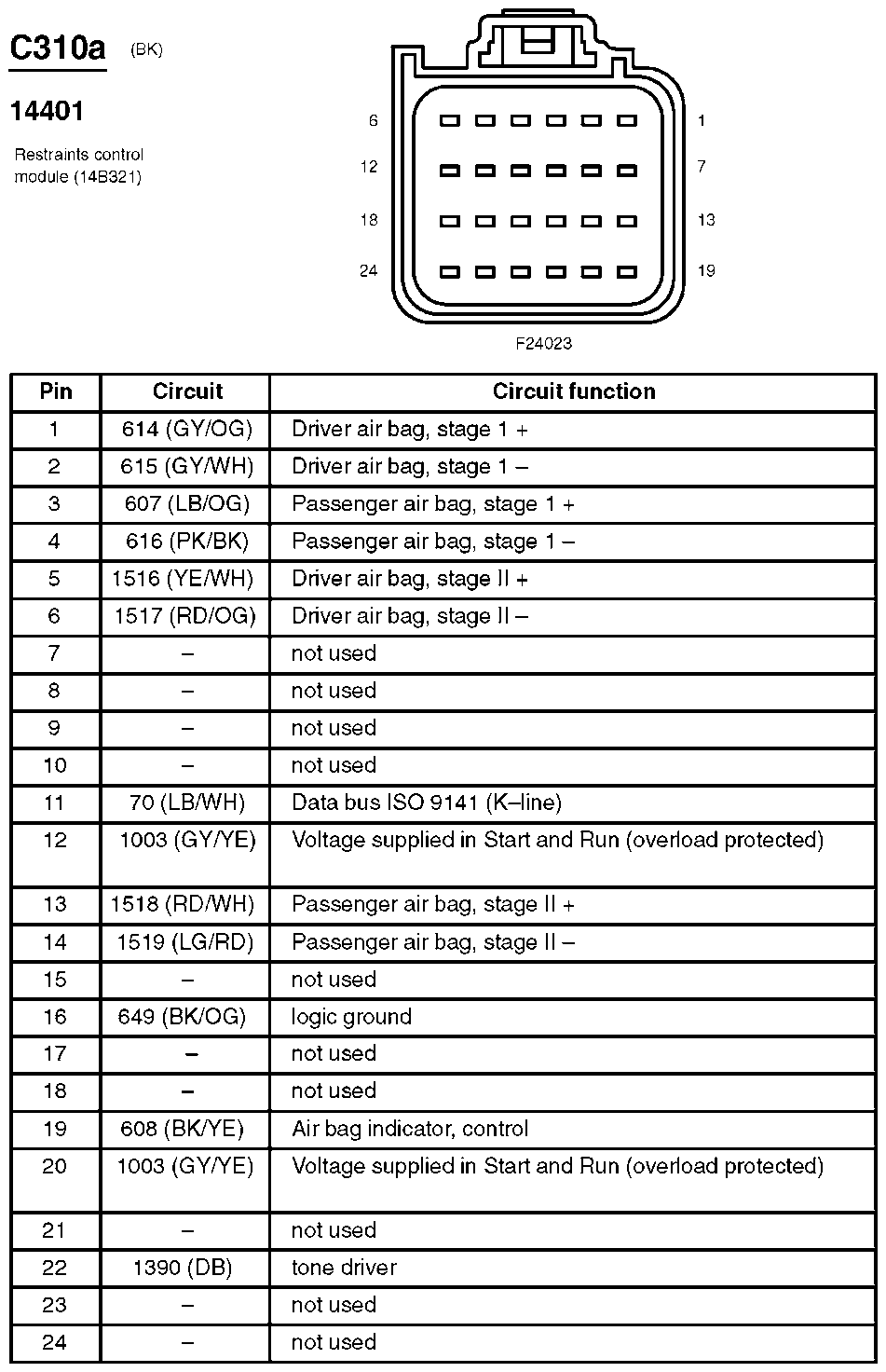

Fig 120: Restraints Control Module Connector End View (C310a)

G07832941

Courtesy of FORD MOTOR CO.

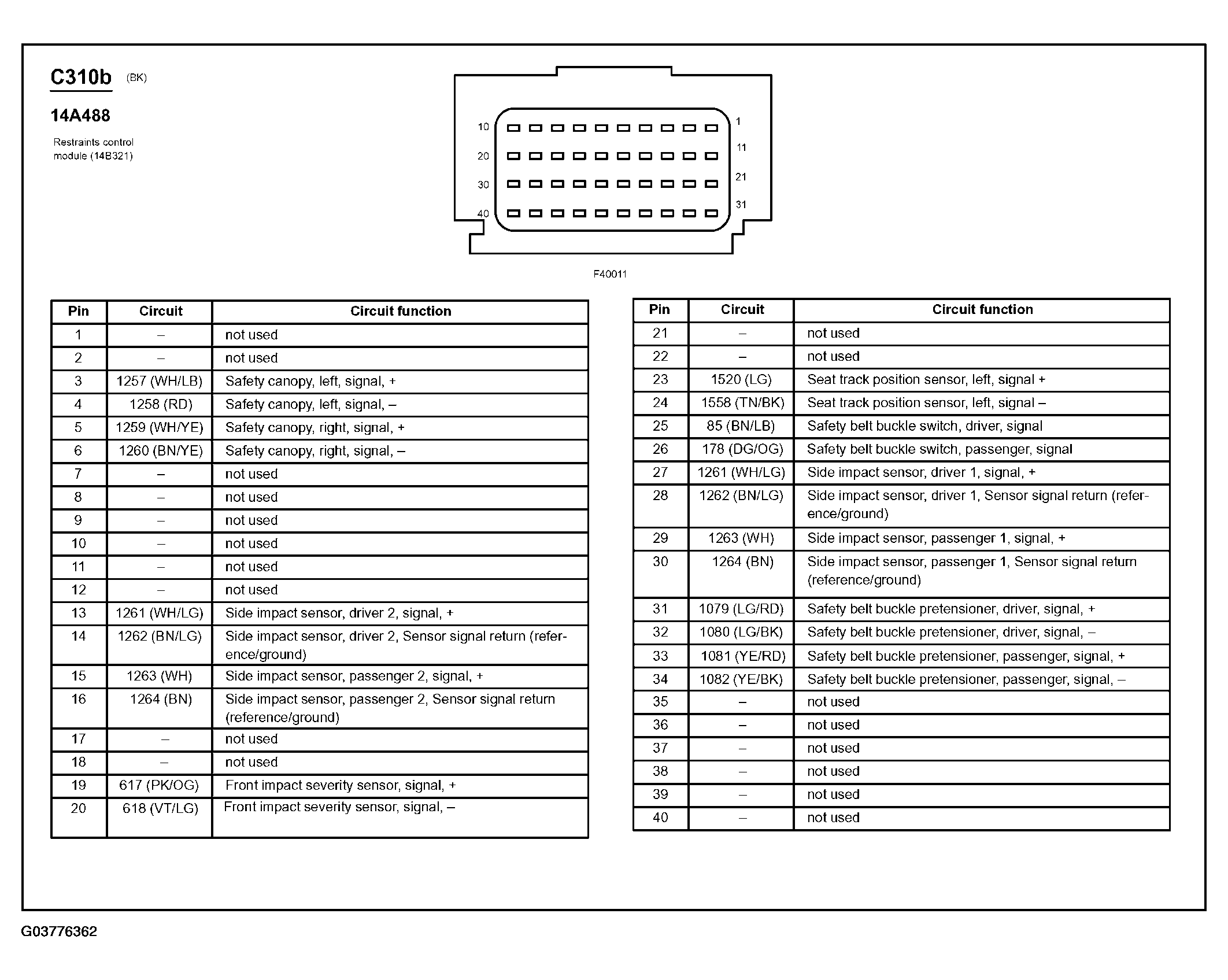

Fig 121: Restraints Control Module Connector End View (C310b)

G03776362

Courtesy of FORD MOTOR CO.

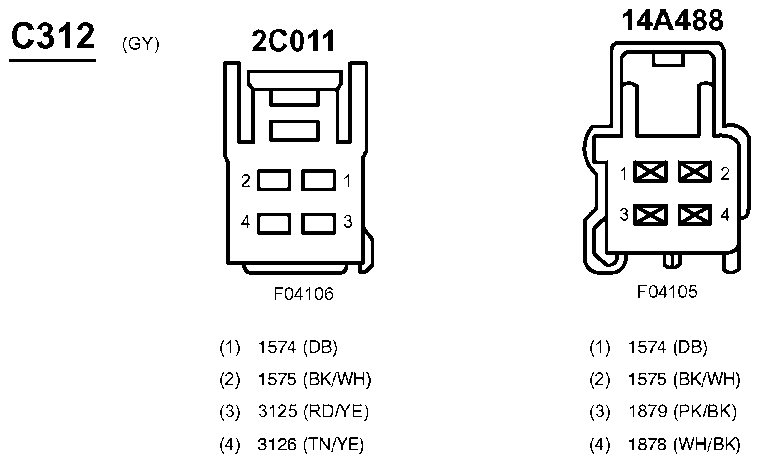

Fig 122: Inline Connector End View (C312)

G07832942

Courtesy of FORD MOTOR CO.

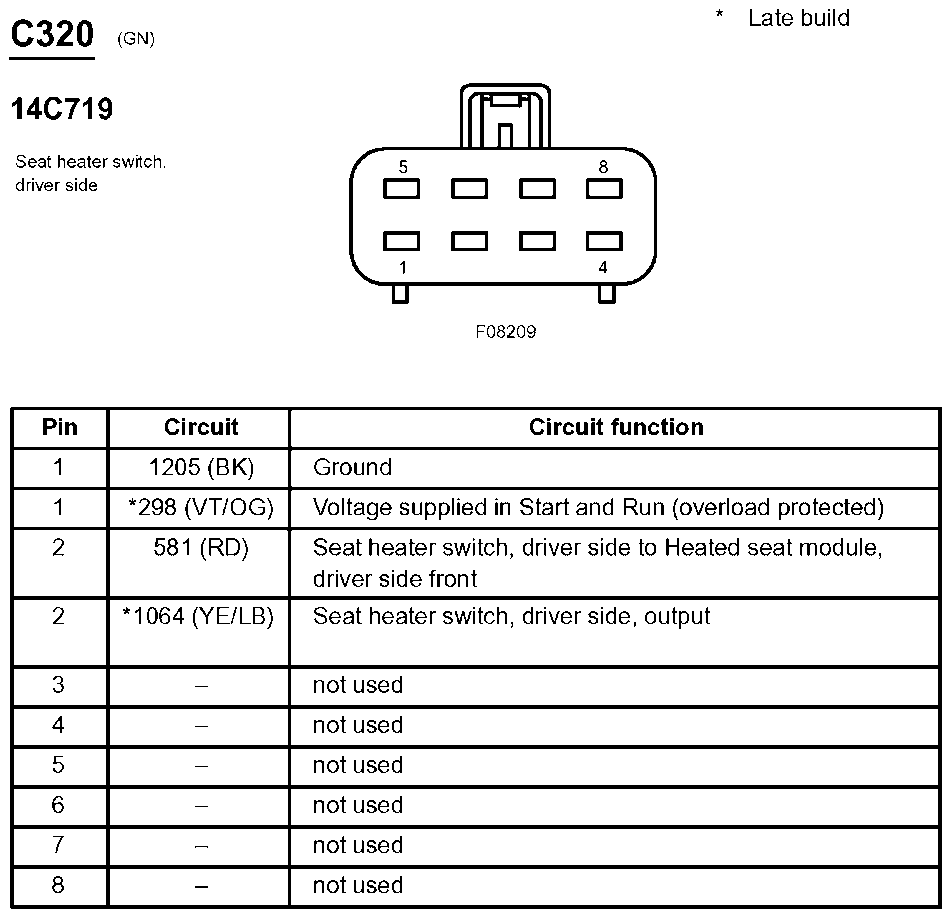

Fig 123: Seat Heater Switch, Driver Side Connector End View (C320)

G07832943

Courtesy of FORD MOTOR CO.

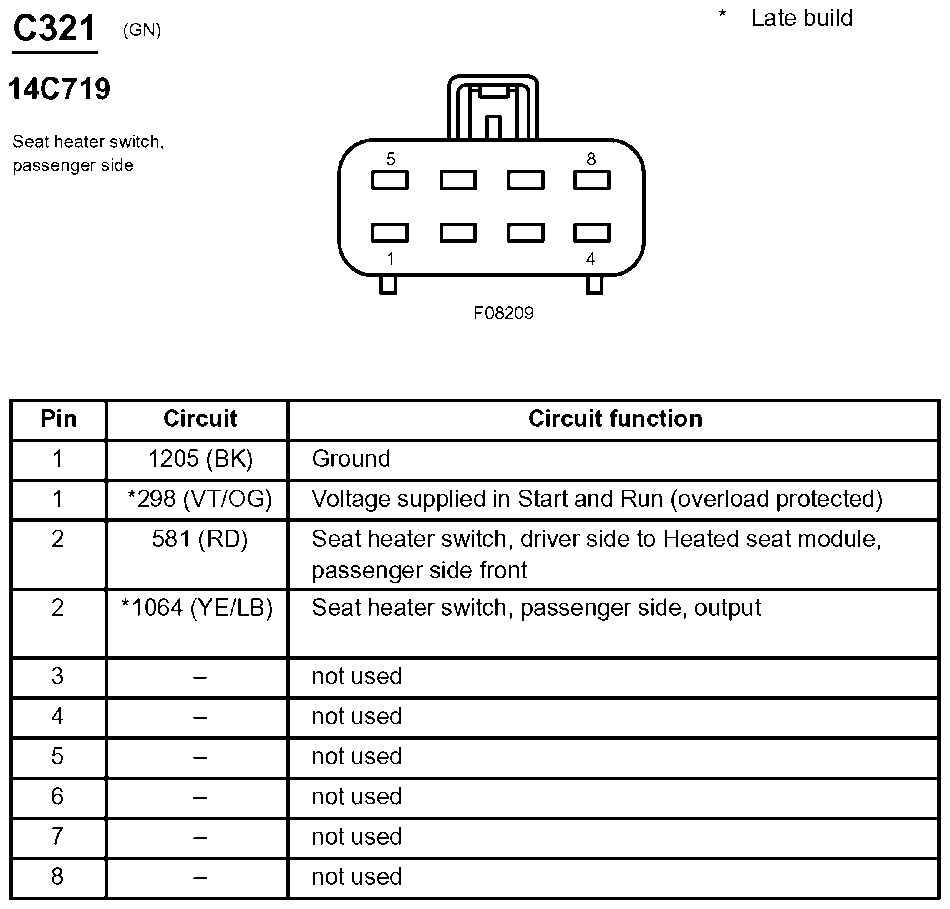

Fig 124: Seat Heater Switch, Passenger Side Connector End View (C321)

G07832944

Courtesy of FORD MOTOR CO.

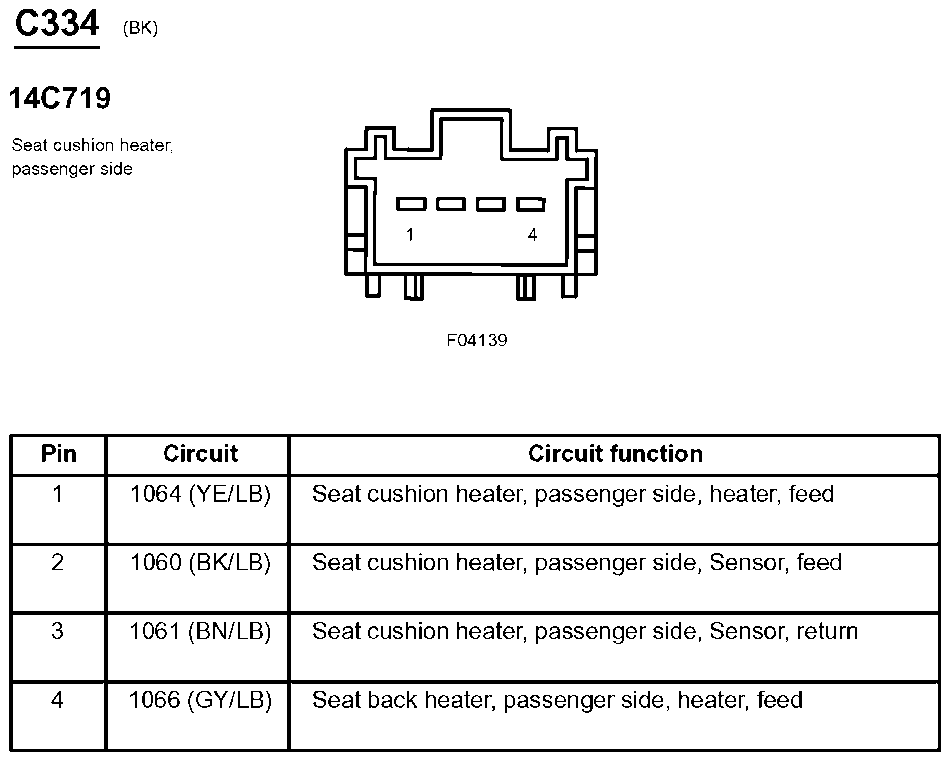

Fig 125: Seat Cushion Heater, Passenger Side Connector End View (C334)

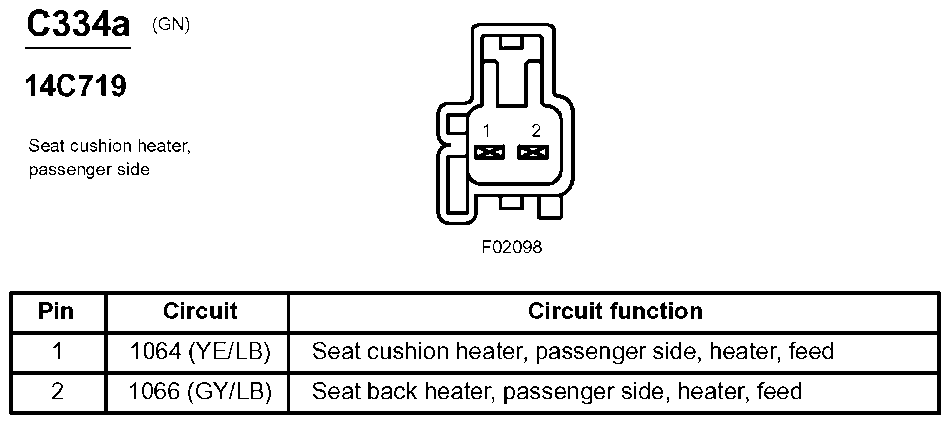

G07832945

Courtesy of FORD MOTOR CO.

Fig 126: Seat Cushion Heater, Passenger Side Connector End View (C334a)

G07832946

Courtesy of FORD MOTOR CO.

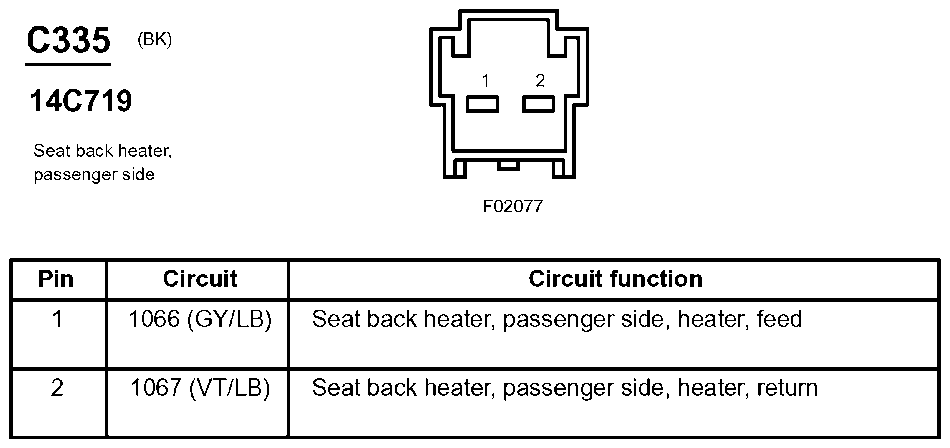

Fig 127: Seat Back Heater, Passenger Side Connector End View (C335)

G07832947

Courtesy of FORD MOTOR CO.

Fig 128: Seat Back Heater, Passenger Side Connector End View (C335a)

G07832948

Courtesy of FORD MOTOR CO.

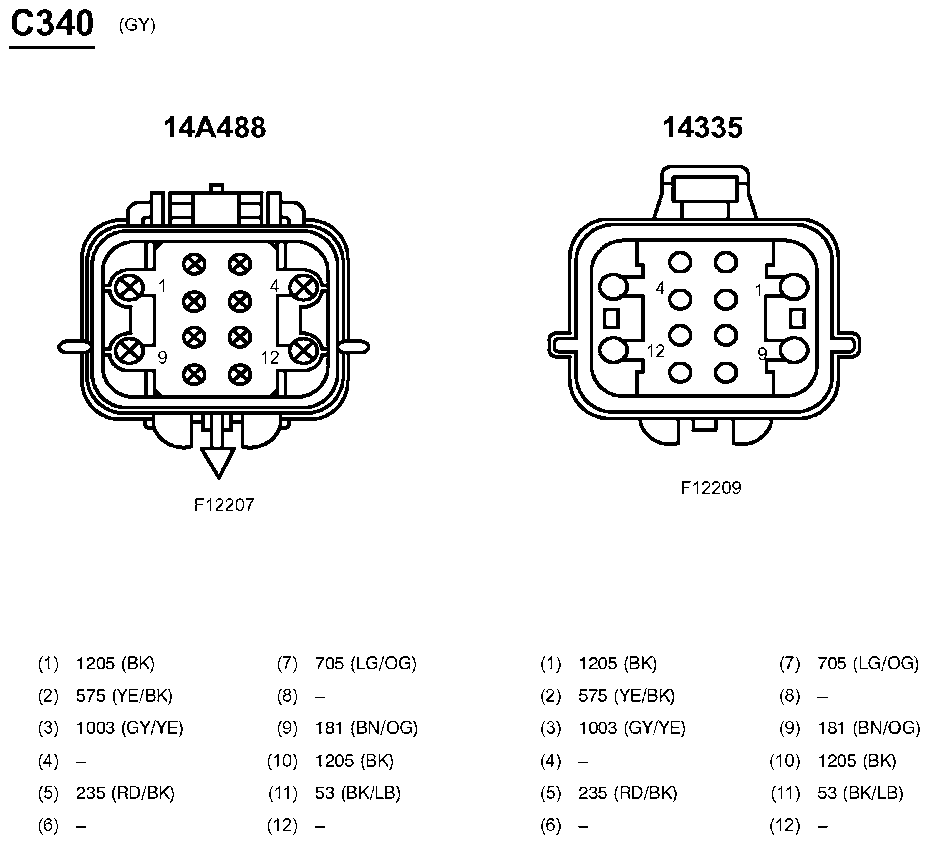

Fig 129: Inline Connector End View (C340)

G07832949

Courtesy of FORD MOTOR CO.

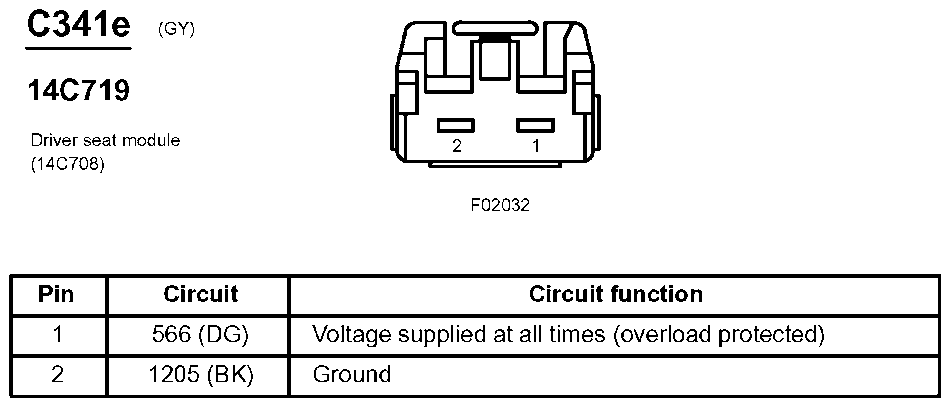

Fig 130: Driver Seat Module Connector End View (C341e)

G07832950

Courtesy of FORD MOTOR CO.

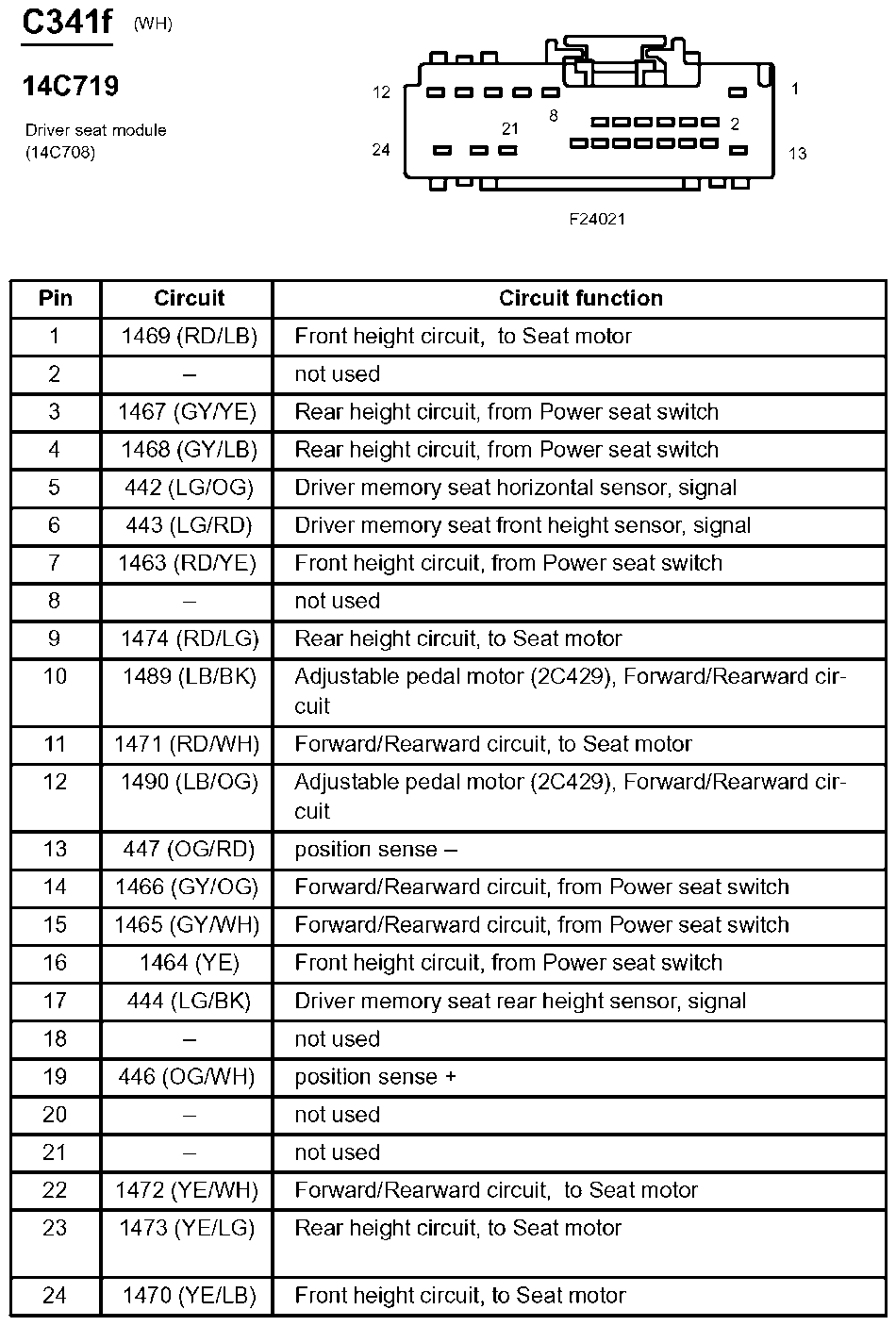

Fig 131: Driver Seat Module Connector End View (C341f)

G07832951

Courtesy of FORD MOTOR CO.

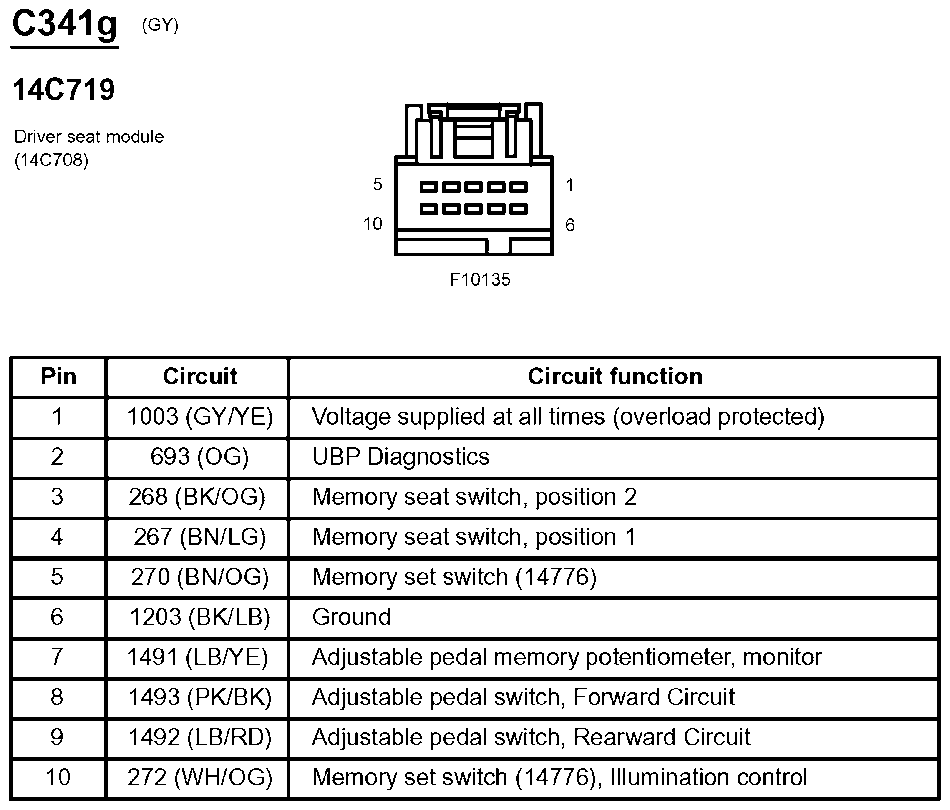

Fig 132: Driver Seat Module Connector End View (C341g)

G07832952

Courtesy of FORD MOTOR CO.

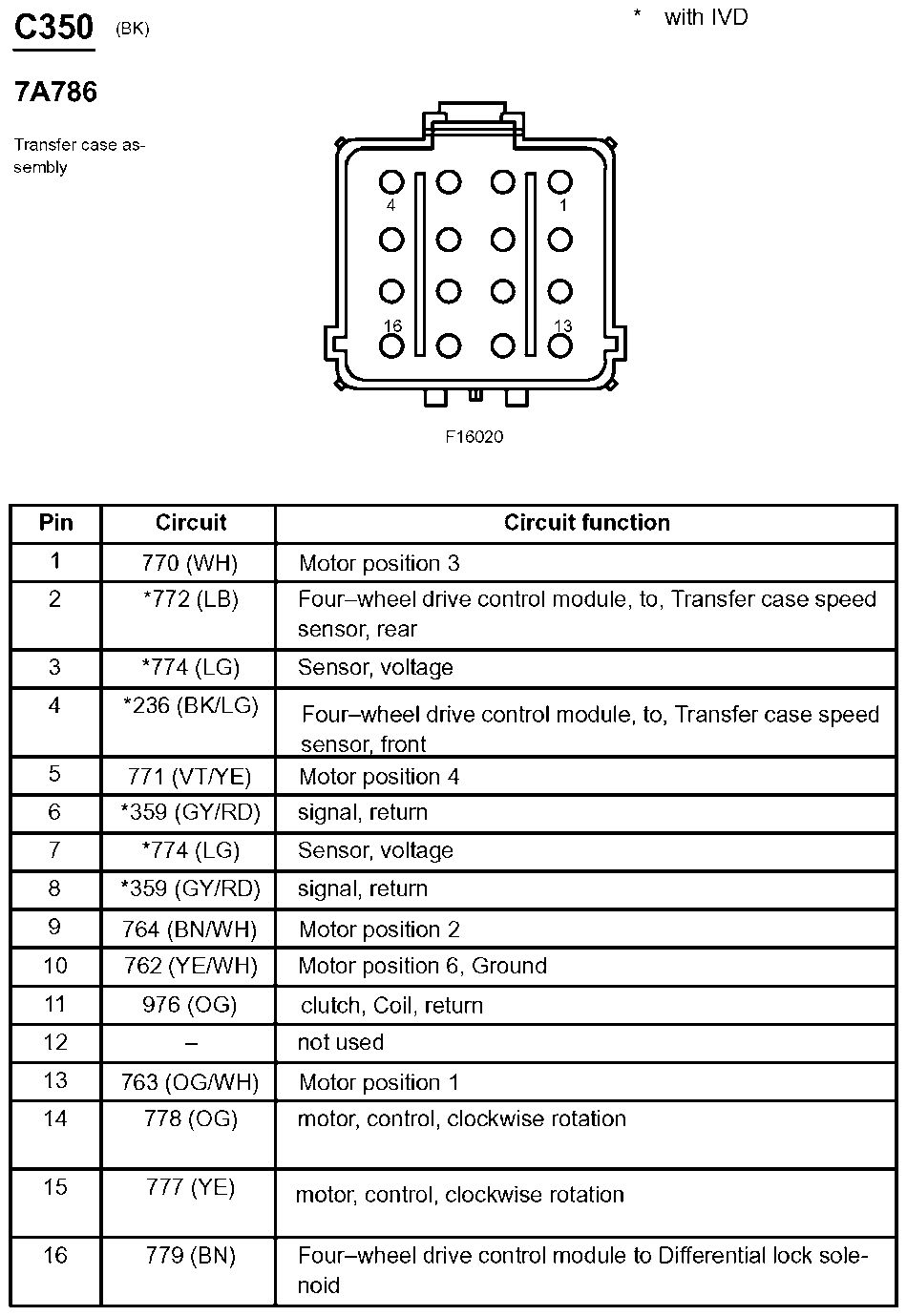

Fig 133: Transfer Case Assembly Connector End View (C350)

G07832953

Courtesy of FORD MOTOR CO.

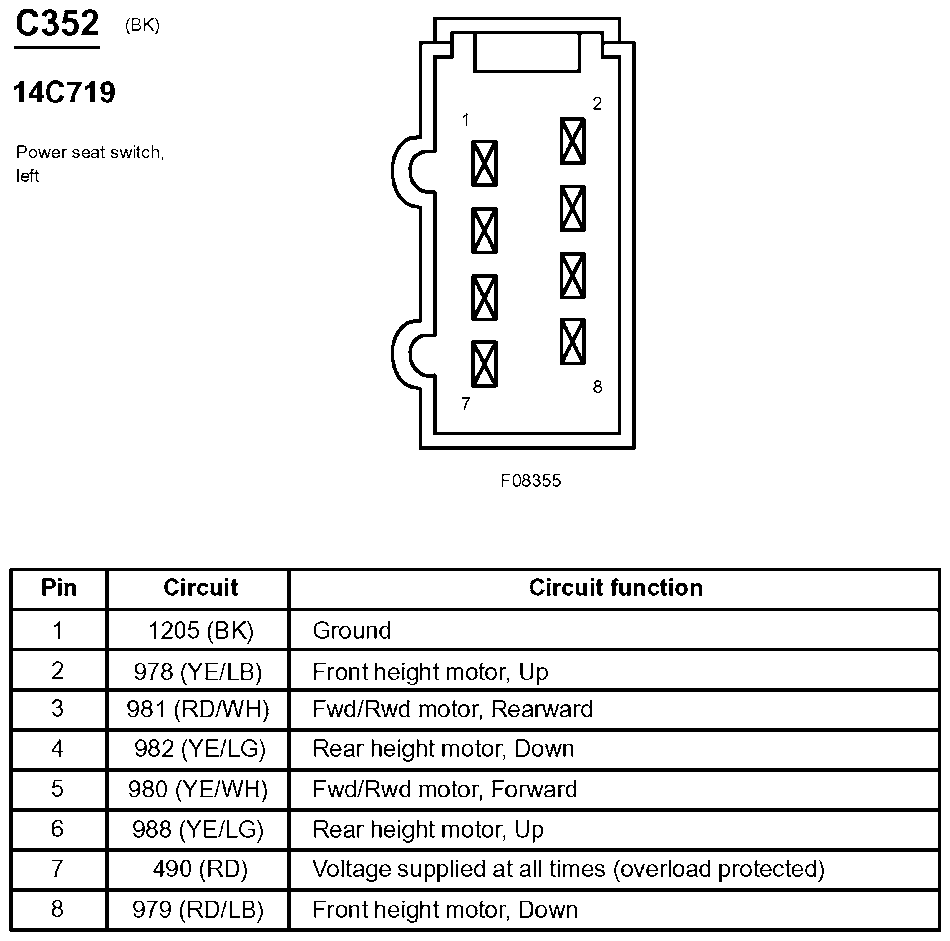

Fig 134: Power Seat Switch, Left Connector End View (C352)

G07832954

Courtesy of FORD MOTOR CO.

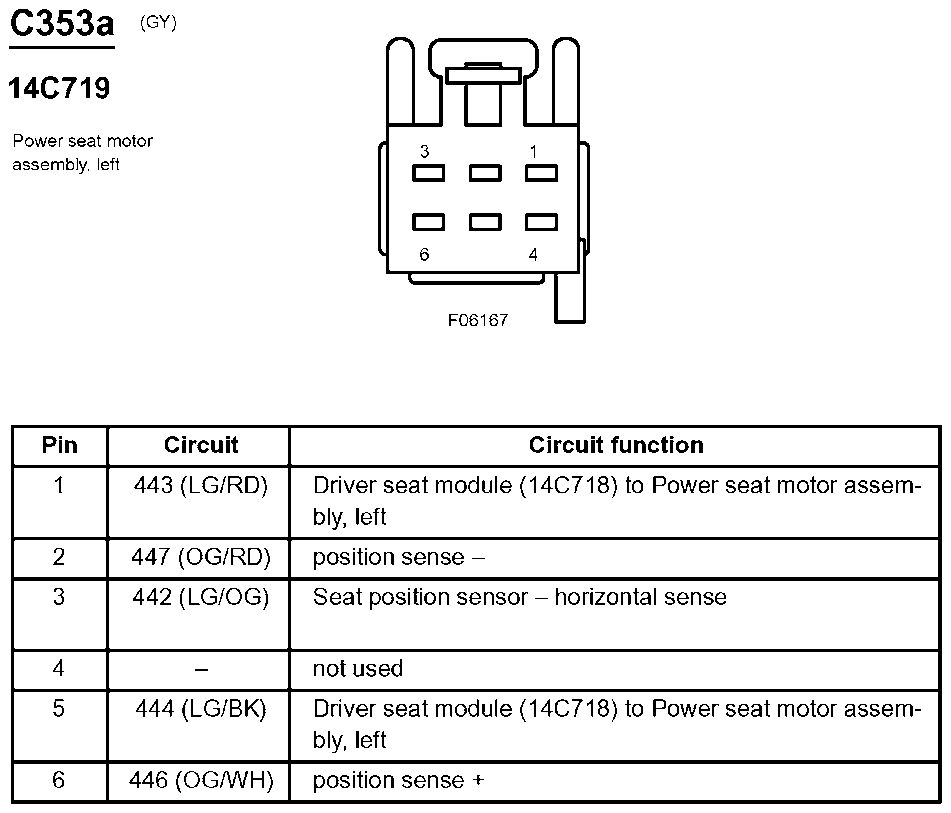

Fig 135: Power Seat Motor Assembly, Left Connector End View (C353a)

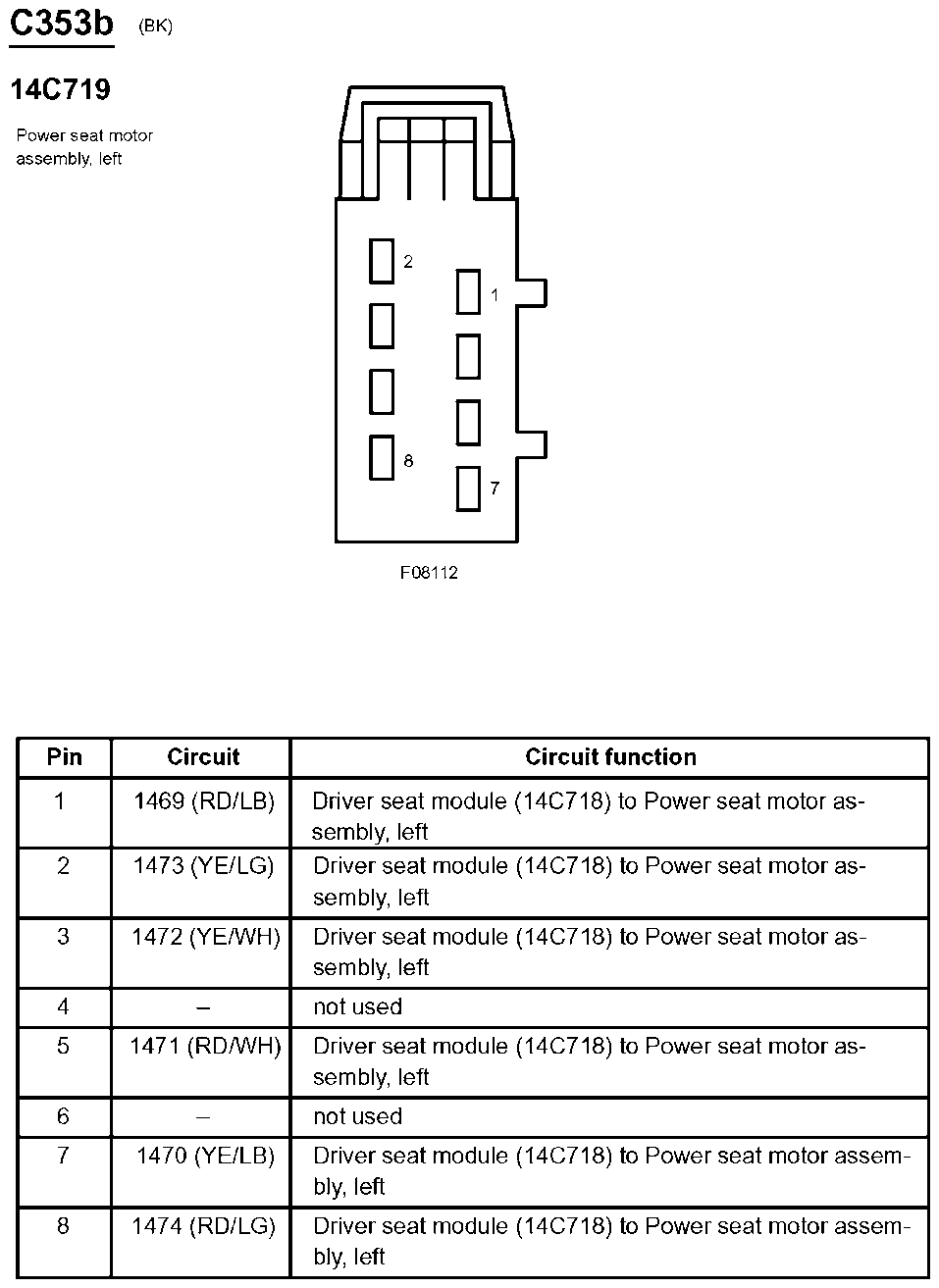

G07832955

Courtesy of FORD MOTOR CO.

Fig 136: Power Seat Motor Assembly, Left Connector End View (C353b)

G07832956

Courtesy of FORD MOTOR CO.

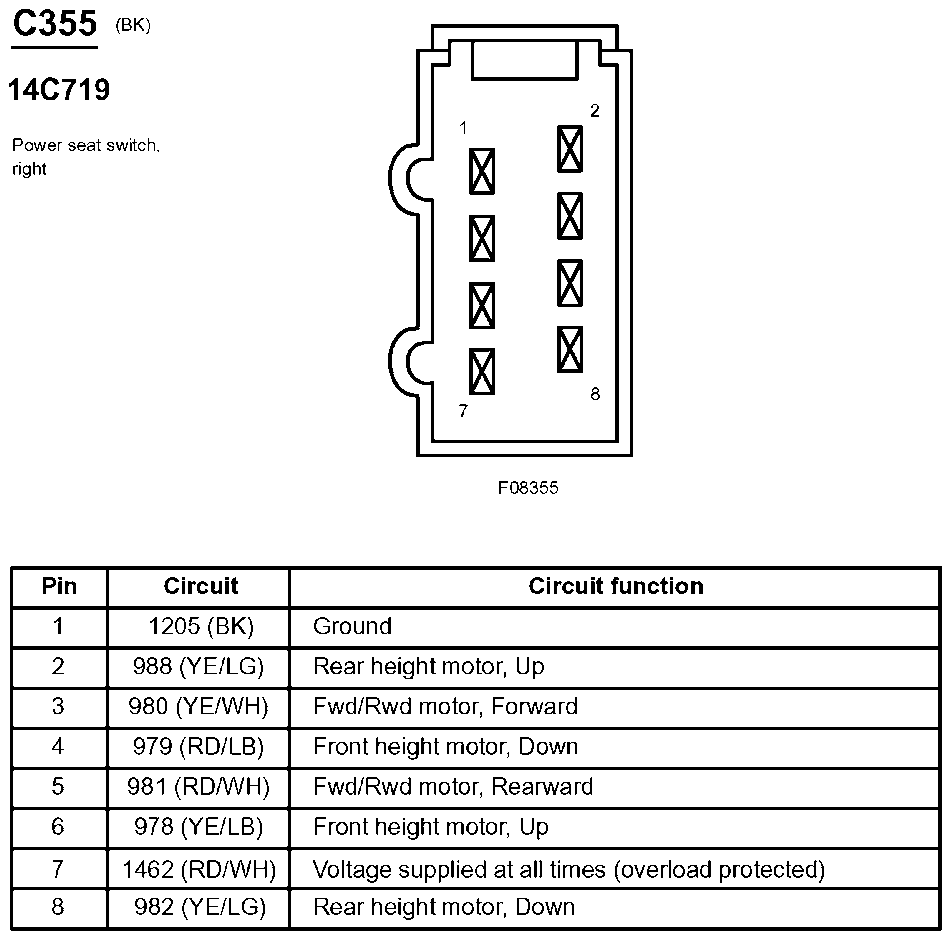

Fig 137: Power Seat Switch, Right Connector End View (C355)

G07832957

Courtesy of FORD MOTOR CO.

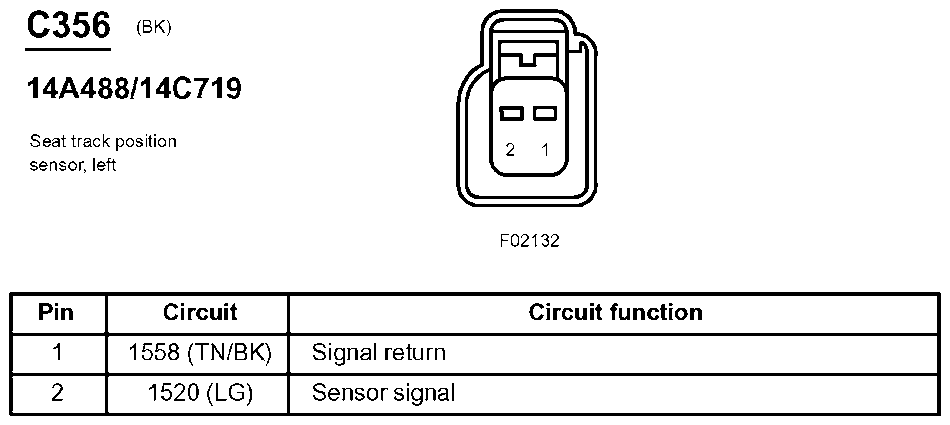

Fig 138: Seat Track Position Sensor, Left Connector End View (C356)

G07832958

Courtesy of FORD MOTOR CO.

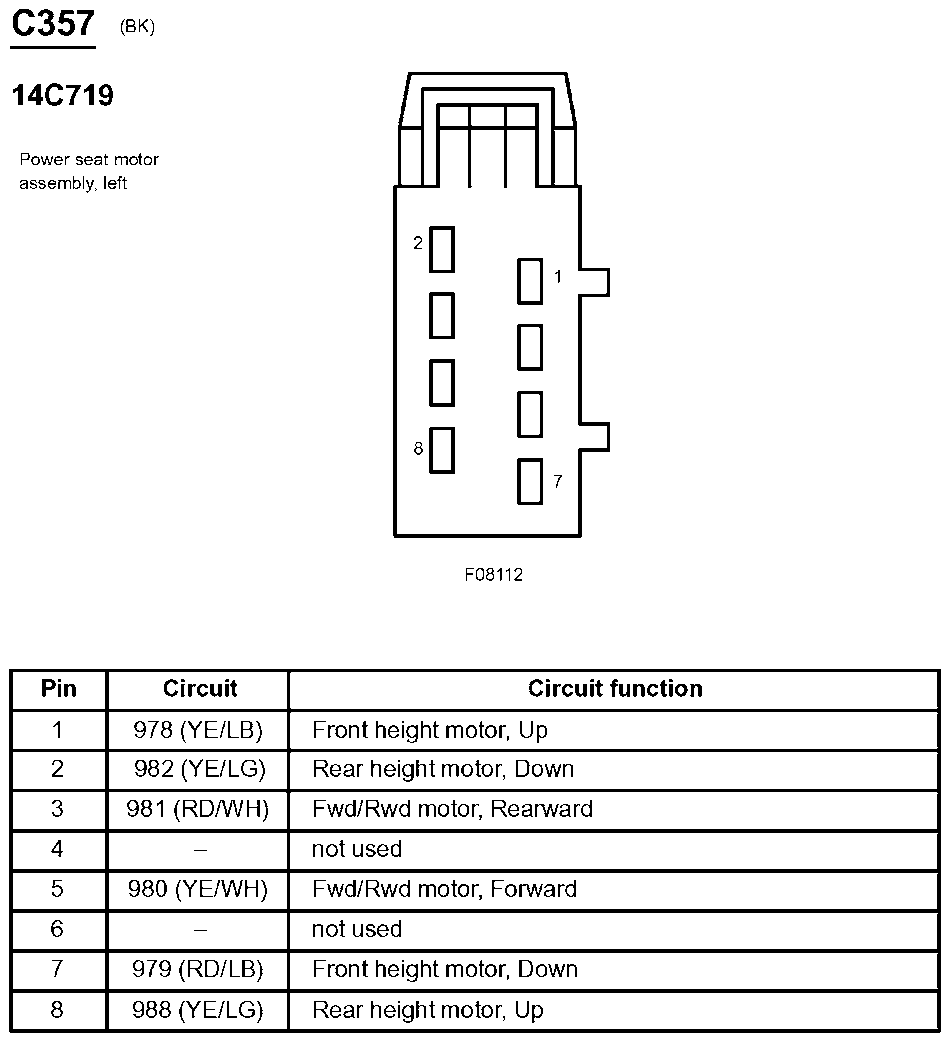

Fig 139: Power Seat Motor Assembly, Left Connector End View (C357)

G07832959

Courtesy of FORD MOTOR CO.

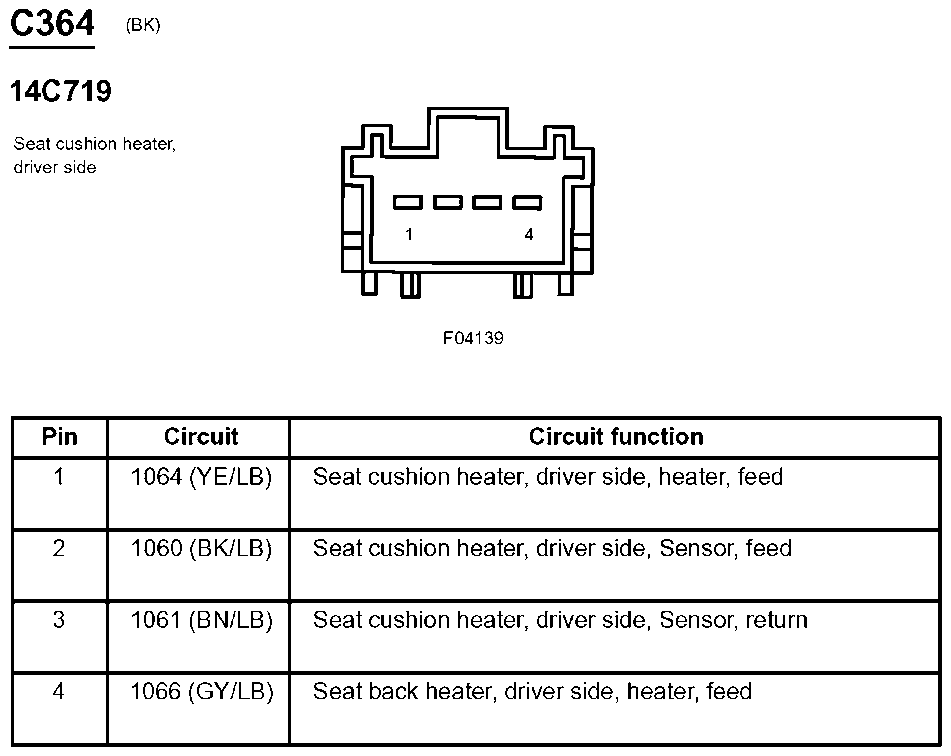

Fig 140: Seat Cushion Heater Driver Side Connector End View (C364)

G07832960

Courtesy of FORD MOTOR CO.

Fig 141: Seat Cushion Heater, Driver Side Connector End View (C364a)

G07832961

Courtesy of FORD MOTOR CO.

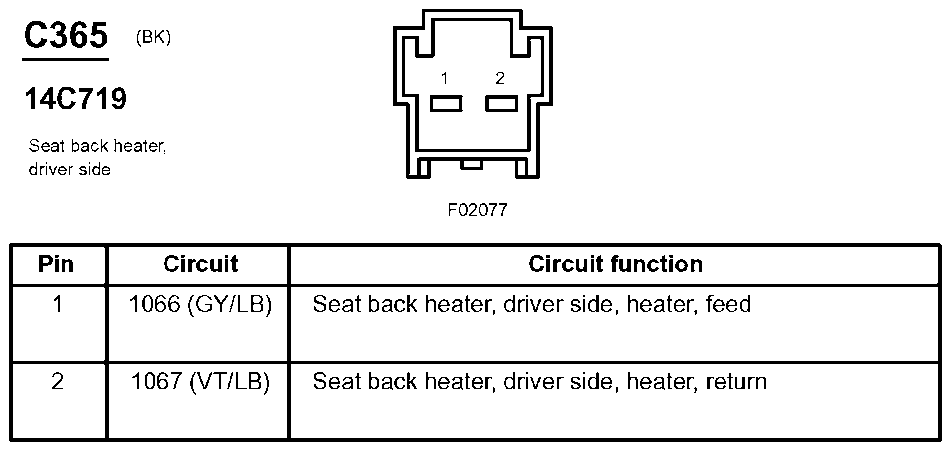

Fig 142: Seat Back Heater, Driver Side Connector End View (C365)

G07832962

Courtesy of FORD MOTOR CO.

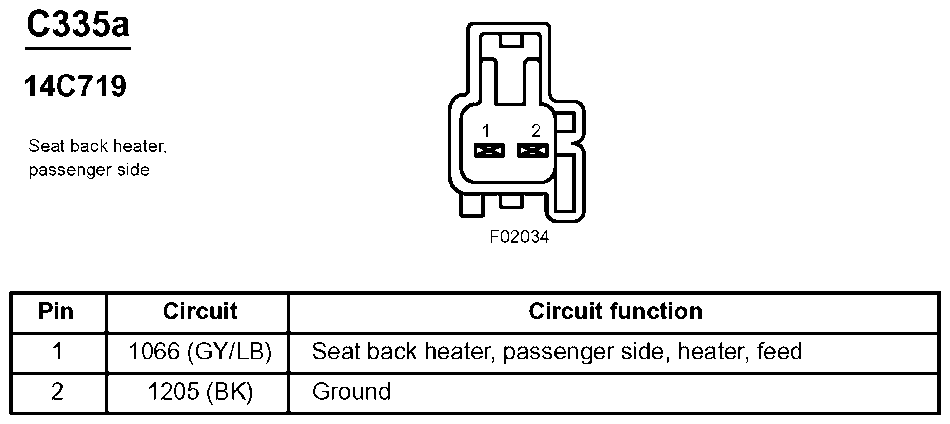

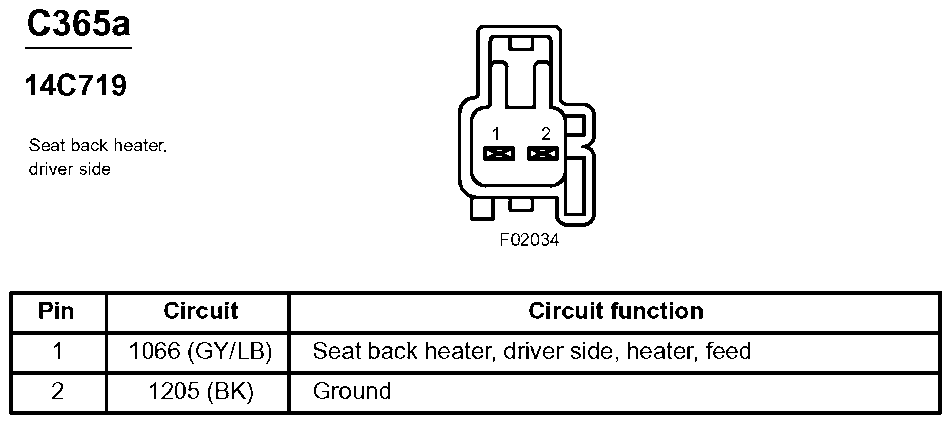

Fig 143: Seat Back Heater, Driver Side Connector End View (C365a)

G07832963

Courtesy of FORD MOTOR CO.

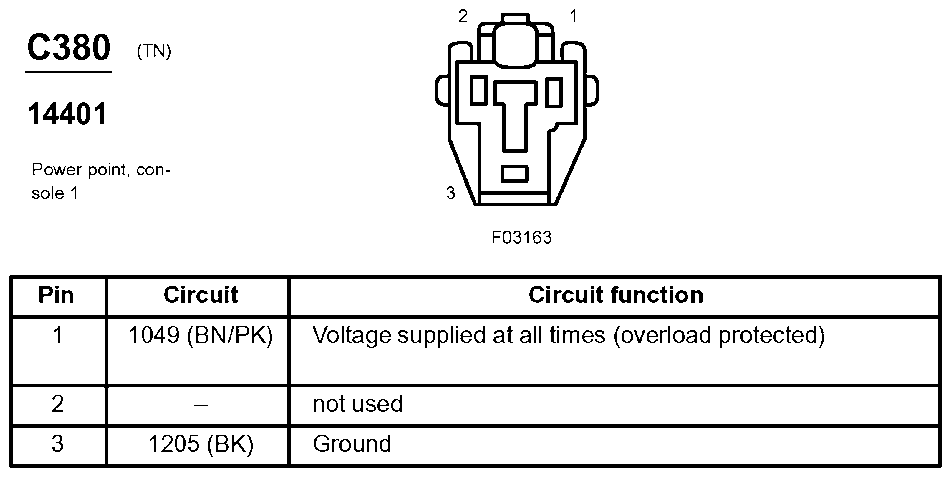

Fig 144: Power Point, Console 1 Connector End View (C380)

G07832964

Courtesy of FORD MOTOR CO.

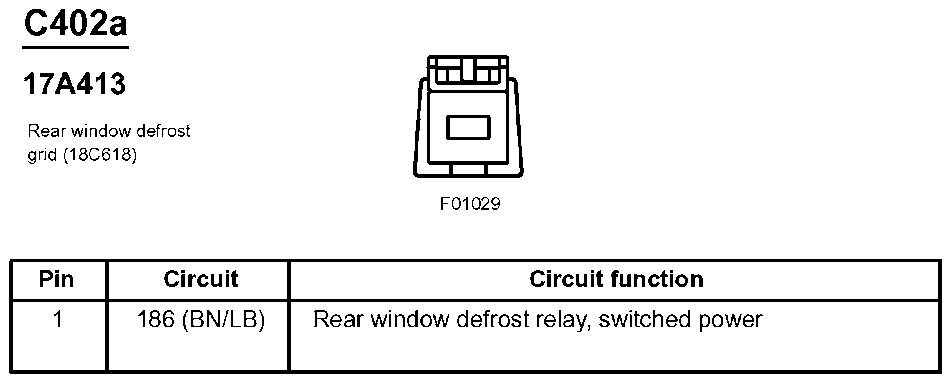

Fig 145: Rear Window Defrost Grid Connector End View (C402a)

G07832965

Courtesy of FORD MOTOR CO.

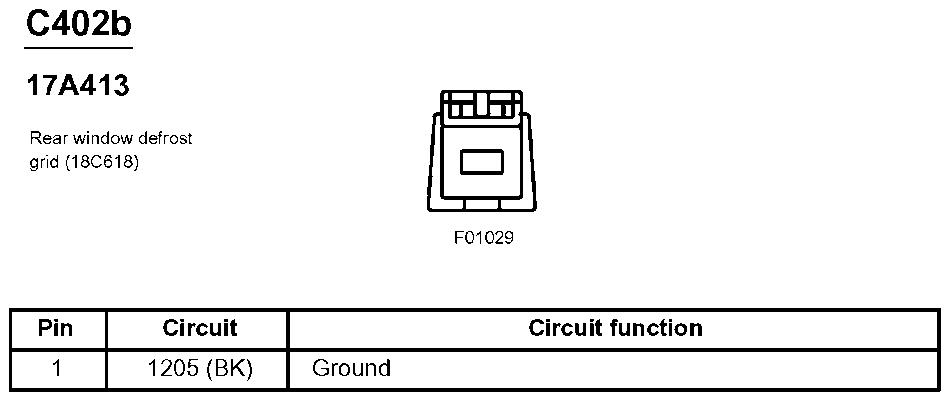

Fig 146: Rear Window Defrost Grid Connector End View (C402b)

G07832966

Courtesy of FORD MOTOR CO.

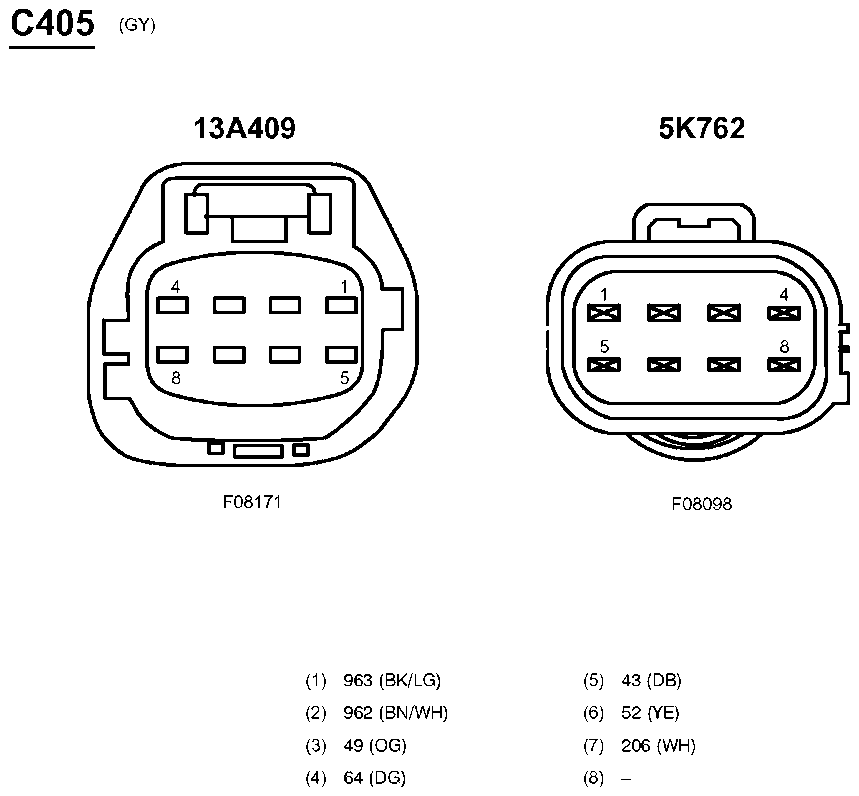

Fig 147: Inline Connector End View (C405)

G07832967

Courtesy of FORD MOTOR CO.

Fig 148: Inline Connector End View (C406)

G07832968

Courtesy of FORD MOTOR CO.

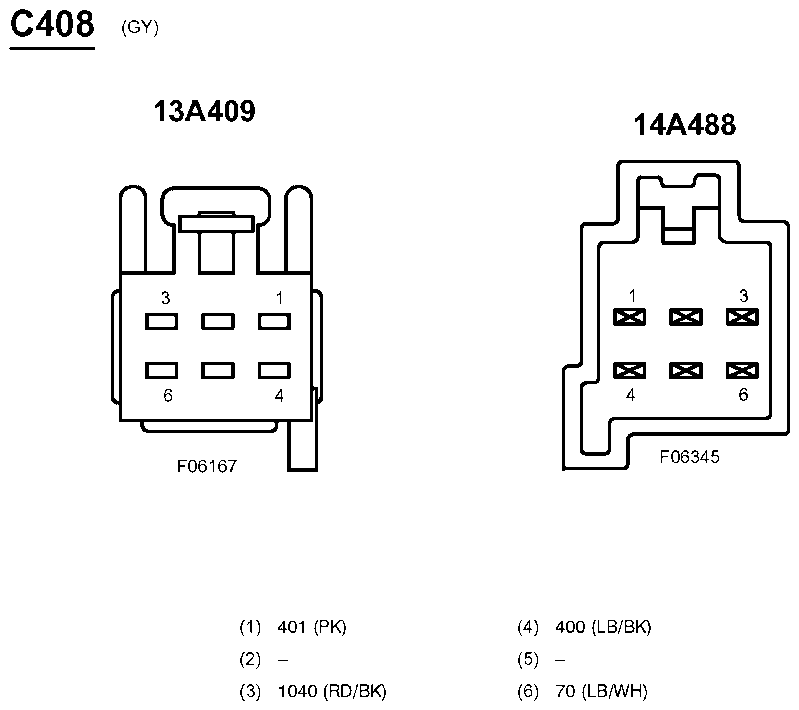

Fig 149: Inline Connector End View (C408)

G07832969

Courtesy of FORD MOTOR CO.

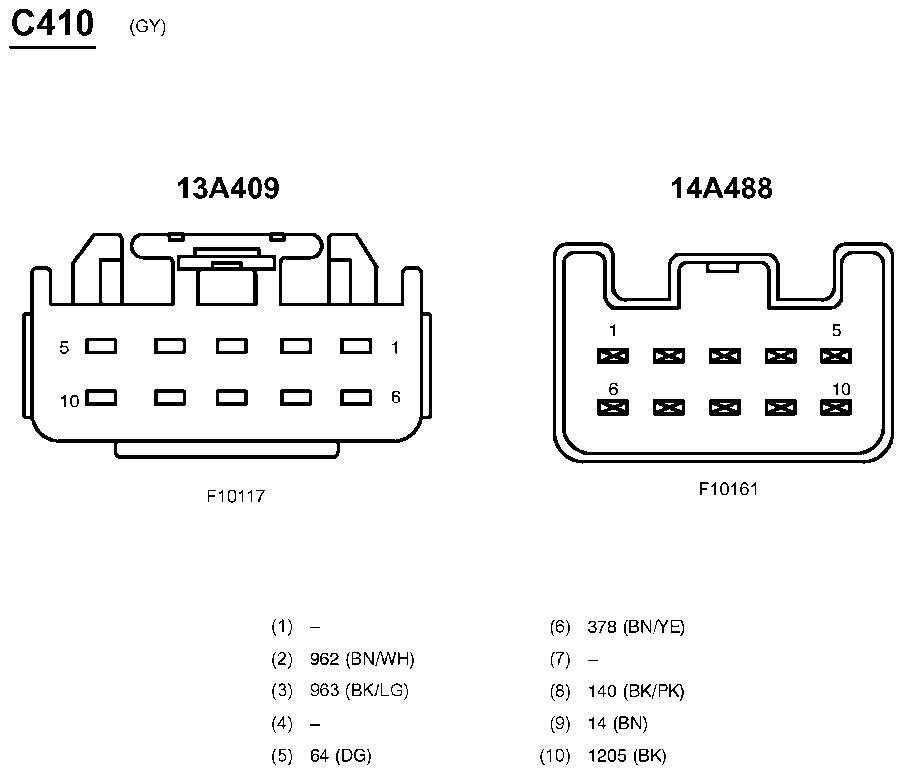

Fig 150: Inline Connector End View (C410)

G07832970

Courtesy of FORD MOTOR CO.

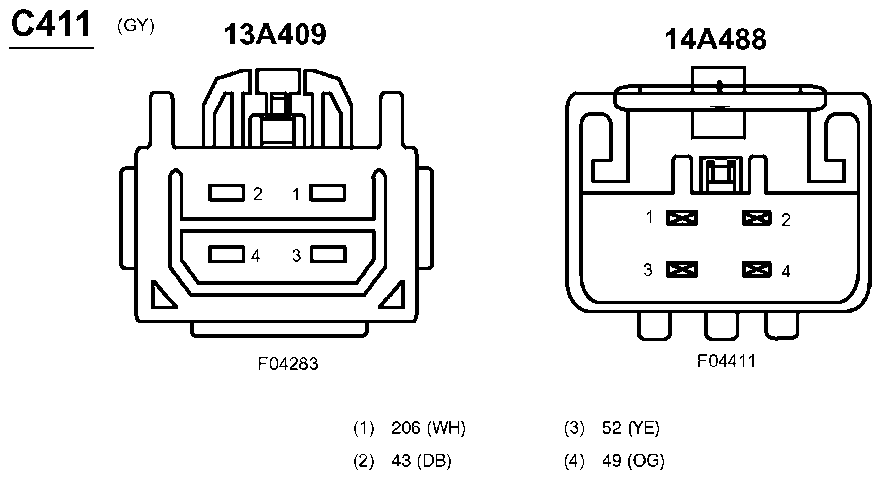

Fig 151: Inline Connector End View (C411)

G07832971

Courtesy of FORD MOTOR CO.

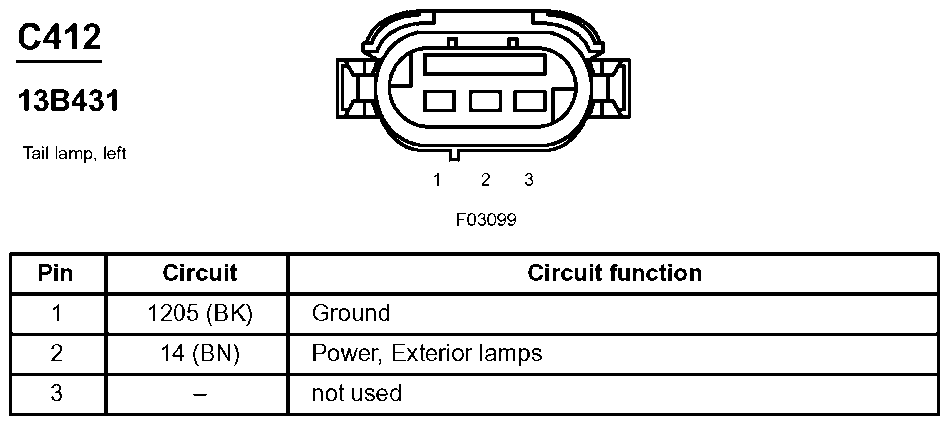

Fig 152: Tail Lamp, Left Connector End View (C412)

G07832972

Courtesy of FORD MOTOR CO.

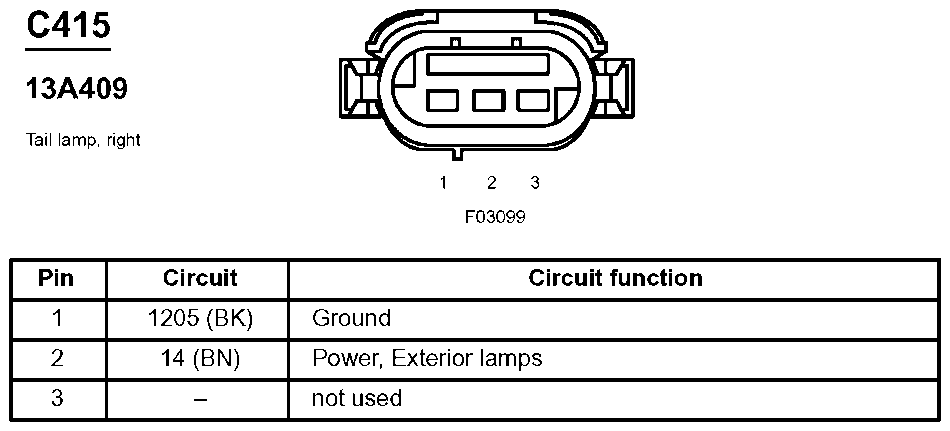

Fig 153: Tail Lamp, Right Connector End View (C415)

G07832973

Courtesy of FORD MOTOR CO.

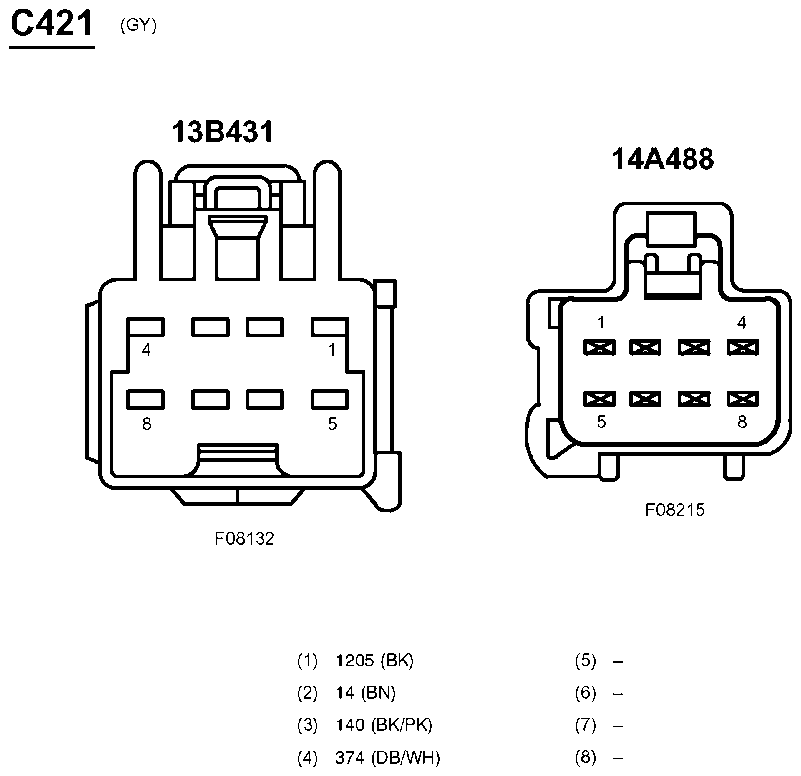

Fig 154: Inline Connector End View (C421)

G07832974

Courtesy of FORD MOTOR CO.

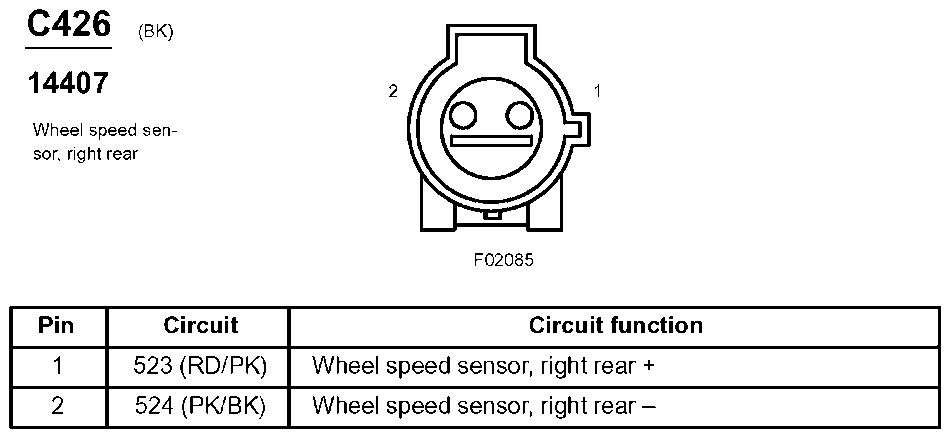

Fig 155: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07832975

Courtesy of FORD MOTOR CO.

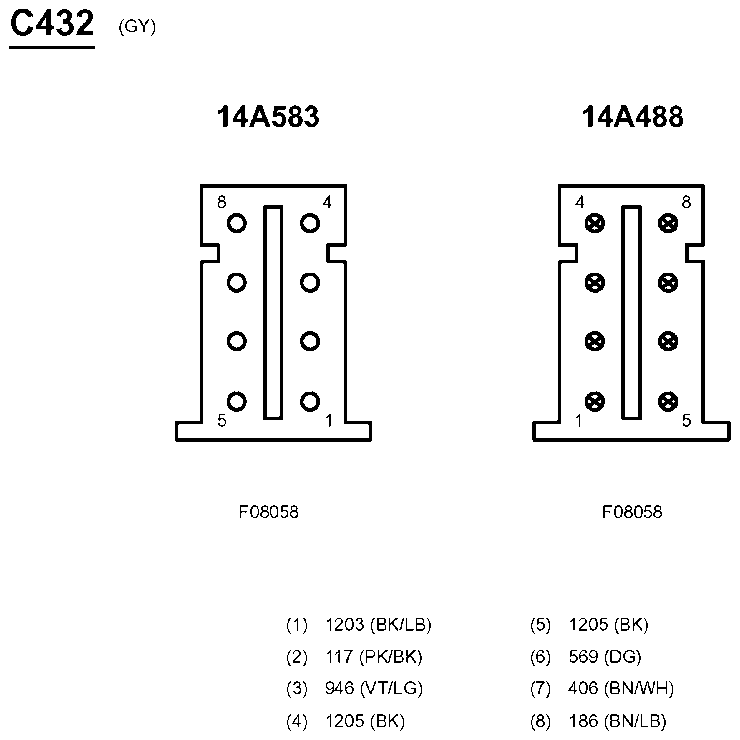

Fig 156: Inline Connector End View (C432)

G07832976

Courtesy of FORD MOTOR CO.

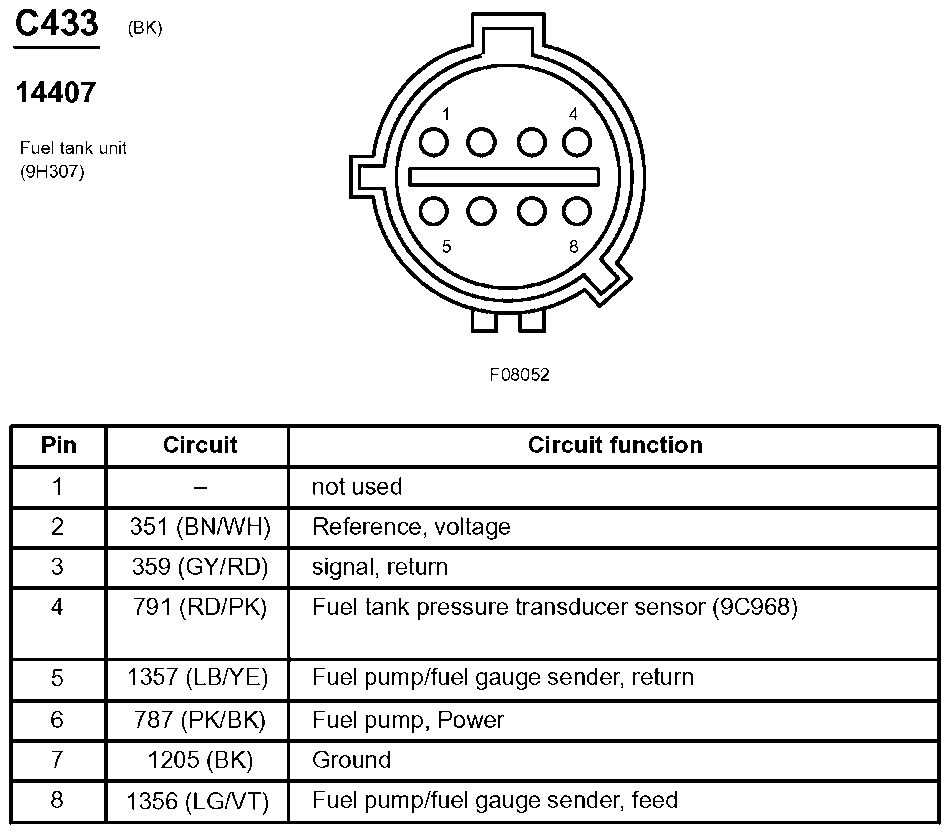

Fig 157: Fuel Tank Unit Connector End View (C433)

G07832977

Courtesy of FORD MOTOR CO.

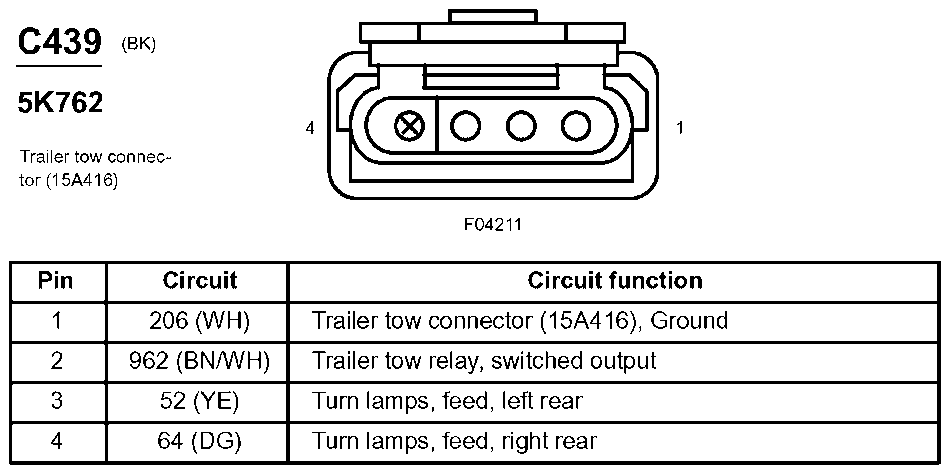

Fig 158: Trailer Tow Connector End View (C439)

G07832978

Courtesy of FORD MOTOR CO.

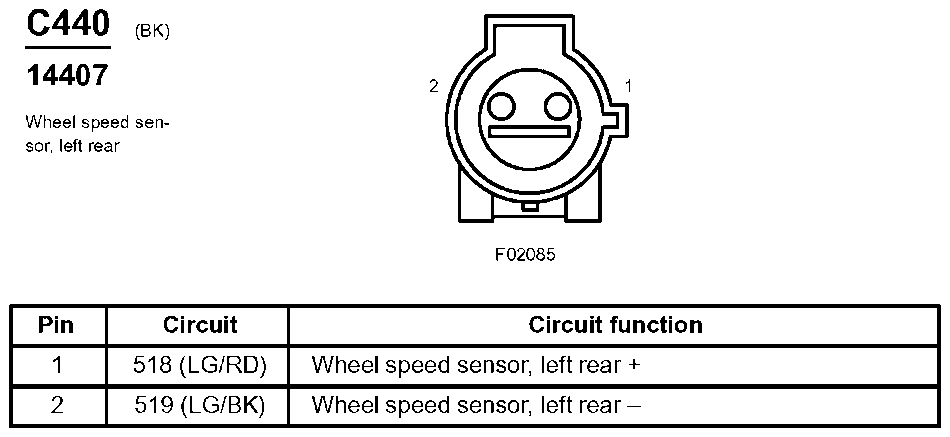

Fig 159: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07832979

Courtesy of FORD MOTOR CO.

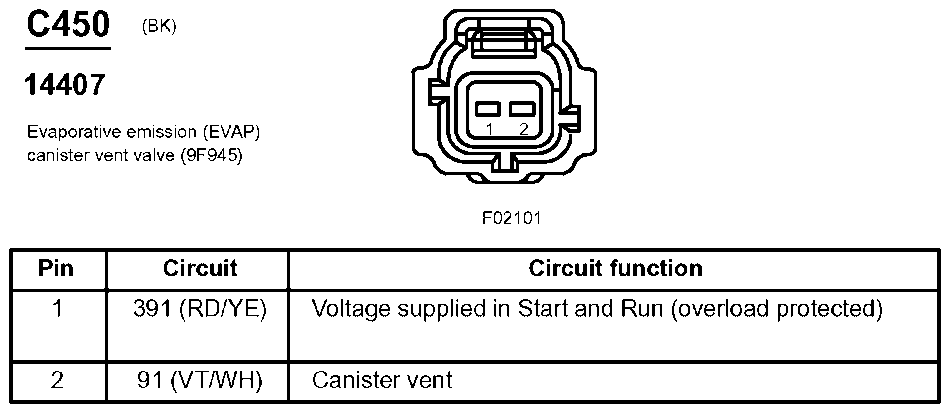

Fig 160: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07832980

Courtesy of FORD MOTOR CO.

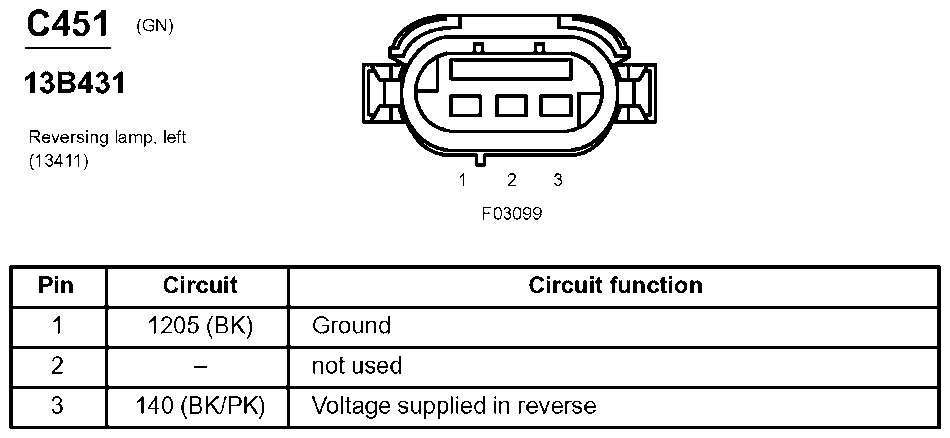

Fig 161: Reversing Lamp, Left Connector End View (C451)

G07832981

Courtesy of FORD MOTOR CO.

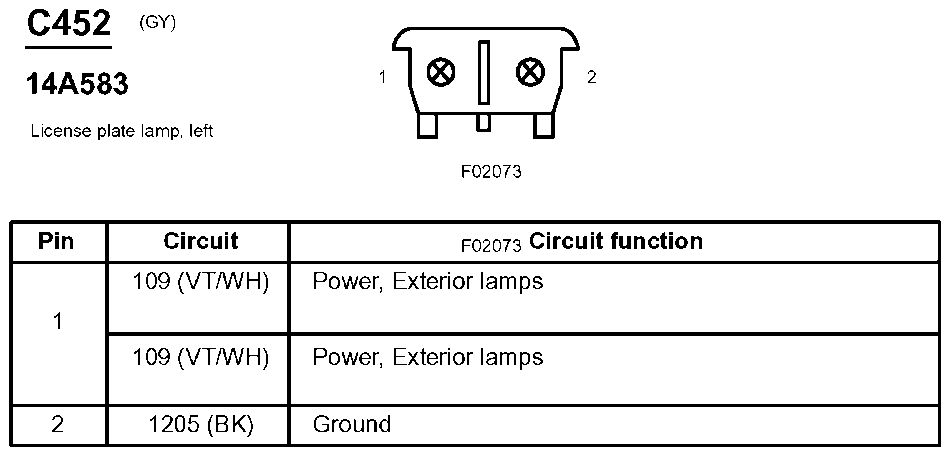

Fig 162: License Plate Lamp, Left Connector End View (C452)

G07832982

Courtesy of FORD MOTOR CO.

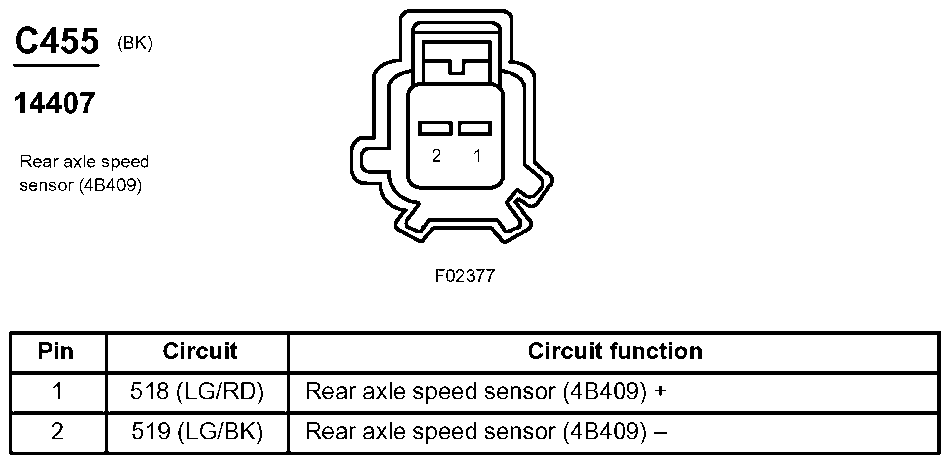

Fig 163: Rear Axle Speed Sensor Connector End View (C455)

G07832983

Courtesy of FORD MOTOR CO.

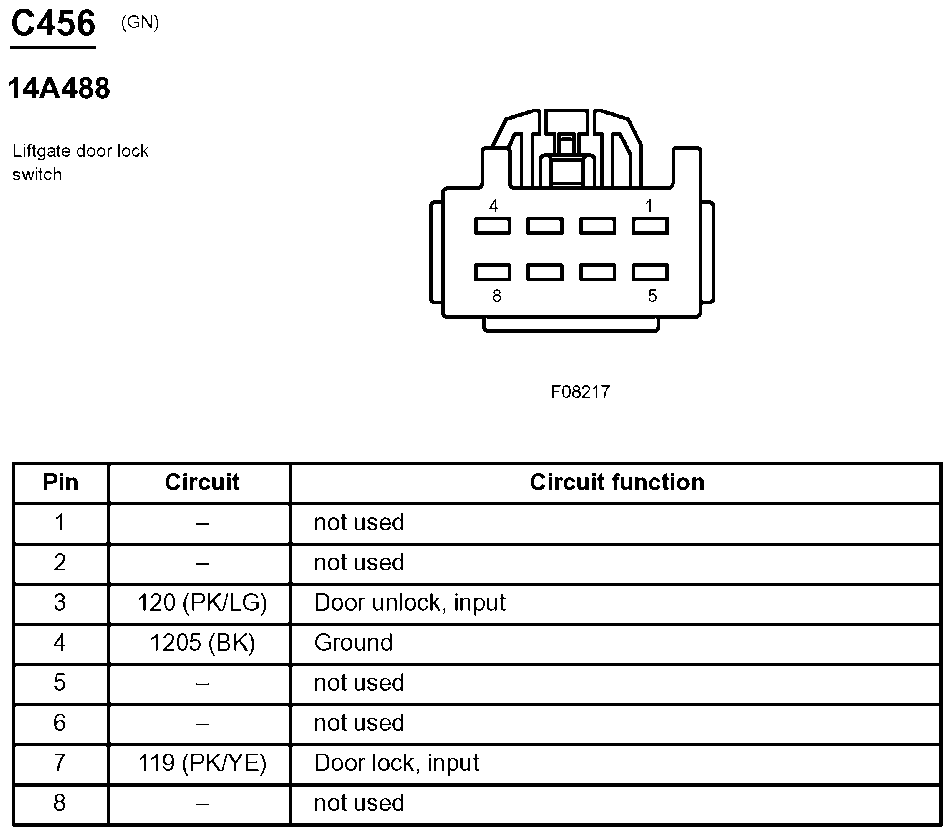

Fig 164: Liftgate Door Lock Switch Connector End View (C456)

G07832984

Courtesy of FORD MOTOR CO.

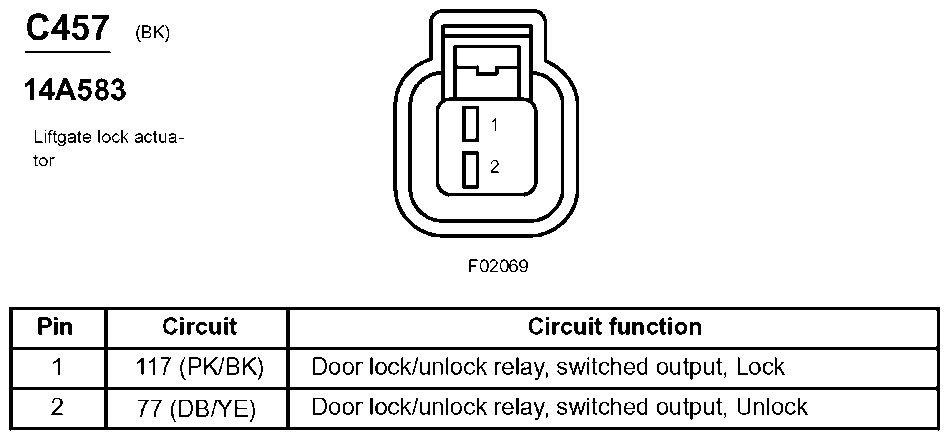

Fig 165: Liftgate Lock Actuator Connector End View (C457)

G07832985

Courtesy of FORD MOTOR CO.

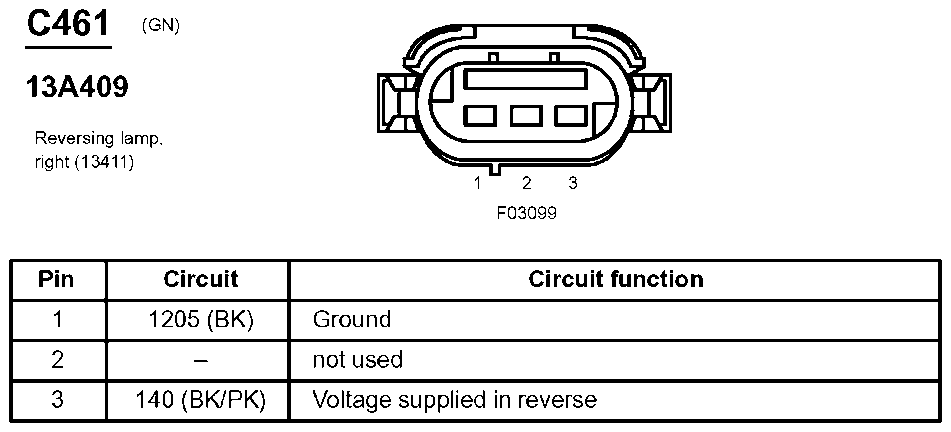

Fig 166: Reversing Lamp, Right Connector End View (C461)

G07832986

Courtesy of FORD MOTOR CO.

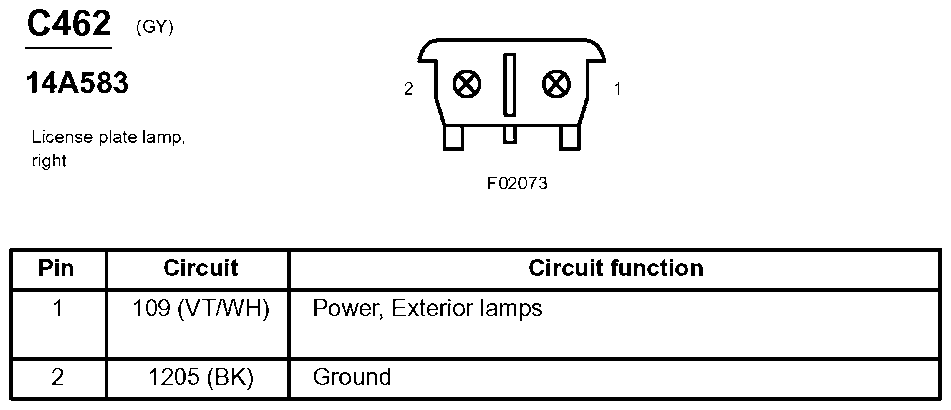

Fig 167: License Plate Lamp, Right Connector End View (C462)

G07832987

Courtesy of FORD MOTOR CO.

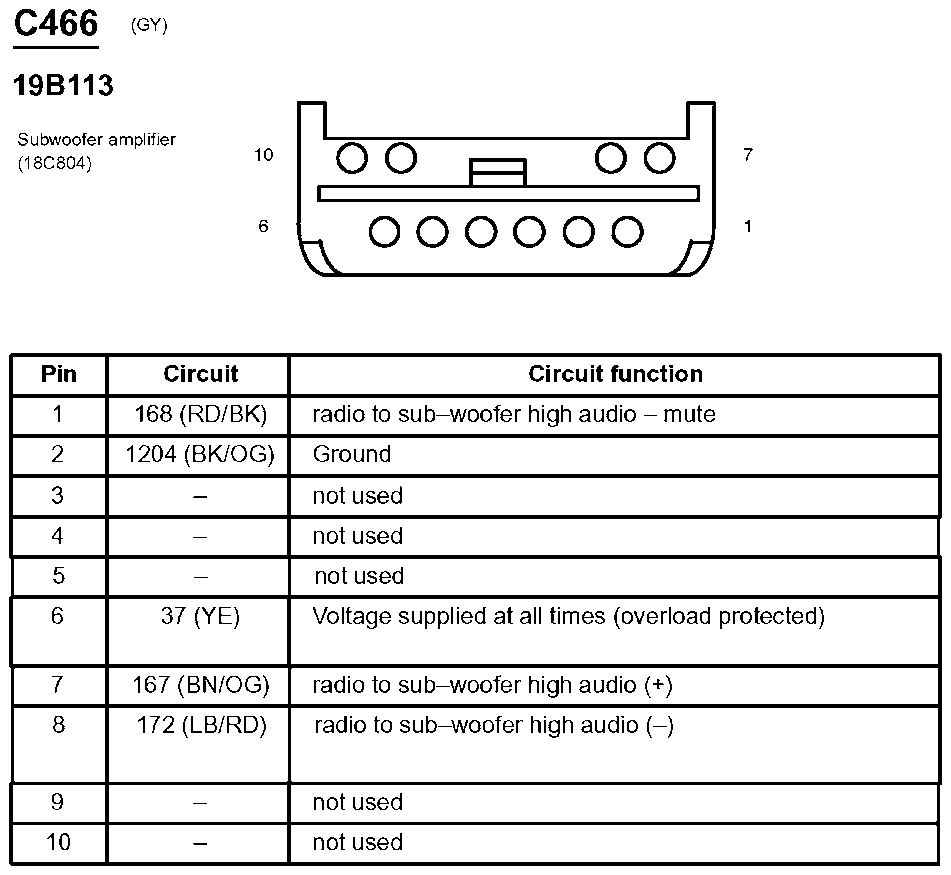

Fig 168: Subwoofer Amplifier Connector End View (C466)

G07832988

Courtesy of FORD MOTOR CO.

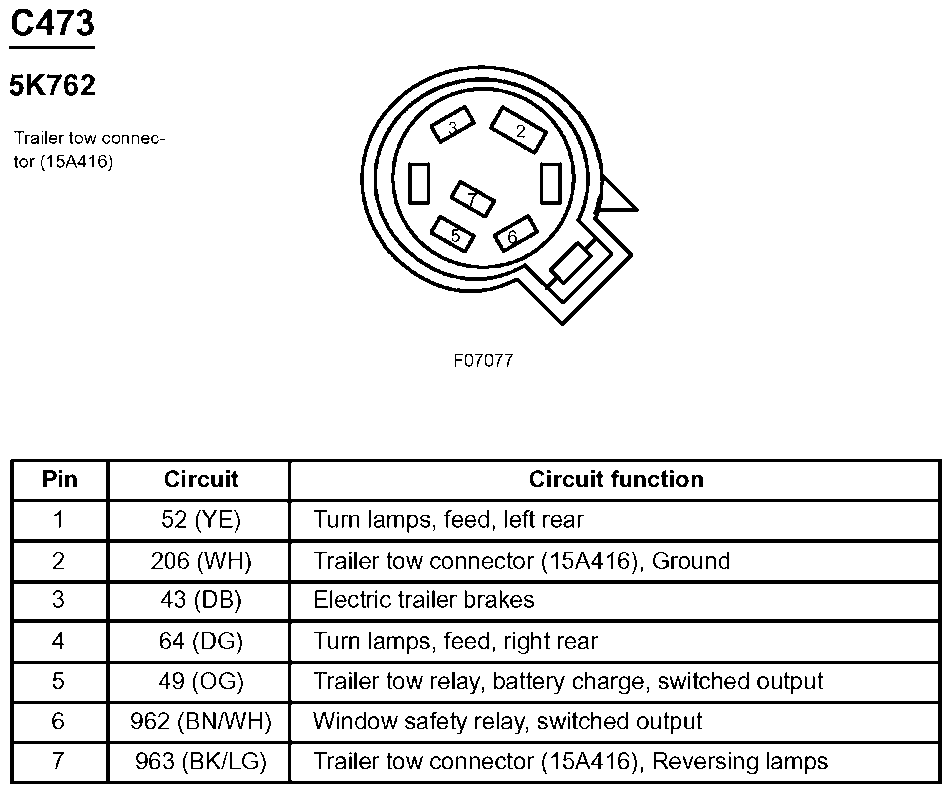

Fig 169: Trailer Tow Connector End View (C473)

G07832989

Courtesy of FORD MOTOR CO.

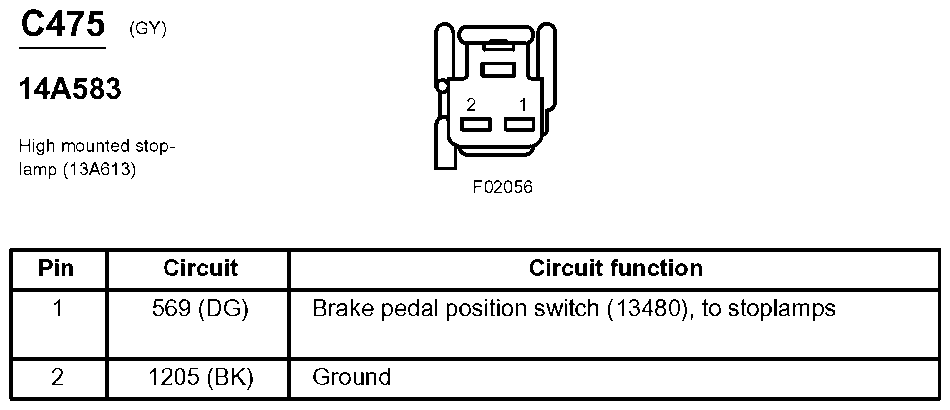

Fig 170: High Mounted Stoplamp Connector End View (C475)

G07832990

Courtesy of FORD MOTOR CO.

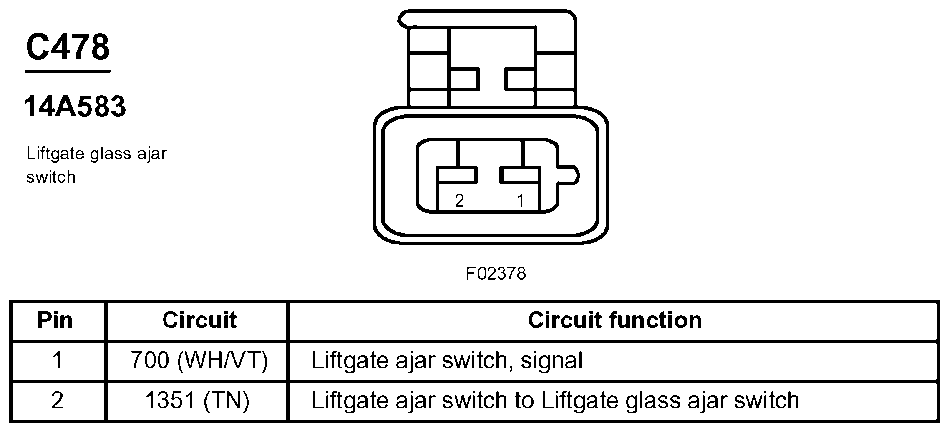

Fig 171: Liftgate Glass Ajar Switch Connector End View (C478)

G07832991

Courtesy of FORD MOTOR CO.

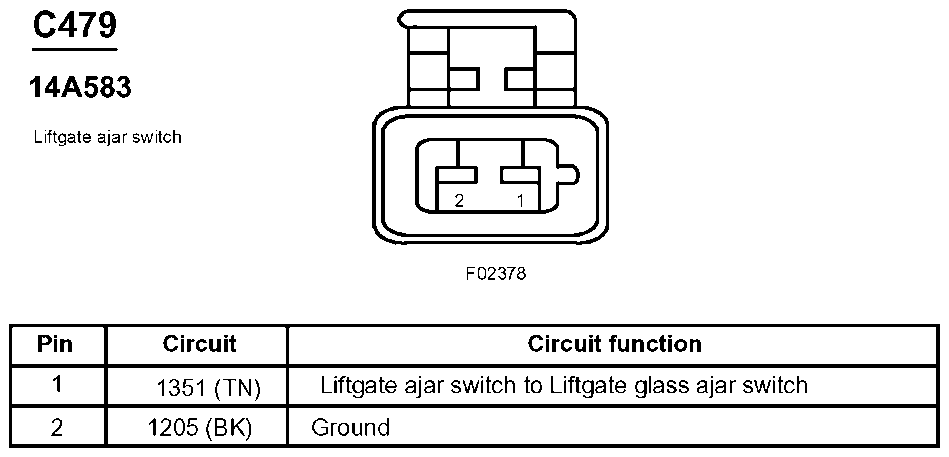

Fig 172: Liftgate Ajar Switch Connector End View (C479)

G07832992

Courtesy of FORD MOTOR CO.

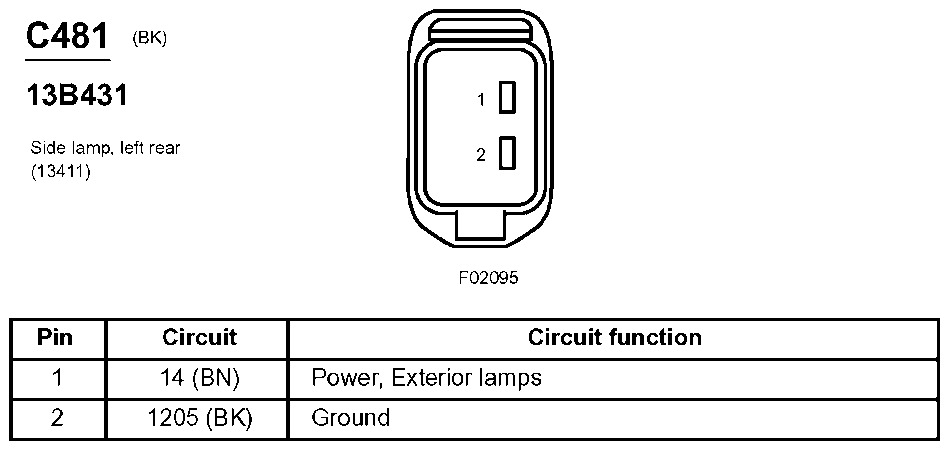

Fig 173: Side Lamp, Left Rear Connector End View (C481)

G07832993

Courtesy of FORD MOTOR CO.

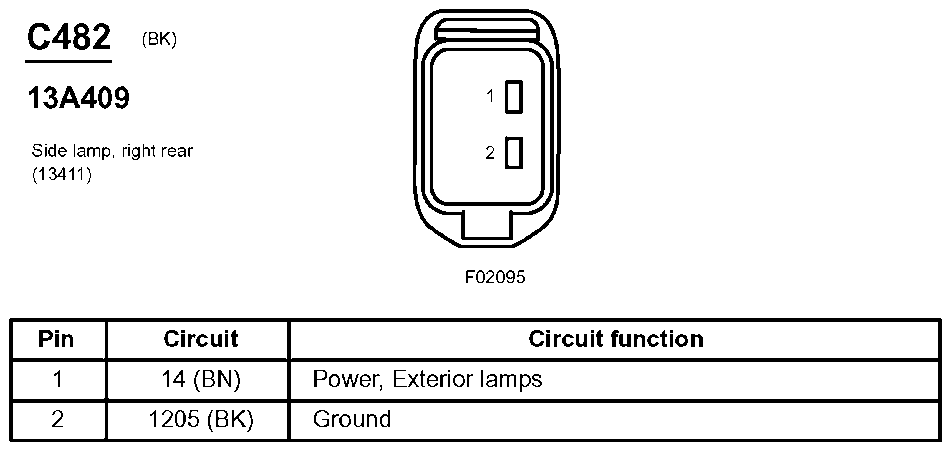

Fig 174: Side Lamp, Right Rear Connector End View (C482)

G07832994

Courtesy of FORD MOTOR CO.

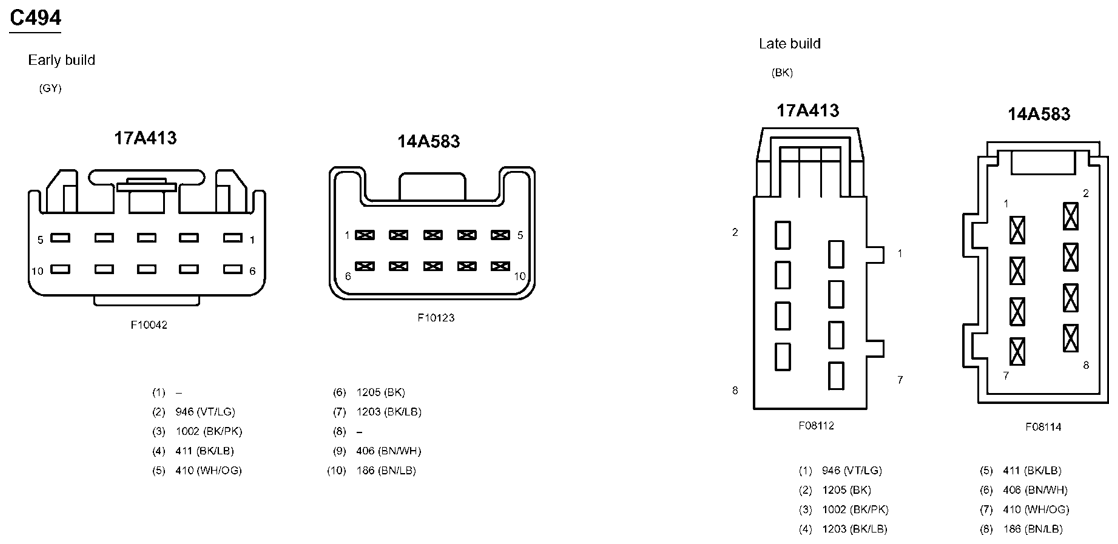

Fig 175: Inline Connector End View (C494)

G07832995

Courtesy of FORD MOTOR CO.

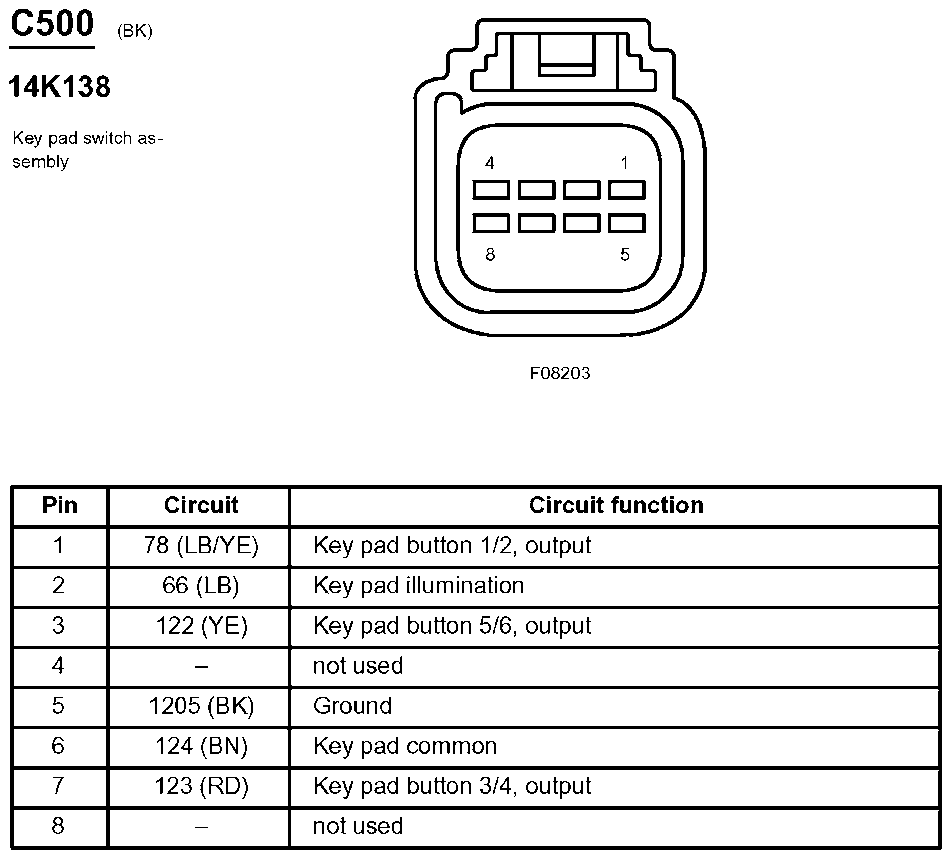

Fig 176: Key Pad Switch Assembly Connector End View (C500)

G07832996

Courtesy of FORD MOTOR CO.

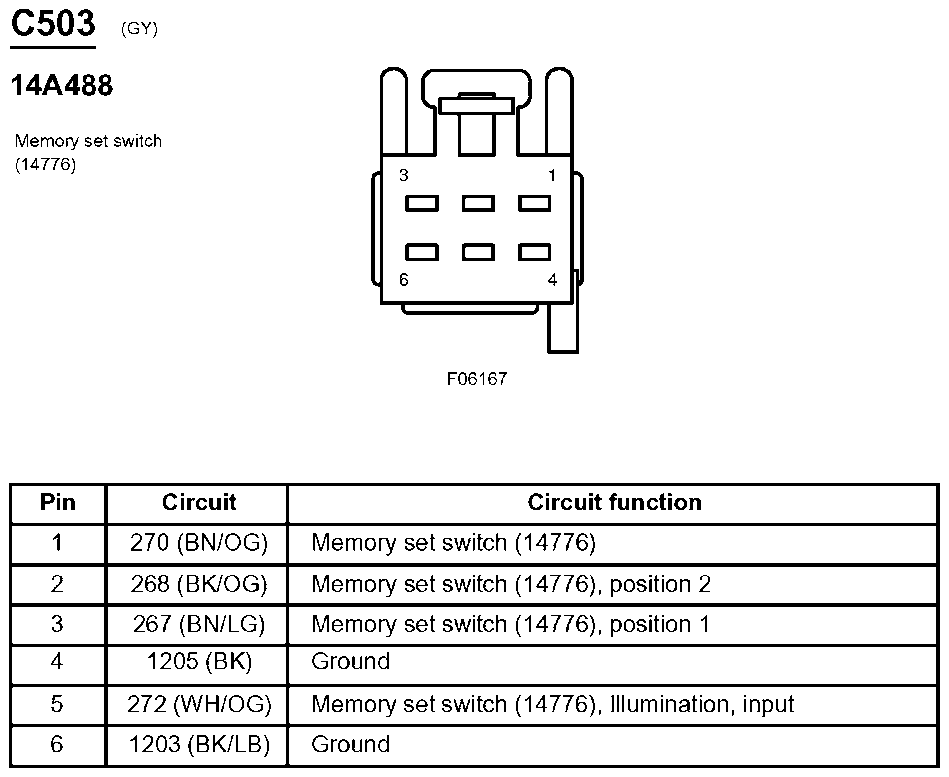

Fig 177: Memory Set Switch Connector End View (C503)

G07832997

Courtesy of FORD MOTOR CO.

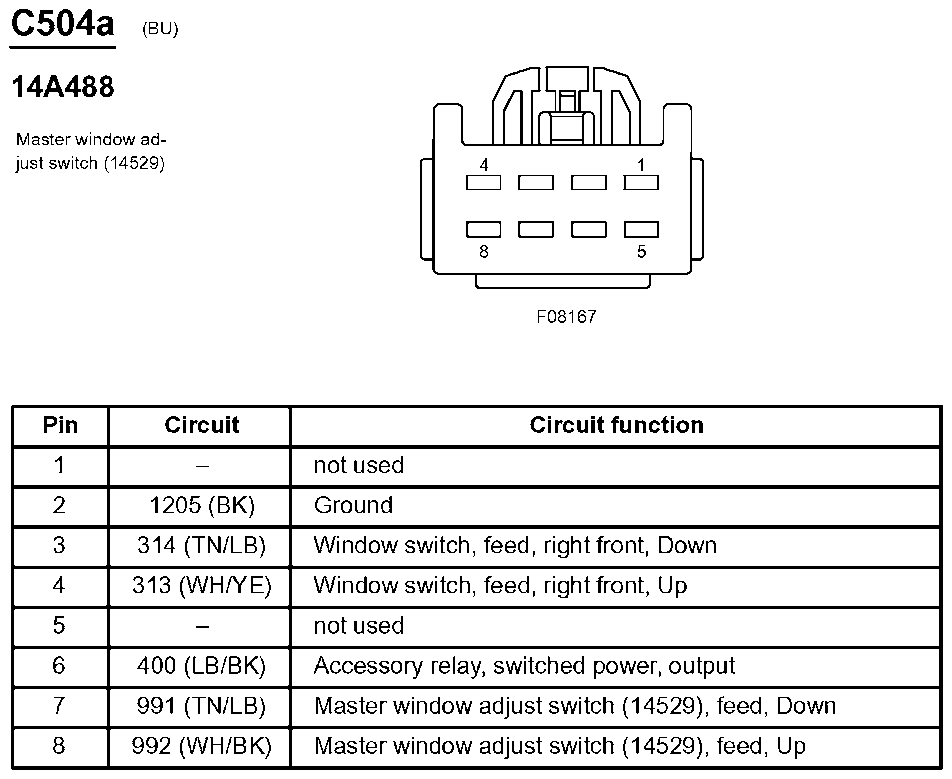

Fig 178: Master Window Adjust Switch Connector End View (C504a)

G07832998

Courtesy of FORD MOTOR CO.

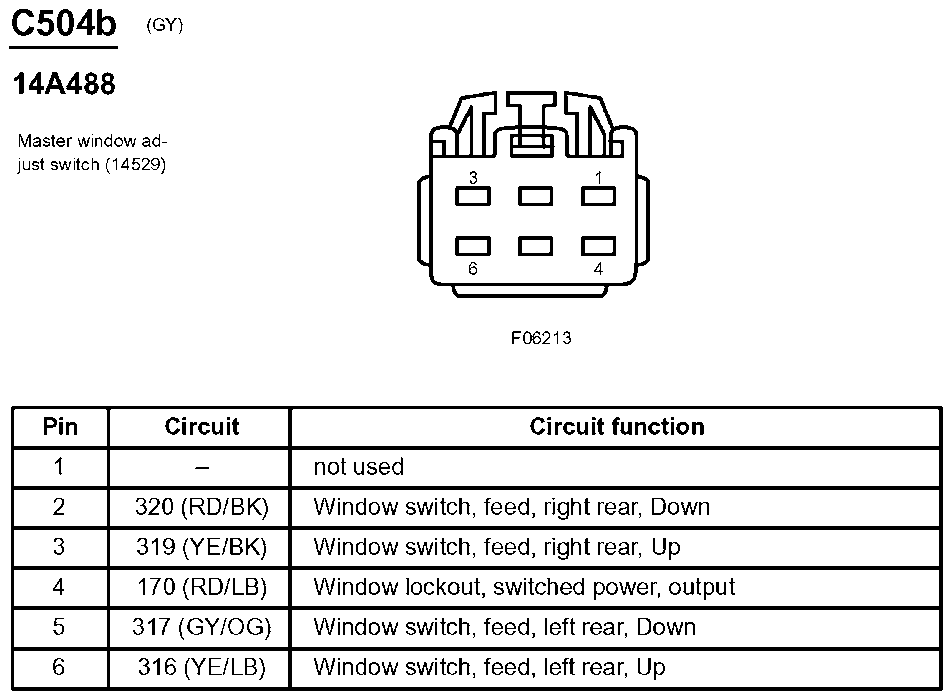

Fig 179: Master Window Adjust Switch Connector End View (C504b)

G07832999

Courtesy of FORD MOTOR CO.

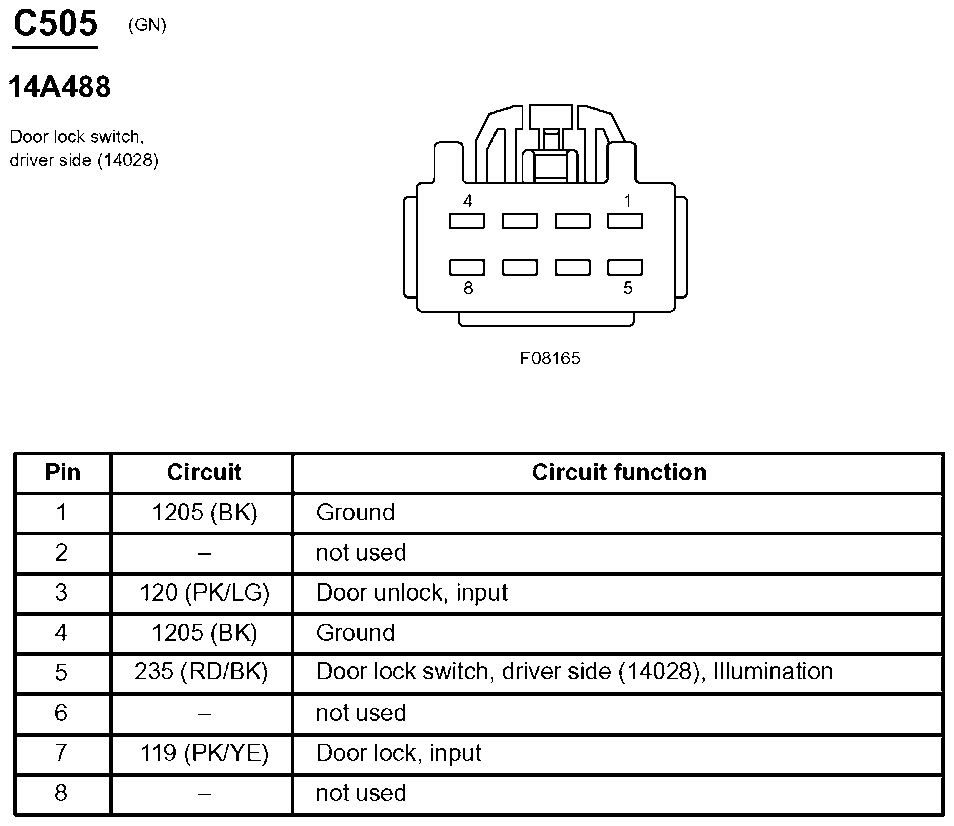

Fig 180: Door Lock Switch, Driver Side Connector End View (C505)

G07833000

Courtesy of FORD MOTOR CO.

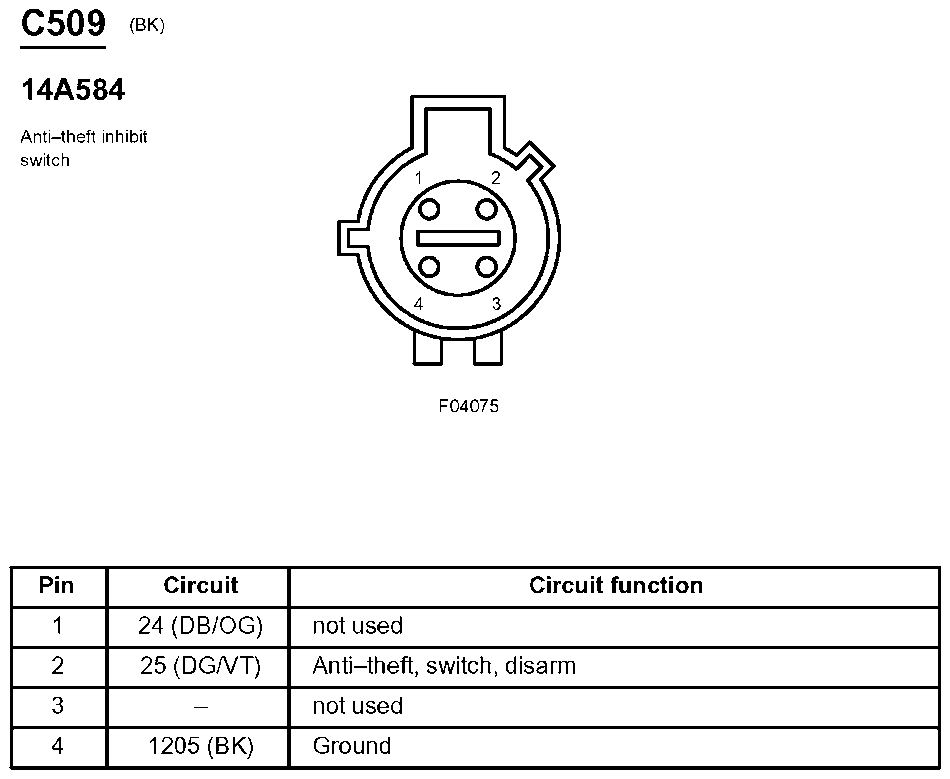

Fig 181: Anti-Theft Inhibit Switch Connector End View (C509)

G07833001

Courtesy of FORD MOTOR CO.

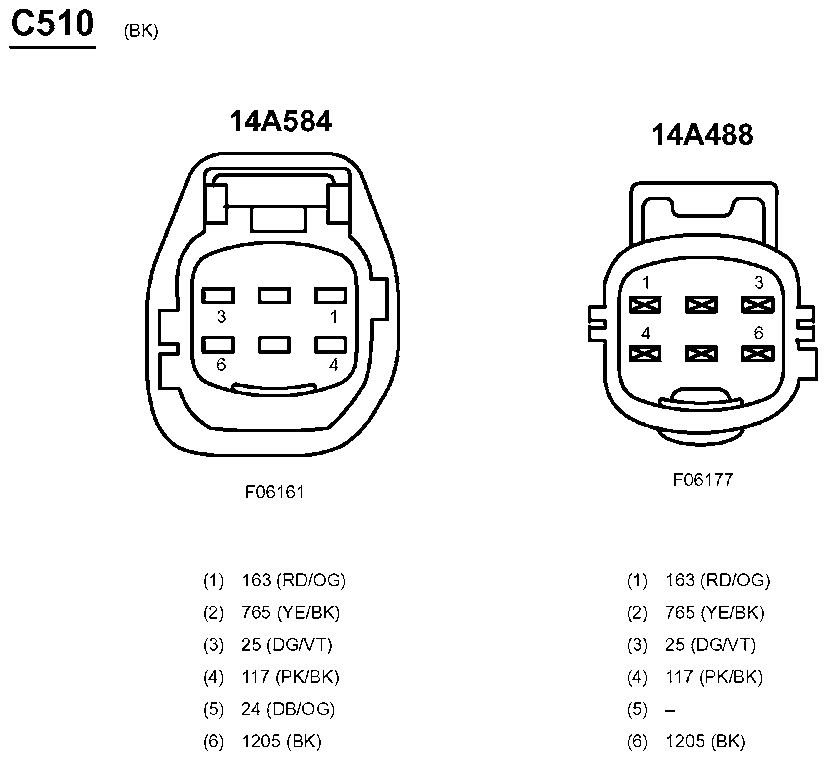

Fig 182: Inline Connector End View (C510)

G07833002

Courtesy of FORD MOTOR CO.

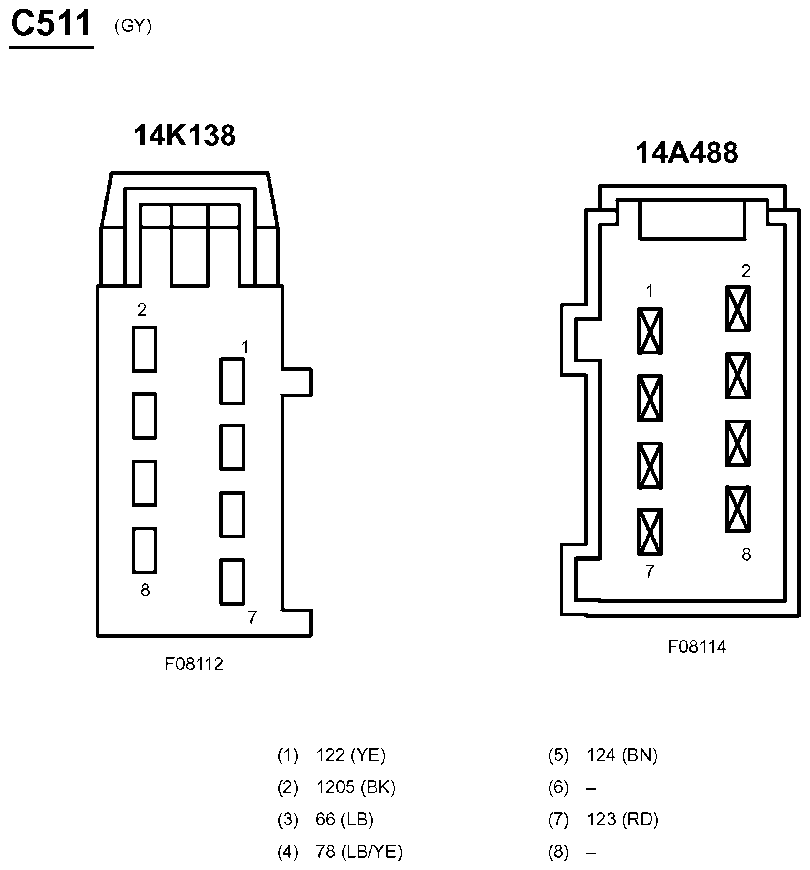

Fig 183: Inline Connector End View (C511)

G07833003

Courtesy of FORD MOTOR CO.

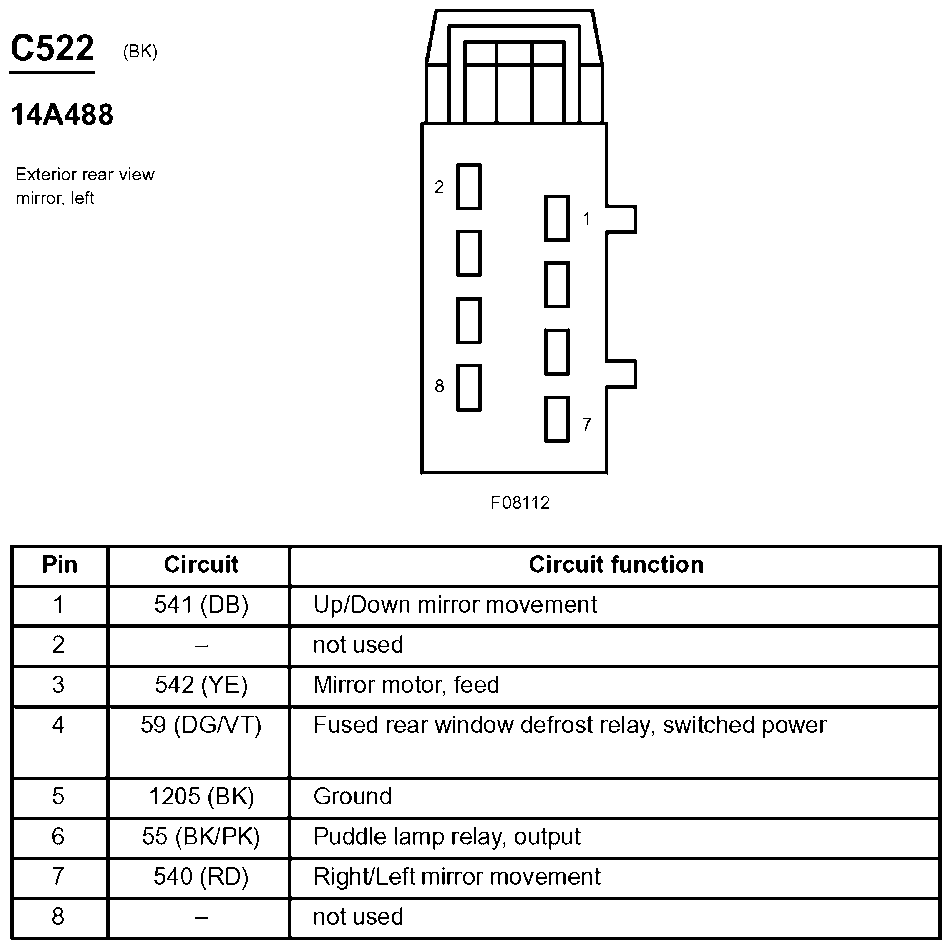

Fig 184: Exterior Rear View Mirror, Left Connector End View (C522)

G07833004

Courtesy of FORD MOTOR CO.

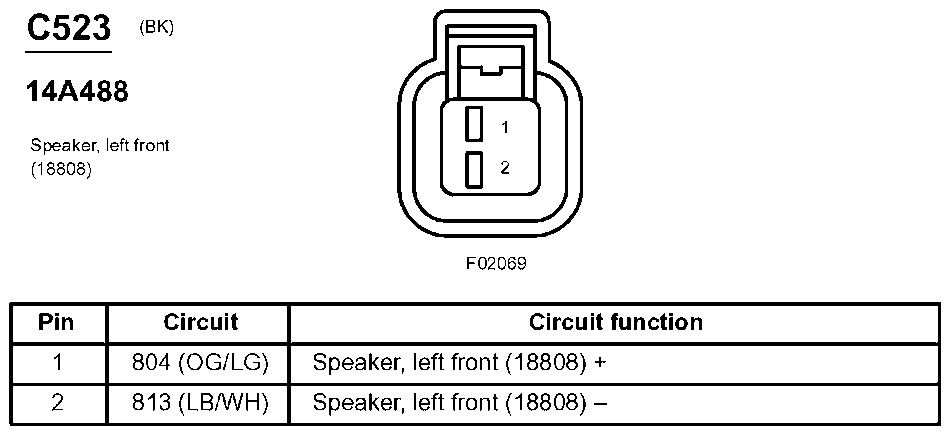

Fig 185: Speaker, Left Front Connector End View (C523)

G07833005

Courtesy of FORD MOTOR CO.

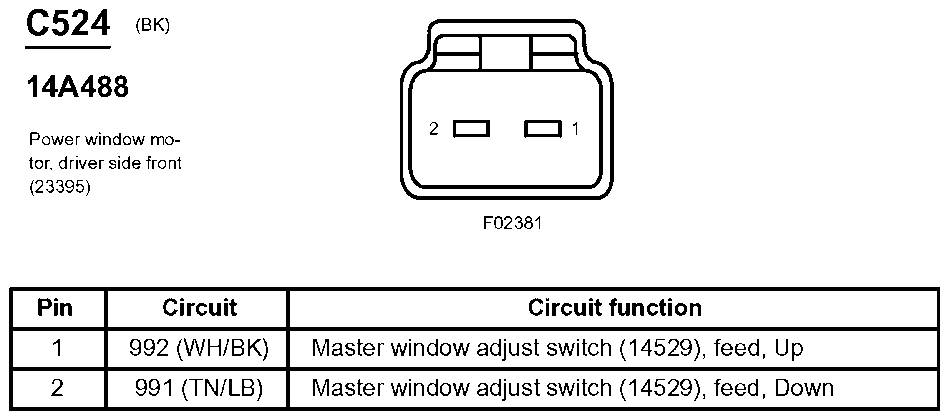

Fig 186: Power Window Motor, Driver Side Front Connector End View (C524)

G07833006

Courtesy of FORD MOTOR CO.

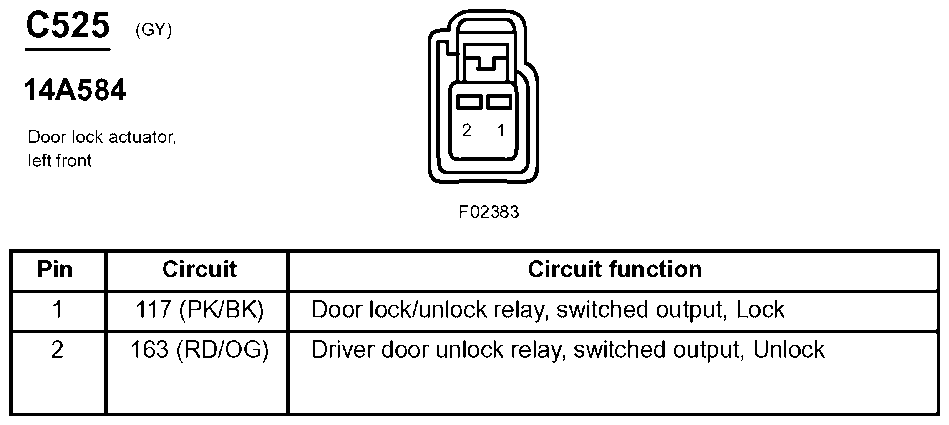

Fig 187: Door Lock Actuator, Left Front Connector End View (C525)

G07833007

Courtesy of FORD MOTOR CO.

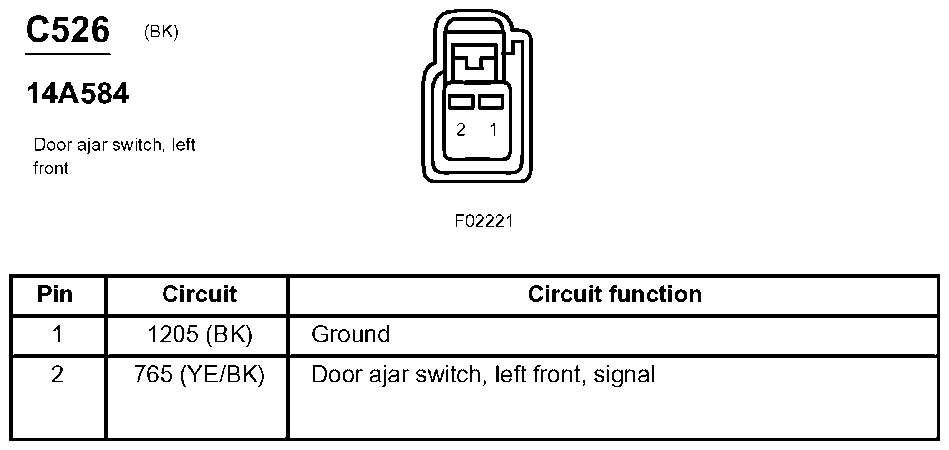

Fig 188: Door Ajar Switch, Left Front Connector End View (C526)

G07833008

Courtesy of FORD MOTOR CO.

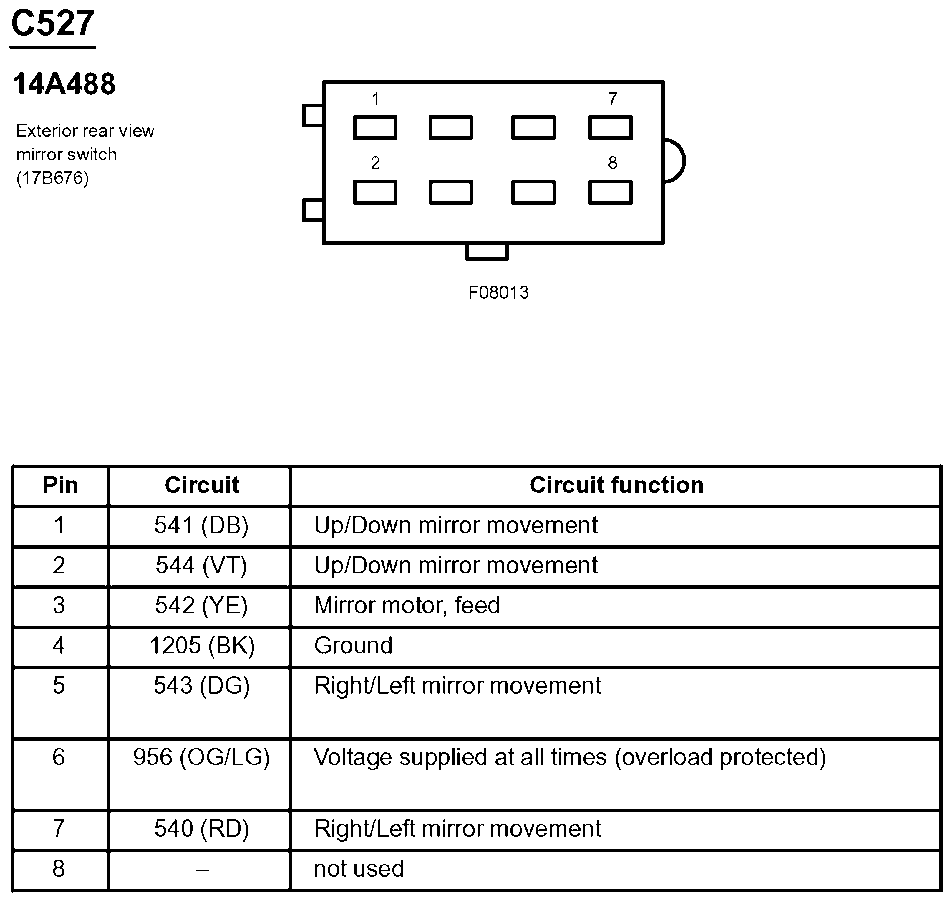

Fig 189: Exterior Rear View Mirror Switch Connector End View (C527)

G07833009

Courtesy of FORD MOTOR CO.

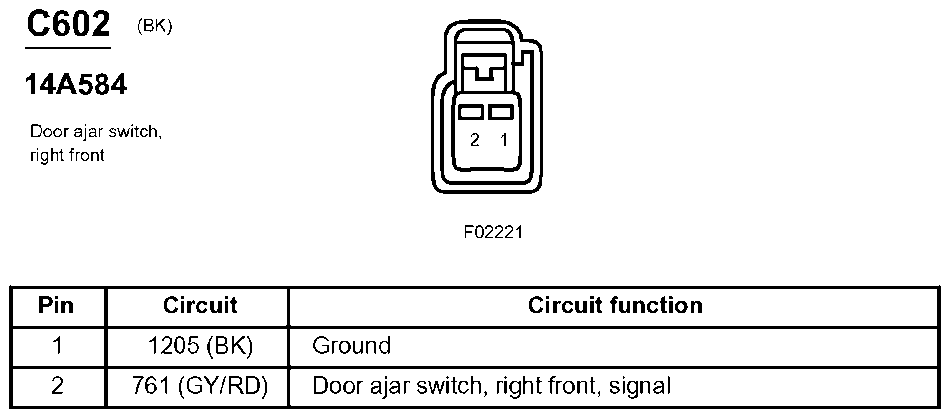

Fig 190: Door Ajar Switch, Right Front Connector End View (C602)

G07833010

Courtesy of FORD MOTOR CO.

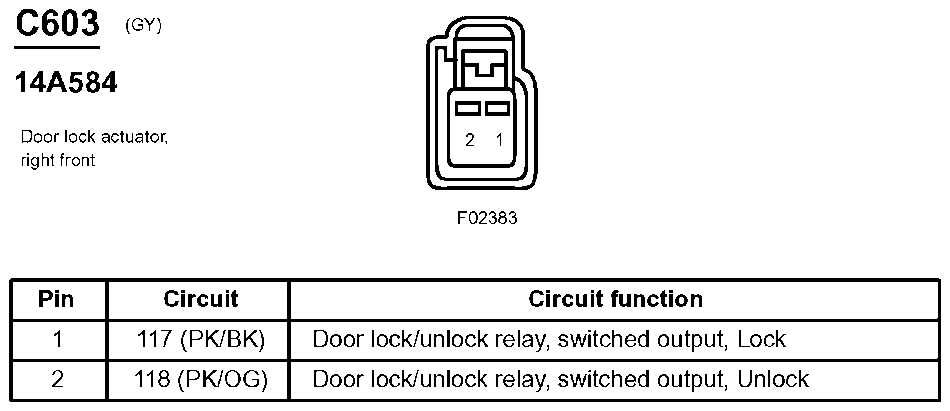

Fig 191: Door Lock Actuator, Right Front Connector End View (C603)

G07833011

Courtesy of FORD MOTOR CO.

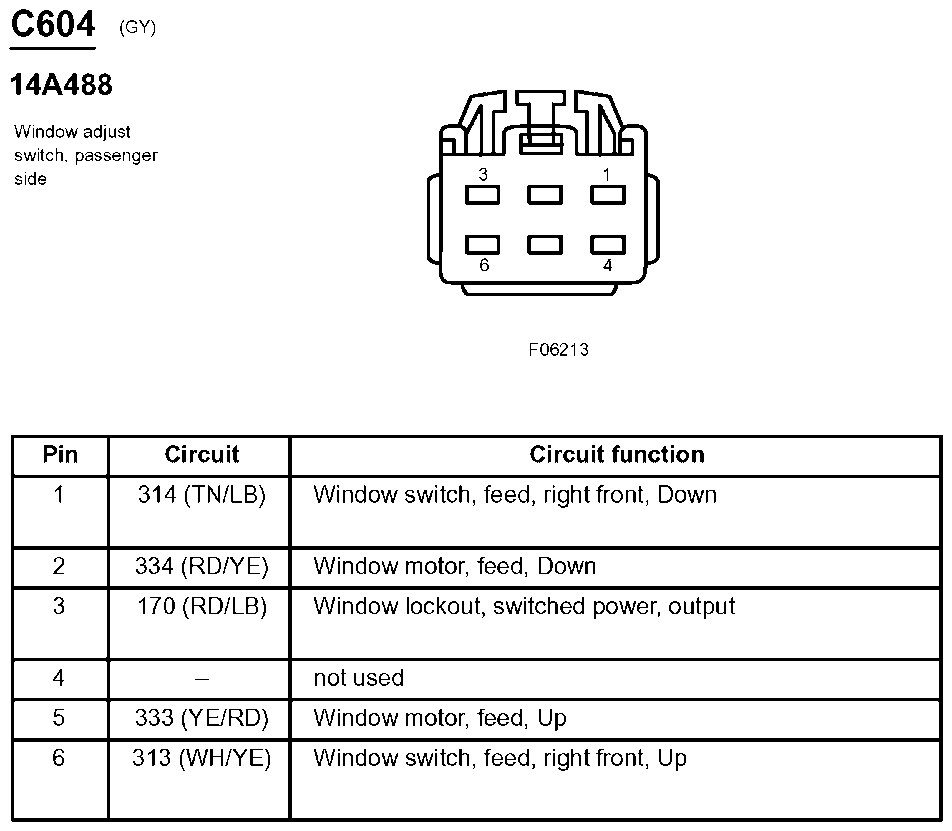

Fig 192: Window Adjust Switch, Passenger Side Connector End View (C604)

G07833012

Courtesy of FORD MOTOR CO.

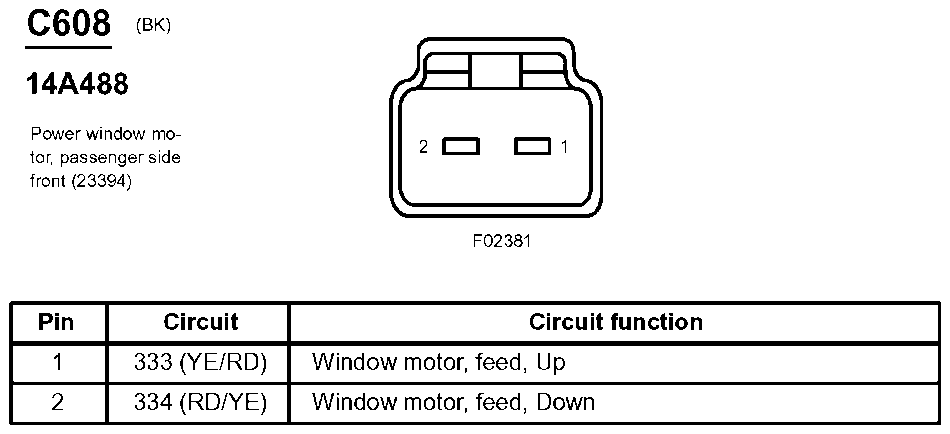

Fig 193: Power Window Motor, Passenger Side Front Connector End View (C608)

G07833013

Courtesy of FORD MOTOR CO.

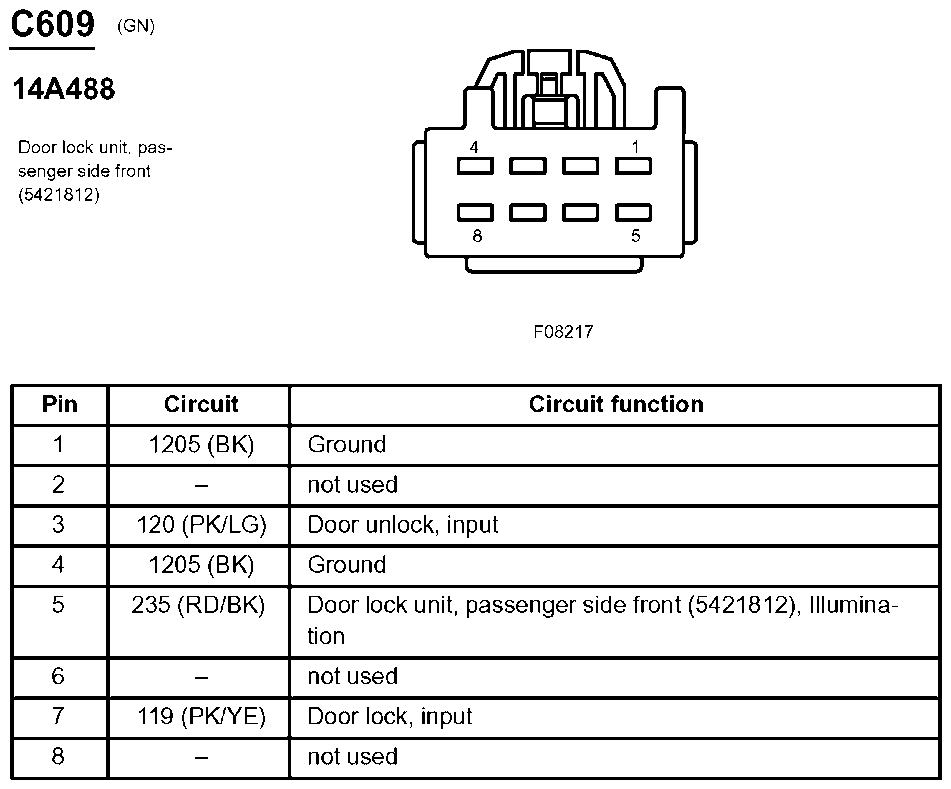

Fig 194: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07833014

Courtesy of FORD MOTOR CO.

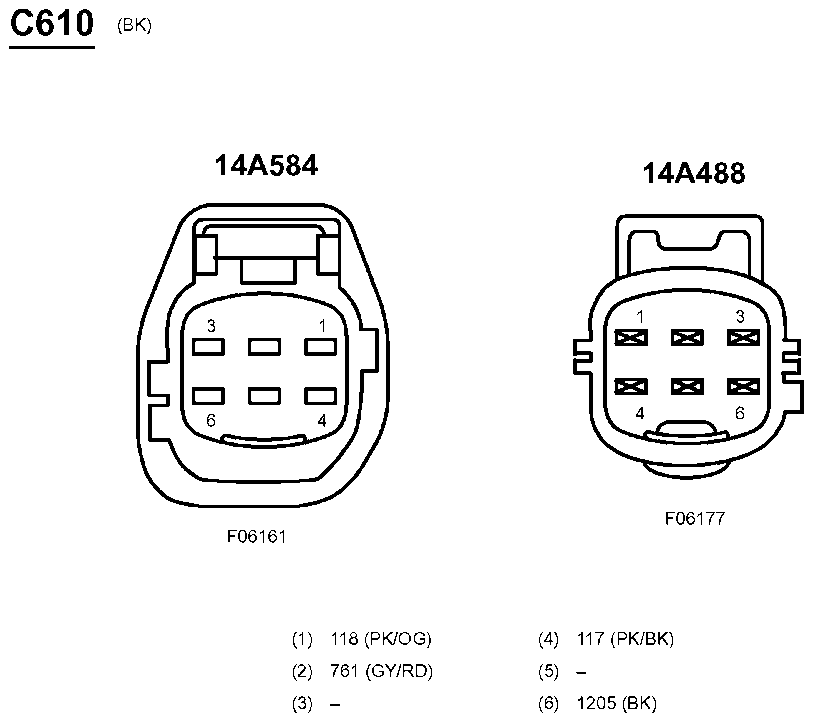

Fig 195: Inline Connector End View (C610)

G07833015

Courtesy of FORD MOTOR CO.

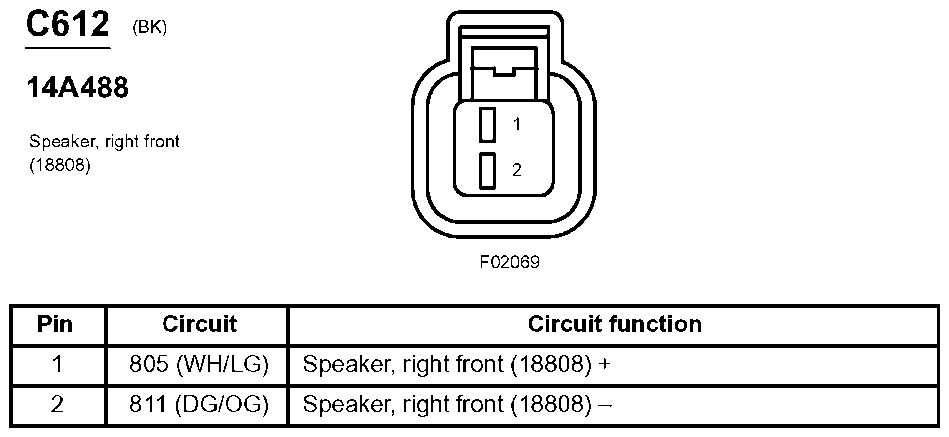

Fig 196: Speaker, Right Front Connector End View (C612)

G07833016

Courtesy of FORD MOTOR CO.

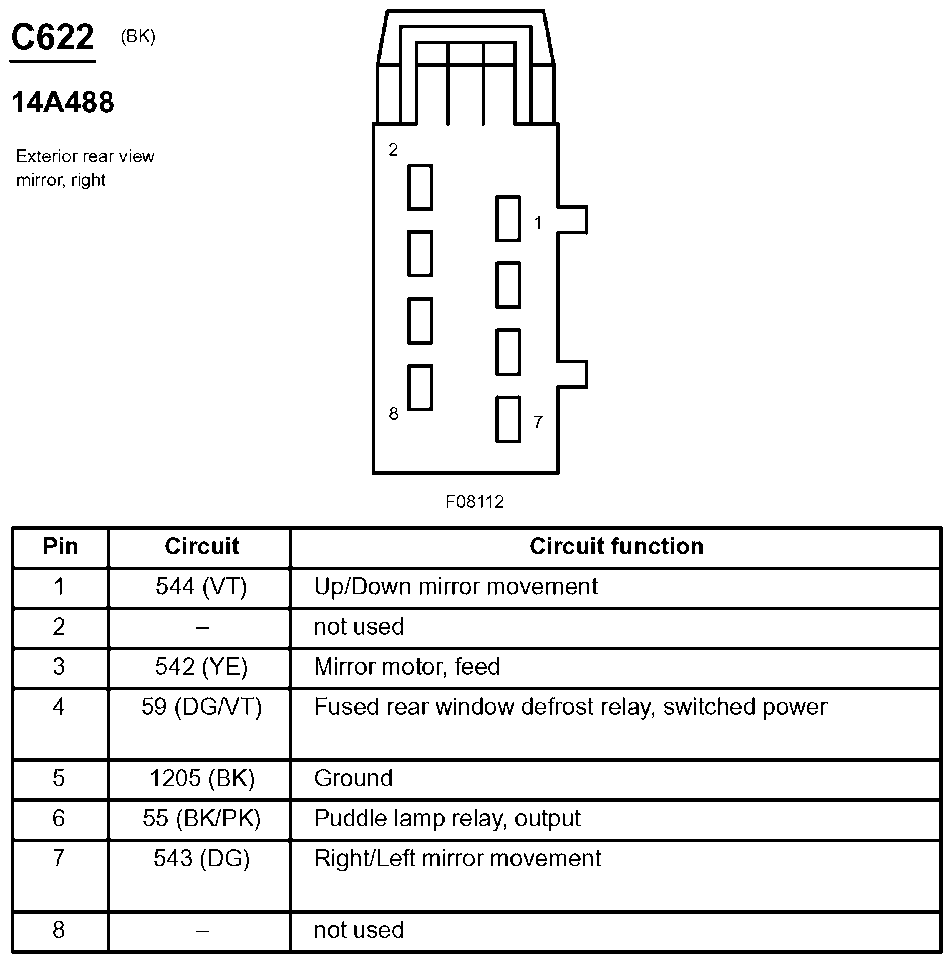

Fig 197: Exterior Rear View Mirror, Right Connector End View (C622)

G07833017

Courtesy of FORD MOTOR CO.

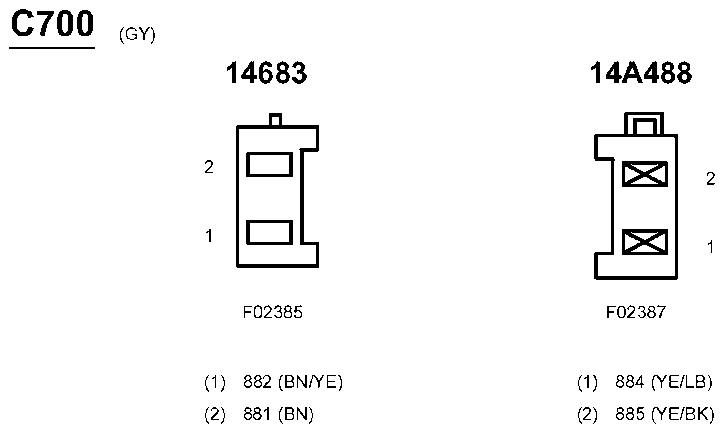

Fig 198: Inline Connector End View (C700)

G07833018

Courtesy of FORD MOTOR CO.

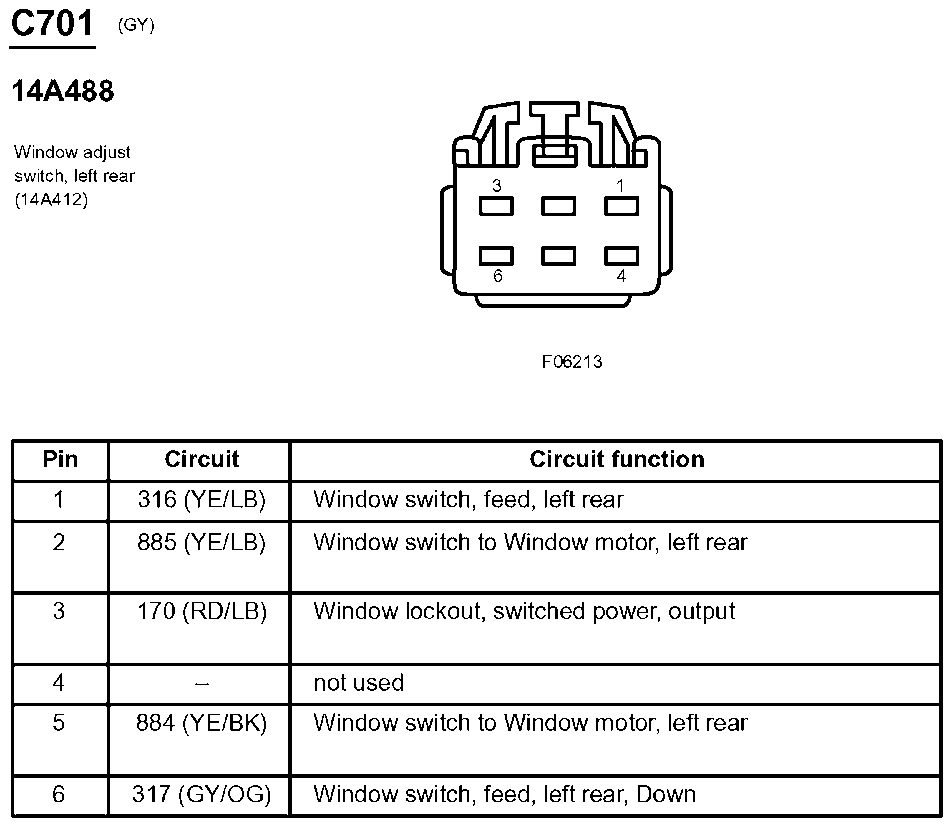

Fig 199: Window Adjust Switch, Left Rear Connector End View (C701)

G07833019

Courtesy of FORD MOTOR CO.

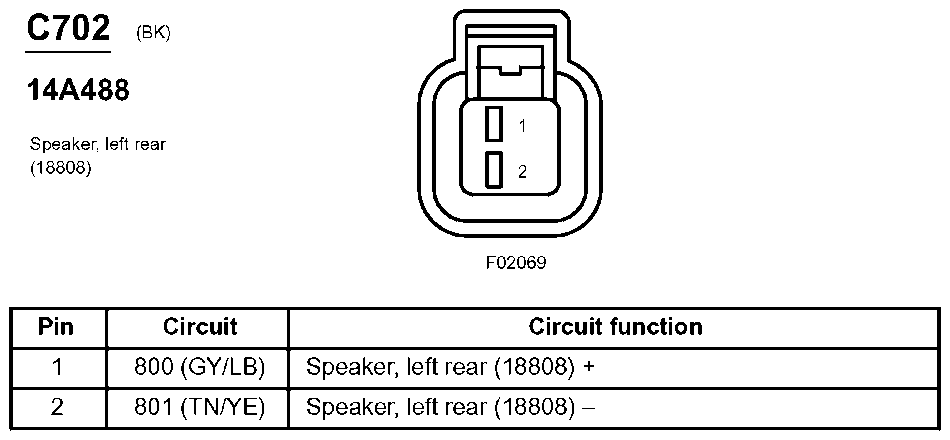

Fig 200: Speaker, Left Rear Connector End View (C702)

G07833020

Courtesy of FORD MOTOR CO.

Fig 201: Power Window Motor, Left Rear Connector End View (C703)

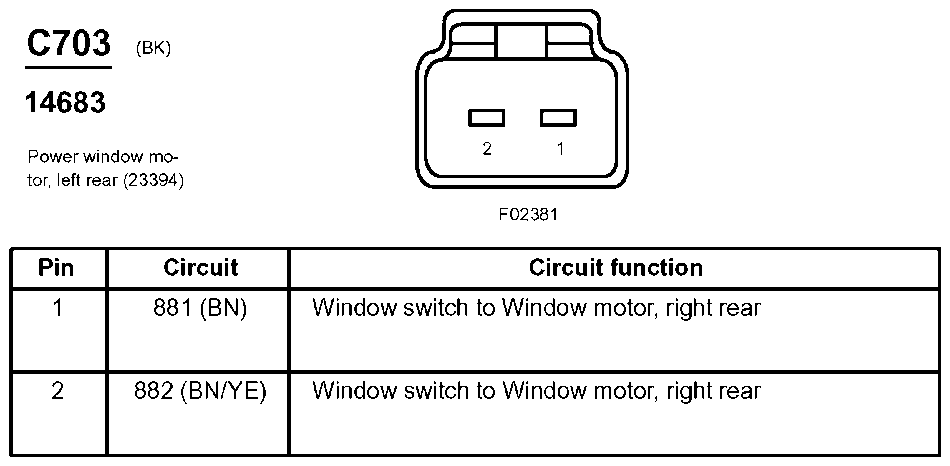

G07833021

Courtesy of FORD MOTOR CO.

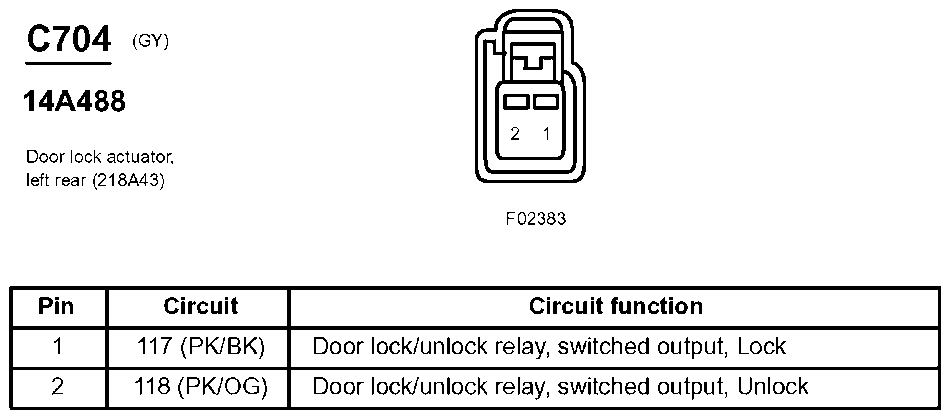

Fig 202: Door Lock Actuator, Left Rear Connector End View (C704)

G07833022

Courtesy of FORD MOTOR CO.

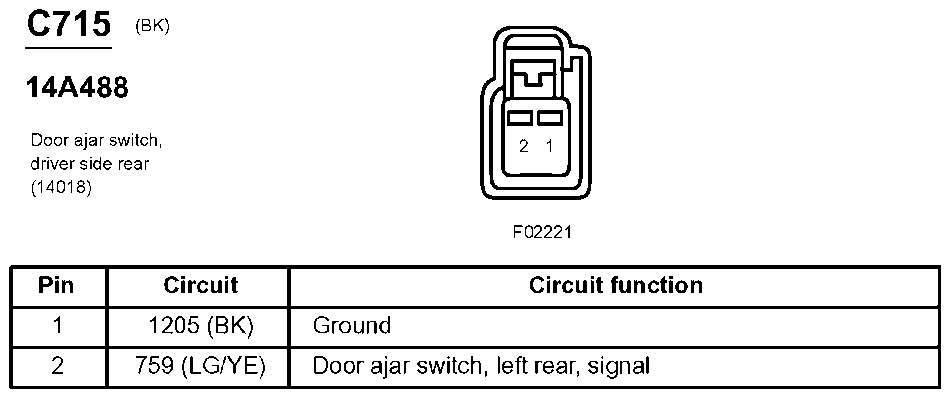

Fig 203: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G07833023

Courtesy of FORD MOTOR CO.

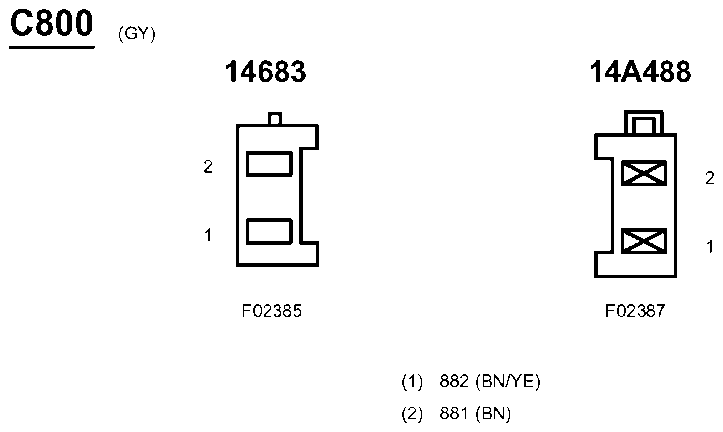

Fig 204: Inline Connector End View (C800)

G07833024

Courtesy of FORD MOTOR CO.

Fig 205: Window Adjust Switch, Right Rear Connector End View (C801)

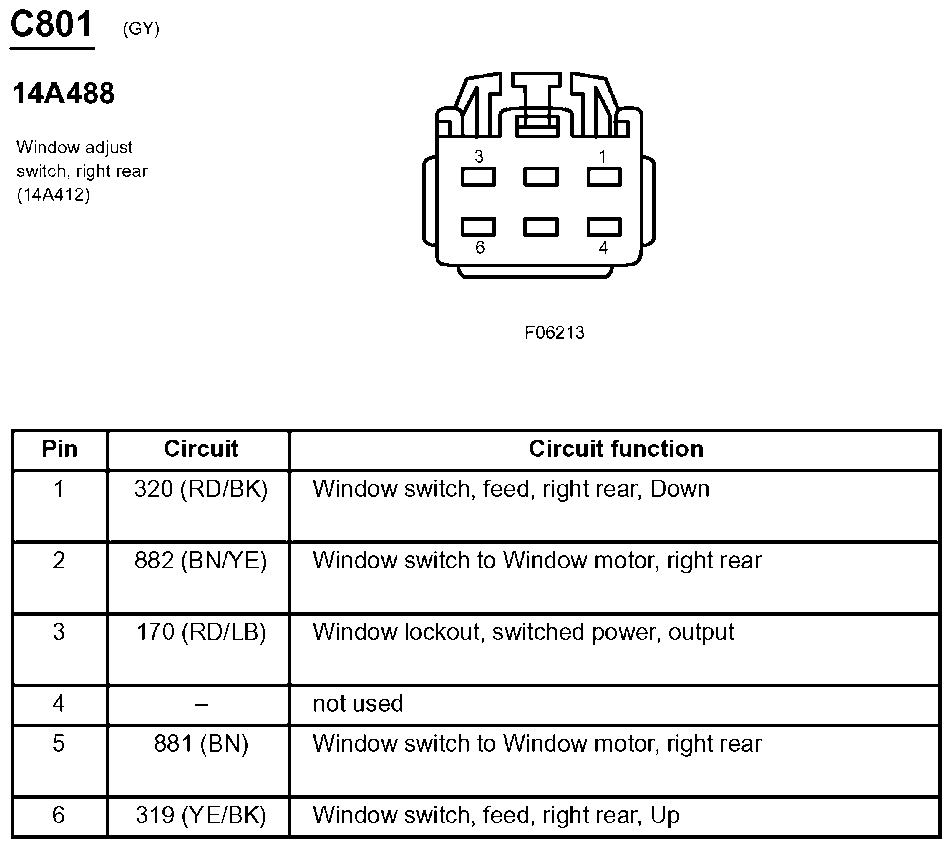

G07833025

Courtesy of FORD MOTOR CO.

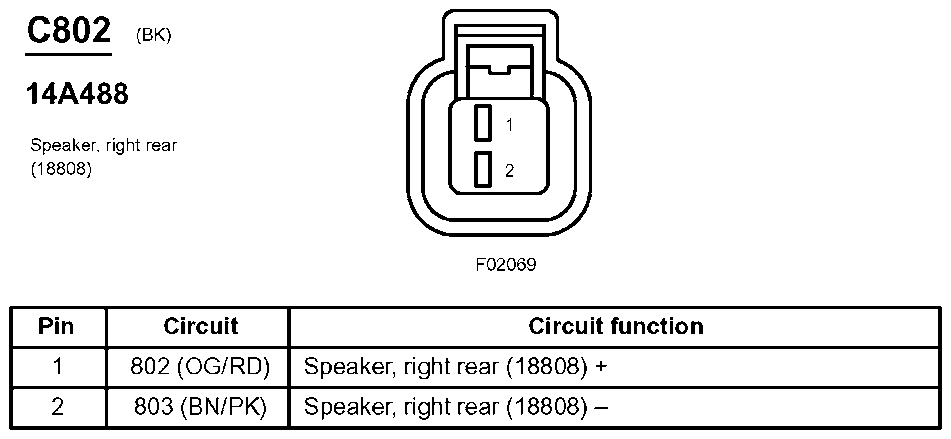

Fig 206: Speaker, Right Rear Connector End View (C802)

G07833026

Courtesy of FORD MOTOR CO.

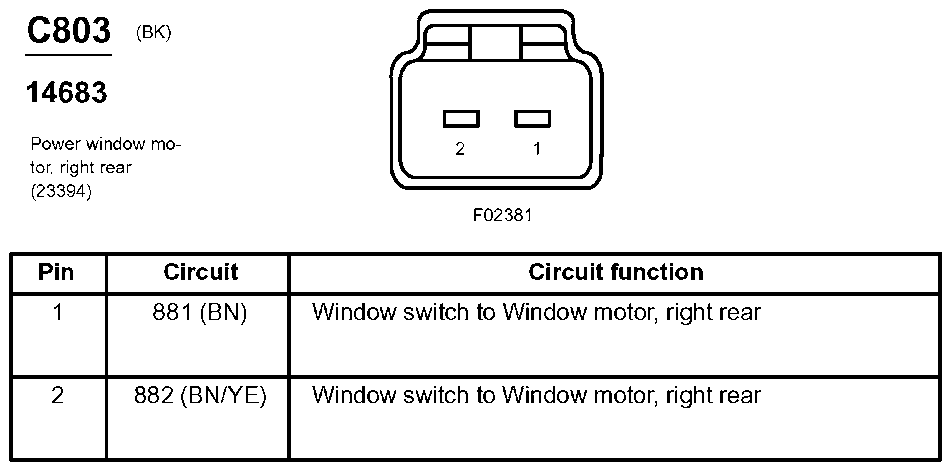

Fig 207: Power Window Motor, Right Rear Connector End View (C803)

G07833027

Courtesy of FORD MOTOR CO.

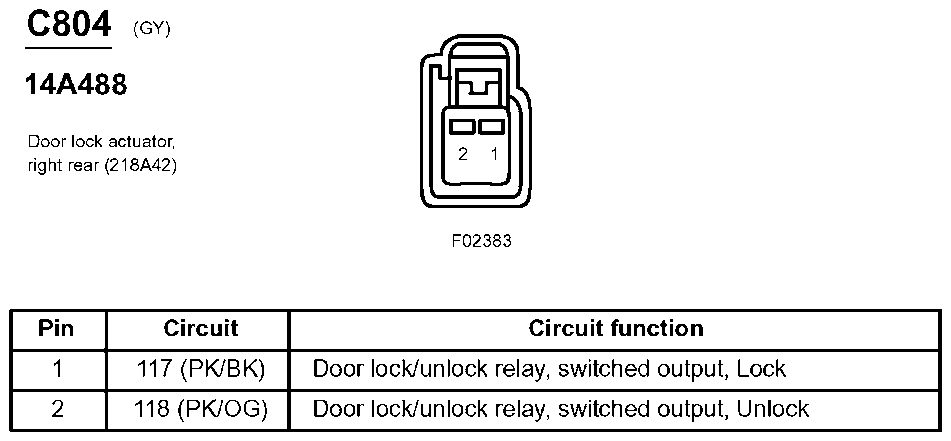

Fig 208: Door Lock Actuator, Right Rear Connector End View (C804)

G07833028

Courtesy of FORD MOTOR CO.

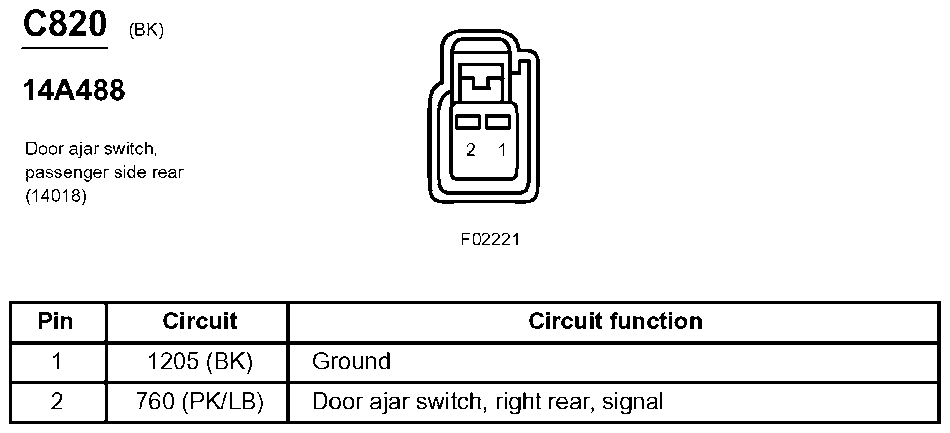

Fig 209: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07833029

Courtesy of FORD MOTOR CO.

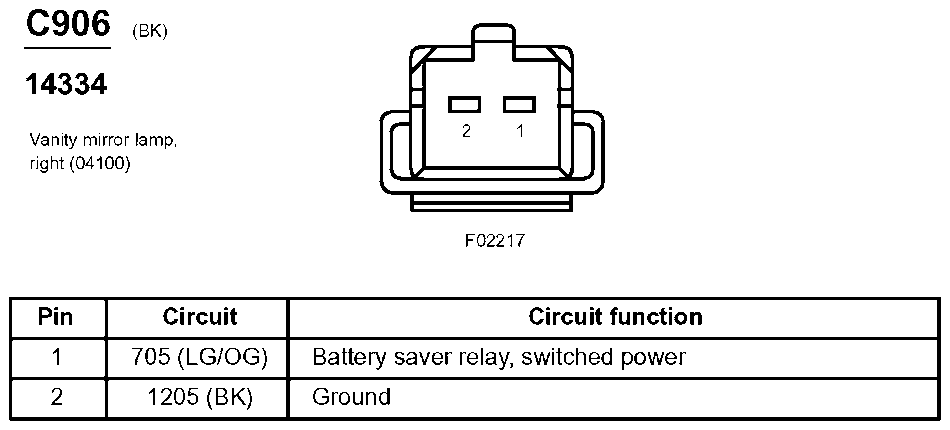

Fig 210: Vanity Mirror Lamp, Right Connector End View (C906)

G07833030

Courtesy of FORD MOTOR CO.

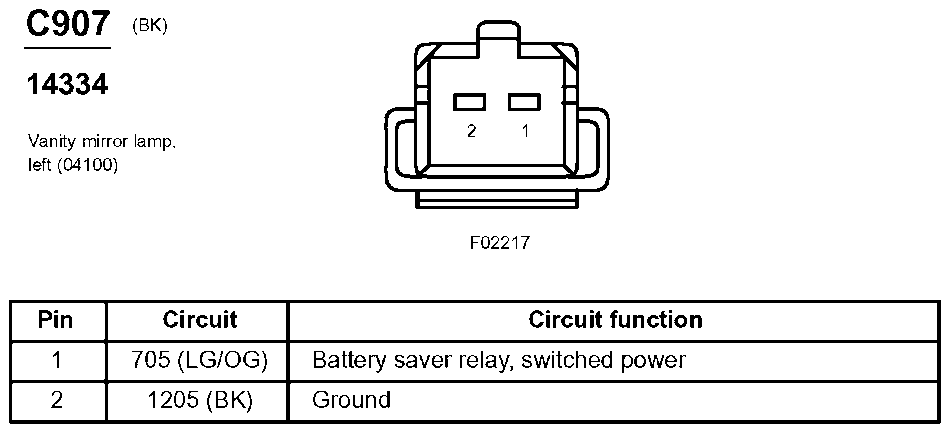

Fig 211: Vanity Mirror Lamp, Left Connector End View (C907)

G07833031

Courtesy of FORD MOTOR CO.

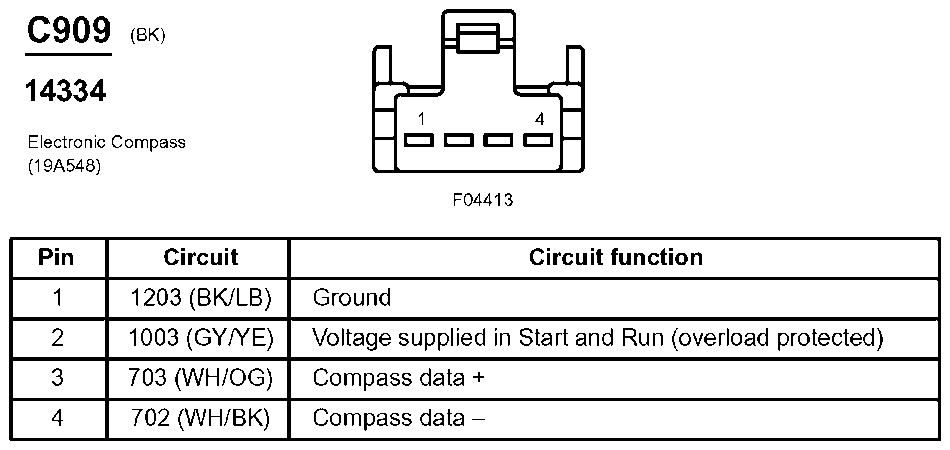

Fig 212: Electronic Compass Connector End View (C909)

G07833032

Courtesy of FORD MOTOR CO.

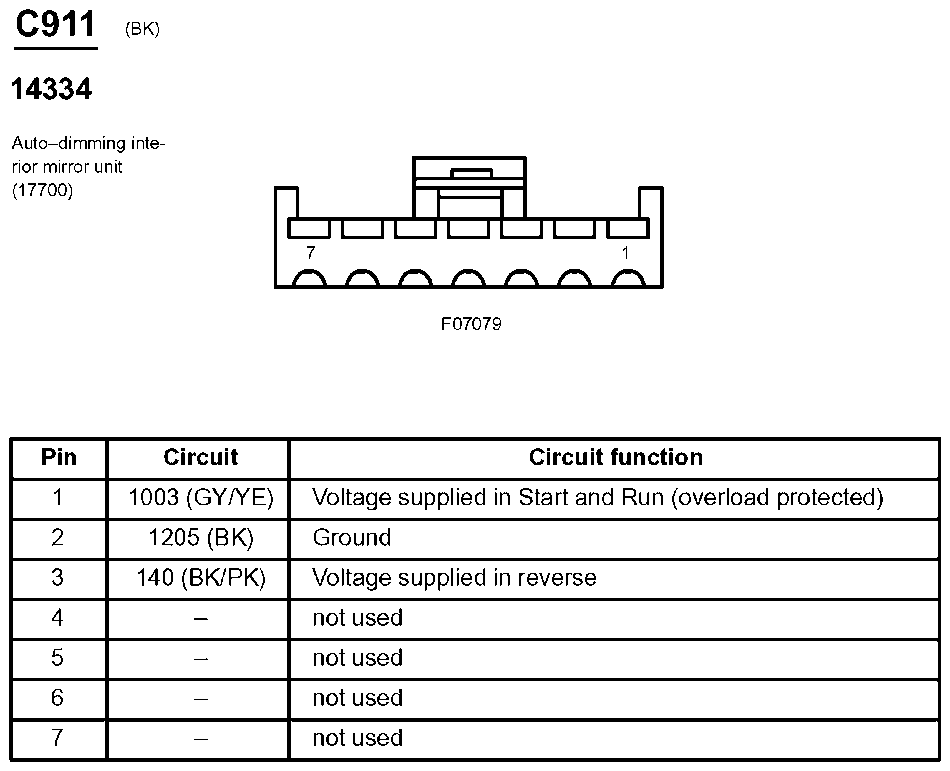

Fig 213: Auto-Dimming Interior Mirror Unit Connector End View (C911)

G07833033

Courtesy of FORD MOTOR CO.

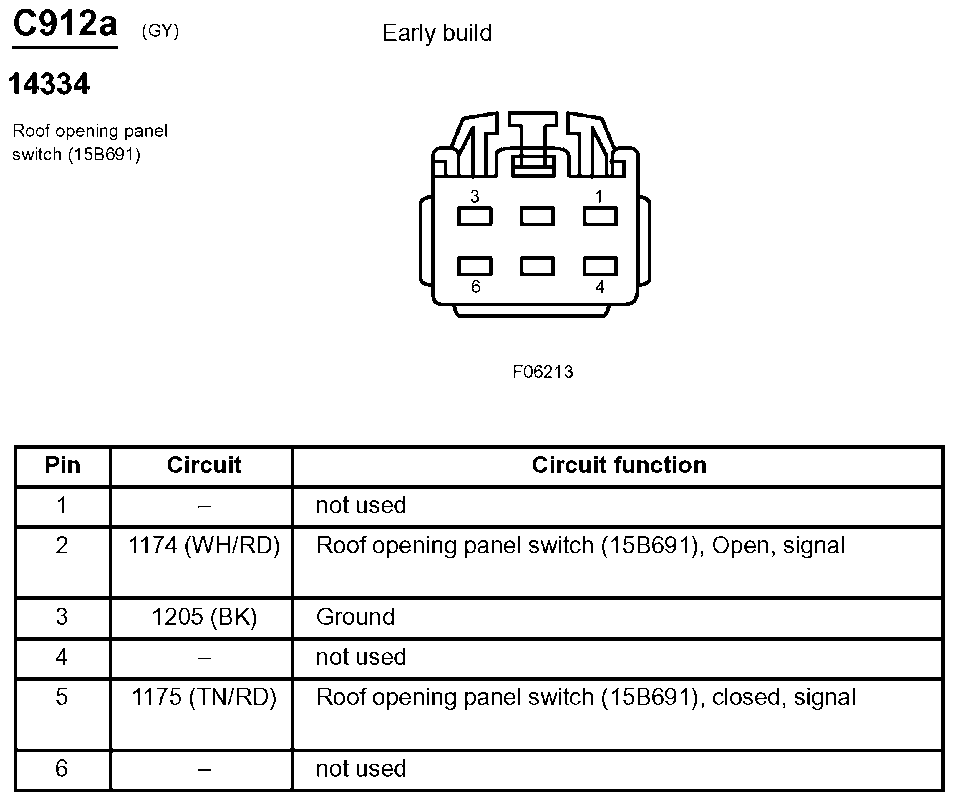

Fig 214: Roof Opening Panel Switch Connector End View (C912a)

G07833034

Courtesy of FORD MOTOR CO.

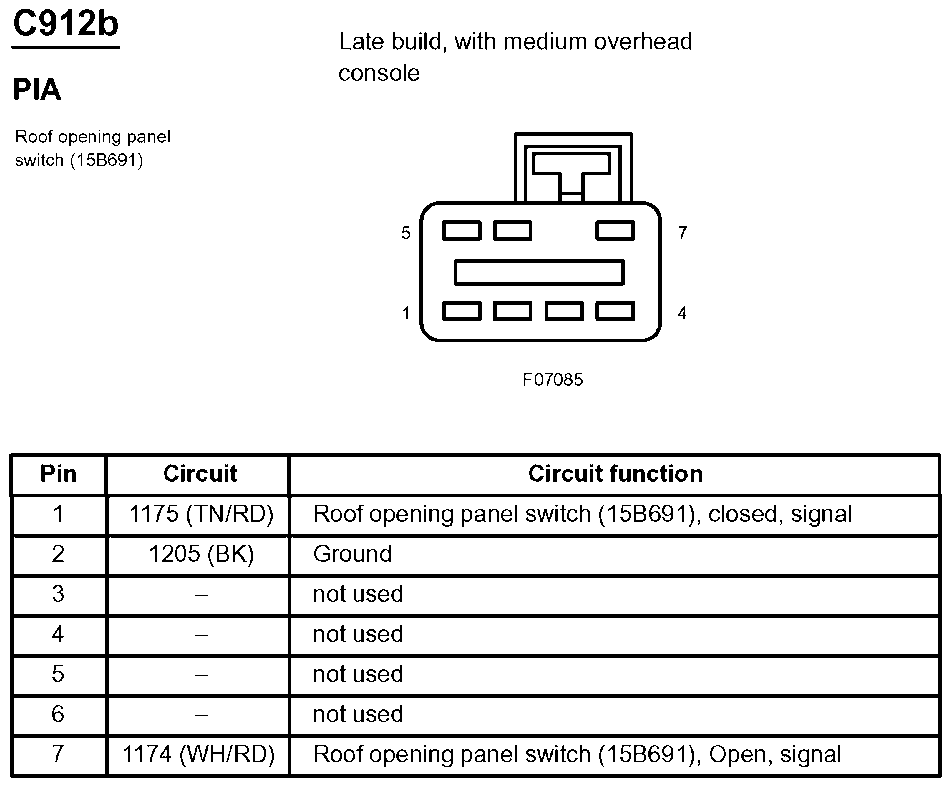

Fig 215: Roof Opening Panel Switch Connector End View (C912b)

G07833035

Courtesy of FORD MOTOR CO.

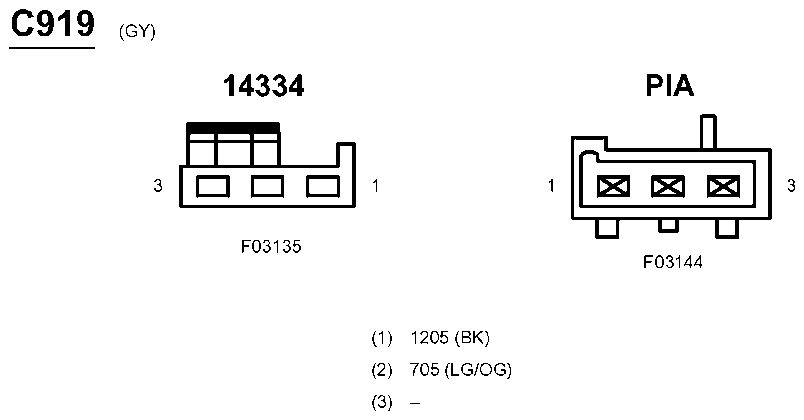

Fig 216: Inline Connector End View (C919)

G07833036

Courtesy of FORD MOTOR CO.

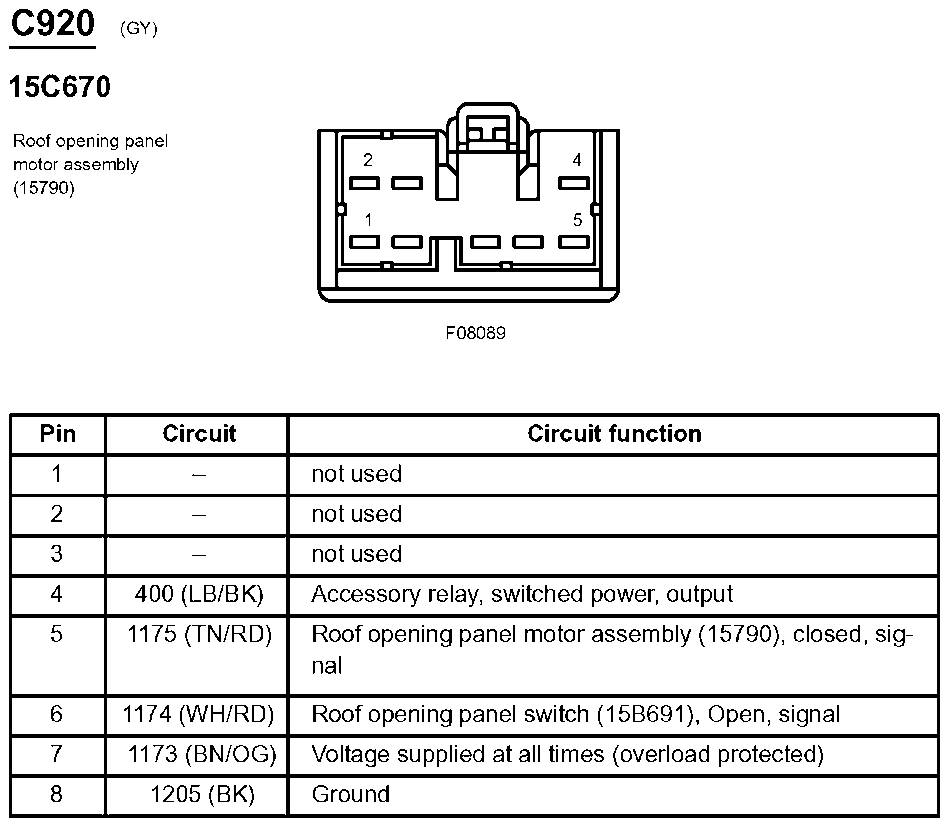

Fig 217: Roof Opening Panel Motor Assembly Connector End View (C920)

G07833037

Courtesy of FORD MOTOR CO.

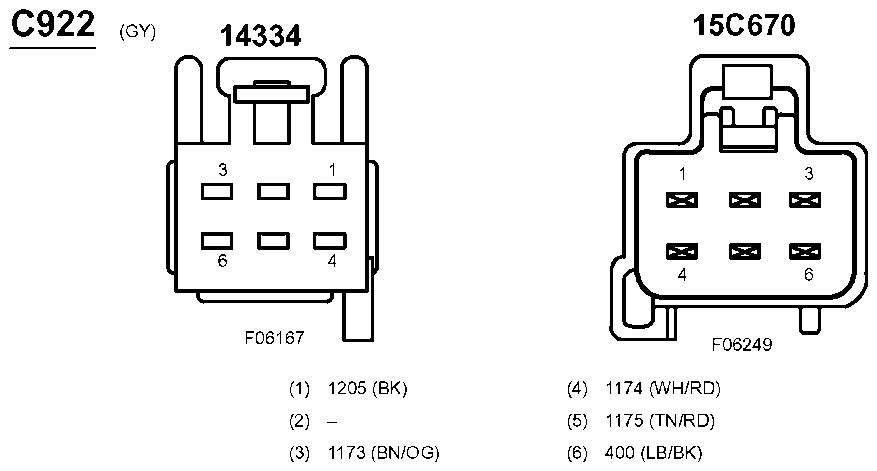

Fig 218: Inline Connector End View (C922)

G07833038

Courtesy of FORD MOTOR CO.

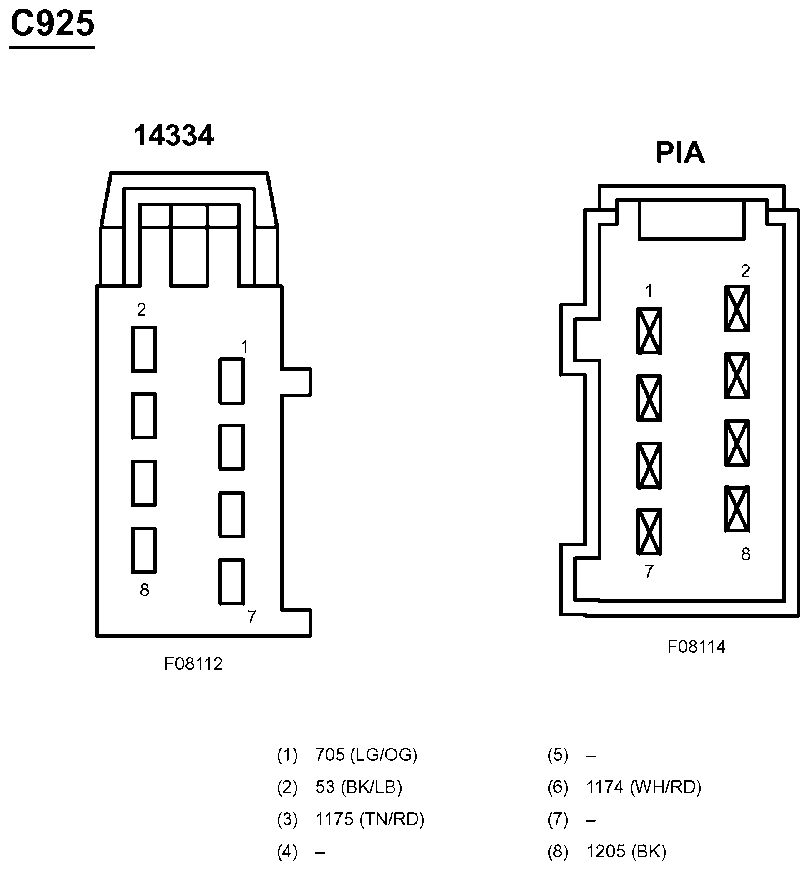

Fig 219: Inline Connector End View (C925)

G07833039

Courtesy of FORD MOTOR CO.

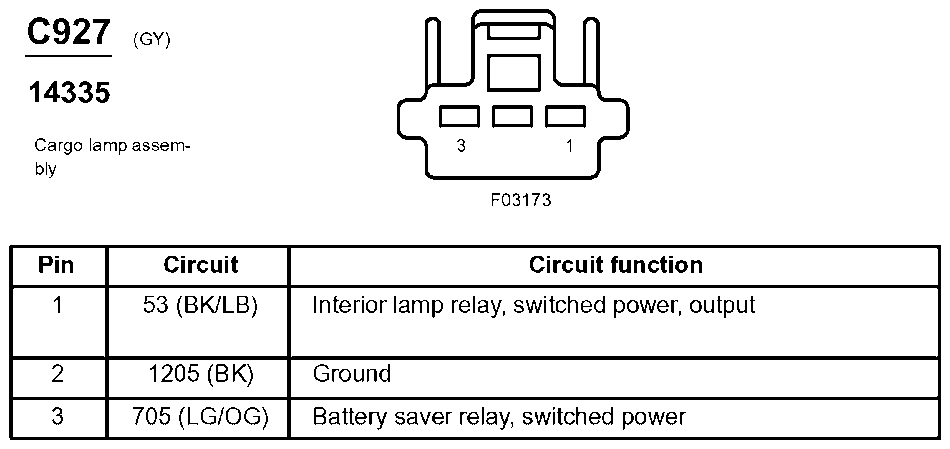

Fig 220: Cargo Lamp Assembly Connector End View (C927)

G07833040

Courtesy of FORD MOTOR CO.

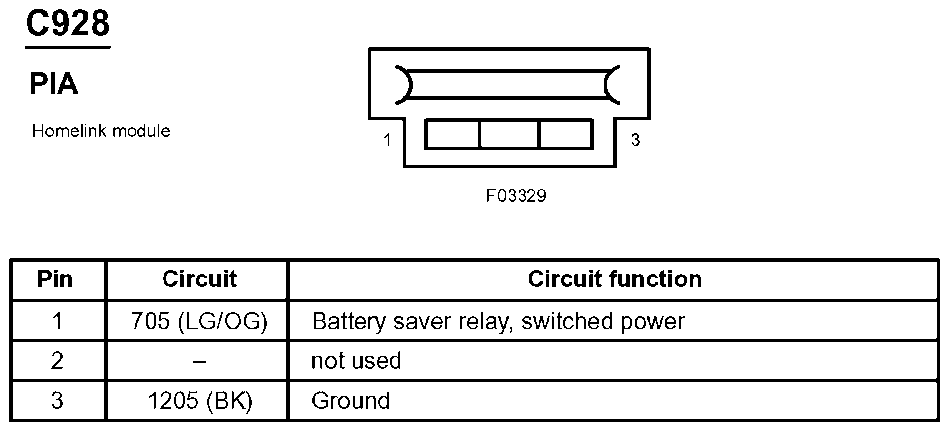

Fig 221: Homelink Module Connector End View (C928)

G07833041

Courtesy of FORD MOTOR CO.

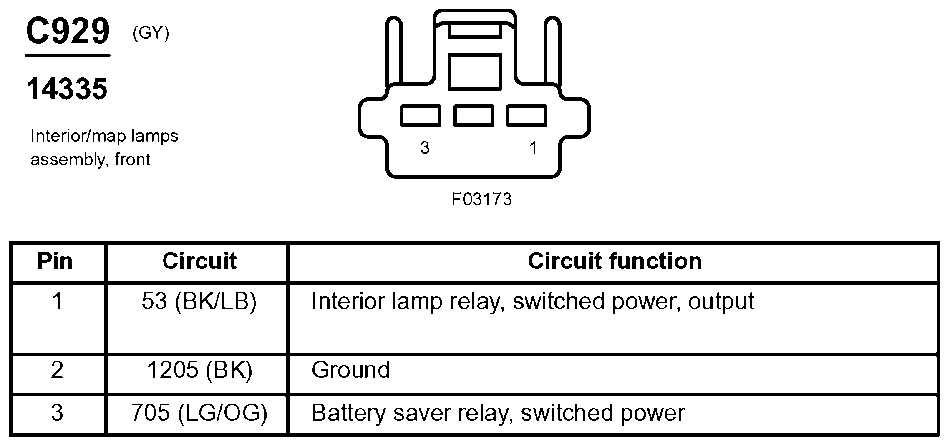

Fig 222: Interior/Map Lamps Assembly, Front Connector End View (C929)

G07833042

Courtesy of FORD MOTOR CO.

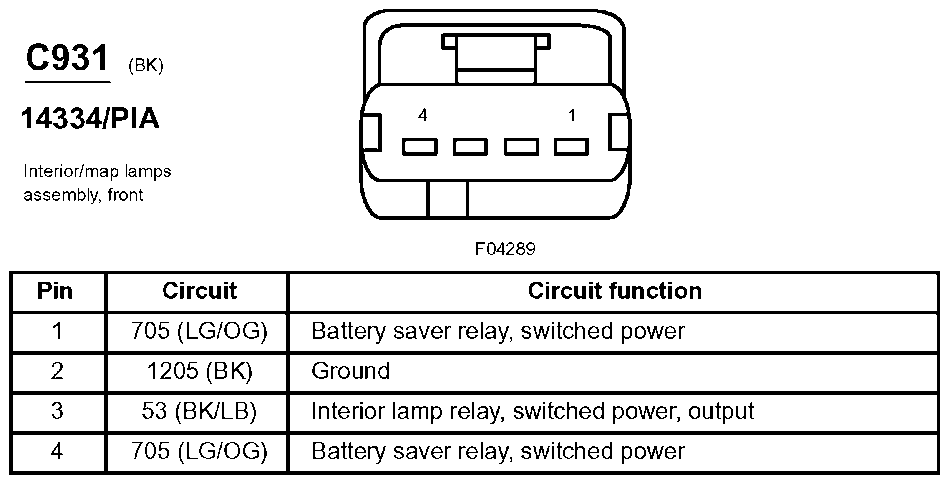

Fig 223: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07833043

Courtesy of FORD MOTOR CO.

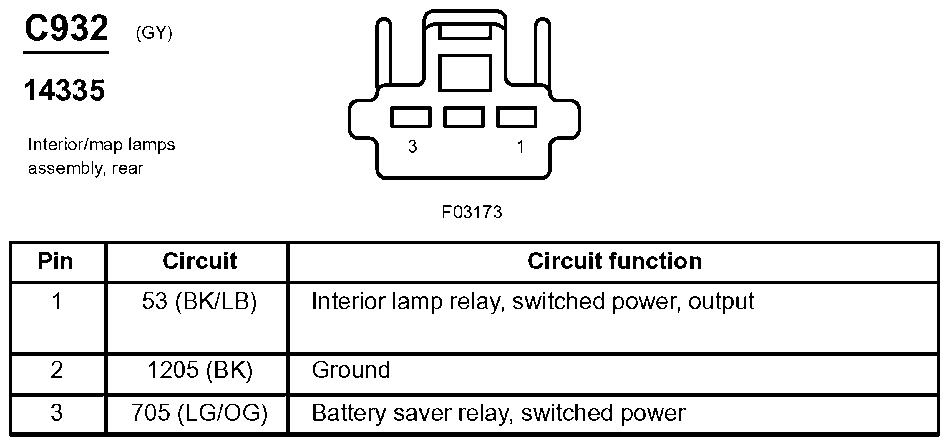

Fig 224: Interior/Map Lamps Assembly, Rear Connector End View (C932)

G07833044

Courtesy of FORD MOTOR CO.

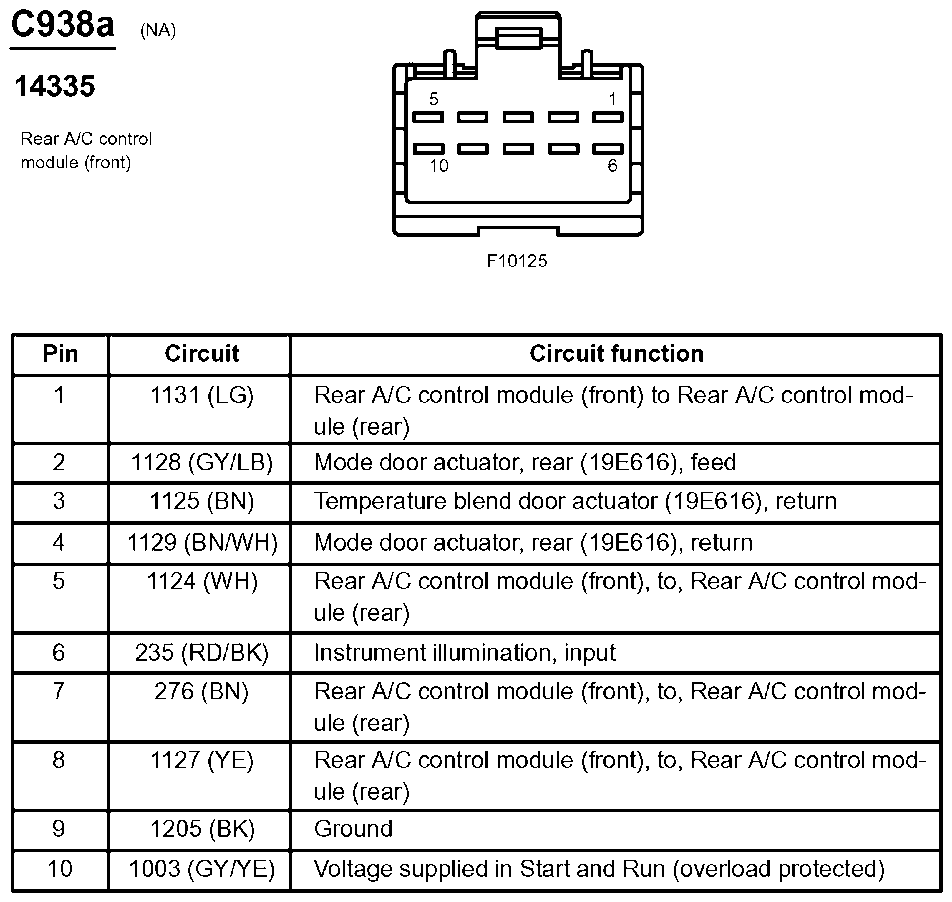

Fig 225: Rear A/C Control Module Connector End View (C938a)

G07833045

Courtesy of FORD MOTOR CO.

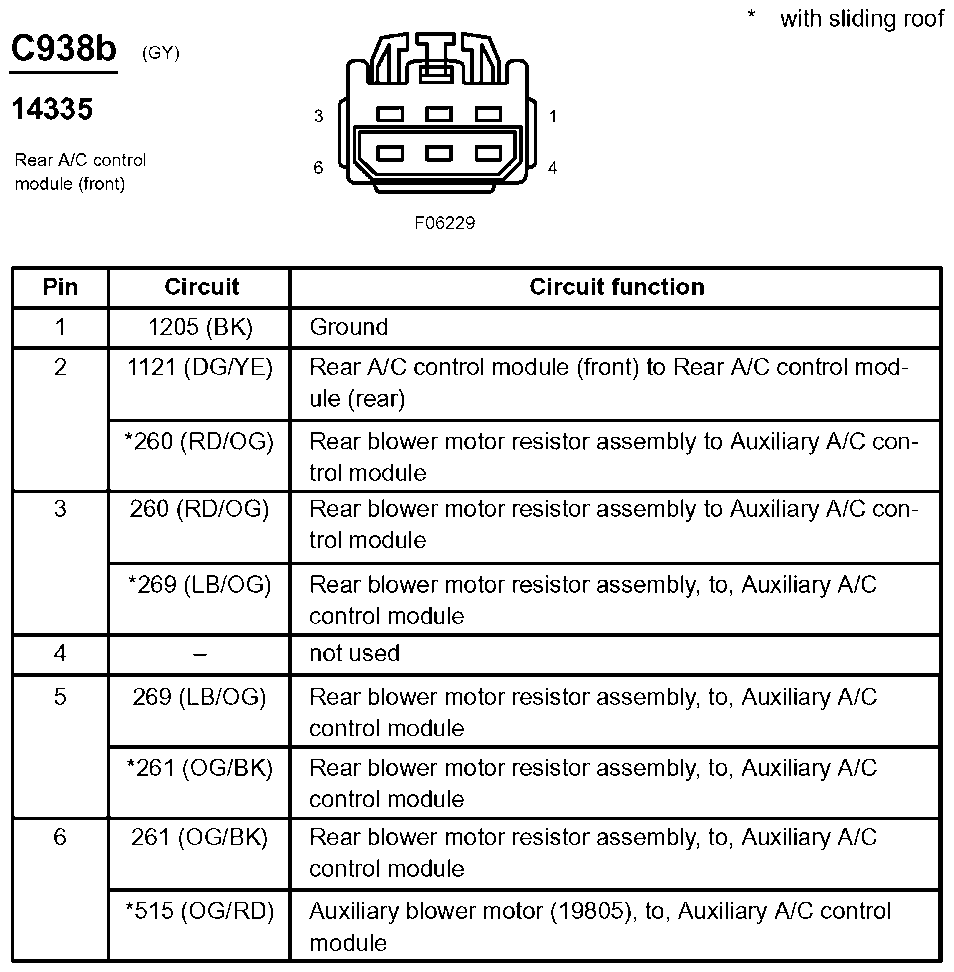

Fig 226: Rear A/C Control Module Connector End View (C938b)

G07833046

Courtesy of FORD MOTOR CO.

Fig 227: Rear A/C Control Module (Rear) Connector End View (C940a)

G07833047

Courtesy of FORD MOTOR CO.

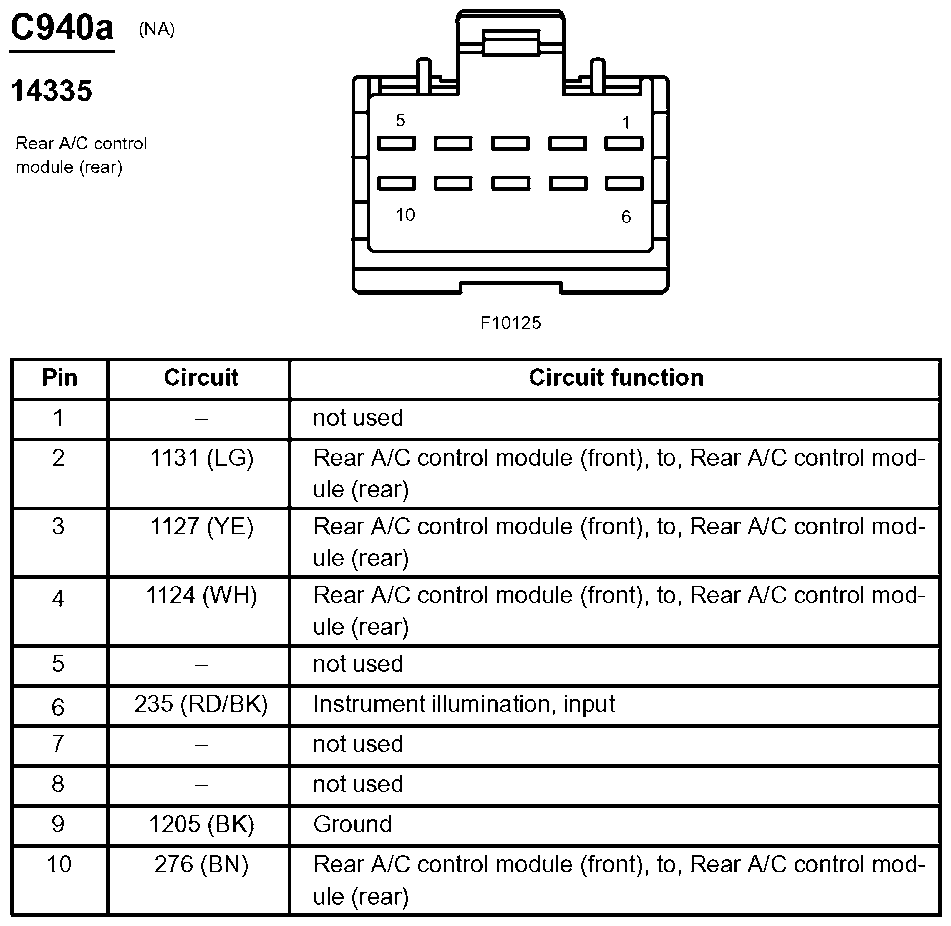

Fig 228: Rear A/C Control Module (Rear) Connector End View (C940a)

G07833048

Courtesy of FORD MOTOR CO.

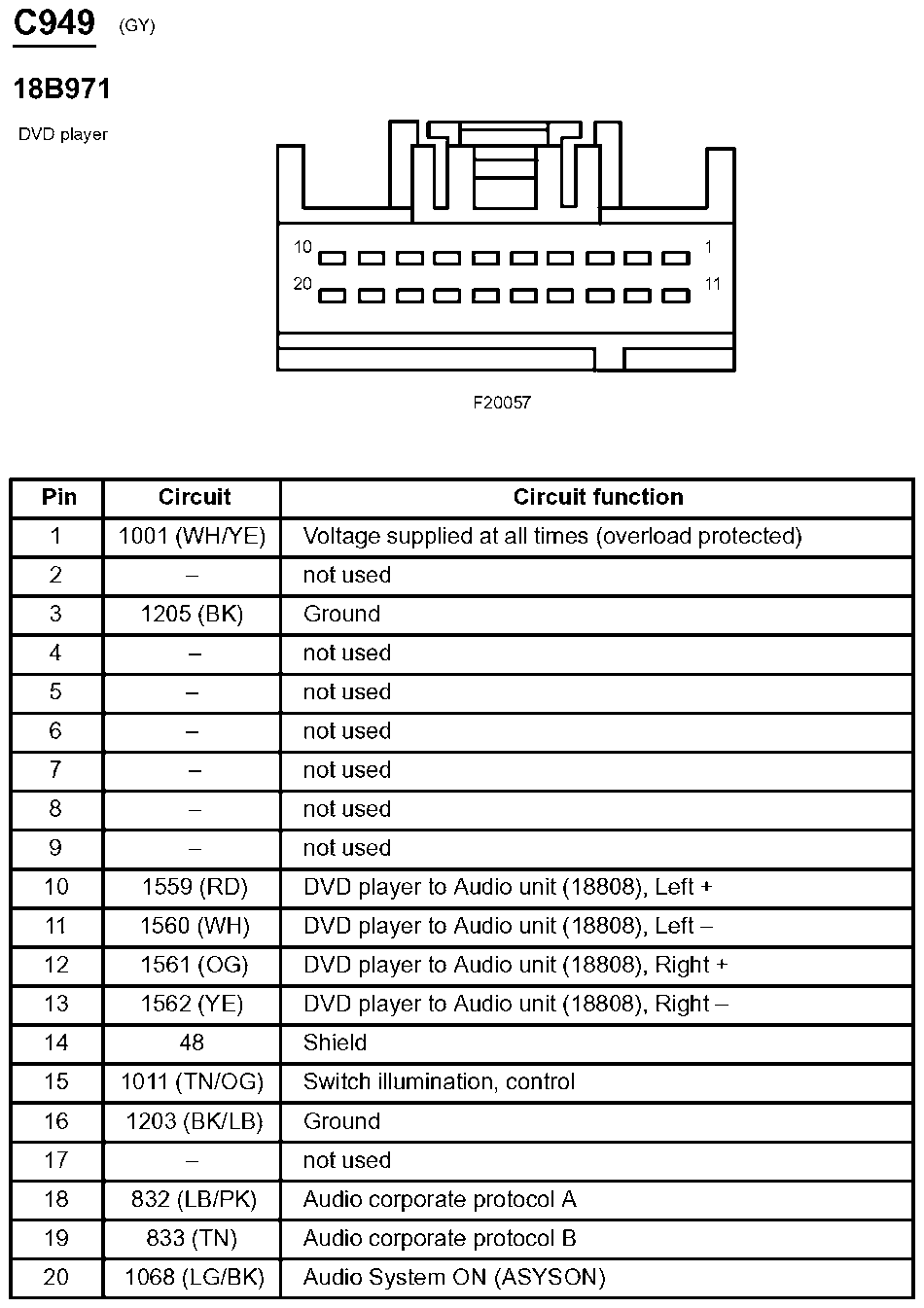

Fig 229: DVD Player Connector End View (C949)

G07833049

Courtesy of FORD MOTOR CO.

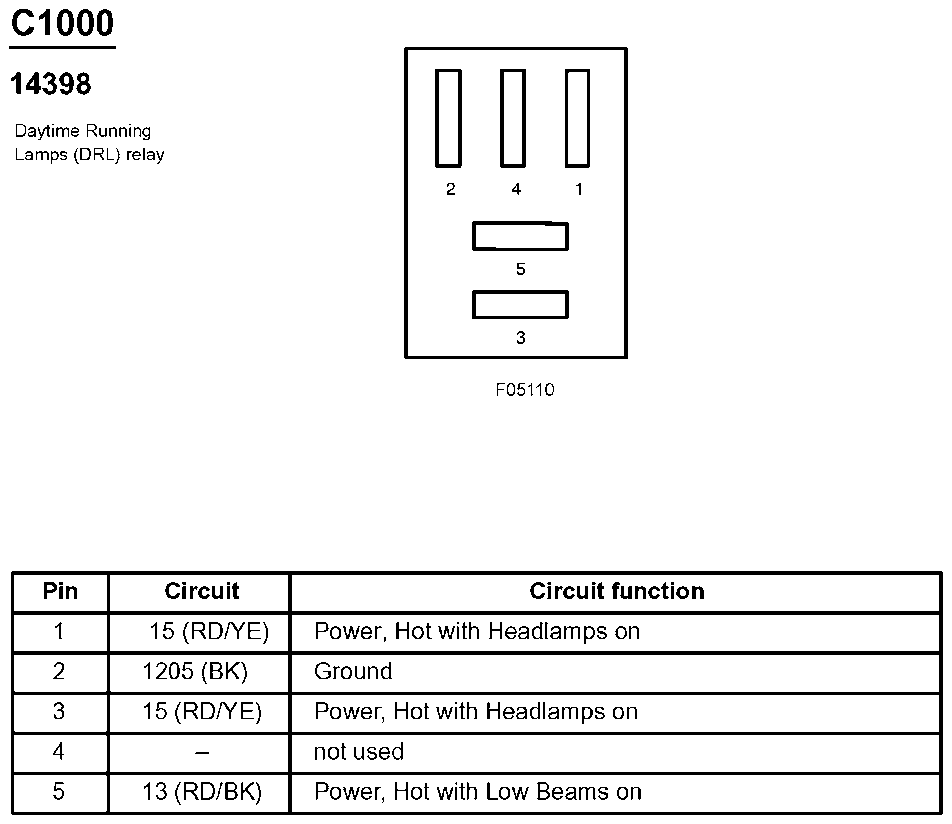

Fig 230: Daytime Running Lamps (DRL) Relay Connector End View (C1000)

G07833050

Courtesy of FORD MOTOR CO.

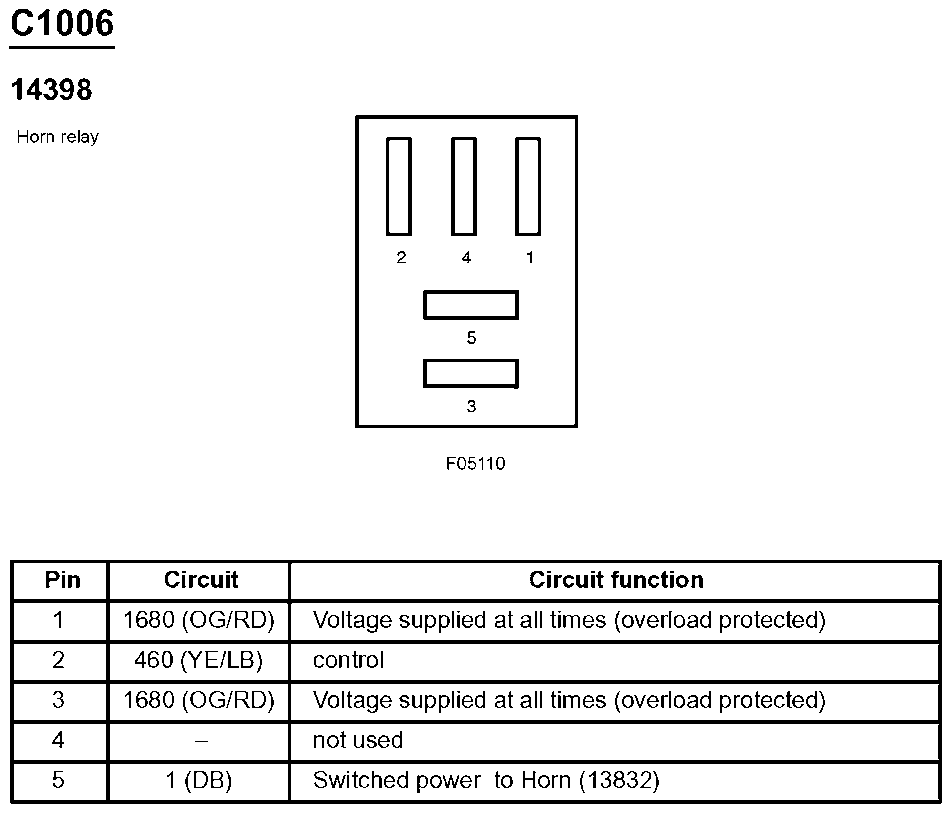

Fig 231: Horn Relay Connector End View (C1006)

G07833051

Courtesy of FORD MOTOR CO.

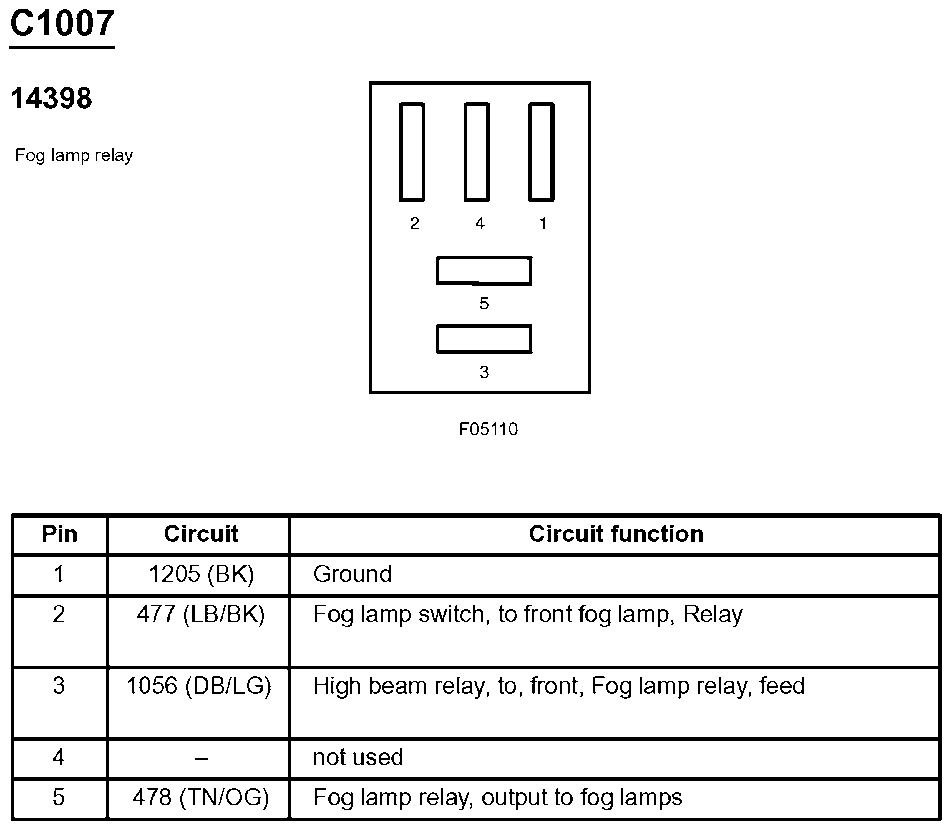

Fig 232: Fog Lamp Relay Connector End View (C1007)

G07833052

Courtesy of FORD MOTOR CO.

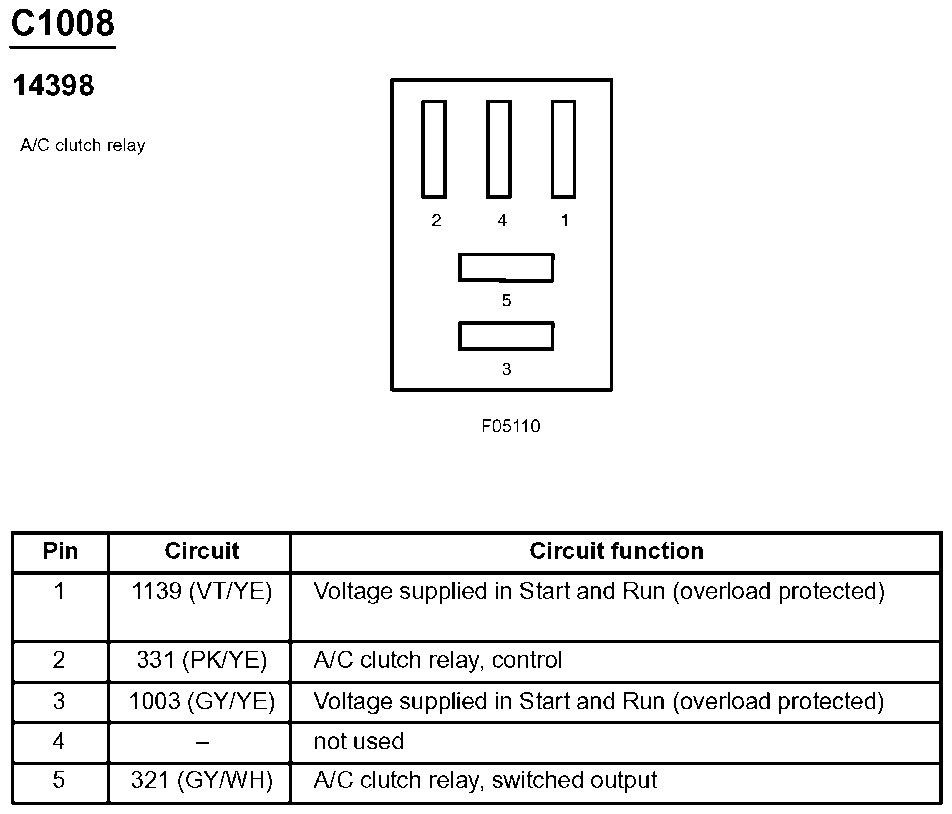

Fig 233: A/C Clutch Relay Connector End View (C1008)

G07833053

Courtesy of FORD MOTOR CO.

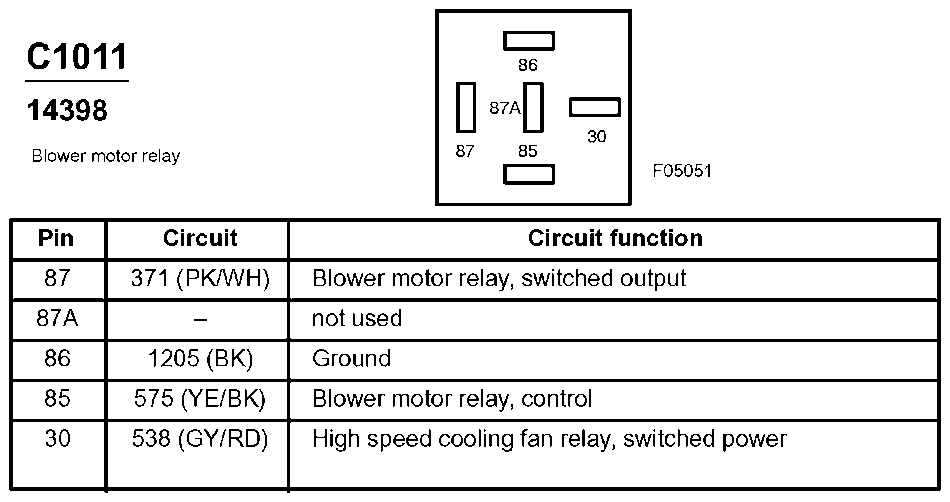

Fig 234: Blower Motor Relay Connector End View (C1011)

G07833054

Courtesy of FORD MOTOR CO.

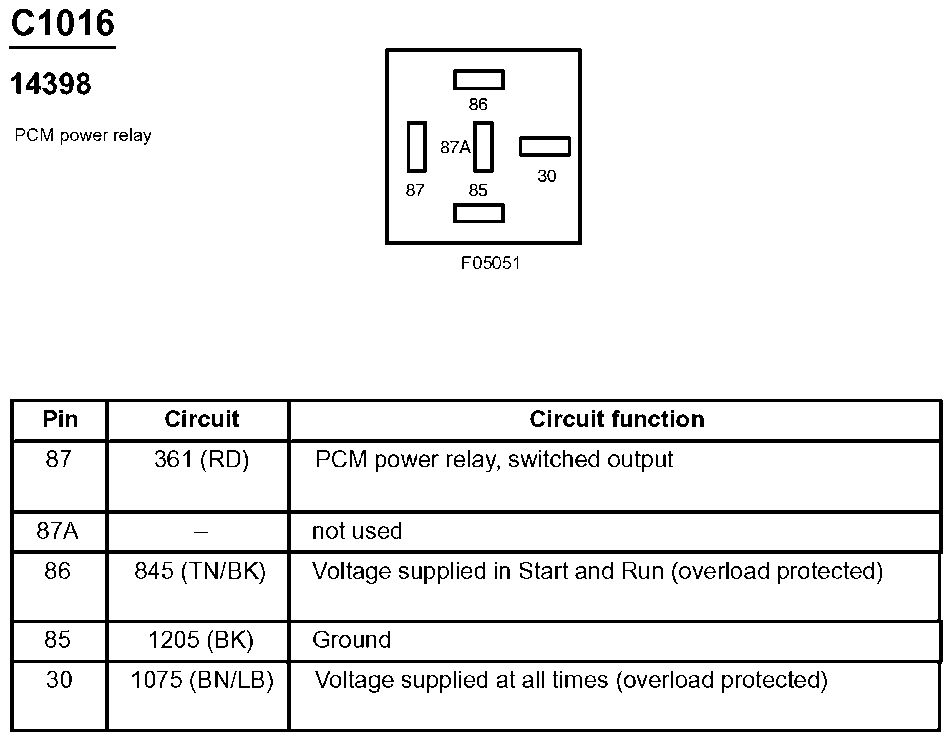

Fig 235: PCM Power Relay Connector End View (C1016)

G07833055

Courtesy of FORD MOTOR CO.

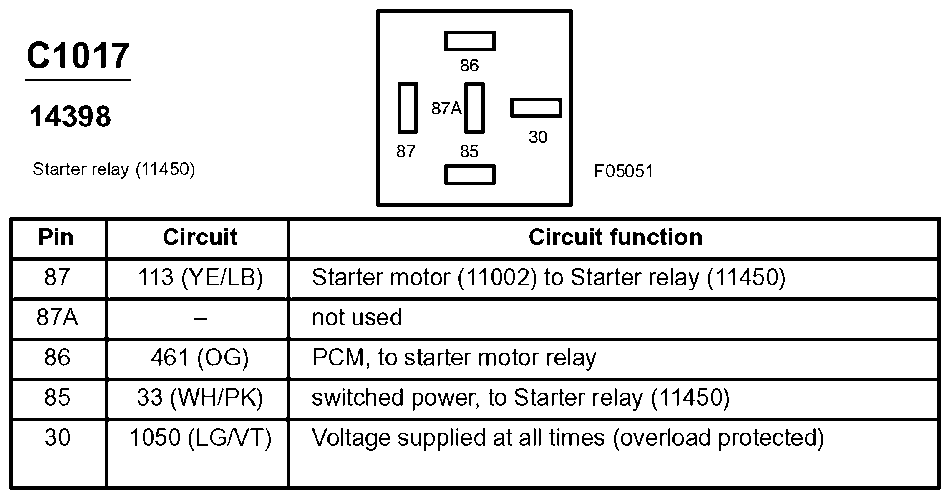

Fig 236: Starter Relay Connector End View (C1017)

G07833056

Courtesy of FORD MOTOR CO.

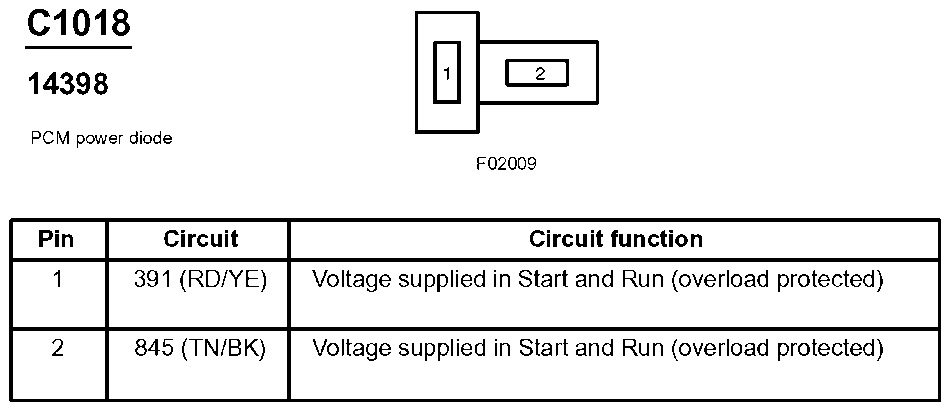

Fig 237: PCM Power Diode Connector End View (C1018)

G07833057

Courtesy of FORD MOTOR CO.

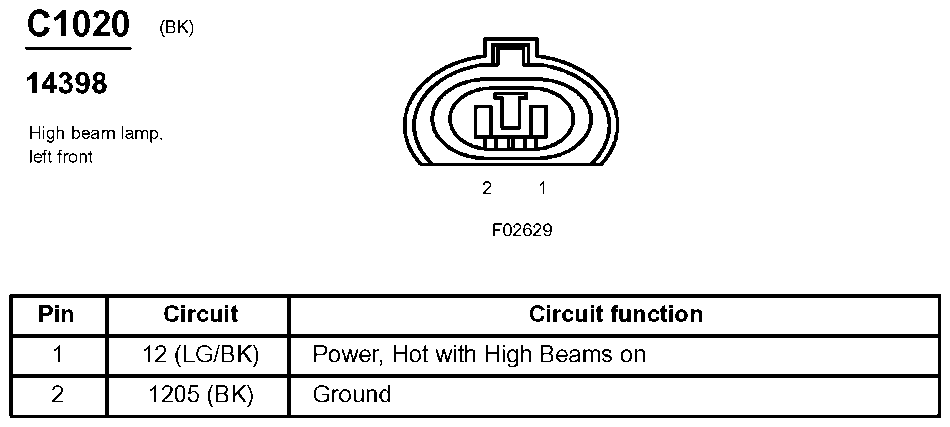

Fig 238: High Beam Lamp, Left Front Connector End View (C1020)

G07833058

Courtesy of FORD MOTOR CO.

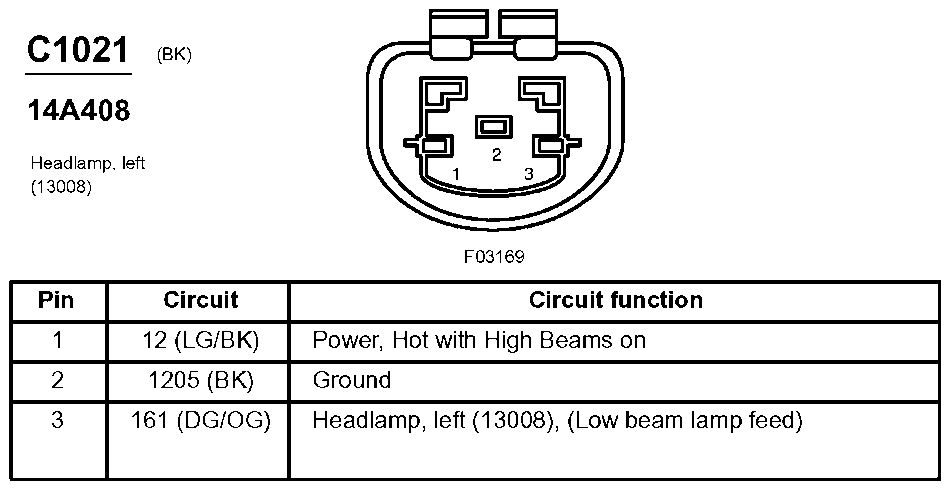

Fig 239: Headlamp, Left Connector End View (C1021)

G07833059

Courtesy of FORD MOTOR CO.

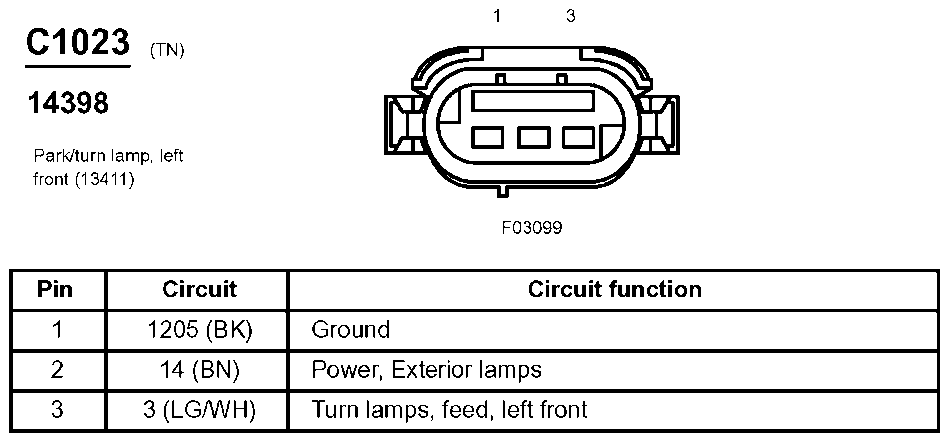

Fig 240: Park/Turn Lamp, Left Front Connector End View (C1023)

G07833060

Courtesy of FORD MOTOR CO.

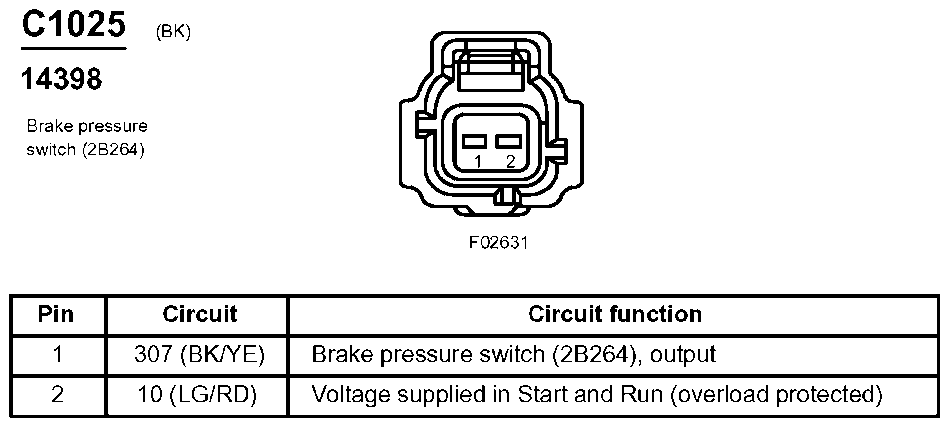

Fig 241: Brake Pressure Switch Connector End View (C1025)

G07833061

Courtesy of FORD MOTOR CO.

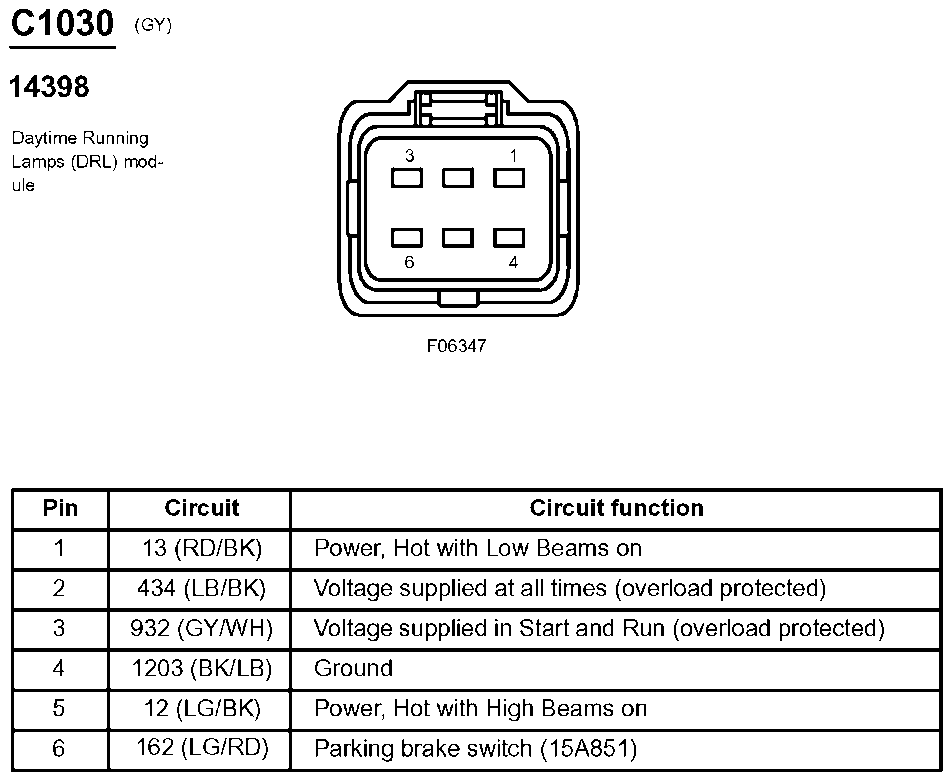

Fig 242: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07833062

Courtesy of FORD MOTOR CO.

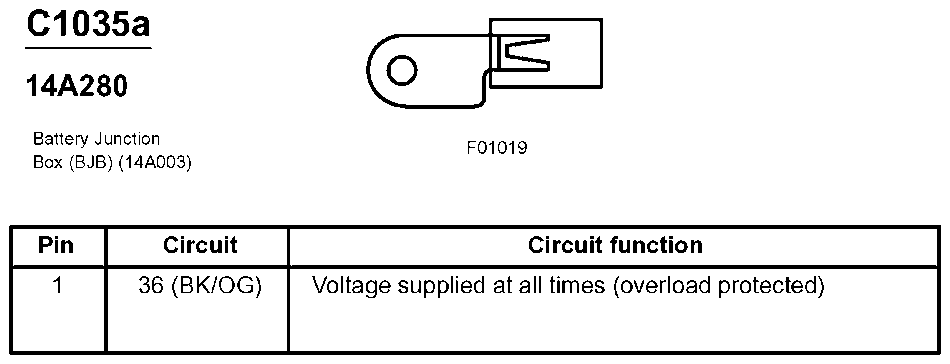

Fig 243: Battery Junction Box (BJB) Connector End View (C1035a)

G07833063

Courtesy of FORD MOTOR CO.

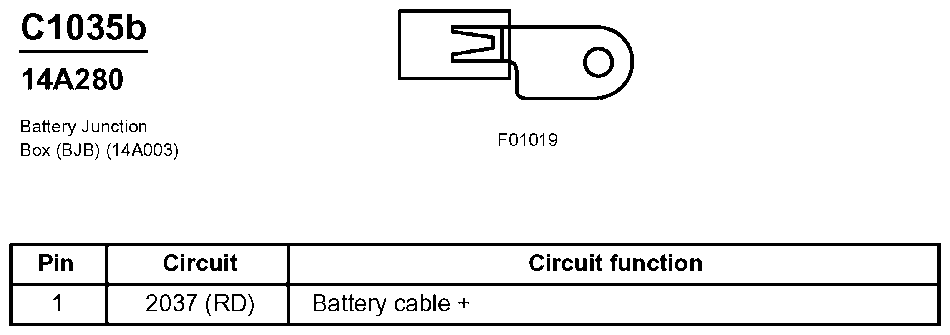

Fig 244: Battery Junction Box (BJB) Connector End View (C1035b)

G07833064

Courtesy of FORD MOTOR CO.

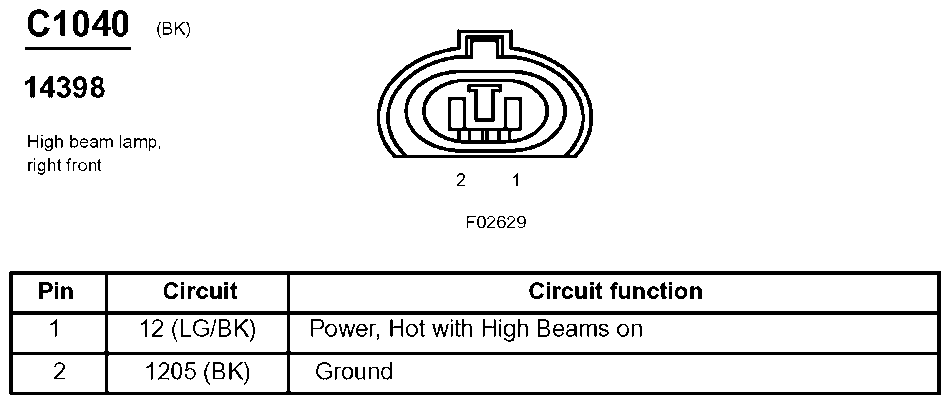

Fig 245: High Beam Lamp, Right Front Connector End View (C1040)

G07833065

Courtesy of FORD MOTOR CO.

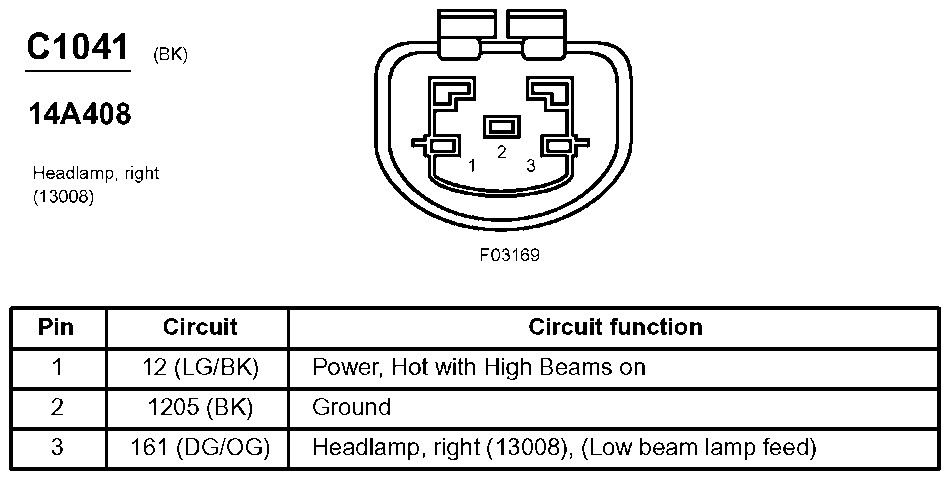

Fig 246: Headlamp, Right Connector End View (C1041)

G07833066

Courtesy of FORD MOTOR CO.

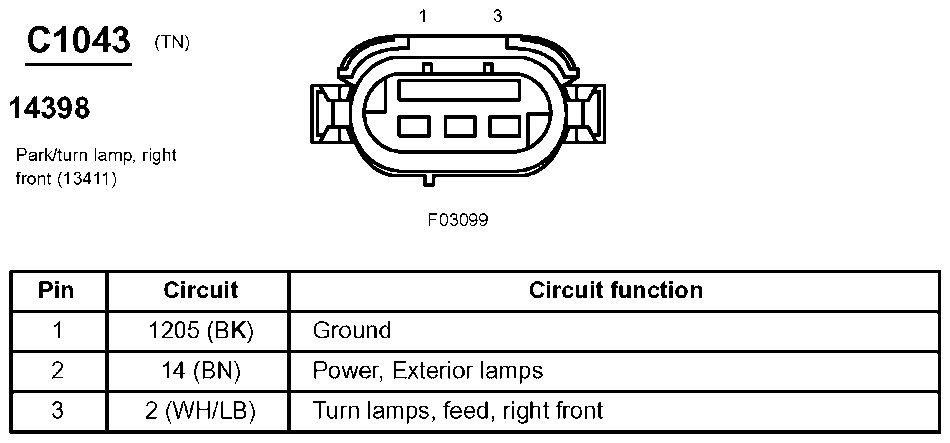

Fig 247: Park/Turn Lamp, Right Front Connector End View (C1043)

G07833067

Courtesy of FORD MOTOR CO.

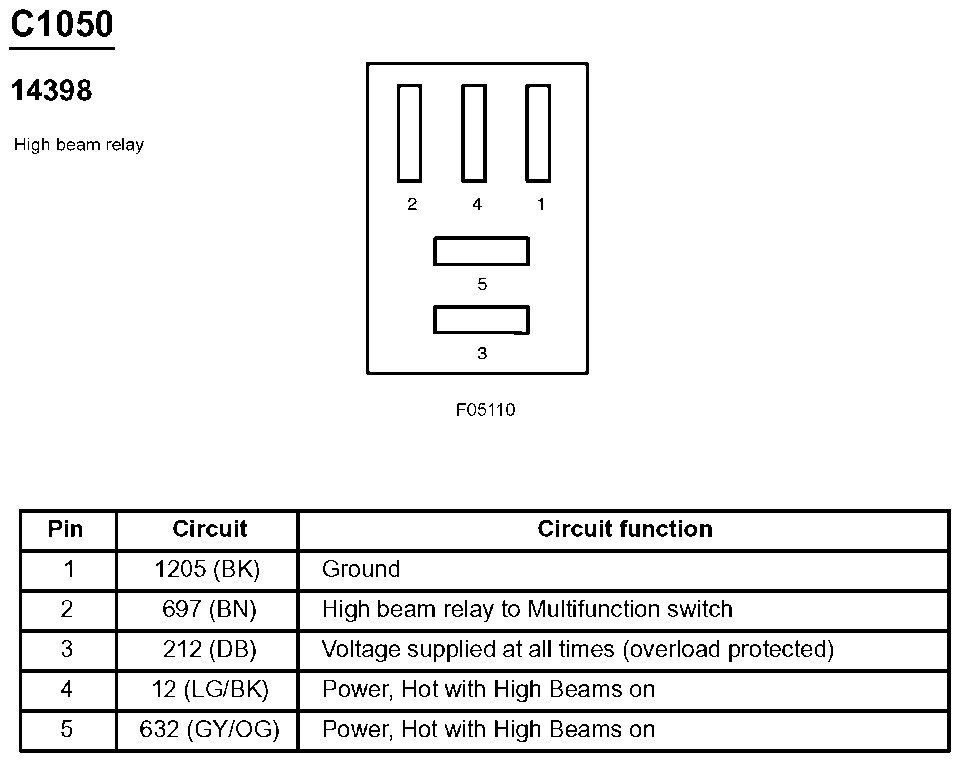

Fig 248: High Beam Relay Connector End View (C1050)

G07833068

Courtesy of FORD MOTOR CO.

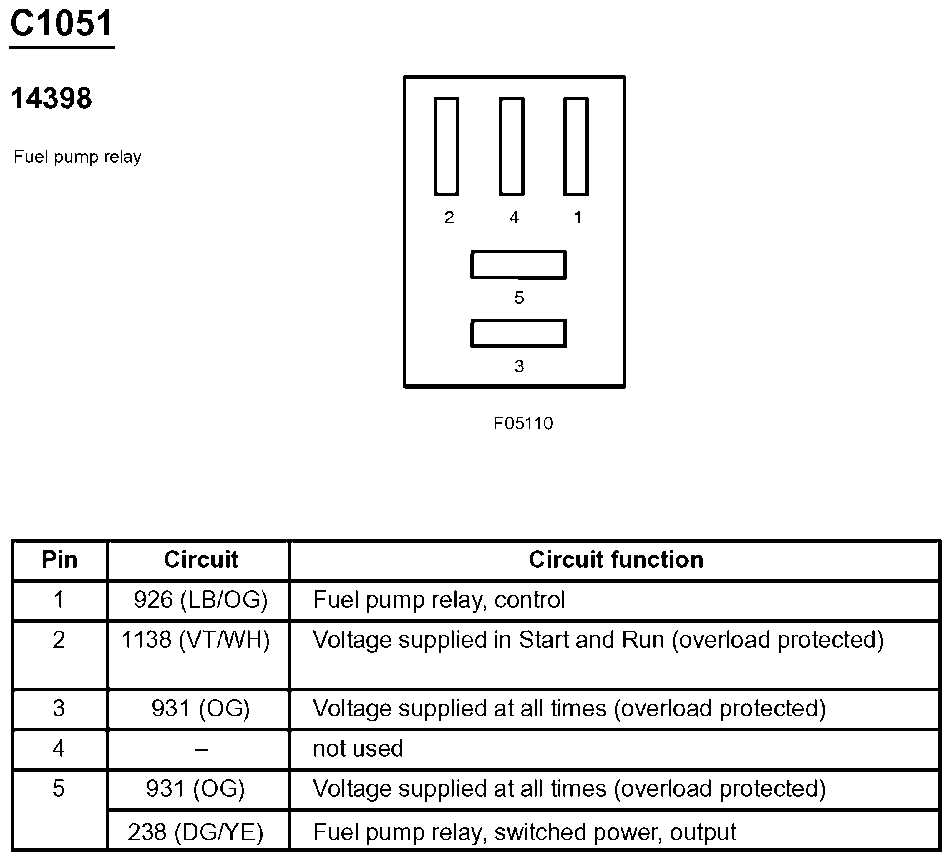

Fig 249: Fuel Pump Relay Connector End View (C1051)

G07833069

Courtesy of FORD MOTOR CO.

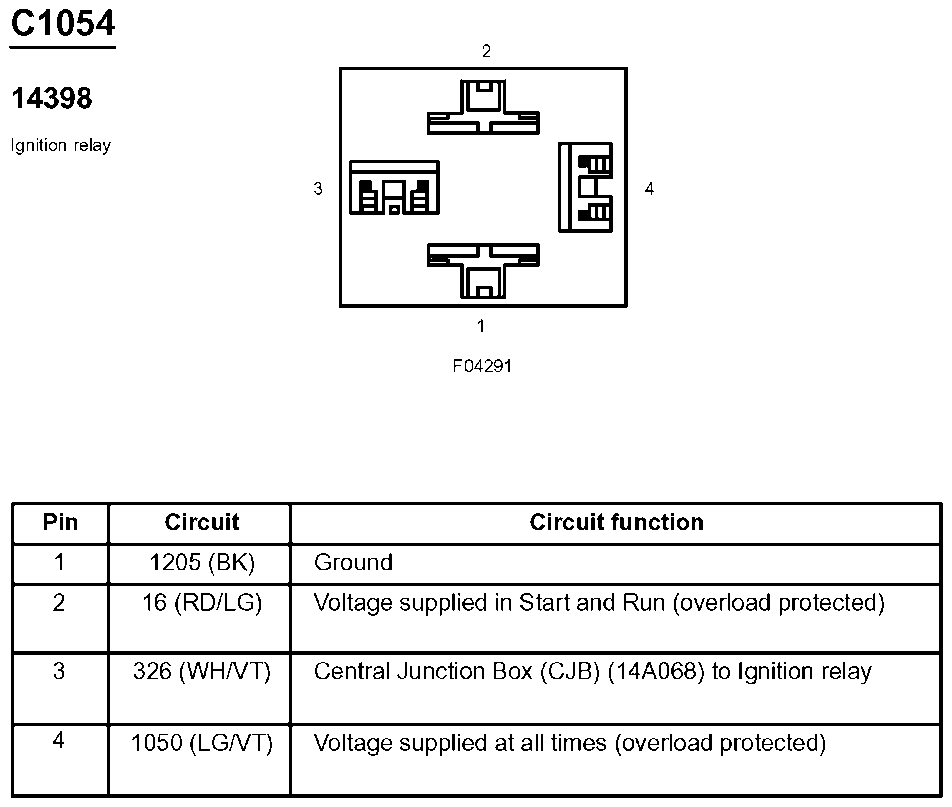

Fig 250: Ignition Relay Connector End View (C1054)

G07833070

Courtesy of FORD MOTOR CO.

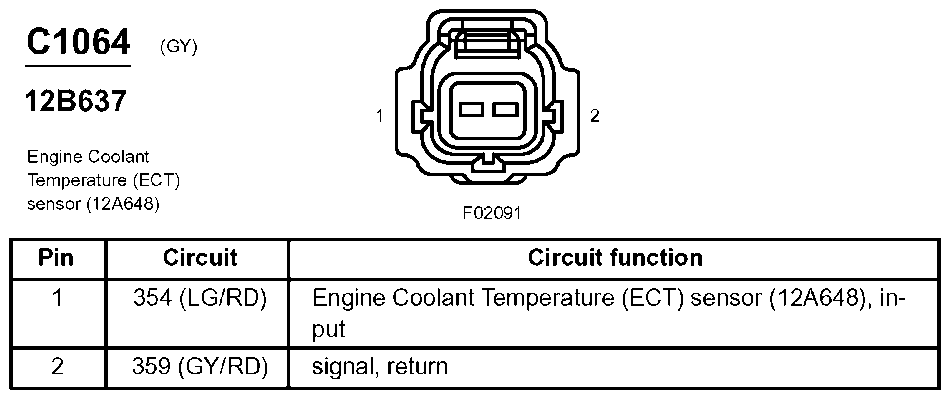

Fig 251: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07833071

Courtesy of FORD MOTOR CO.

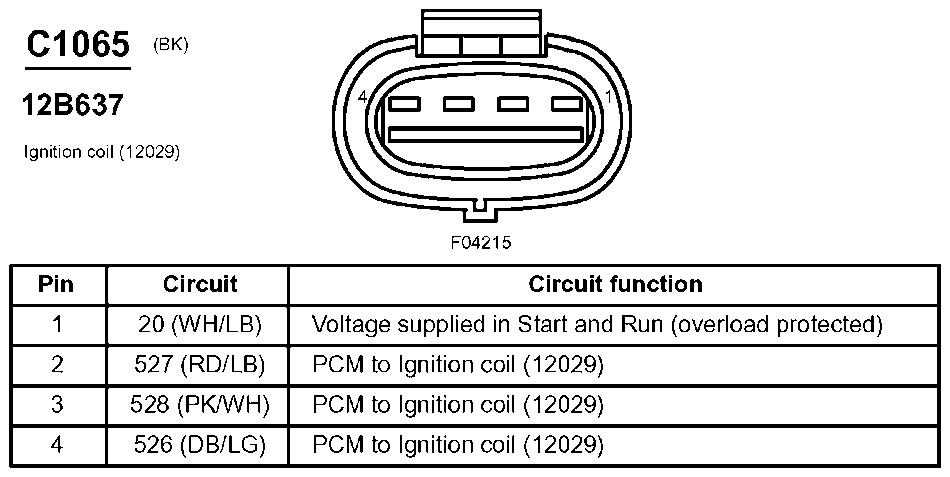

Fig 252: Ignition Coil Connector End View (C1065)

G07833072

Courtesy of FORD MOTOR CO.

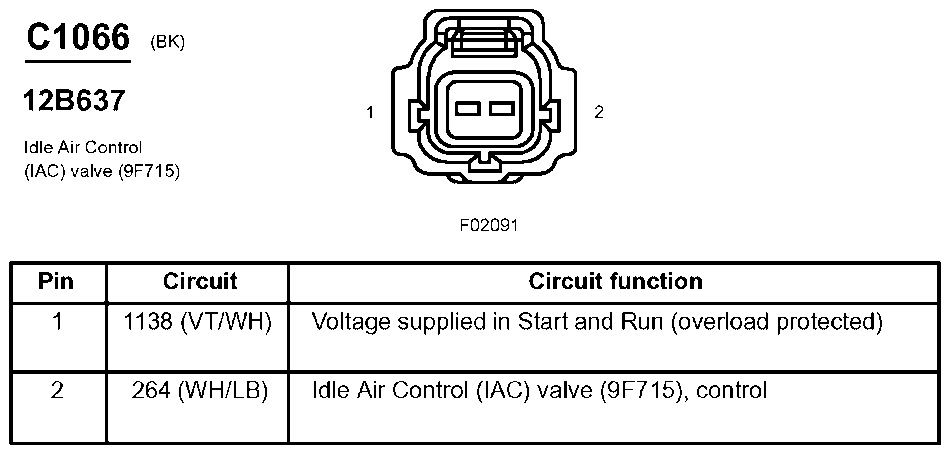

Fig 253: Idle Air Control (IAC) Valve Connector End View (C1066)

G07833073

Courtesy of FORD MOTOR CO.

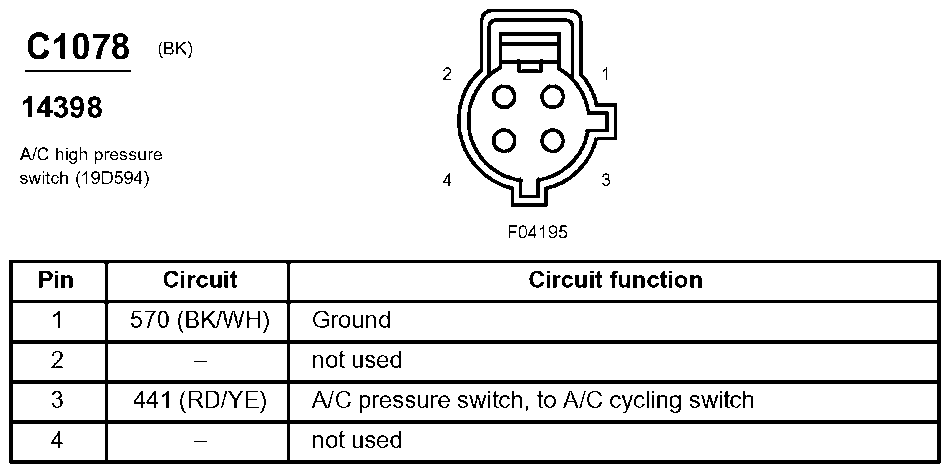

Fig 254: A/C High Pressure Switch Connector End View (C1078)

G07833074

Courtesy of FORD MOTOR CO.

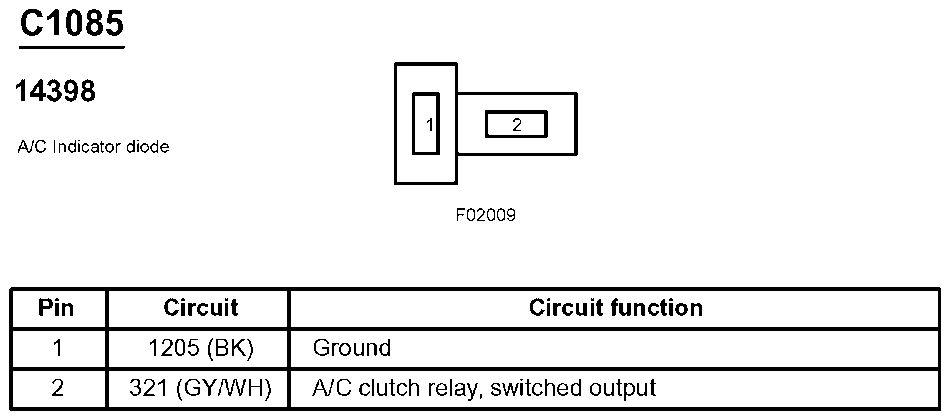

Fig 255: A/C Indicator Diode Connector End View (C1085)

G07833075

Courtesy of FORD MOTOR CO.

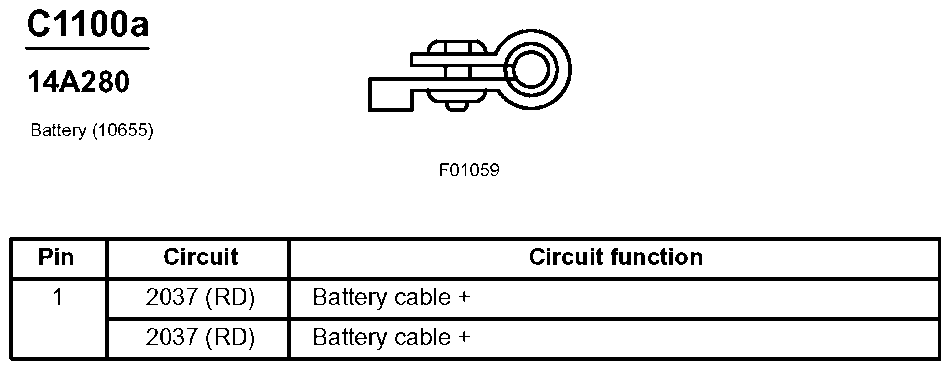

Fig 256: Battery Connector End View (C1100a)

G07833076

Courtesy of FORD MOTOR CO.

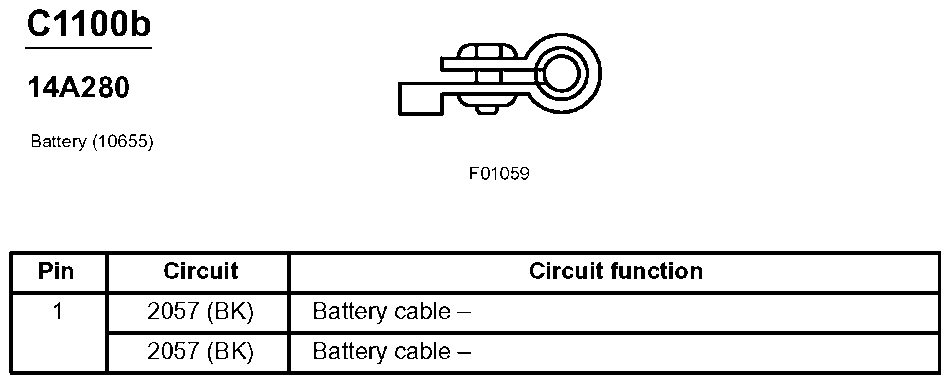

Fig 257: Battery Connector End View (C1100b)

G07833077

Courtesy of FORD MOTOR CO.

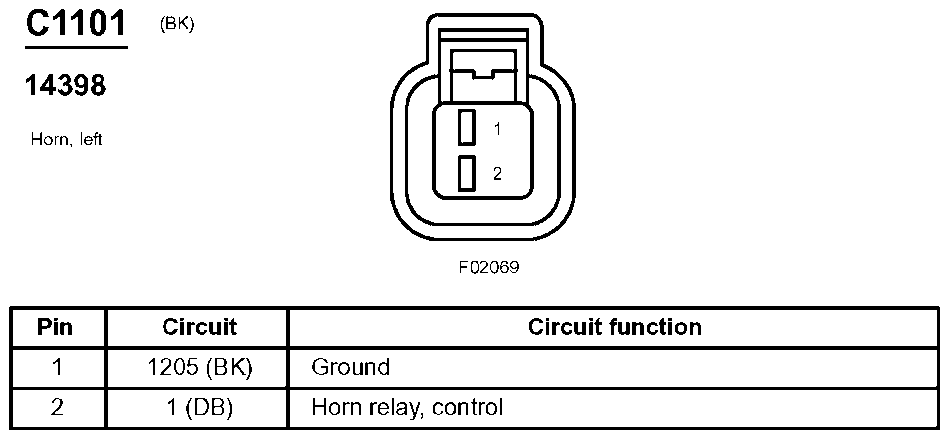

Fig 258: Horn, Left Connector End View (C1101)

G07833078

Courtesy of FORD MOTOR CO.

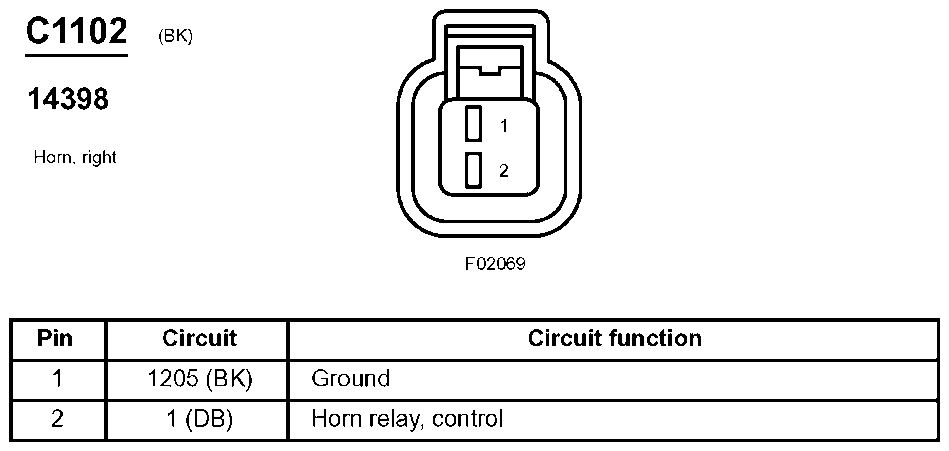

Fig 259: Horn, Right Connector End View (C1102)

G07833079

Courtesy of FORD MOTOR CO.

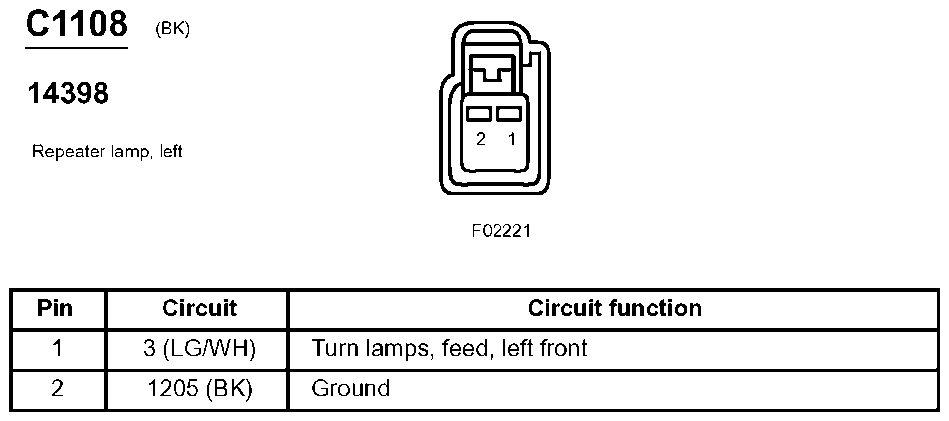

Fig 260: Repeater Lamp, Left Connector End View (C1108)

G07833080

Courtesy of FORD MOTOR CO.

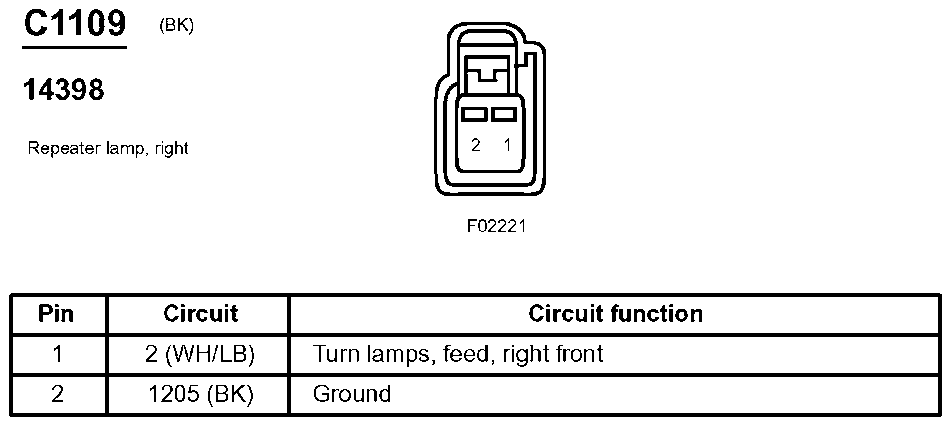

Fig 261: Repeater Lamp, Right Connector End View (C1109)

G07833081

Courtesy of FORD MOTOR CO.

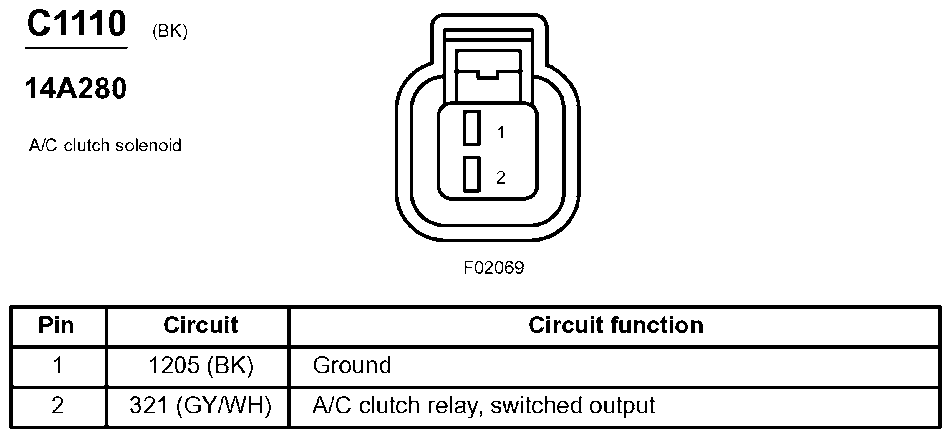

Fig 262: A/C Clutch Solenoid Connector End View (C1110)

G07833082

Courtesy of FORD MOTOR CO.

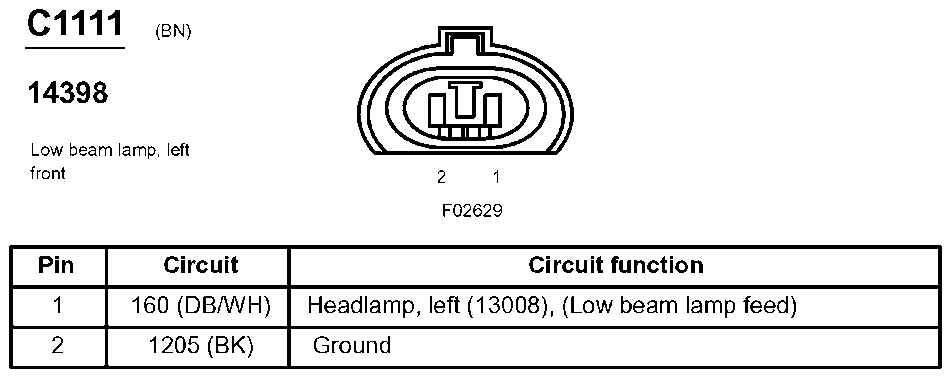

Fig 263: Low Beam Lamp, Left Front Connector End View (C1111)

G07833083

Courtesy of FORD MOTOR CO.

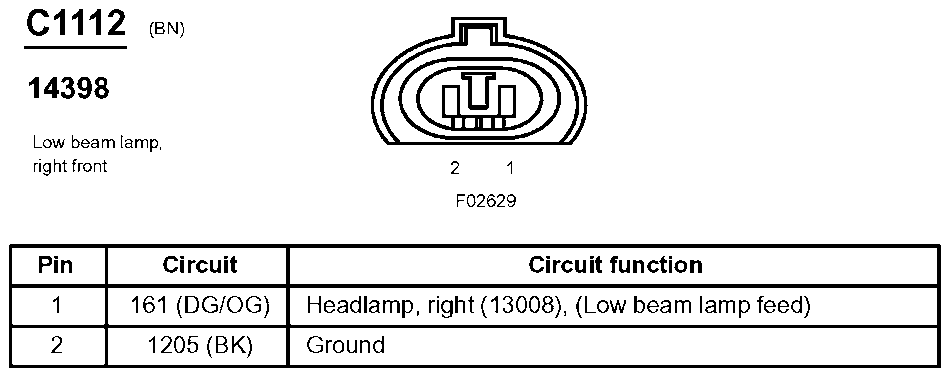

Fig 264: Low Beam Lamp, Right Front Connector End View (C1112)

G07833084

Courtesy of FORD MOTOR CO.

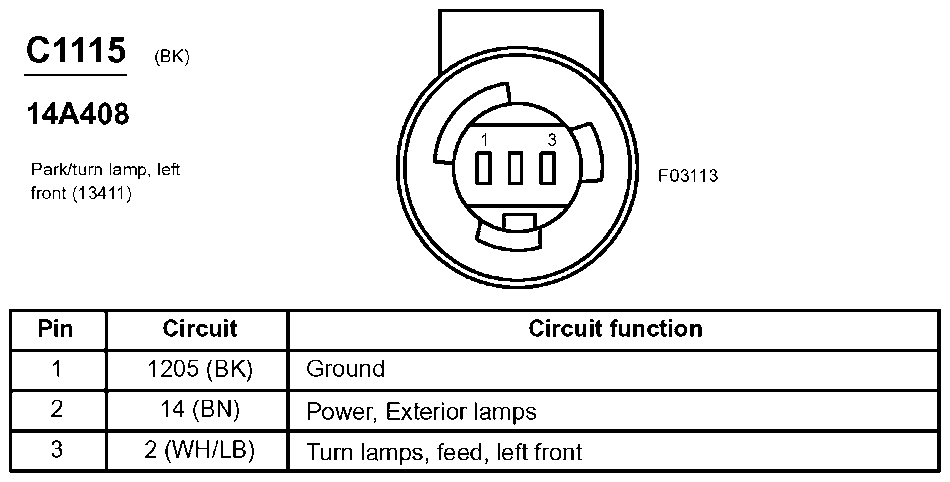

Fig 265: Park/Turn Lamp, Left Front Connector End View (C1115)

G07833085

Courtesy of FORD MOTOR CO.

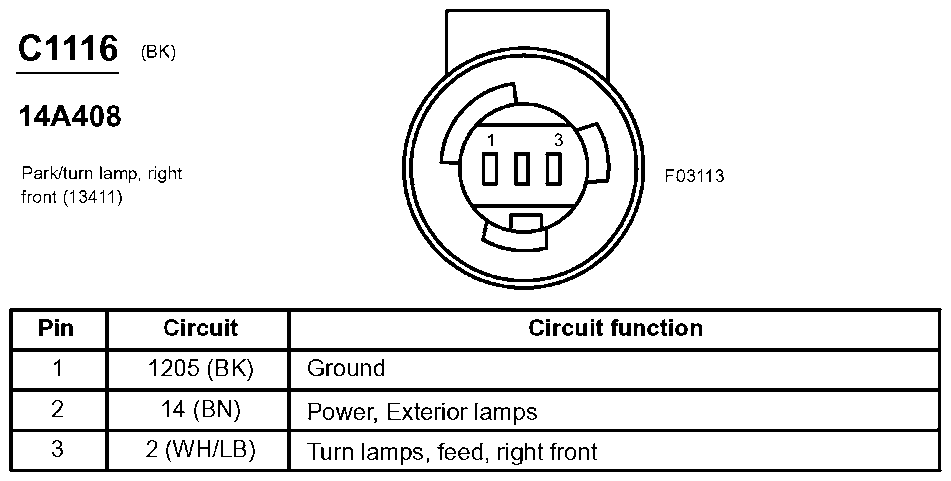

Fig 266: Park/Turn Lamp, Right Front Connector End View (C1116)

G07833086

Courtesy of FORD MOTOR CO.

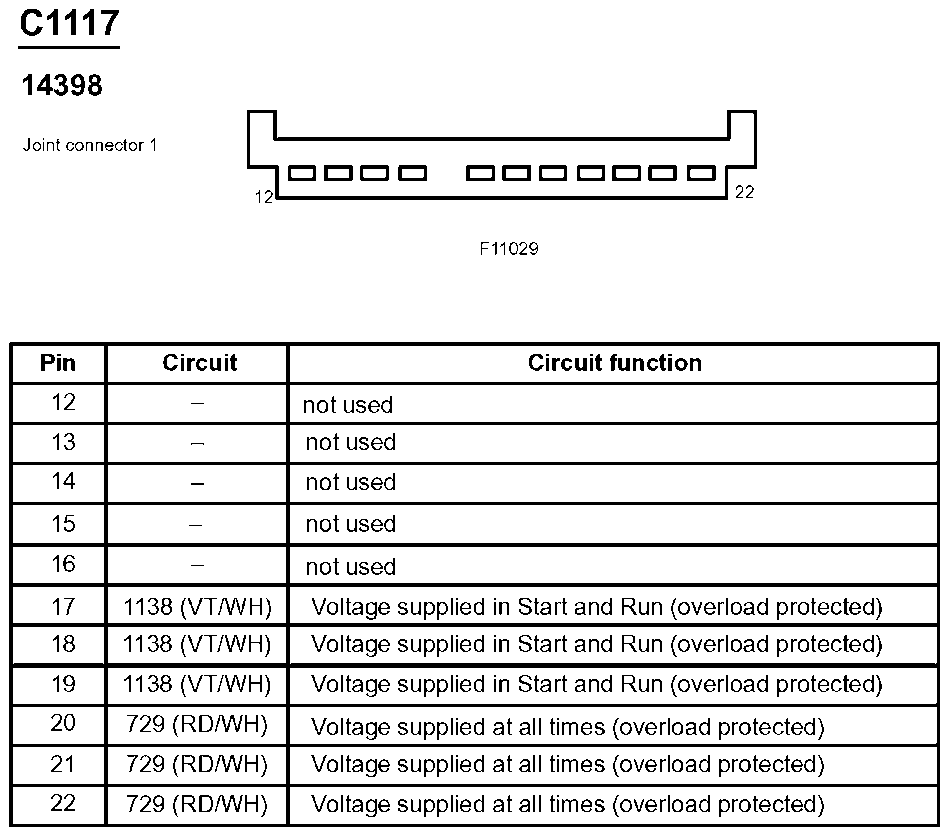

Fig 267: Joint Connector 1 Connector End View (C1117)

G07833087

Courtesy of FORD MOTOR CO.

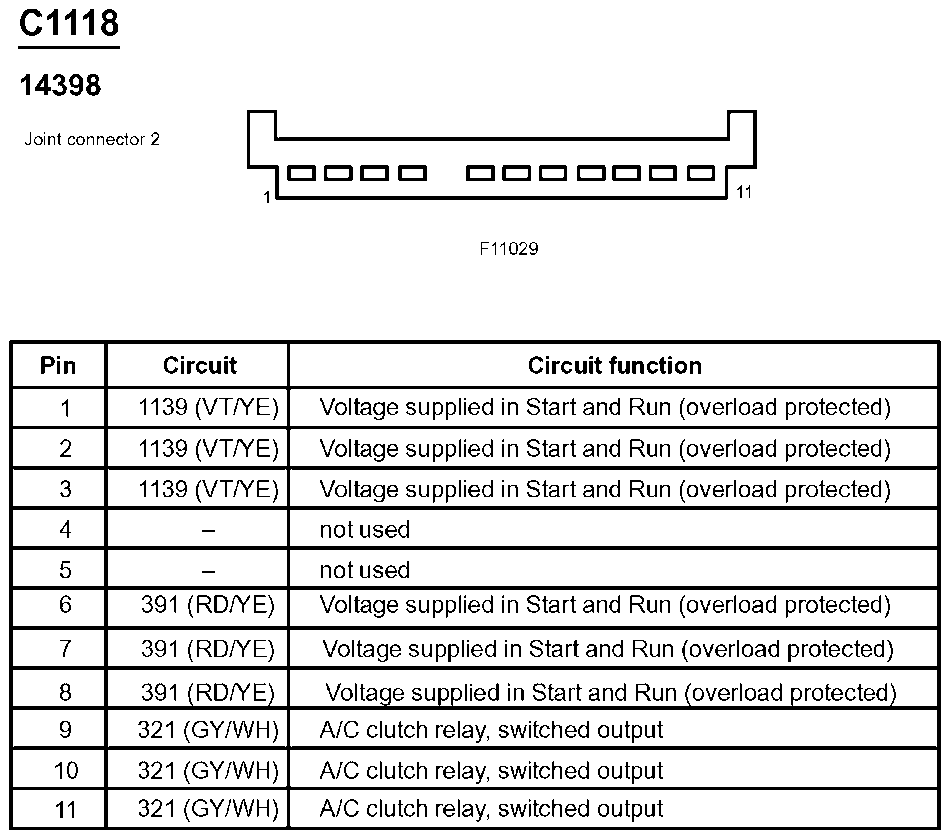

Fig 268: Joint Connector 2 Connector End View (C1118)

G07833088

Courtesy of FORD MOTOR CO.

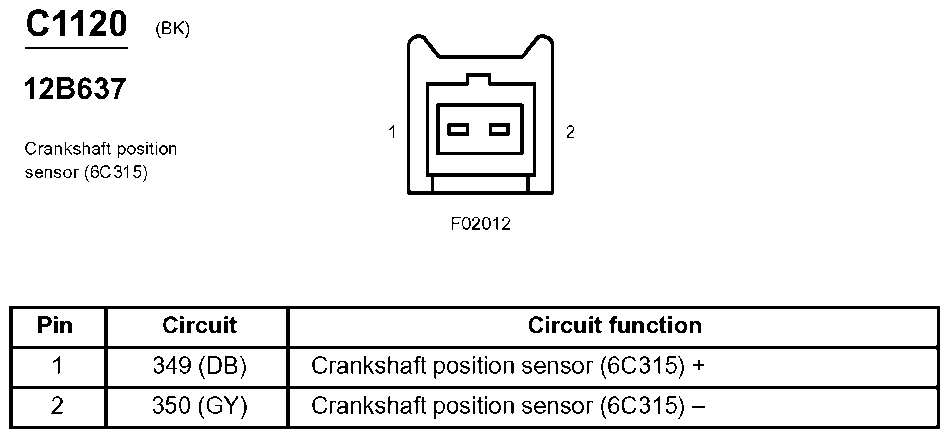

Fig 269: Crankshaft Position Sensor Connector End View (C1120)

G07833089

Courtesy of FORD MOTOR CO.

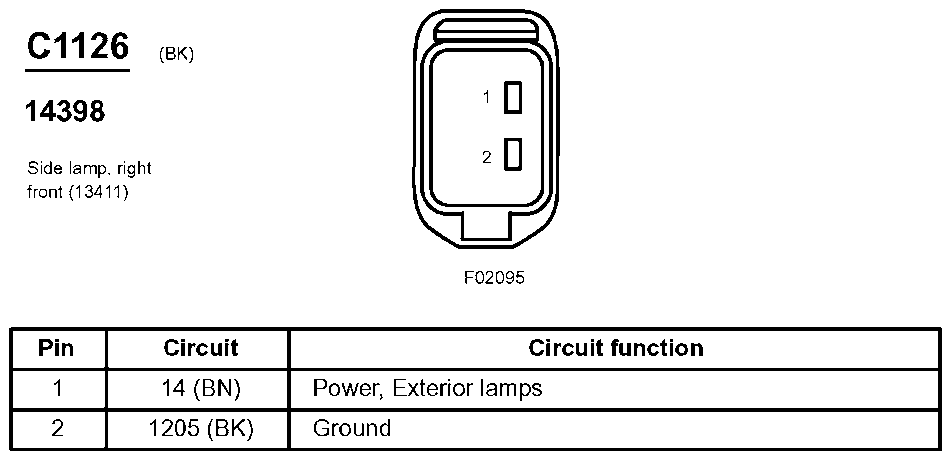

Fig 270: Side Lamp, Right Front Connector End View (C1126)

G07833090

Courtesy of FORD MOTOR CO.

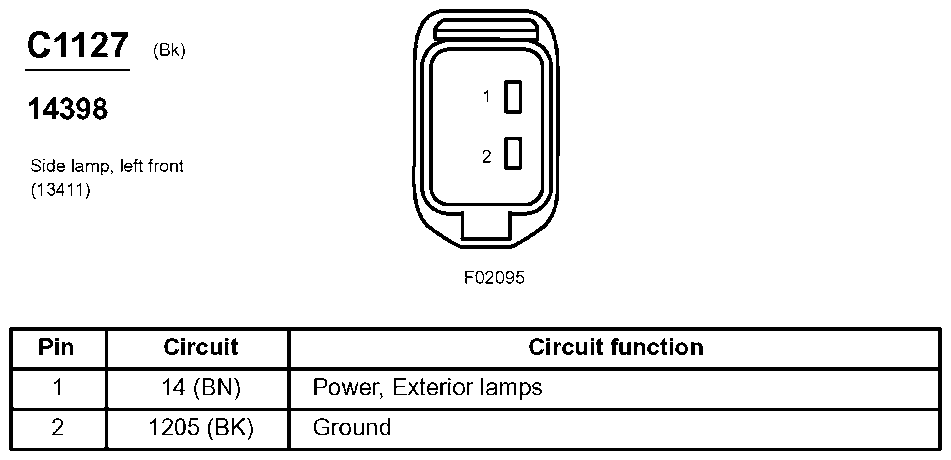

Fig 271: Side Lamp, Left Front Connector End View (C1127)

G07833091

Courtesy of FORD MOTOR CO.

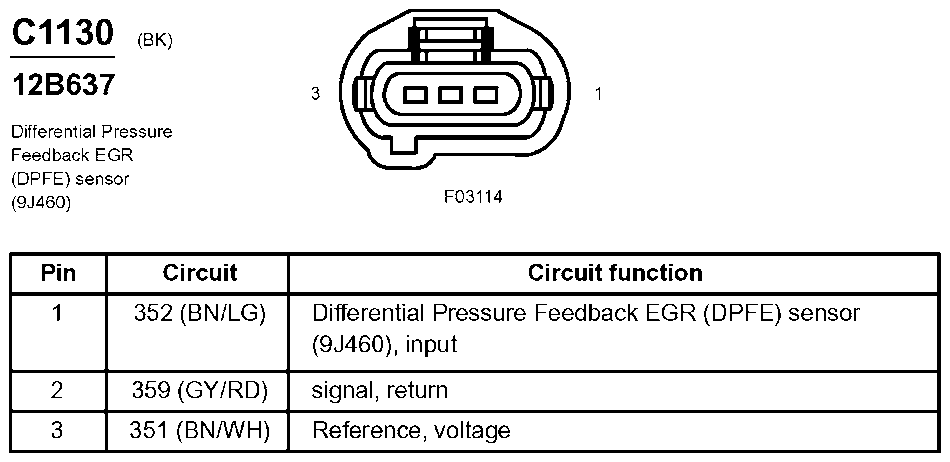

Fig 272: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1130)

G07833092

Courtesy of FORD MOTOR CO.

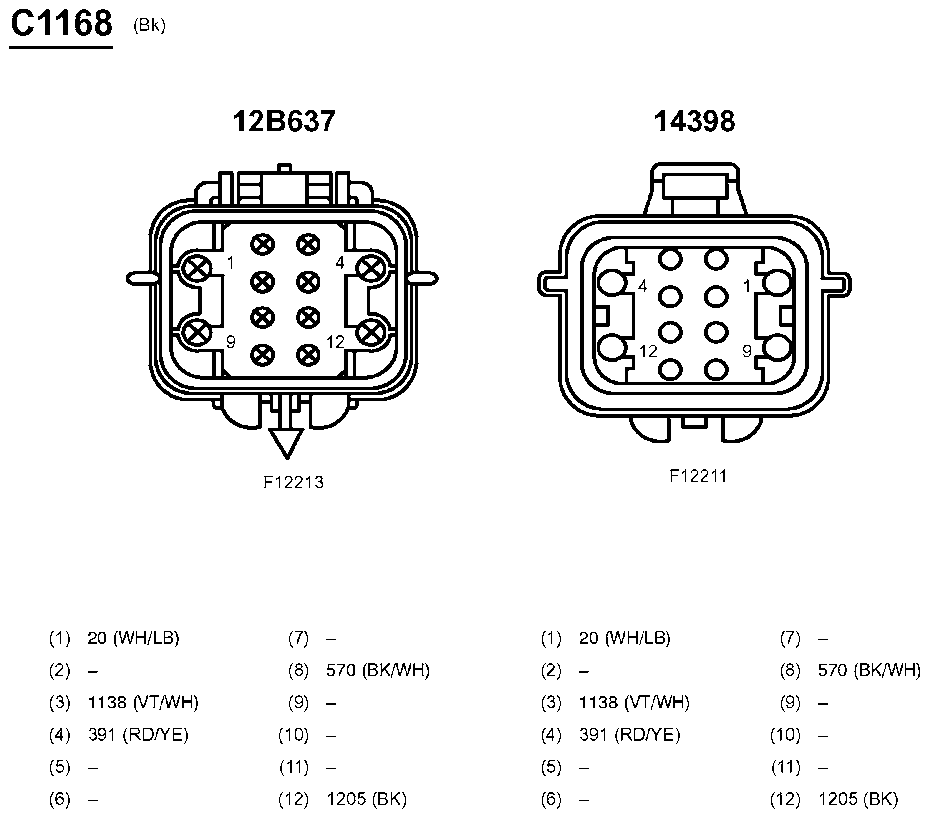

Fig 273: Inline Connector End View (C1168)

G07833093

Courtesy of FORD MOTOR CO.

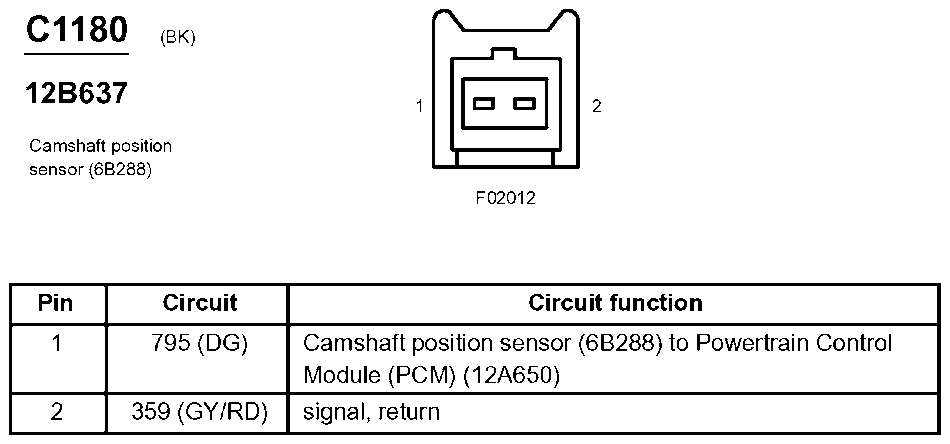

Fig 274: Camshaft Position Sensor Connector End View (C1180)

G07833094

Courtesy of FORD MOTOR CO.

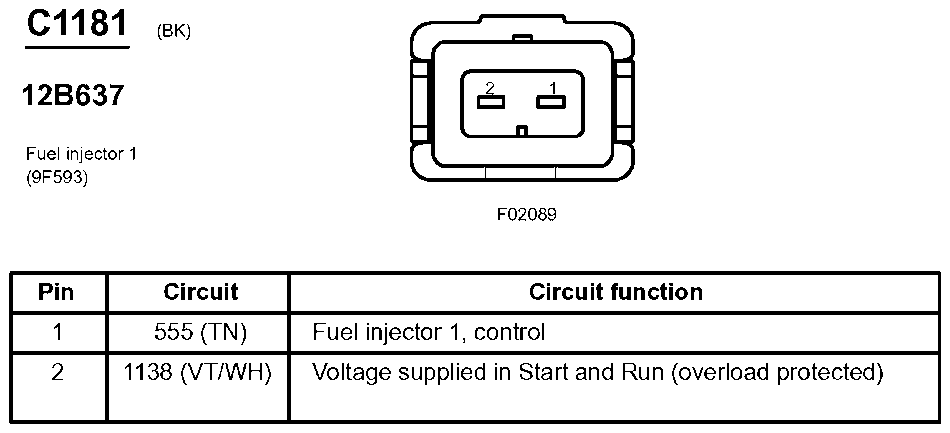

Fig 275: Fuel Injector 1 Connector End View (C1181)

G07833095

Courtesy of FORD MOTOR CO.

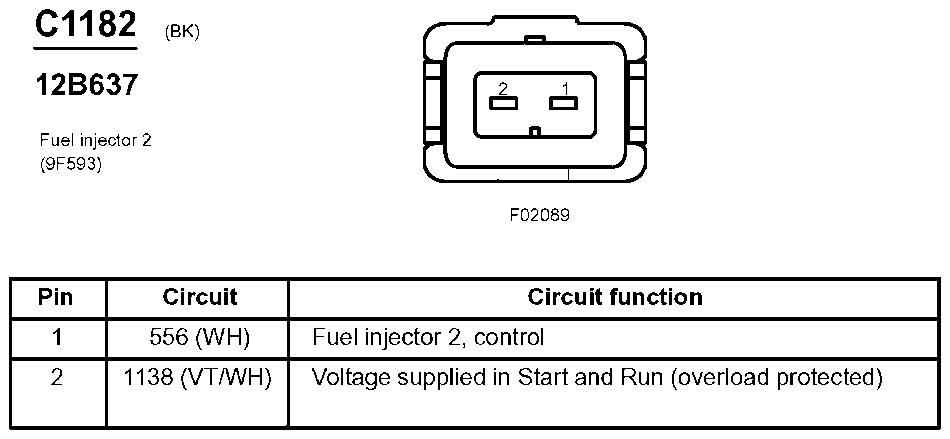

Fig 276: Fuel Injector 2 Connector End View (C1182)

G07833096

Courtesy of FORD MOTOR CO.

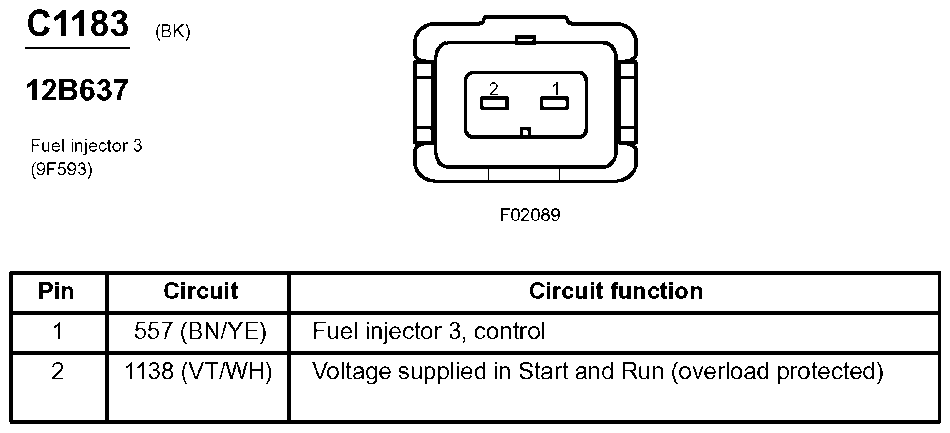

Fig 277: Fuel Injector 3 Connector End View (C1183)

G07833097

Courtesy of FORD MOTOR CO.

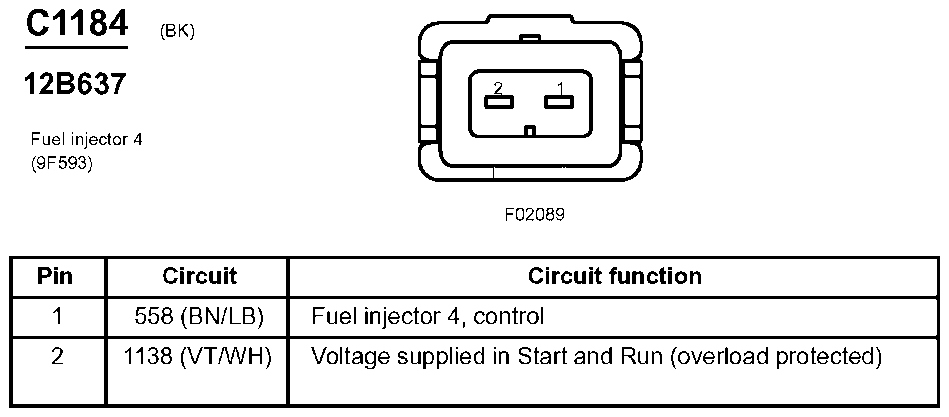

Fig 278: Fuel Injector 4 Connector End View (C1184)

G07833098

Courtesy of FORD MOTOR CO.

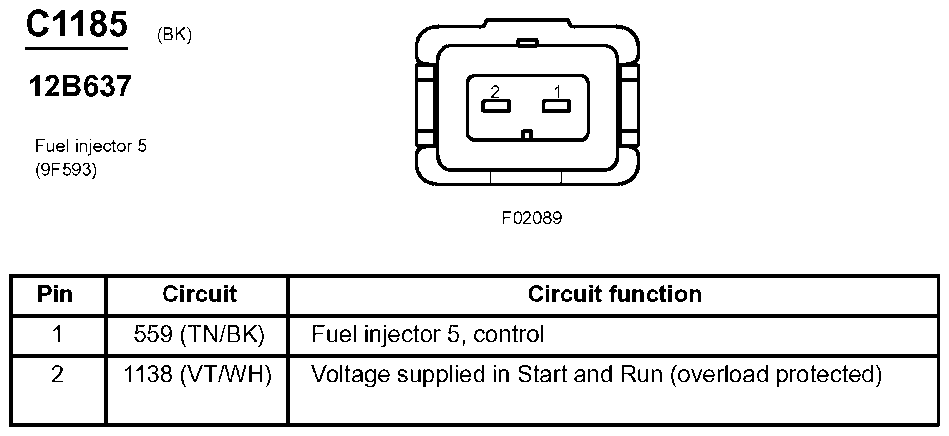

Fig 279: Fuel Injector 5 Connector End View (C1185)

G07833099

Courtesy of FORD MOTOR CO.

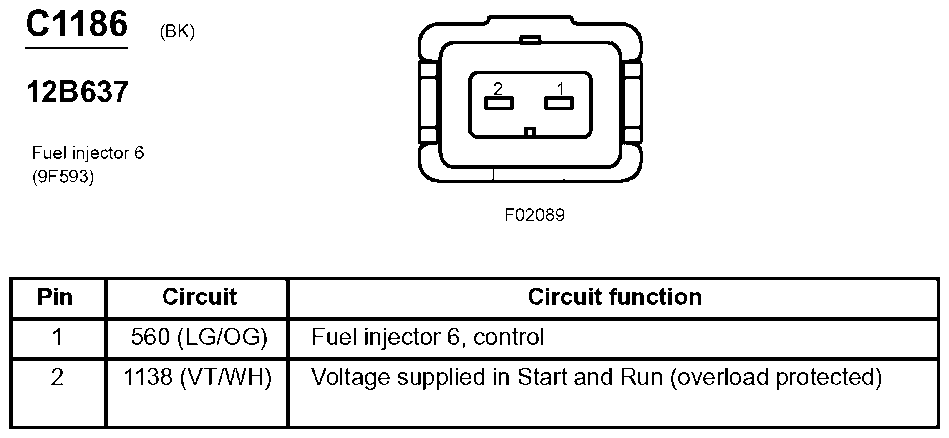

Fig 280: Fuel Injector 6 Connector End View (C1186)

G07833100

Courtesy of FORD MOTOR CO.

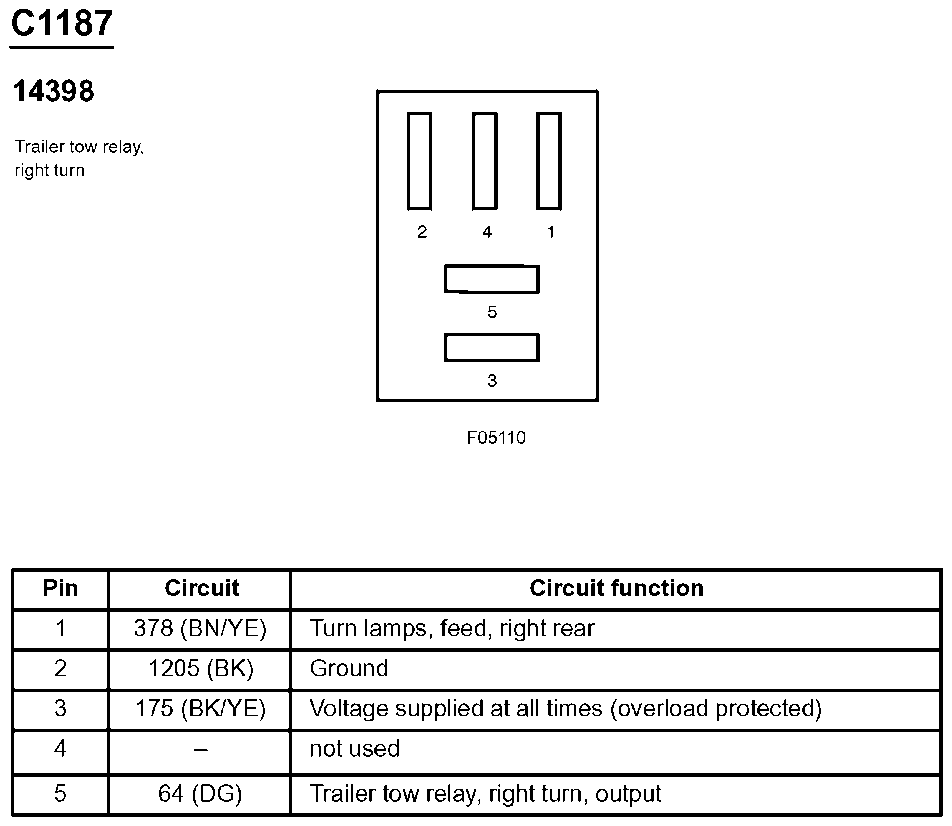

Fig 281: Trailer Tow Relay, Right Turn Connector End View (C1187)

G07833101

Courtesy of FORD MOTOR CO.

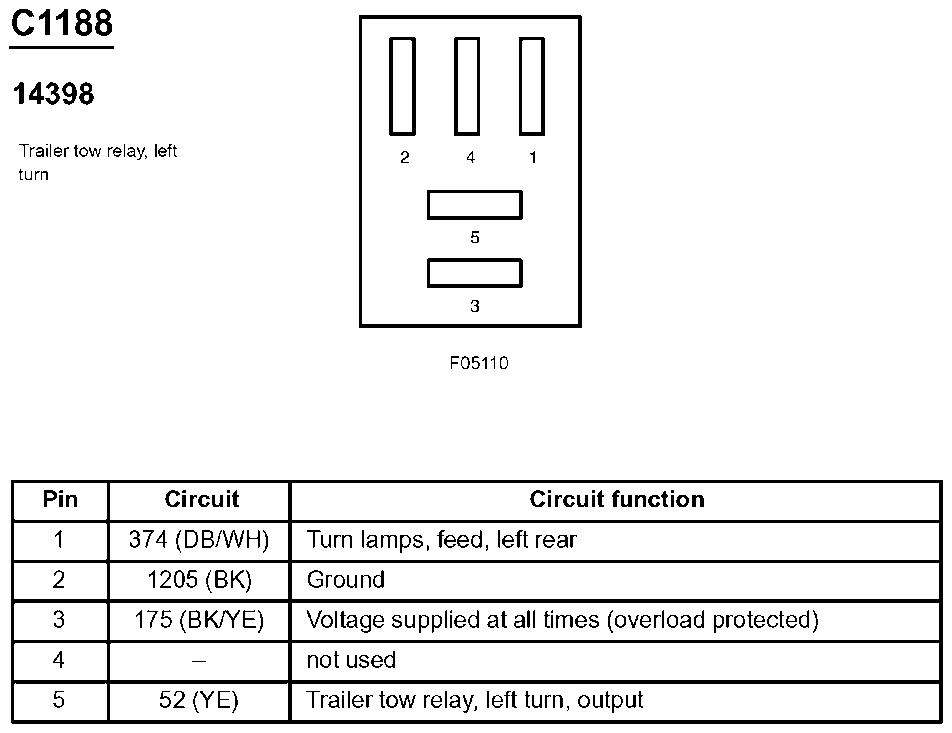

Fig 282: Trailer Tow Relay, Left Turn Connector End View (C1188)

G07833102

Courtesy of FORD MOTOR CO.

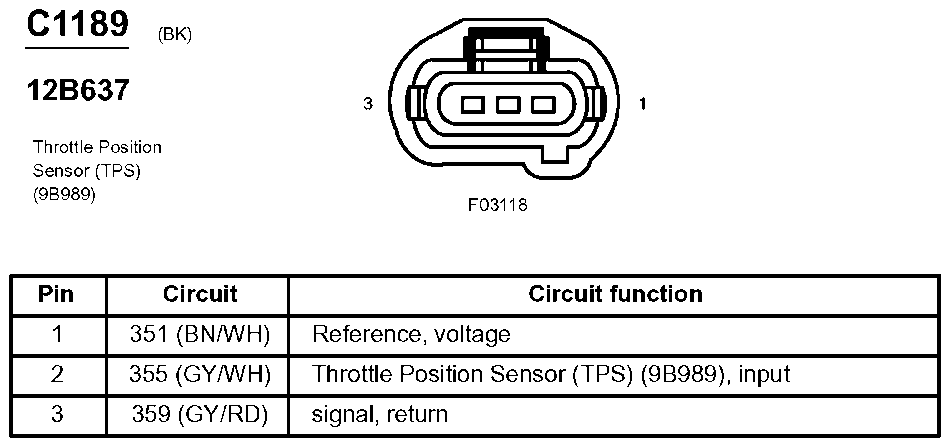

Fig 283: Throttle Position Sensor (TPS) Connector End View (C1189)

G07833103

Courtesy of FORD MOTOR CO.

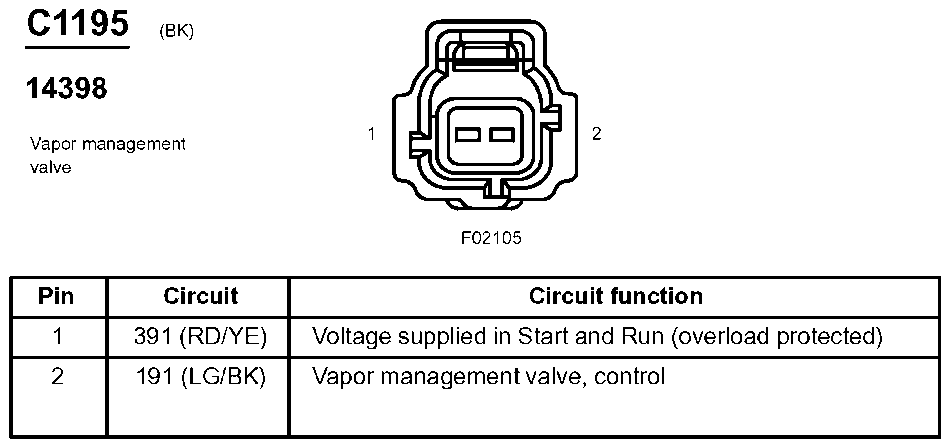

Fig 284: Vapor Management Valve Connector End View (C1195)

G07833104

Courtesy of FORD MOTOR CO.

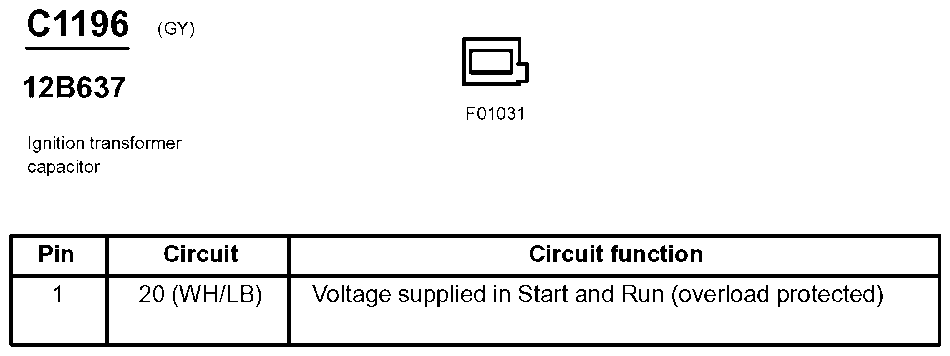

Fig 285: Ignition Transformer Capacitor Connector End View (C1196)

G07833105

Courtesy of FORD MOTOR CO.

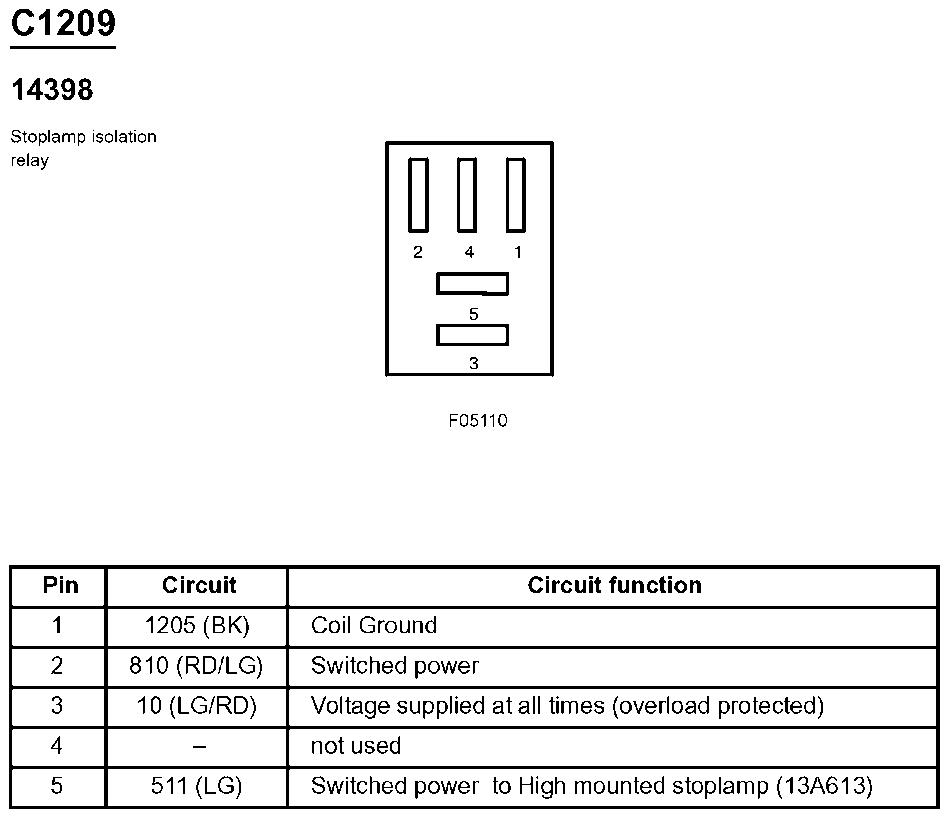

Fig 286: Stoplamp Isolation Relay Connector End View (C1209)

G07833106

Courtesy of FORD MOTOR CO.

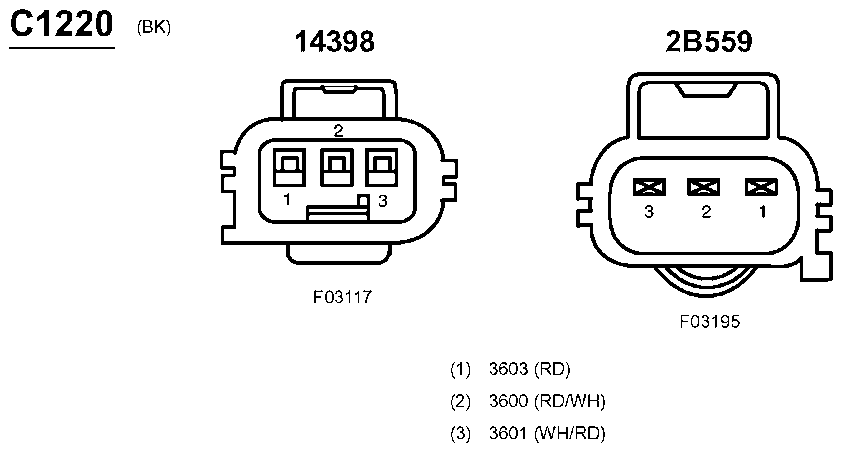

Fig 287: Inline Connector End View (C1220)

G07833107

Courtesy of FORD MOTOR CO.

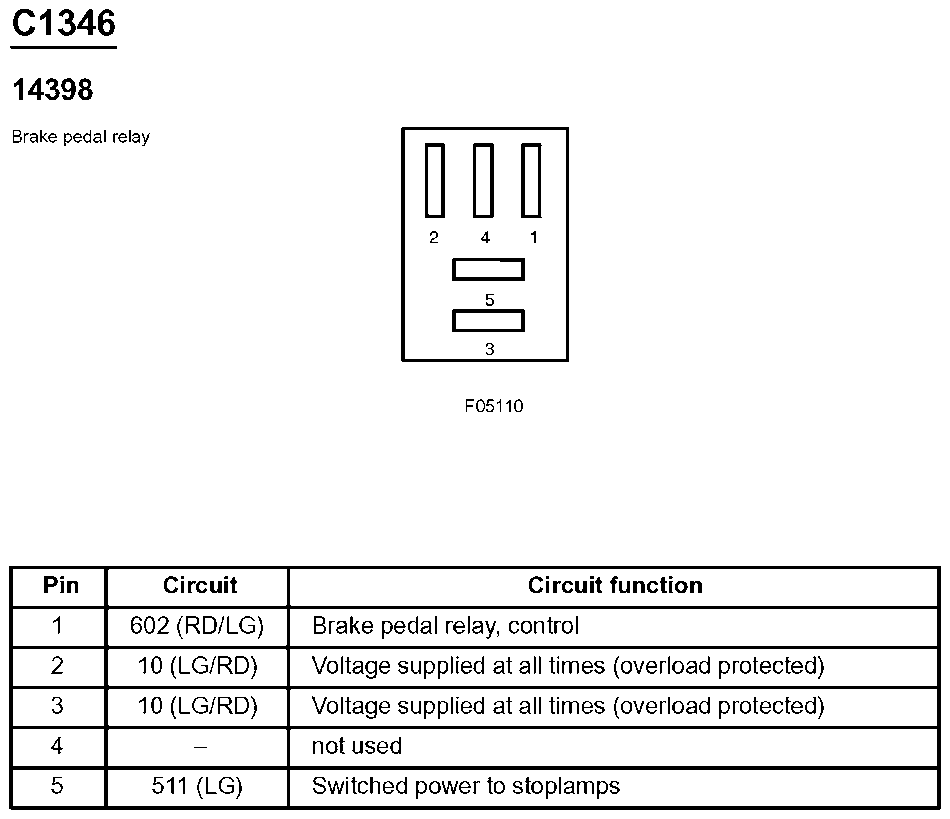

Fig 288: Brake Applied Relay Connector End View (C1346)

G07833108

Courtesy of FORD MOTOR CO.

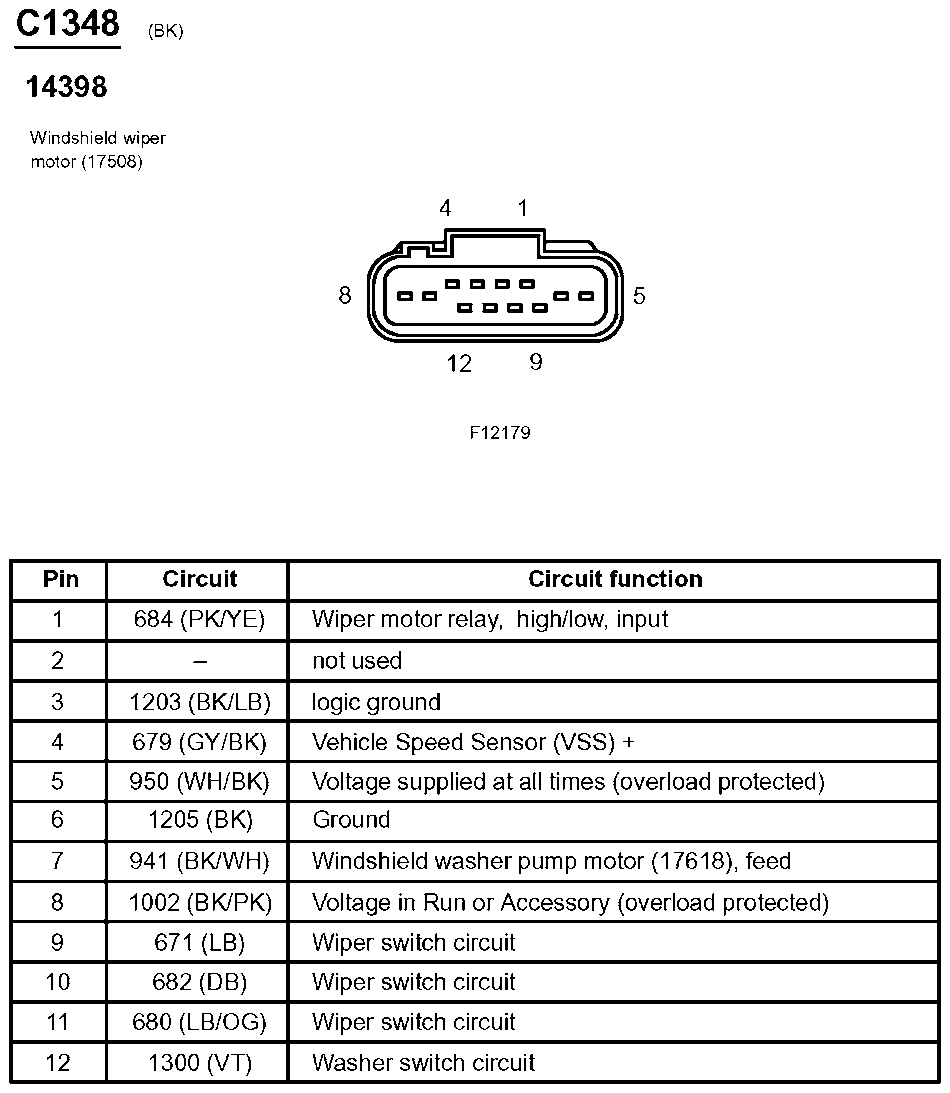

Fig 289: Windshield Wiper Motor Connector End View (C1348)

G07833109

Courtesy of FORD MOTOR CO.

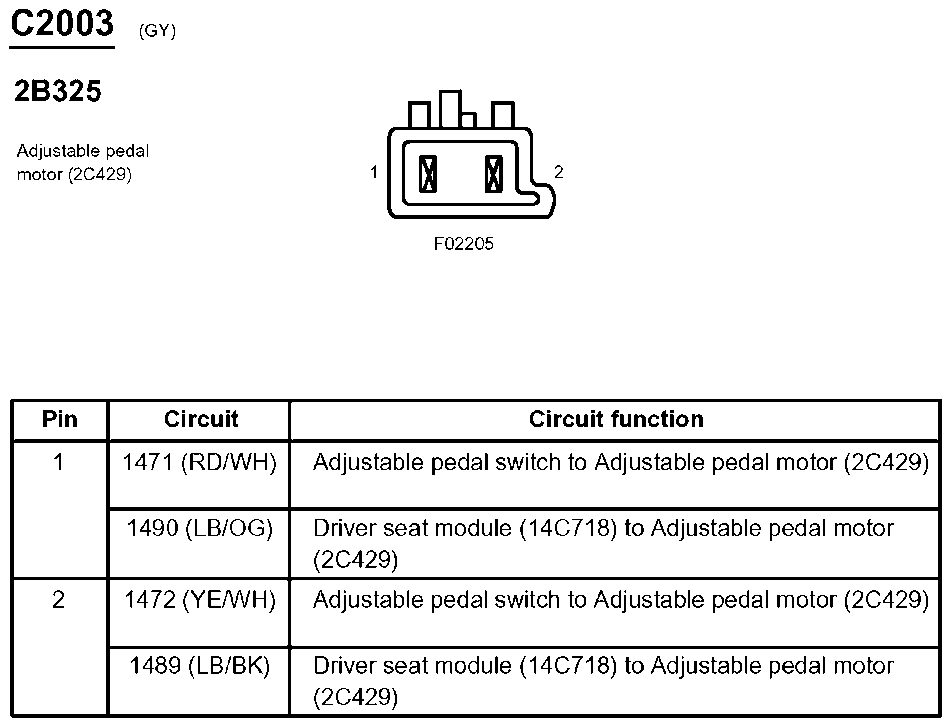

Fig 290: Adjustable Pedal Motor Connector End View (C2003)

G07833110

Courtesy of FORD MOTOR CO.

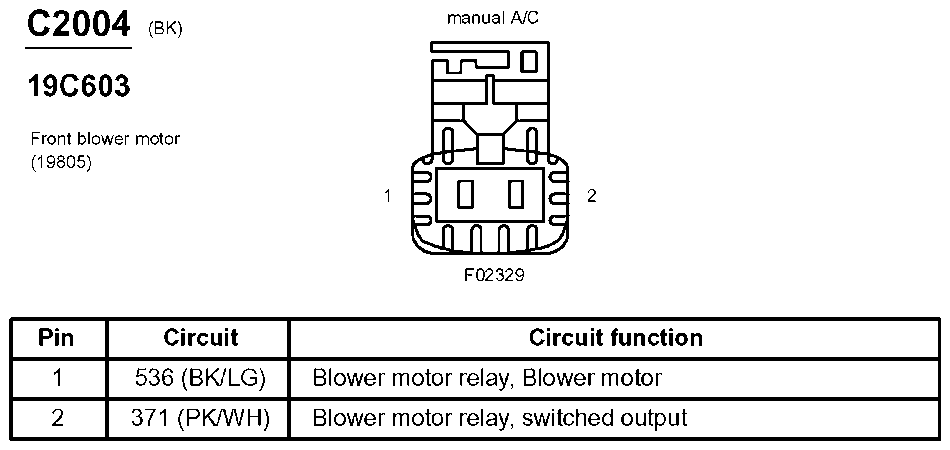

Fig 291: Front Blower Motor Connector End View (C2004)

G07833111

Courtesy of FORD MOTOR CO.

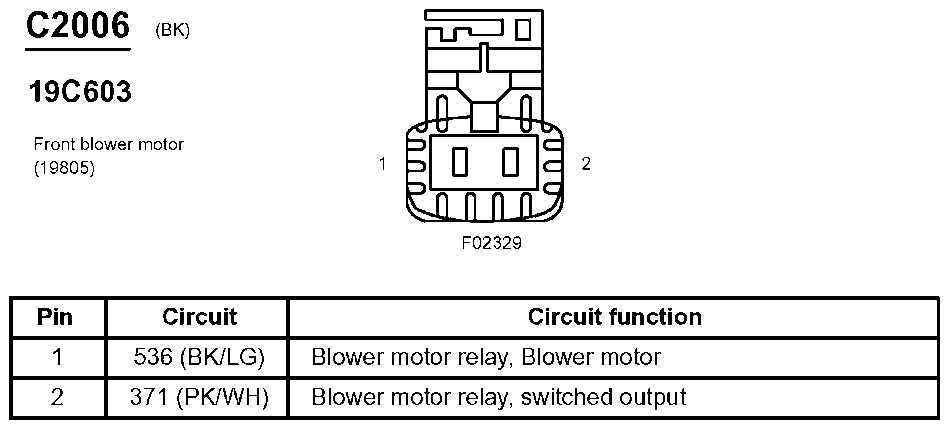

Fig 292: Front Blower Motor Connector End View (C2006)

G07833112

Courtesy of FORD MOTOR CO.

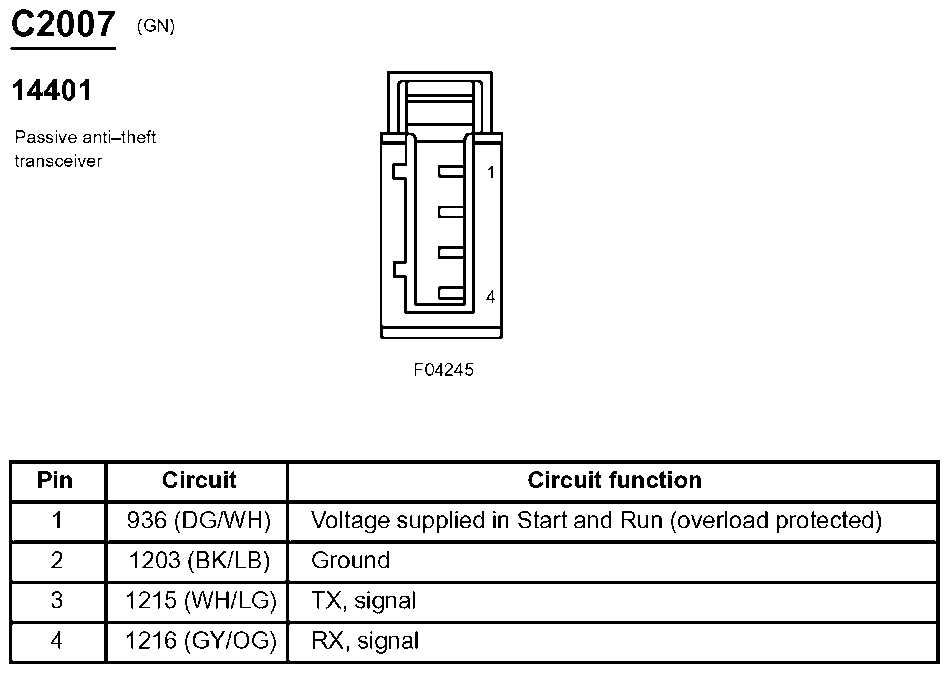

Fig 293: Passive Anti-Theft Transceiver Connector End View (C2007)

G07833113

Courtesy of FORD MOTOR CO.

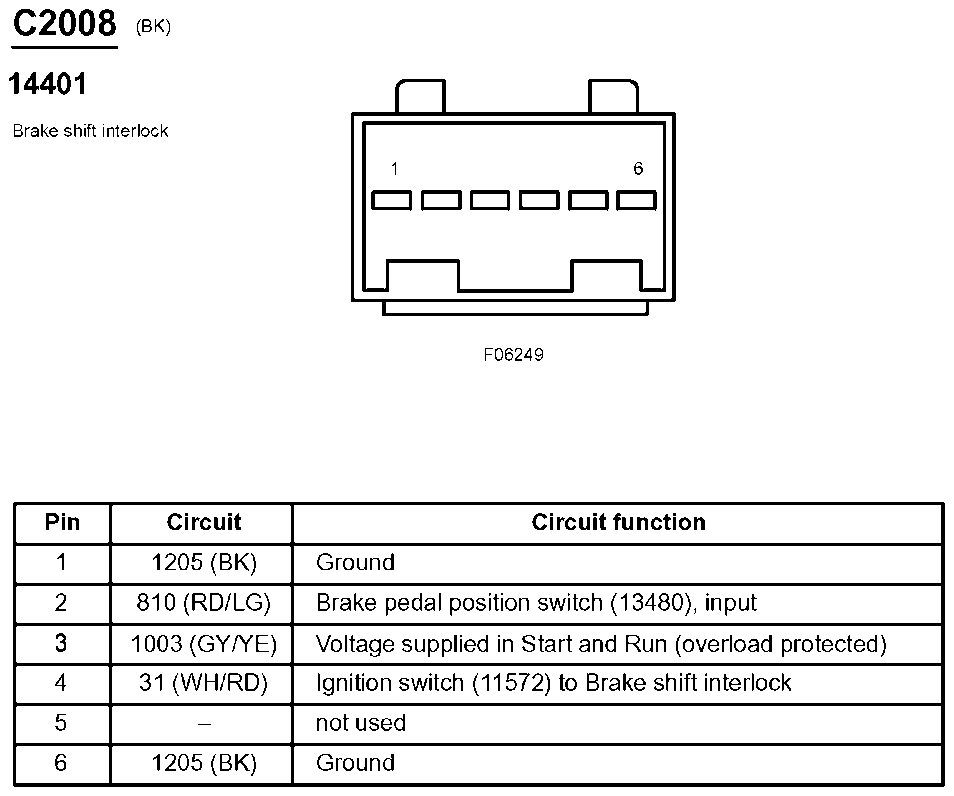

Fig 294: Brake Shift Interlock Connector End View (C2008)

G07833114

Courtesy of FORD MOTOR CO.

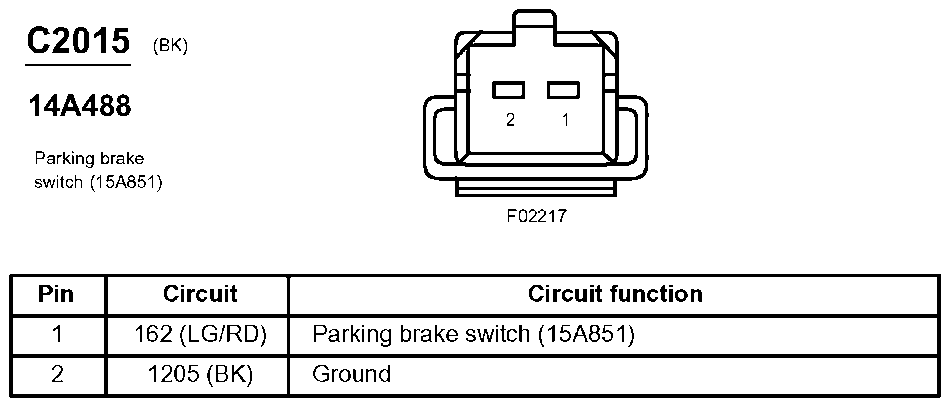

Fig 295: Parking Brake Switch Connector End View (C2015)

G07833115

Courtesy of FORD MOTOR CO.

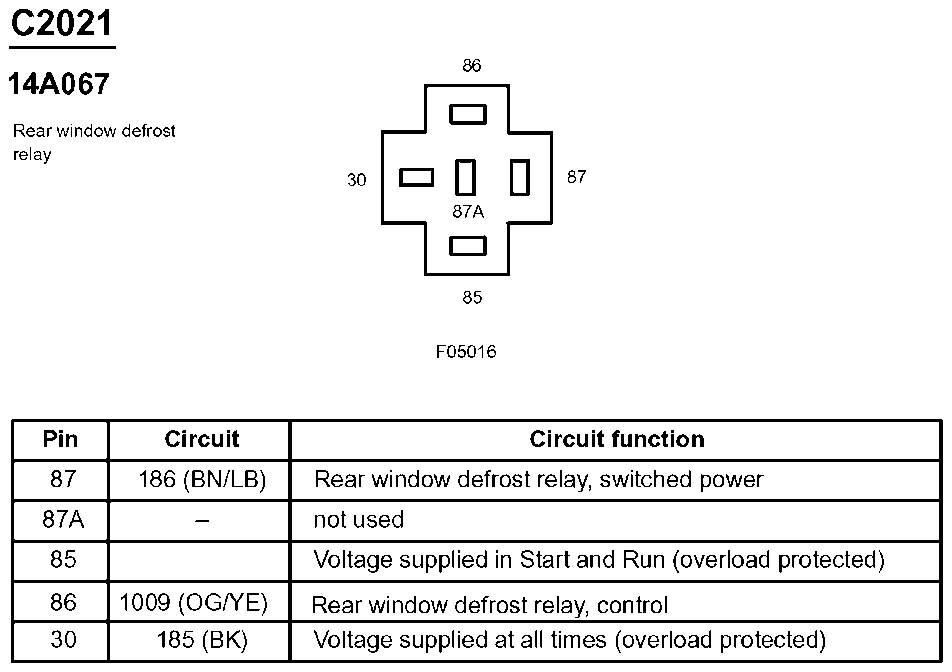

Fig 296: Rear Window Defrost Relay Connector End View (C2021)

G07833116

Courtesy of FORD MOTOR CO.

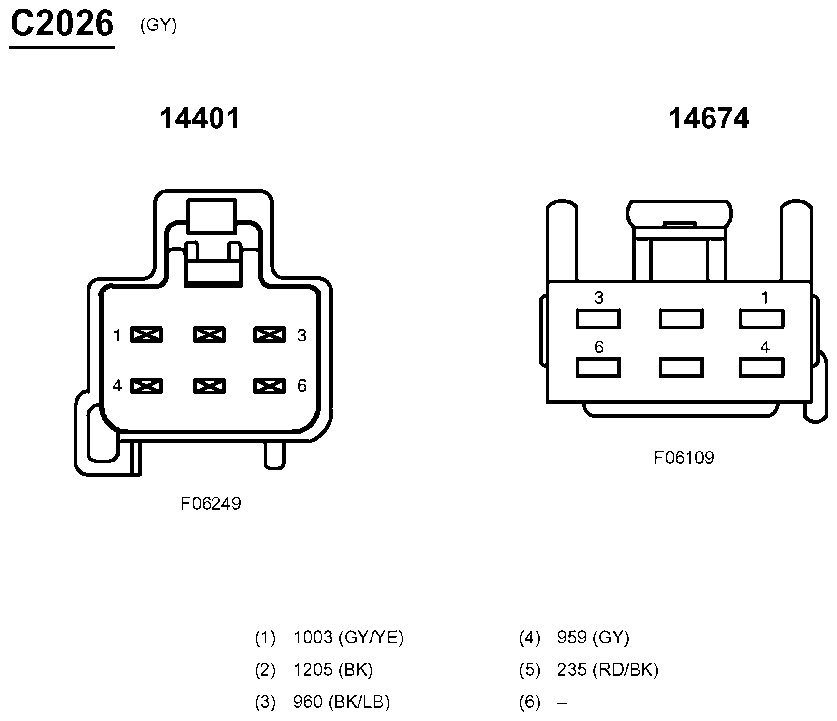

Fig 297: Inline Connector End View (C2026)

G07833117

Courtesy of FORD MOTOR CO.

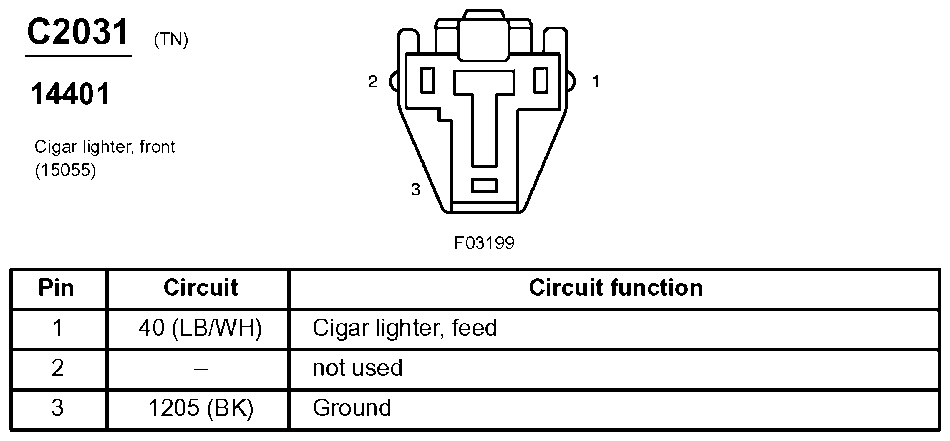

Fig 298: Cigar Lighter, Front Connector End View (C2031)

G07833118

Courtesy of FORD MOTOR CO.

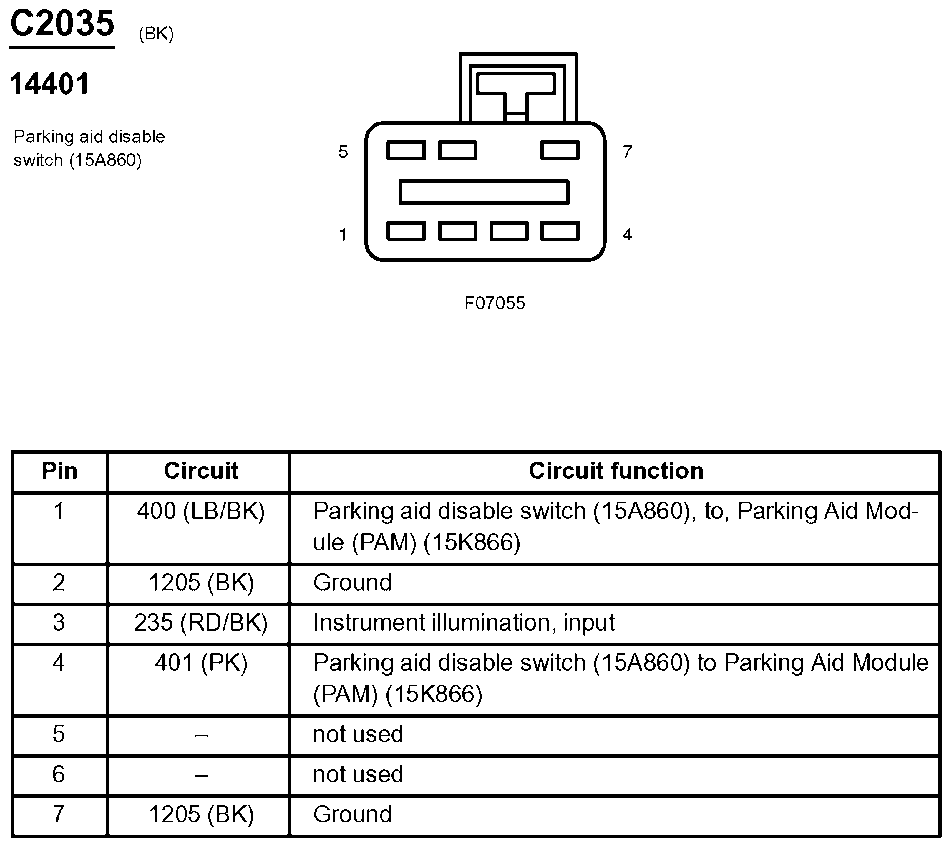

Fig 299: Parking Aid Disable Switch Connector End View (C2035)

G07833119

Courtesy of FORD MOTOR CO.

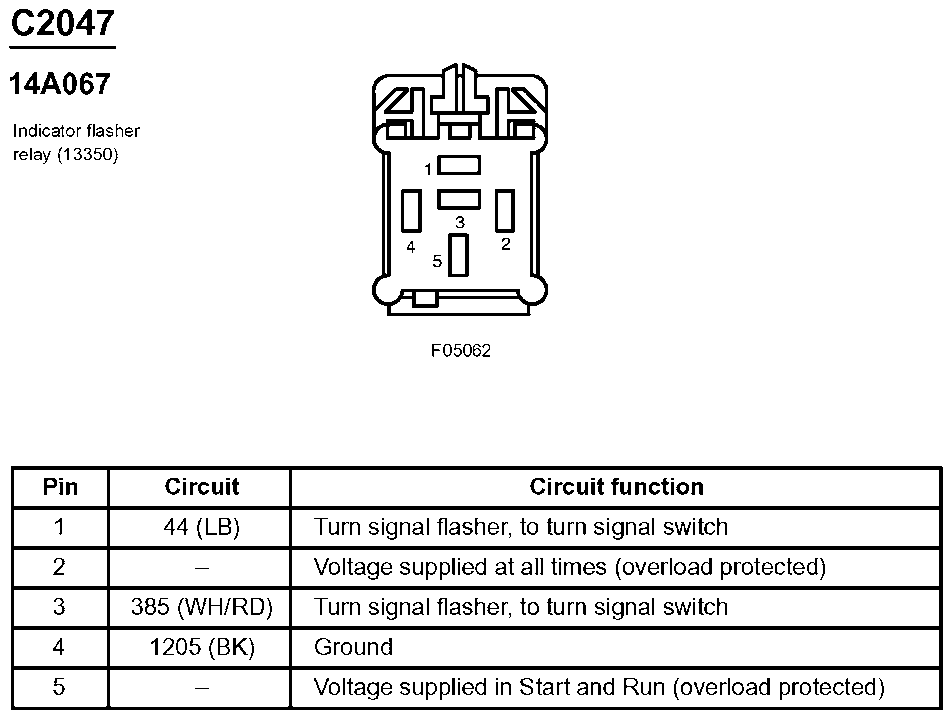

Fig 300: Indicator Flasher Relay Connector End View (C2047)

G07833120

Courtesy of FORD MOTOR CO.

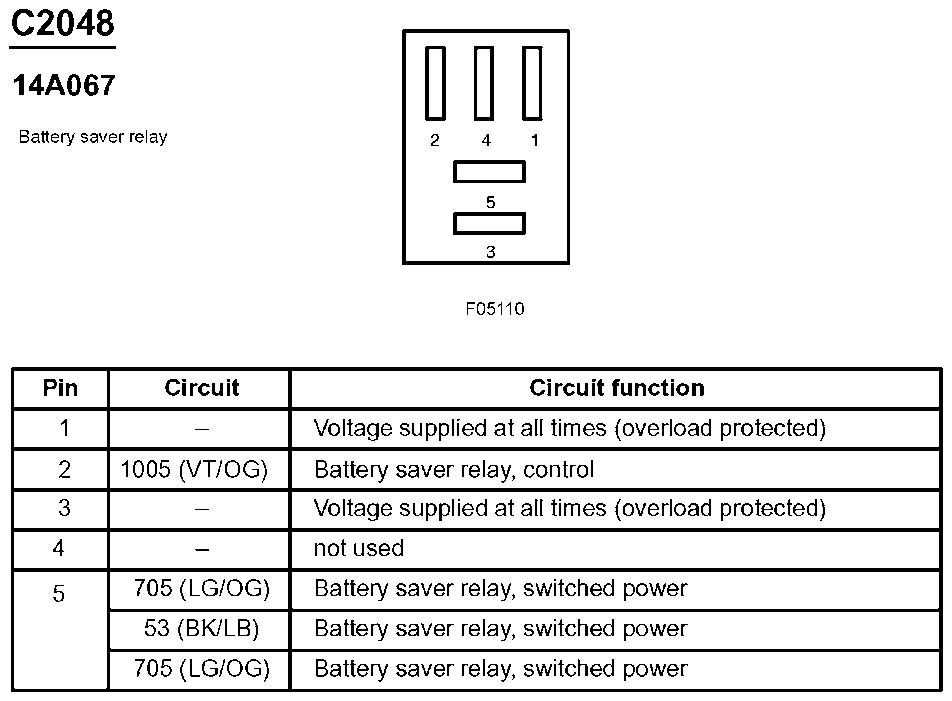

Fig 301: Battery Saver Relay Connector End View (C2048)

G07833121

Courtesy of FORD MOTOR CO.

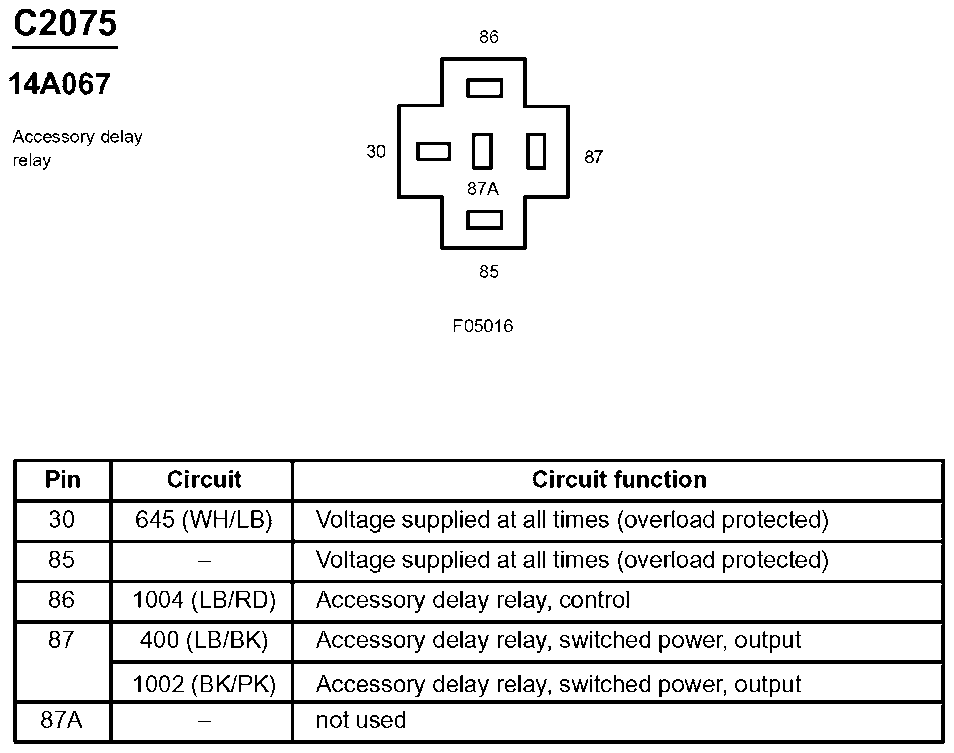

Fig 302: Accessory Delay Relay Connector End View (C2075)

G07833122

Courtesy of FORD MOTOR CO.

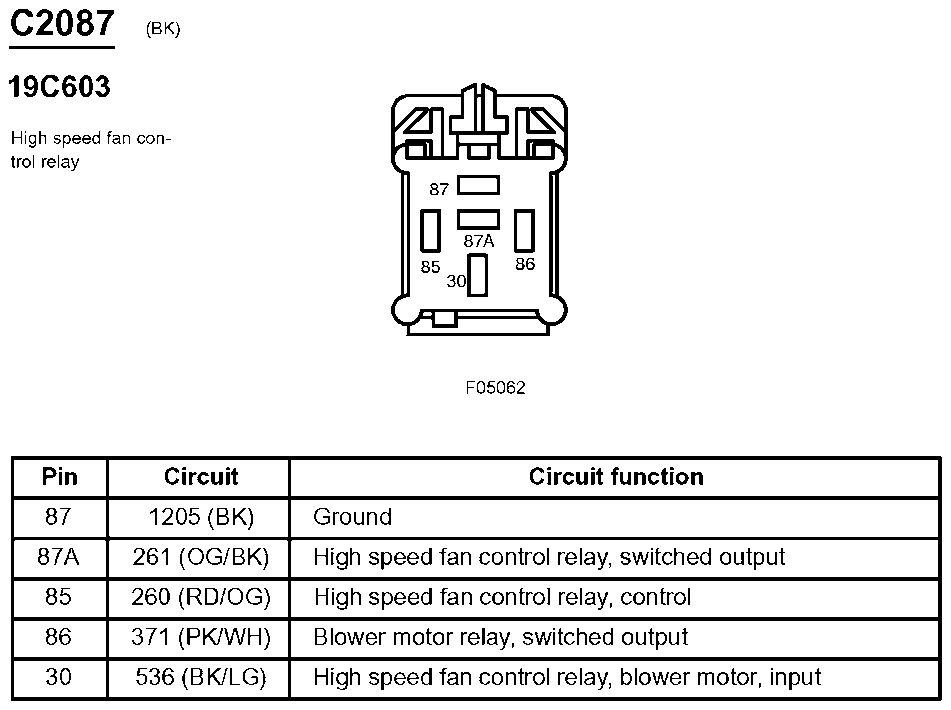

Fig 303: High Speed Fan Control Relay Connector End View (C2087)

G07833123

Courtesy of FORD MOTOR CO.

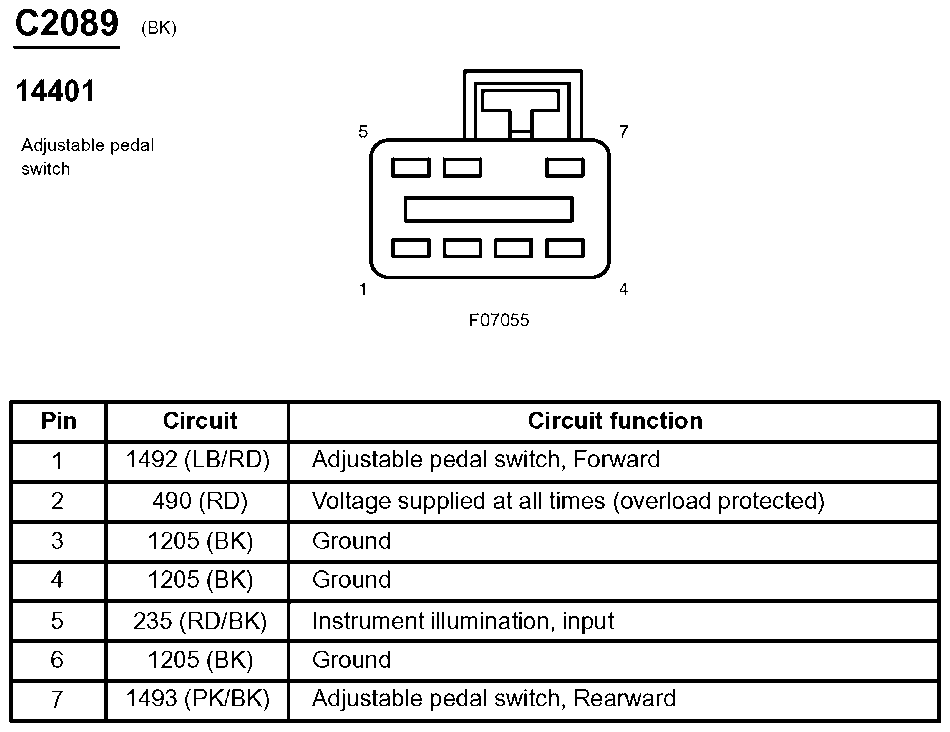

Fig 304: Adjustable Pedal Switch Connector End View (C2089)

G07833124

Courtesy of FORD MOTOR CO.

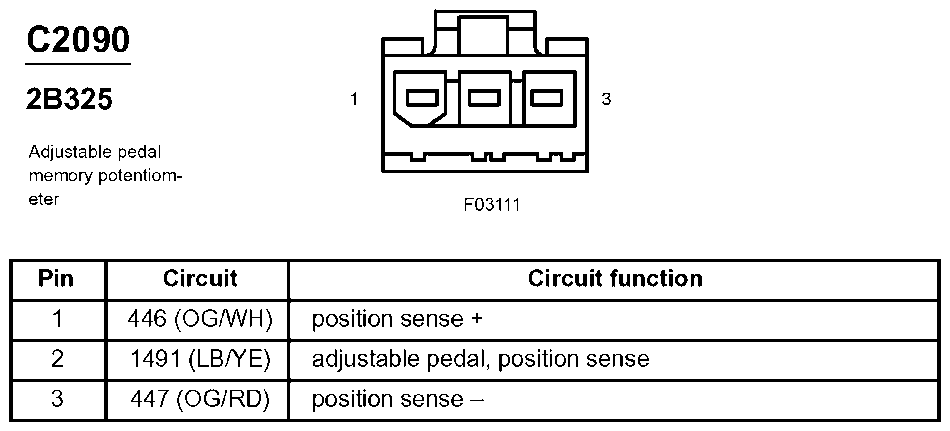

Fig 305: Adjustable Pedal Memory Potentiometer Connector End View (C2090)

G07833125

Courtesy of FORD MOTOR CO.

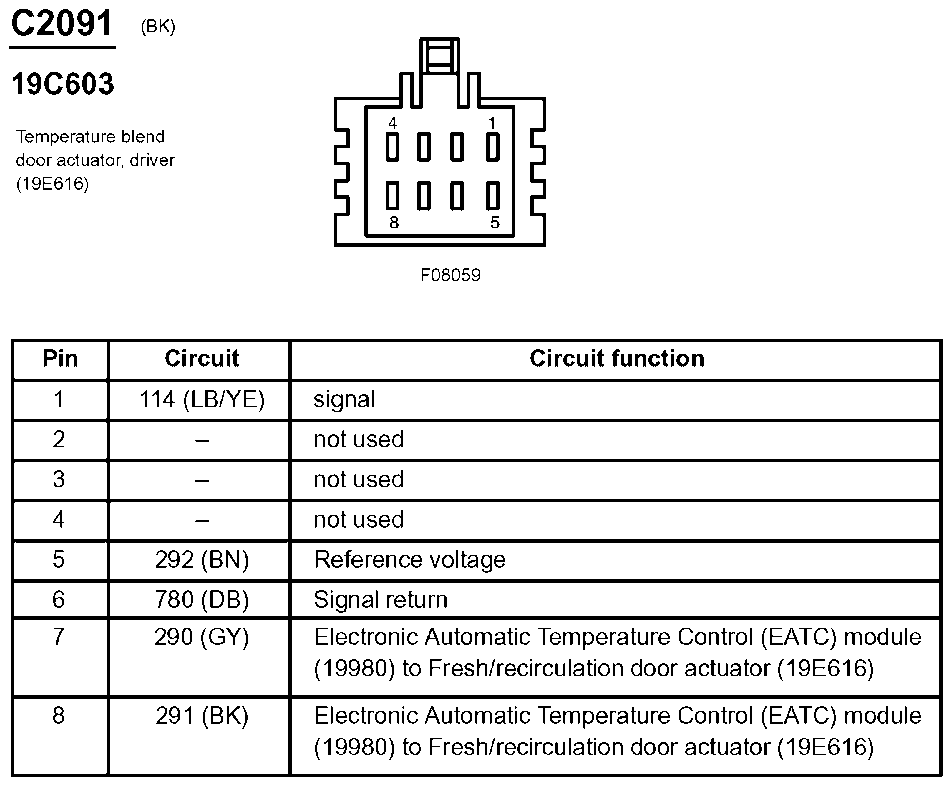

Fig 306: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07833126

Courtesy of FORD MOTOR CO.

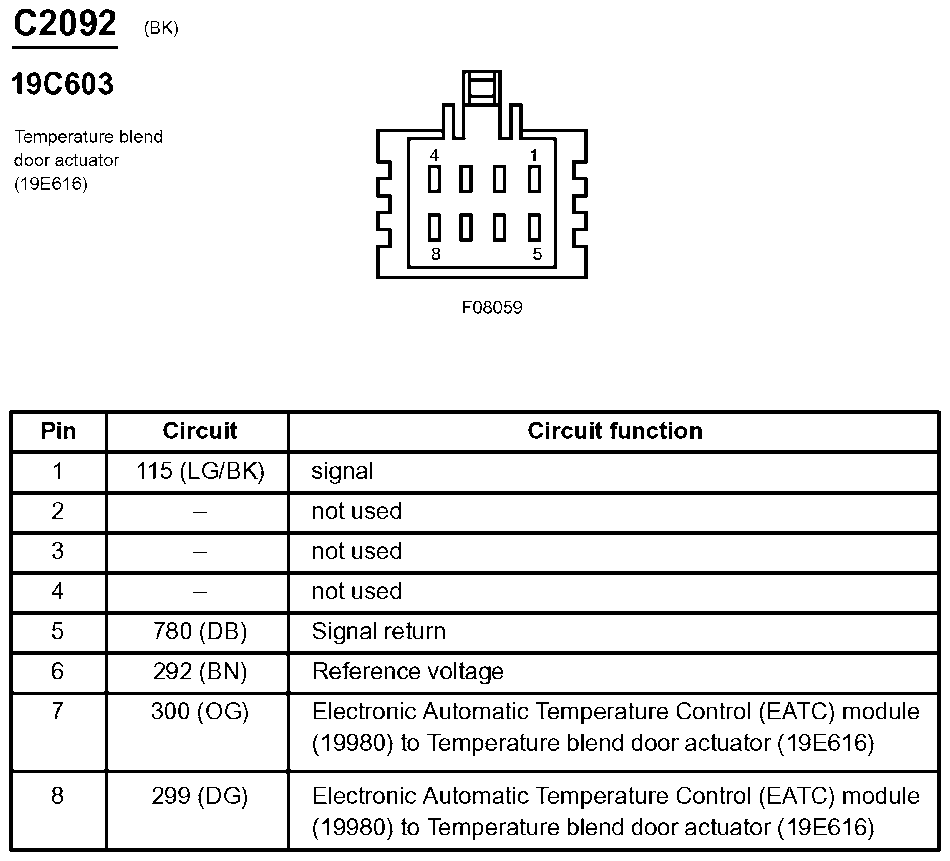

Fig 307: Temperature Blend Door Actuator, Right Connector End View (C2092)

G07833127

Courtesy of FORD MOTOR CO.

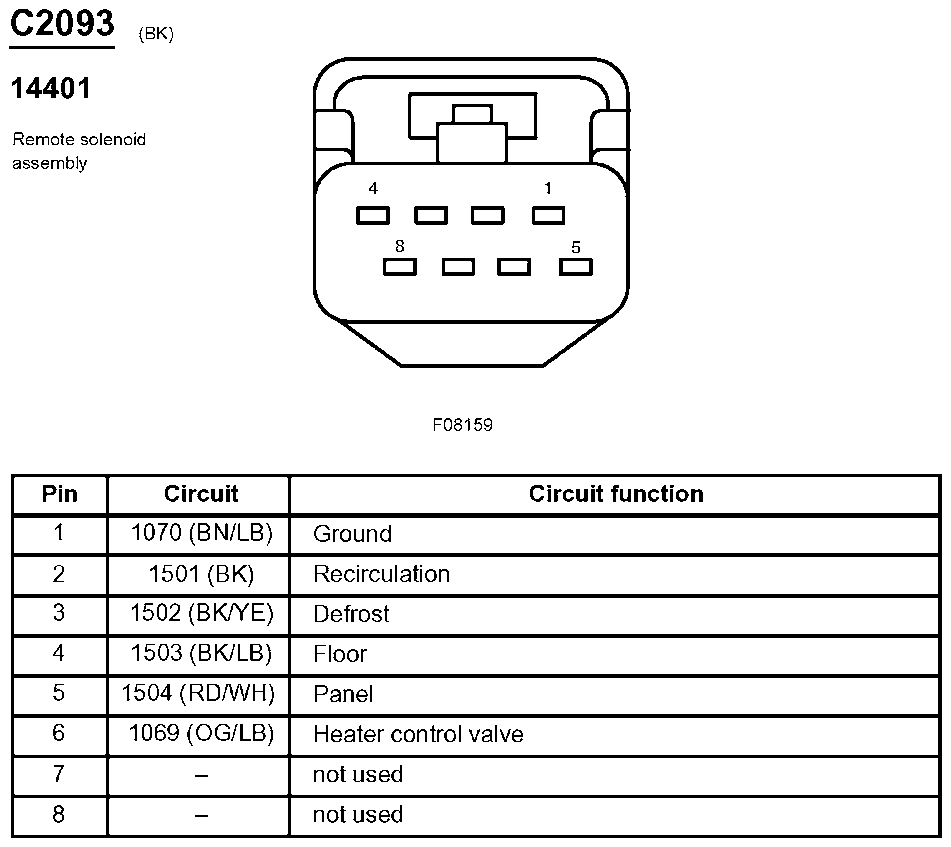

Fig 308: Remote Solenoid Assembly Connector End View (C2093)

G07833128

Courtesy of FORD MOTOR CO.

Fig 309: Inline Connector End View (C2095)

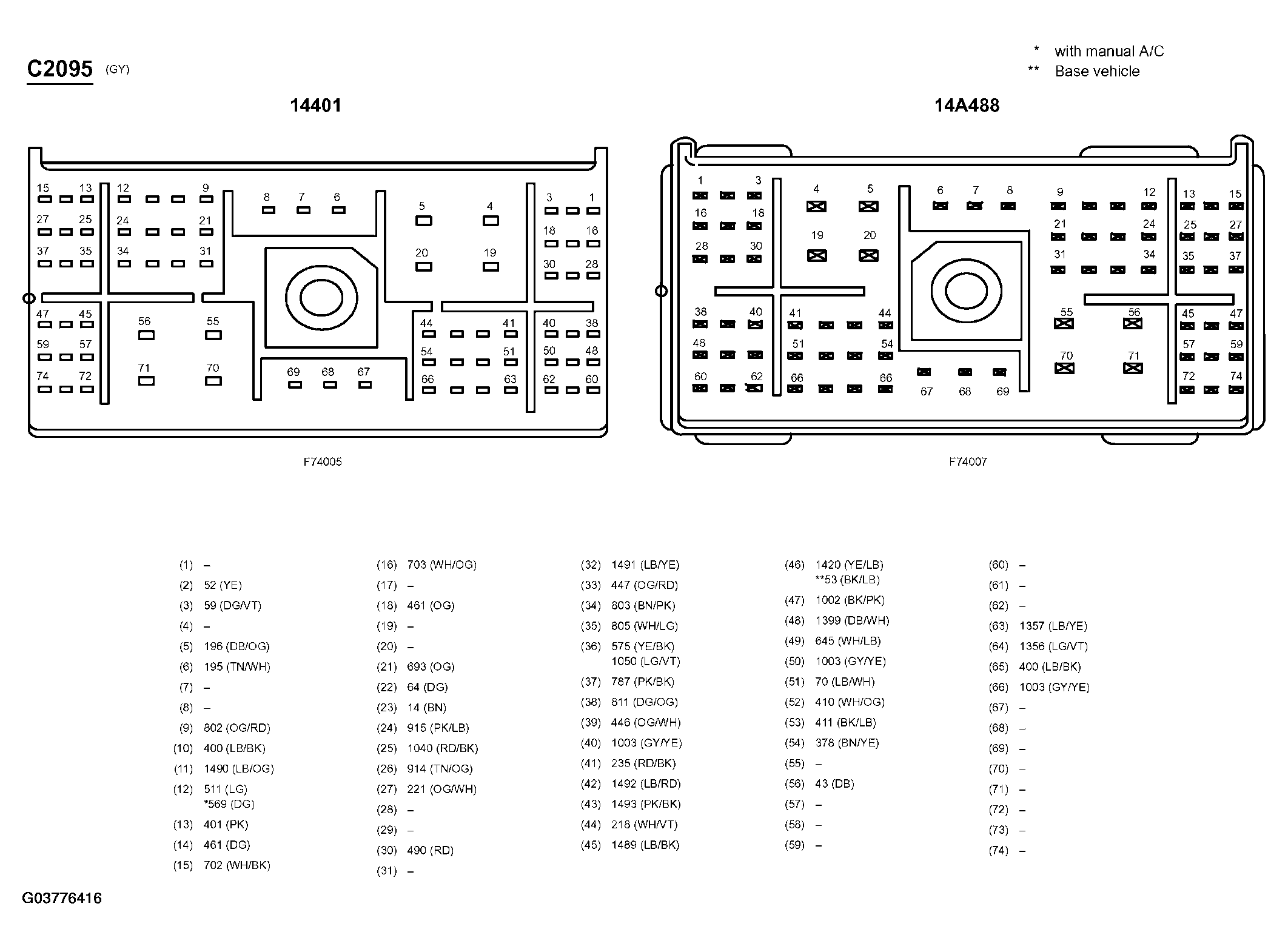

G03776416

Courtesy of FORD MOTOR CO.

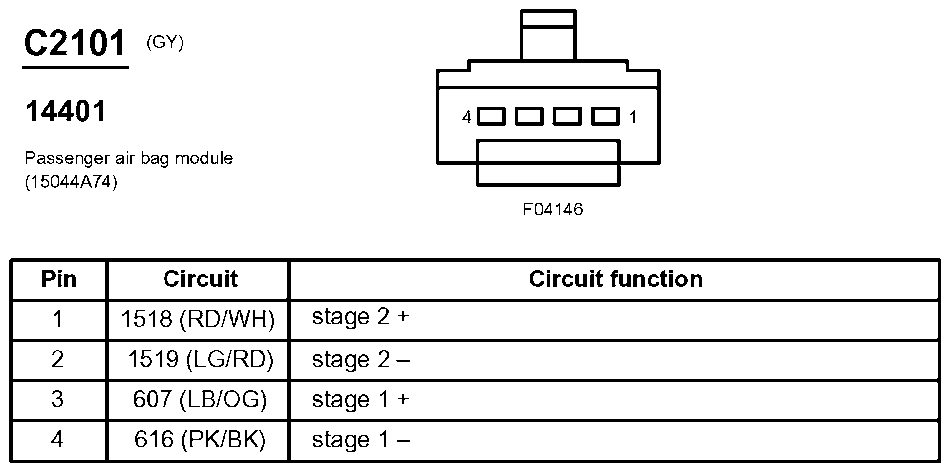

Fig 310: Passenger Air Bag Module Connector End View (C2101)

G07833129

Courtesy of FORD MOTOR CO.

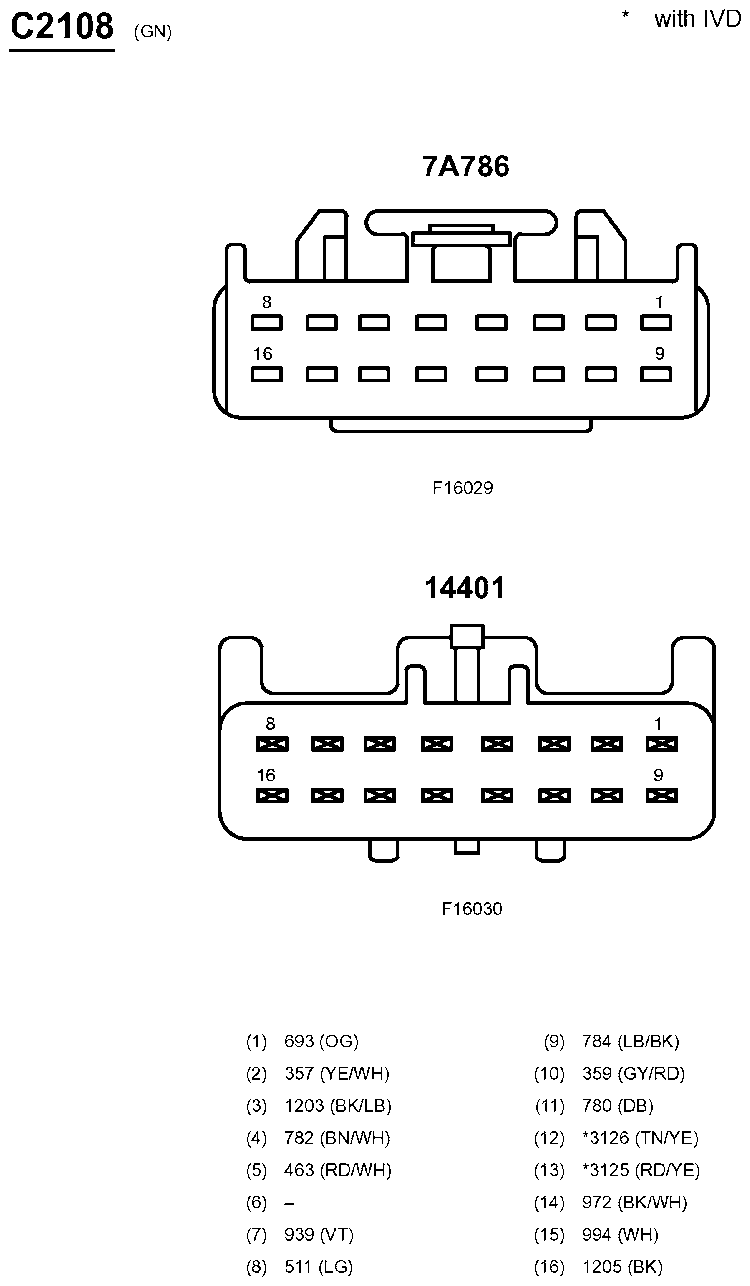

Fig 311: Inline Connector End View (C2108)

G07833130

Courtesy of FORD MOTOR CO.

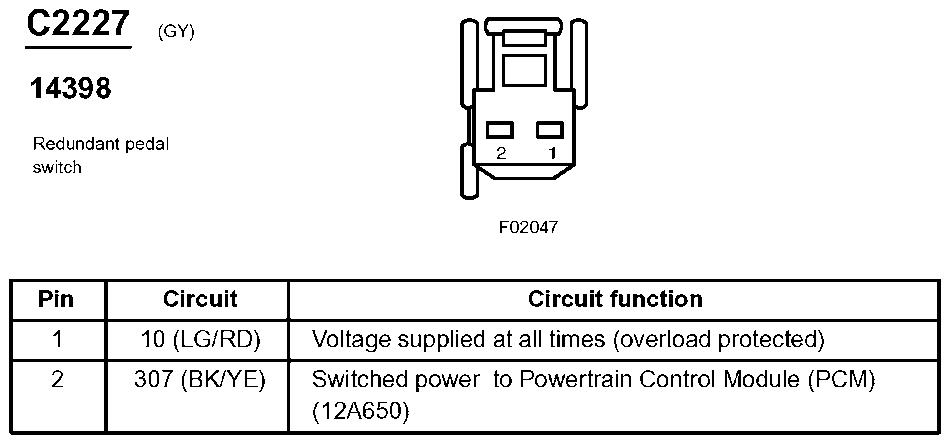

Fig 312: Redundant Pedal Switch Connector End View (C2227)

G07833131

Courtesy of FORD MOTOR CO.

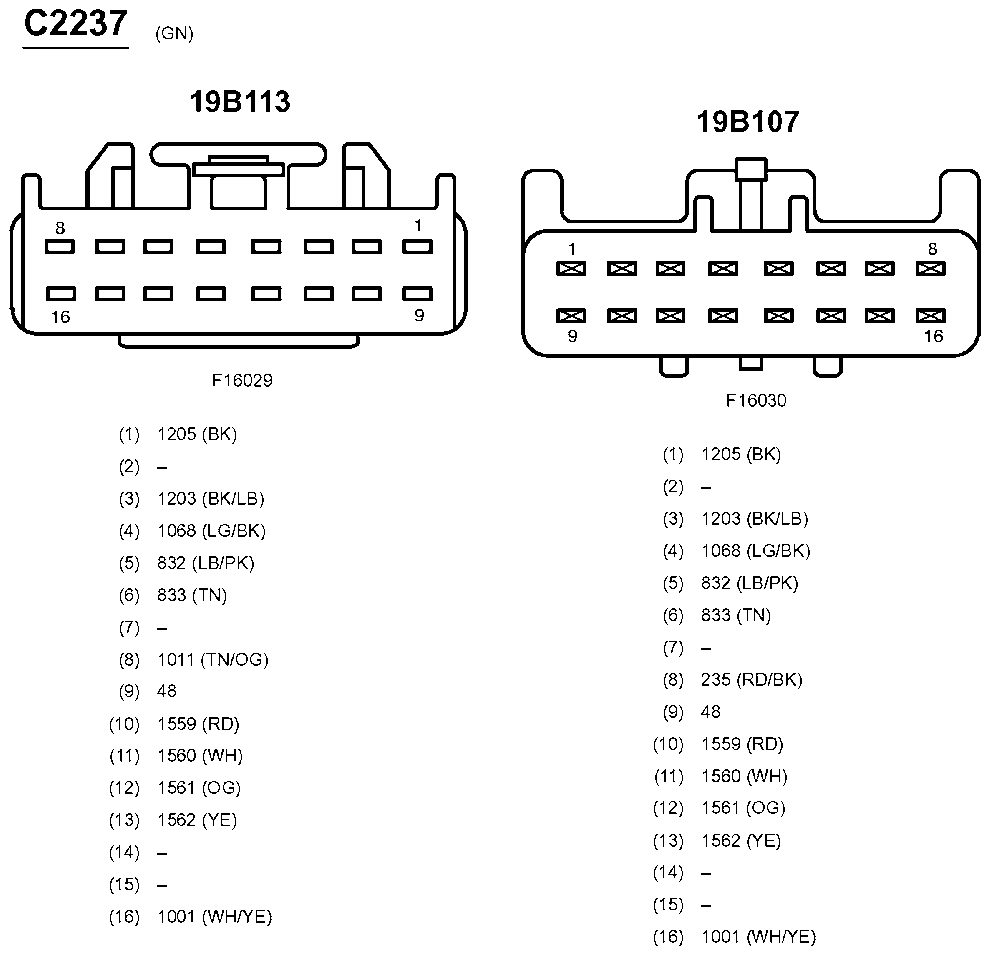

Fig 313: Inline Connector End View (C2237)

G07833132

Courtesy of FORD MOTOR CO.

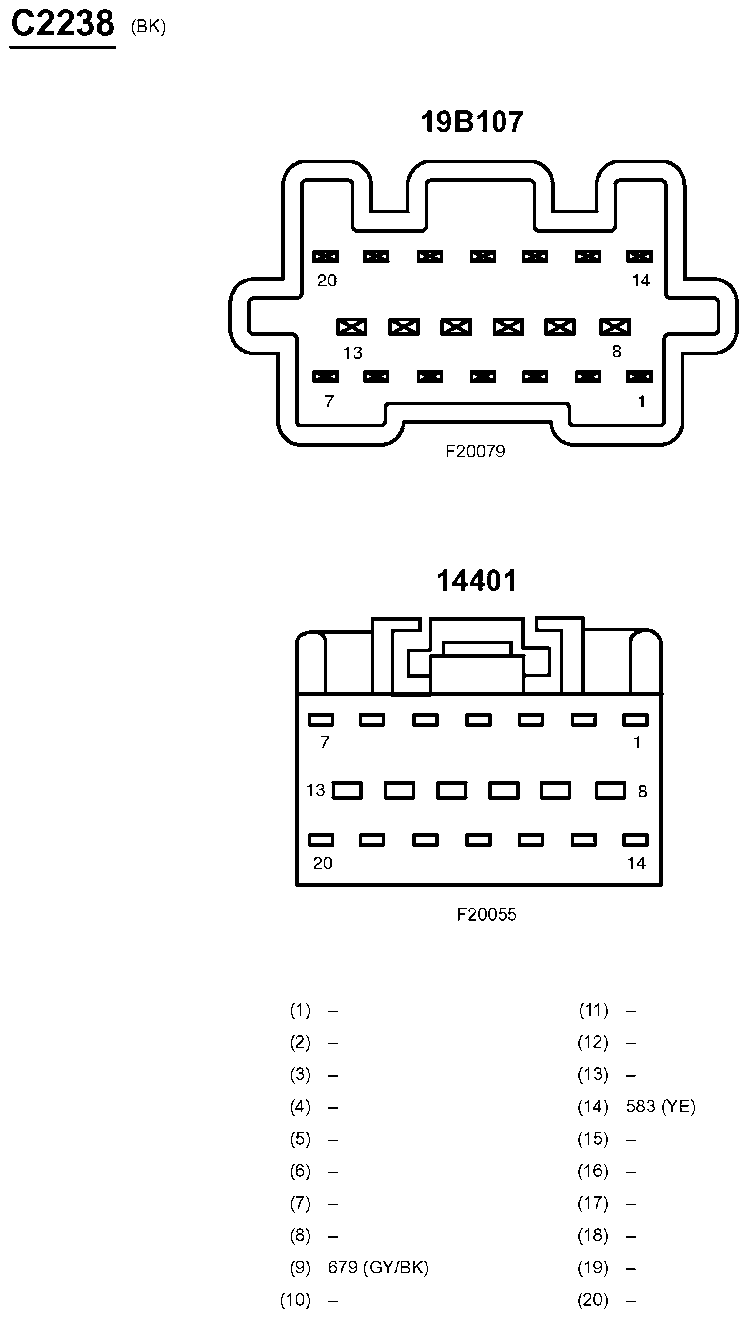

Fig 314: Inline Connector End View (C2238)

G07833133

Courtesy of FORD MOTOR CO.

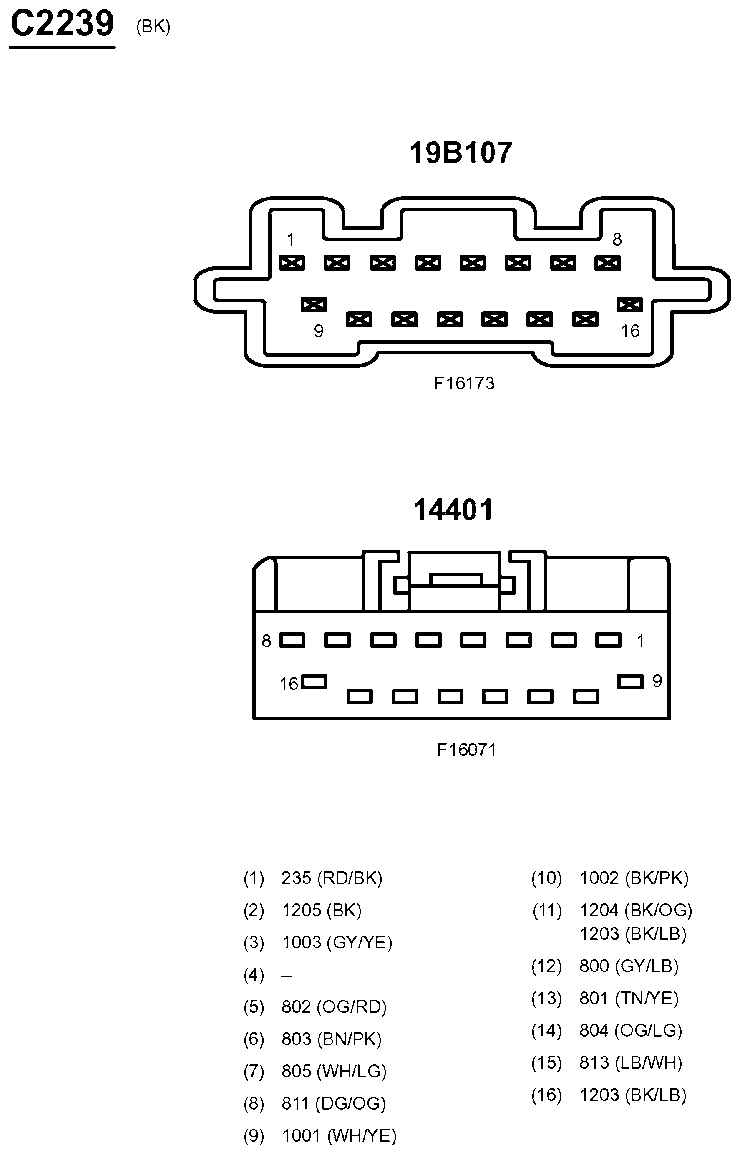

Fig 315: Inline Connector End View (C2239)

G07833134

Courtesy of FORD MOTOR CO.

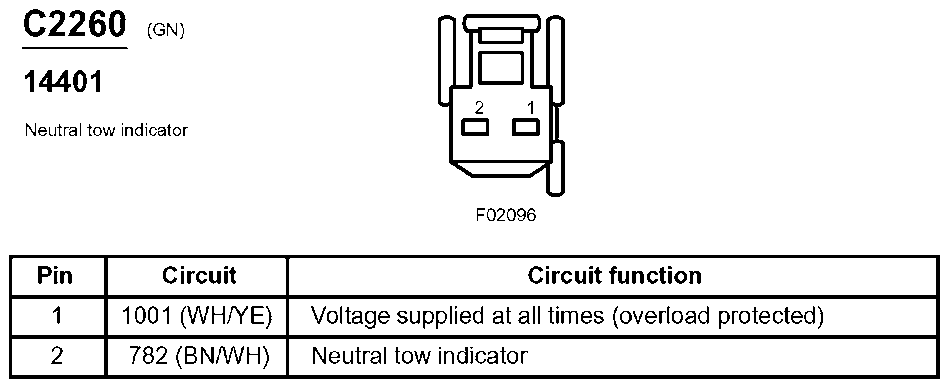

Fig 316: Neutral Tow Indicator Connector End View (C2260)

G07833135

Courtesy of FORD MOTOR CO.

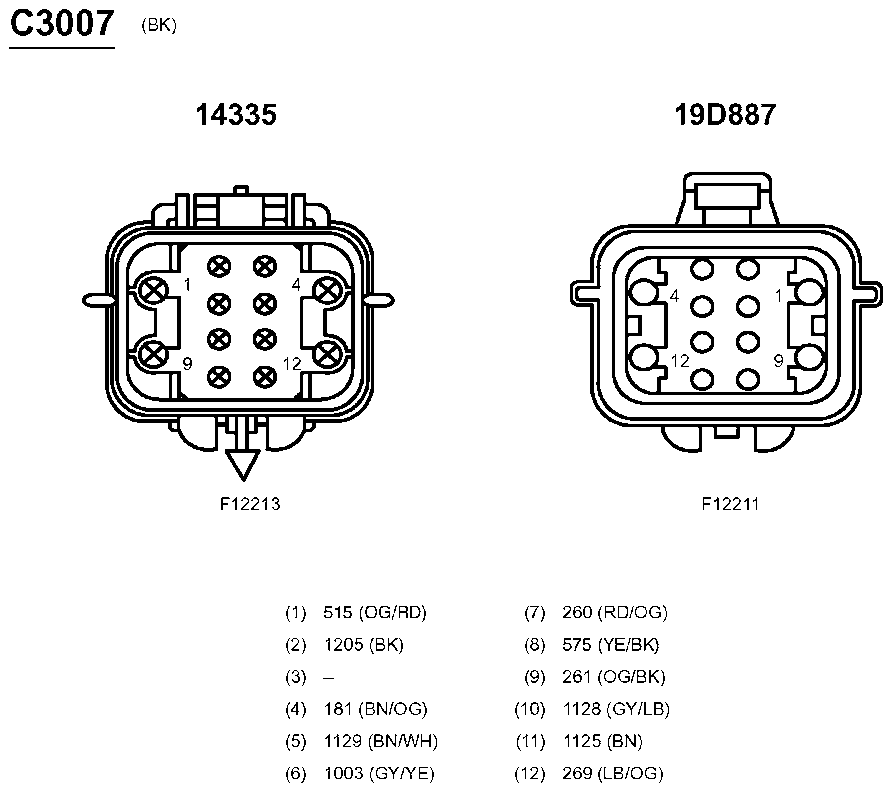

Fig 317: Inline Connector End View (C3007)

G07833136

Courtesy of FORD MOTOR CO.

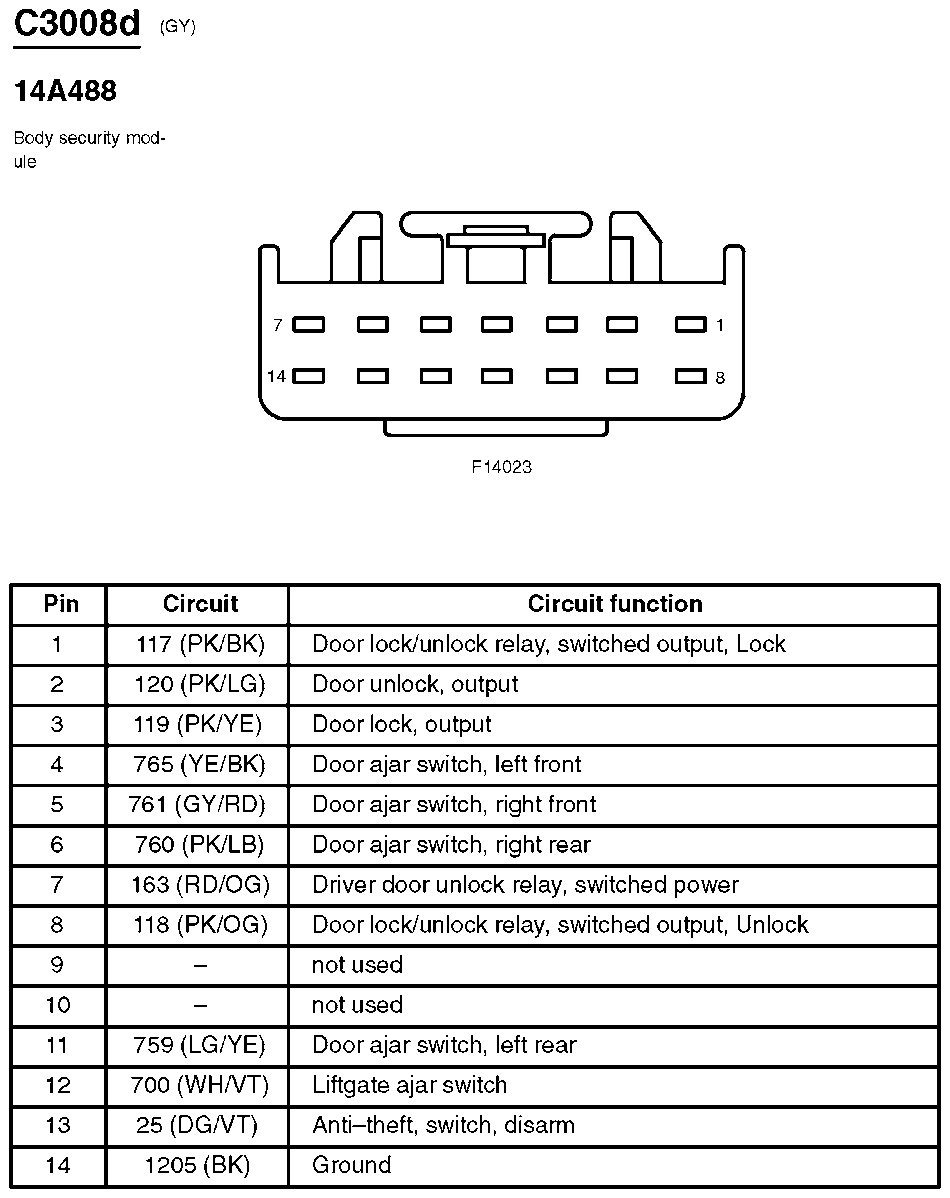

Fig 318: Body Security Module Connector End View (C3008d)

G07833137

Courtesy of FORD MOTOR CO.

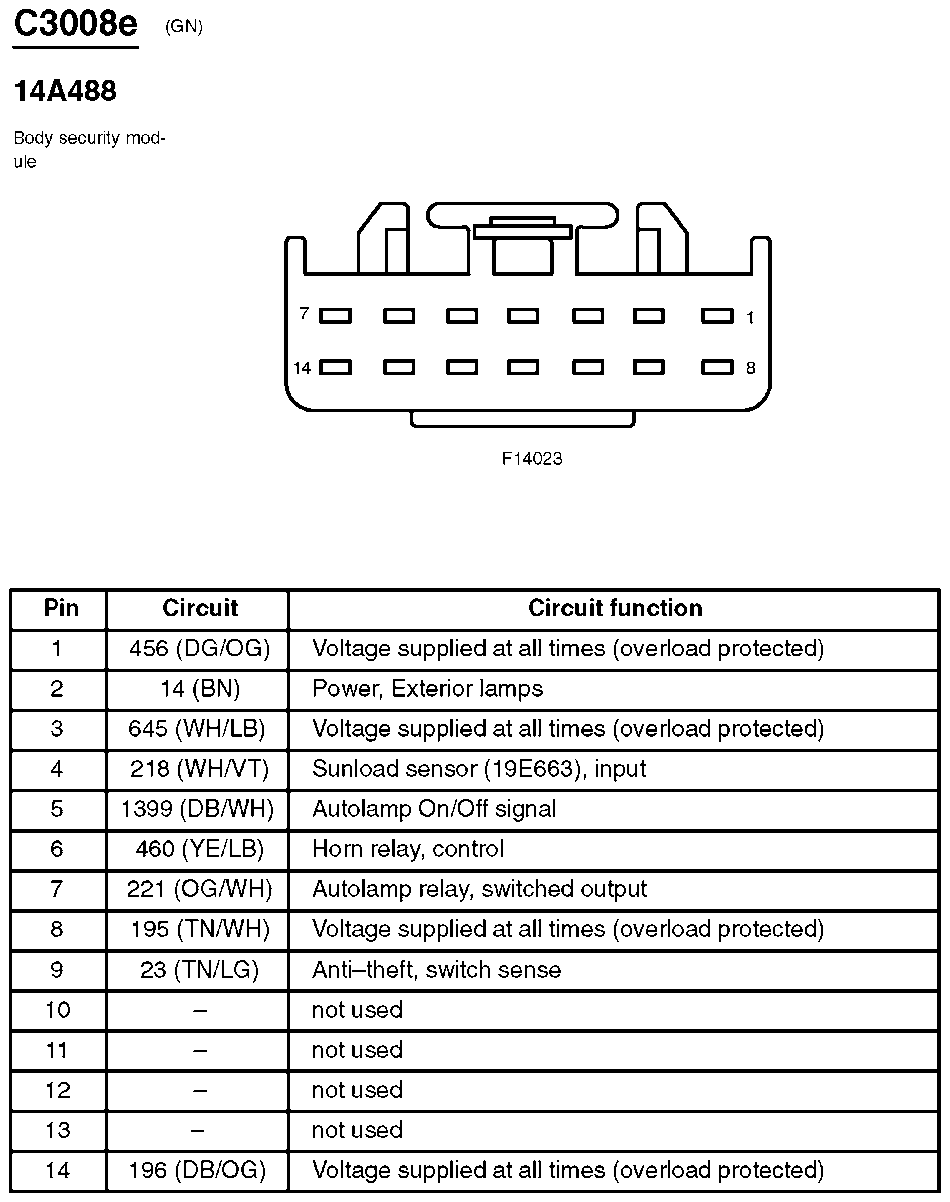

Fig 319: Body Security Module Connector End View (C3008e)

G07833138

Courtesy of FORD MOTOR CO.

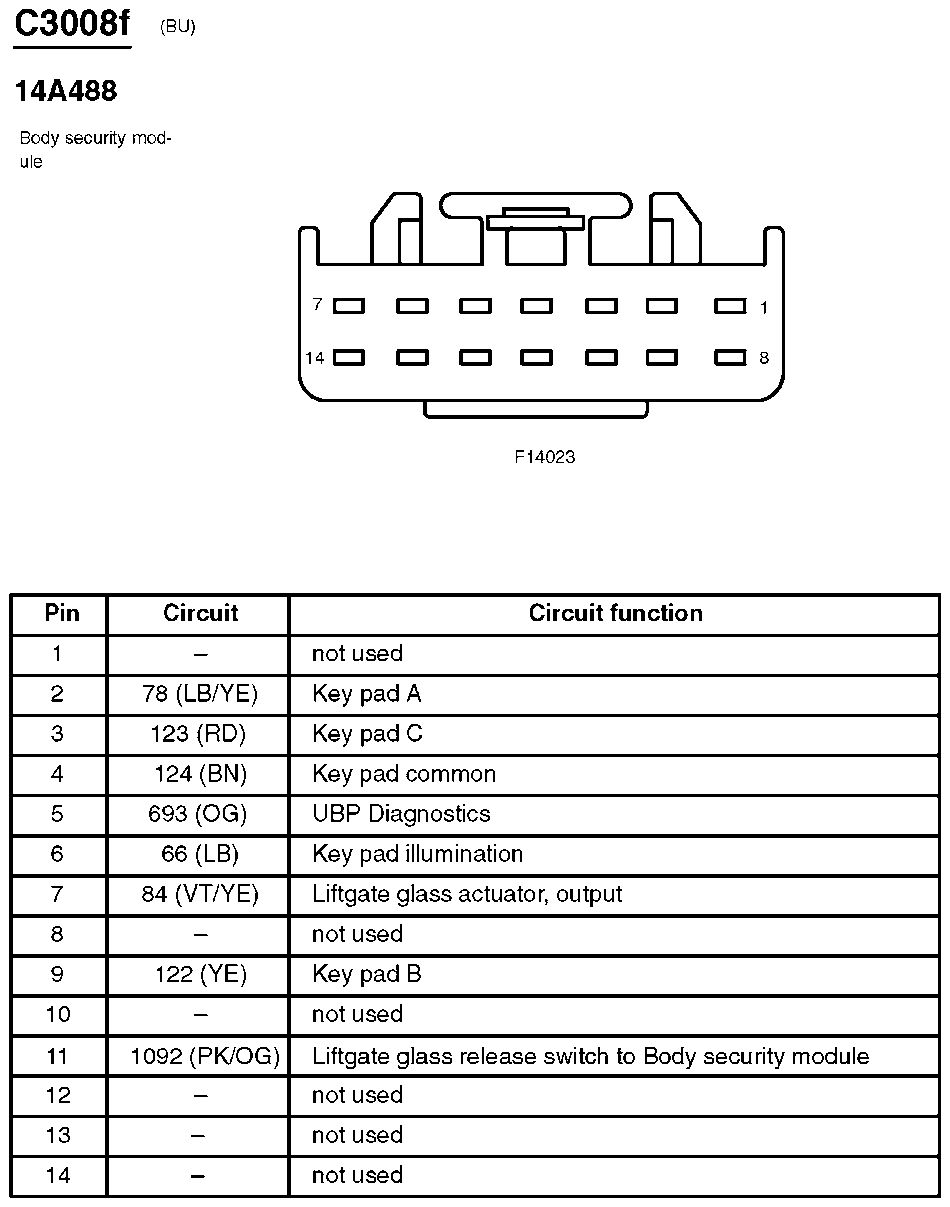

Fig 320: Body Security Module Connector End View (C3008f)

G07833139

Courtesy of FORD MOTOR CO.

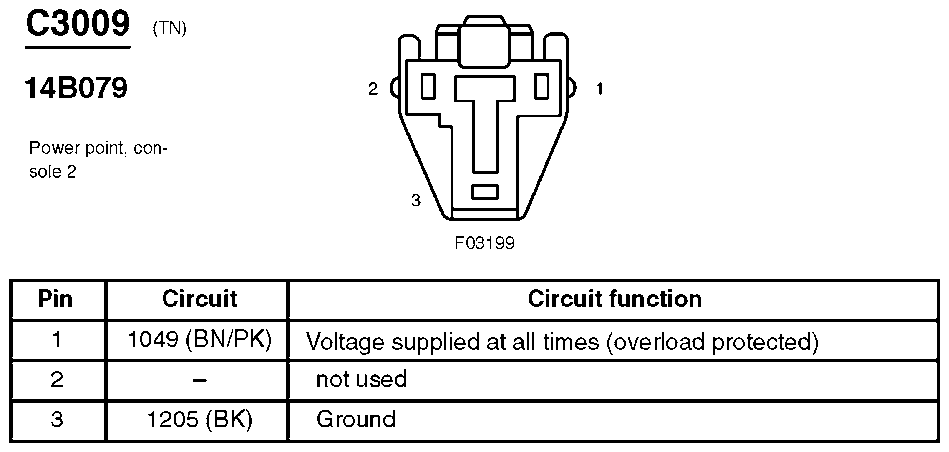

Fig 321: Power Point, Console 2 Connector End View (C3009)

G07833140

Courtesy of FORD MOTOR CO.

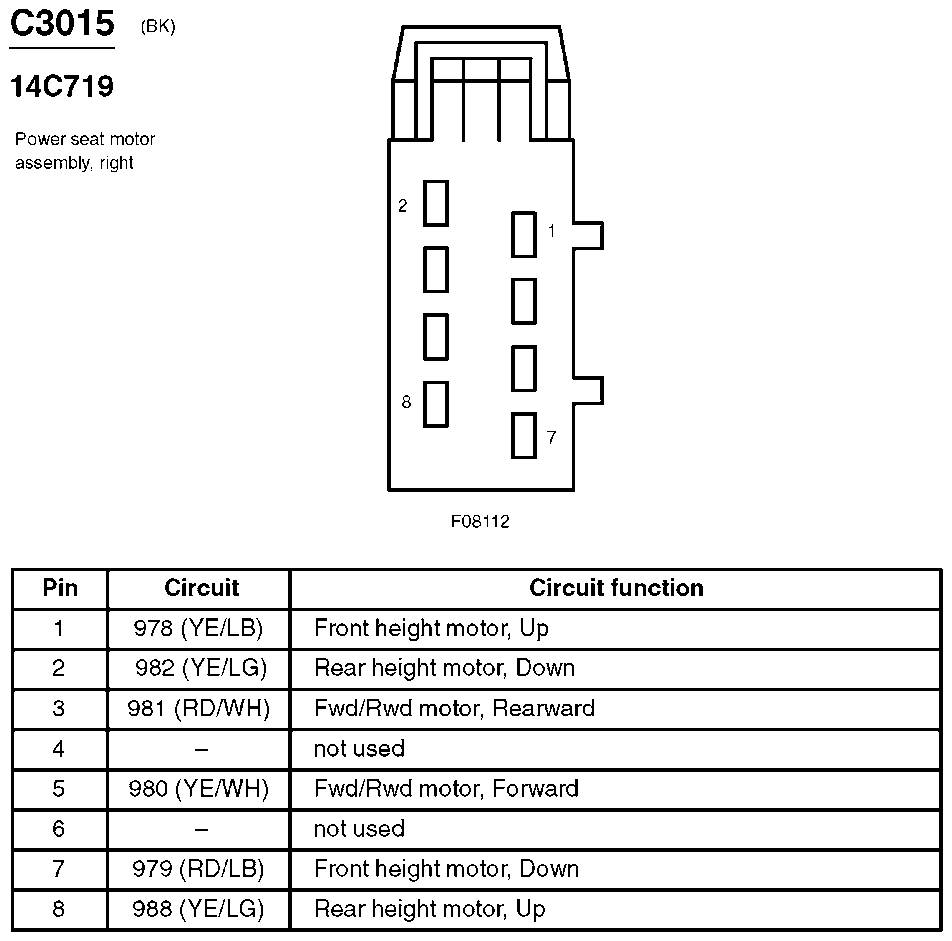

Fig 322: Power Seat Motor Assembly, Right Connector End View (C3015)

G07833141

Courtesy of FORD MOTOR CO.

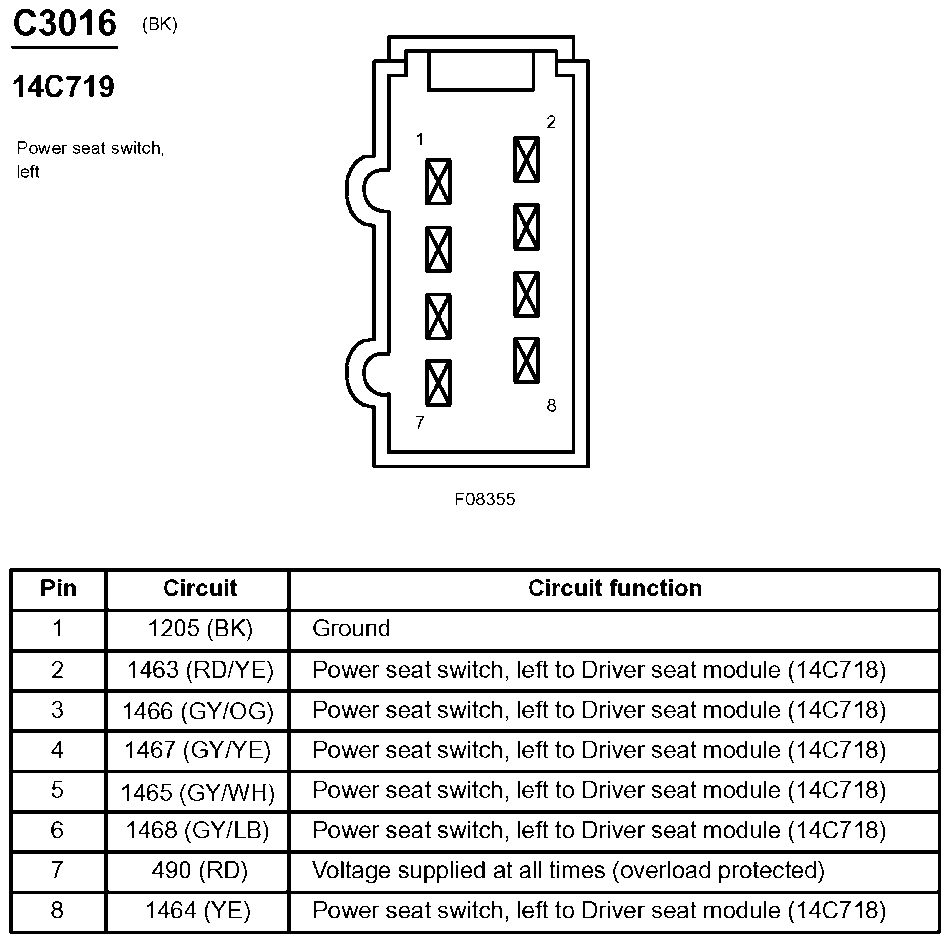

Fig 323: Power Seat Switch, Left Connector End View (C3016)

G07833142

Courtesy of FORD MOTOR CO.

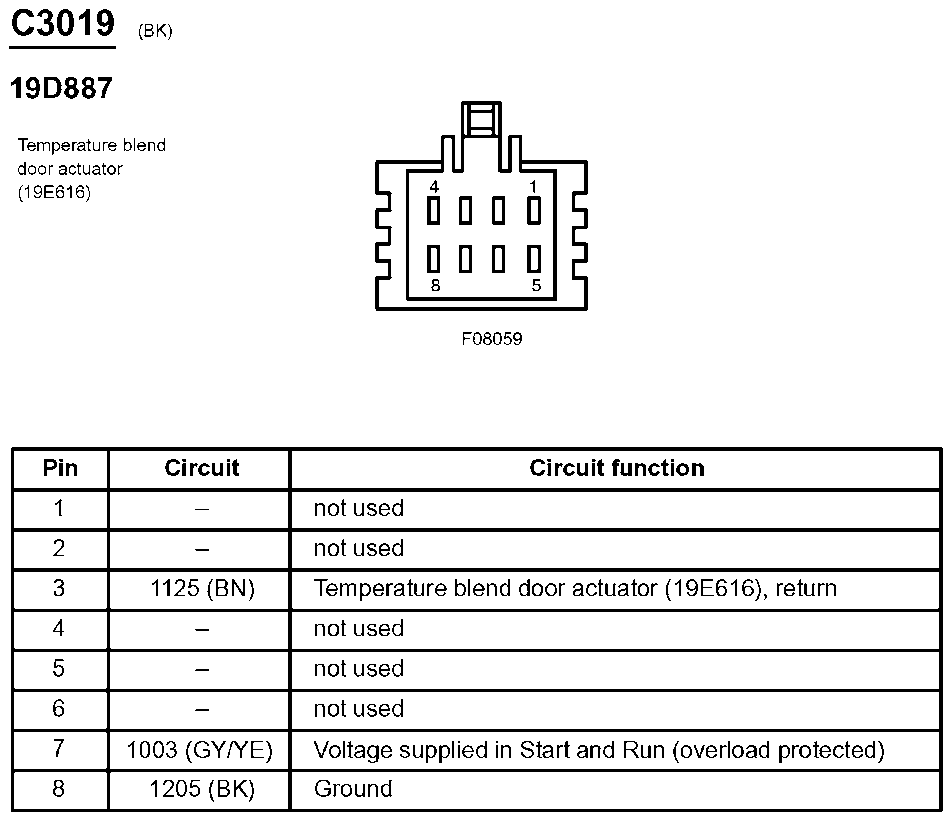

Fig 324: Temperature Blend Door Actuator Connector End View (C3019)

G07833143

Courtesy of FORD MOTOR CO.

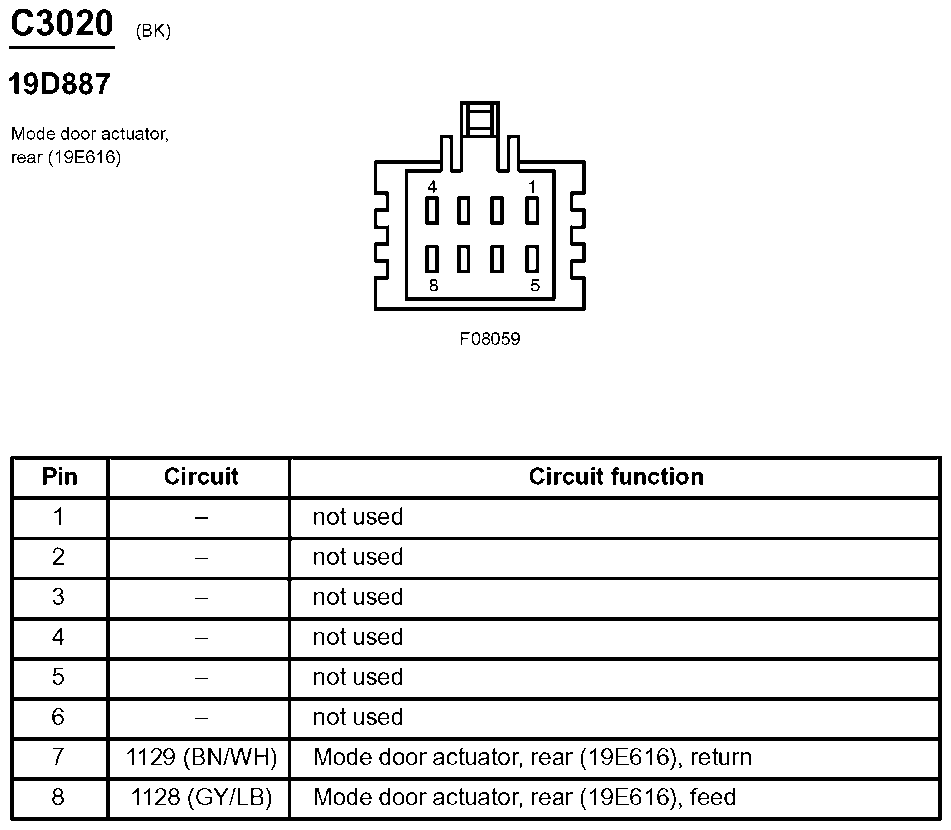

Fig 325: Mode Door Actuator, Rear Connector End View (C3020)

G07833144

Courtesy of FORD MOTOR CO.

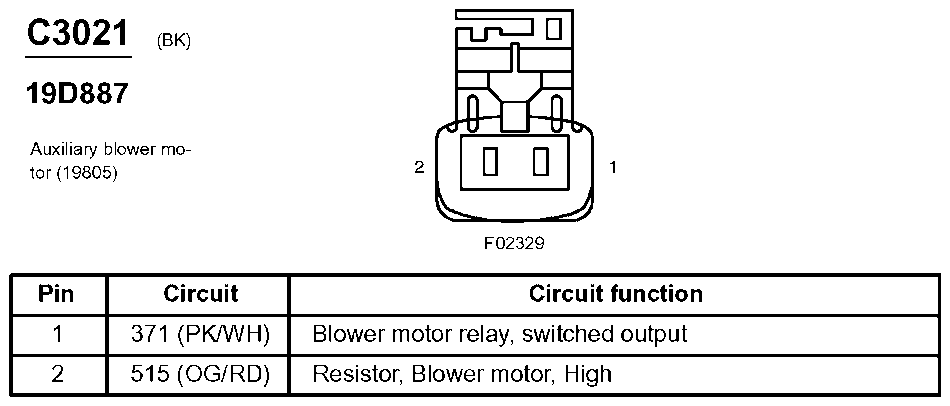

Fig 326: Auxiliary Blower Motor Connector End View (C3021)

G07833145

Courtesy of FORD MOTOR CO.

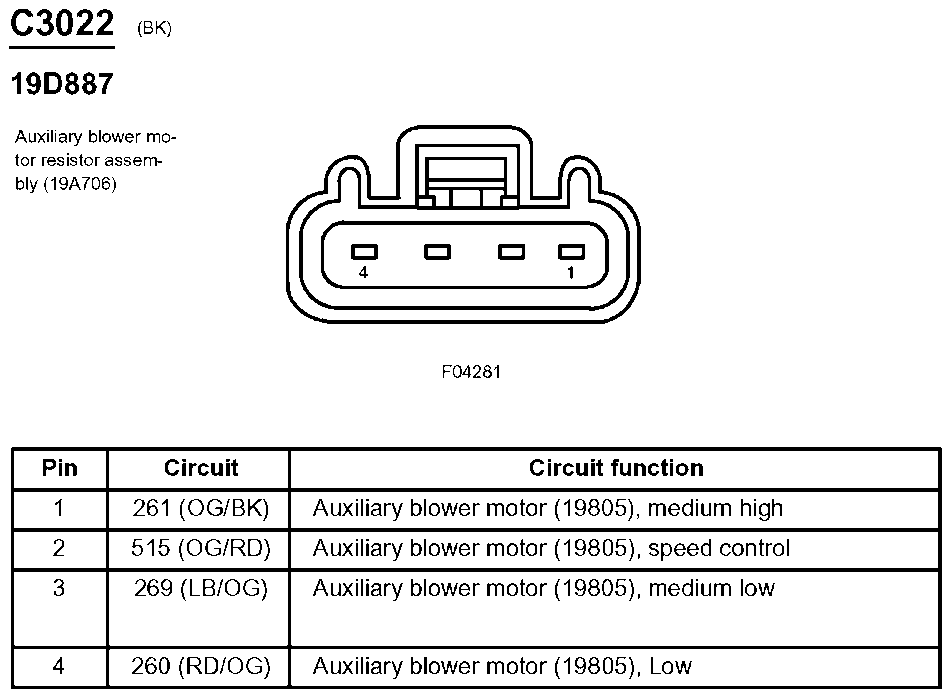

Fig 327: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)

G07833146

Courtesy of FORD MOTOR CO.

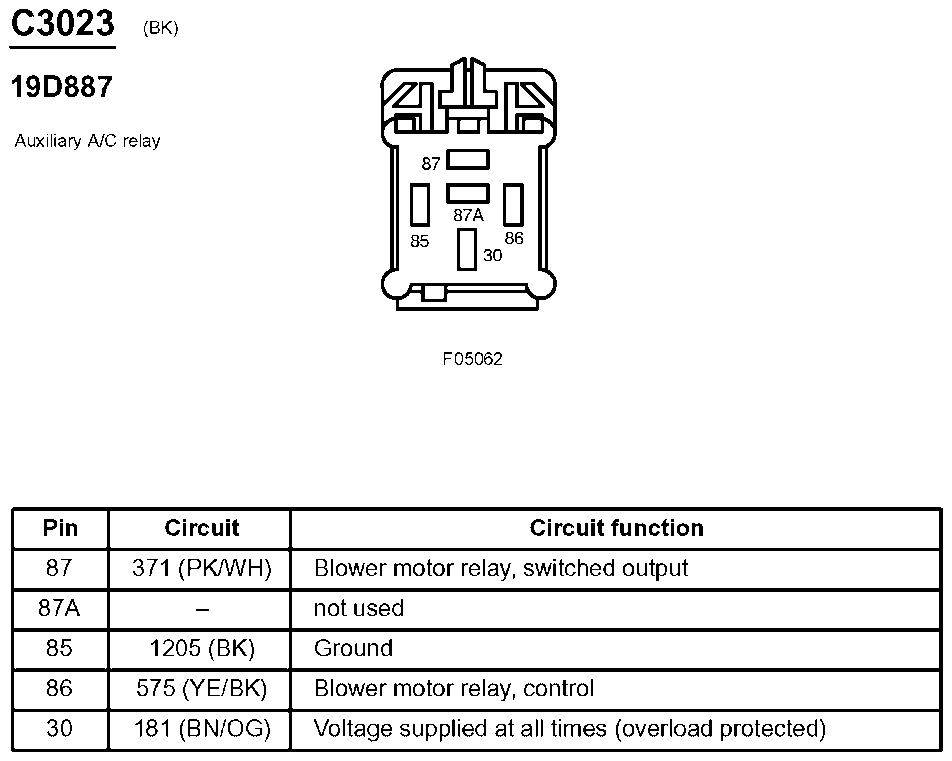

Fig 328: Auxiliary A/C Relay Connector End View (C3023)

G07833147

Courtesy of FORD MOTOR CO.

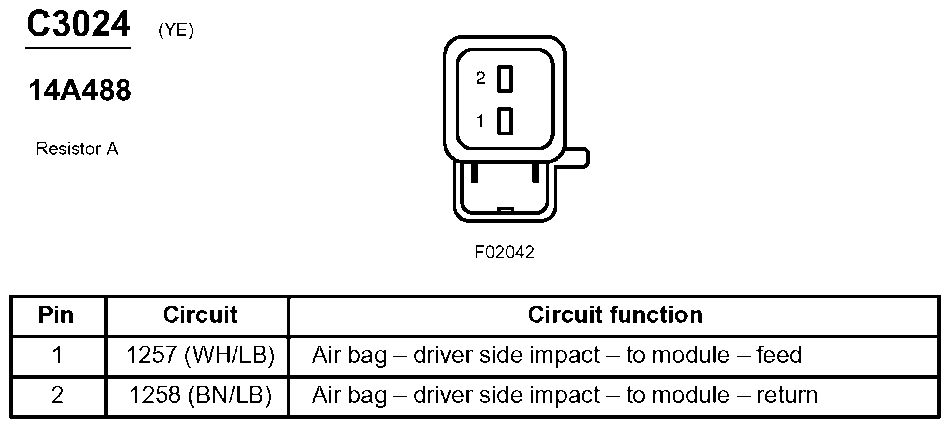

Fig 329: Resistor A Connector End View (C3024)

G07833148

Courtesy of FORD MOTOR CO.

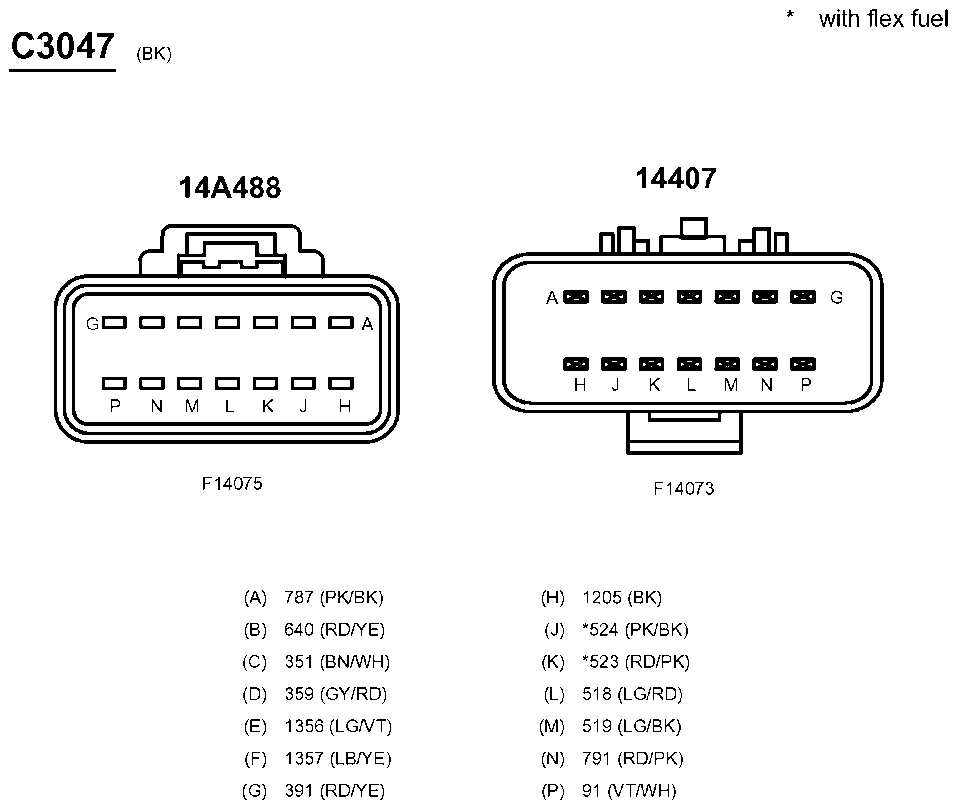

Fig 330: Inline Connector End View (C3047)

G07833149

Courtesy of FORD MOTOR CO.

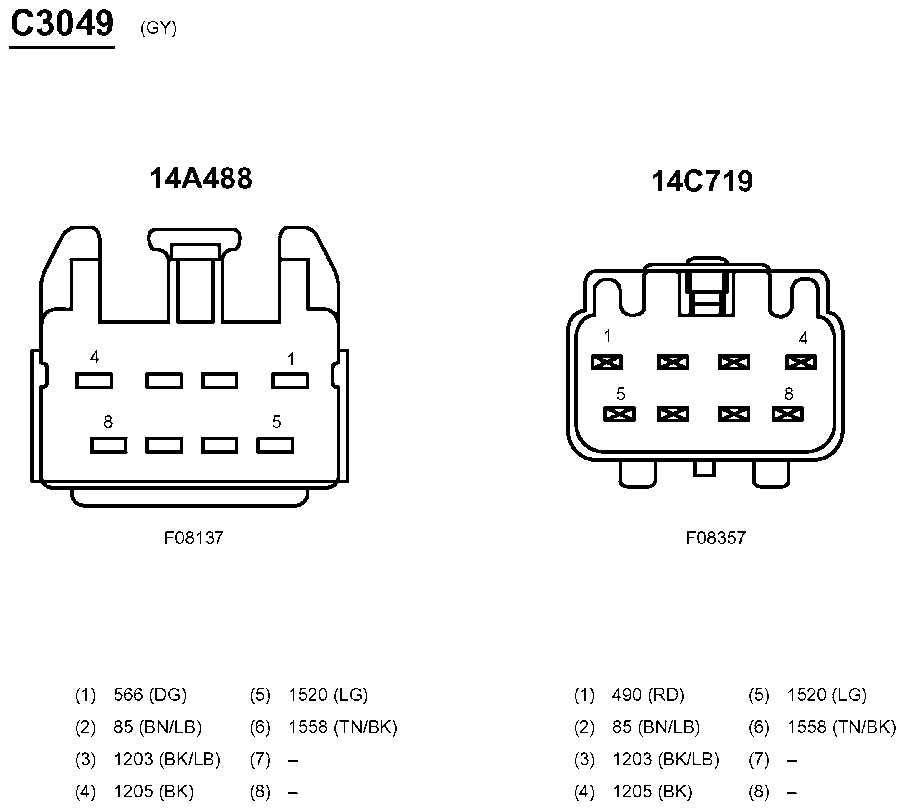

Fig 331: Inline Connector End View (C3049)

G07833150

Courtesy of FORD MOTOR CO.

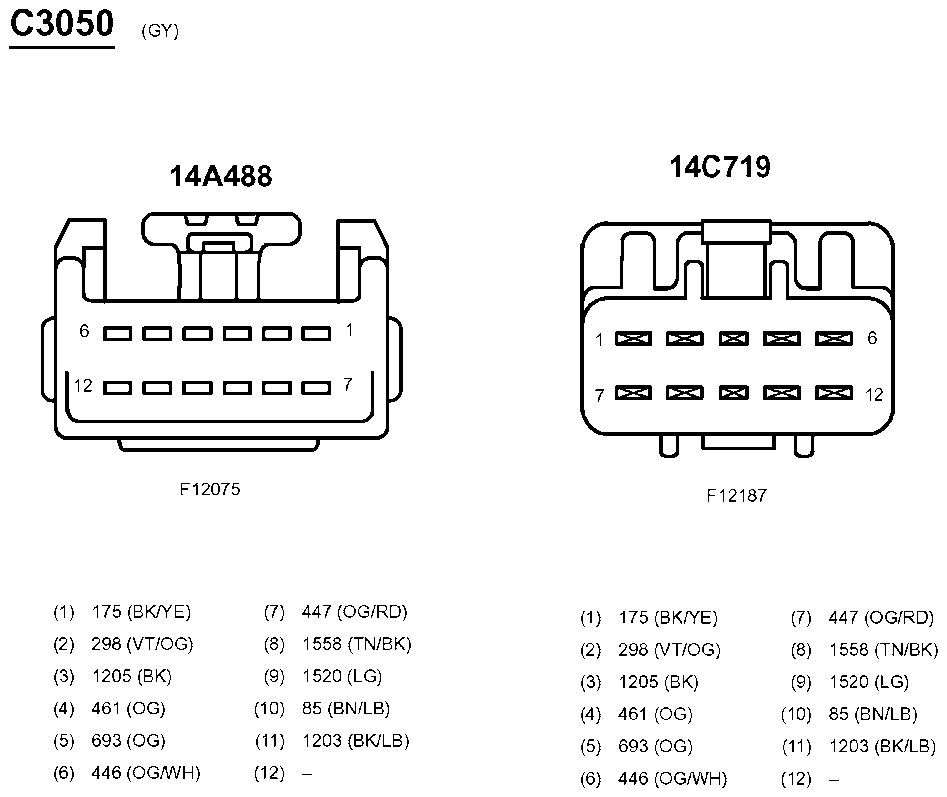

Fig 332: Inline Connector End View (C3050)

G07833151

Courtesy of FORD MOTOR CO.

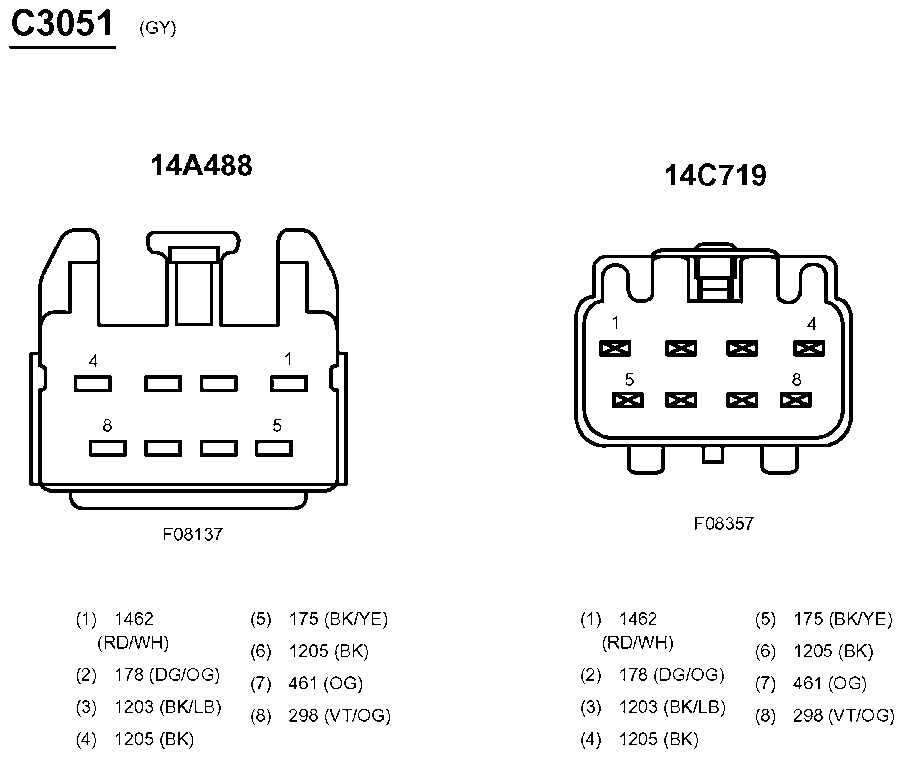

Fig 333: Inline Connector End View (C3051)

G07833152

Courtesy of FORD MOTOR CO.

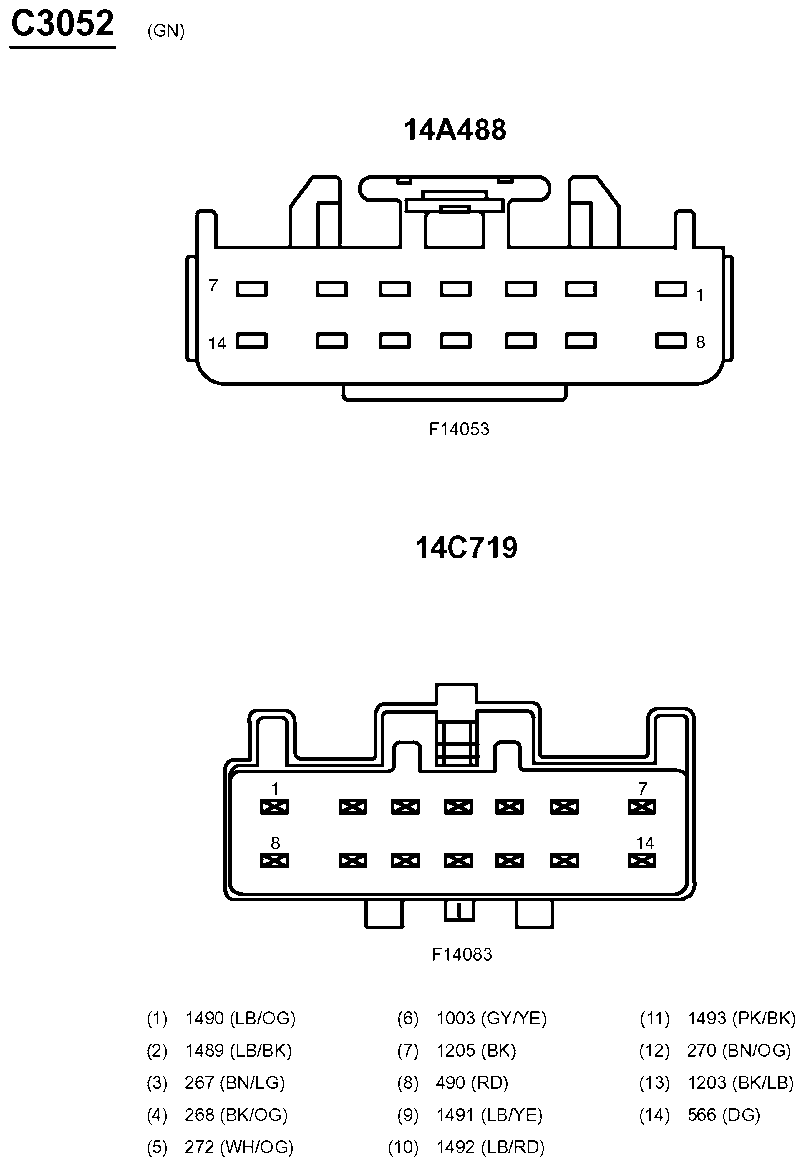

Fig 334: Inline Connector End View (C3052)

G07833153

Courtesy of FORD MOTOR CO.

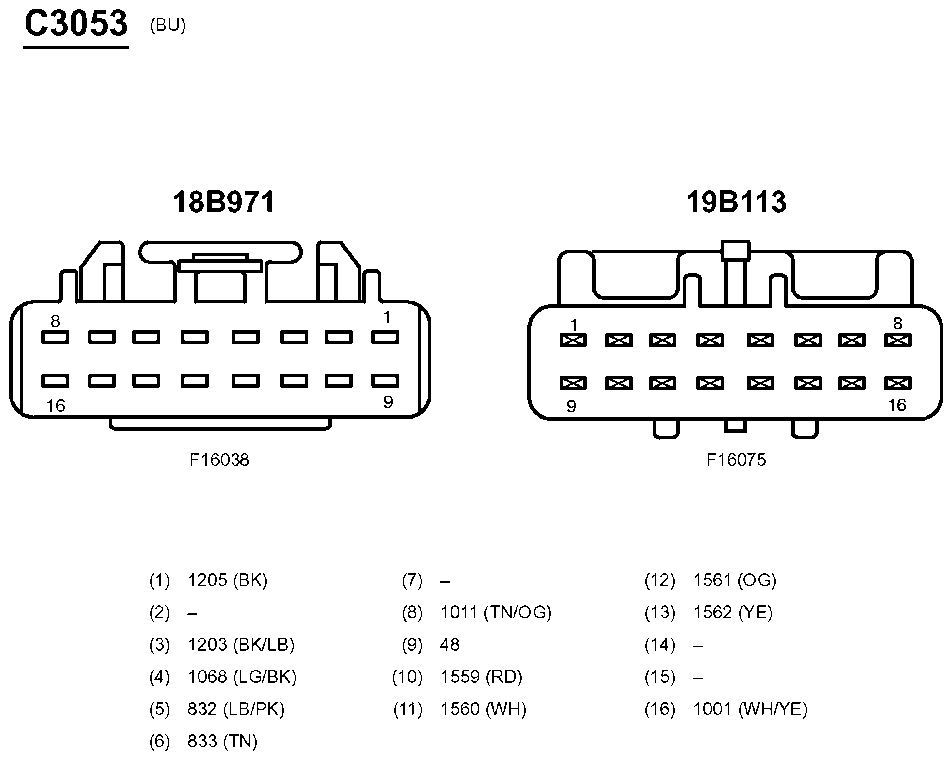

Fig 335: Inline Connector End View (C3053)

G07833154

Courtesy of FORD MOTOR CO.

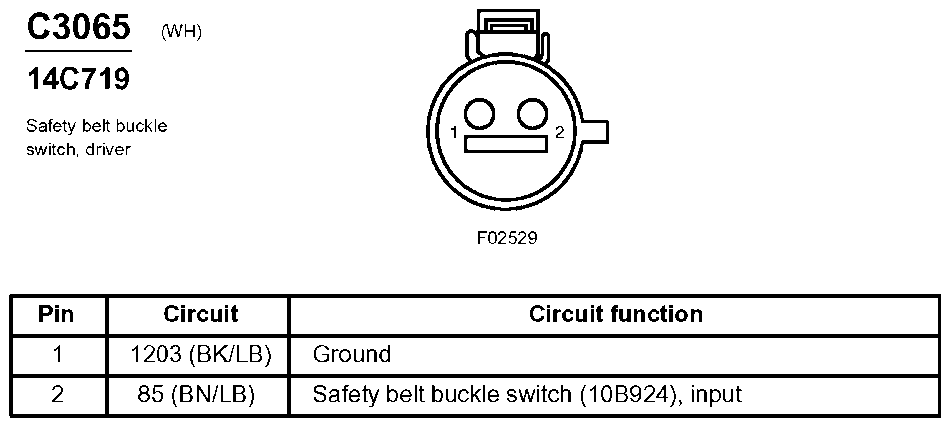

Fig 336: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07833155

Courtesy of FORD MOTOR CO.

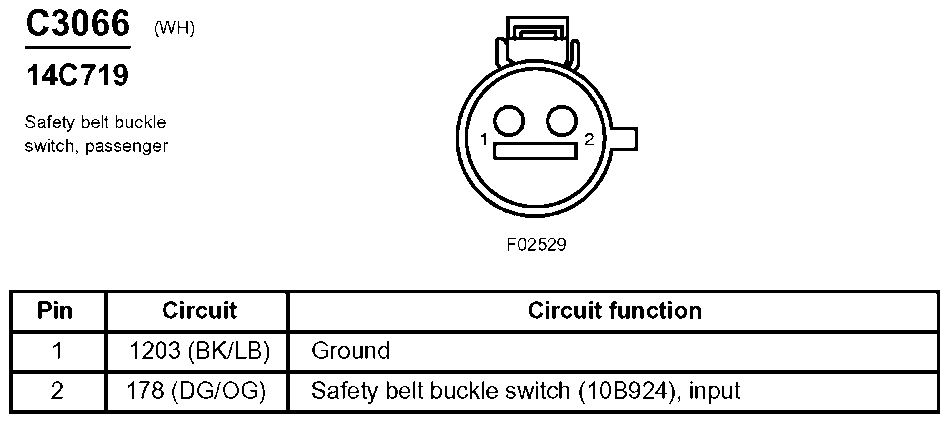

Fig 337: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07833156

Courtesy of FORD MOTOR CO.

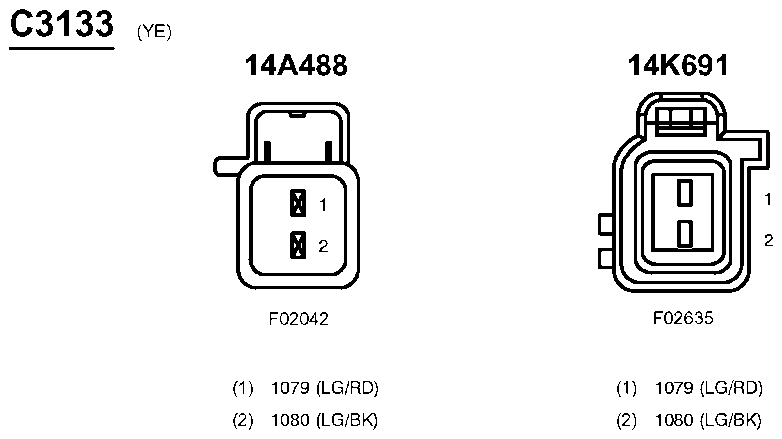

Fig 338: Inline Connector End View (C3133)

G07833157

Courtesy of FORD MOTOR CO.

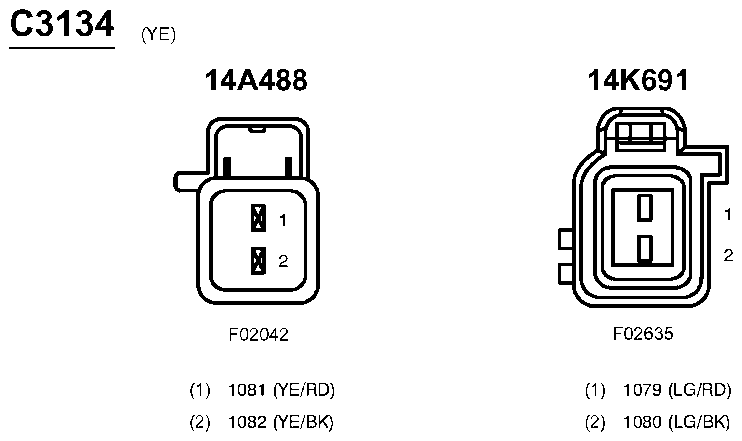

Fig 339: Inline Connector End View (C3134)

G07833158

Courtesy of FORD MOTOR CO.

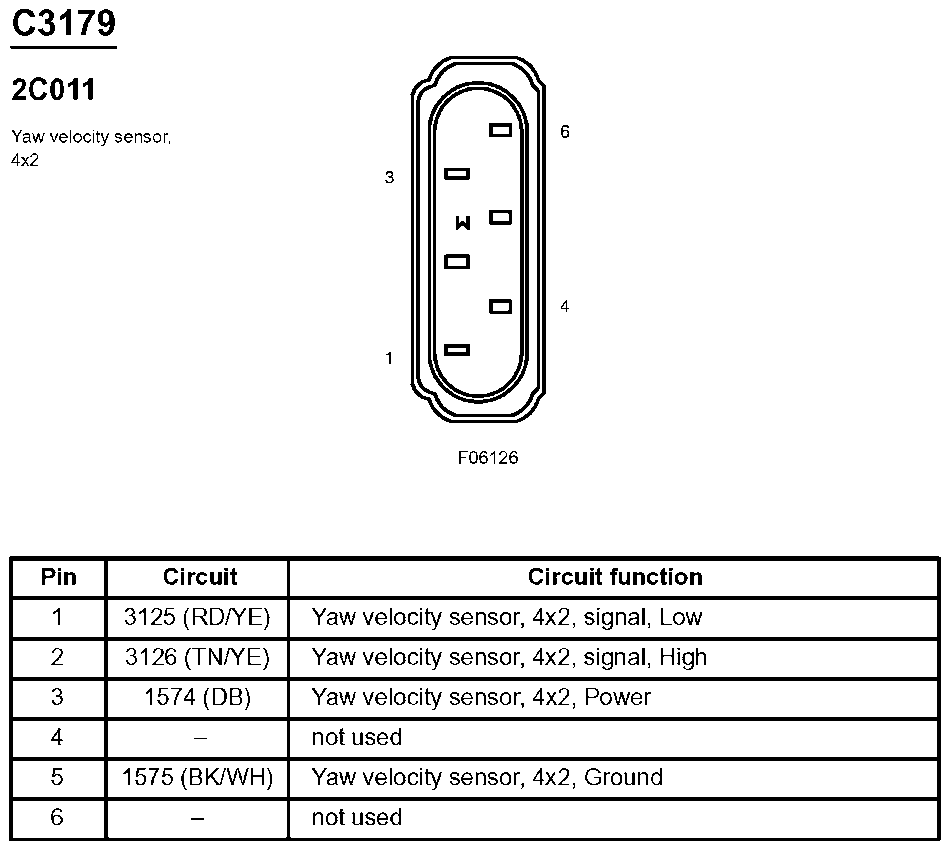

Fig 340: Yaw Velocity Sensor, 4x2 Connector End View (C3179)

G07833159

Courtesy of FORD MOTOR CO.

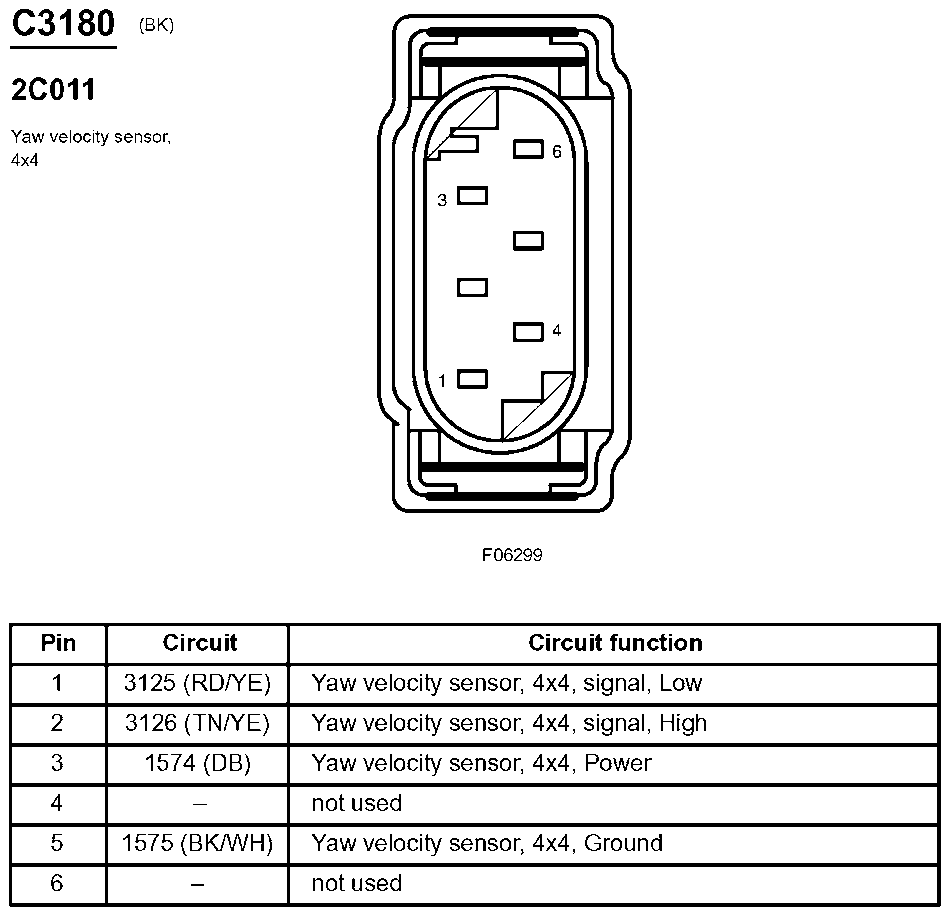

Fig 341: Yaw Velocity Sensor, 4x4 Connector End View (C3180)

G07833160

Courtesy of FORD MOTOR CO.

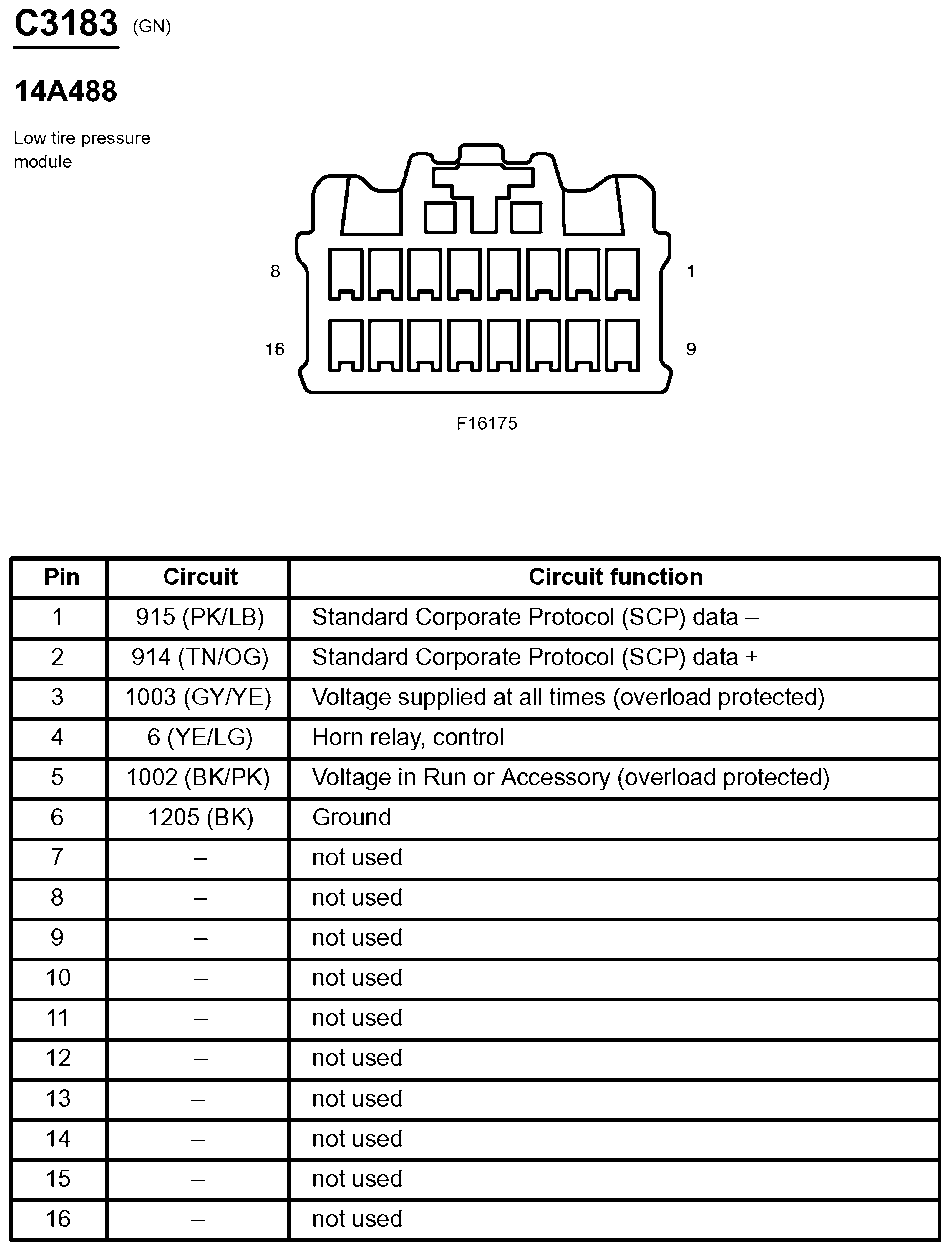

Fig 342: Low Tire Pressure Module Connector End View (C3183)

G07833161

Courtesy of FORD MOTOR CO.

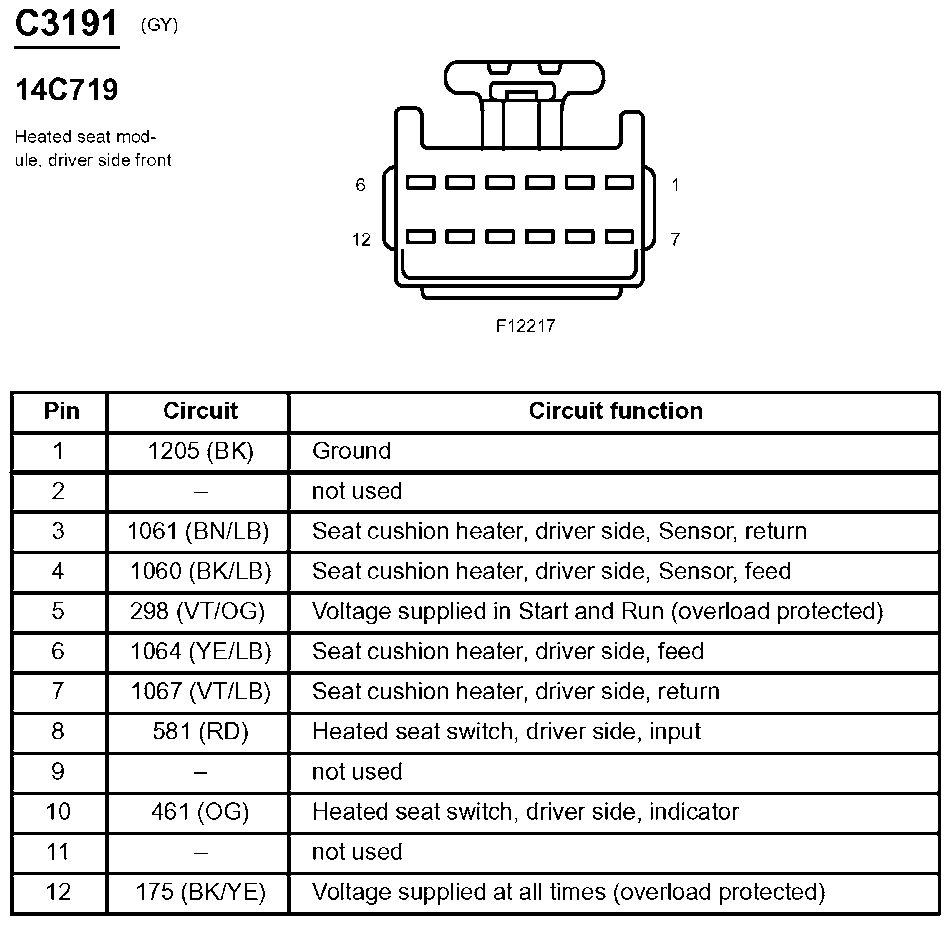

Fig 343: Heated Seat Module, Driver Side Front Connector End View (C3191)

G07833162

Courtesy of FORD MOTOR CO.

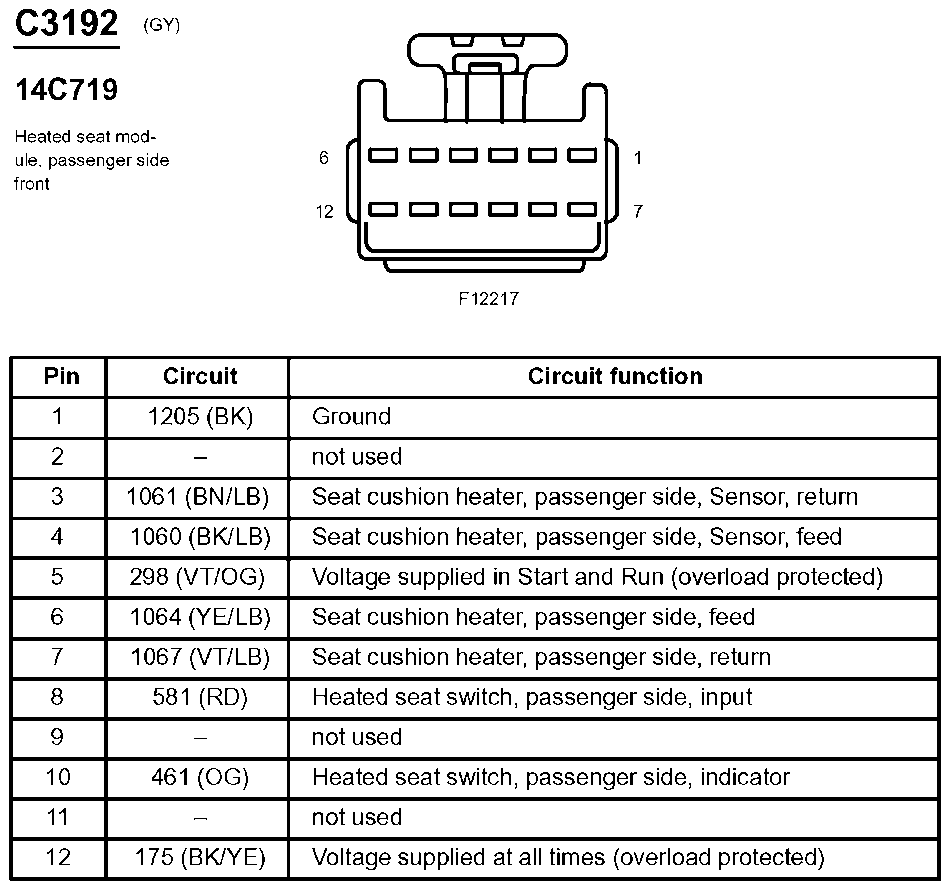

Fig 344: Heated Seat Module, Passenger Side Front Connector End View (C3192)

G07833163

Courtesy of FORD MOTOR CO.

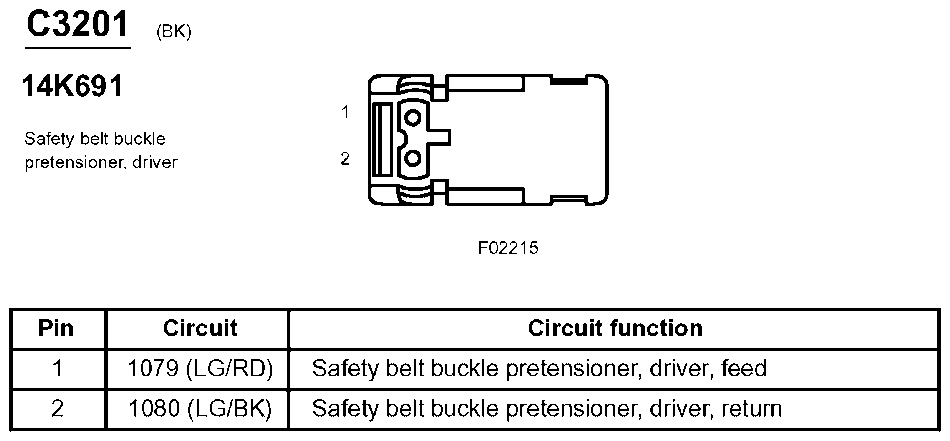

Fig 345: Safety Belt Buckle Pretensioner, Driver Connector End View (C3201)

G07833164

Courtesy of FORD MOTOR CO.

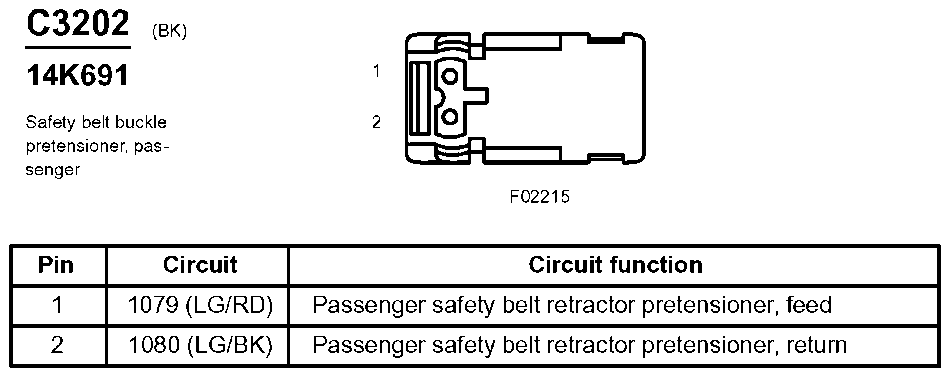

Fig 346: Safety Belt Buckle Pretensioner, Passenger Connector End View (C3202)

G07833165

Courtesy of FORD MOTOR CO.

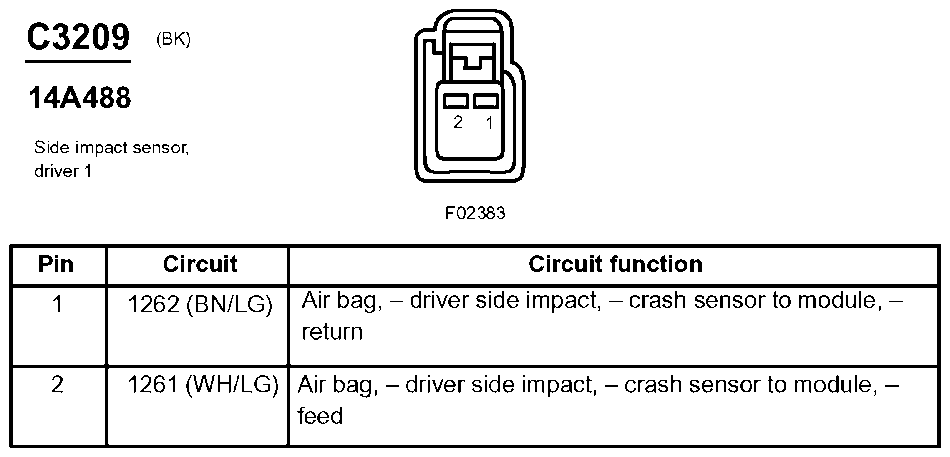

Fig 347: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07833166

Courtesy of FORD MOTOR CO.

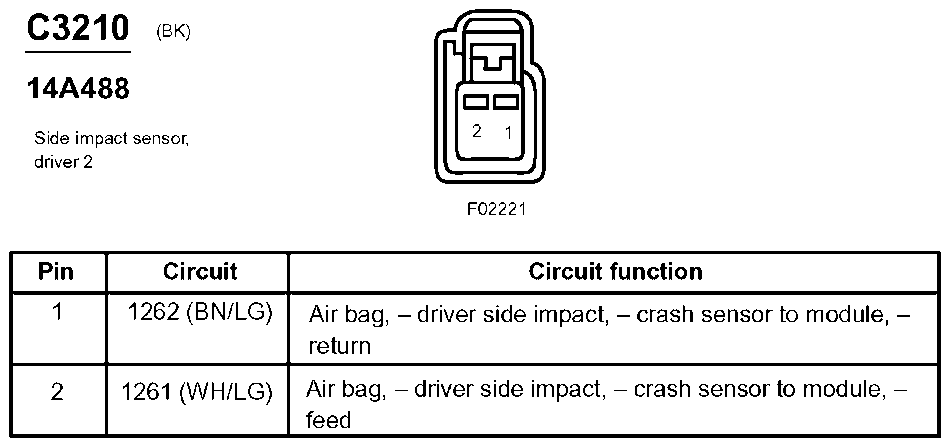

Fig 348: Side Impact Sensor, Driver 2 Connector End View (C3210)

G07833167

Courtesy of FORD MOTOR CO.

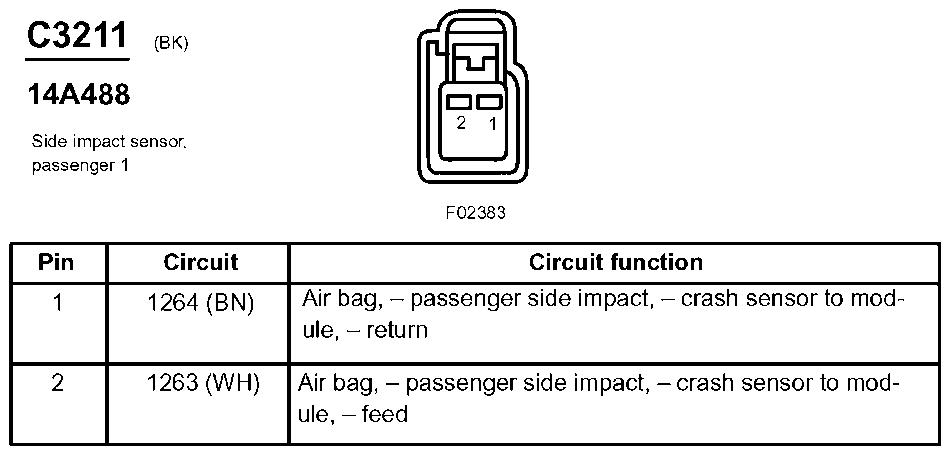

Fig 349: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07833168

Courtesy of FORD MOTOR CO.

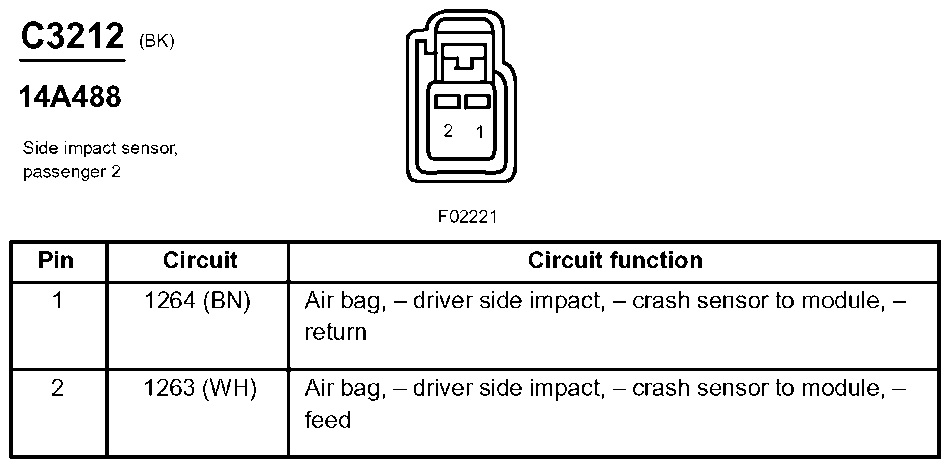

Fig 350: Side Impact Sensor, Passenger 2 Connector End View (C3212)

G07833169

Courtesy of FORD MOTOR CO.

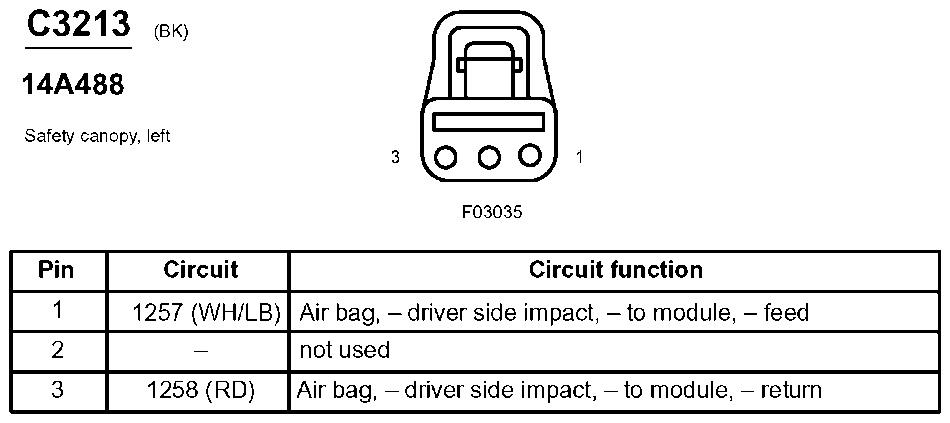

Fig 351: Safety Canopy, Left Connector End View (C3213)

G07833170

Courtesy of FORD MOTOR CO.

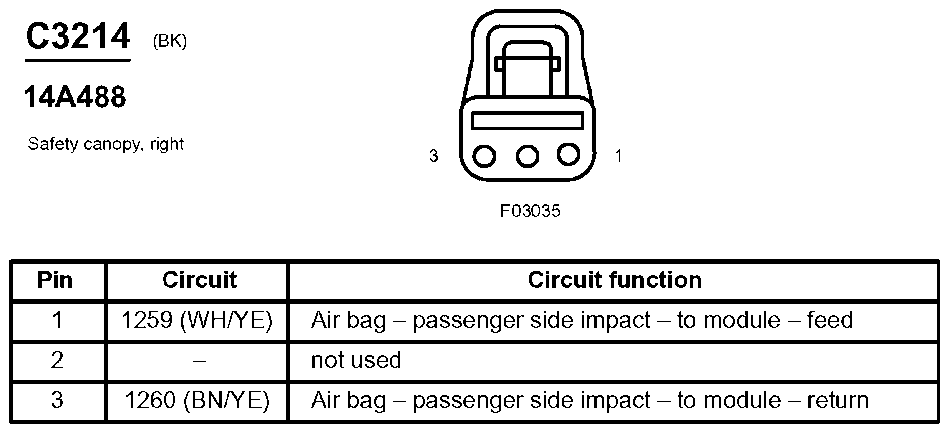

Fig 352: Safety Canopy, Right Connector End View (C3214)

G07833171

Courtesy of FORD MOTOR CO.

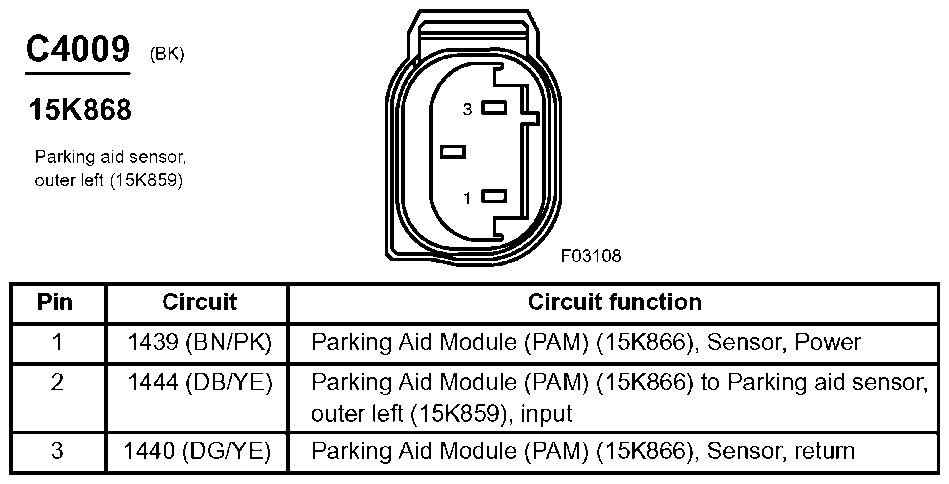

Fig 353: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07833172

Courtesy of FORD MOTOR CO.

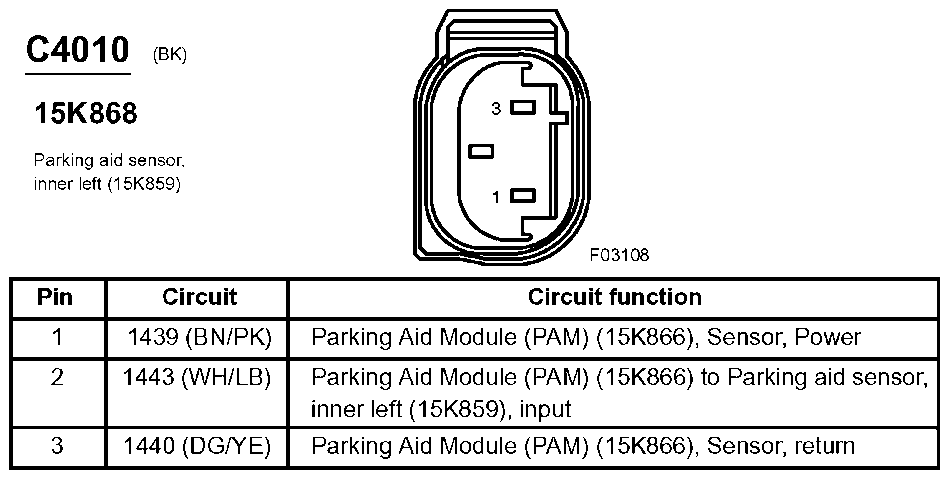

Fig 354: Parking Aid Sensor, Inner Left Connector End View (C4010)

G07833173

Courtesy of FORD MOTOR CO.

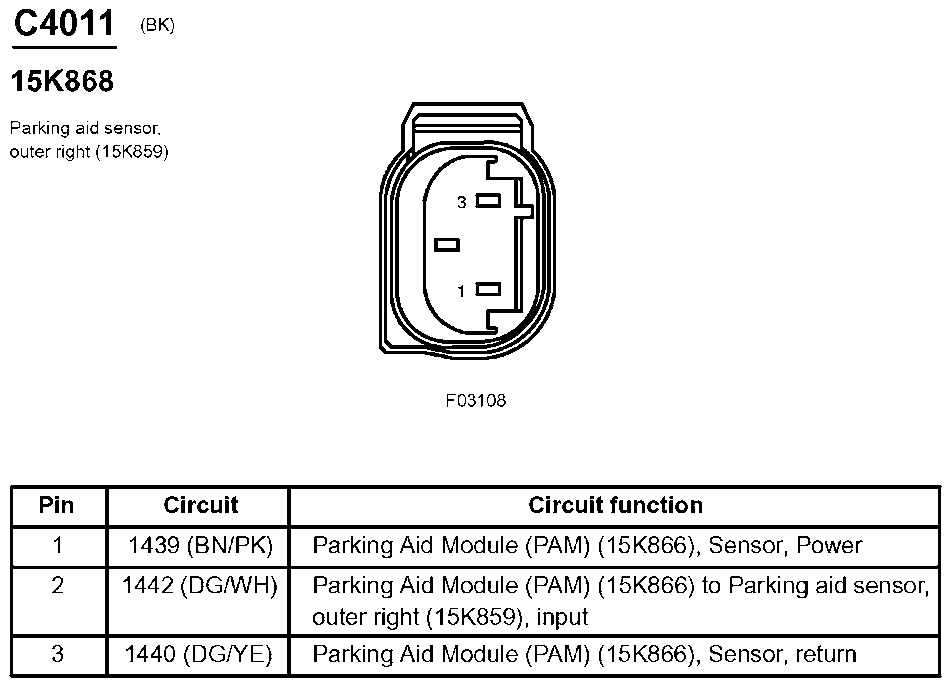

Fig 355: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07833174

Courtesy of FORD MOTOR CO.

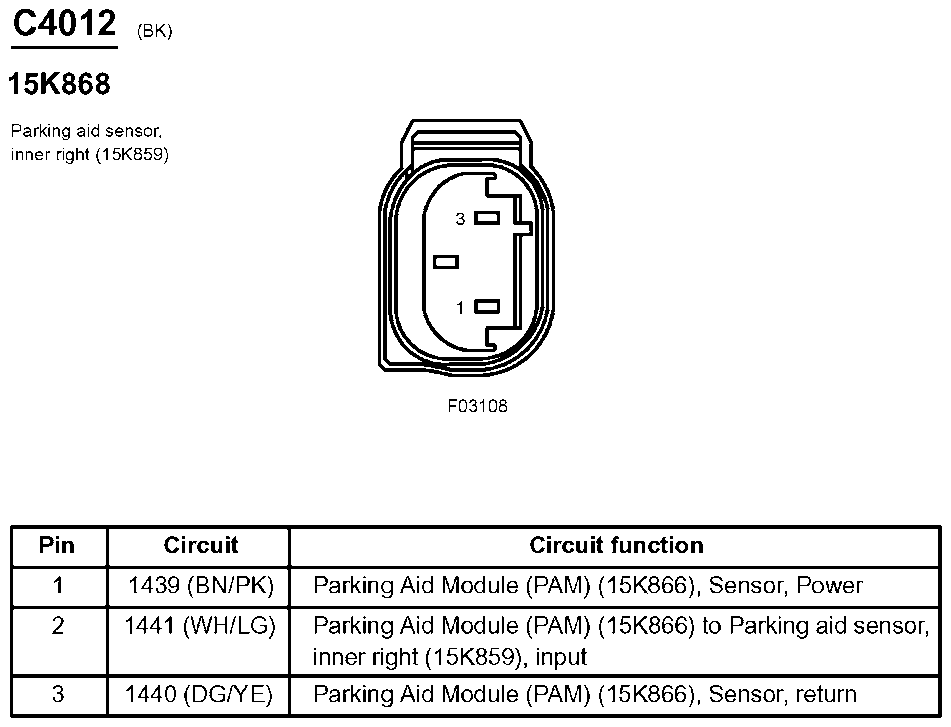

Fig 356: Parking Aid Sensor, Inner Right Connector End View (C4012)

G07833175

Courtesy of FORD MOTOR CO.

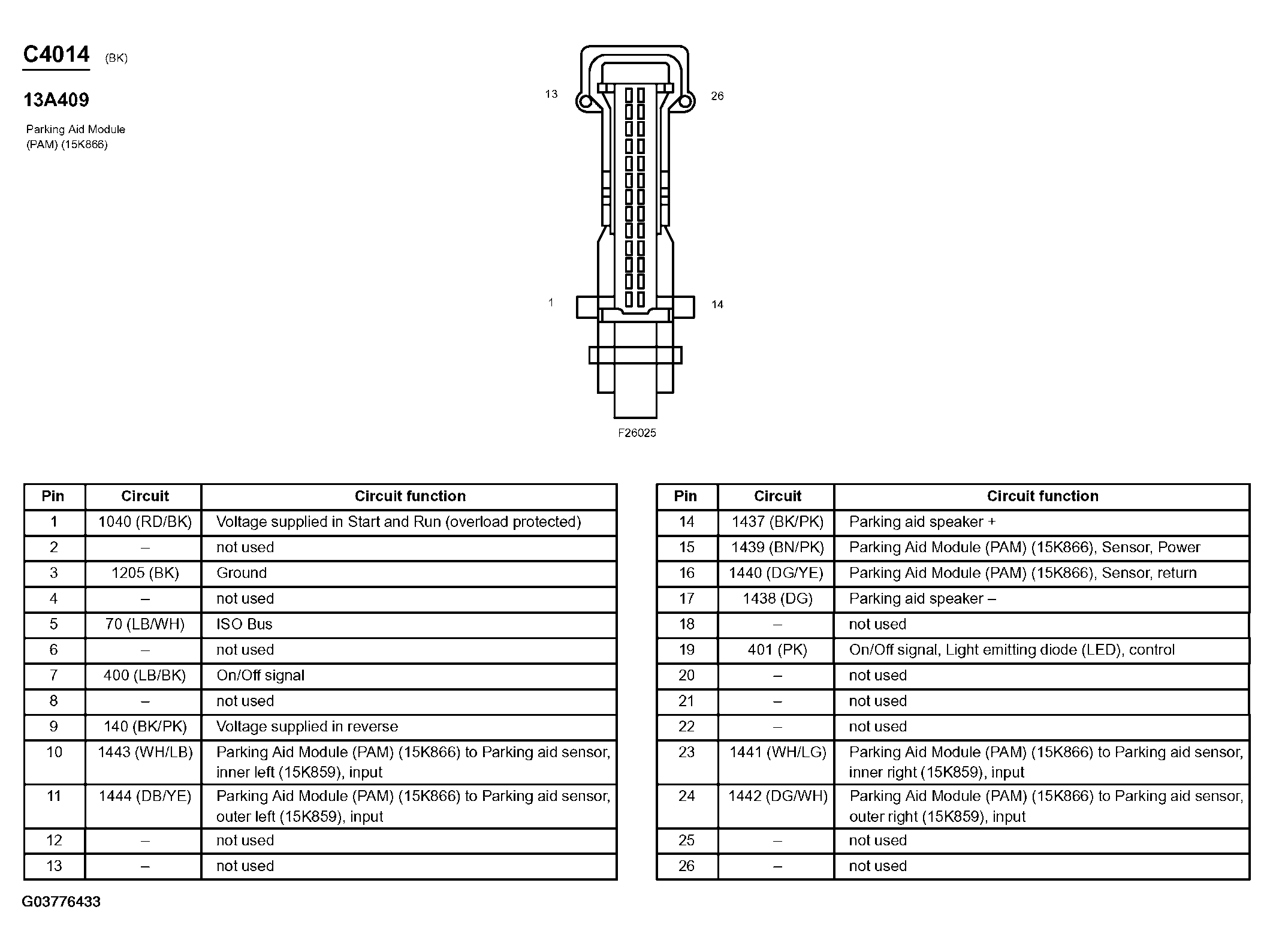

Fig 357: Parking Aid Module (PAM) Connector End View (C4014)

G03776433

Courtesy of FORD MOTOR CO.

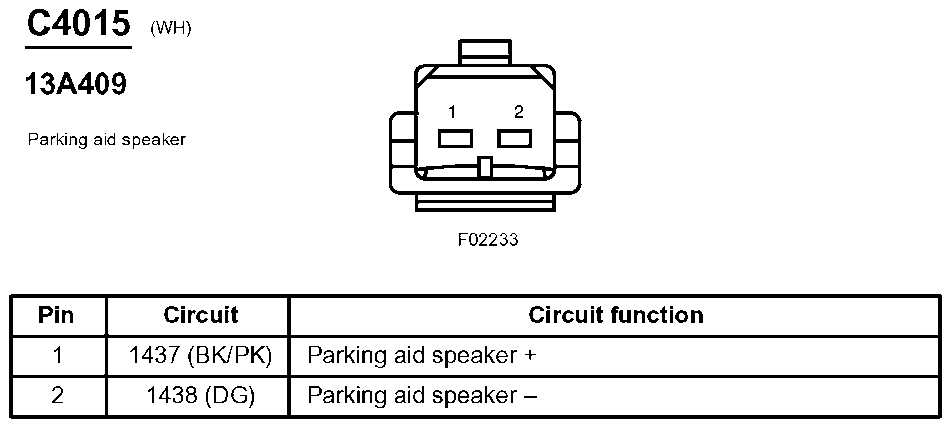

Fig 358: Parking Aid Speaker Connector End View (C4015)

G07833176

Courtesy of FORD MOTOR CO.

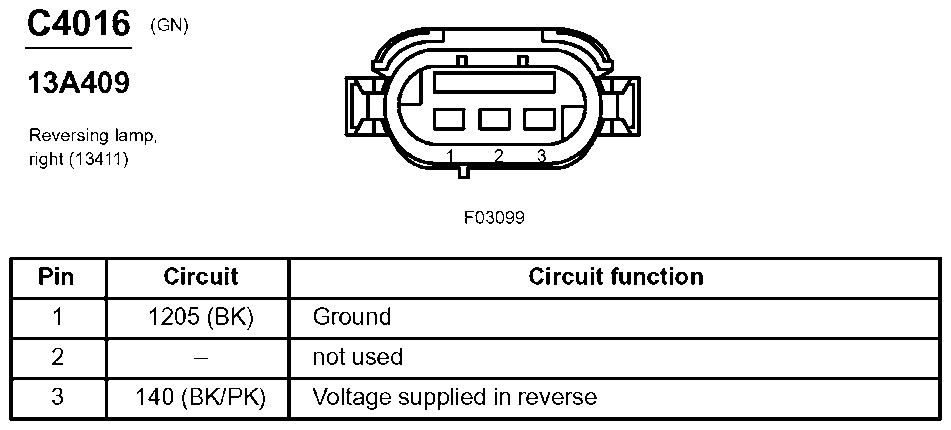

Fig 359: Reversing Lamp, Right Connector End View (C4016)

G07833177

Courtesy of FORD MOTOR CO.

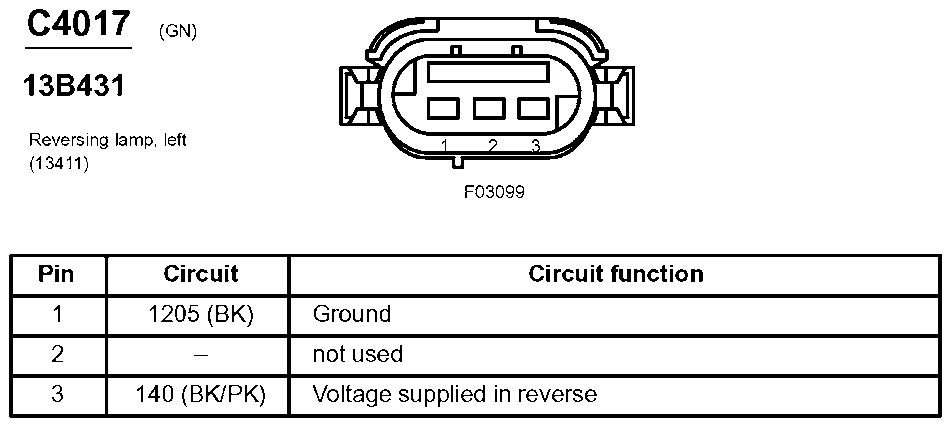

Fig 360: Reversing Lamp, Left Connector End View (C4017)

G07833178

Courtesy of FORD MOTOR CO.

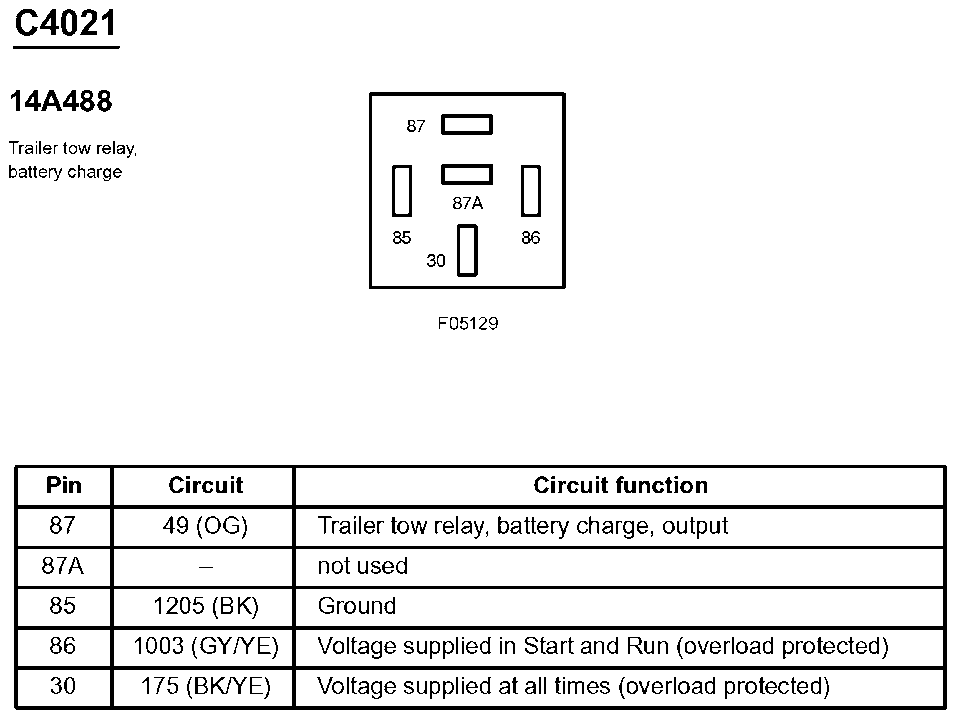

Fig 361: Trailer Tow Relay, Battery Charge Connector End View (C4021)

G07833179

Courtesy of FORD MOTOR CO.

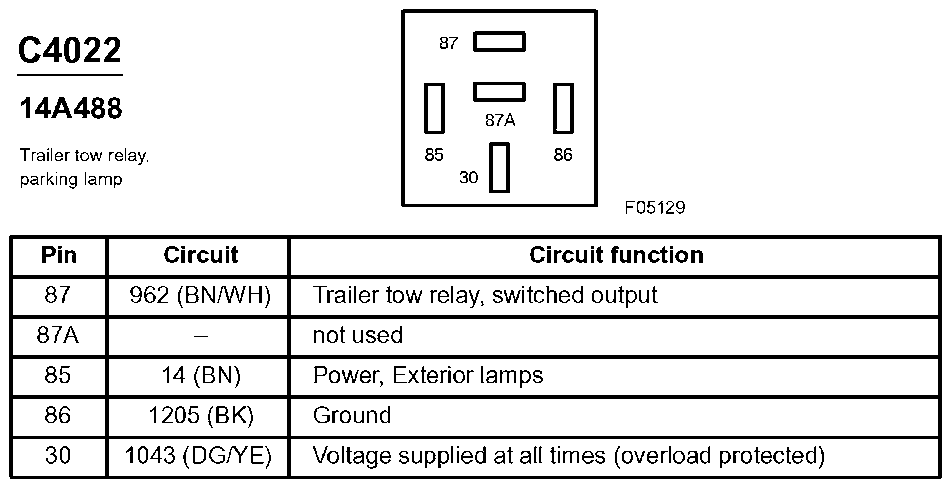

Fig 362: Trailer Tow Relay, Parking Lamp Connector End View (C4022)

G07833180

Courtesy of FORD MOTOR CO.

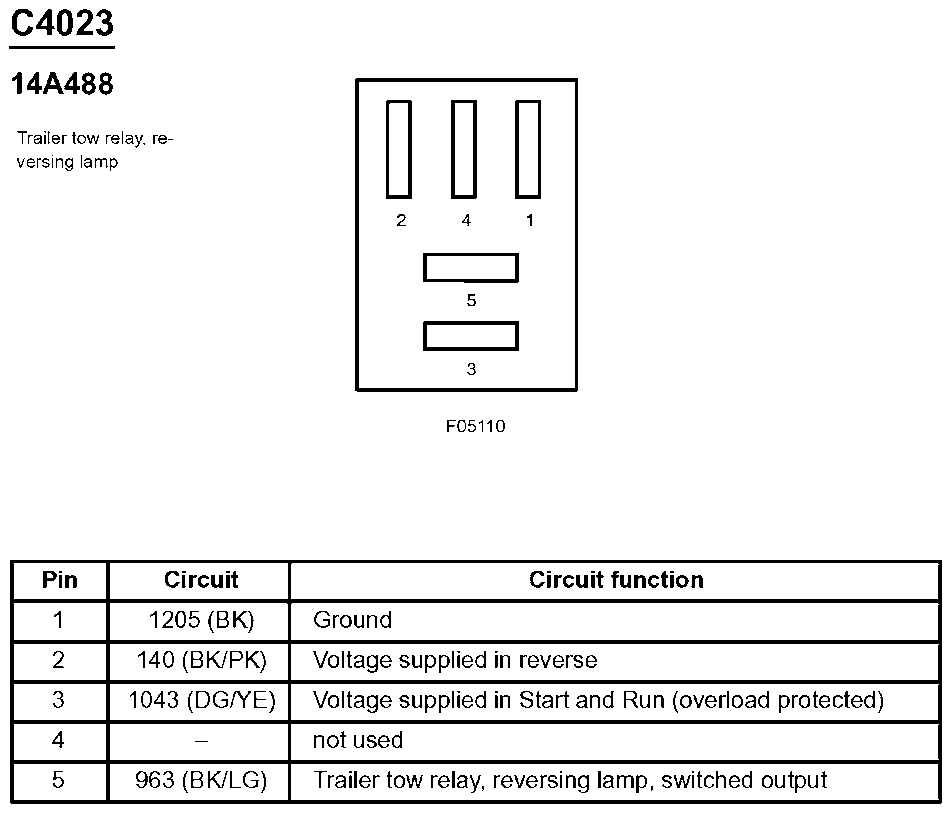

Fig 363: Trailer Tow Relay, Reversing Lamp Connector End View (C4023)

G07833181

Courtesy of FORD MOTOR CO.

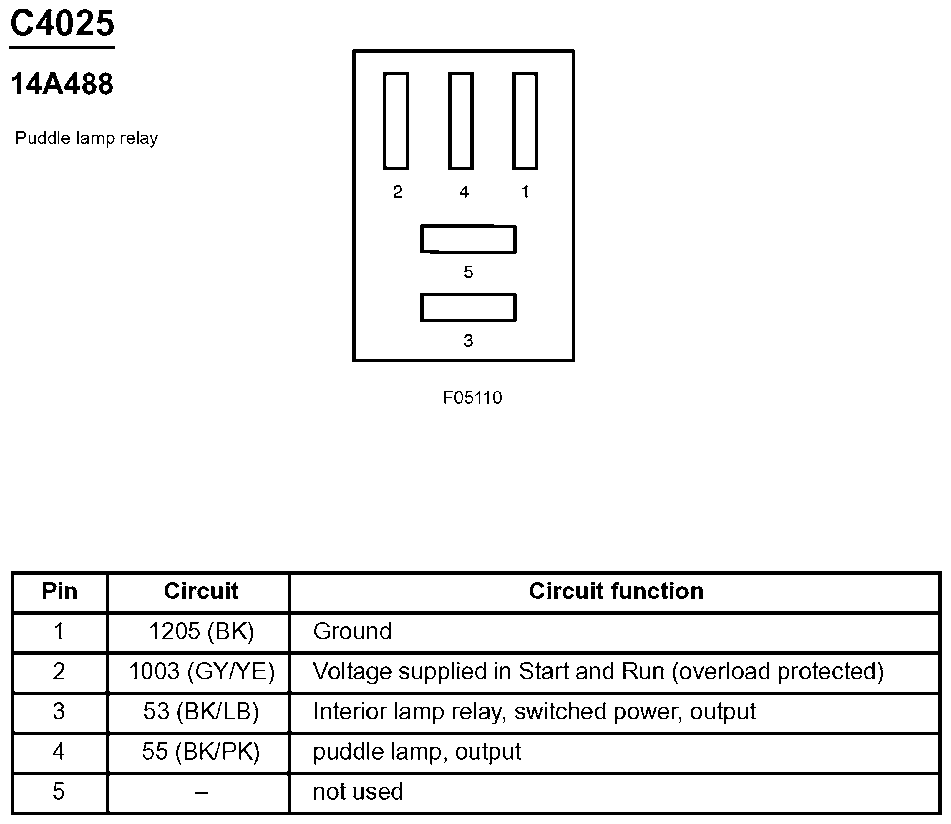

Fig 364: Puddle Lamp Relay Connector End View (C4025)

G07833182

Courtesy of FORD MOTOR CO.

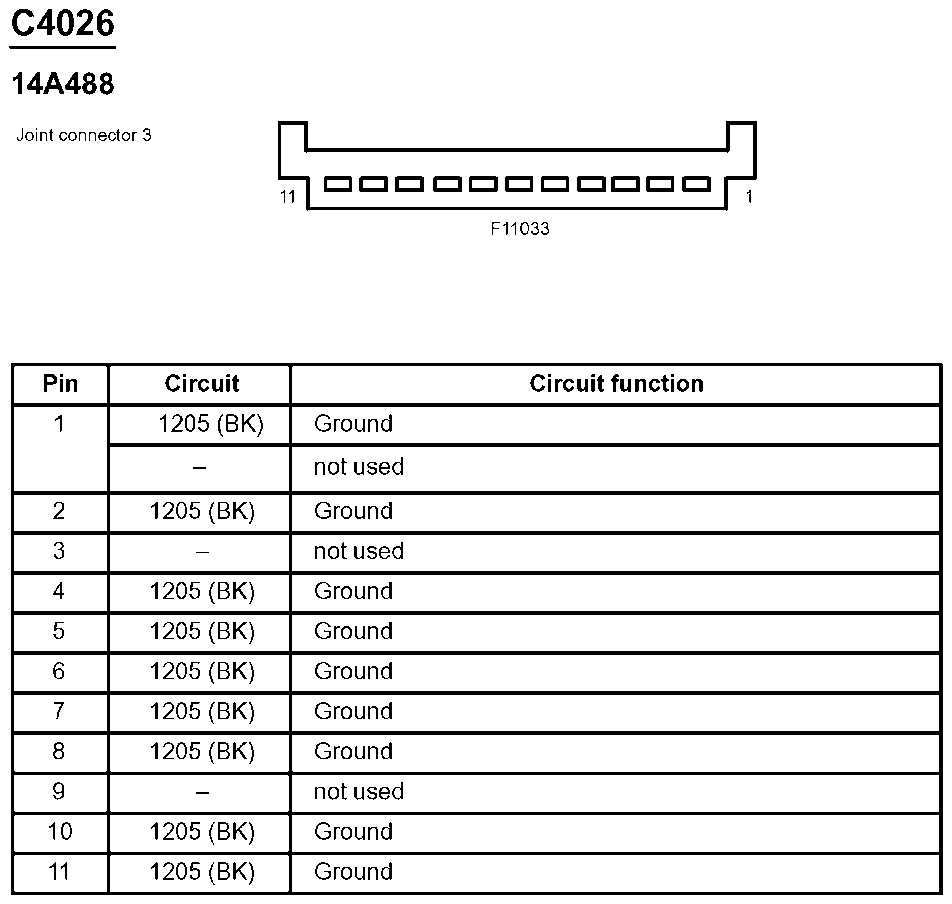

Fig 365: Joint Connector 3 Connector End View (C4026)

G07833183

Courtesy of FORD MOTOR CO.

Fig 366: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07833184

Courtesy of FORD MOTOR CO.

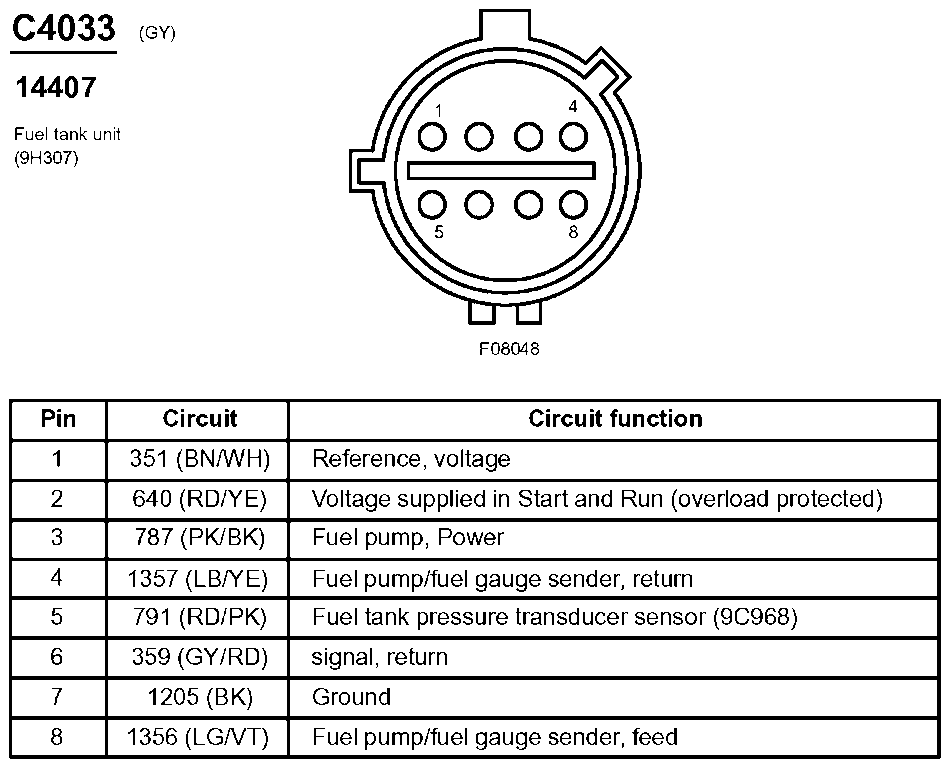

Fig 367: Fuel Tank Unit Connector End View (C4033)

G07833185

Courtesy of FORD MOTOR CO.

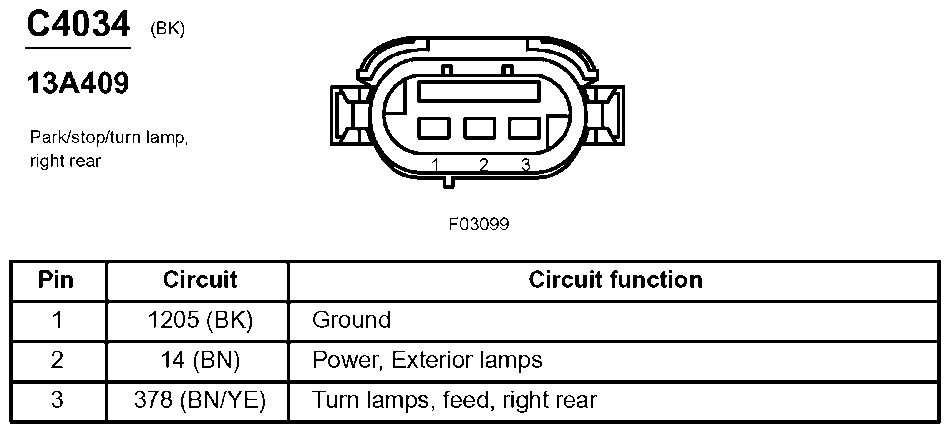

Fig 368: Park/Stop/turn Lamp, Right Rear Connector End View (C4034)

G07833186

Courtesy of FORD MOTOR CO.

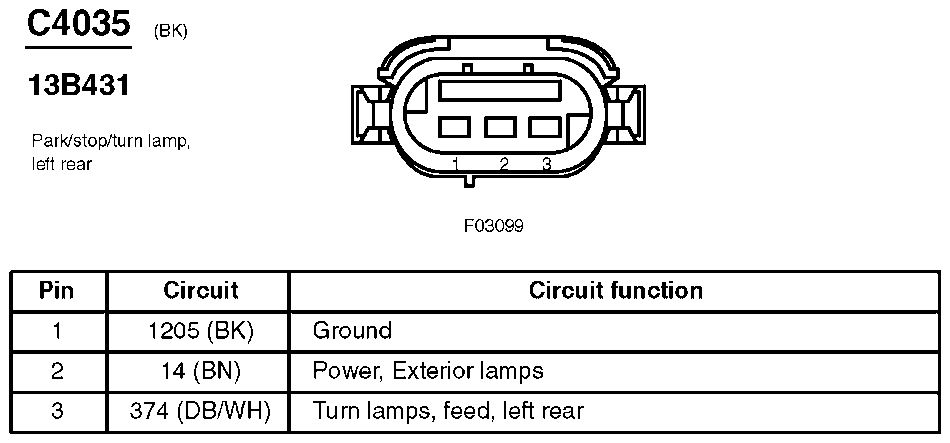

Fig 369: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07833187

Courtesy of FORD MOTOR CO.

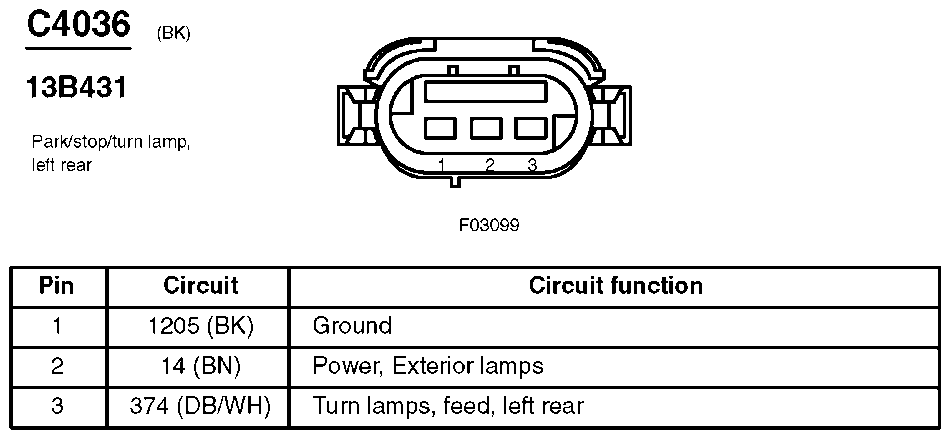

Fig 370: Park/Stop/Turn Lamp, Left Rear Connector End View (C4036)

G07833188

Courtesy of FORD MOTOR CO.

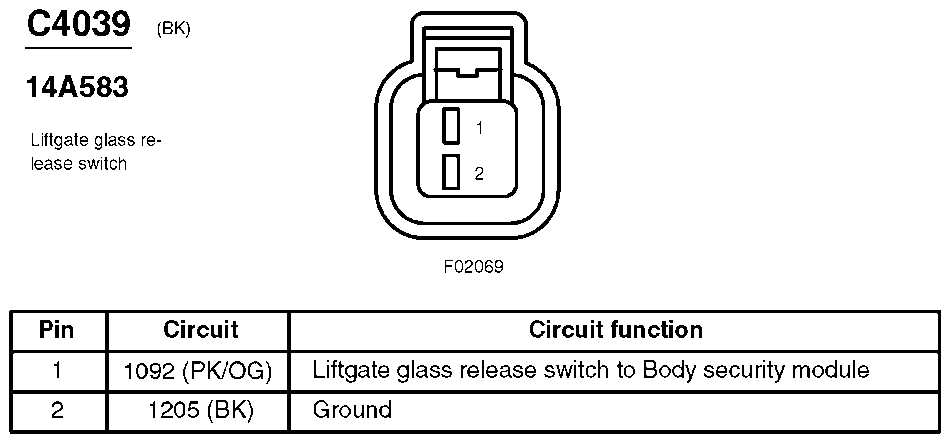

Fig 371: Liftgate Glass Release Switch Connector End View (C4039)

G07833189

Courtesy of FORD MOTOR CO.

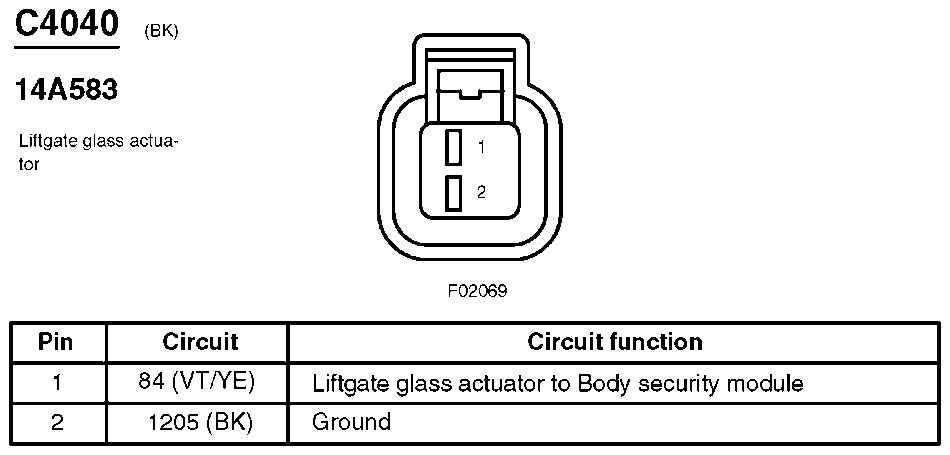

Fig 372: Liftgate Glass Actuator Connector End View (C4040)

G07833190

Courtesy of FORD MOTOR CO.

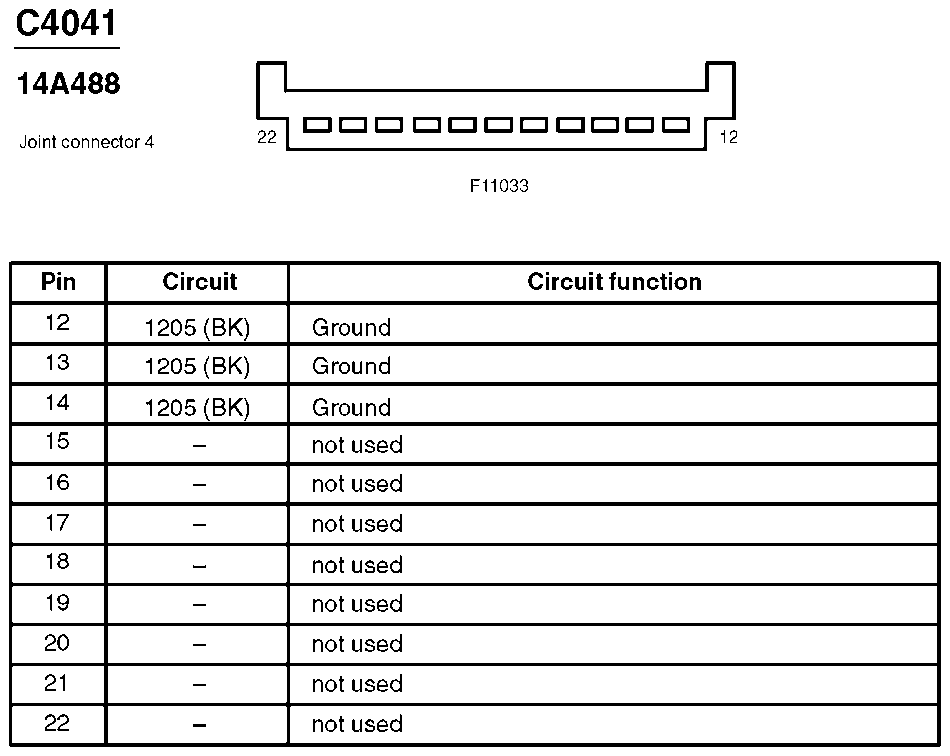

Fig 373: Joint Connector 4 Connector End View (C4041)

G07833191

Courtesy of FORD MOTOR CO.

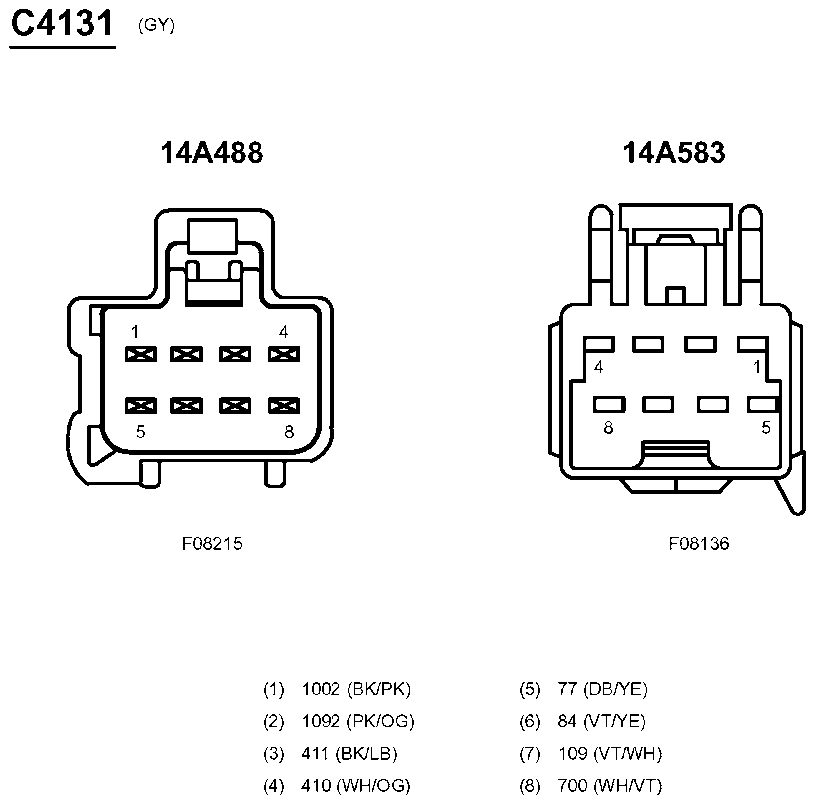

Fig 374: Inline Connector End View (C4131)

G07833192

Courtesy of FORD MOTOR CO.

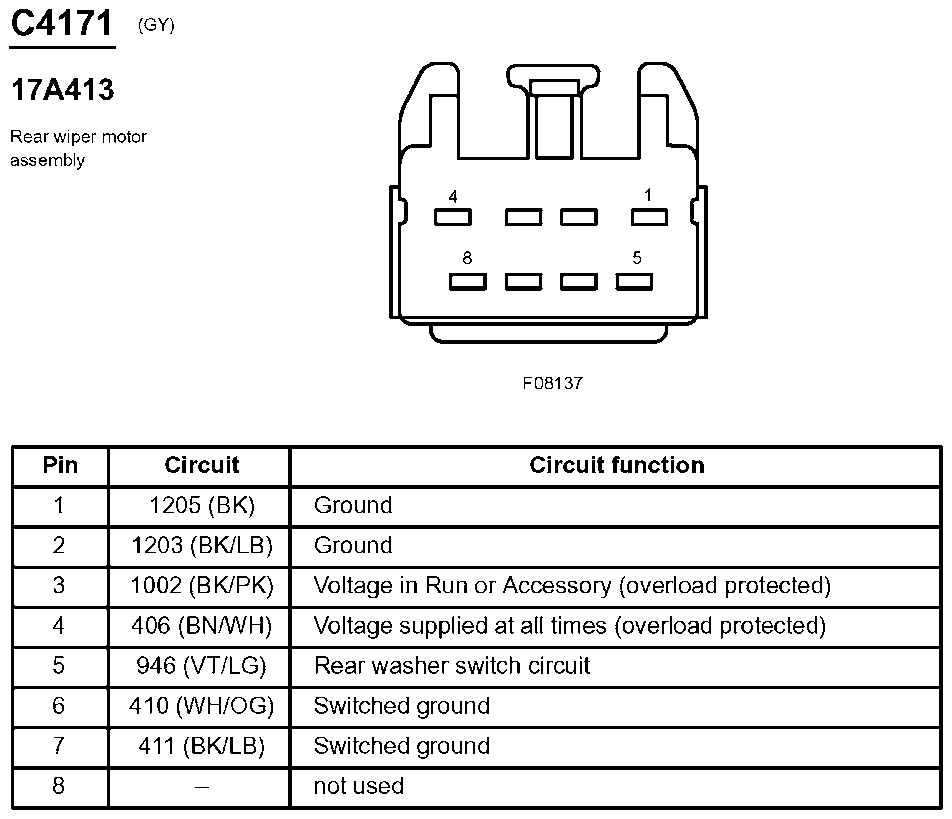

Fig 375: Rear Wiper Motor Assembly Connector End View (C4171)

G07833193

Courtesy of FORD MOTOR CO.
