Torque Specifications

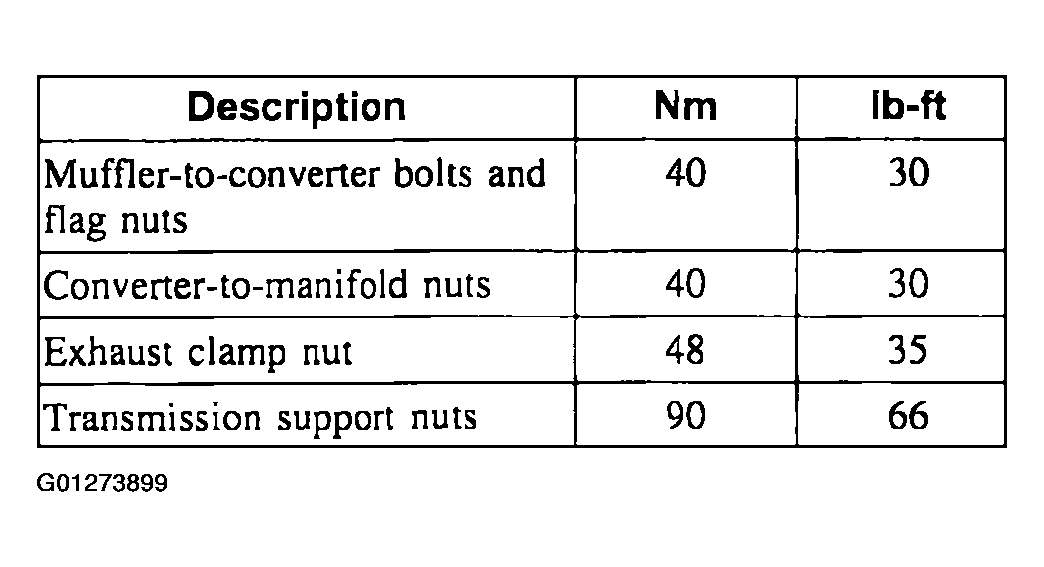

Fig 1: Exhaust System Torque Specifications Table (1 Of 2)
G01273899Courtesy of FORD MOTOR CO.
Fig 2: Exhaust System Torque Specifications Table (2 Of 2)
G01273900Courtesy of FORD MOTOR CO.
