Symptom Chart

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

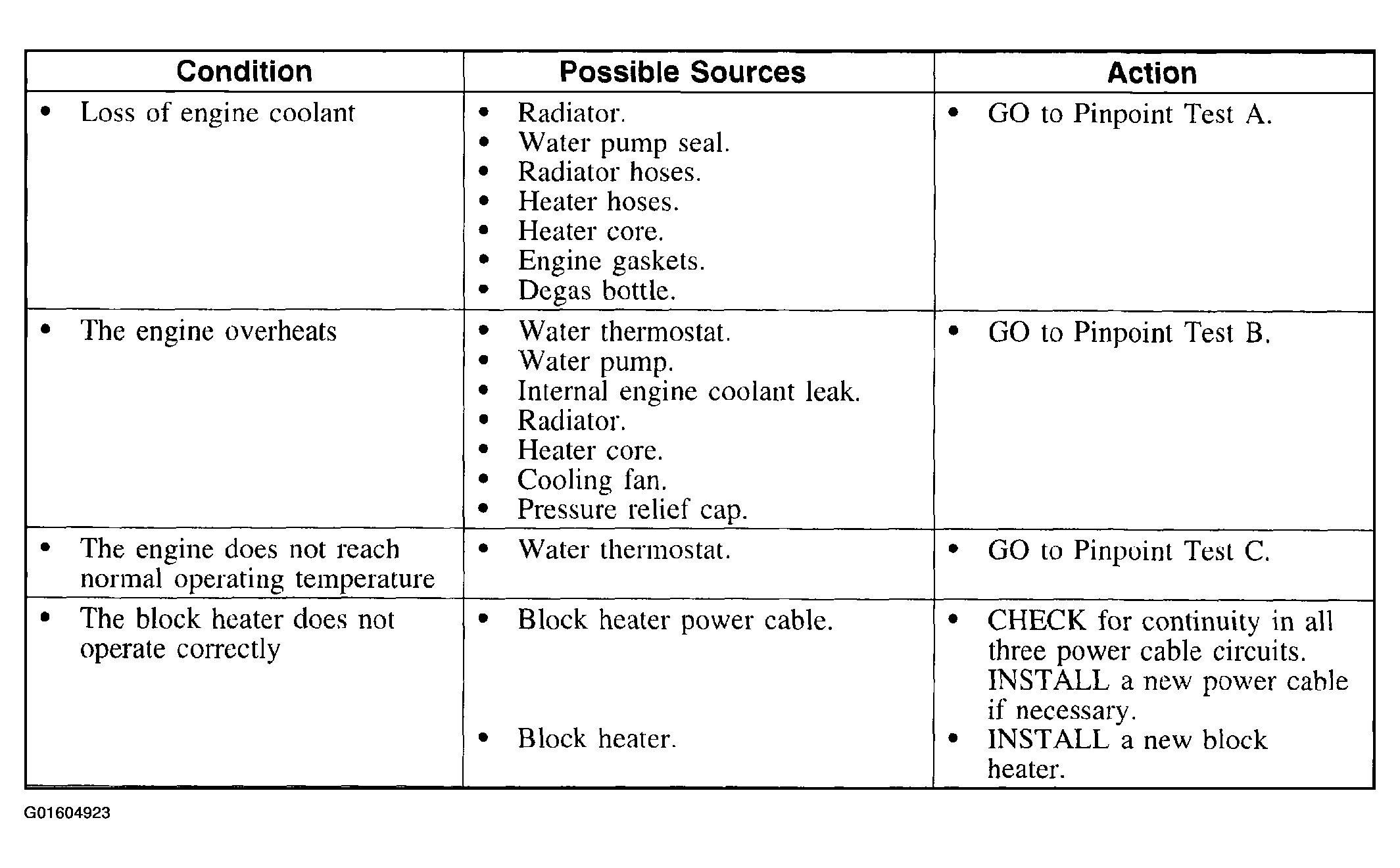

Fig 1: Symptom Diagnosis And Testing Chart
G01604923Courtesy of FORD MOTOR CO.
