Inspection and Verification
WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the customer concern by operating the system in question.

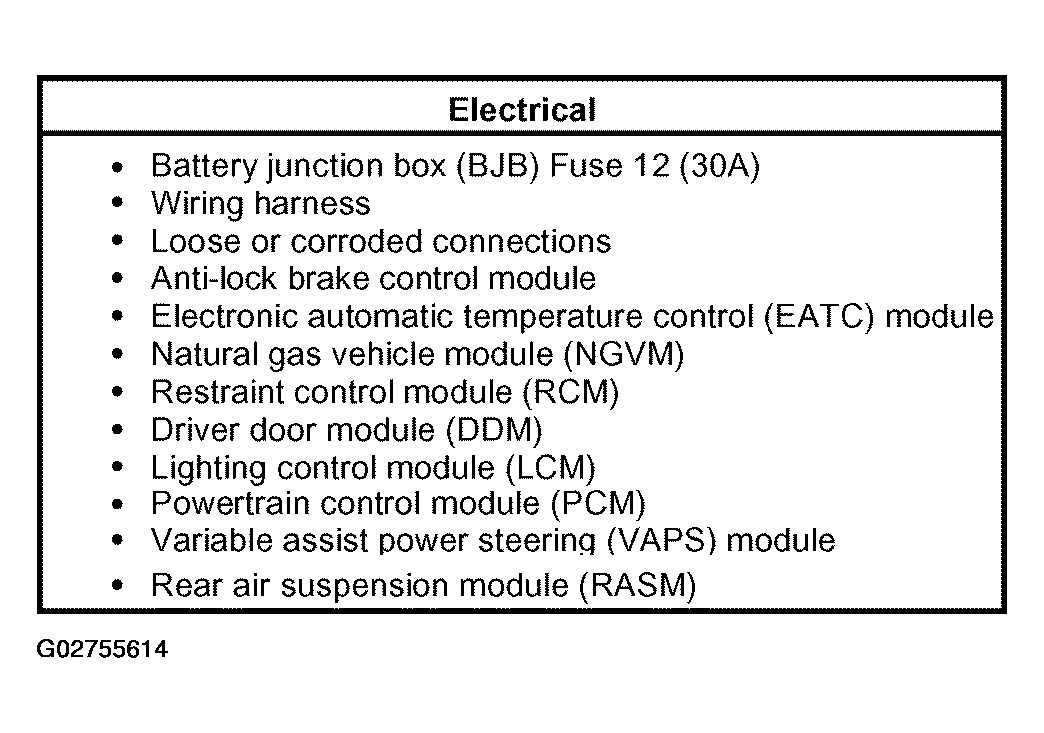

- Visually inspect for obvious signs of electrical damage.
- If the concern remains after the inspection, connect diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch position.
If the diagnostic tool still does not communicate with the vehicle, Go to PINPOINT TEST M .
- Go to PINPOINT TEST PC .
