Pinpoint Test B: TPMS Will Not Enter Sensor Training Mode: Testing

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

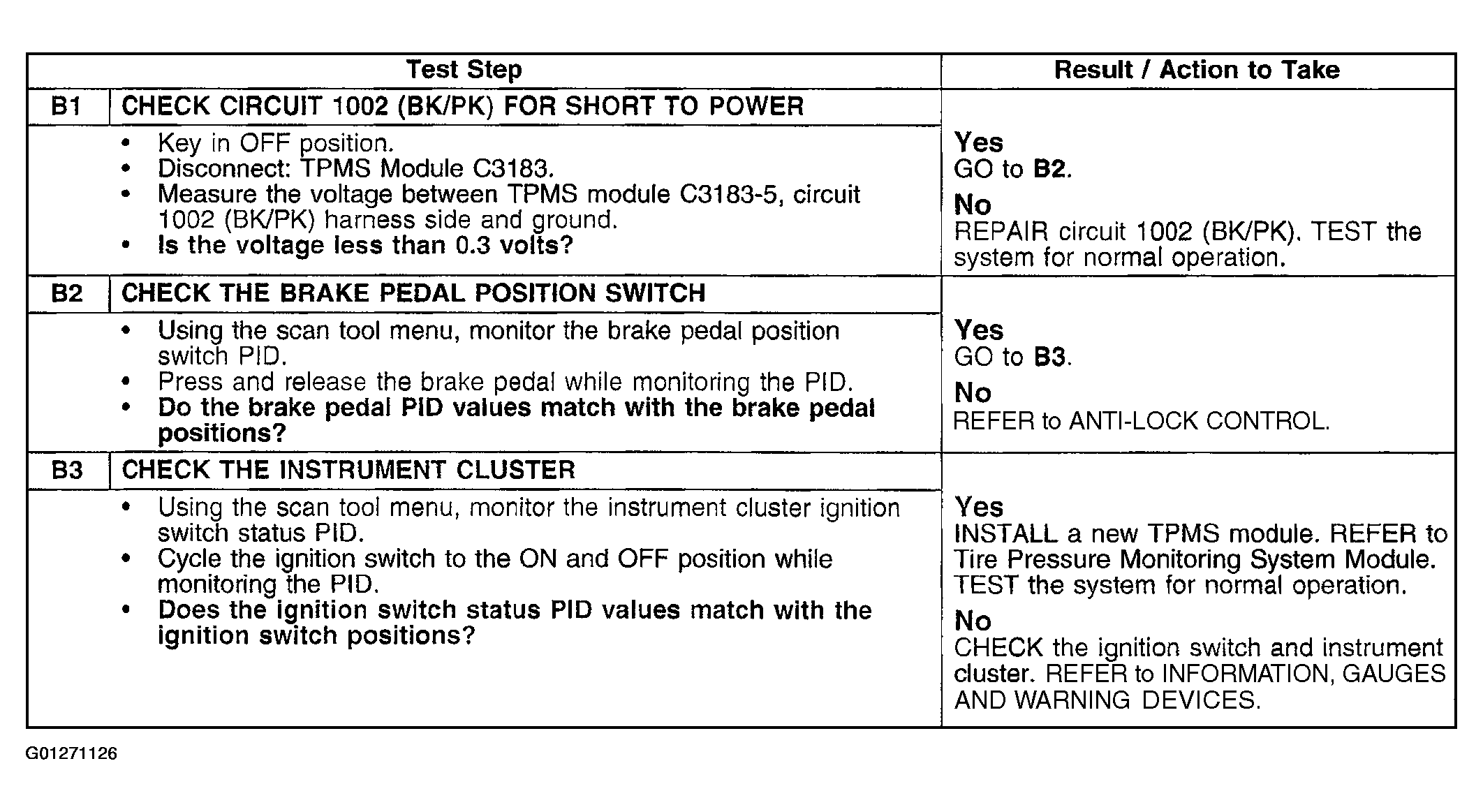

Fig 1: Identifying Pinpoint Test B: TPMS Will Not Enter Sensor Training Mode

Courtesy of FORD MOTOR CO.
