Tire Pressure Monitoring System Module

Remove the components in the order indicated in the following illustration and table.

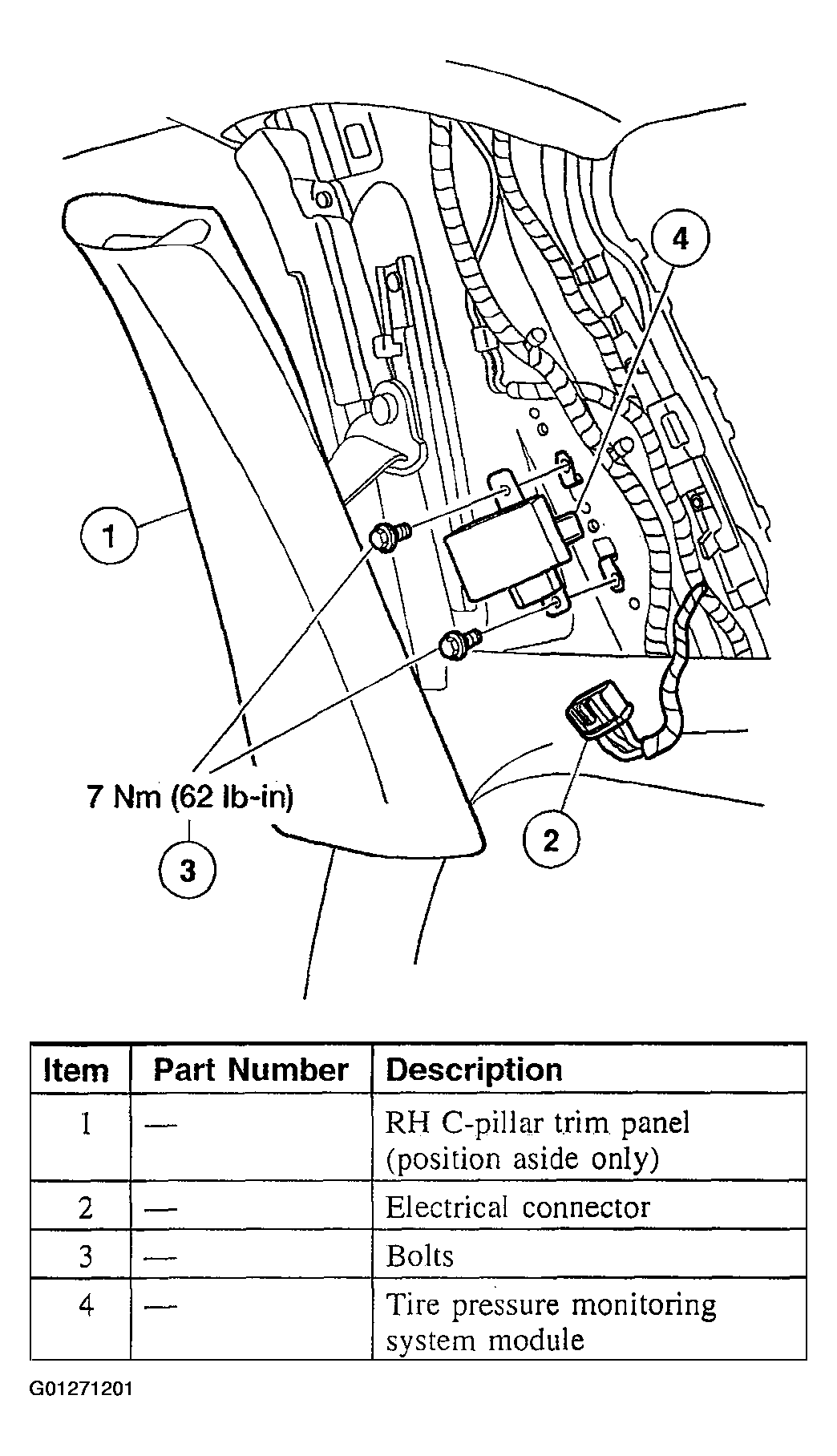

Fig 1: Removing & Installing Tire Pressure Monitoring System Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Train the tire pressure sensors. For additional information, refer to SENSOR TRAINING COMPONENT TEST .
Reconfigure the module. For additional information refer to INFORMATION, GAUGES AND WARNING DEVICES .
