Park System: Removal: Notes

NOTE: If damage to the park gear is found, the transmission must be removed and disassembled to install a new park gear.

NOTE: The park pawl, park pawl return spring and the park pawl shaft may fall out when removing the extension housing.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect. If damage to the gasket is found, a new gasket must be installed.

On 4x4 vehicles, remove the transfer case assembly. For additional information, refer to FOUR-WHEEL DRIVE SYSTEMS .
On 4x2 vehicles, remove the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
On 4x2 vehicles, remove the rear transmission support insulator. For additional information, refer to TRANSMISSION SUPPORT INSULATOR - 4X2 .
On 4x2 vehicles, remove the exhaust. For additional information, refer to EXHAUST SYSTEM .
It is not necessary to remove the shift cable and bracket from the transmission.

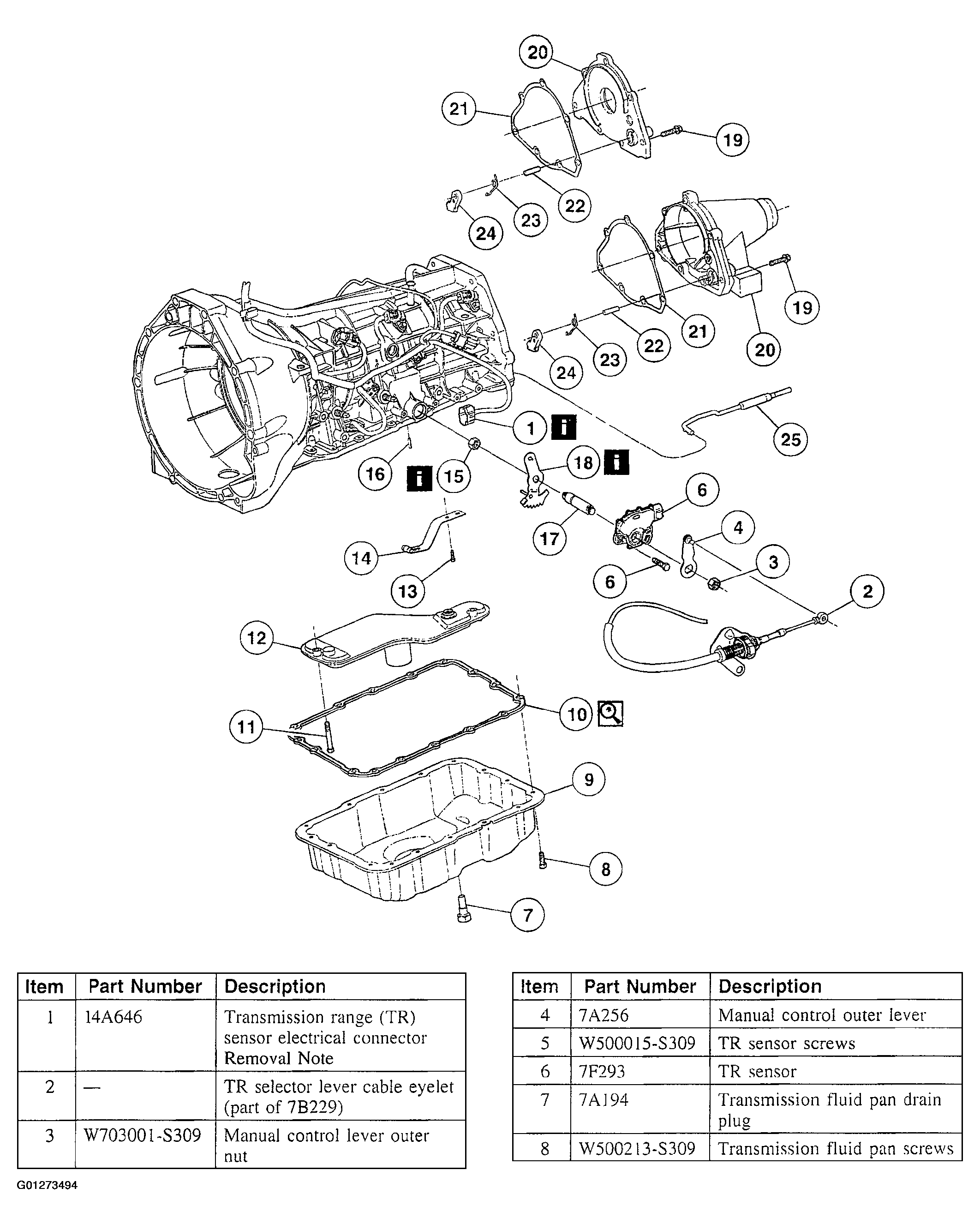

Illustration 1 of 2. Remove the components in the order indicated in the following illustration and table.

Fig 1: Removing Park System Components (1 Of 2)
Courtesy of FORD MOTOR CO.

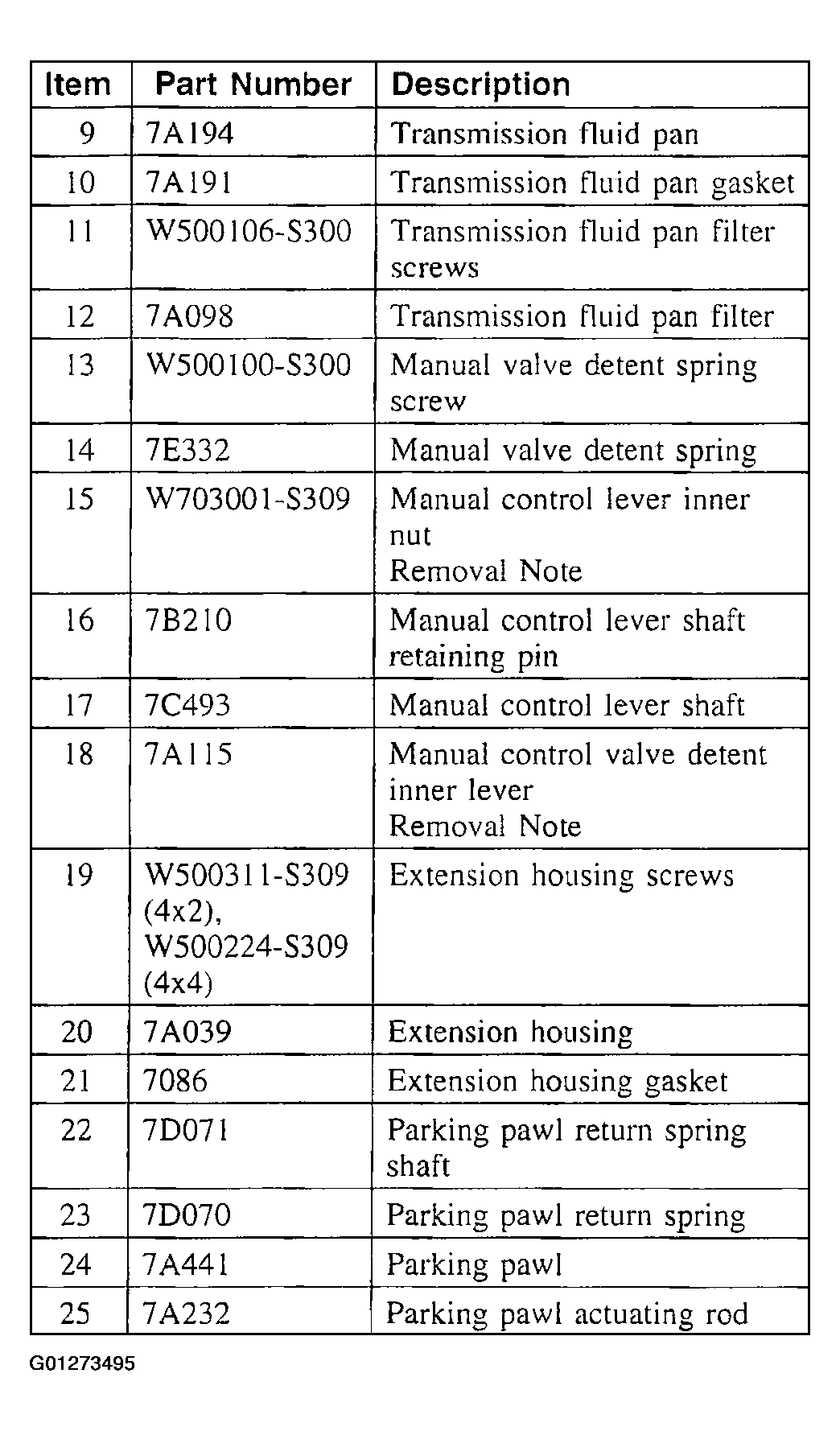

Fig 2: Removing Park System Components (2 Of 2)
Courtesy of FORD MOTOR CO.
