Shift Speeds

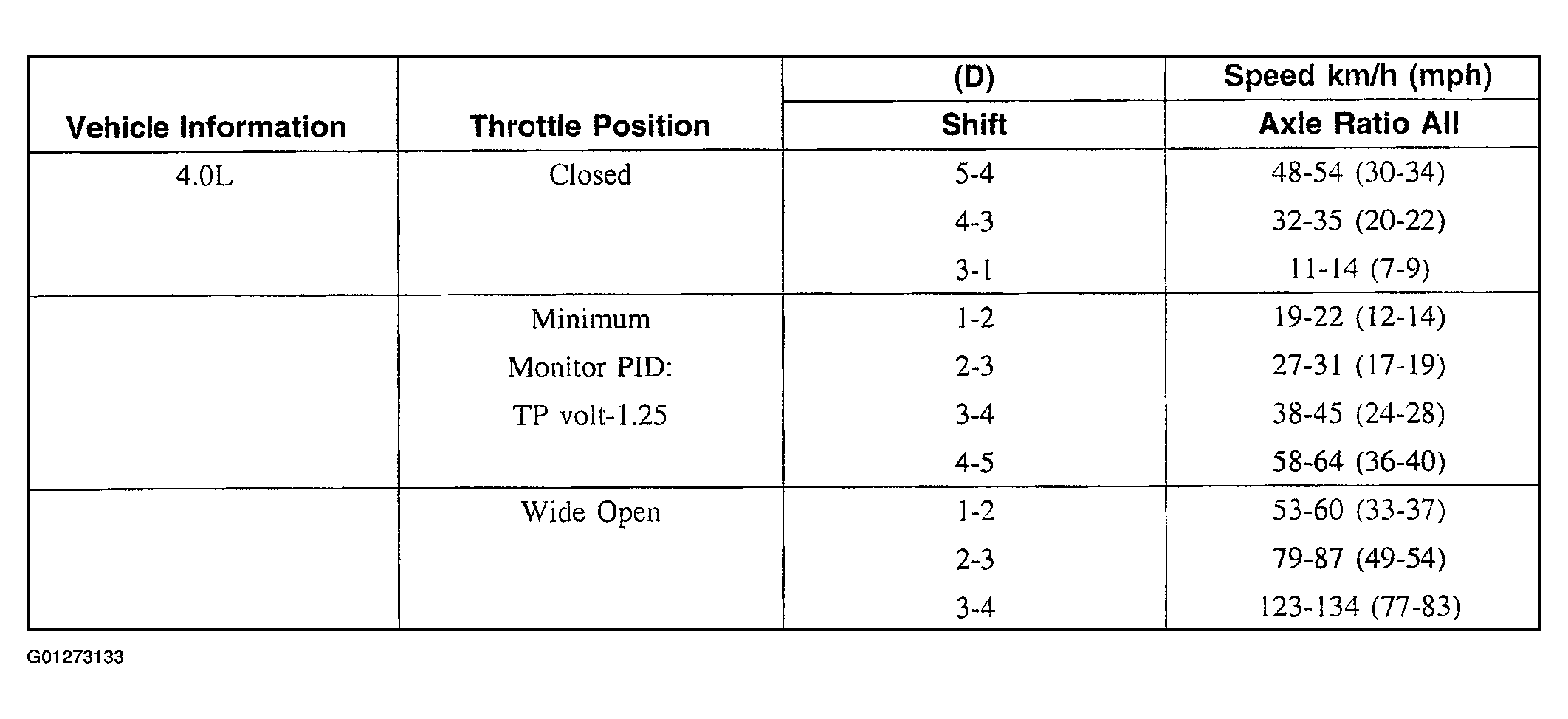

Fig 1: Shift Speeds Specification Chart - 4.0L
G01273133Courtesy of FORD MOTOR CO.

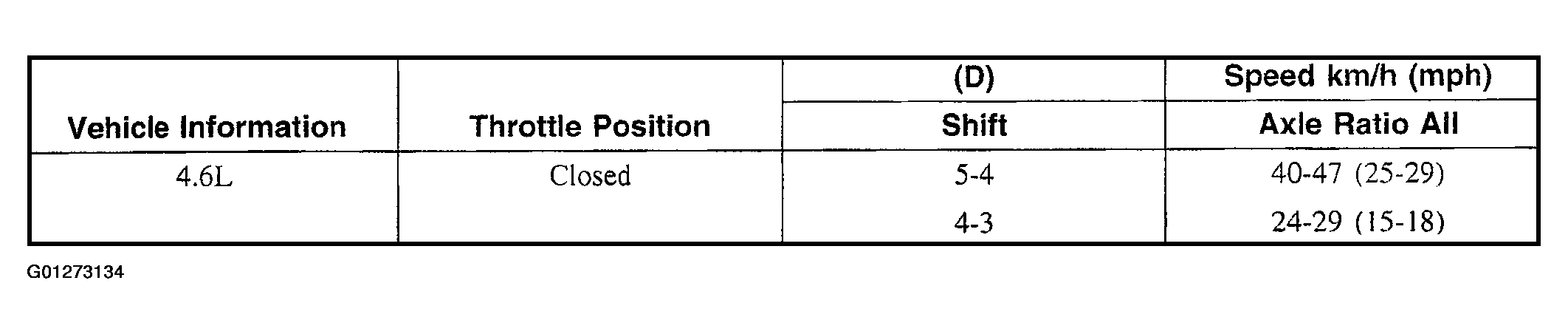

Fig 1: Shift Speeds Specification Chart - 4.6L (1 Of 2)
G01273134Courtesy of FORD MOTOR CO.

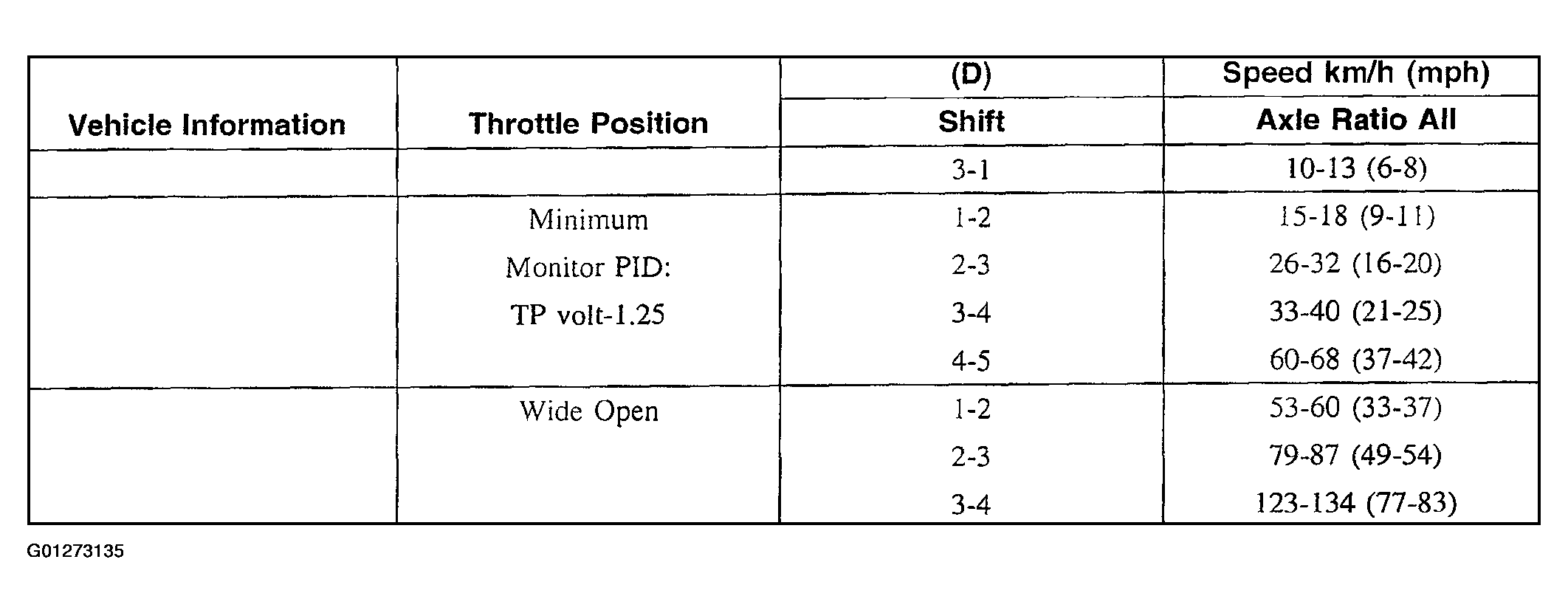

Fig 2: Shift Speeds Specification Chart - 4.6L (2 Of 2)
G01273135Courtesy of FORD MOTOR CO.
