Solenoid Operation Chart

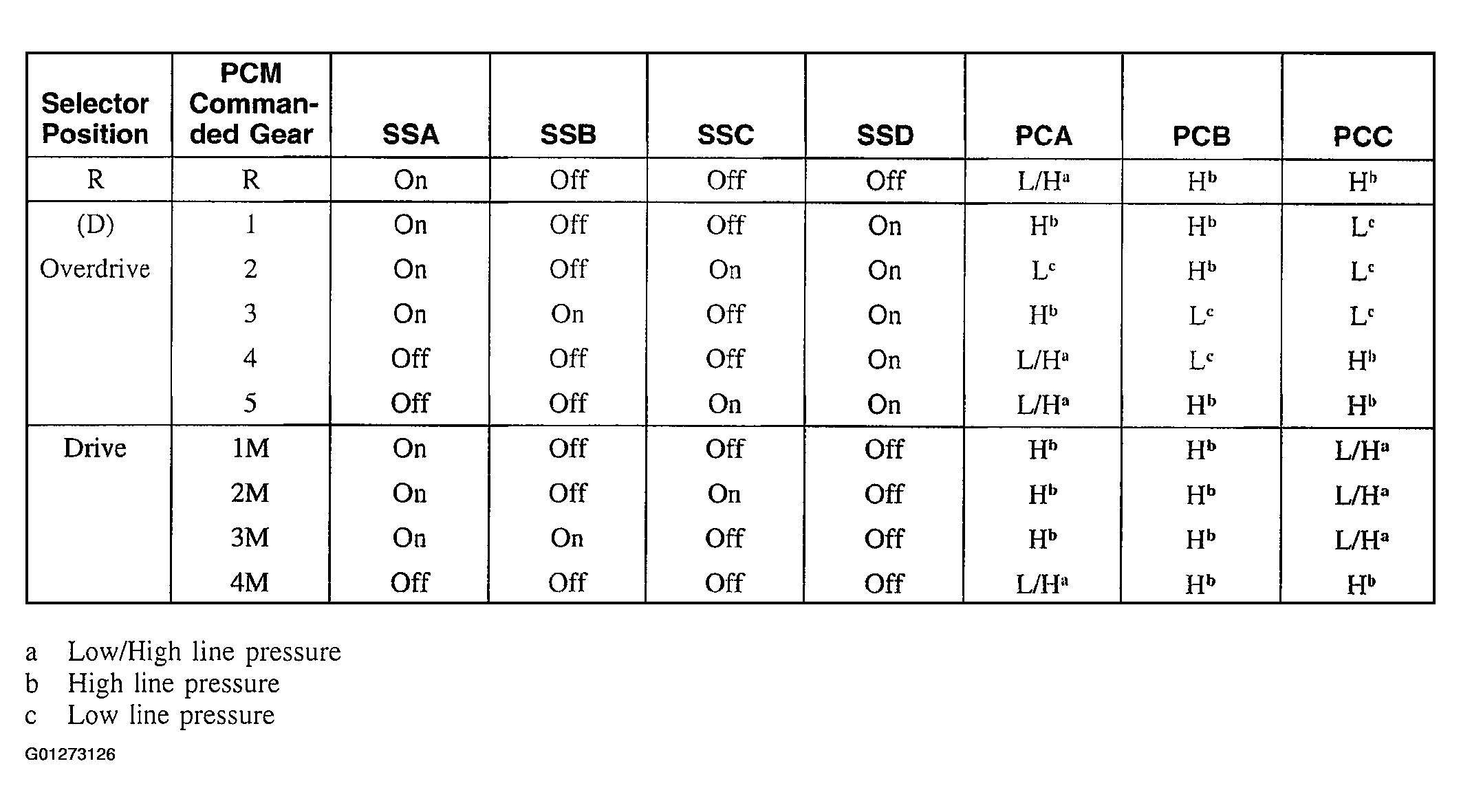

Fig 1: Solenoid Operation Specification Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
