Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a view is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

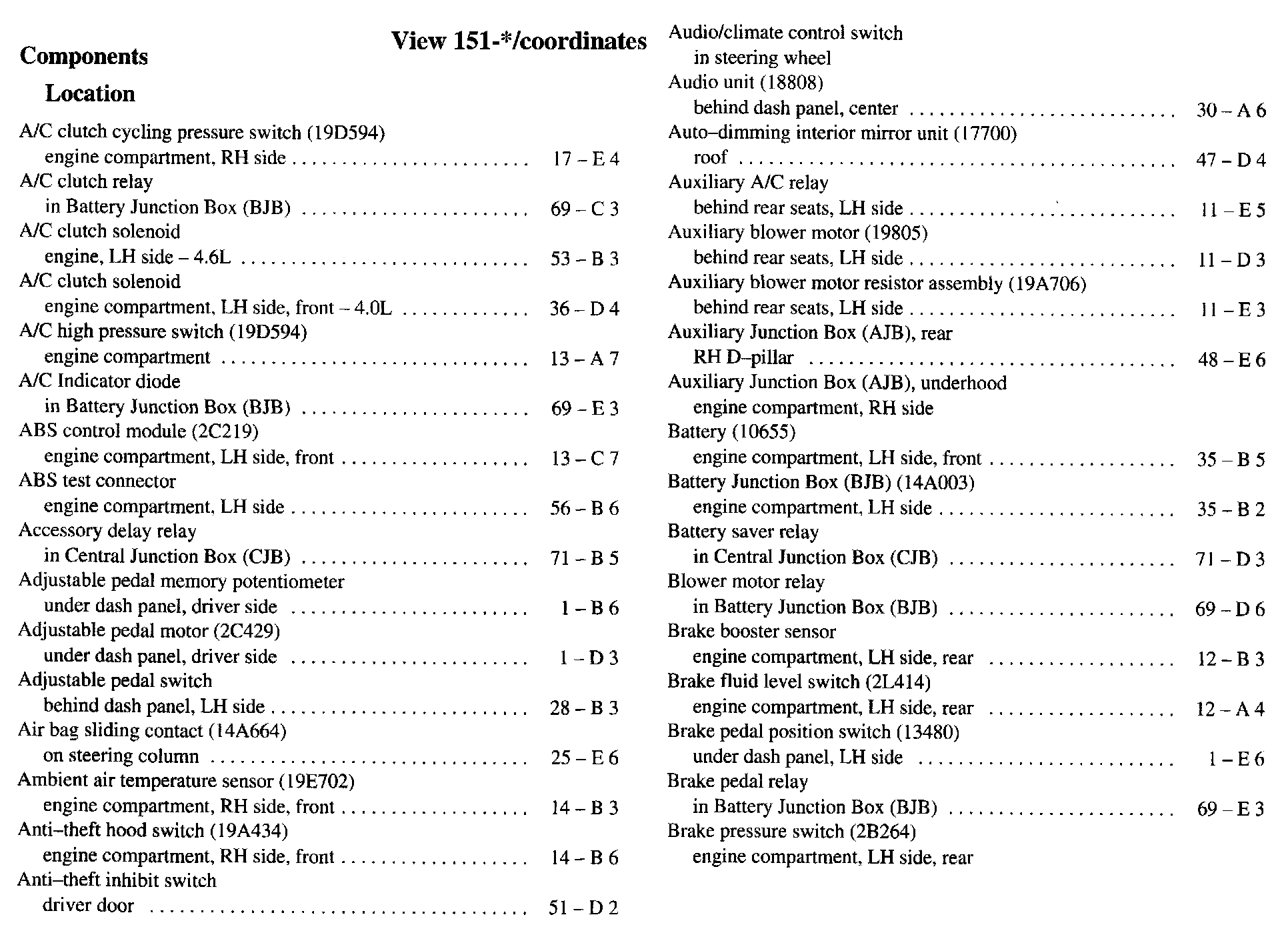

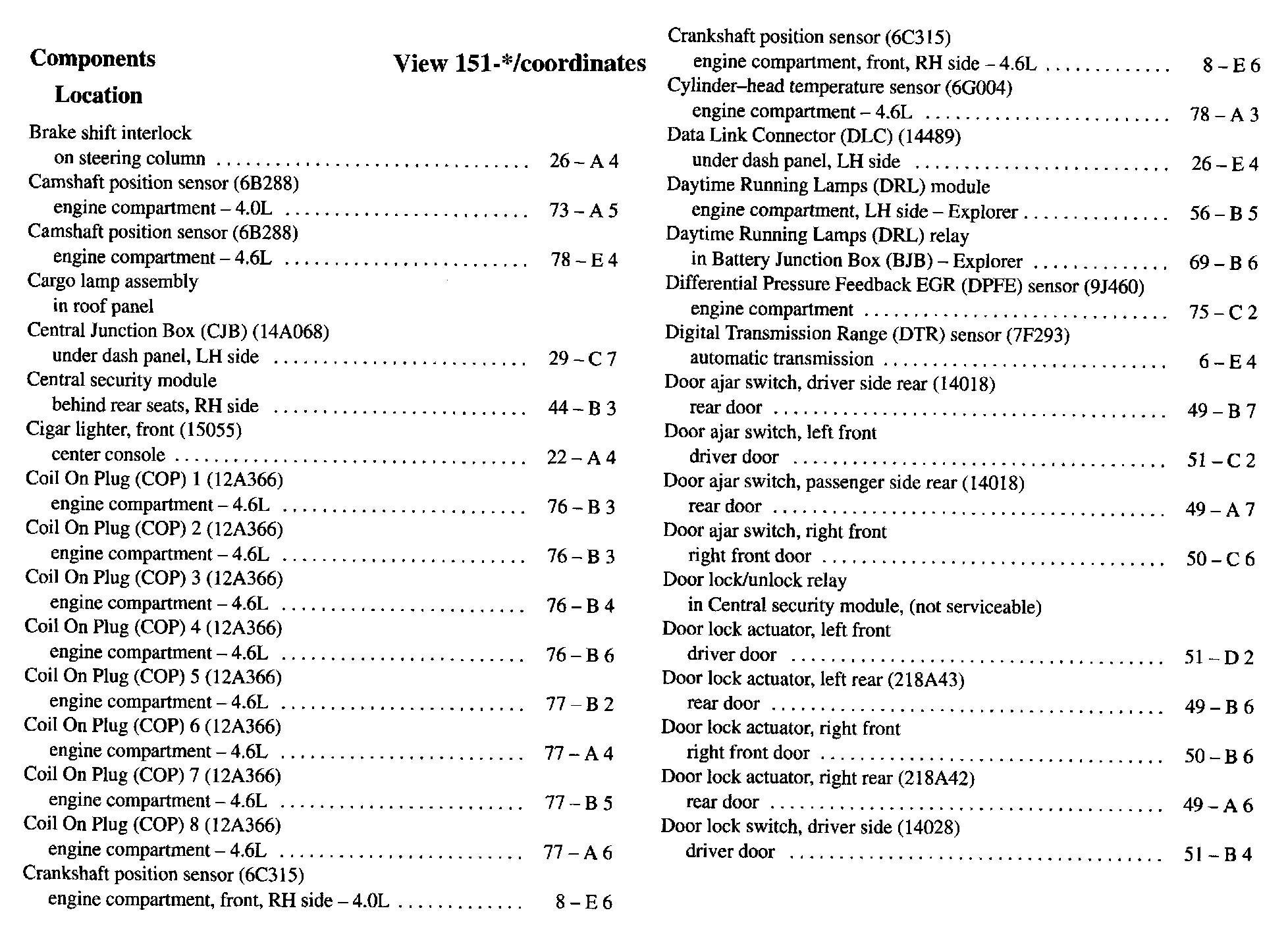

A/C - Br:

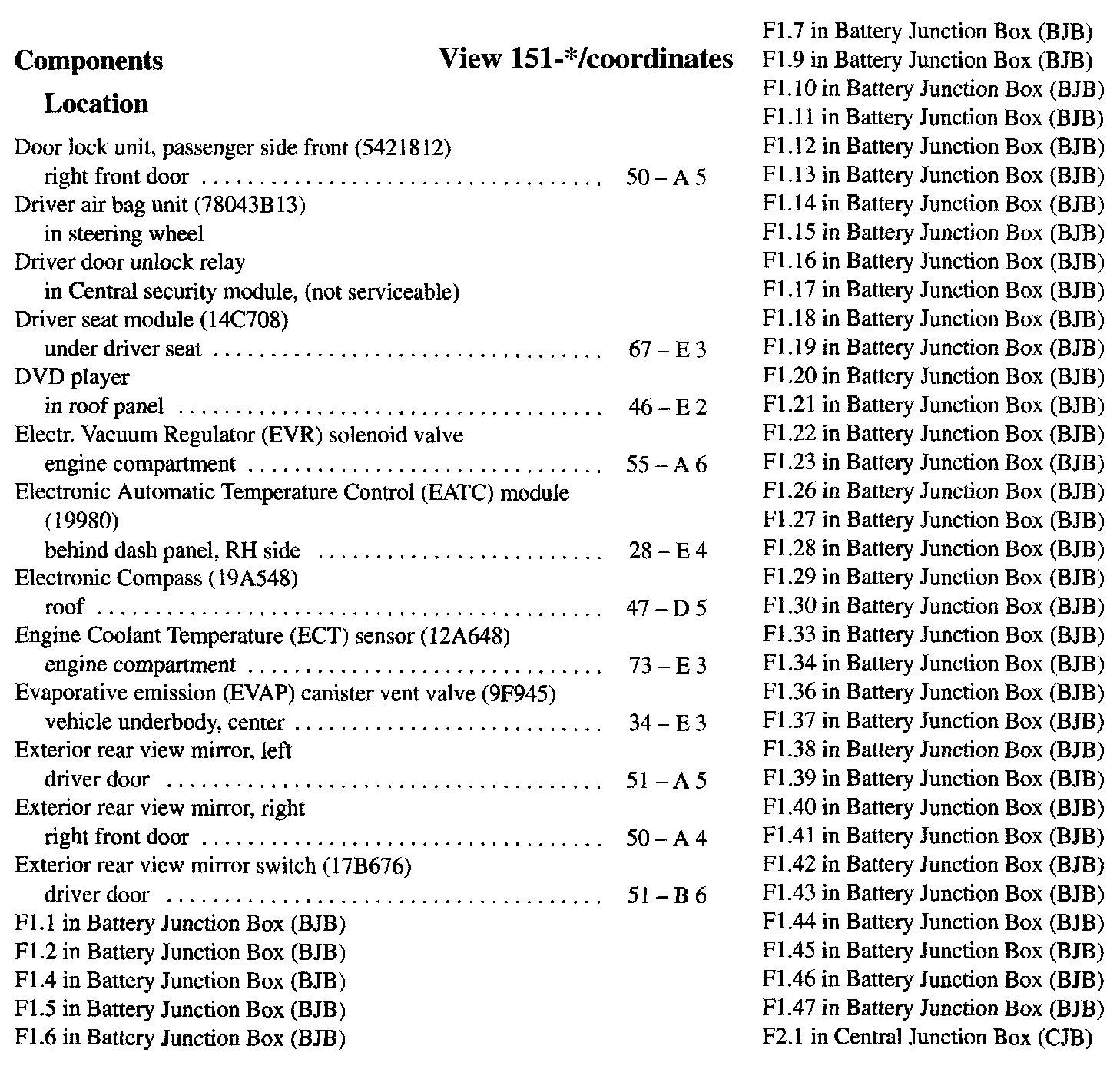

Br - Do:
Do - F2.1:

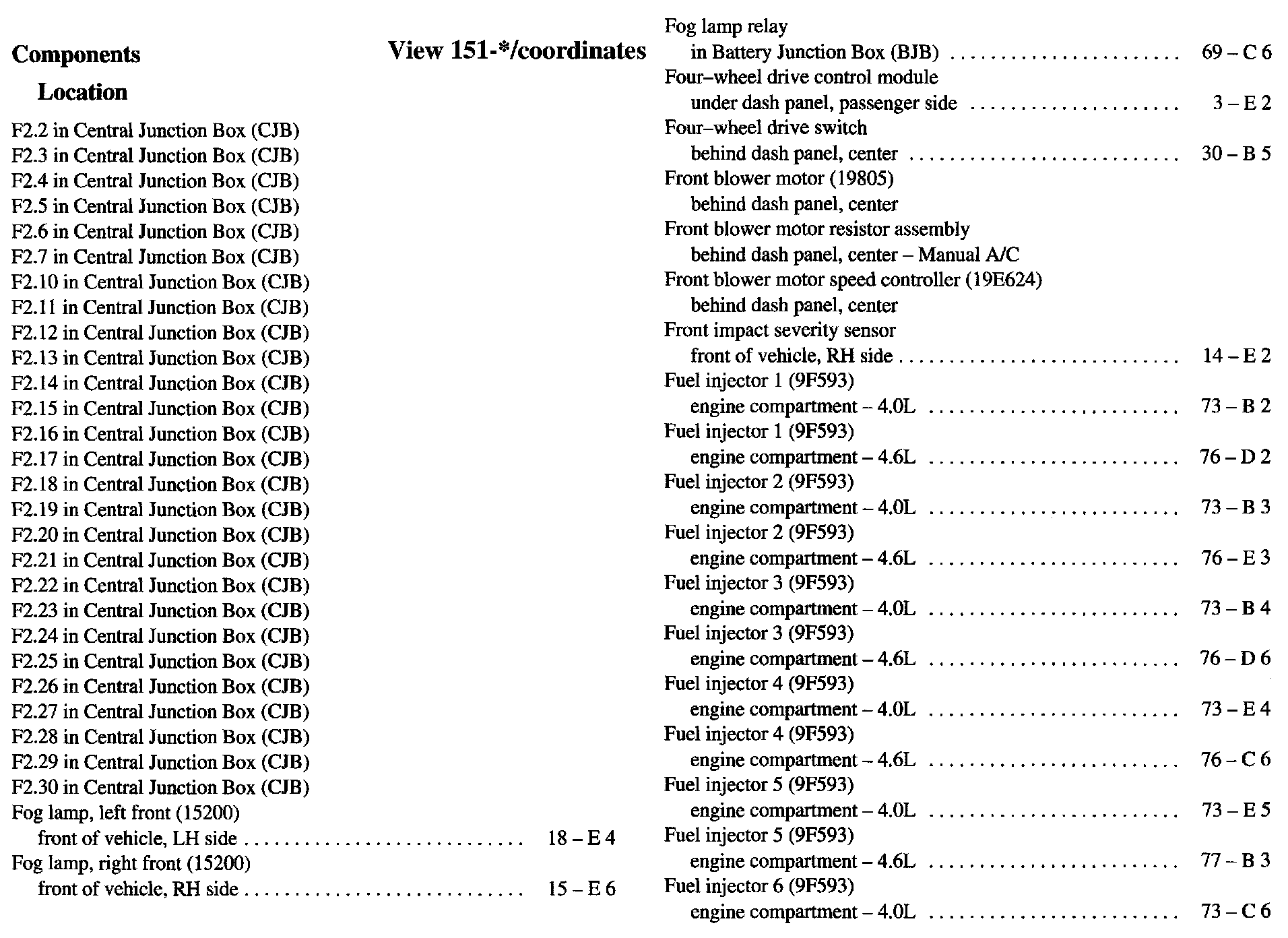

F2.2 - Fu:

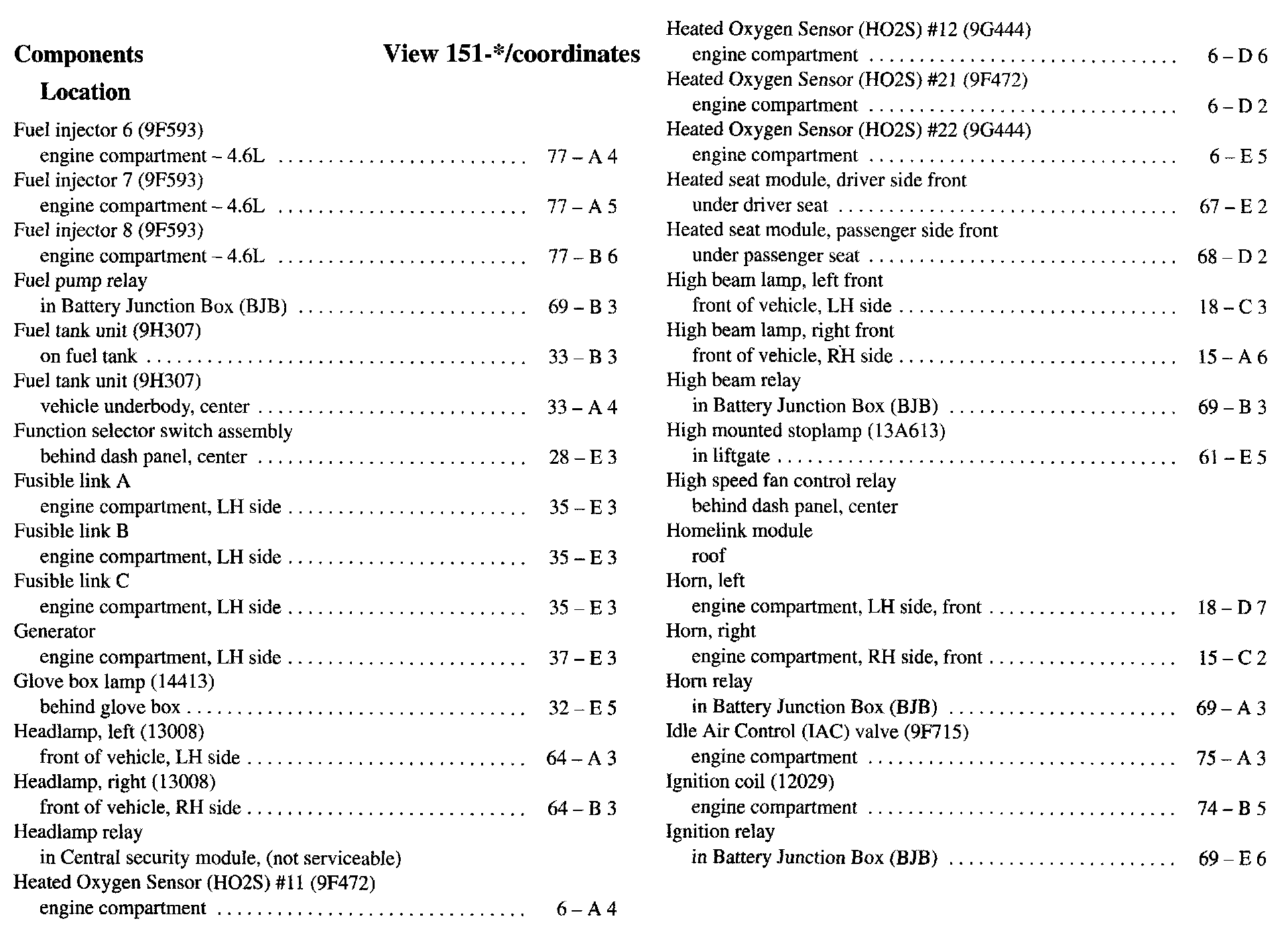

Fu - Ig:

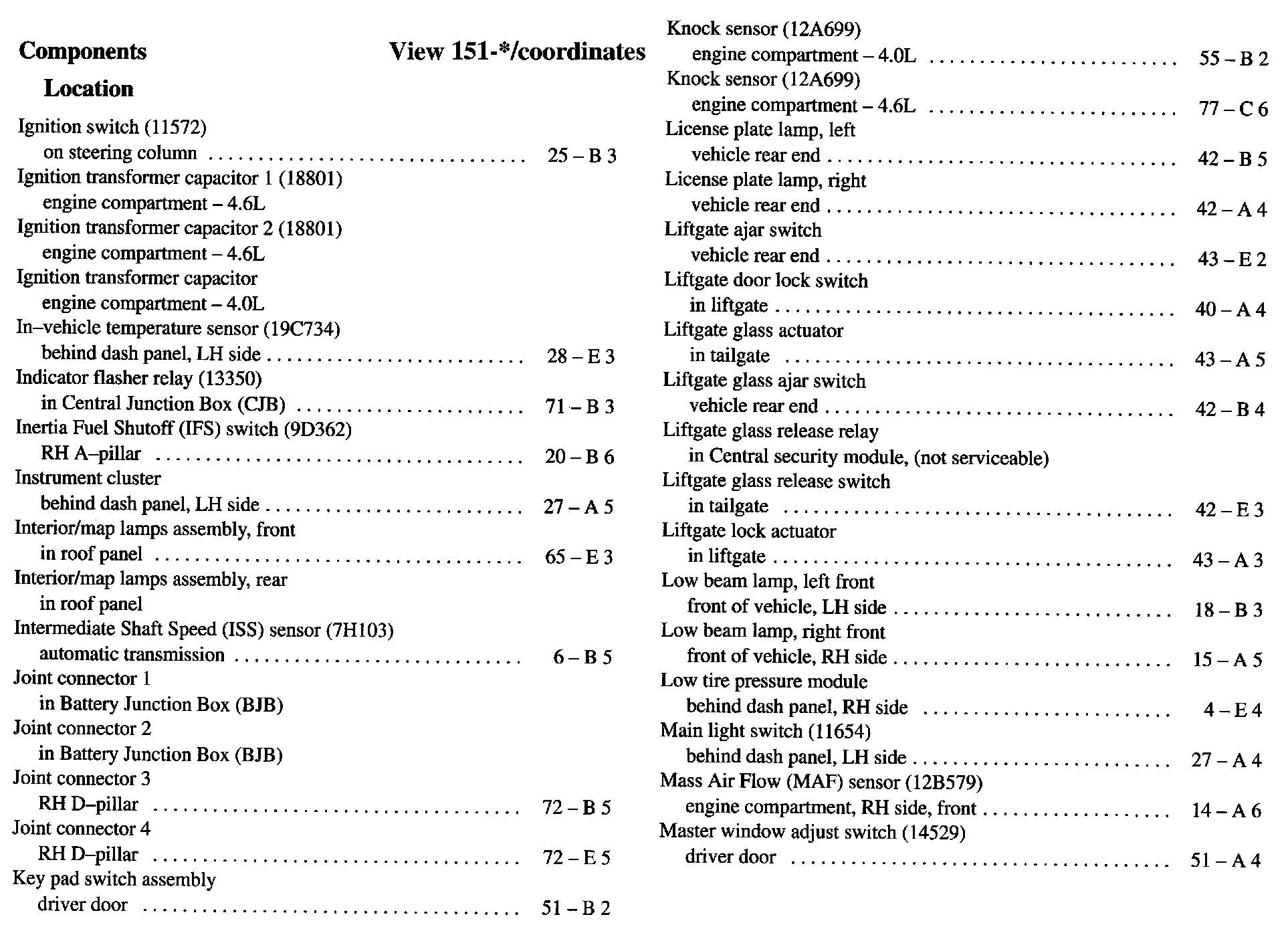

Ig - Ma:

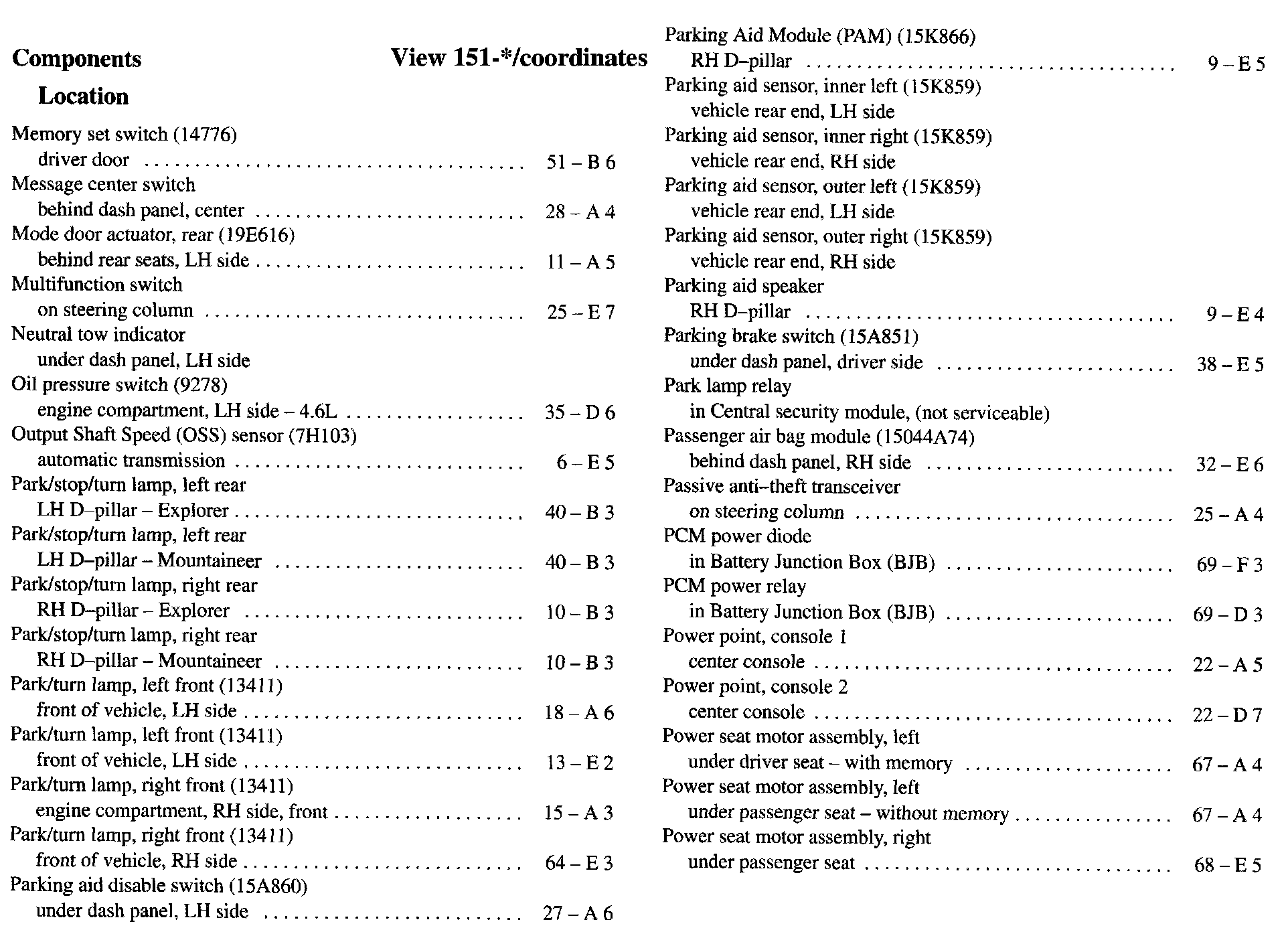

Me - Po:

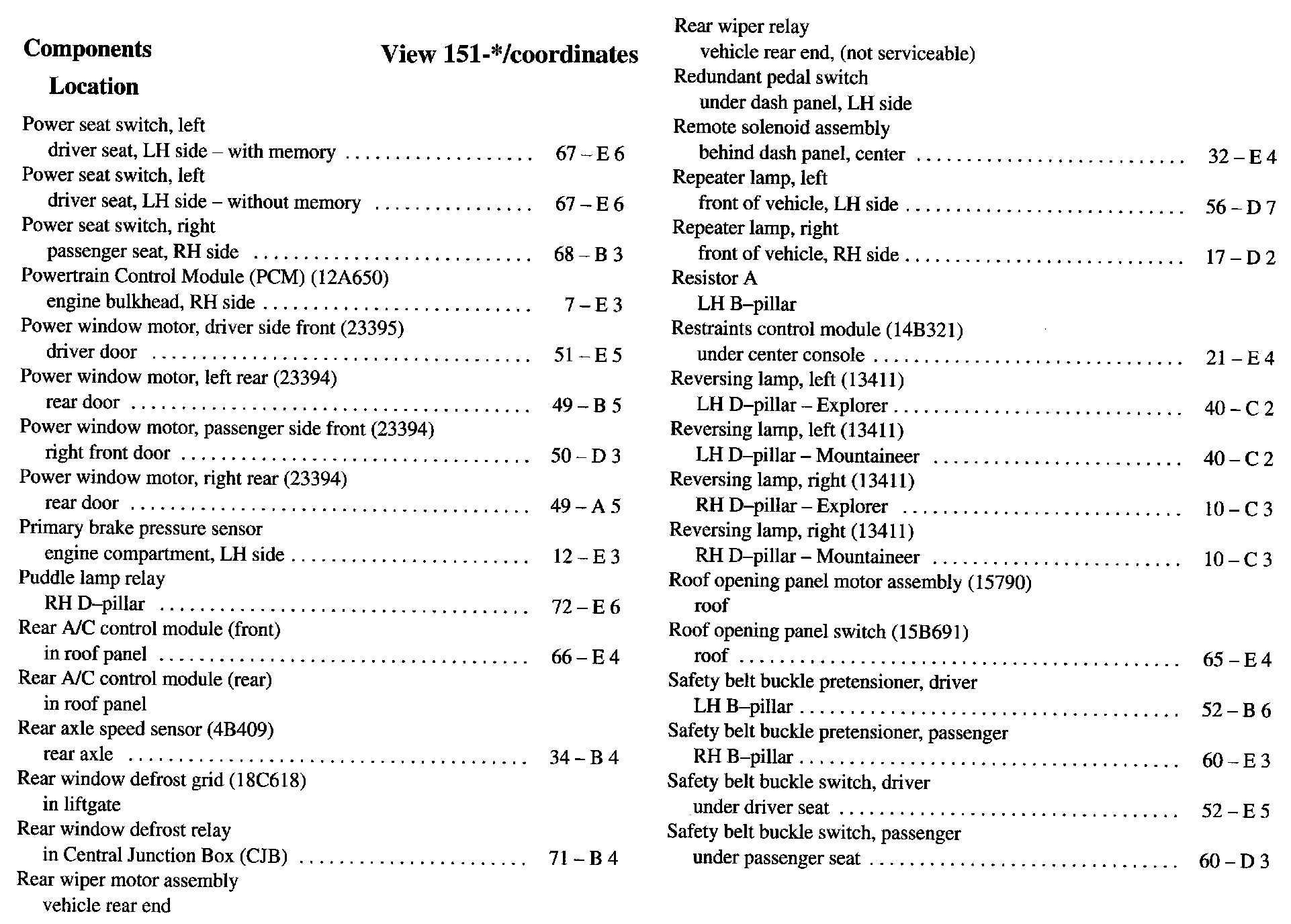

Po - Sa:

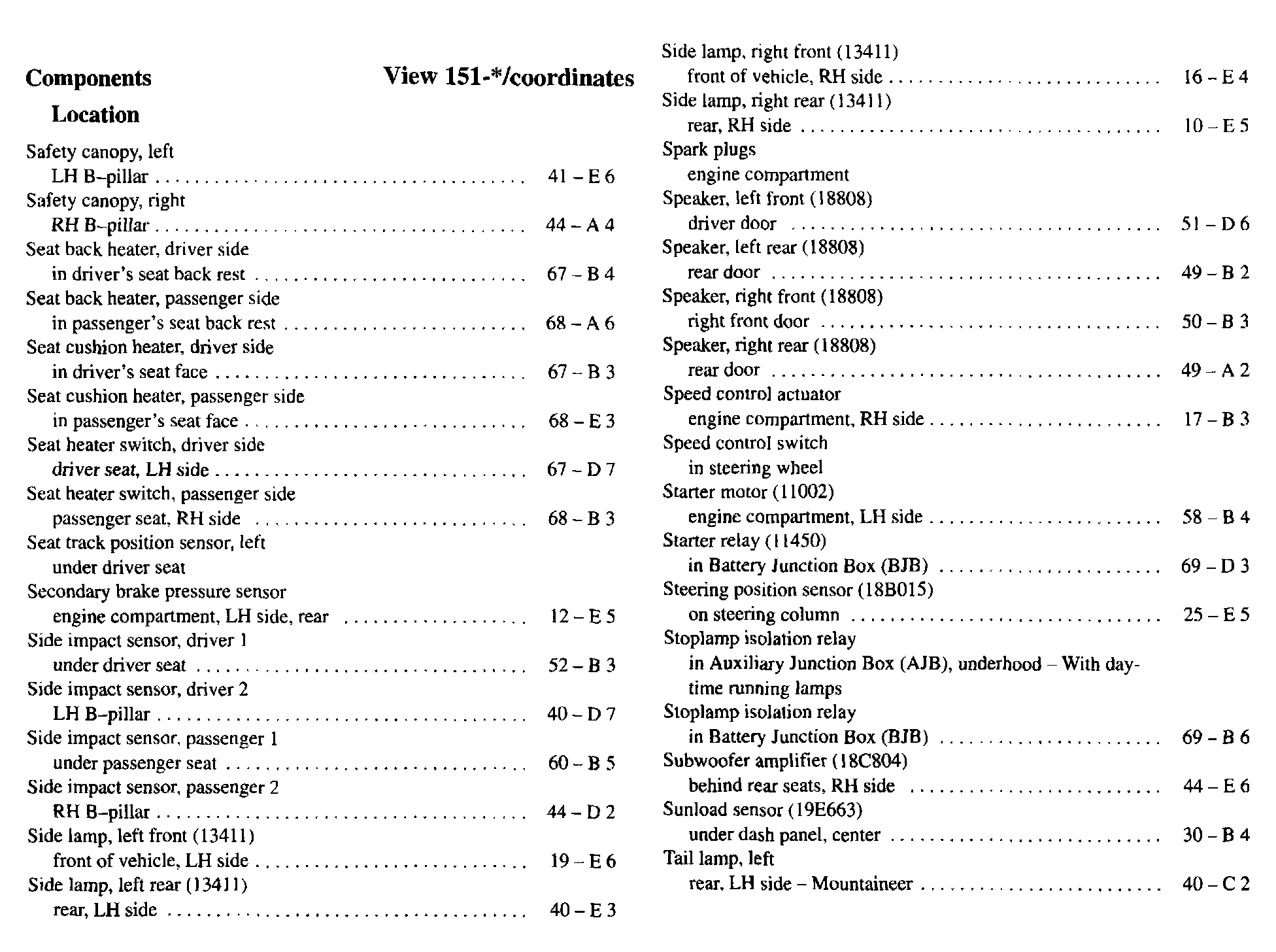

Sa - Ta:

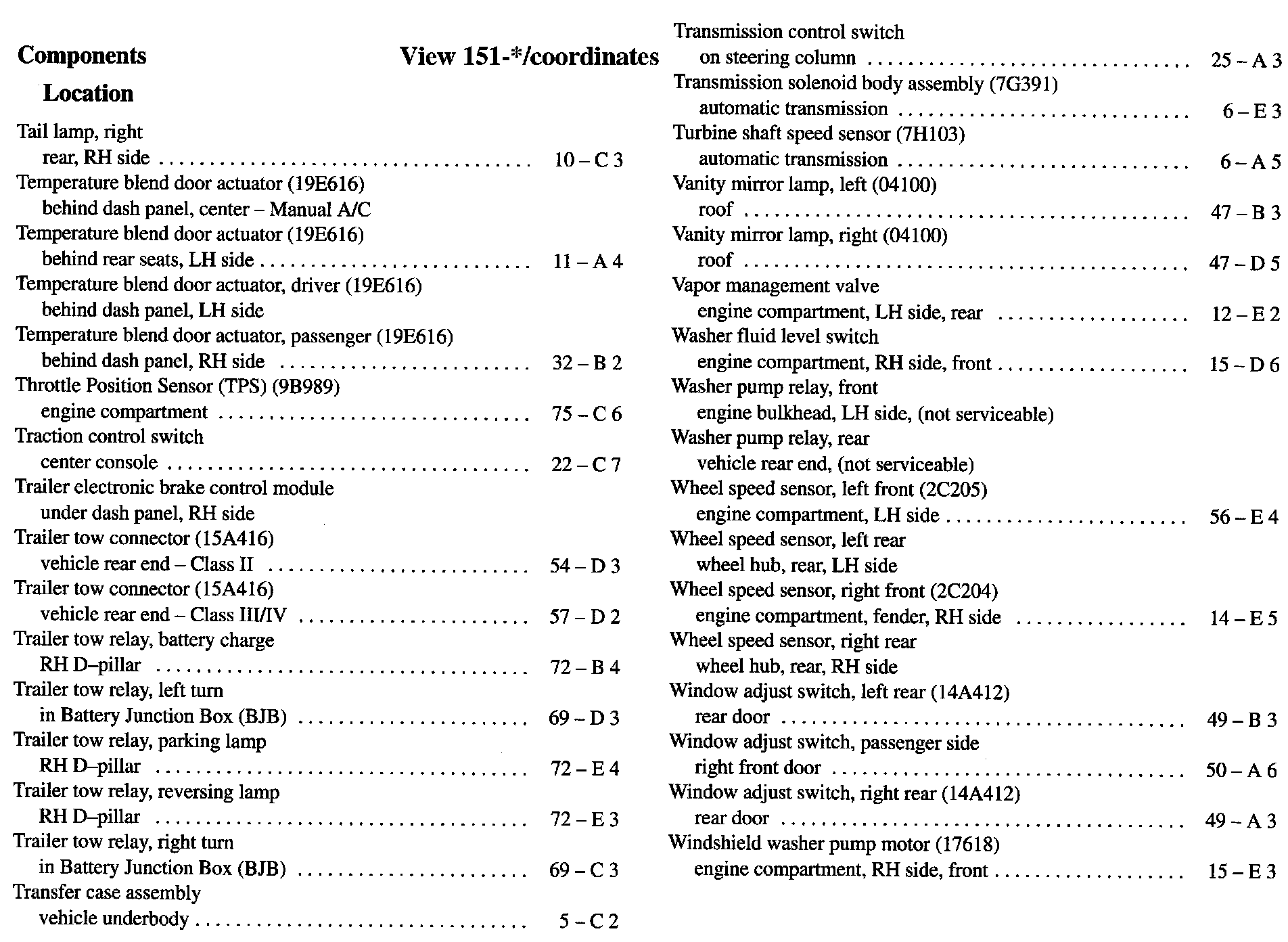

Ta - Wi:

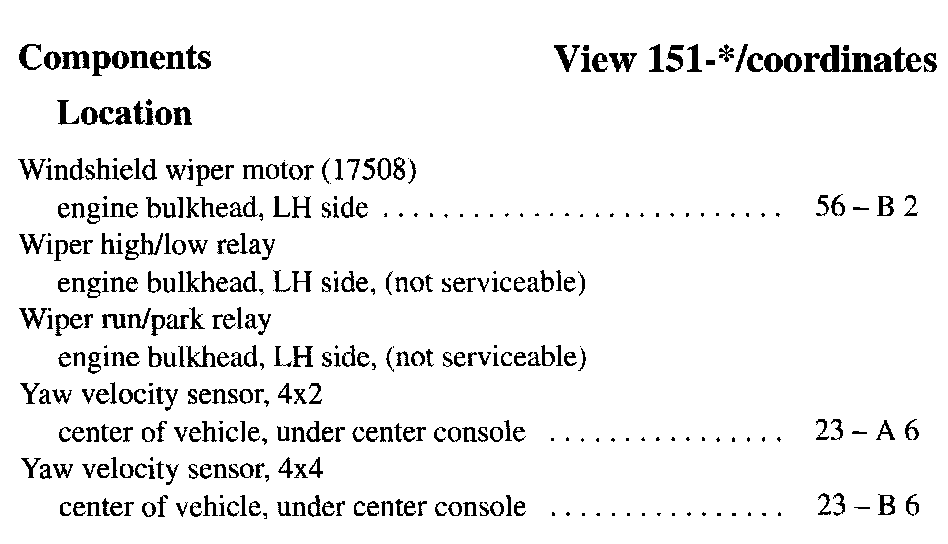

Wi - Ya:
