Rear Auxiliary Climate Control Assembly

AUXILIARY CLIMATE CONTROL ASSEMBLY - REAR

REMOVE

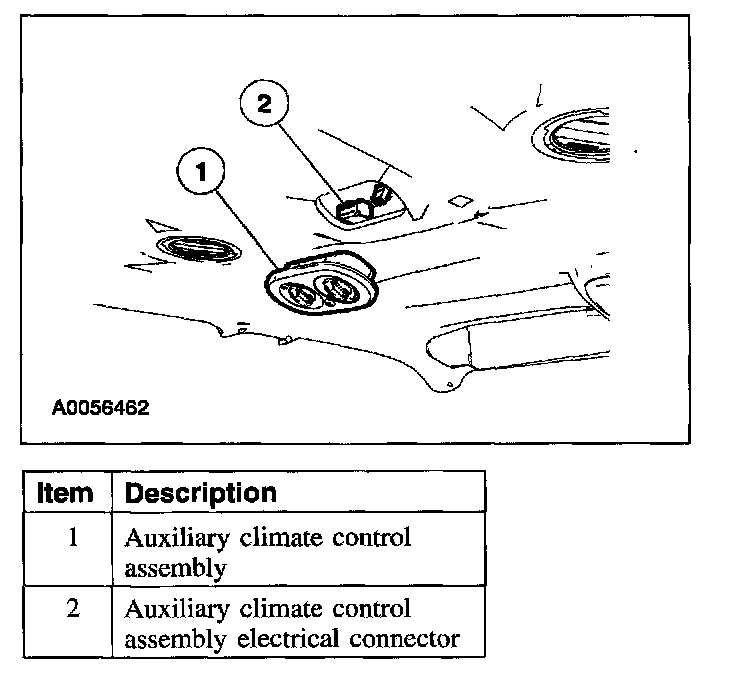

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
