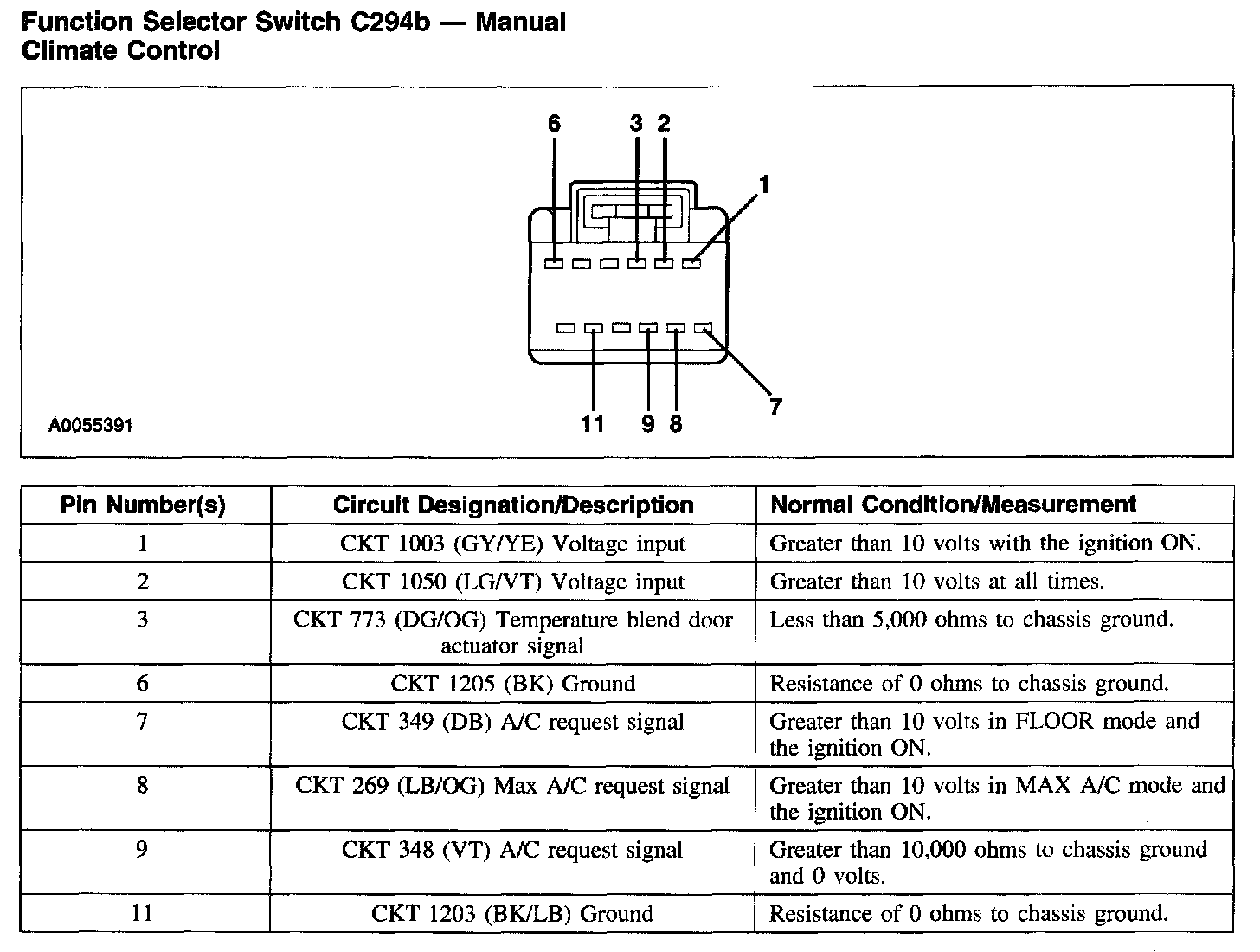

Function Selector Switch C294b - Manual Climate Control
Function Selector Switch C294b - Manual Climate Control:
